Headache Rack/Rooftop Basket Combo

Discussion in 'Garage / Workshop' started by clarktom6, Apr 23, 2014.

  1. Apr 23, 2014 at 11:02 AM
    #1
    clarktom6

    clarktom6 [OP] Member

    Joined:
    Oct 3, 2011
    Member:
    #64563
    Messages:
    51
    Gender:
    Male
    First Name:
    Tom
    Stationed in Ventura CA From Athena, OR
    Vehicle:
    '13 Tacoma DCSB 4x4 TRD Off-Road
    All-Pro Sliders OME 2.5" Coilovers w/ Top Plate Spacer Dakars w/ D29XL 285/75/r16 Goodyear Wrangler Duratracs Custom Headache Rack w/ Hella Black Magic 500's and outboard work lights
    I've been designing a headache rack with a rooftop basket attached (not sure if i want to weld rack or bolt it on for removal) and wanted to see if anyone had any input as to design flaws or additions. I plan on putting gussets where the rack and basket meet up. I only plan on using it for a camping gear/ATV riding gear, and a cooler. Curious to see what you all think. Also, plan on doing light tabs near wind deflector.


    Attached Files:

  2. Apr 23, 2014 at 11:09 AM
    #2
    OZ-T

    OZ-T Did you get your precious photos ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    24,807
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Interesting concept

  3. Apr 23, 2014 at 11:18 AM
    #3
    clarktom6

    clarktom6 [OP] Member

    Joined:
    Oct 3, 2011
    Member:
    #64563
    Messages:
    51
    Gender:
    Male
    First Name:
    Tom
    Stationed in Ventura CA From Athena, OR
    Vehicle:
    '13 Tacoma DCSB 4x4 TRD Off-Road
    All-Pro Sliders OME 2.5" Coilovers w/ Top Plate Spacer Dakars w/ D29XL 285/75/r16 Goodyear Wrangler Duratracs Custom Headache Rack w/ Hella Black Magic 500's and outboard work lights
    Attached wrong file....

    Headache Rack with Rooftop Basket.jpg

  4. Apr 23, 2014 at 11:20 AM
    #4
    OZ-T

    OZ-T Did you get your precious photos ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    24,807
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

    Same as I saw the first time

    Have you considered running a top rail the length of the bed for tie down points ?

  5. Apr 23, 2014 at 11:20 AM
    #5
    clarktom6

    clarktom6 [OP] Member

    Joined:
    Oct 3, 2011
    Member:
    #64563
    Messages:
    51
    Gender:
    Male
    First Name:
    Tom
    Stationed in Ventura CA From Athena, OR
    Vehicle:
    '13 Tacoma DCSB 4x4 TRD Off-Road
    All-Pro Sliders OME 2.5" Coilovers w/ Top Plate Spacer Dakars w/ D29XL 285/75/r16 Goodyear Wrangler Duratracs Custom Headache Rack w/ Hella Black Magic 500's and outboard work lights
    I need extra storage for when i load the ATV and Dirtbike in the bed, so this is what I came up with.

  6. Apr 23, 2014 at 11:22 AM
    #6
    clarktom6

    clarktom6 [OP] Member

    Joined:
    Oct 3, 2011
    Member:
    #64563
    Messages:
    51
    Gender:
    Male
    First Name:
    Tom
    Stationed in Ventura CA From Athena, OR
    Vehicle:
    '13 Tacoma DCSB 4x4 TRD Off-Road
    All-Pro Sliders OME 2.5" Coilovers w/ Top Plate Spacer Dakars w/ D29XL 285/75/r16 Goodyear Wrangler Duratracs Custom Headache Rack w/ Hella Black Magic 500's and outboard work lights
    It would get in the way of the Glidplate, brake and footpeg on my dirtbike. I only have an 1.5" clearance to the bed rail.

  7. Apr 23, 2014 at 11:23 AM
    #7
    OZ-T

    OZ-T Did you get your precious photos ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    24,807
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

    Like this

    [​IMG]

  8. Apr 23, 2014 at 11:26 AM
    #8
    FreidTaco

    FreidTaco boost

    Joined:
    Sep 21, 2011
    Member:
    #63918
    Messages:
    1,775
    Gender:
    Male
    First Name:
    jeff
    Panhandle of Wyoming
    Vehicle:
    06 Tacoma TRD OffRoad SR5
    Billys 5100 all four corners, fronts set at 0 with 886x coils, 2" AAL, Betterbuilt toolbox, 1.25" spidertrax, 3" Flowmaster 50 series delta flow, own fog light mod, mounted Streamlight rechargeable stinger, toolbox light, ScanGuage Oh... and URD Stage 3 SC
    I would add a support here. Those corners will have lots of stress on them.

    [​IMG]

  9. Apr 23, 2014 at 11:27 AM
    #9
    clarktom6

    clarktom6 [OP] Member

    Joined:
    Oct 3, 2011
    Member:
    #64563
    Messages:
    51
    Gender:
    Male
    First Name:
    Tom
    Stationed in Ventura CA From Athena, OR
    Vehicle:
    '13 Tacoma DCSB 4x4 TRD Off-Road
    All-Pro Sliders OME 2.5" Coilovers w/ Top Plate Spacer Dakars w/ D29XL 285/75/r16 Goodyear Wrangler Duratracs Custom Headache Rack w/ Hella Black Magic 500's and outboard work lights
    Not Sure if you can see the footpeg in that picture


  10. Apr 23, 2014 at 11:28 AM
    #10
    XJfella95

    XJfella95 Product Developer

    Joined:
    Dec 11, 2013
    Member:
    #118409
    Messages:
    142
    Gender:
    Male
    First Name:
    Brandon
    Hamilton, Montana
    looks strong. Your cantilevered transition between the rack and the basket should be strong enough to hold its own weight but for extra measure, i would tie it into the factory roof racks forward most mounting points. this will alleviate any bouncing when you load it up with a cooler.

    also, you're showing sq tube from the whole construction. I would opt to use flat bar behind the glass and angle iron in a heel up orientation for the base of the basket to save weight.

    just a few things i can see, otherwise its a good design. just heavy.

  11. Apr 23, 2014 at 11:35 AM
    #11
    clarktom6

    clarktom6 [OP] Member

    Joined:
    Oct 3, 2011
    Member:
    #64563
    Messages:
    51
    Gender:
    Male
    First Name:
    Tom
    Stationed in Ventura CA From Athena, OR
    Vehicle:
    '13 Tacoma DCSB 4x4 TRD Off-Road
    All-Pro Sliders OME 2.5" Coilovers w/ Top Plate Spacer Dakars w/ D29XL 285/75/r16 Goodyear Wrangler Duratracs Custom Headache Rack w/ Hella Black Magic 500's and outboard work lights
    Thanks, I forgot to mention weight reduction in my original post.

  12. Apr 23, 2014 at 11:38 AM
    #12
    clarktom6

    clarktom6 [OP] Member

    Joined:
    Oct 3, 2011
    Member:
    #64563
    Messages:
    51
    Gender:
    Male
    First Name:
    Tom
    Stationed in Ventura CA From Athena, OR
    Vehicle:
    '13 Tacoma DCSB 4x4 TRD Off-Road
    All-Pro Sliders OME 2.5" Coilovers w/ Top Plate Spacer Dakars w/ D29XL 285/75/r16 Goodyear Wrangler Duratracs Custom Headache Rack w/ Hella Black Magic 500's and outboard work lights
    You think this would be enough for the corners?

    Headache Rack with Rooftop Basket_supports.jpg

  13. Apr 23, 2014 at 11:43 AM
    #13
    gooch14

    gooch14 Well-Known Member

    Joined:
    Dec 20, 2010
    Member:
    #47968
    Messages:
    2,612
    Gender:
    Male
    First Name:
    Kyle
    Michigan
    Vehicle:
    2011 Blk DC Taco SR5 4x LB
    Bestop, Child Seats, petrified french fry, dog hair, empty Mtn Dew cans cracked windshield, scratches.

    My brother has a cheaply made ladder rack for his 1ton Ford LB that is like what you're describing Oz. For something tough to be made with that cross member would be very interesting to me. I also haul dirtbikes, OP, and I bet you could make the crossmember to be removable. Slide it out, load the bike, slide the beam back in. Bolts or quick pins.

  14. Apr 23, 2014 at 11:44 AM
    #14
    clarktom6

    clarktom6 [OP] Member

    Joined:
    Oct 3, 2011
    Member:
    #64563
    Messages:
    51
    Gender:
    Male
    First Name:
    Tom
    Stationed in Ventura CA From Athena, OR
    Vehicle:
    '13 Tacoma DCSB 4x4 TRD Off-Road
    All-Pro Sliders OME 2.5" Coilovers w/ Top Plate Spacer Dakars w/ D29XL 285/75/r16 Goodyear Wrangler Duratracs Custom Headache Rack w/ Hella Black Magic 500's and outboard work lights
    Great idea...wouldn't take much either.

  15. Apr 23, 2014 at 12:47 PM
    #15
    OZ-T

    OZ-T Did you get your precious photos ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    24,807
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    The rear crossmember in that pic is removeable and nests against the front when not in use , I'll see if I have another pic

  16. Apr 23, 2014 at 12:52 PM
    #16
    OZ-T

    OZ-T Did you get your precious photos ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    24,807
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    You can see the rear crossmember sits in a pocket and secured by a removeable through pin and cotter , when disconnected it nests inside the front crossmember

    [​IMG]

  17. Apr 26, 2014 at 5:34 PM
    #17
    OZ-T

    OZ-T Did you get your precious photos ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    24,807
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

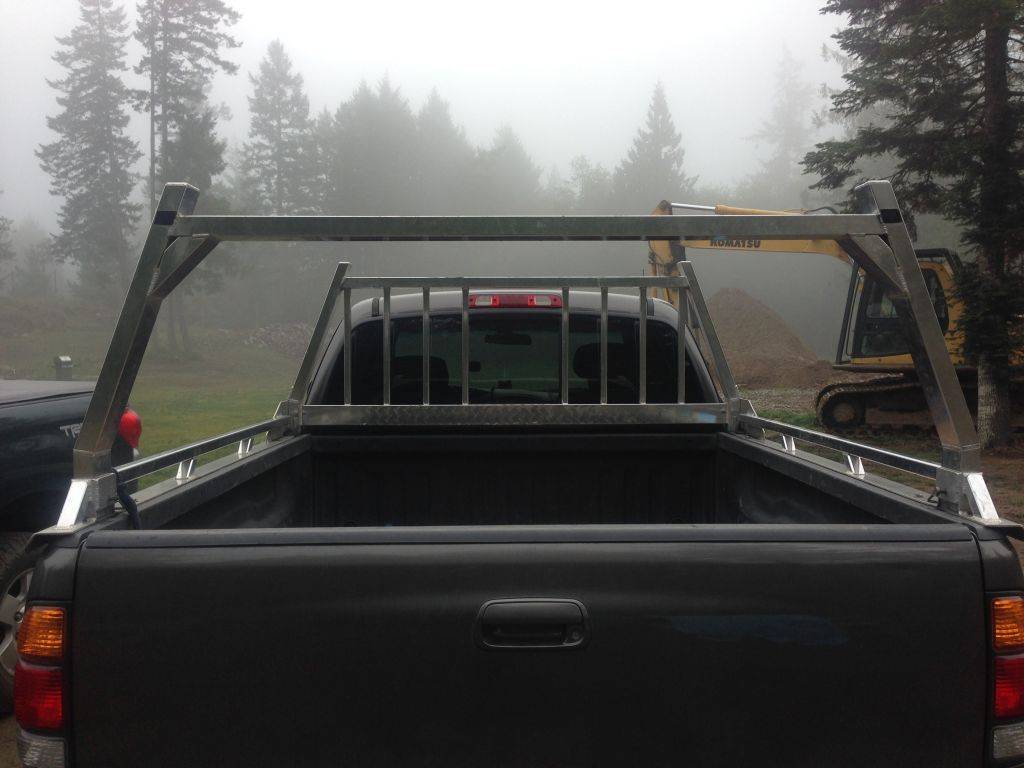

    Came across this pic

    [​IMG]

  18. Apr 26, 2014 at 5:39 PM
    #18
    avw4x4

    avw4x4 Well-Known Member

    Joined:
    Oct 20, 2013
    Member:
    #114886
    Messages:
    1,980
    Gender:
    Male
    First Name:
    Andrew
    Rochester, NY
    Vehicle:
    '93 FZJ80
    OME 2.5" lift, cobra cb radio, smashed rocker panels
    The roof rack they made on "trucks" was kind of what you're going for. Theirs wobbled more than I would want though, that's going to be kind of tough to get around with the cantilevered design I would think.

  19. May 26, 2014 at 5:46 PM
    #19
    LINCOLN45

    LINCOLN45 Well-Known Member

    Joined:
    May 25, 2014
    Member:
    #130561
    Messages:
    60
    Gender:
    Male
    First Name:
    john
    sac
    Vehicle:
    tacoma
    so if you used something like the n fab or other roof rack mount to support the basket over the cab

  20. Nov 10, 2014 at 5:38 PM
    #20
    TacomaTruckParts

    TacomaTruckParts Well-Known Member

    Joined:
    Jun 6, 2014
    Member:
    #131435
    Messages:
    241
    Gender:
    Male
    First Name:
    Jesse
    San Gabriel
    OP, A few points not to be missed:

    Think twice before "connecting" a bed rack to a roof rack; If you do even mild off roading, there WILL be frame flex/twist. that is why the bed is separate from the cab, to allow for some movement. Bolting a bed/roof rack to roof mounts and bed mounts could cause damage somewhere..... at the weakest point of attachment.

    For the cantilever design to work and be strong, the wall thickness of the verticals, and the size of the "triangles" will play an important role. There are a couple different ways to do a cantilever type support.

    You are asking a lot from that type of design. Notice how true over-cab ladder racks are not bolted to the cab, but usually have a cantilever support for the over-cab section, and bolt only to the front and rear of the bed.... for the strength to carry the rated load capicity of the ladder rack.

    Jesse

    rack 1.jpg
    rack 2.jpg
