Headlight Removal, pics

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Chris(NJ), Dec 13, 2010.

  1. Dec 13, 2010 at 3:12 PM
    #1
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    I removed my headlights today to start the BHLM (Blue headlight mod ;) )

    As most people probably know, there is a bolt that is a pain to remove. The first few are obvious to remove, but I didnt figure out the last one until I did a quick search on TW! Someone mentioned a 10mm and a half of a situp to get it out. Sure enough, thats an accurate description, lol. Anyway, I thought I'd put up a couple pics for those who might want to see the area before tackling the removal. I didnt see any pics posted, but then again, I didnt look very hard since the description I read was enough for me. Well, I hope this helps some people out.

    Heres the first few things that need to be removed. Obviously, this is from the point of the grille being removed.

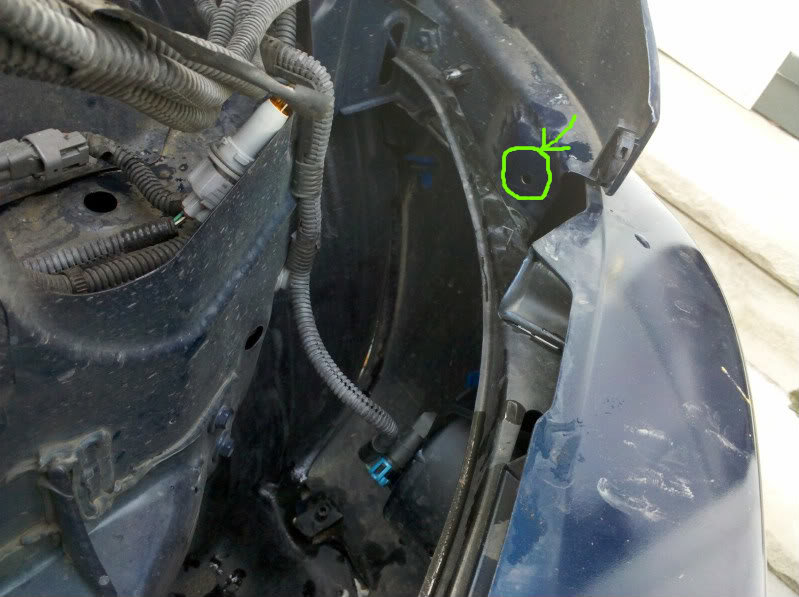

    If you didnt know that these two screws are holding the headlight down, stop any further work on your truck ;)

    [​IMG]




    Theres also another one tucked down in the bottom. I pulled the bumper forward a little and its enough to get it out of there. Also, get that push pin out.

    [​IMG]

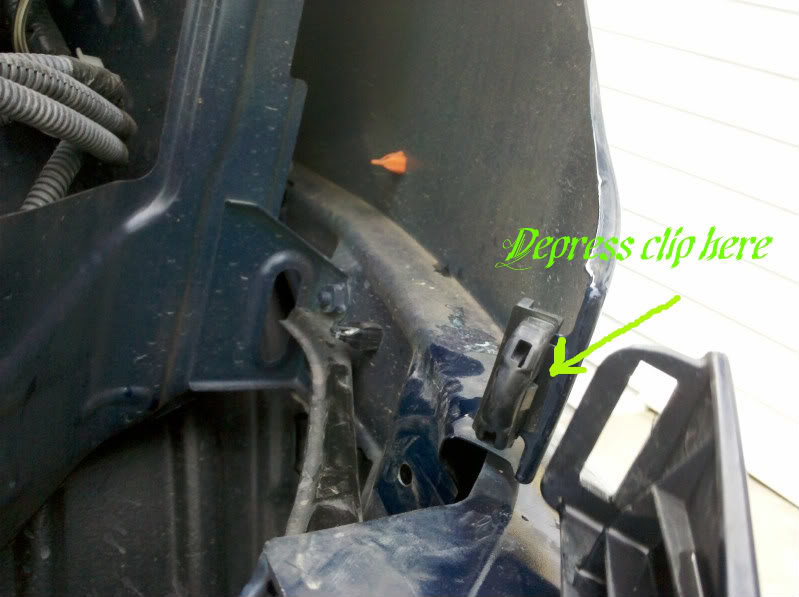

    I now removed the lower trim piece under the headlight. The inner end of the piece should already be loose from undoing the push pin. Now just use a flat head screwdriver to depress the clip and pull the trim piece towards the center of the vehicle to remove it.

    [​IMG]


    Now for the harder part. To make things really easy, just remove the two 10mm/phillips screws that hold the lower portion of the fender liner in place. I just bent the plastic liner up out of my way. Once I removed the headlight, I simply put this back in place. The two screws are at the bottom of the fender. Very easy to find. No pic necessary.

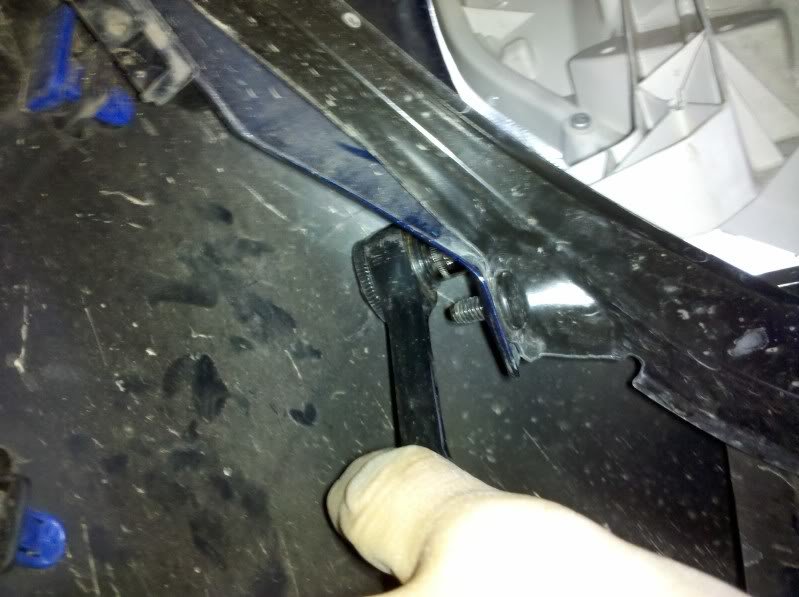

    Grab your 1/4" drive and a 10mm socket. Although you wont be able to see the screw, its directly above the visible bolt that holds the panels in place. The socket is placed on the headlight screw in this picture.

    [​IMG]

    For reference, another angle w/ the headlight out. Pretty sure this is the hole that it came from

    [​IMG]


    And thats it! Remove the bulb/harnesses and just wiggle that headlight out. As others have said, its optional to put this back in place when you reinstall the headlight. The other screws are enough to hold it in place and not putting this back will only make future removals 5 or 10 minutes quicker.

  2. Dec 13, 2010 at 7:57 PM
    #2
    mcleod90

    mcleod90 150,000 miles and counting

    Joined:
    Oct 30, 2010
    Member:
    #45456
    Messages:
    485
    Gender:
    Male
    First Name:
    sean
    modesto ca
    Vehicle:
    05 double cab
    thanks for the info. im thinking about doing a bhlm on my truck in a few weeks.

    you mind taking pics of the process? i know there are some out there already but it couldnt hurt to have more. maybe even a video?

    either way thanks for more info

  3. Dec 13, 2010 at 8:20 PM
    #3
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    No prob man! Glad they helped out a little
    If the lights turn out good, yea, I'll post up the pics, otherwise, no! lol. kidding of course, Sure, I can post some up during the process, thats no problem. Not gonna do a vid though. Too much trouble :p

    Theres some good ones in Viets thread: http://www.tacomaworld.com/forum/lighting/65226-how-black-head-light-mod.html

  4. Dec 13, 2010 at 8:24 PM
    #4
    kinkrider101

    kinkrider101 Well-Known Member

    Joined:
    Sep 29, 2009
    Member:
    #23497
    Messages:
    2,696
    Gender:
    Male
    santa barbara
    Vehicle:
    2007 cummins/2007 tacoma
    wheels and tires
    Mine were superrr hard to get back in..and there's a ton of scratches on my bumper now

  5. Dec 15, 2010 at 1:31 PM
    #5
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    mcleod90; I was going to take more pics, but honestly, I think every pic thats been posted so far pretty much covers what you'll need to see or know. Its much more intimidating than it is when it comes down to it. You'll see, its easy to do.

    On a side note, I've decided against just spraying on FUSION satin black paint. I think I'm going to color match mine, and I'm going to do the same process as I did w/ my grille. Sand>Adhesion Promoter>Primer>Paint. I'll allow it to cure before re-joining the lens and housing.

    Here we go! Remember,......Its all about the prep work!!!

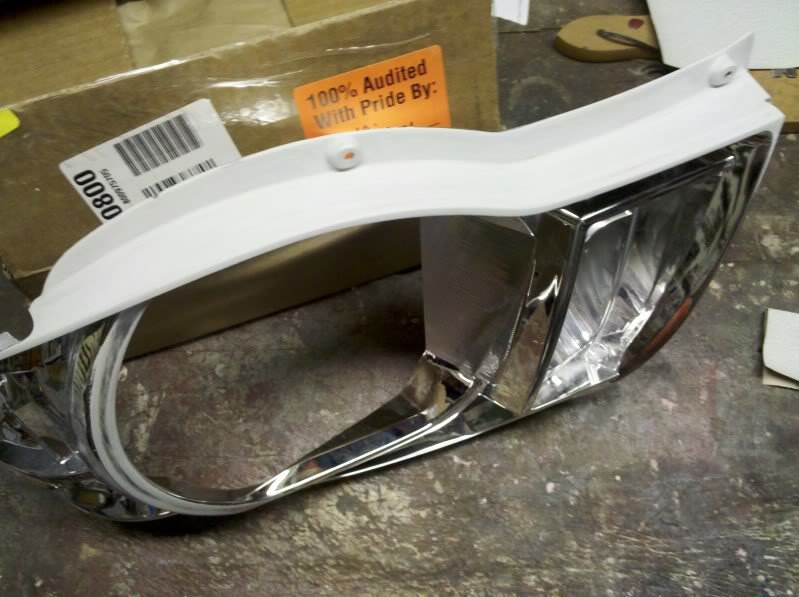

    The top portion is after sanding. I'll update as I go along. Right now, my big decision is whether to keep the headlights off the truck and order up some Retros or just stick these back in :boink:

    [​IMG]

  6. Dec 15, 2010 at 1:32 PM
    #6
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    Btw, this is using 100 grit paper. ^^^

  7. Dec 30, 2010 at 4:41 PM
    #7
    schiz94

    schiz94 Thread Jacker

    Joined:
    May 26, 2009
    Member:
    #17674
    Messages:
    4,246
    Gender:
    Male
    First Name:
    Caleb
    Bellingham,WA
    Vehicle:
    08 Tacoma Reg Cab
    Morimoto Projector Retrofit, alpine cda-105,Wheelskins leather wheel cover, wet okoles,5% tint on back and 24% on front two windows,Debadged tailgate,custom sockmonkey centercap decals, xr rims pced gloss black.
    RETROS!

  8. Dec 30, 2010 at 5:29 PM
    #8
    surfsupl

    surfsupl Well-Known Member

    Joined:
    Jan 8, 2008
    Member:
    #4161
    Messages:
    8,572
    Gender:
    Male
    First Name:
    Gregg
    WestCoast
    Vehicle:
    I DONT CARE IF IT'S A RE-POST
    Rear Diff Breather~ 5100's ~Fog Light Anytime~Tint~TRD Seat Covers~Weather Tech's~Pioneer H.U.~Lift~Eibach Springs~LED's......blah...blah...blah
    Thanks for the info..........that last screw is a bitch to get out sometimes .

  9. Dec 30, 2010 at 5:33 PM
    #9
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    I totally bitched out on doing the retros. I spent a lot on the family and gf for xmas, so I put them on hold for now.

    No prob!

  10. Dec 30, 2010 at 5:34 PM
    #10
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    Heres a brief follow up too.

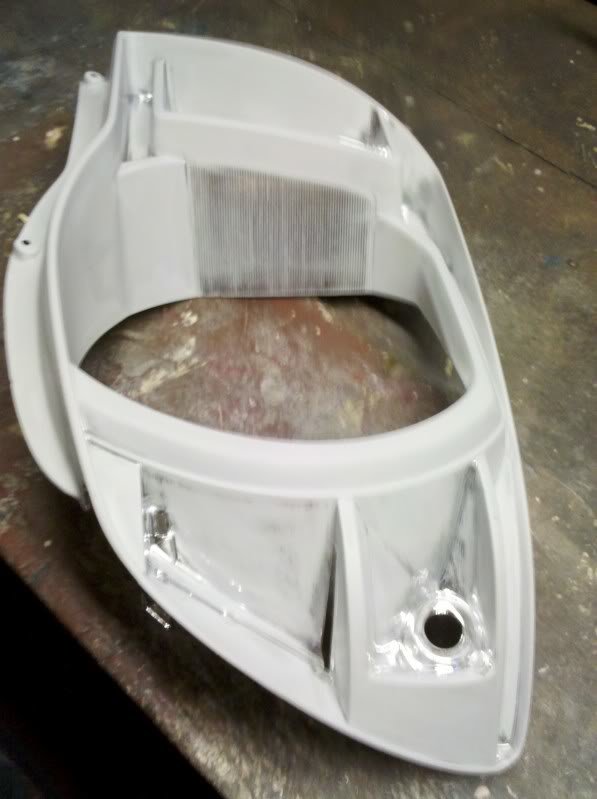

    About 97% sanded:
    [​IMG]

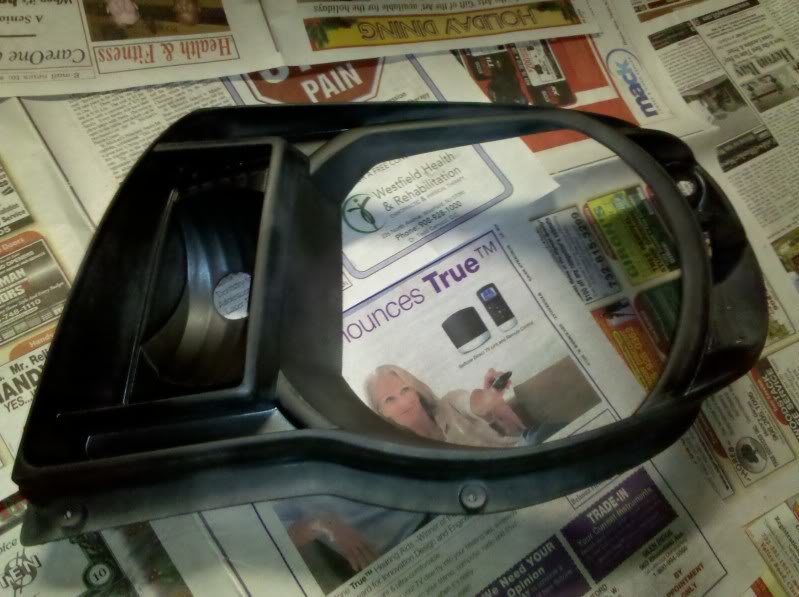

    After a coat of primer:
    [​IMG]

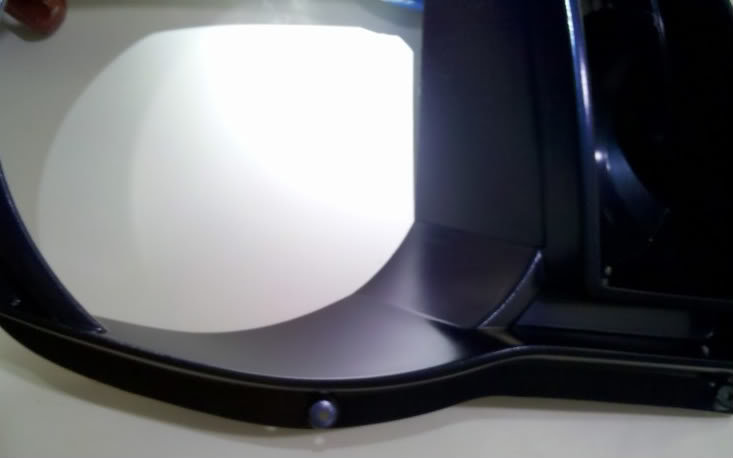

    Here it is after paint. I did 2 coats AP, 2 coats Primer and 3 coats Base w/ a 1500g wetsand after the 2nd.
    [​IMG]

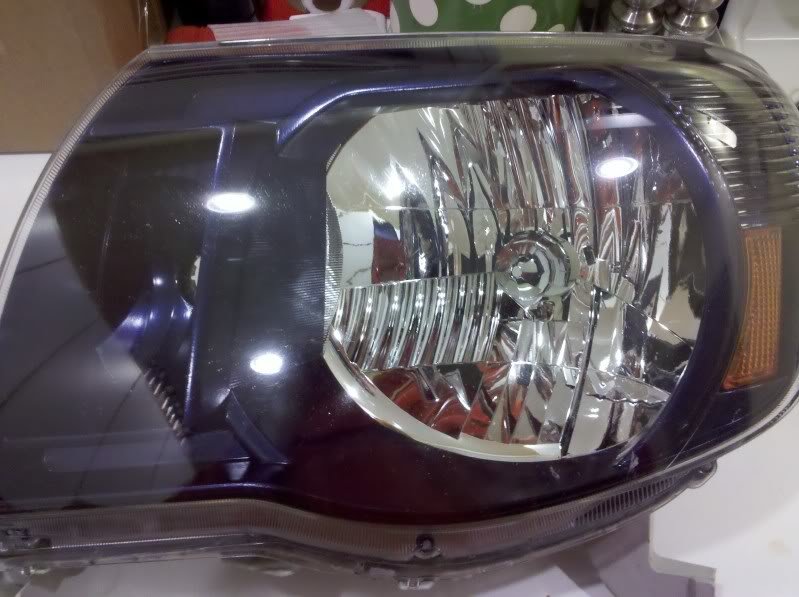

    After the Indigo Ink Paint:
    [​IMG]

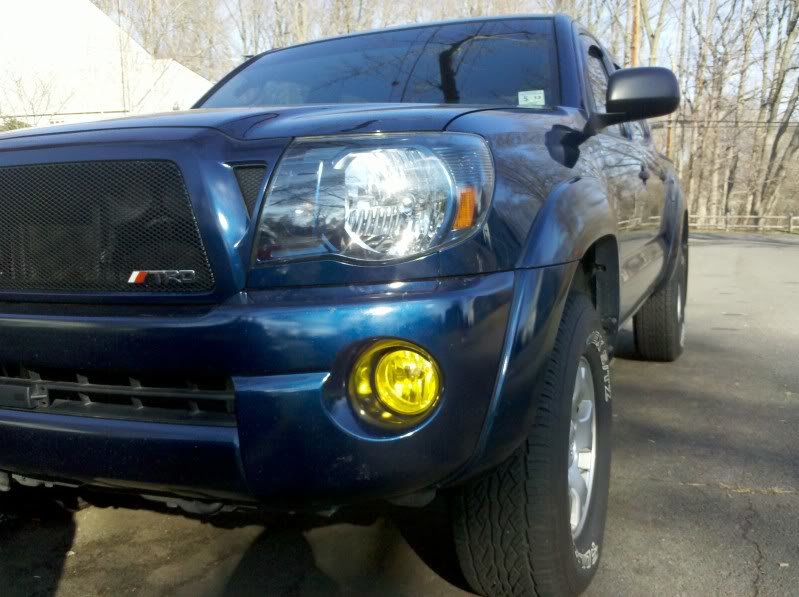

    And back on the truck:
    [​IMG]

  11. Dec 30, 2010 at 5:35 PM
    #11
    schiz94

    schiz94 Thread Jacker

    Joined:
    May 26, 2009
    Member:
    #17674
    Messages:
    4,246
    Gender:
    Male
    First Name:
    Caleb
    Bellingham,WA
    Vehicle:
    08 Tacoma Reg Cab
    Morimoto Projector Retrofit, alpine cda-105,Wheelskins leather wheel cover, wet okoles,5% tint on back and 24% on front two windows,Debadged tailgate,custom sockmonkey centercap decals, xr rims pced gloss black.
    brah! you gotta. im doing them too. depending on what you wanna do. you can get morimoto projectors and bulbs and then get cheapo balasts til you have money. not recomended haha

  12. Dec 30, 2010 at 5:45 PM
    #12
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    ugh, I know man! Believe me, I've been driving around lately and really regretting not having done it while they were apart. What setup did you wind up going w/?

  13. Dec 30, 2010 at 5:55 PM
    #13
    billas333

    billas333 They Still Love To Hate Me! - T.O.

    Joined:
    Nov 12, 2008
    Member:
    #10698
    Messages:
    934
    Gender:
    Male
    First Name:
    Joel
    NorCal
    Vehicle:
    2008 4x4 Tacoma Sport
    Mods so far: Tube steps from toyota, Bed extender from toyota, Spare Tire lock, Sound System Makeover, Tacoma All-Weather heavy duty rubber floor mats. Rear TSB, Icon Coilovers w/ TC UCA's and 3inch rear block with rear 5100 bilstein shocks, Black Headlights, Grillcraft black grill, Devil Horns from Andres, Black Headlights, Chrome Liquid Metal Gatlins Wheels, 285/70R17 Nitto Tera Grapplers, Wet Okole Seat Covers! Seat Belt Chime Mod, Flowmaster 50 series dual exhaust, Debadged tailgate, TRD Decals, HID hi/low + fogs.
    Just for reference, I replaces my lights 2 years ago and had to take them out to fix a moisture issue, Well I replaced all the screws including the inner wall pain in the ass one and when I took them out later on they were gone on both sides.

    I now drive around without the inner wall screw and the lights are still secure

  14. Dec 30, 2010 at 5:56 PM
    #14
    90YotaPU

    90YotaPU The Messiah

    Joined:
    May 15, 2010
    Member:
    #37191
    Messages:
    2,966
    Gender:
    Male
    First Name:
    Mike
    Union County, NJ
    Vehicle:
    1990 Toyota 4x4 (Pre-Taco)
    Aftermarket Stereo, 10 Disc CD Changer, Cap, Spidertrax Wheel Spacers, HF Air Horns, 3" Lift
    Headlights look great and from reading it sounds like you did your own grill. Think I could bribe you with a few beers to give me a hand one warm weekend doing my lights and grill (or at least be on call for some questions)?

  15. Dec 31, 2010 at 8:04 AM
    #15
    Rocketball

    Rocketball If The World Didn't Suck, We'd All Fall Off

    Joined:
    Mar 18, 2009
    Member:
    #14869
    Messages:
    1,519
    Gender:
    Male
    First Name:
    Scott
    Westminster, MD
    Vehicle:
    08 Speedway Blue DC Sport 4x4
    Pioneer head unit, PAC steering wheel control modual, Hard wired Sirius radio, Hard wired radar detector, Hella Supertone horns, Blacked out badges, Smoked Tails, BHLM (color matched Speedway Blue), T-Rex Eyelids, Black Powder Coated Billet Grill, Color Matched Engine Cover, Lund in channel vent visors, FJ Cruiser wheels, Leer 100XQ shell, OEM bed mat, Piezo beeper for locking doors, Tinted front side windows, Black Westin bull bar, Aires tube steps, Mini Maglite Mod, D-Cell Maglite Mod, Weathertech Digifit Floor Mats
    The lights look awesome. Nice job.

  16. Dec 31, 2010 at 8:14 AM
    #16
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    Sure thing man. Just give me a heads up when you're ready and we'll figure out a day/time.

    Thanks :)

  17. Dec 31, 2010 at 1:38 PM
    #17
    schiz94

    schiz94 Thread Jacker

    Joined:
    May 26, 2009
    Member:
    #17674
    Messages:
    4,246
    Gender:
    Male
    First Name:
    Caleb
    Bellingham,WA
    Vehicle:
    08 Tacoma Reg Cab
    Morimoto Projector Retrofit, alpine cda-105,Wheelskins leather wheel cover, wet okoles,5% tint on back and 24% on front two windows,Debadged tailgate,custom sockmonkey centercap decals, xr rims pced gloss black.
    im gonna go with morimoto minis, phillips bulbs, morimoto ballasts, and gatling gun shrouds and ccfl lights like this-

    [​IMG]

    [​IMG]

  18. Jan 3, 2011 at 7:54 PM
    #18
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    Pretty much what I was going to do. My setup when I decide to bite the bullet is:

    • Projectors: LHD (North American Standard)
    • Bulbs: New Philips 85122+ D2S
    • Ballasts: Morimoto 3Five (35w)
    • Wire Harness: H4 Bi-xenon
    • Shrouds: Apollo

  19. Jan 8, 2011 at 12:07 PM
    #19
    Yugo2slo

    Yugo2slo Member

    Joined:
    Sep 12, 2010
    Member:
    #43142
    Messages:
    11
    Gender:
    Male
    First Name:
    Tony
    Arizona
    Vehicle:
    06 PreRunner
    Black Head Lights
    Thanks for all the info Chris.

    My first "real" mod on my truck. Took me under an hour to swap out the lights and I even put the side screws back in.

    Black head lights.... next I think I'm going for a new grill.

    [​IMG]

  20. Jan 15, 2011 at 4:40 PM
    #20
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,796
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    No problem man! GLad it helped out... truck looks great!
