Headlight wiring - positive or negative switched

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Firn, Oct 9, 2022.

  1. Oct 9, 2022 at 7:52 AM
    #1
    Firn

    Firn [OP] Well-Known Member

    Joined:
    Sep 5, 2022
    Member:
    #405191
    Messages:
    1,244
    Vehicle:
    White OR
    I have seen this discussed before but the heck if I can find it now.

    For the high beams and low beams are the positive or negative switched?

    I wish to add a relay so auxiliary lighting is enabled with the high beams so I need to know if I enable a positive trigger or a ground trigger.

    Thx

  2. Oct 9, 2022 at 9:50 AM
    #2
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,512
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
  3. Oct 9, 2022 at 10:01 AM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,781
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

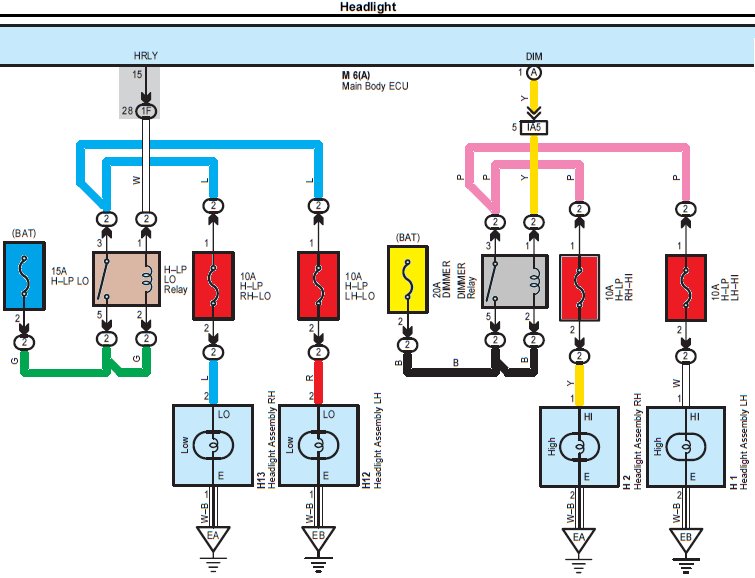

    The headlights (low & high) relays are negatively switched, but the headlights are positive. So add-a-fuse to HIGH and one for LOW, for positive trigger to added relays.


    vicali and Firn[QUOTED][OP] like this.
  4. Oct 9, 2022 at 10:04 AM
    #4
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,512
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
  5. Oct 9, 2022 at 10:11 AM
    #5
    Firn

    Firn [OP] Well-Known Member

    Joined:
    Sep 5, 2022
    Member:
    #405191
    Messages:
    1,244
    Vehicle:
    White OR
    RyanDCLB[QUOTED] likes this.
