heated mirrors moron edition

Discussion in '2nd Gen. Tacomas (2005-2015)' started by dietkola, Jan 18, 2024.

  1. Jan 18, 2024 at 10:15 AM
    #1
    dietkola

    dietkola [OP] New Member

    Joined:
    Jan 10, 2024
    Member:
    #441367
    Messages:
    2
    Gender:
    Male
    First Name:
    Cristian
    Chicago, Illinois
    Vehicle:
    2015 Tacoma Pre-Runner 4L V6
    Pioneer DMH-WT3800NEX LED Headlight upgrades Tonneau Cover
    Hi guys,

    I have a 2015 Tacoma that I've been doing some work on for the past year and I decided I wanted to add heated mirrors but after looking through all the forums and trying to get a better understanding of what to do, I have been stumped.

    I wanted to make sure I included many details as possible but the the TLDR is; I bought heated mirrors, I got them wired up to the switch that controls the mirror movement but I do not know how to wire up the actual heating element, and I don't even know where to begin on the install.

    The details are here as provided.

    I bought these mirrors which have the factory 2015 tacoma plug and an option to have the heating element from the mirrors go straight into the door plug or have it wired separately through unterminated cables.
    I was always under the assumption that I needed to have the heating element wired through the unterminated cables as the 2015 tacoma doesn't have OEM heated mirrors so the door plug would go to nothing so I purchased this mirror switch that has a folding mirror option and fits into the original mirror switch so it looks OEM.

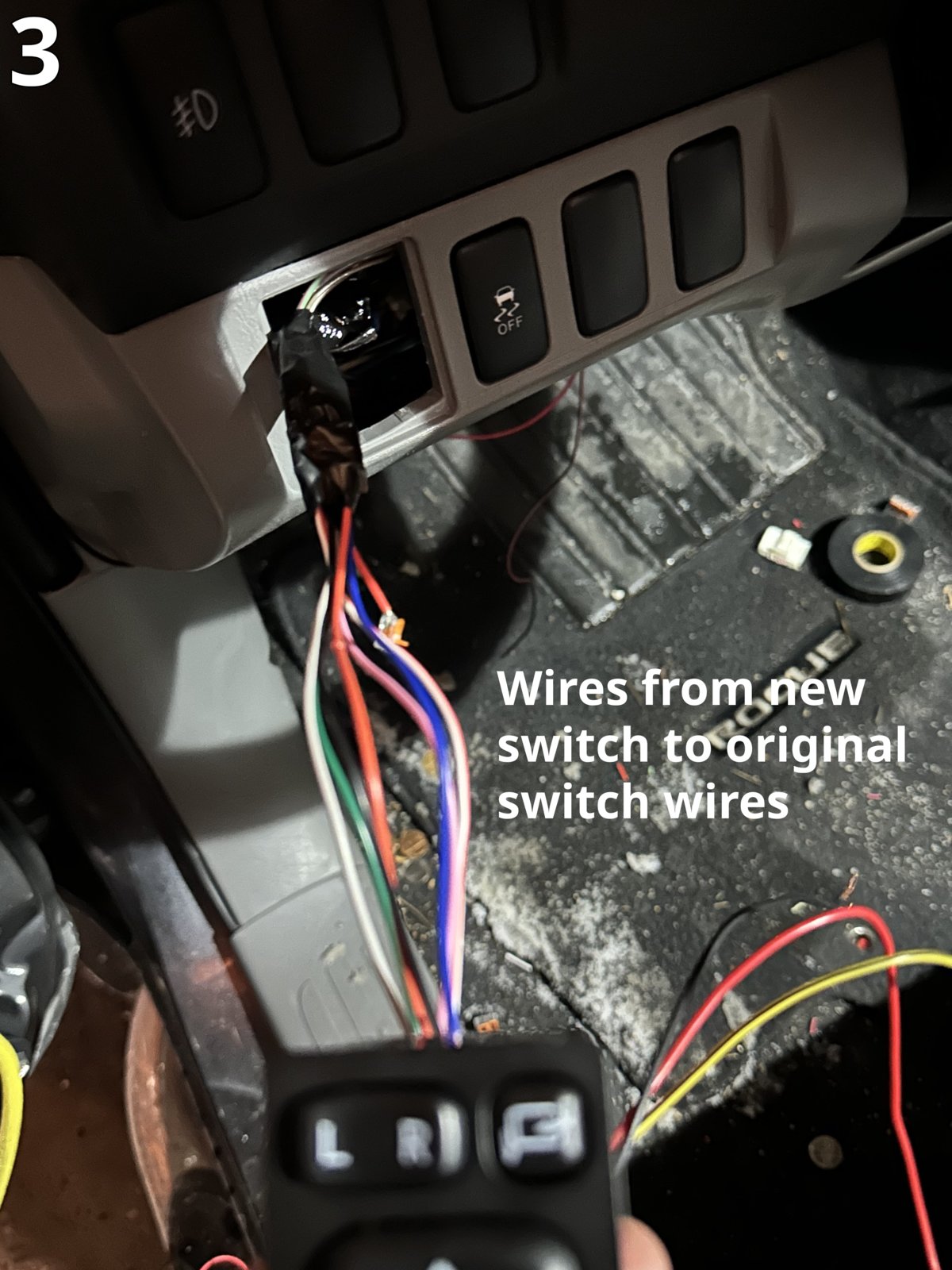

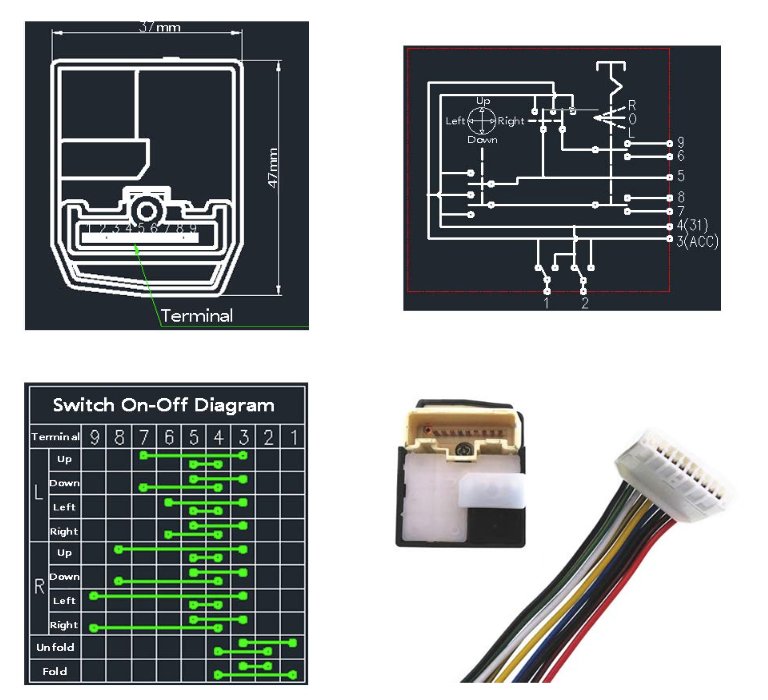

    At this point I was able to wire in the new mirror switch to the original switch wires as shown in image 3 and the diagram.


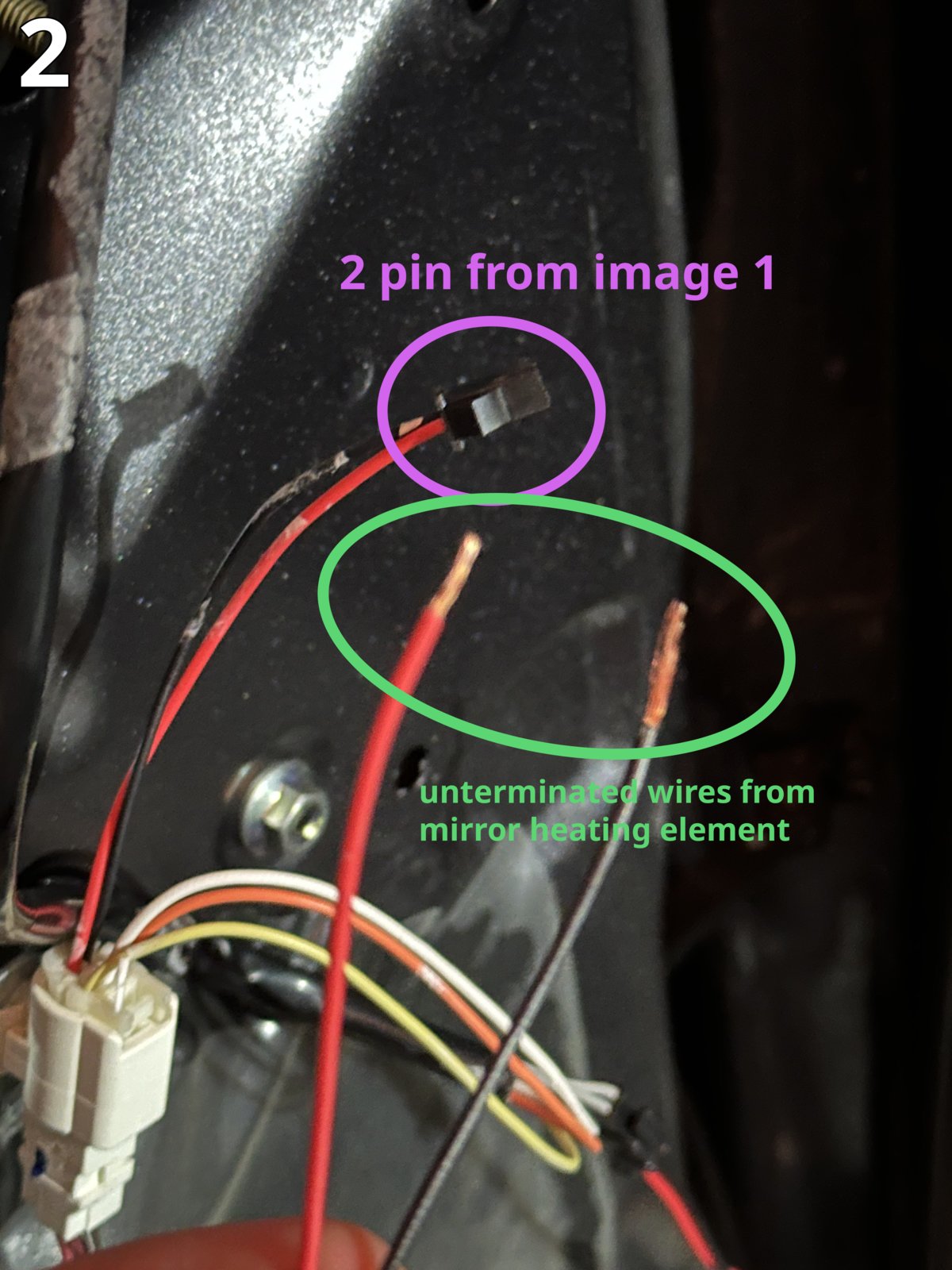

    and the two remaining wires that are used for the flip out function are still unterminated (image 4) and that is what I wanted to use for the heated mirrors.

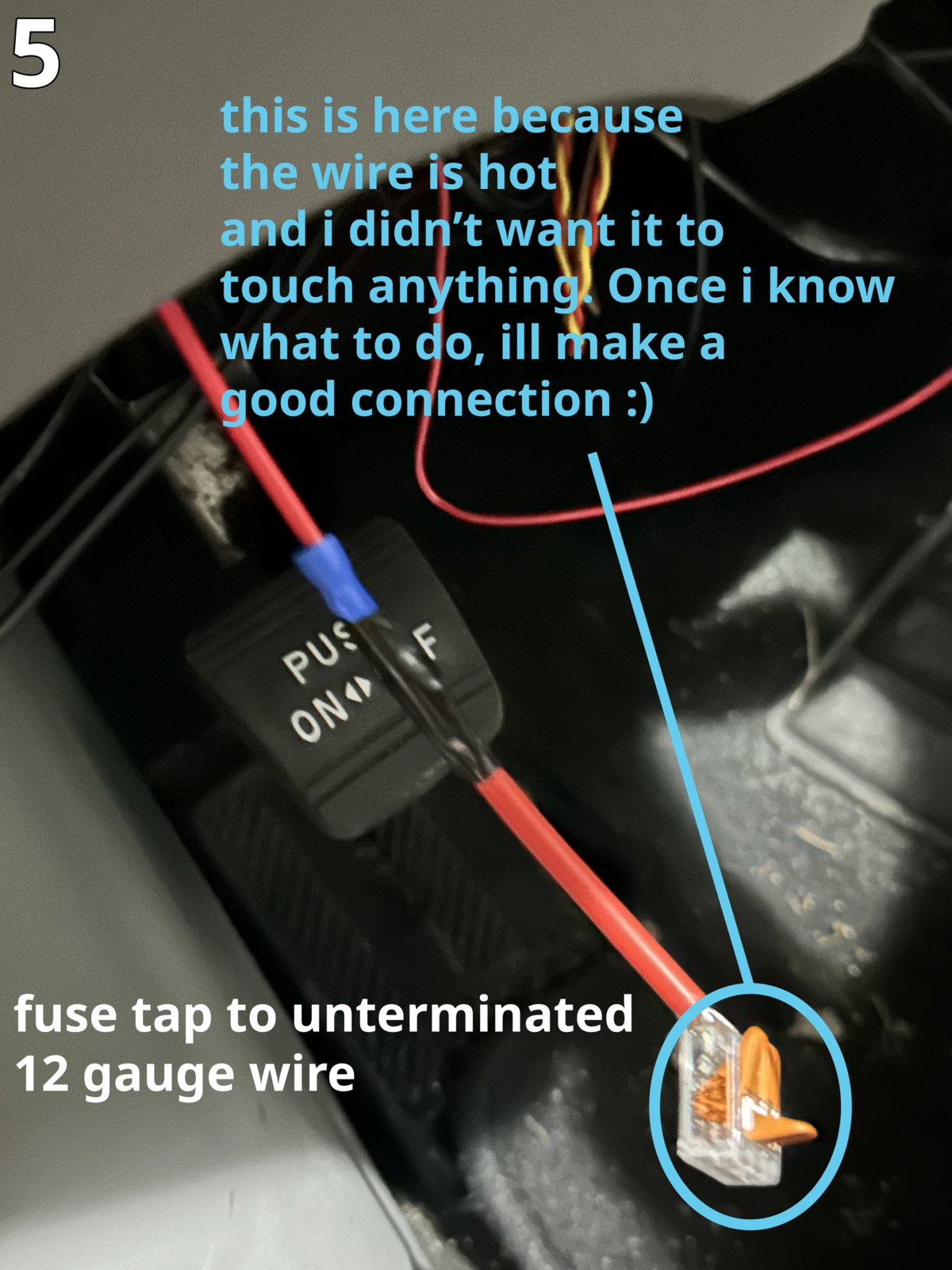

    I also already have a fuse tap hooked up with a 10a fuse for power but I haven't actually hooked it up to anything yet (image 5) and I have both a SPST and SPDT relay laying around and plenty of wires, terminals, connectors, etc that I need to do whatever it is I need to do.

    Now here is where I ask for guidance. I have no clue what to do now, and from me just messing around yesterday I was not able to get the heating elements to work, all my connections that I put together myself are working just fine (the mirrors move with the switch, the fuse tap reads the the correct voltage and outputs power, the other functions of the fuse work just fine, etc) but for the life of me I can not get the heating to work, let alone get it to work when I press the mirror flip button on the switch. I read through so many threads and lots of the wiring diagrams are confusing to me and I'm not the best with electrical but I got this far. If someone can help explain thoroughly or link to a direct quote in a thread that can be of use, please let me know!!!!

    also called this moron edition because im 18 so my brain is still is stupid teen mode :)

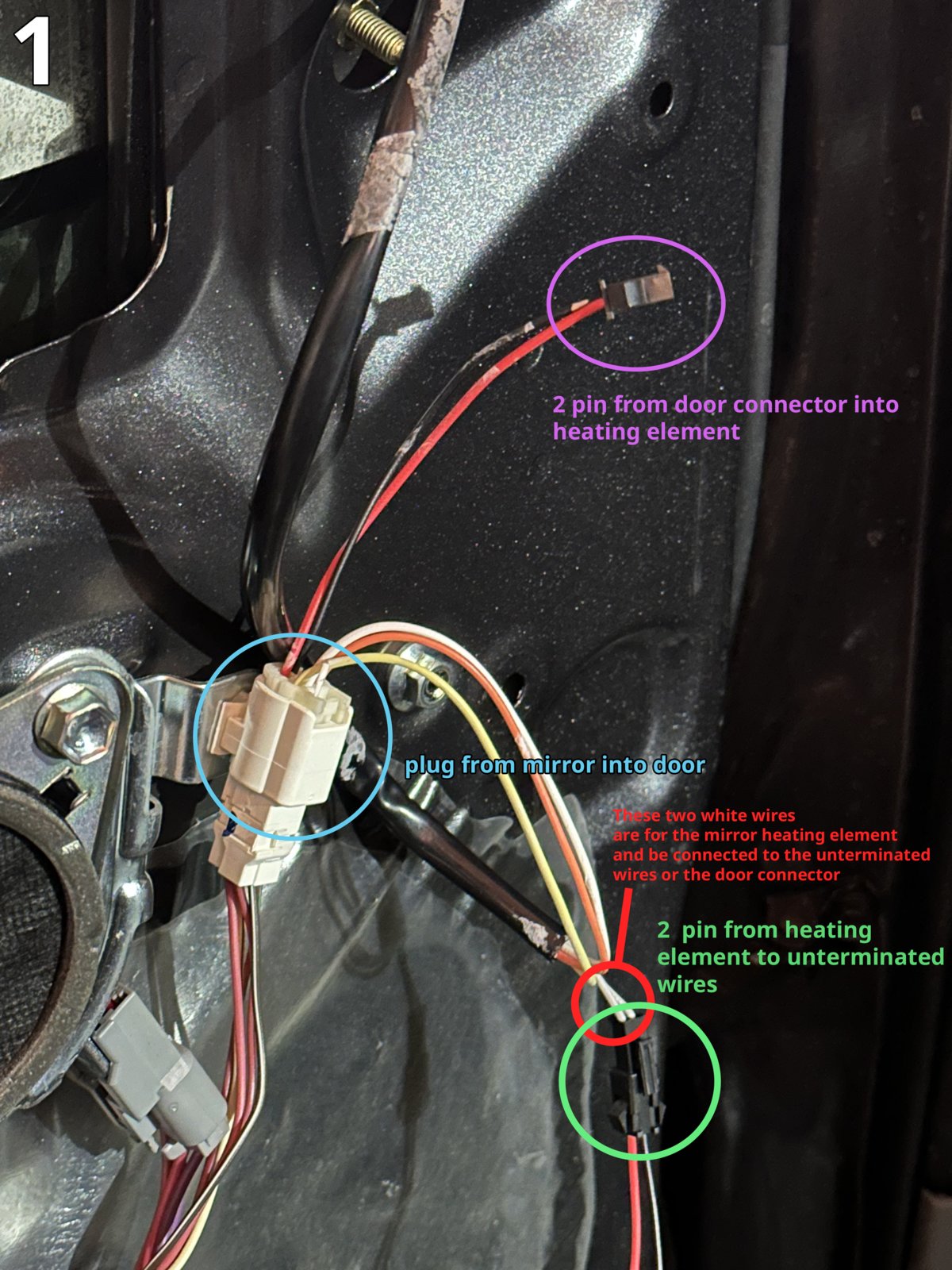

    I also thought about having the heating element go into the door plug (image 1) then taking the wires from the flip mirror button and somehow wiring them to the door? but I didn't know the first thing about doing that but I thought it would be cool

    if anyone needs any more information to either help or just get a better understanding of what im doing for whatever reason I am happy to provide anything needed :)


    Attached Files:

    knottyrope likes this.
  2. Jan 19, 2024 at 6:01 AM
    #2
    CITY TACO

    CITY TACO Well-Known Member

    Joined:
    Apr 18, 2011
    Member:
    #55128
    Messages:
    154
    Gender:
    Male
    First Name:
    Chris
    Greater New Brunswick
    Vehicle:
    15 TRD Barcelona Red
    So let me get this straight, the mirror you purchased just plugged into the main harness in the door? If so it can’t really do that as the door connector only has wires for the mirror and if you have a sport model the mirror signal lights. I have a 2015 that I purchased the kit from a guy on here, was all the wiring, Toyota sienna heated mirror glass, switch and a special timed relay. He modified the switch by taking out the spring in it to be momentarily so it would trip a relay that would energize the mirrors and after 5 minutes it would go off. What you are trying to do might cause you grief as there is no indicators telling you the mirrors are in heat mode and you could inadvertently leave them on and burn them out after time. Being aftermarket nobody makes the glass for these things, trust me I know as I tried this route and broke one in an install and the glass places had nothing, luckily I had only purchased the drivers side as a test. Do a search on this form and there are several threads on putting heated mirrors on your truck, unfortunately the original guy I got the kit off of doesn’t build them anymore.

    Custom.taco likes this.
  3. Jan 19, 2024 at 6:36 PM
    #3
    dietkola

    dietkola [OP] New Member

    Joined:
    Jan 10, 2024
    Member:
    #441367
    Messages:
    2
    Gender:
    Male
    First Name:
    Cristian
    Chicago, Illinois
    Vehicle:
    2015 Tacoma Pre-Runner 4L V6
    Pioneer DMH-WT3800NEX LED Headlight upgrades Tonneau Cover
    Yea, I figured that connecting the whole thing to the door wouldn’t do anything since none of the 2015 models came equipped with heated mirrors from the factory. I just can’t figure out how to do the wiring with the relay and button. I feel like i’ve been getting more and more information but it’s just not clicking correctly in my head for me to get it done. I’ll keep searching, I appreciate the reply.

    Custom.taco likes this.
  4. May 13, 2024 at 1:21 AM
    #4
    Custom.taco

    Custom.taco New Member

    Joined:
    May 6, 2024
    Member:
    #449242
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2009 Manual 4x4 Regular Cab
    2009 Regular Cab Tacoma 4x4 Manual 2.7L 4cyl 36k mileage CURRENT MODS: Steering wheel cover 7in antenna Envelope style Bed Net Floor mats Seat covers Trailer hitch Toyota cap. 20% ceramic tint sides and back ARE bed cover with 3 spare keys Programmed KARR replacement fob FM bluetooth adapter NED TO FIX: Passenger door lock/unlock actuator. (The karr alarm only works on driver side) WANT: Electric Side steps In-channel vent visors Tire valve caps Dash cover Bed lights Bed Carpeted bed insert Bed cover/tailgate rubber seal Leveling kit + spacers to fit the gap FUTURE ADD ONS: Install OEM Power inverter Install 2012+ OEM steering wheel working airbag only. Install 2012+ OEM stereo to match the redish color on my dash lights. Install 2012+ OEM front end
    Im looking to do the something similar. I have a 2009 base model regular cab. All Im looking to do is control my side mirrors with a button to position the mirrors and have turn signal lights on them. Have you been able to make any progess?

  5. May 13, 2024 at 3:16 AM
    #5
    pearing

    pearing Well-Known Member

    Joined:
    Aug 4, 2018
    Member:
    #261610
    Messages:
    3,849
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 SR5 quadcab
    Okay... my addled 60 year old brain just skipped to the meat of your page, and here are my questions and suggestions. By the way I did this several years back on my 2015. I bought OEM 2013 4Runner mirrors and swapped the perches (expensive way to do this... but I have heat, turn and puddle lights!)

    Are you sure your mirrors have heat? Also, it takes a while for them to heat up so my obvious question is have you waited long enough to be sure they are not working? I thought I saw that you bought plugs too? Are you sure those are correct? I wired my heat power separate from the Toyota harness...

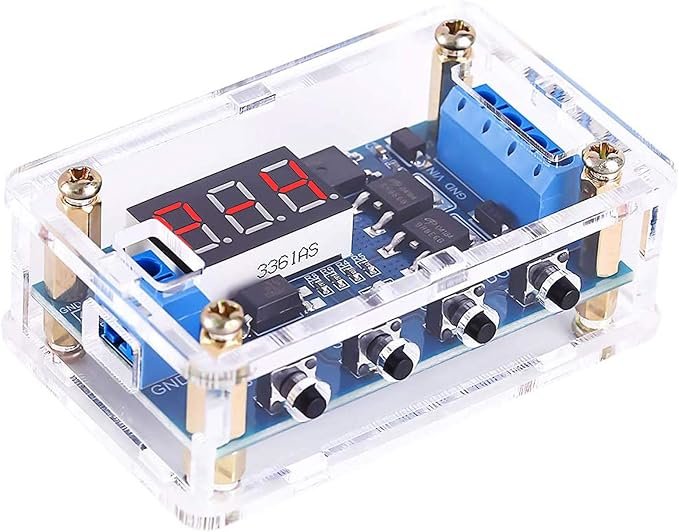

    I ran a separate wire for the heat into each door. Not sure what switch you chose, but I used an Air-On-Board OEM style switch. I also used a Wolstentech timed relay. Power came from a switched source in the fuse panel. Wiring took a lot of time and some extra fusing to get the timer on the relay set so I like it. Mine comes on when you push the button and stays on for somewhere around 10 minutes and then shuts off regardless of whether the button is still on.

    I will go back and read through more carefully and see if I can and anything meaningful...

  6. May 13, 2024 at 3:29 AM
    #6
    pearing

    pearing Well-Known Member

    Joined:
    Aug 4, 2018
    Member:
    #261610
    Messages:
    3,849
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 SR5 quadcab
    Yea, okay. I remember that I looked into a switch like what you have and said no as the probability of it not working was higher than a simple switch. I think it would be in your best interest to run some wire and hard wire the heat separate from the OEM. What your trying to do with factory makes sense but I don't think its going to work.

    So, take a power source to your relay. One side is your switch. One side is power out. The out goes to the mirrors and should power them if they are correctly made with heat elements. lots of help on that part on the web and in here. Thinking your switch is problem; but, I couldn't make sense of the wires from the mirror. I would go back and actually check that everything goes as it is supposed to wire by wire.

    As someone else stated there are several how to's on here-go look at their methods.

  7. Jun 30, 2024 at 5:55 AM
    #7
    pro34log

    pro34log Member

    Joined:
    Feb 13, 2023
    Member:
    #417819
    Messages:
    7
    Gender:
    Male
    Do you have a breakdown or can you share better pictures of how you wired the switch to the mirror?
