Hella 500 HID Conversion & Mount Behind Satoshi *How To* w/ pics

Discussion in 'Lighting' started by Klipp11, Mar 8, 2010.

  1. Mar 8, 2010 at 11:13 PM
    #1
    Klipp11

    Klipp11 [OP] s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod
    here you go boys! this is how i converted my hella 500's to hid using a 55w 5000k kit from ddm tuning and mounted them behind my satoshi grillcraft. see here for my satoshi writeup: http://www.tacomaworld.com/forum/2nd-gen-tacomas/76107-satoshi-grillcraft-how-w-pics.html

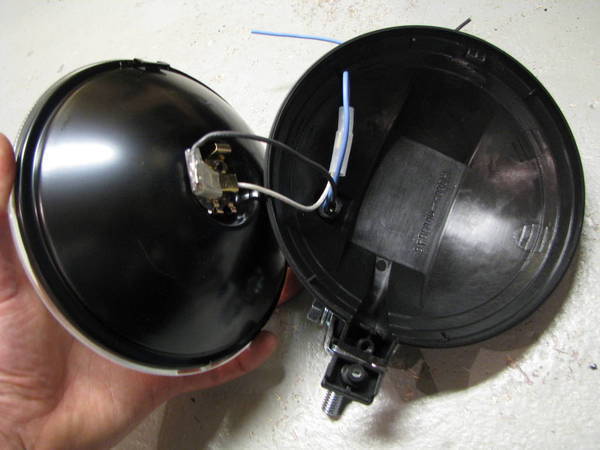

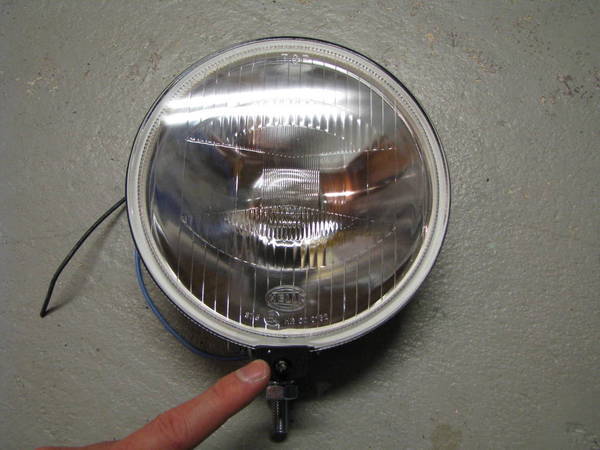

    started by taking the hellas apart to swap the halogen bulb for the hid bulb.

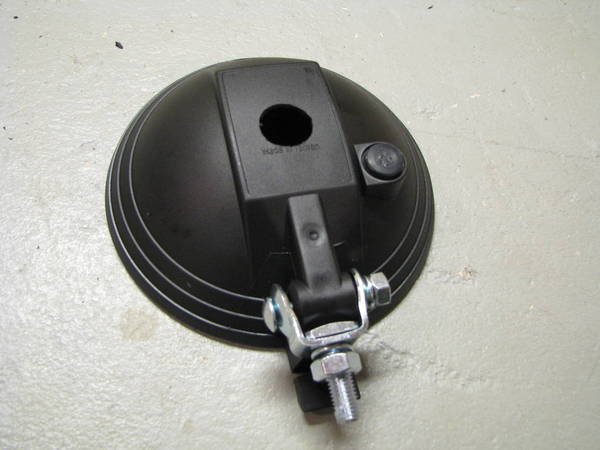

    remove this screw to take the plastic housing off

    [​IMG]

    [​IMG]

    remove the stock wiring above. release the metal clip that holds the halogen bulb in place, then remove the clip from the light

    [​IMG]

    [​IMG]

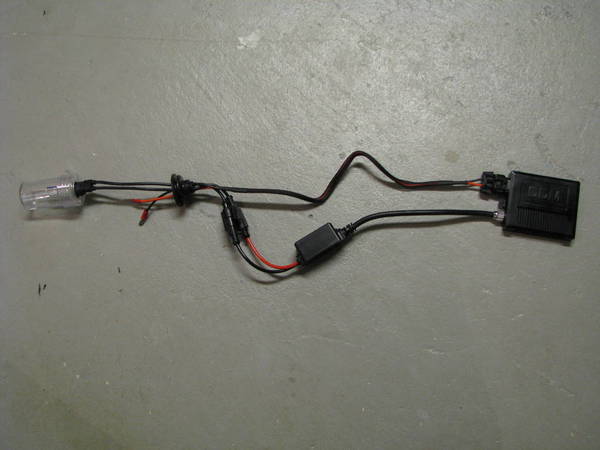

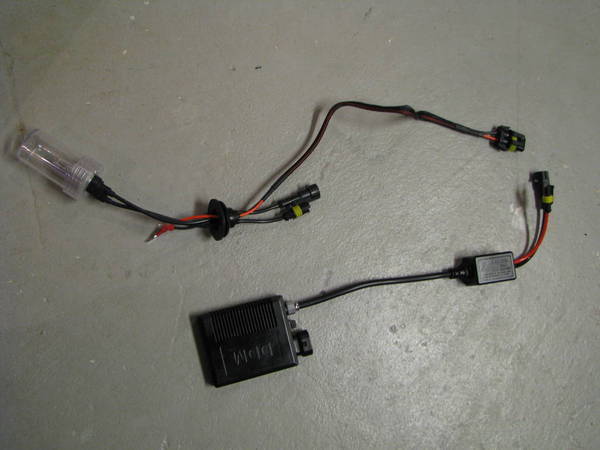

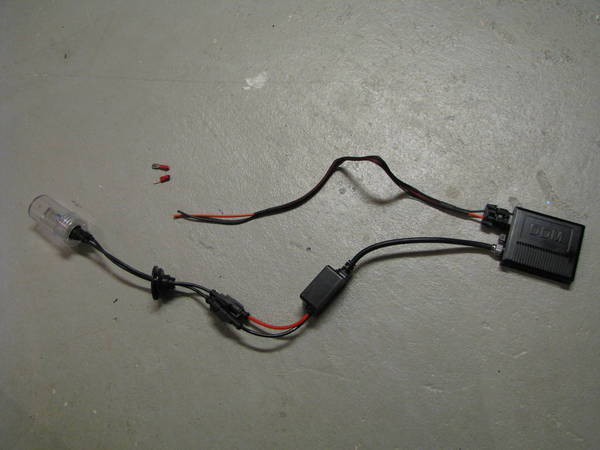

    the hid kit includes a ballast and bulb for each side (this is the digital slim 55w ballast)

    [​IMG]

    plug in the wires (they will only fit in one place) and you'll see two wires left over, one red (power) and one black (ground). touch the red wire to the +ve terminal of your truck's battery and ground the black wire to ensure your ballast and bulb are working properly.

    [​IMG]

    i chose to connect the power and ground to the kit outside the light housing, so i cut the blade connectors off and slid the wires out of the rubber seal.

    [​IMG]

    [​IMG]

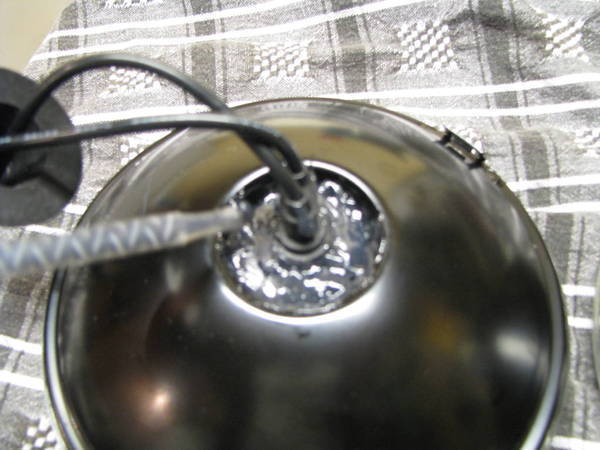

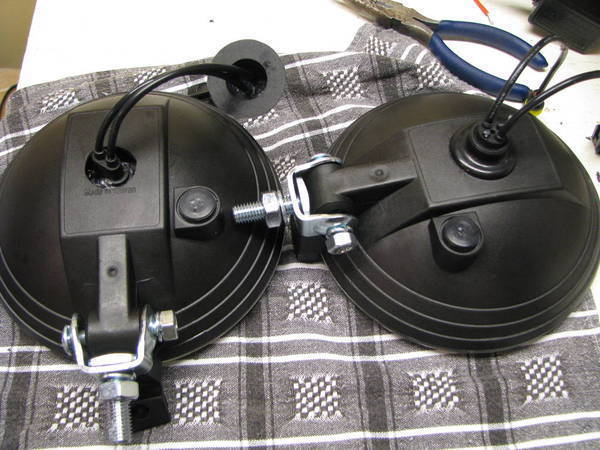

    then filled any gaps left by removing wires from seals with silicone II to make it watertight. (silicone II will adhere better than silicone I)

    [​IMG]

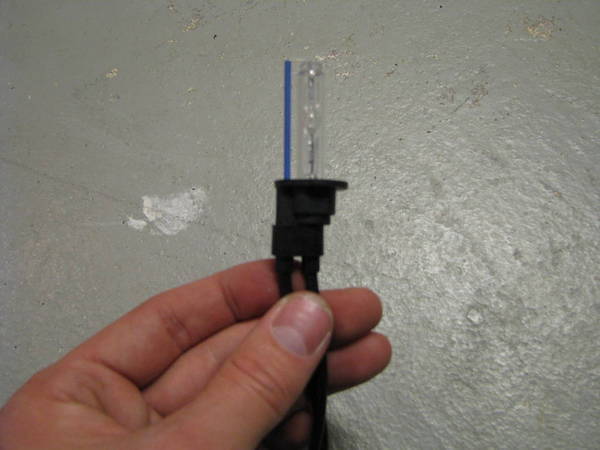

    remove the hid bulb from its plastic housing (do NOT touch the bulb itself)

    [​IMG]

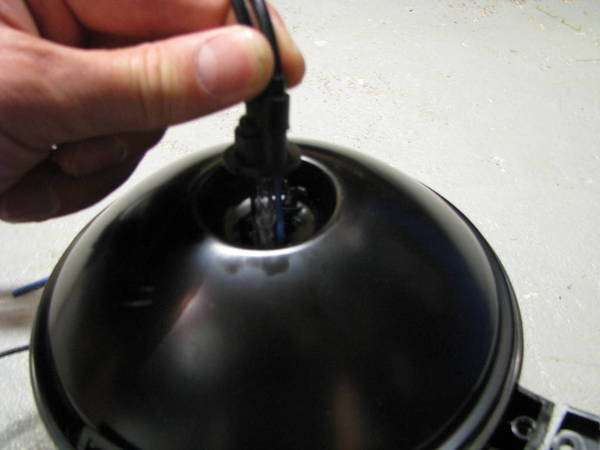

    place it carefully into the light

    [​IMG]

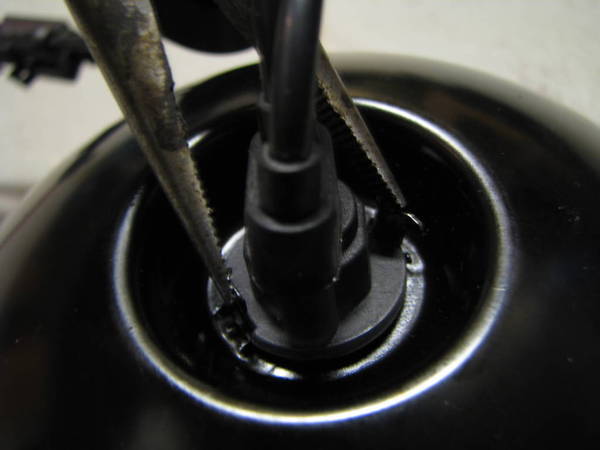

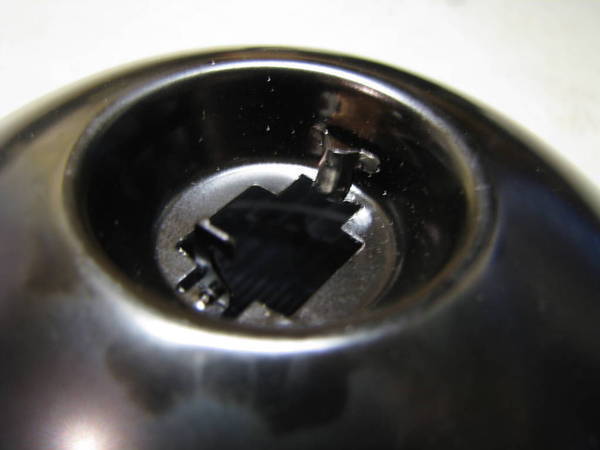

    and bend the metal tabs in slightly to keep the bulb's base in place

    [​IMG]

    prep the bonding surfaces with rubbing alcohol, allow to dry, then epoxy the bulb to the light to seal it in.

    [​IMG]

    this is the 2 part epoxy that i used on both my satoshi mod and this mod

    [​IMG]

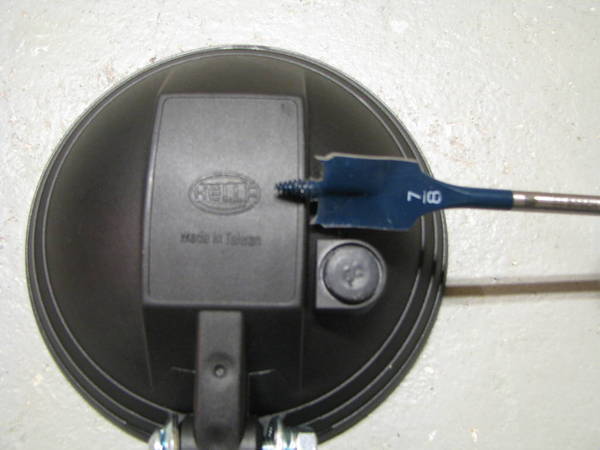

    because the back of the hid bulb sticks out further than the halogen one, i drilled a 7/8" hole in the plastic housing to accommodate it.

    [​IMG]

    [​IMG]

    then simply slide the seal down to the housing and pinch it in to the plastic cover so that it sits in the seal's groove

    [​IMG]

    next post: my solid mount behind the satoshi grillcraft... :thumbsup:

  2. Mar 8, 2010 at 11:18 PM
    #2
    dually

    dually Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,132
    Gender:
    Male
    Interstate underpass
    Vehicle:
    05 Indigo 4wd Longbed
    Not as many as the 98..
    Might want to add that you should test your HID system before you silicone the bulb into the light!

  3. Mar 9, 2010 at 9:18 AM
    #3
    Klipp11

    Klipp11 [OP] s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod
    on to wiring and mounting...

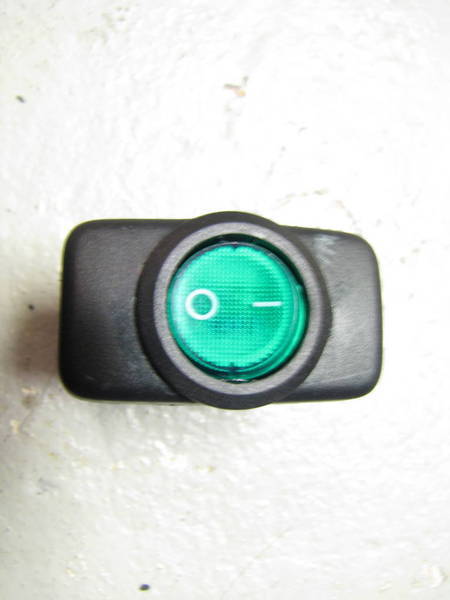

    the hella 500's come with a relay harness and switch, so i just used those. you can also use the relay from ddm or any other switch you prefer.

    just pop out the blank insert with a flathead. drill a hole in the center and ream it out until it looks like this

    [​IMG]

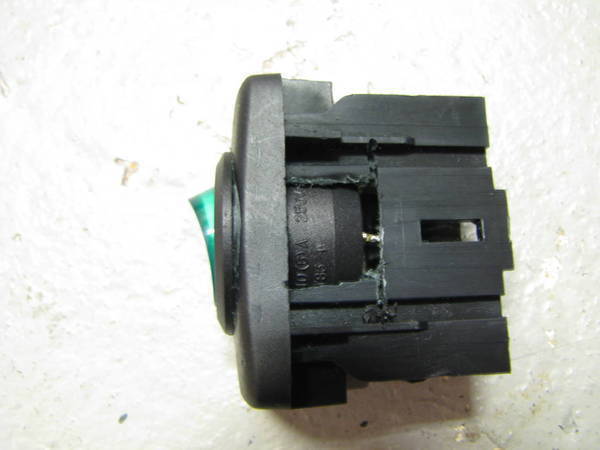

    pop in the switch

    [​IMG]

    [​IMG]

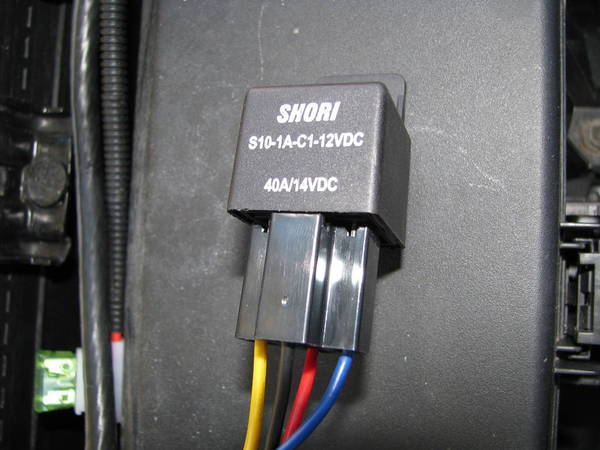

    this is the relay. attach the red wire to the +ve terminal of your battery, blue goes to ground, yellow goes to the switch, and black goes to power the hid's

    [​IMG]

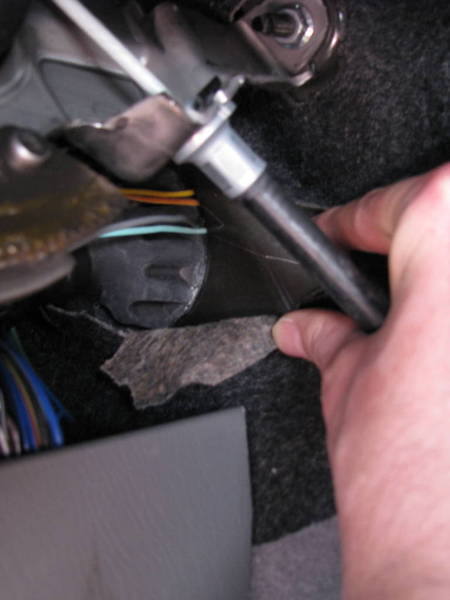

    on the floor behind the parking brake you'll find a foam / rubber plug where you can pass your switch wires through the firewall

    [​IMG]

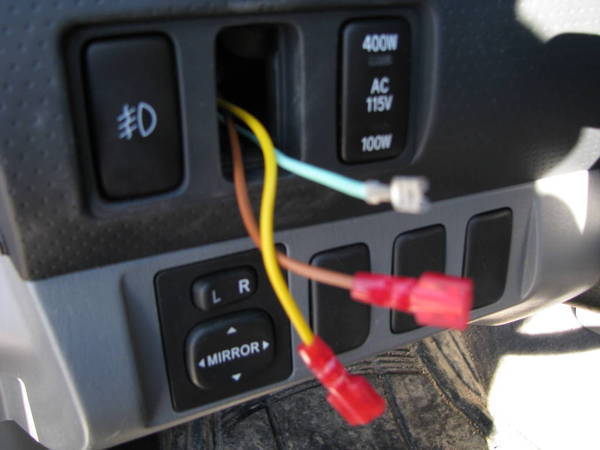

    run the wires up your dash and through the hole where you removed your blank. you'll find it easier if you remove the coin tray from the dash. connect your female blade connectors to connect the switch. here the yellow wire is from the relay harness, the brown wire is my ground, and the green wire is my power (i simply tapped into the +ve terminal of my battery, which gives you the ability to run your hellas when the truck isn't running. alternatively, you can tap into the low beam, high beam, or running lights depending on what you want)

    [​IMG]

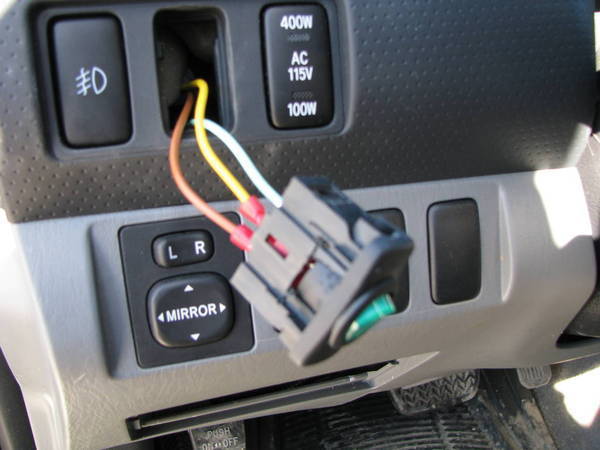

    connect the wires to the corresponding male blade connectors (you'll see that they're numbered 1,2, and 3 on the back of the switch. 1 is power, 2 is relay wire, 3 is ground)

    [​IMG]

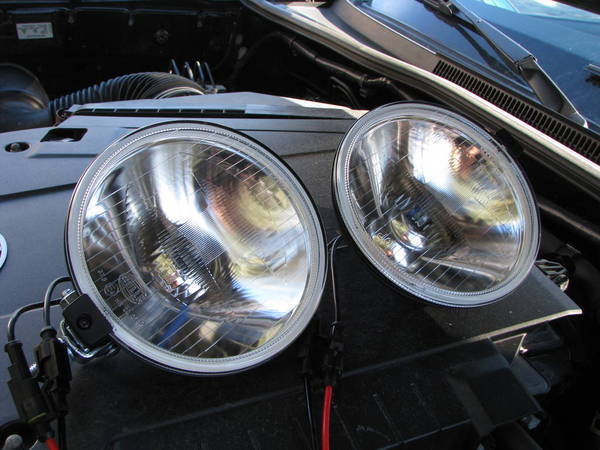

    now connect the black wire from the relay harness to the red wire from the hid kit. ground the black wire from the hid kit. test the circuits by flicking the switch.

    [​IMG]

    [​IMG]

    perfect.

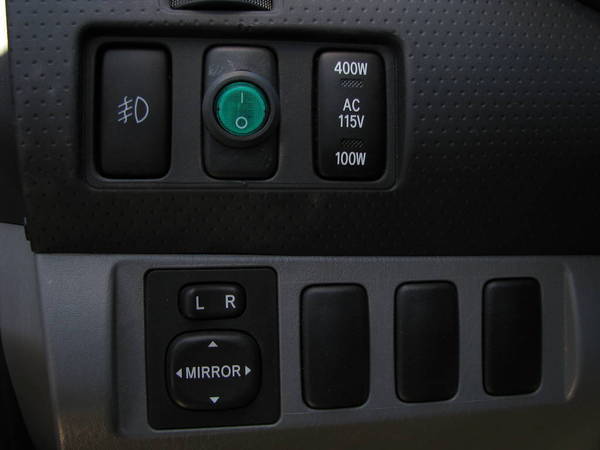

    pop the switch in the dash

    [​IMG]

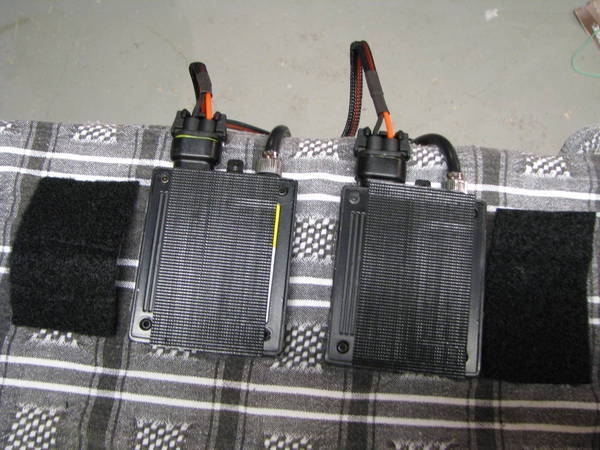

    get yourself some industrial strength velcro at the hardware store to attach the hid ballasts to the truck so they don't bounce around when you're driving

    prep the surfaces first by cleaning them first with rubbing alcohol available at any pharmacy. cut the velcro strips to match the length of the the ballasts and simply slap em on

    [​IMG]

    [​IMG]




    now on to mounting these bad boys...

    i've seen other mounting methods where the hellas are attached to pieces of plastic on the grill surround, however i was looking for a more solid type of mount that wouldn't jostle around as i'm driving. i wanted to mount my 500's to metal, not plastic. with the satoshi it's a little tighter back there than if i had mounted the grillcraft flush with the front. so this is what i had to work with

    [​IMG]

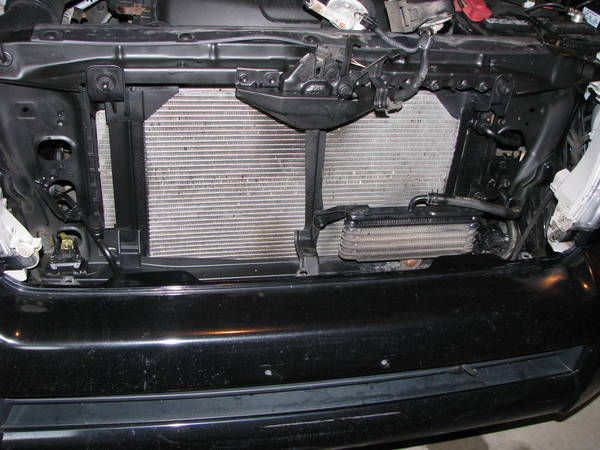

    the tranny cooler was in the way along the bottom, so i decided to mount the hellas from the top. i started by removing the hood latch cover (just remove the two 10mm bolts that hold it on). you'll find two steel tabs that stick out at the bottom of the latch mechanism that are also in the way. i just cut them off flush with a cutting wheel (sorry no pic)

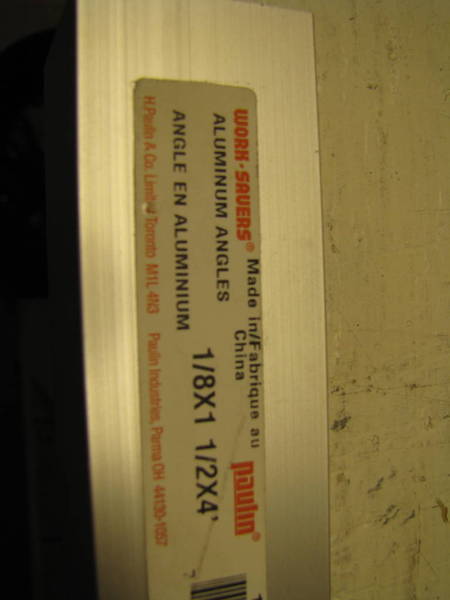

    for the bracket i used a 4' piece of 1/8" angle iron available at any hardware store. i went with aluminum so i wouldn't have any rusting issues.

    [​IMG]

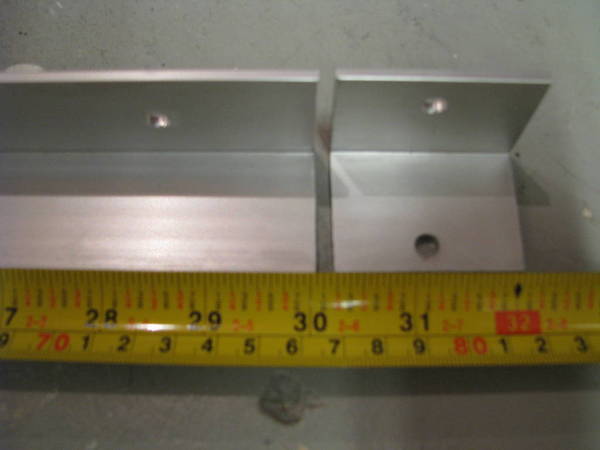

    i cut a section about 28" long for the light support and 2 brackets 2" wide

    [​IMG]

    [​IMG]

    [​IMG]

    after you drill your holes and bolt it together (i used three 1" long, 1/4" thick stainless bolts with locknuts), you'll have something like this (you can position your lights wherever you want, i measured and drilled so that the hellas would be centered horizontally in the grill and flush with the grillcraft when the grill was back on)

    [​IMG]

    [​IMG]

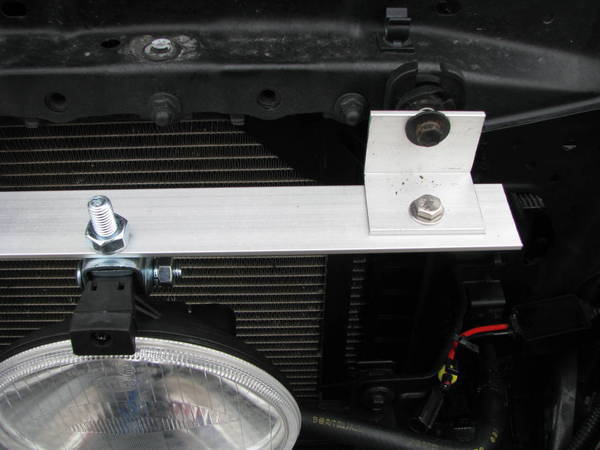

    simply use the rad support bolts on either side to secure the ends and use the pre-existing center support bolt to secure the middle of the light bracket.

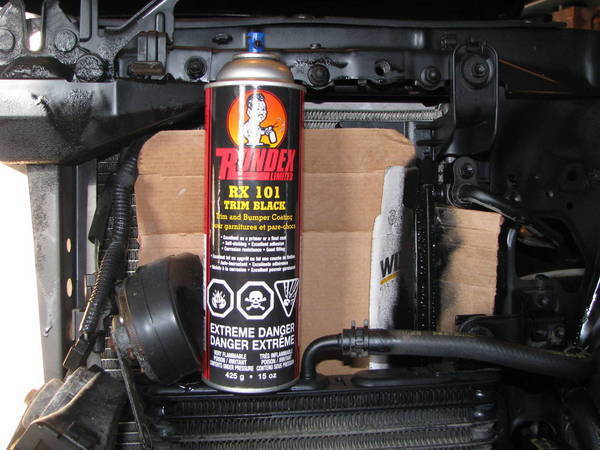

    looks good. take it all apart, scuff the aluminum with 400 grit sandpaper, and paint it. i used flat black spray paint

    [​IMG]

    now you've got this

    [​IMG]

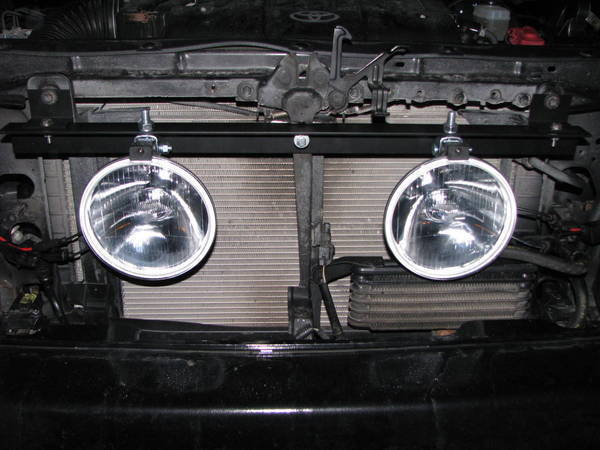

    installed looks like this

    [​IMG]

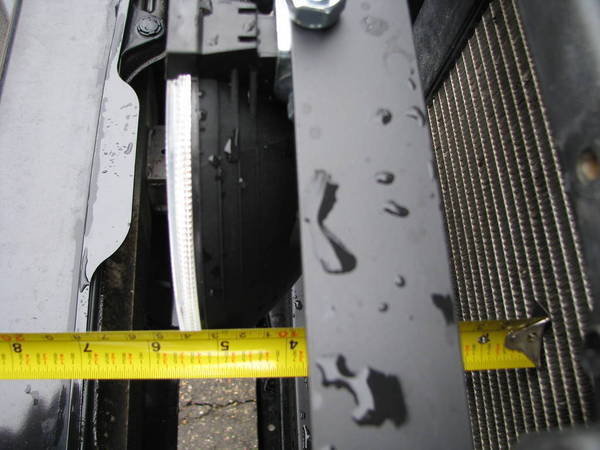

    setup allows 2.5" clearance between the lights and the rad

    [​IMG]

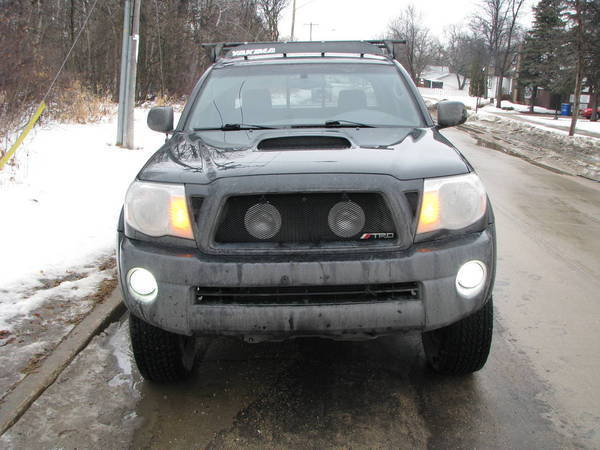

    with satoshi grill in place (great fit!!)

    [​IMG]

    [​IMG]

    [​IMG]

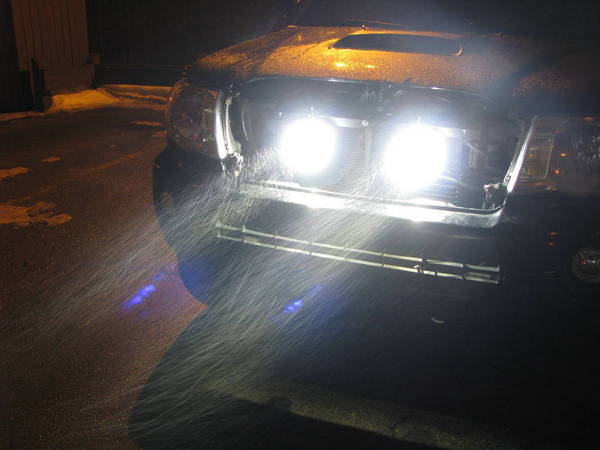

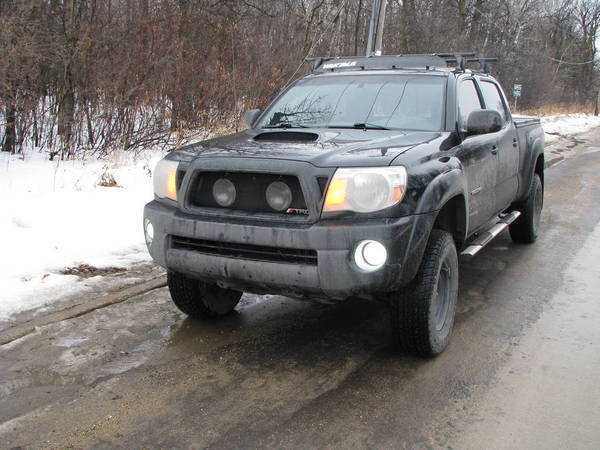

    BAM! :D

    [​IMG]

    [​IMG]

    questions?

  4. Mar 9, 2010 at 9:21 AM
    #4
    1337Taco

    1337Taco Slamry

    Joined:
    May 9, 2008
    Member:
    #6504
    Messages:
    7,447
    Gender:
    Male
    First Name:
    Kevin
    NorCal
    Vehicle:
    07 Tacoma Off-Road
    Camburg Spindles, Bilstein Rear plus AAL. 285 Hankook MT.
    Looks good!

  5. Mar 9, 2010 at 9:25 AM
    #5
    Kyle

    Kyle Mckeown343

    Joined:
    Feb 9, 2010
    Member:
    #31019
    Messages:
    248
    Gender:
    Male
    Arcata
    Vehicle:
    05 PreRunner
    3 inch toytec, magnaflow exhaust, KNN intake, URD MAF, HID 55 watt, Hella 500 HID, Smoked tail lights LED running lights, Pioneer deck with 8 inch infinity sub, Focal 165VB and 165CVX with JL 320/4, Tinted all around 3%, Tinted interior lights.
    Are all of those 55 watt (including headlights and fogs)? Looks way good by the way !!!!

  6. Mar 9, 2010 at 9:29 AM
    #6
    Klipp11

    Klipp11 [OP] s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod

    thanks :)

    all 5000k from ddm. 35w in the fogs and heads, 55w in the hella 500's

  7. Mar 9, 2010 at 9:43 AM
    #7
    neslerrah

    neslerrah Who needs 4WD?

    Joined:
    Feb 18, 2008
    Member:
    #4803
    Messages:
    6,737
    Gender:
    Male
    First Name:
    Harrelsen
    Tucson
    Vehicle:
    5 lug BEAST!
    Secondary air filter removed, elbow mod, BFG KM2 (33x10.5R15), American Racing Mojaves, Debadged, BHLM, Dome Light MOD (Blue), Hella 500 behind recessed Satoshi Grille, Kenwood headunit, Sockmonkey 'TACOMA' Decals, Readylift 5-lug SST, Rear Shocks - Bilstein TRD, Dynomax Super Turbo #17748, DDM Slim Ballast HID Kit H4 Hi/Lo -35W 6000K in headlights, Apexcone Raptor HID Kit H3 - 35W 6000K in Hella 500s, aFe CAI #51-10762, WeatherTech Floorliner, 200W Smart AC Inverter

    I was thinking the same thing. Glad to see they work perfect. It will suck if a bulb needs to be replaced. But I am sure the bulbs will last a long time.

    OP, I like the way you made the custom light bar for the Hellas.

    Great job overall :thumbsup:

  8. Mar 9, 2010 at 9:48 AM
    #8
    Klipp11

    Klipp11 [OP] s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod
    thanks. yeah, i thought the same thing about the bulb burning out, but i'm sure i can remove the epoxy from the light when the time comes. if it comes. :)

  9. Mar 9, 2010 at 9:50 AM
    #9
    Klipp11

    Klipp11 [OP] s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod
    yeah, i tested them while they were still in their plastic protectors :)

  10. Mar 9, 2010 at 10:09 AM
    #10
    1BlkT

    1BlkT Mod'n on a Budget

    Joined:
    Oct 29, 2007
    Member:
    #3283
    Messages:
    1,290
    Gender:
    Male
    First Name:
    Ty
    90603
    Vehicle:
    2006 Black Sport Double Cab
    Allied 4'' Spindles, Sway A Way 2.5 Coilovers, Donahoe Remote Reservoir Shocks w/ Deaver 11Pack Leafs, Goodyear Duratrac 285's, Pro Comp Series 8128, Recessed Grill w/Hella 500's behind, Tint, Black TRD Skid Plate, Debadged, Tailgate Hose Clamp, Weathertech Mats, Aero Turbine 2525XL Exhaust, Volant Intake, RETRO'D Headlights by Yosh2000
    I really like your mounting method :thumbsup:

    I'm going to be redoing my current mounting method where they are on the radiator support. I'm going to try and find a way to mount some lights that are like 5.75'' deep. I wonder if I can modify your way a little bit to work for me :confused: Back to the drawing board.

    Keep up the good work

  11. Mar 9, 2010 at 10:52 AM
    #11
    Klipp11

    Klipp11 [OP] s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod
    haha, i knew you'd be all over this one ty! i'll take some measurements for ya and see if a 6" deep light will fit with this mount

  12. Mar 9, 2010 at 10:58 AM
    #12
    DeeKay21

    DeeKay21 Lieutenant Dan.

    Joined:
    Nov 11, 2008
    Member:
    #10651
    Messages:
    14,201
    Gender:
    Male
    Nevada/Utah
    Vehicle:
    06' TRD Sport 4x4
    Nice job bro!!!! I really like that bracket you made too!!! I might have to look into making one for mine!!:eek::D

  13. Mar 9, 2010 at 11:00 AM
    #13
    MikeyD

    MikeyD Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19233
    Messages:
    823
    Gender:
    Male
    First Name:
    Mike
    Sayreville NJ
    Vehicle:
    2007 Toyota tacoma 4x4
    BHLM, HID kit, yellow fogs, Grill craft, Hellas behind grillcraft, LED cup holder mod, after market horn, extra reverse lights, under body glow for off roading at night, pro comp 7089's wrapped in 255/75/17 bfg mud terrains, Toytec coiovers sat at 3.25, 2" add a leaf with 5100's, Satoshi grill mod
    Great job! I will be doing this soon.

  14. Mar 9, 2010 at 11:07 AM
    #14
    Klipp11

    Klipp11 [OP] s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod
    thanks dan! do it. the bracket mount is very solid :D

  15. Mar 9, 2010 at 11:08 AM
    #15
    Cars0n`

    Cars0n` Well-Known Member

    Joined:
    Sep 8, 2008
    Member:
    #9091
    Messages:
    1,436
    Gender:
    Male
    First Name:
    Carson
    Edmonton AB
    Vehicle:
    07 2wd access cab base.
    Kenwood DDX-512 Deck, Boston Acoustics G5 Sub in Ported Bassworx Box, Kenwood eXcelon KAC-X10D Amp, Sirius Satellite Radio, Magellan GPS, DDM 55w bi-xenon headlights, 2 HID Hella 500ff's mounted behind grill, 4 pc ebay Billet grill, Fog Lights (my truck didnt have them stock), Pioneer Speakers 6x9's(front) 6.5's(rear) AFE Cold Air Intake, Hose Clamp Mod, Tailgate Strengthen Mod, Removed Gay Mud Flaps, De-Badged, BHLM, 245/45/20 on velocity wheels. VW865a, Extra D Rings In Box, OEM Cruise Added Optima Red Top Battery
    ive been waiting for this! awesome job. only this more i could suggest is a daytime pic of them off with the grille on and one from inside the cab with them on at night ;)

  16. Mar 9, 2010 at 11:09 AM
    #16
    rmb_crew

    rmb_crew My other ride has 18,400HP!!!!!!

    Joined:
    Jan 21, 2009
    Member:
    #12837
    Messages:
    6,080
    Gender:
    Male
    First Name:
    Ryan
    Jacksonville, FL 30.243103, -81.591007‎
    Vehicle:
    2010 F150 XLT SuperCrew 4X4
    Access larado tonneau, magnaflow exhaust
    How is the heat with the 55W? I ordered the same thing but 6k.

  17. Mar 9, 2010 at 11:13 AM
    #17
    1BlkT

    1BlkT Mod'n on a Budget

    Joined:
    Oct 29, 2007
    Member:
    #3283
    Messages:
    1,290
    Gender:
    Male
    First Name:
    Ty
    90603
    Vehicle:
    2006 Black Sport Double Cab
    Allied 4'' Spindles, Sway A Way 2.5 Coilovers, Donahoe Remote Reservoir Shocks w/ Deaver 11Pack Leafs, Goodyear Duratrac 285's, Pro Comp Series 8128, Recessed Grill w/Hella 500's behind, Tint, Black TRD Skid Plate, Debadged, Tailgate Hose Clamp, Weathertech Mats, Aero Turbine 2525XL Exhaust, Volant Intake, RETRO'D Headlights by Yosh2000

    I've hacked up my spare grille so it isn't as recessed so I should have about 1.25-1.75'' more up front. Let me know what measurements you come up with when you have time.

    Thanks

  18. Mar 9, 2010 at 11:18 AM
    #18
    Klipp11

    Klipp11 [OP] s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod
    you got it. lemme take some more pics and i'll post em up for ya :)

  19. Mar 9, 2010 at 11:24 AM
    #19
    Klipp11

    Klipp11 [OP] s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod
    heat is not an issue. remember the stock halogen bulbs are 55w also. i've heard of some guys upgrading to 100w halogen bulbs and they're still fine.

  20. Mar 9, 2010 at 11:29 AM
    #20
    NewMexiTaco

    NewMexiTaco Abron Cabron

    Joined:
    Sep 22, 2009
    Member:
    #23186
    Messages:
    906
    Gender:
    Male
    First Name:
    Abraham
    Santa Fe, NM
    Vehicle:
    2007 4x4 DC LB TRD Sport
    Weathertech mats; Wet Okole seat covers; Kobalt Lowpro truck box,(sitting in the shed) Snugtop Hi-liner camper shell; AFE Pro Dry air filter, Tailgate Hoseclamp mod; 5100s all around, Light Racing UCAs, OME 885 coils, OME Dakar Leafs, CB Drop, Driveline spacer. Epoxy Satoshi; Redline Hood Struts. 4x Mil Spec. bed D rings; Brute Force Fab custom DCLB Hybrid Sliders, ARB w/ Warn M8000 wench, Diff Breather mod, Alpine Deck w/ ipod cable. Iphone ziptie to rearview mirror 4wd-cam mod!
    Bad ass! This ones def. going on the list! Thank you sir.
