Hella 500 HID Conversion

Discussion in 'Lighting' started by NwiTACO, Jun 11, 2009.

  1. Jun 11, 2009 at 9:26 AM
    #1
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,347
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    OK, so I know lots of you have Hella's on your trucks. I'm not sure, but I don't really think I'm the only one who is dissappointed by the light output. I have a set of driving lights and a set of fog lights so I got two 35W, H3, 4500K HID Conversion kits.
    http://www.ddmtuning.com/index.php?p=product&id=102&parent=85
    Not the easiest conversion, I made it harder than it need to be, but I wanted it to look factory, and it does.

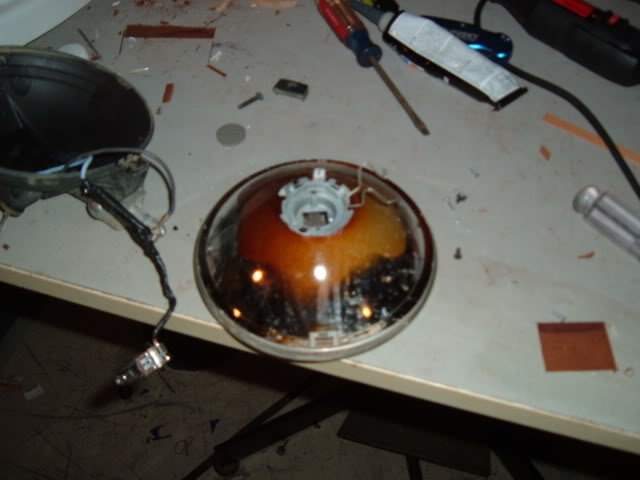

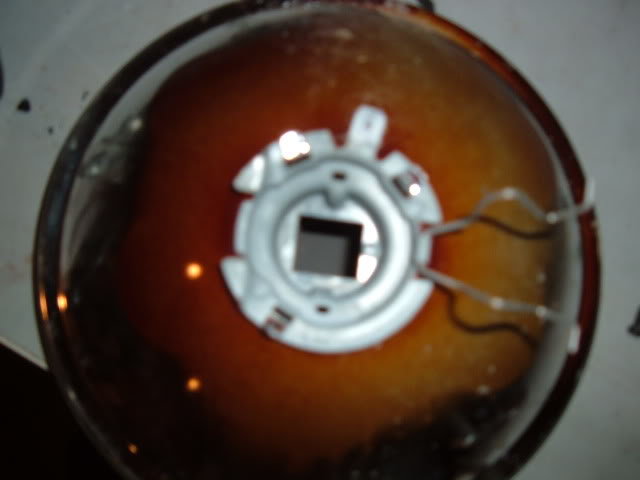

    First the reflector assembly must be removed from the housing.
    [​IMG]
    Then, due to the new bulb's added insertion length, you need to remove the lamp holder from the reflector assembly. This is done by straightening the three (3) tabs on the back.
    [​IMG]

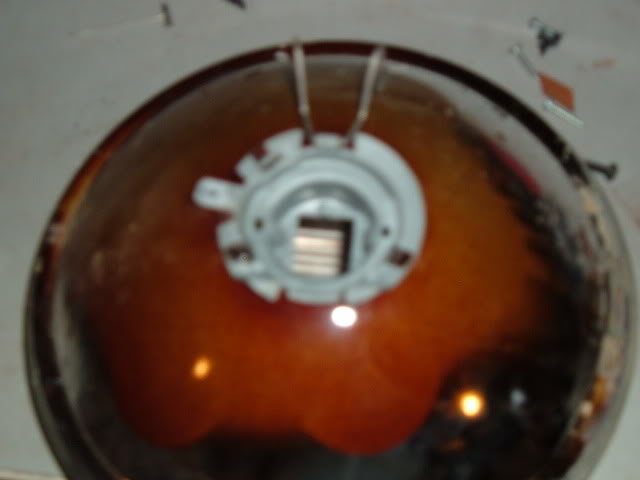

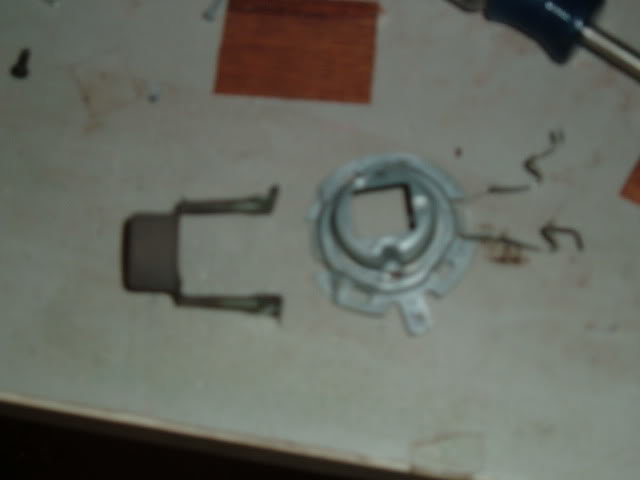

    Once removed, remove the inner portion of the lamp holder.
    [​IMG]
    Re-insert the lamp holder, and bend the tabs back.
    [​IMG]

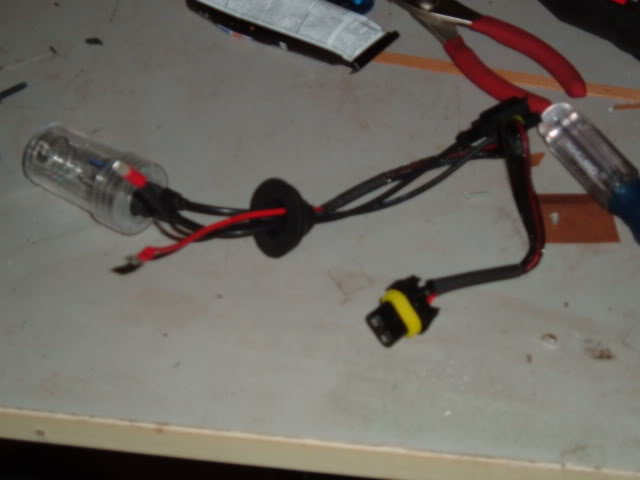

    The main portion of the lamp wiring looks like this:
    [​IMG]
    You are supposed to drill a 7/8" hole for the grommet so the wiring can enter your housing. I though it was kinda dumb to leave the stock power entering the housing, then have another grommet bring the power to the lamp from the ballast, as well as the new power wires to connect right to the old power wires inside the light. I wanted two wires entering the housing only, going to the bulb so here is the mod's to do so.

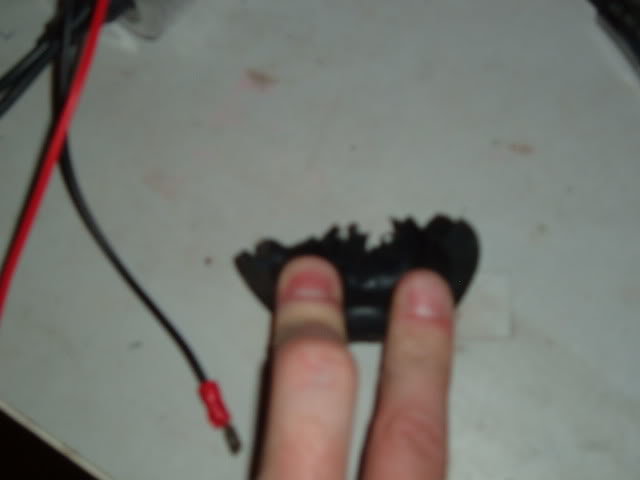

    First remove the grommet from the wiring harness. Cut down the grommet to each wire. When you are done the grommet will look like this.
    [​IMG]

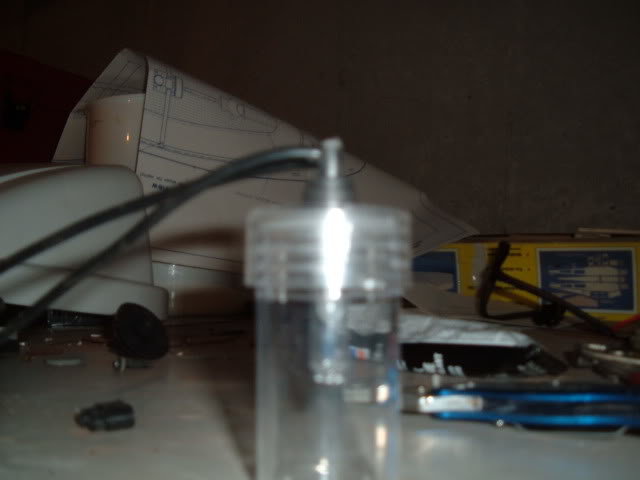

    Now the back portion of the bulb is too long to fit in the housing when installed within the reflector. To rectify this, simply take a dremel and grind a relief down the side of the bulb so the wires can exit the side like this (Note: the lamp is still in the protective case at this time to protect the bulb):
    [​IMG]
    [​IMG]

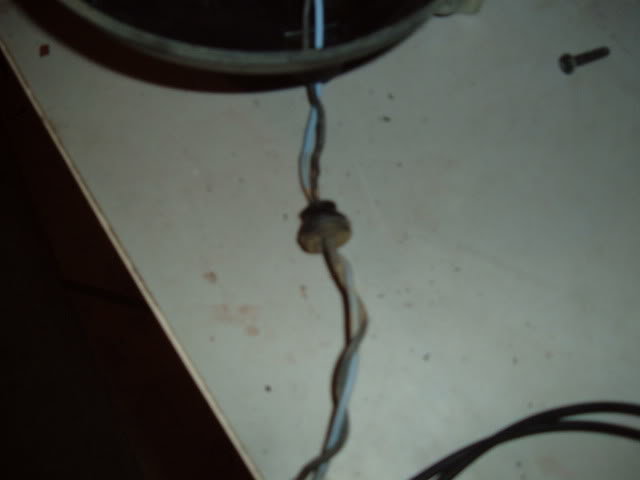

    Next remove the grommet from the original wiring for the Hella's.
    [​IMG]

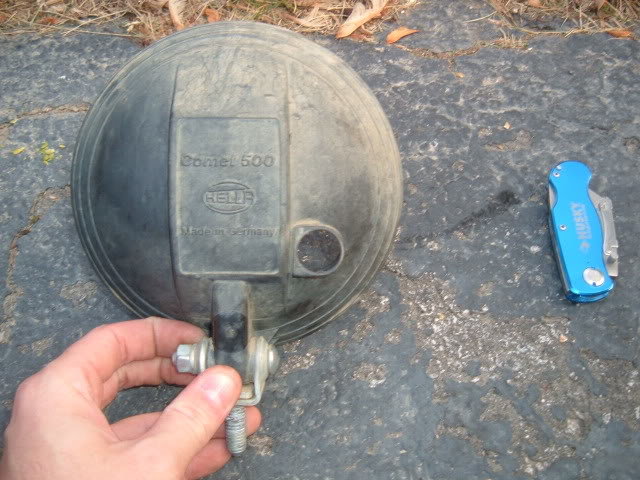

    Now grind off the bosses inside housing to make adittional room within the housing. It should look like this when you're done.
    [​IMG]
    Now enlarge the wire entry hole so the plugs on the bulb can fit through the hole.
    [​IMG]

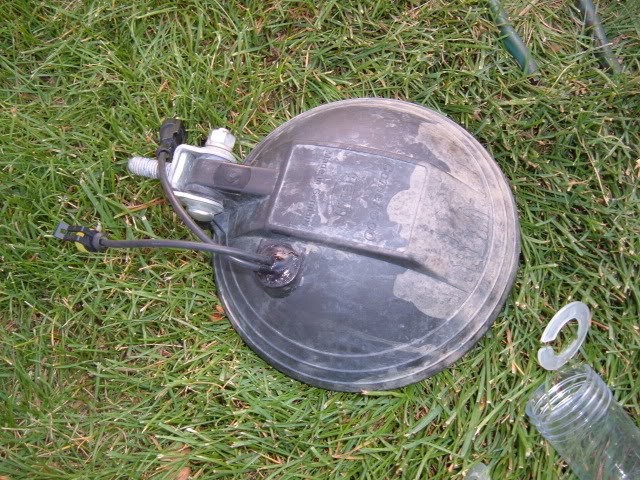

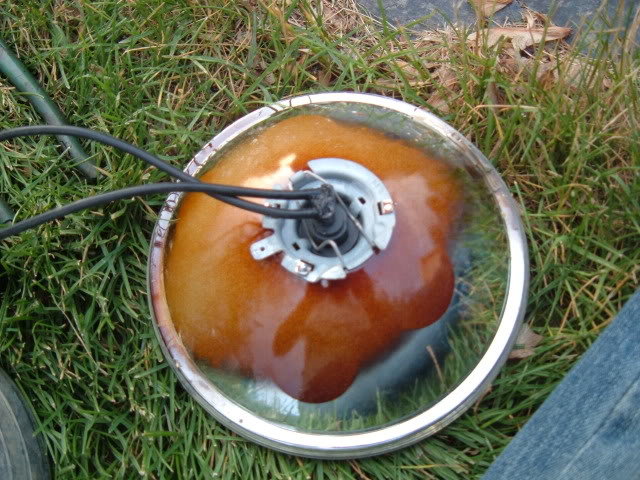

    Install reflector assembly back in the housing, install the factory grommet around the new wires, add silicone to help seal up the entry of the wires.
    [​IMG]

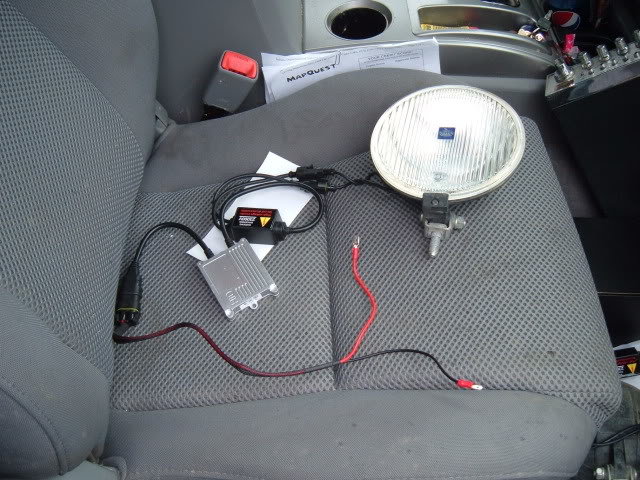

    Now the assembly for one light looks like this:
    [​IMG]
    Simply hook up the red and black and your in business!
    Now repeat for the other fog light...then the other two driving lights...and whollah:
    (insert completed re-installed photo of lights on truck here) :D

  2. Jun 11, 2009 at 9:54 AM
    #2
    badguybuster

    badguybuster Well-Known Member

    Joined:
    Mar 8, 2009
    Member:
    #14475
    Messages:
    2,437
    Gender:
    Male
    West (by GOD) Virginia
    Vehicle:
    2008 Tundra Off Road SR5
    6000K HID Headlights 6000k HID Fog Lights Window visors (all 4) Tri-Fold Tonno Bedlined Rockers Bedlined Bumpers Bilstein 5100 Toytec 1/2" spacers 3" TSB Leafs and AAL's (Toytec) Differential 1" Drop Sway Bar Relocators BHLM Mod Debadged Pro Comp 7089s Hankook Dynapro 35" M/T's Billett Grill 55 watt fog lights in grill 55 watt fog lights on Pre-Runner Light Bar Rear Bilstein 5100's Flowmaster Super 10's Yellow Fog Light Mod Titanium Burl Wood Grain Dash Mod Leather Arm Rest Mod TRD Steering wheel Mod Painted Engine Cover Painted Fuse Box TRD Seat Belt Covers Bed Light Mod Extended/Braided Brake Lines Back up light mod
    Nice write up. Thanks

  3. Jun 11, 2009 at 2:06 PM
    #3
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,347
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    You are very welcome, sir.

  4. Jun 11, 2009 at 3:47 PM
    #4
    RedruM29

    RedruM29 Blinking Car Mod...

    Joined:
    Feb 5, 2008
    Member:
    #4594
    Messages:
    607
    Gender:
    Male
    First Name:
    Kyle
    Nor☆Cal
    Vehicle:
    08 trd sport 4x4
    Just enough, and never enough
    great install, lets get some pics of the lights on now:D

  5. Jun 11, 2009 at 4:26 PM
    #5
    Viet2100

    Viet2100 Well-Known Member

    Joined:
    Jun 27, 2007
    Member:
    #1930
    Messages:
    2,512
    Gender:
    Male
    First Name:
    Viet
    Delray Beach, FL
    Vehicle:
    2007 Infiniti G35S
    I think your camera's focus function is broken.

  6. Jun 11, 2009 at 7:57 PM
    #6
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,347
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    It's fine, I just shake a little bit and it makes it hard for the camera to focus.

  7. Nov 22, 2009 at 5:33 PM
    #7
    Timicha

    Timicha Timicha

    Joined:
    Dec 23, 2008
    Member:
    #11854
    Messages:
    2,722
    Gender:
    Male
    First Name:
    TIM
    Tillamook / Portland , Oregon
    Vehicle:
    04 White Tacoma
    Fabtech 4 inch lift, tinted windows, diff drop, 33 inch MTZ tires on Raceline Raptor wheels, ELITE OFF-ROAD bumpers and sliders
    so how much brigher are they now. i'm thinking about doing this soon and am wondering if it is really worth it

  8. Nov 22, 2009 at 5:43 PM
    #8
    Cars0n`

    Cars0n` Well-Known Member

    Joined:
    Sep 8, 2008
    Member:
    #9091
    Messages:
    1,430
    Gender:
    Male
    First Name:
    Carson
    Edmonton AB
    Vehicle:
    07 2wd access cab base.
    Kenwood DDX-512 Deck, Boston Acoustics G5 Sub in Ported Bassworx Box, Kenwood eXcelon KAC-X10D Amp, Sirius Satellite Radio, Magellan GPS, DDM 55w bi-xenon headlights, 2 HID Hella 500ff's mounted behind grill, 4 pc ebay Billet grill, Fog Lights (my truck didnt have them stock), Pioneer Speakers 6x9's(front) 6.5's(rear) AFE Cold Air Intake, Hose Clamp Mod, Tailgate Strengthen Mod, Removed Gay Mud Flaps, De-Badged, BHLM, 245/45/20 on velocity wheels. VW865a, Extra D Rings In Box, OEM Cruise Added Optima Red Top Battery
    so all you need to power these HID's is a + and -?

    is all hid's like this or am i not seeing this correctly?

  9. Nov 22, 2009 at 8:15 PM
    #9
    Viet2100

    Viet2100 Well-Known Member

    Joined:
    Jun 27, 2007
    Member:
    #1930
    Messages:
    2,512
    Gender:
    Male
    First Name:
    Viet
    Delray Beach, FL
    Vehicle:
    2007 Infiniti G35S
    To power HIDs, you need ballasts. They are little boxes that convert power to the HID capsules.

  10. Nov 22, 2009 at 8:38 PM
    #10
    neslerrah

    neslerrah Taco lovin'

    Joined:
    Feb 18, 2008
    Member:
    #4803
    Messages:
    6,743
    Gender:
    Male
    First Name:
    Harrelsen
    Tucson
    Vehicle:
    5 lug BEAST!
    Secondary air filter removed, elbow mod, BFG T/A KO (31x10.5R15), 15" American Racing Mojaves, BHLM, Dome Light MOD (Blue), Pioneer headunit, Sockmonkey 'TACOMA' Decals, Readylift 5-lug SST, Rear Shocks - Bilstein TRD, Dynomax Super Turbo #17748, DDM Slim Ballast HID Kit H4 Hi/Lo -35W 6000K in headlights, Apexcone Raptor HID Kit H3 - 35W 6000K in Hella 500s, aFe CAI #51-10762, WeatherTech Floorliner, 200W Smart AC Inverter
    Would it be okay to run 6000k conversion on Hellas?

  11. Nov 22, 2009 at 8:39 PM
    #11
    Dellosa89

    Dellosa89 Love peace and Taco Grease

    Joined:
    Dec 6, 2008
    Member:
    #11334
    Messages:
    1,331
    Gender:
    Male
    First Name:
    Brian
    Murrieta CA
    Vehicle:
    07 Prerunner TRD Off Road
    Fox 2.5 Coilovers, Camburg 1.25" UCA's, Icon RR, Icon aal,EVS foam bump stops, Borla Catback, HID Headlights and fogs, Defiant light bar, 3 hella 700 hid, Satellite Radio, Sony hu with 10'' sub, custom jetski rack, TRD seat covers, secondary air filter removed.
    Yea you will have no problem with the 6k.

  12. Nov 22, 2009 at 8:41 PM
    #12
    neslerrah

    neslerrah Taco lovin'

    Joined:
    Feb 18, 2008
    Member:
    #4803
    Messages:
    6,743
    Gender:
    Male
    First Name:
    Harrelsen
    Tucson
    Vehicle:
    5 lug BEAST!
    Secondary air filter removed, elbow mod, BFG T/A KO (31x10.5R15), 15" American Racing Mojaves, BHLM, Dome Light MOD (Blue), Pioneer headunit, Sockmonkey 'TACOMA' Decals, Readylift 5-lug SST, Rear Shocks - Bilstein TRD, Dynomax Super Turbo #17748, DDM Slim Ballast HID Kit H4 Hi/Lo -35W 6000K in headlights, Apexcone Raptor HID Kit H3 - 35W 6000K in Hella 500s, aFe CAI #51-10762, WeatherTech Floorliner, 200W Smart AC Inverter

    Sweet! Thanks!

  13. Feb 23, 2010 at 6:18 PM
    #13
    Cars0n`

    Cars0n` Well-Known Member

    Joined:
    Sep 8, 2008
    Member:
    #9091
    Messages:
    1,430
    Gender:
    Male
    First Name:
    Carson
    Edmonton AB
    Vehicle:
    07 2wd access cab base.
    Kenwood DDX-512 Deck, Boston Acoustics G5 Sub in Ported Bassworx Box, Kenwood eXcelon KAC-X10D Amp, Sirius Satellite Radio, Magellan GPS, DDM 55w bi-xenon headlights, 2 HID Hella 500ff's mounted behind grill, 4 pc ebay Billet grill, Fog Lights (my truck didnt have them stock), Pioneer Speakers 6x9's(front) 6.5's(rear) AFE Cold Air Intake, Hose Clamp Mod, Tailgate Strengthen Mod, Removed Gay Mud Flaps, De-Badged, BHLM, 245/45/20 on velocity wheels. VW865a, Extra D Rings In Box, OEM Cruise Added Optima Red Top Battery
    does it really make much difference with the 35w kit vs the 55w kit? my friend told me the 55w does not put out much more light than the 35w kit.

  14. Feb 28, 2010 at 5:42 PM
    #14
    Cars0n`

    Cars0n` Well-Known Member

    Joined:
    Sep 8, 2008
    Member:
    #9091
    Messages:
    1,430
    Gender:
    Male
    First Name:
    Carson
    Edmonton AB
    Vehicle:
    07 2wd access cab base.
    Kenwood DDX-512 Deck, Boston Acoustics G5 Sub in Ported Bassworx Box, Kenwood eXcelon KAC-X10D Amp, Sirius Satellite Radio, Magellan GPS, DDM 55w bi-xenon headlights, 2 HID Hella 500ff's mounted behind grill, 4 pc ebay Billet grill, Fog Lights (my truck didnt have them stock), Pioneer Speakers 6x9's(front) 6.5's(rear) AFE Cold Air Intake, Hose Clamp Mod, Tailgate Strengthen Mod, Removed Gay Mud Flaps, De-Badged, BHLM, 245/45/20 on velocity wheels. VW865a, Extra D Rings In Box, OEM Cruise Added Optima Red Top Battery

    anyone know this?

  15. Feb 28, 2010 at 8:43 PM
    #15
    Timicha

    Timicha Timicha

    Joined:
    Dec 23, 2008
    Member:
    #11854
    Messages:
    2,722
    Gender:
    Male
    First Name:
    TIM
    Tillamook / Portland , Oregon
    Vehicle:
    04 White Tacoma
    Fabtech 4 inch lift, tinted windows, diff drop, 33 inch MTZ tires on Raceline Raptor wheels, ELITE OFF-ROAD bumpers and sliders
    i've never seen anyone with the 35w kit but i know my 55w kit is brighter than hell. from half a mile away looking at them it blinds you still. its pretty ridiculous how bright they are

  16. Feb 28, 2010 at 10:05 PM
    #16
    Cars0n`

    Cars0n` Well-Known Member

    Joined:
    Sep 8, 2008
    Member:
    #9091
    Messages:
    1,430
    Gender:
    Male
    First Name:
    Carson
    Edmonton AB
    Vehicle:
    07 2wd access cab base.
    Kenwood DDX-512 Deck, Boston Acoustics G5 Sub in Ported Bassworx Box, Kenwood eXcelon KAC-X10D Amp, Sirius Satellite Radio, Magellan GPS, DDM 55w bi-xenon headlights, 2 HID Hella 500ff's mounted behind grill, 4 pc ebay Billet grill, Fog Lights (my truck didnt have them stock), Pioneer Speakers 6x9's(front) 6.5's(rear) AFE Cold Air Intake, Hose Clamp Mod, Tailgate Strengthen Mod, Removed Gay Mud Flaps, De-Badged, BHLM, 245/45/20 on velocity wheels. VW865a, Extra D Rings In Box, OEM Cruise Added Optima Red Top Battery
    are you referring to a hella conversion or in your headlights? also if in the hellas what beam pattern do you have?

  17. Feb 28, 2010 at 10:27 PM
    #17
    Mr. Brown

    Mr. Brown Well-Known Member

    Joined:
    Jan 17, 2010
    Member:
    #29540
    Messages:
    2,193
    Gender:
    Male
    Orange County
    Vehicle:
    White Double Cab Off Road
    Suspensiopn: Donahoe coil overs, Donahoe rear reservoir shocks, Light Racing UCA's, Wheelers AAL's, Exterior: Powder-coated black billet grill, Hella Black Magic fog lights, color matched rear bumper, color matched side mirrors, undercover tonneau cover, Interior: Alpine W203 w/ Blackbird II, Weathertech Floor-liners, blue gauge light mod, Performance: AFE Stage II Intake, Banks exhaust, single cat y-pipe, Dynomat hood-liner, NST Performance pulleys, URD MAF calibrator
    What is the difference between 55w and 35w kits?
    Our 55w HID kits are 40% brighter than the standard 35w kits.
    The 55W system ballasts are about 1 cm longer than the 35W ballasts.
    55w kits tend to wash out some of the color of the HID bulb due to the light output (for example, a 55w 8000k will look similar in color to a 35w 6000k kit).
    Our 55w HID Kit is not recommended for smaller fog light housings because they tend to concentrate a large amount of heat in a small area.

    From the website he got the bulbs from. I don't know how much this helps, but 40% brighter seems pretty significant.

  18. Mar 1, 2010 at 7:08 AM
    #18
    Cars0n`

    Cars0n` Well-Known Member

    Joined:
    Sep 8, 2008
    Member:
    #9091
    Messages:
    1,430
    Gender:
    Male
    First Name:
    Carson
    Edmonton AB
    Vehicle:
    07 2wd access cab base.
    Kenwood DDX-512 Deck, Boston Acoustics G5 Sub in Ported Bassworx Box, Kenwood eXcelon KAC-X10D Amp, Sirius Satellite Radio, Magellan GPS, DDM 55w bi-xenon headlights, 2 HID Hella 500ff's mounted behind grill, 4 pc ebay Billet grill, Fog Lights (my truck didnt have them stock), Pioneer Speakers 6x9's(front) 6.5's(rear) AFE Cold Air Intake, Hose Clamp Mod, Tailgate Strengthen Mod, Removed Gay Mud Flaps, De-Badged, BHLM, 245/45/20 on velocity wheels. VW865a, Extra D Rings In Box, OEM Cruise Added Optima Red Top Battery
    must have missed that, thanks man! :thumbsup:

    if i get the 500's can i use the 55W kit in them? im concerned about them getting too hot. has anyone done this or know of the effects?

  19. Mar 1, 2010 at 7:11 AM
    #19
    NwiTACO

    NwiTACO [OP] Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,347
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    You should n't have a problem with heat, and they will fit as long as the bulb is the same size bulb.
