Help getting lower control arm to drop enough for shock removal

Discussion in 'Suspension' started by OutbackHack, Jul 4, 2012.

  1. Jul 4, 2012 at 9:17 AM
    #1
    OutbackHack

    OutbackHack [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    261
    Gender:
    Male
    First Name:
    Mike
    Seattle, WA
    Vehicle:
    2010 DCSB V6 6sp TRD-Sport
    $$$
    Wondering if anyone has any tips to help me complete my front 5100 shock upgrade. I've gotten as far as unbolting the top of the shock assembly along with the 2 bolts on the end of the lower control arm (near the wheel). I've also loosened the bolts at the root of the control arm where the alignment cams are. But I'm not sure how much loosening is required as I can't get the lower control arm to drop enough to totally remove tension on the spring.

    On the rear attachment point I've got the nut completely removed and the 2 alignment cams are floating free. On the front point, one of the cams is free but the other is stuck in place, but the entire bolt that goes through it is free to move. Hopefully this makes sense. Any suggestions for getting the LCA to drop further so I can remove the shock?

    Top Shock Assembly.jpg
    LCA rear alignment bolts.jpg
    LCA front alignment bolts.jpg

  2. Jul 4, 2012 at 9:21 AM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,102
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    First, you need to re install the center top nut on the shock shaft, and remove the 3 nuts on the perimiter.

  3. Jul 4, 2012 at 9:21 AM
    #3
    trdNick

    trdNick Odie

    Joined:
    Dec 27, 2011
    Member:
    #69480
    Messages:
    749
    Gender:
    Male
    Mobile, AL
    Vehicle:
    07 Trd Off Road
    maybe a bottle jack pushing down?

  4. Jul 4, 2012 at 9:23 AM
    #4
    Haslefre

    Haslefre Offline

    Joined:
    Jan 27, 2012
    Member:
    #71523
    Messages:
    15,348
    Gender:
    Male
    First Name:
    Brady
    Puget Sound
    Vehicle:
    09 Offroad 4x4.
    IronMan4x4 Foam Cell Pro Fronts, IronMan 2" rear leaf pack. Relentless 1/4" steel skid plate. Weathertech Digital fit front floor liners. BAMF Sliders with kickout. HomerTaco Satoshi grill.
    :facepalm:

  5. Jul 4, 2012 at 9:25 AM
    #5
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,666
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
  6. Jul 4, 2012 at 9:26 AM
    #6
    Amo-cat3

    Amo-cat3 Wizard Sleeve Master

    Joined:
    Jan 26, 2009
    Member:
    #12980
    Messages:
    411
    Gender:
    Male
    Maui, Hawaii
    Vehicle:
    07 TRD Blown dubcab
    TRD Supercharged, 2.7" URD Pulley, APR X1, AFE Stage II intake, DT Longtubes, MBRP 2.5" dual exhaust w/ Vibrant Ultra resonator, URD Y-pipe w/ vibrant v-bands (Cat free), Walboro 255 fuel pump, SS Oil catch can, Aeroforce gauges, Leeper 2.5 coilover set at 3", 1.5" Alcan aal, Light racing uca, 17x8.5 Fuel Anza 4.5" backspace/-6 mm offset, m/t atz 265/70/17, 1.25 spidertrax, scanguage 2, AMP electric steps, bed extender, Low-pro tonneau cover, 20% tinted windows/headlights/taillights, tacoma seat covers, Image dynamic sound system w/ Pinoneer avh3200 head, assrtd stickers................
    Quick, replace that center nut and remove the three outside of it

    No - you didn't have to remove or loosen the main lower control arm bolts where the allingment cams are. There are two bolts under the lower arm that bolt to the knuckle. Take those out and you will be able to slide the steering knuckle over and then will be able to maneuver the shock out. You may have to twist it out letting the coil guide you like removing a big screw.

    Don't pull the knuckle too far out as you may pull your cv axle out of the slip yoke, but you'll have some play to get that coilover out.

  7. Jul 4, 2012 at 9:26 AM
    #7
    OutbackHack

    OutbackHack [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    261
    Gender:
    Male
    First Name:
    Mike
    Seattle, WA
    Vehicle:
    2010 DCSB V6 6sp TRD-Sport
    $$$
    I'm trying to use the "no spring compressor" technique. Isn't it correct to leave those 3 and just remove the bolt from the top of the stack for this approach?

  8. Jul 4, 2012 at 9:37 AM
    #8
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods
    stupid idea
    go rent one from autozone or simular
    also looks like all your lca alingment tabs are completly folded over
    and if what u say is true about your alingment cam i bet your cam is frozen into the lca.....

  9. Jul 4, 2012 at 9:44 AM
    #9
    Catcrazed

    Catcrazed Save a horse ride a Railroader

    Joined:
    May 12, 2011
    Member:
    #56529
    Messages:
    568
    Gender:
    Male
    First Name:
    Bryan
    NW Oregon
    Vehicle:
    04 TRD
    Arb bullbar m8000 883 on 5100 5leafs out back, big trucker cb, toolbox, dogbox, loaded with guns and HID's soon.
    My local alignment shop charged me $30 to swap my coils it took him no time at all and i didnt pinch a finger loose an eye or break a sweat. The 1st time Ididit with an autozone comppressor and it was still quite a bit of work. Your just playin w fire. If you don't have $30 to have a shop do it you prob shouldn't even be lifting your truck.

  10. Jul 4, 2012 at 9:45 AM
    #10
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    6,865
    Gender:
    Male
    First Name:
    Ryan Mathis
    Lives: Fountain, Colorado/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    i think using the one from autozone is more of a stupid idea that using the truck that is surrounds the spring on three sides

  11. Jul 4, 2012 at 9:50 AM
    #11
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods

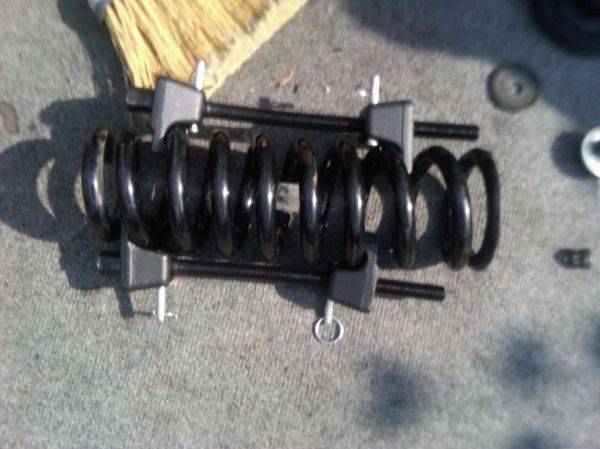

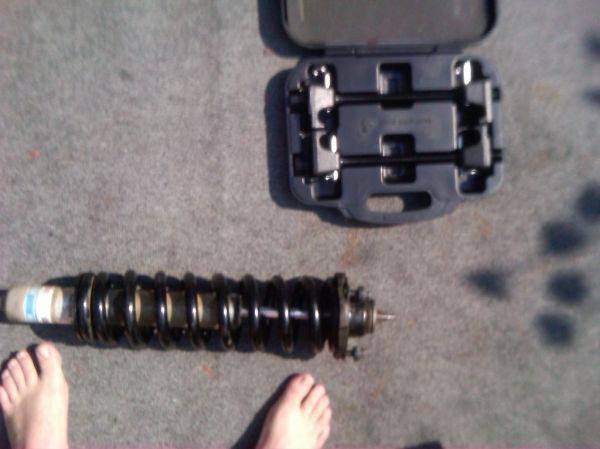

    i have used this one from auto zone many many times
    never had a problem ive done 885x's and stock coils with them
    very safe if done correctly and in all of 5 minutes
    [​IMG]

    [​IMG]

  12. Jul 4, 2012 at 9:51 AM
    #12
    bakerla

    bakerla Man, Myth, Legend

    Joined:
    Nov 3, 2009
    Member:
    #25348
    Messages:
    4,575
    Gender:
    Male
    First Name:
    Lyndall
    Pearland, TX
    Vehicle:
    '10 4wd OR
    CBI Moab front and CBI Trailrider rear, Budbuilt skids, Shrockworks sliders, OME Dakars w/ OME Nitros, OME 886x w/ OME Nitros, Light Racing UCAs, stainless steel brakelines F/R, Cobra 75 w/ Firestik antenna, 255/85/16 Cooper ST Maxx on 1st gen alloys, Weathertech liners, Engo 9000S winch, stickars and other shit.
    and barefoot too

  13. Jul 4, 2012 at 9:52 AM
    #13
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods
    :anonymous:

  14. Jul 4, 2012 at 9:52 AM
    #14
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,666
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    For the "no spring compressor" method - there are three key elements here:

    1. You don't need to remove the alignment cam nuts. You've got them plenty loose already.
    2. You've gotta be supporting the LCA with a nice big sturdy stable floor jack so it can't go flying
    3. You need to remove the two (four on some older models) bolts that hold the lower control arm to the spindle/lower-ball-joint assembly.

    Be safe man. If you're doing it right, the jack will support the entire load and you'll never feel like you're loosening any bolts or nuts that are under load. This is the MOST IMPORTANT thing. If you're loosening a "loaded" bolt it'll feel tight, and something will go flying at high speed in a random direction when the last thread comes free. :eek:

  15. Jul 4, 2012 at 9:56 AM
    #15
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,666
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    You removed the entire coilover right? That's how I did it - but that's a different disassembly technique than what the original poster is trying to do.

  16. Jul 4, 2012 at 10:09 AM
    #16
    OutbackHack

    OutbackHack [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    261
    Gender:
    Male
    First Name:
    Mike
    Seattle, WA
    Vehicle:
    2010 DCSB V6 6sp TRD-Sport
    $$$
    Done. Plus I removed the swaybar and the top nut on the shock after lifting it to leave the tension. However when I slowly drop the floor jack out of the way the LCA seems to be limiting the downward travel of the shock, the spring never gets completely unloaded and the top of the shock doesn't clear the hole in the frame.

  17. Jul 4, 2012 at 10:19 AM
    #17
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,666
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    What's holding it back?

    Once the two bolts that hold it to the lower spindle/ball-joint are removed, and the bolt that goes through the lower shock eye is out, the unsupported lower-control-arm should be able to swing like a door all the way down until it's hanging vertically.

    If I were in your shoes at this point, and I couldn't figure out where the "hidden' tension was hiding, I'd jack it back up, put the center bolt back on the shock, remove the 3 bolts holding the complete coilover, and drop the entire coilover away and out. You don't want to be messing around with 500lbs of tension hiding there, just waiting for you to unexpectedly release it.

  18. Jul 4, 2012 at 10:19 AM
    #18
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    7,458
    Gender:
    Male
    First Name:
    Anthony
    goleta/santa barbara, ca
    Vehicle:
    97 5 speed 4x4 v6
    lt
    Whos the one that completely destroyed your cams?!? Good luck with that man....

  19. Jul 4, 2012 at 10:22 AM
    #19
    OutbackHack

    OutbackHack [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    261
    Gender:
    Male
    First Name:
    Mike
    Seattle, WA
    Vehicle:
    2010 DCSB V6 6sp TRD-Sport
    $$$
    Thanks. I'll try rebolting the coilover assembly back together and dropping the LCA again to try troubleshooting it some more without worrying about the spring releasing.

  20. Jul 4, 2012 at 10:23 AM
    #20
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,666
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    Does the lower control arm freely separate from the ball joint spindle?

    You may have rust holding it in place even after the bolts are removed.

    That would be a bit dangerous as rust is holding the tension and will let it go unexpectedly.

    In that case, I'd reapply the center nut to the the shock so that it's holding the shock.

    Then I'd hit the lower control arm with a hammer to cause it to separate from the lower ball joint. It won't go anywhere since not loaded by the spring. Then I'd jack the LCA back into place, use it to hold the spring pressure, remove the top nut and try again.

    Again, err on the side of caution here.
