Help ID this connector

Discussion in 'Technical Chat' started by volcomstone1223, Sep 18, 2022.

  1. Sep 18, 2022 at 7:39 PM
    #1
    volcomstone1223

    volcomstone1223 [OP] Well-Known Member

    Joined:
    Nov 15, 2012
    Member:
    #91240
    Messages:
    257
    Gender:
    Male
    First Name:
    John
    Lake Havasu City
    Vehicle:
    05 Taco LSupreme
    Solo DMZ

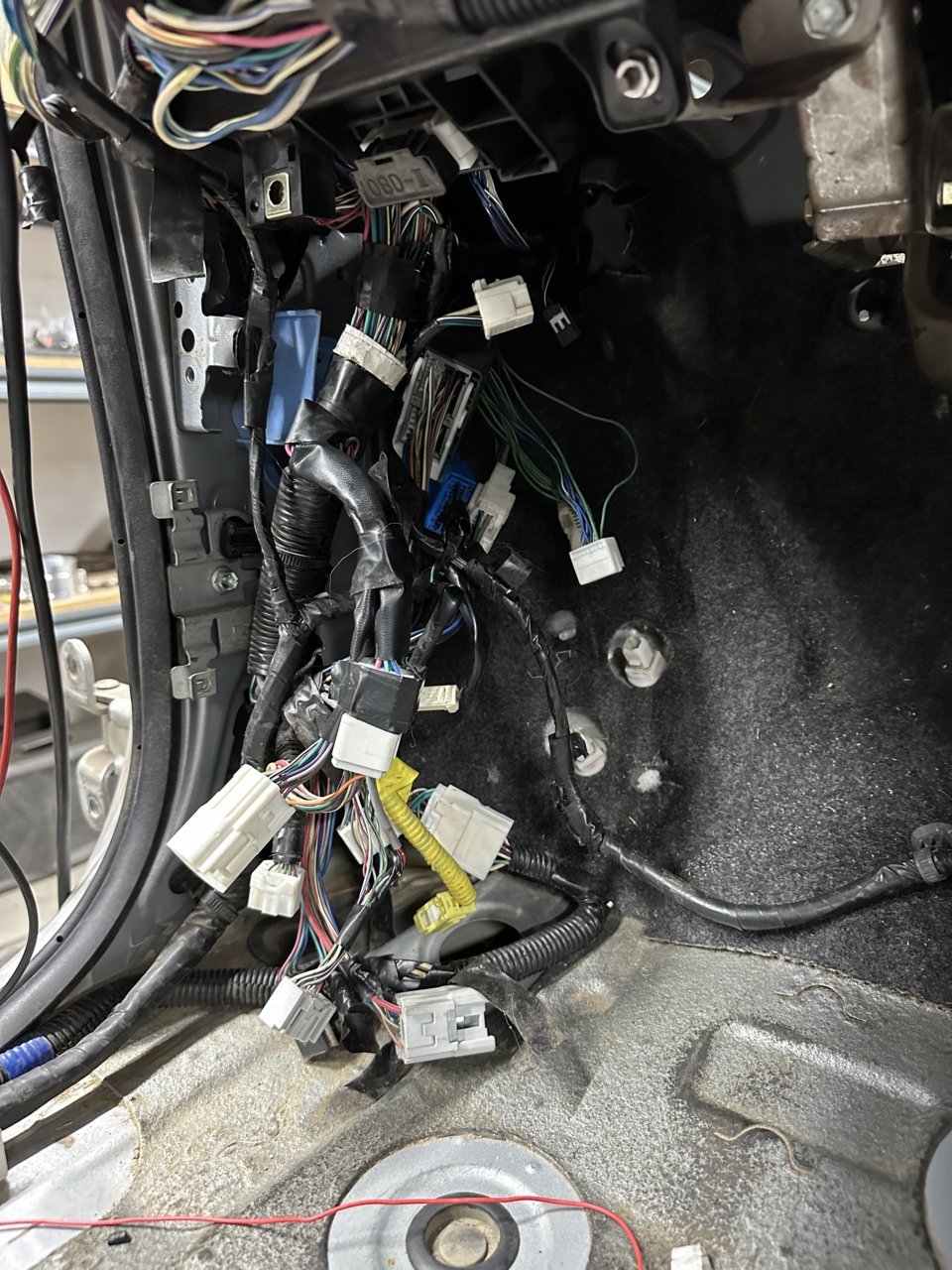

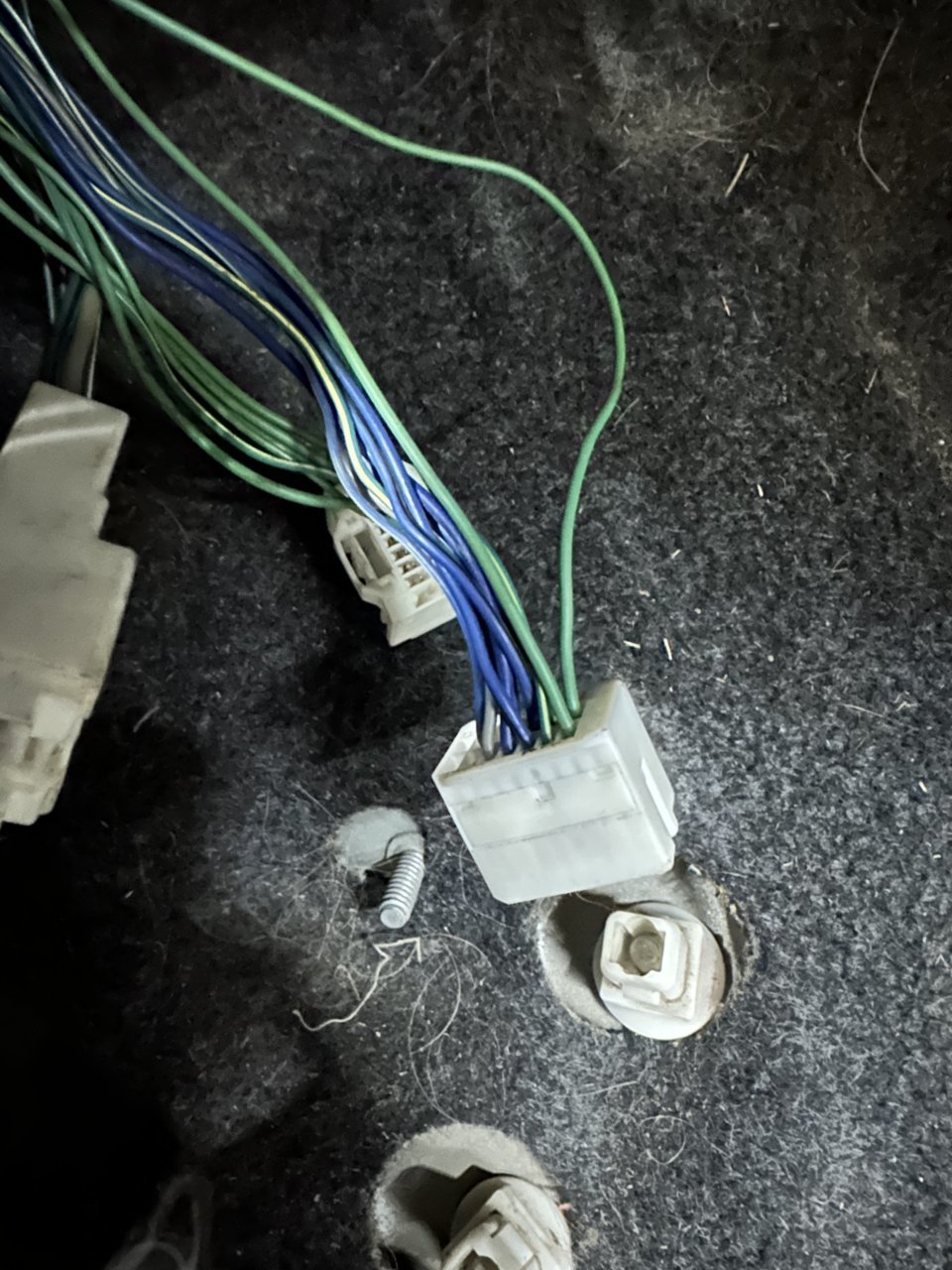

    I’m in the process of installing all my wiring harnesses back in and I can’t figure out where this connector plugs into. I know it comes from the engine fuse box and it contains the wire for the heater relay to the IG1 No2 fuse in the cab but not sure on any of the others. It somehow goes into the cab fuse box but there’s no spots to plug it in or any other connectors it fits in.


  2. Sep 18, 2022 at 8:11 PM
    #2
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    12,725
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I believe that's connector DC, it plugs into the Instrument Panel Junction Box No1 not the fuse box. It looks like you didn't reinstall the Junction Box, I'm pretty sure it should be behind the drivers side kick panel.

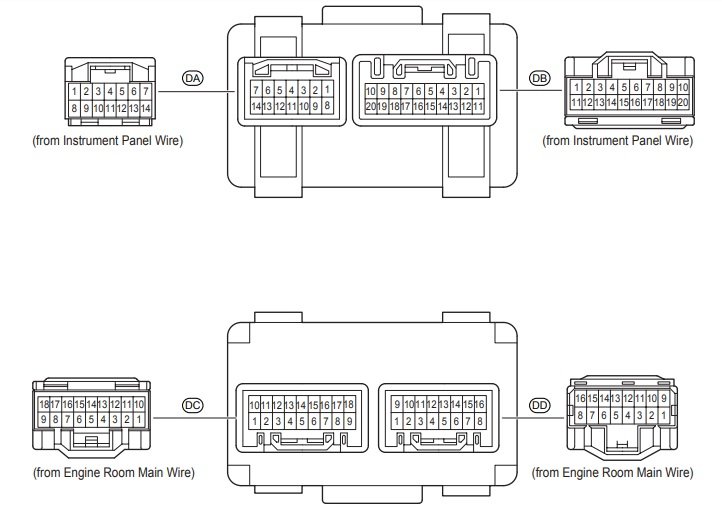

    05-06 Instument Panel JB #1.jpg

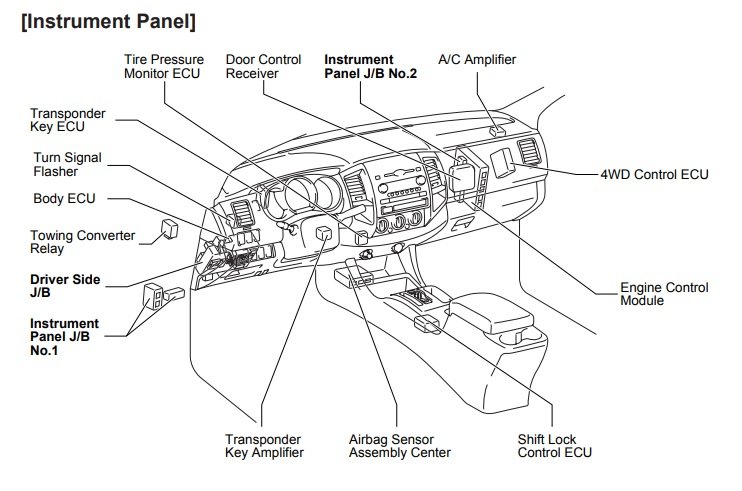

    05-06 Interior Module Locations.jpg

  3. Sep 18, 2022 at 8:12 PM
    #3
    dkensk

    dkensk Well-Known Member

    Joined:
    Nov 4, 2011
    Member:
    #66471
    Messages:
    53
    Gender:
    Male
    If some one doesn't beat me too it, I'll send post picture tomorrow morning.

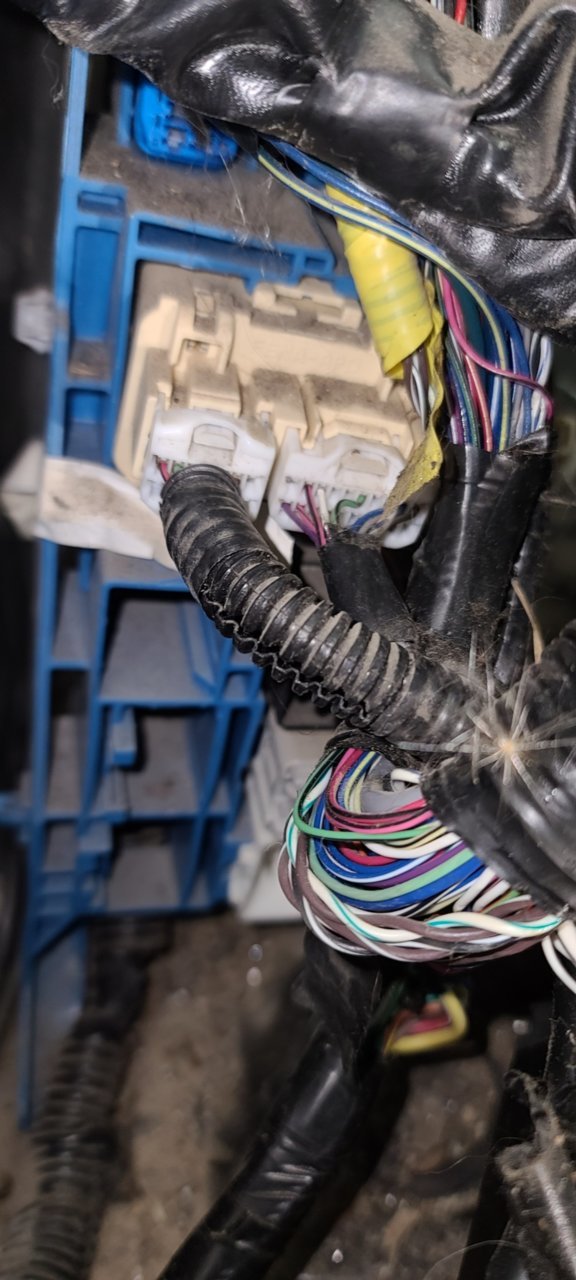

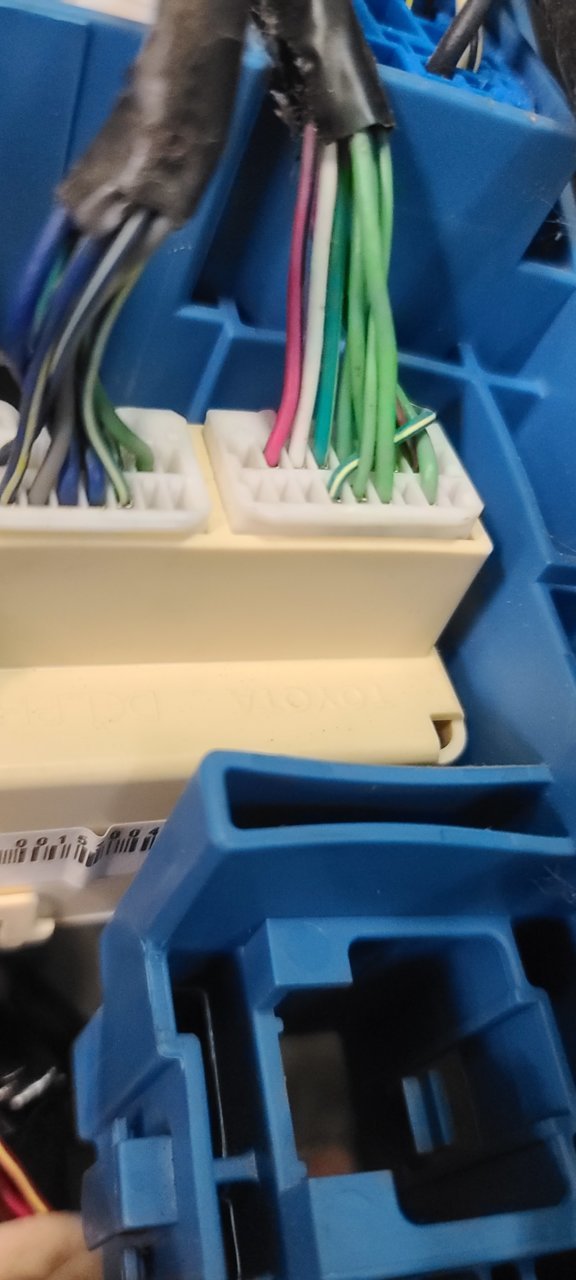

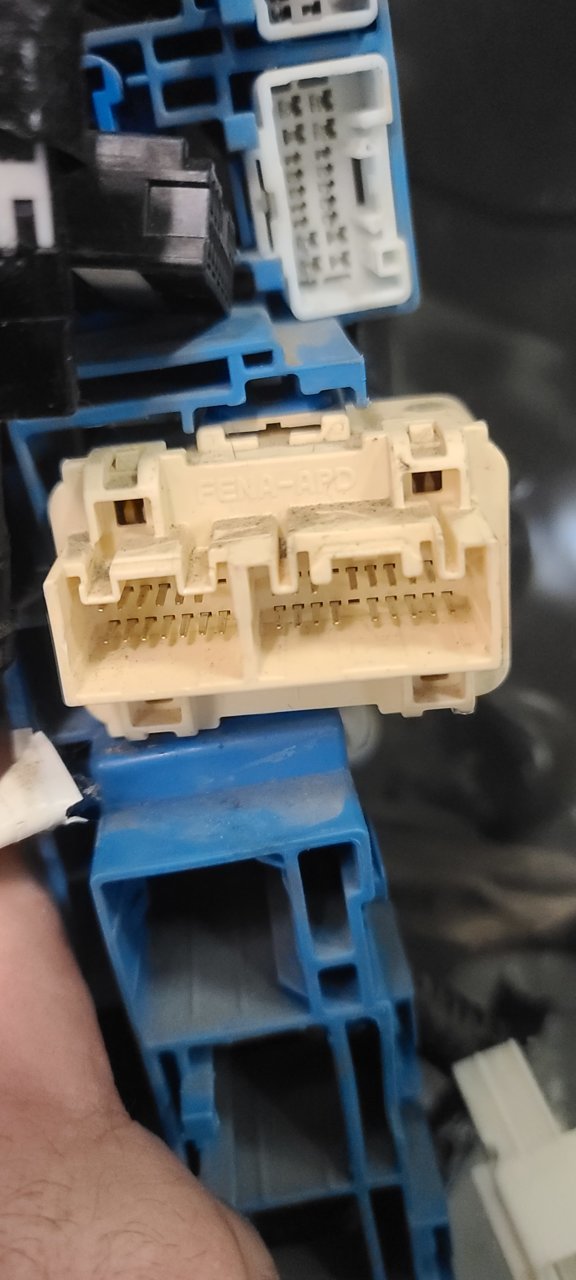

  4. Sep 19, 2022 at 10:17 AM
    #4
    dkensk

    dkensk Well-Known Member

    Joined:
    Nov 4, 2011
    Member:
    #66471
    Messages:
    53
    Gender:
    Male

    Dm93 likes this.
