help me install my bumper

Discussion in 'Garage / Workshop' started by 907taco, May 25, 2011.

  1. May 25, 2011 at 8:53 PM
    #1
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    [​IMG][​IMG]

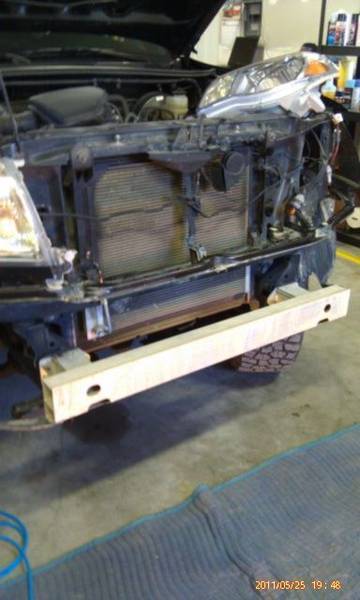

    oh where to begin. i took off the black valance plastic "cover" bumper. now i am not sure if i have to take the aluminum piece off or not.
    looking for some help from anyone at this point. i am in the process of installing my moab bumper.

  2. May 25, 2011 at 8:55 PM
    #2
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    [​IMG]

    do i take the entire piece off or does it stay?

  3. May 25, 2011 at 9:05 PM
    #3
    kmok

    kmok Plastidipped ma Hootus!

    Joined:
    Jul 18, 2008
    Member:
    #8007
    Messages:
    2,350
    Gender:
    Male
    First Name:
    Kyle
    Columbus, Ohio
    Vehicle:
    2005 Subaru Outback XT 5MT
    Who makes your bumper? Any pics of the back of the bumper? It probably goes over the "aluminum piece"

  4. May 25, 2011 at 10:07 PM
    #4
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    [​IMG]

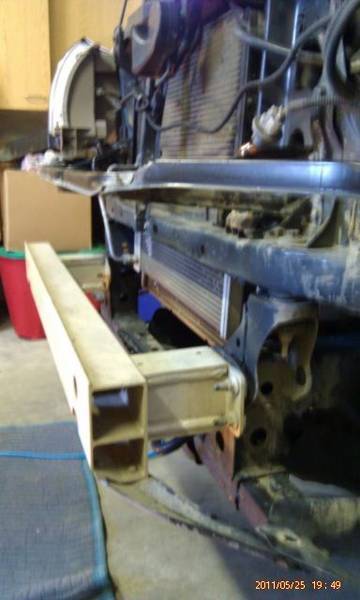

    aluminum does come off




    [​IMG]

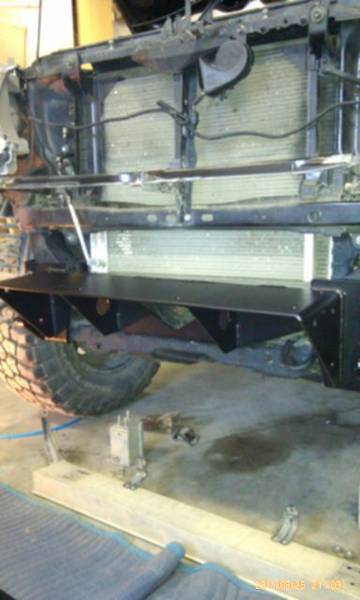

    winch mount plate goes here, it almost fits but does not line up properly

    [​IMG]

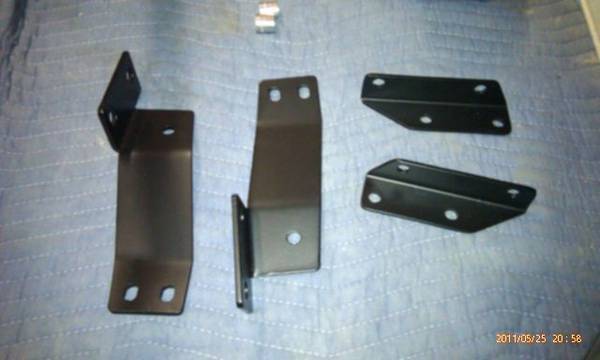

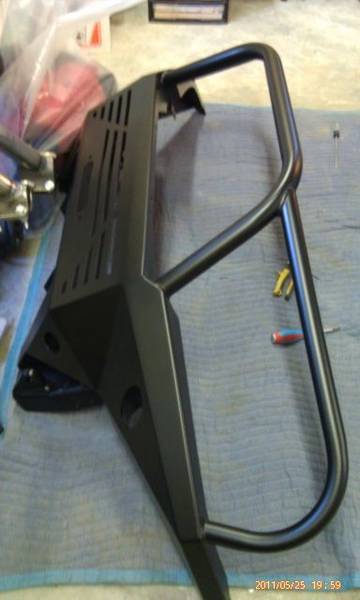

    these pieces came with it and this is where i am stuck again.. does anyone know where they go.?

  5. May 25, 2011 at 10:08 PM
    #5
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    oh yea, cbi moab .........

  6. May 25, 2011 at 10:50 PM
    #6
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    i have had enough beers and trying to figure where the 4 brackets go and now i am too buzzed! when i call Nathan in the morning at cbi and get this figured out, i am doing a write up with pics so the next guy who get the moab can search and install this with out any problems.

  7. May 25, 2011 at 10:55 PM
    #7
    kmok

    kmok Plastidipped ma Hootus!

    Joined:
    Jul 18, 2008
    Member:
    #8007
    Messages:
    2,350
    Gender:
    Male
    First Name:
    Kyle
    Columbus, Ohio
    Vehicle:
    2005 Subaru Outback XT 5MT
    Hey, i tried searching around for installs for that bumper and I couldn't find anything. Even TTORA didn't have anything. Hopefully CBI will be able to help you out in the morning.

  8. May 25, 2011 at 11:32 PM
    #8
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    yea i did the same thing, cbi website has a install/instruction area but its "coming soon" i thought i could figure it out but couldn't, Nathan and Steve at cbi should have no problem telling me where the brackets go. :D
    i cannot wait, had the bumper about almost a month and now have the time to install...

  9. May 25, 2011 at 11:37 PM
    #9
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,684
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

    The two pieces on the left look similar to the winch braces that come with the RelentlessFab bumpers , they go from the bumper near the front frame mount ( on the bumper ) and bolt into factory holes in the frame .

    I'll see if I can find a pic

  10. May 25, 2011 at 11:39 PM
    #10
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,684
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

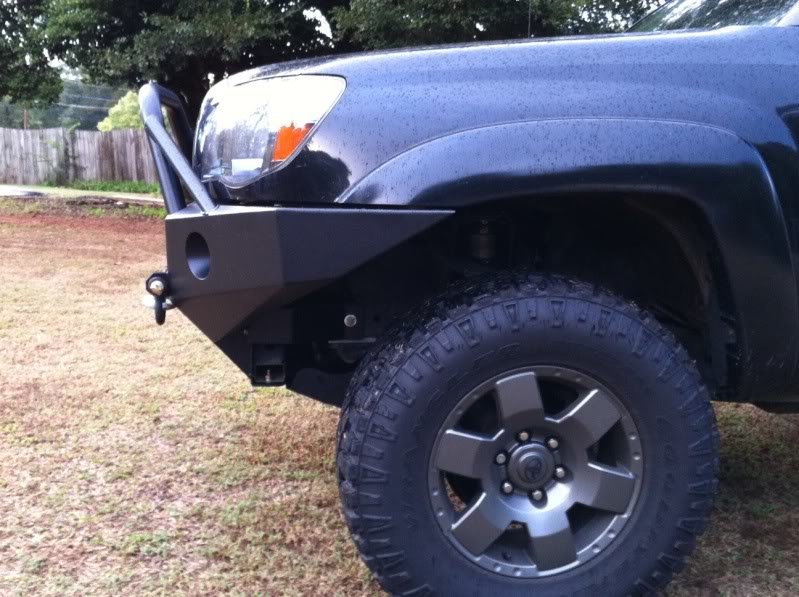

    [​IMG]

    In this pic you can just make out the brace , it bolts parallel to the frame , forward of the tire and attaches to the bumper . The bolt is silver

  11. May 25, 2011 at 11:47 PM
    #11
    Nightstr

    Nightstr Well-Known Member

    Joined:
    Dec 24, 2009
    Member:
    #28125
    Messages:
    5,229
    Gender:
    Male
    First Name:
    Felipe
    Sacramento CA
    Vehicle:
    05 prerunner sr5
    BLHM BLWM 3" TOUGH COUNTRY LIFT TRD SEAT COVERS THULE RACK M/T KM2 265/65/16
  12. May 26, 2011 at 10:29 AM
    #12
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
  13. May 26, 2011 at 10:32 AM
    #13
    crf69

    crf69 scraping my emblems off my plasti-dip

    Joined:
    May 18, 2010
    Member:
    #37348
    Messages:
    3,558
    Gender:
    Male
    First Name:
    Ryan
    Ohio
    Vehicle:
    06 TRD OR BSP cab'n 1/2
    ummm yeah
    i want me a bumper ya'll.

    what.

  14. May 26, 2011 at 10:54 AM
    #14
    rokbrkr

    rokbrkr Active Member Vendor

    Joined:
    Oct 5, 2010
    Member:
    #44249
    Messages:
    40
    Gender:
    Male
    First Name:
    Steve
    Idaho Falls
    Hey Bobby, here's some pics of the brackets in question. Not all on the same bumper, but they are the same mounts.
    In the top pic you can see how it wraps the frame and ties into the sway bar bracket.

    [​IMG]

    [​IMG]

    [​IMG]

  15. May 26, 2011 at 11:18 AM
    #15
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    [​IMG]

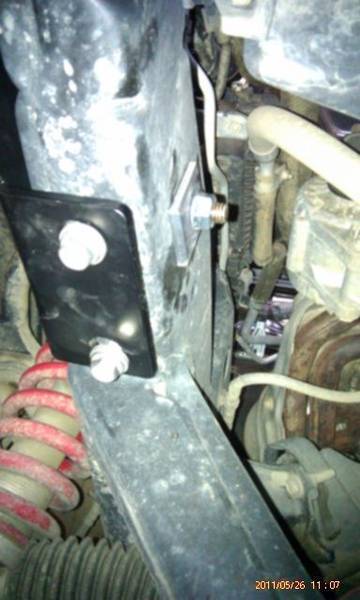

    ok, i see where the bracket goes.


    [​IMG]

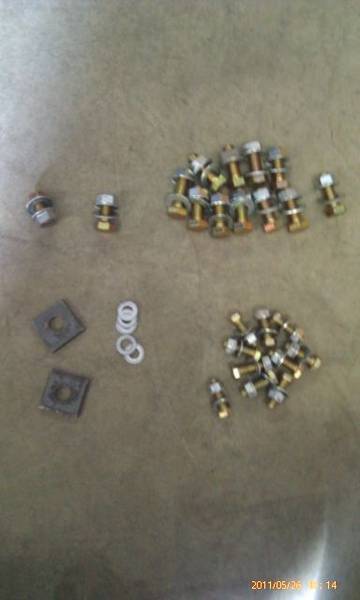

    nuts bolts supplied.

  16. May 26, 2011 at 11:19 AM
    #16
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,684
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    I was right
    I was right
    I was right

    :)

  17. May 26, 2011 at 11:24 AM
    #17
    colinb17

    colinb17 If at first you don't succeed, don't try skydiving

    Joined:
    Jan 6, 2008
    Member:
    #4127
    Messages:
    18,604
    Gender:
    Male
    First Name:
    Colin
    Lusby, MD
    Vehicle:
    '07 TRD Sport 4x4
    Build thread in sig...
    [​IMG]
    :D

  18. May 26, 2011 at 12:05 PM
    #18
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    [​IMG]

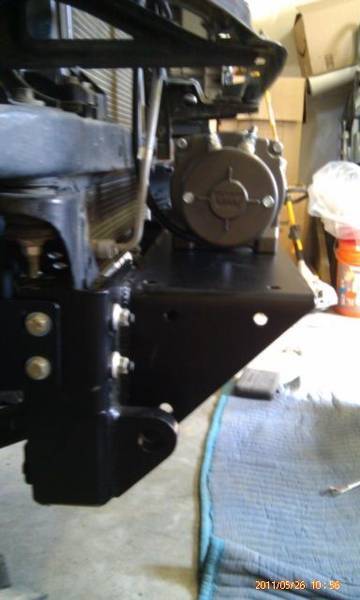

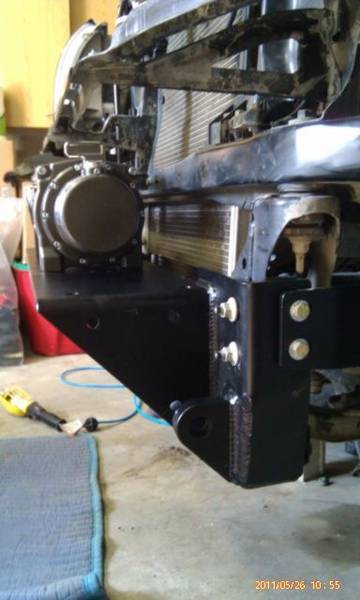

    warn m8000 mounted


    [​IMG]

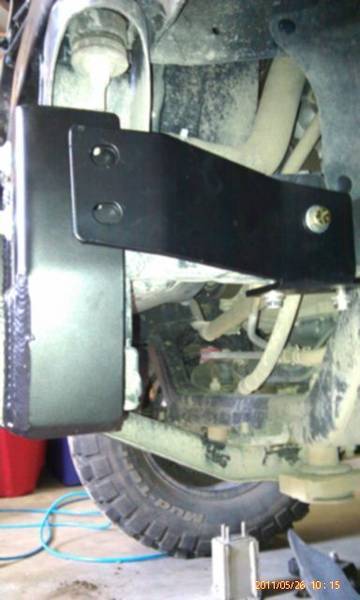

    more pics

    [​IMG]

  19. May 26, 2011 at 12:06 PM
    #19
    colinb17

    colinb17 If at first you don't succeed, don't try skydiving

    Joined:
    Jan 6, 2008
    Member:
    #4127
    Messages:
    18,604
    Gender:
    Male
    First Name:
    Colin
    Lusby, MD
    Vehicle:
    '07 TRD Sport 4x4
    Build thread in sig...
    Nice! looks like you have plenty of room.

  20. May 26, 2011 at 12:12 PM
    #20
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,

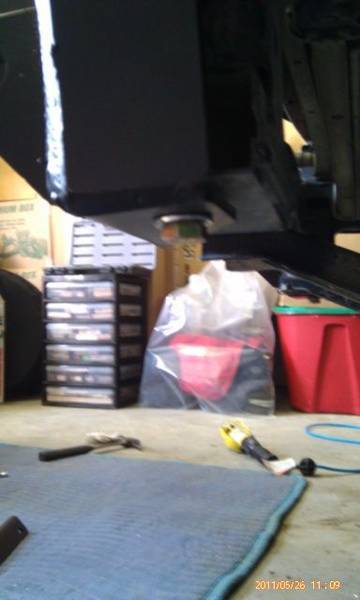

    [​IMG]


    Steve, above pic. flat sqaure washer goes here ?

    bottom pic the only 2 short bolts goes here?
    [​IMG]
