Help removing stripped/sheared bolts

Discussion in 'Technical Chat' started by jtnyc, Apr 5, 2013.

  1. Apr 5, 2013 at 10:10 AM
    #1
    jtnyc

    jtnyc [OP] Well-Known Member

    Joined:
    Jul 27, 2012
    Member:
    #83524
    Messages:
    47
    Gender:
    Male
    I was removing the bed rail bolts to install my new tonneau cover, but I had these 3 bad bolts :mad::

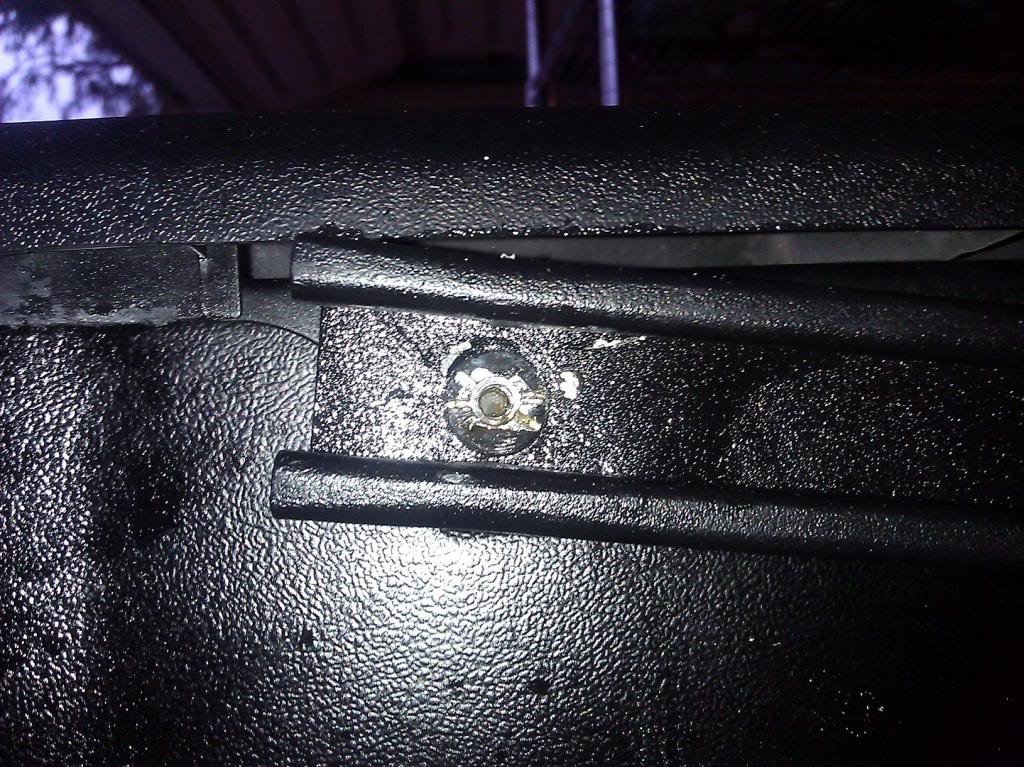

    This one still has the head on, but won't turn. I tried to score a line, but it still won't turn. The bolt itself feels really soft and the material keeps stripping. Unfortunately, I went out and bought a bolt extractor from Harbor Freight (or easyout/Grabit) but the extractor head broke off inside the bolt.
    [​IMG]

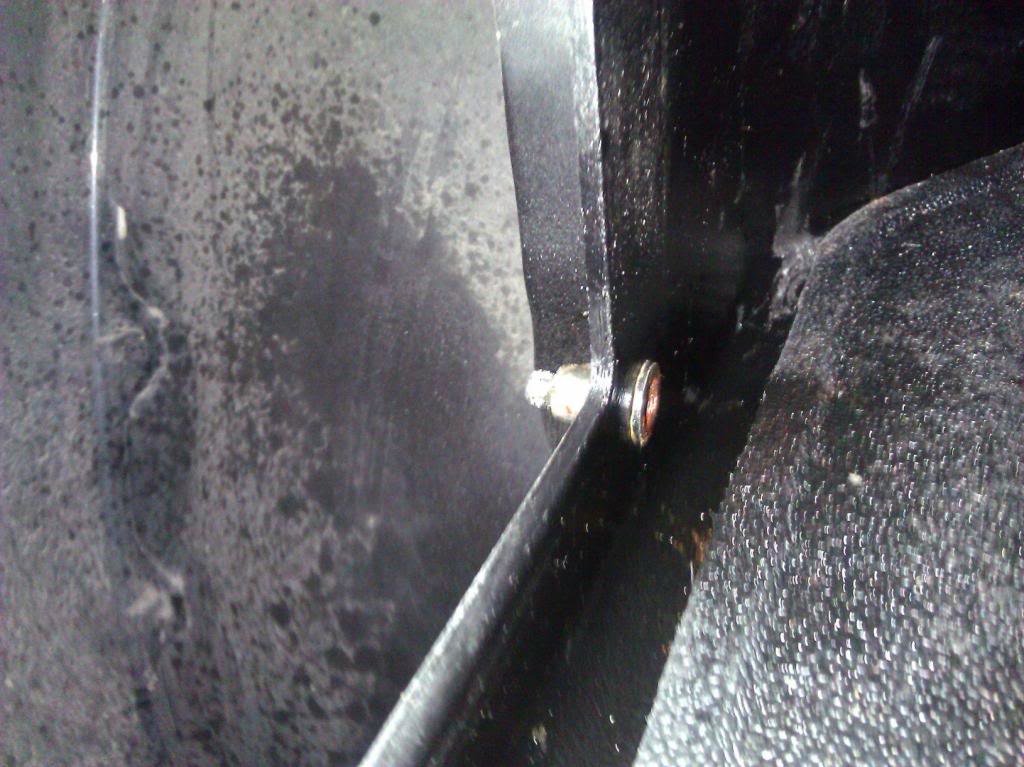

    This one the head sheared off, leaving just the bolt stem in the rivet nut (?) I thought maybe the extractor head broke off the other one because it was a cheapy from Harbor Freight, so I went down to ACE and bought the Grabit (a lot more expensive), but the extractor head broke off in the stem too.

    [​IMG]

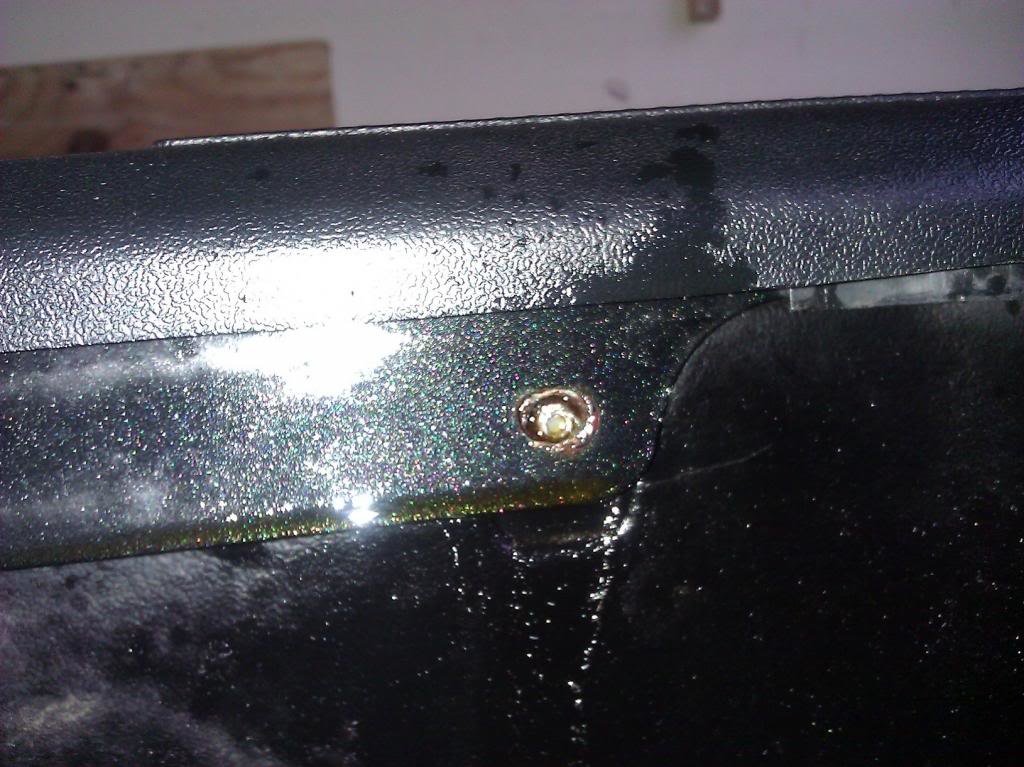

    This one is from the tool box. The head sheared off, but I can see the back of the bolt stem. I tried turning it with a vise grip, but it won't turn. Having stripped the other bolts, I didn't want to do any more damage to it by shearing off the rear end too.

    [​IMG]

    Any suggestions would be awesome!

    Thanks

    Last edited: Apr 6, 2013
  2. Apr 5, 2013 at 10:15 AM
    #2
    jshsltr

    jshsltr Well-Known Member

    Joined:
    Sep 3, 2012
    Member:
    #86120
    Messages:
    514
    Gender:
    Male
    First Name:
    Josh
    St Louis
    Die grinder? The first two pictures arent showing up.

  3. Apr 5, 2013 at 10:18 AM
    #3
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    Grind the head of the bolt off if it has a nut and not in threaded blind hole.

    Grind the head to a useable shape

    Drill and use extractor, drill and drill and drill

  4. Apr 5, 2013 at 10:38 AM
    #4
    jtnyc

    jtnyc [OP] Well-Known Member

    Joined:
    Jul 27, 2012
    Member:
    #83524
    Messages:
    47
    Gender:
    Male
    I guess I can probably grind off the rivet nut... maybe put a new rivet nut in? Any idea what size it is? I know the torx head is a T-30

  5. Apr 5, 2013 at 10:52 AM
    #5
    huntdd

    huntdd Member

    Joined:
    Mar 16, 2013
    Member:
    #99831
    Messages:
    5
    Gender:
    Male
    Vacaville
    Vehicle:
    08 Prerunner sport SR5 AT w/tow
    After trying to remove the bolt by center punch. drilling, and easy-out. I drilled out the nut on the bed rail and used a longer same diameter bolt and put a lock washer and nut on the inside of the bed rail. I used stainless allen head bolts. I also replaced all bed rail bolts with same.

    Last edited: Apr 5, 2013
  6. Apr 5, 2013 at 11:56 AM
    #6
    jtnyc

    jtnyc [OP] Well-Known Member

    Joined:
    Jul 27, 2012
    Member:
    #83524
    Messages:
    47
    Gender:
    Male
    was hoping to retain the original nut if possible... but looks like I may have to drill it out like you did. thanks

  7. Apr 6, 2013 at 8:25 PM
    #7
    jtnyc

    jtnyc [OP] Well-Known Member

    Joined:
    Jul 27, 2012
    Member:
    #83524
    Messages:
    47
    Gender:
    Male
    Updated the links for the first 2 pics. Hopefull they show up now.

  8. Apr 7, 2013 at 12:36 AM
    #8
    NorCalTRD

    NorCalTRD Well-Known Member

    Joined:
    Mar 23, 2013
    Member:
    #100418
    Messages:
    255
    Gender:
    Male
    Northern California
    Vehicle:
    '06 Indigo Ink DCLB TRD Sport V6
    40% Front Tint, Viper 5704 Alarm, Steel Cable Dog Tie, Super Sexy Driver Mod
    Cutting wheel.
