Help wiring led toggle switch

Discussion in 'Lighting' started by anthony250f, Dec 19, 2015.

Post Reply

Dec 19, 2015 at 6:06 PM

#1

#1
anthony250f [OP] Well-Known Member

Joined:

Feb 18, 2012

Member:

#73066

Messages:

16,694

Gender:

Male

First Name:

Anthony

San Diego, CA

Vehicle:

2008 dcsb trd offroad 4wd

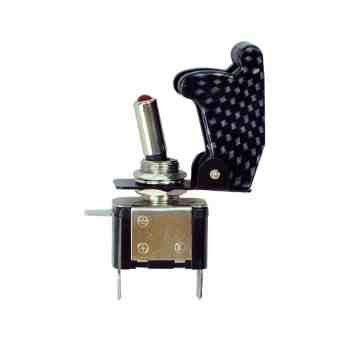

I purchased this switch and it is used with a relay and fuses. The led on one is either on when the switch is off then turns off when the switch is on:...on the other switch it only works when I have one of the wires from the relay connected...what gives?

anthony250f, Dec 19, 2015

#1

Dec 21, 2015 at 12:27 PM

#2

#2
fergyz Mmmm...Tacos

Joined:

Apr 25, 2012

Member:

#77624

Messages:

743

Gender:

Male

49th State

Vehicle:

06' DBC 4x4 6spd

try switching the wires on the opposite pins on the first switch. that should fix the LED issue, assuming it's a 2 pin. how did you wire up the second switch? your post is way to vague to even take a shot at.

fergyz, Dec 21, 2015

#2
