Help with bed extender

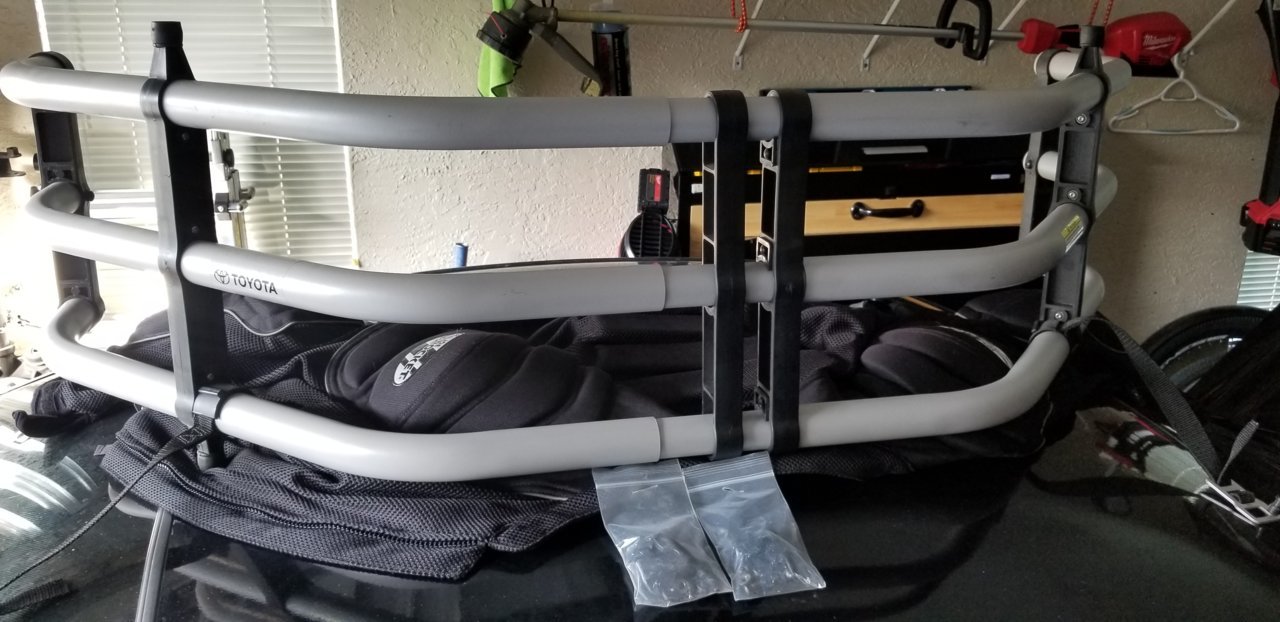

Purchased a used oem bed extender anybody have a working link for the Template to mount the brackets ? I've been searching with no luck. thanks in advance



Just use some 2X4 blocks to use as spacers and mock it up and mark the holes. Pretty simple. Google some images to see where it should sit and lay it out. Use the actual brackets to mark it.



Home depot run I quess



You can use anything as a spacer. Cardboard, books. Crushed up beer cans, lol. Just get the bars sitting about level. I would go ahead and put the brackets on the mounts on the extender then set it in place and space it up so you can mark it and away you go.



@Joker56ace
https://www.tacomaworld.com/threads/oem-bed-extender-install-write-up.153713/



Just read thru that the link wont work I quess to old



I'll try that



There are pics posted of the template. Looks like the top of the brackets are flush with the top of the rubber dampeners



This pdf has the template and measurements for the latch installation.



Nice find



Tacomaworld for the win.

Just picked up a Toyota branded extender this weekend off marketplace. This is gold. Thanks!
