help with IPF 968 wiring...asap

Discussion in 'Lighting' started by Toyota4x46921, Nov 20, 2012.

Post Reply

Nov 20, 2012 at 3:13 PM

#1

#1
Toyota4x46921 [OP] Well-Known Member

Joined:

Mar 13, 2010

Member:

#33121

Messages:

510

Gender:

Male

First Name:

Michael

Warner Robins, GA

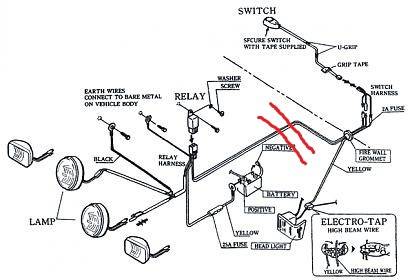

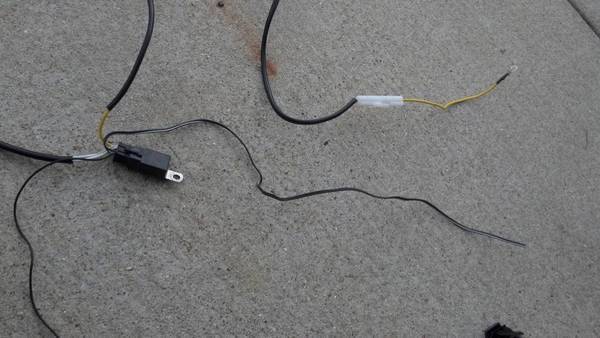

I bought a set of ipf 968's off ebay...used. Well the wiring harness is cut up and does not have the original switch. It did come with an aftermarket daystar 20 amp 3 prong rocker switch. I am attaching a pic of the wire and the diagram.....i marked 2 red lines through the wire cut....help is appreciated....i need these wired up before tomorrow night....long week hunting trip upcoming. thank you in advance..one more thing....the wires cut are one hot and one ground if that helps..
