Discussion in 'Lighting' started by XXFattyHunterXX, Jan 16, 2013.

  1. Jan 16, 2013 at 9:03 PM
    #1
    XXFattyHunterXX

    XXFattyHunterXX [OP] Well-Known Member

    Joined:
    Sep 18, 2012
    Member:
    #87200
    Messages:
    128
    Gender:
    Male
    Westminster, Colorado
    Vehicle:
    TRD OffRoad
    So I'm about to install my retrofit kit soon and have a few questions, this will be on my 2012 Tacoma.
    1: how do you guys mount the xb led halo to the shroud? I have Apollo shroud.
    2: what is needed to be done for me to run the halo as dtrl in replacement of the turn signal?
    Thanks in advance!

  2. Jan 16, 2013 at 9:22 PM
    #2
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Don't.

    The flashing of the turn signal will destroy the CCFLs.

    Just run them to a switched power source that comes on with the ignition.

  3. Jan 16, 2013 at 9:23 PM
    #3
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,233
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    See Build in Sig
    The XB Halo is led not ccfl

  4. Jan 16, 2013 at 9:34 PM
    #4
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Ahh... Then it can be wired parallel with the stock 3157 lamps.

  5. Jan 16, 2013 at 9:38 PM
    #5
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,233
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    See Build in Sig
    Being led do you think there would be any problems?

  6. Jan 16, 2013 at 9:43 PM
    #6
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    As long as they are designed to handle the heat from the projectors, should be no problems.
    The flashing won't be a problem for LEDs, nor will using them as DRLs... they'll last longer than CCFL.

  7. Jan 16, 2013 at 9:44 PM
    #7
    WYOTAC

    WYOTAC Well-Known Member

    Joined:
    Dec 26, 2009
    Member:
    #28176
    Messages:
    205
    Gender:
    Male
    First Name:
    Joel
    Montana
    Vehicle:
    06 AC SR5 TRD OffRoad Desert Sand
    Billstein 5100's, OME 884, AAL, Black Badging, TRD exhaust, Window Tint, ARE shell, color matched Satoshi grille, Hella 500's behind grill, horn relocation, Front Skid Plate, shovel mount in bed, illuminated 4X4 switch, bed lights in side pockets, Avid Offroad rock sliders, BHLM, yellow sleeved fogs, Custom snowboard rack crossbars, toolbox mount with jerry can and bike mounts, plastidip rear bumper, in-dash navi/touch screen, TOYOTA tailgate vinyl, Mini D2S Retrofit.
    Depends on what size halo you have and if it fits on the inside or the outside. I mounted my Halo's inside the Gatling gun shroud with a few dabs of JB Quick on the back of the halo ring to the sides of the shroud.

    [​IMG]

  8. Jan 16, 2013 at 10:01 PM
    #8
    XXFattyHunterXX

    XXFattyHunterXX [OP] Well-Known Member

    Joined:
    Sep 18, 2012
    Member:
    #87200
    Messages:
    128
    Gender:
    Male
    Westminster, Colorado
    Vehicle:
    TRD OffRoad
    Thanks for fast response guys. What I meant was I would like the halos to be on all the time as dtrl while the stock dtrl off and any use as turn signal.
    WYOTAC, I have 90mm led and wanting to mount them outside the shroud, so just have to glue it somehow?

  9. Jan 16, 2013 at 10:09 PM
    #9
    WYOTAC

    WYOTAC Well-Known Member

    Joined:
    Dec 26, 2009
    Member:
    #28176
    Messages:
    205
    Gender:
    Male
    First Name:
    Joel
    Montana
    Vehicle:
    06 AC SR5 TRD OffRoad Desert Sand
    Billstein 5100's, OME 884, AAL, Black Badging, TRD exhaust, Window Tint, ARE shell, color matched Satoshi grille, Hella 500's behind grill, horn relocation, Front Skid Plate, shovel mount in bed, illuminated 4X4 switch, bed lights in side pockets, Avid Offroad rock sliders, BHLM, yellow sleeved fogs, Custom snowboard rack crossbars, toolbox mount with jerry can and bike mounts, plastidip rear bumper, in-dash navi/touch screen, TOYOTA tailgate vinyl, Mini D2S Retrofit.
    I think glueing would be the best bet... just be sure to use some sort of high temp stuff and be sure to let it fully cure (couple days) before you seal the headlights back up. I've heard of others actually poking small holes and tying it into place with a small fishing line though. sounded like too much work to me

  10. Jan 16, 2013 at 10:19 PM
    #10
    XXFattyHunterXX

    XXFattyHunterXX [OP] Well-Known Member

    Joined:
    Sep 18, 2012
    Member:
    #87200
    Messages:
    128
    Gender:
    Male
    Westminster, Colorado
    Vehicle:
    TRD OffRoad
    Yeah the instruction on TRS said to poke holes and tie but I also feel like its too much work.
    Mine is like this and I have no idea how to hide the halo wires when install. Any thoughts?
    [​IMG]

  11. Jan 16, 2013 at 10:44 PM
    #11
    WYOTAC

    WYOTAC Well-Known Member

    Joined:
    Dec 26, 2009
    Member:
    #28176
    Messages:
    205
    Gender:
    Male
    First Name:
    Joel
    Montana
    Vehicle:
    06 AC SR5 TRD OffRoad Desert Sand
    Billstein 5100's, OME 884, AAL, Black Badging, TRD exhaust, Window Tint, ARE shell, color matched Satoshi grille, Hella 500's behind grill, horn relocation, Front Skid Plate, shovel mount in bed, illuminated 4X4 switch, bed lights in side pockets, Avid Offroad rock sliders, BHLM, yellow sleeved fogs, Custom snowboard rack crossbars, toolbox mount with jerry can and bike mounts, plastidip rear bumper, in-dash navi/touch screen, TOYOTA tailgate vinyl, Mini D2S Retrofit.
    umm... I'm not entirely sure. It looks like your contacts are out on a tab. Mine were soldered at a "T" to the back of the ring. How does it sit on there if you pull the wires around the projector through the inside of the shroud?

  12. Jan 17, 2013 at 9:40 AM
    #12
    XXFattyHunterXX

    XXFattyHunterXX [OP] Well-Known Member

    Joined:
    Sep 18, 2012
    Member:
    #87200
    Messages:
    128
    Gender:
    Male
    Westminster, Colorado
    Vehicle:
    TRD OffRoad
    Yeah looks like I need to drill a hole to hide the wires behind the shroud, then use silicon to mount the halo, since its LED it wouldn't melt the silicon according to TRS.

  13. Feb 22, 2013 at 8:26 AM
    #13
    Slesse

    Slesse Tacoma level 27

    Joined:
    Aug 19, 2010
    Member:
    #41934
    Messages:
    210
    Gender:
    Male
    First Name:
    Kyle
    Port Coquitlam
    Vehicle:
    08 Tacoma
    Pro Comp Rims;32" Duratrack Tires; OME heavy duty lift in rear; 2" spacer lift in front; custom raised bed in box; Lear canopy; grillcraft grill; Rosen Head unit; Trail gear sliders; Tinted windows all around; Intermittent Wipers; White LED dash; Deactivated seat belt buzzer; Blue Sea Fuse panel; BAMF light bar running 4 Lightforce 170's (2 HID); FX-R retro HID's 4300k, with amber halo's, BHLM with black reflector bowl; stealth mode; Fenix Hide-a-way flashers as DTRL's; VIAIR OBA kit with 2.5 gal tank; 14" Magnaflow stainless steel cat back exhaust; de-badged; Hybrid badge applied; seasonal 4wheel camper "Fleet"
    Any resolution? I just got my projectors and halos yesterday and I have the same problem. I too was thinking of drilling a small hole at the bottom of the shroud, cut the wire to fit into the hole and then splice back together.

    I also want to run them as DTRL instead of my turn signals. I thought the best way to do this would be to do the stealth mode mod and use a SPDT switch in the cab to have turn signals as DTRL's or off or halos on, then tap into the keyed power for the DTRL to run a relay to power the halos, does that make sense? What was your solution?

  14. Feb 23, 2013 at 8:36 AM
    #14
    XXFattyHunterXX

    XXFattyHunterXX [OP] Well-Known Member

    Joined:
    Sep 18, 2012
    Member:
    #87200
    Messages:
    128
    Gender:
    Male
    Westminster, Colorado
    Vehicle:
    TRD OffRoad
    Yeah drill a hole on the bottom of the shroud for the wire then run it through the reflector, no drilling. As to running them as dtrl, I use Quick splices (thanks to Datsik), for the dtrl, stay away fro the green wires on both side, black wire from halo go to the black and white wire(middle), red goes to yellow for driver side, and blue for passenger side.

  15. Feb 23, 2013 at 3:26 PM
    #15
    TRD Toy85

    TRD Toy85 Well-Known Member

    Joined:
    Jul 1, 2012
    Member:
    #81685
    Messages:
    739
    Gender:
    Male
    CT
    Vehicle:
    loaded 2013 TRD sport
    Im looking forward to seeing finished product pics.

  16. Feb 25, 2013 at 7:54 AM
    #16
    Slesse

    Slesse Tacoma level 27

    Joined:
    Aug 19, 2010
    Member:
    #41934
    Messages:
    210
    Gender:
    Male
    First Name:
    Kyle
    Port Coquitlam
    Vehicle:
    08 Tacoma
    Pro Comp Rims;32" Duratrack Tires; OME heavy duty lift in rear; 2" spacer lift in front; custom raised bed in box; Lear canopy; grillcraft grill; Rosen Head unit; Trail gear sliders; Tinted windows all around; Intermittent Wipers; White LED dash; Deactivated seat belt buzzer; Blue Sea Fuse panel; BAMF light bar running 4 Lightforce 170's (2 HID); FX-R retro HID's 4300k, with amber halo's, BHLM with black reflector bowl; stealth mode; Fenix Hide-a-way flashers as DTRL's; VIAIR OBA kit with 2.5 gal tank; 14" Magnaflow stainless steel cat back exhaust; de-badged; Hybrid badge applied; seasonal 4wheel camper "Fleet"

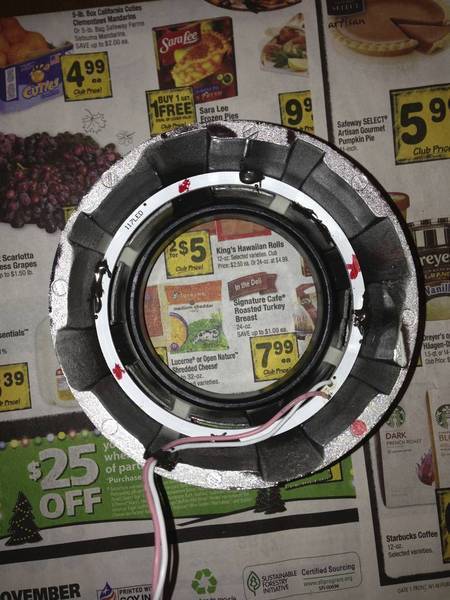

    Got this last night, went pretty easy.

    Does this disable your turn signal lights as DTRL or are they on together? The halos said to run the power from a relay source, does this matter?

    Lets see some pics of the final product!

  17. Feb 25, 2013 at 7:59 AM
    #17
    joneill03

    joneill03 Look away, I'm hideous!

    Joined:
    Oct 26, 2009
    Member:
    #24912
    Messages:
    3,349
    Gender:
    Male
    First Name:
    Johnny-5
    Chantilly, VA
    Vehicle:
    Silver 2010 OR
    HOLY CRAP!


























    Sara Lee pies buy one get one free?!?! :drool:

  18. Feb 26, 2013 at 6:27 AM
    #18
    XXFattyHunterXX

    XXFattyHunterXX [OP] Well-Known Member

    Joined:
    Sep 18, 2012
    Member:
    #87200
    Messages:
    128
    Gender:
    Male
    Westminster, Colorado
    Vehicle:
    TRD OffRoad
    It will not disable dtrl, however if your dtrl is set up as turn signal, then it will blink with your stock turn signal, so not recommended for CCFL angel eyes, LED is OK. I'll post pic of mine in a bit but moisture got in my light in snowy weather while driving so gotta redo this weekend.

  19. Feb 26, 2013 at 7:30 AM
    #19
    XXFattyHunterXX

    XXFattyHunterXX [OP] Well-Known Member

    Joined:
    Sep 18, 2012
    Member:
    #87200
    Messages:
    128
    Gender:
    Male
    Westminster, Colorado
    Vehicle:
    TRD OffRoad
  20. Feb 26, 2013 at 9:42 AM
    #20
    Slesse

    Slesse Tacoma level 27

    Joined:
    Aug 19, 2010
    Member:
    #41934
    Messages:
    210
    Gender:
    Male
    First Name:
    Kyle
    Port Coquitlam
    Vehicle:
    08 Tacoma
    Pro Comp Rims;32" Duratrack Tires; OME heavy duty lift in rear; 2" spacer lift in front; custom raised bed in box; Lear canopy; grillcraft grill; Rosen Head unit; Trail gear sliders; Tinted windows all around; Intermittent Wipers; White LED dash; Deactivated seat belt buzzer; Blue Sea Fuse panel; BAMF light bar running 4 Lightforce 170's (2 HID); FX-R retro HID's 4300k, with amber halo's, BHLM with black reflector bowl; stealth mode; Fenix Hide-a-way flashers as DTRL's; VIAIR OBA kit with 2.5 gal tank; 14" Magnaflow stainless steel cat back exhaust; de-badged; Hybrid badge applied; seasonal 4wheel camper "Fleet"
    I was thinking about this last night as I want independent control of the halos and I don't necessarily was them on with the stock DTRL and I don't want them as turn signals either. Since my truck came with DTRL I was going to do the stealth mode mod, so I can manually disable them and keep them as turn signals. Then I was going to power a relay with the power wire for the headlights and hook up the halos to the 87a terminal (normally closed), that way the halos will automatically go off when my head lights come on.
