Heretic studio to ch4x4

Hello, so for the heretic wiring harness it states
Black wire = ground
Red wire = load
Yellow wire = supply

what do load and supply mean?

to connect to a ch4x4 switch that i am only wanting lit when pushed and off when not pushed. Not tapping to add a fuse or anything.

the ch4x4 switch is




so heretic to ch4x4 should be?

Heretic black to ch4x4 black (grounds)
Heretic red to? Ch4x4 ?
Heretic yellow to ch4x4?

i believe I will connect red 1 & 2 together on the switch side.

any help is appreciated

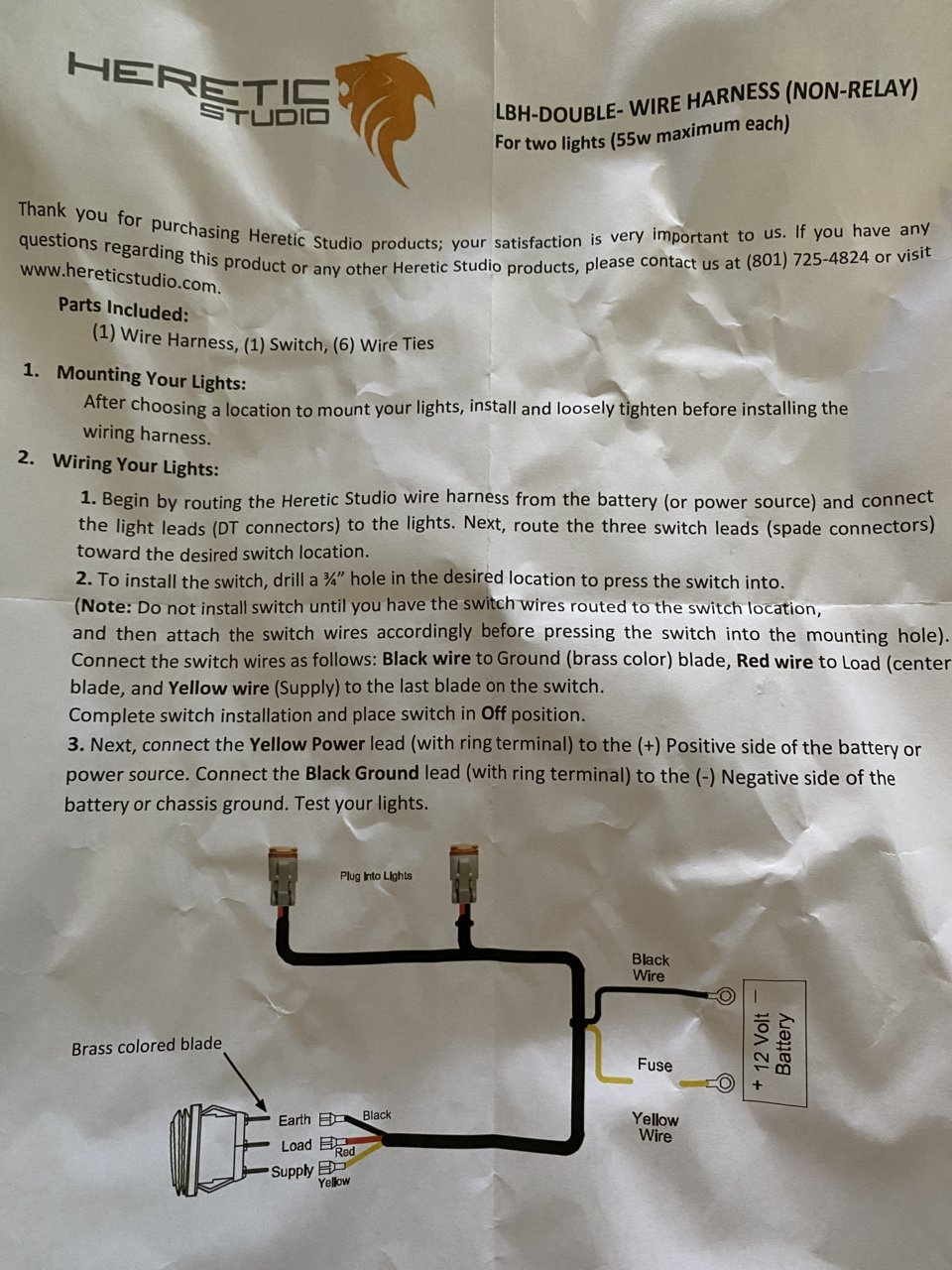

here is the heretic lighting paper provided to me .

also no relay???? Do i need to install one?



with all of this said, I would think
Black to black
Heretic red to switch red 1 and 2
Heretic yellow to switch green



supply is the source of power and the load is anything that you are switching on or off to control it like a light fitting, element, motor etc.



The supply goes into the light switch and then is transferred to a load when you flip the switch which goes to the lights. Hope that helps.



So

heretic black to switch black (grounds)

Heretic red(load) to switch red(relay or accessories)

heretic yellow(supply) to switch green (connect to inline source)

and do i need to install a relay?



Connect Black to ground. Twist reds together and connect to red wire. Connect green to yellow. Or if you want switch to alluminate when you flip dash lights on you could twist red 2 and green and connect to yellow. You would need to fuse to like your headlights up under the dash to get the switch to illuminate only when you flipped on headlights though.



Awesome thanks!

need to figure out how to wire a relay since the switch is max 3amps and the harness didnt come with a relay…
