HID fog lights - super simple install!

Discussion in 'Lighting' started by iamsuperbleeder, Jan 5, 2013.

  1. iamsuperbleeder

    iamsuperbleeder [OP] Licensed Lunatic

    Joined:
    Nov 4, 2012
    Member:
    #90468
    Messages:
    882
    Gender:
    Male
    First Name:
    Travis
    Lake City, Florida
    Vehicle:
    06 DC Prerunner Taco - SOLD -
    TRD E-locker rear axle swap, Cherrybomb Extreme muffler, custom made CAI, 2.5" spacer lift up front and AAL's in the rear, Sport model seat swap, Pioneer X940BT, Kicker shallow 10" and 12" behind the back seat
    So about a week and a half ago I put some bixenon HID's in my headlights. And while that install isn't that difficult to begin with, the fog lights are even easier. I've seen several step-by-step tutorials on headlight HID installs with photos, but have yet to find a good one for the fog lights on our trucks.

    So here's one of my own :D


    For starters, I used, yes, an eBay kit. But I was very selective on what I bought and purchased a kit with a ballast that seems to have some good reviews and even a couple demo videos on YouTube. The Luminis G4 ballast. EXTREMELY small digital ballast. Came in a complete kit with the H10 HID bulbs, in my case, 6000k to match the headlights.

    So first off, fog lights before we get started...

    [​IMG]



    The thing that made this install so easy was the discovery of something. I don't know if anyone's every tried this when installing HID's into their fog lights, maybe someone's mentioned if before, or maybe everyone does it and just keeps it a secret :rolleyes: But the power plug for the aftermarket HID ballasts are nearly IDENTICAL to an H10 bulb plug.

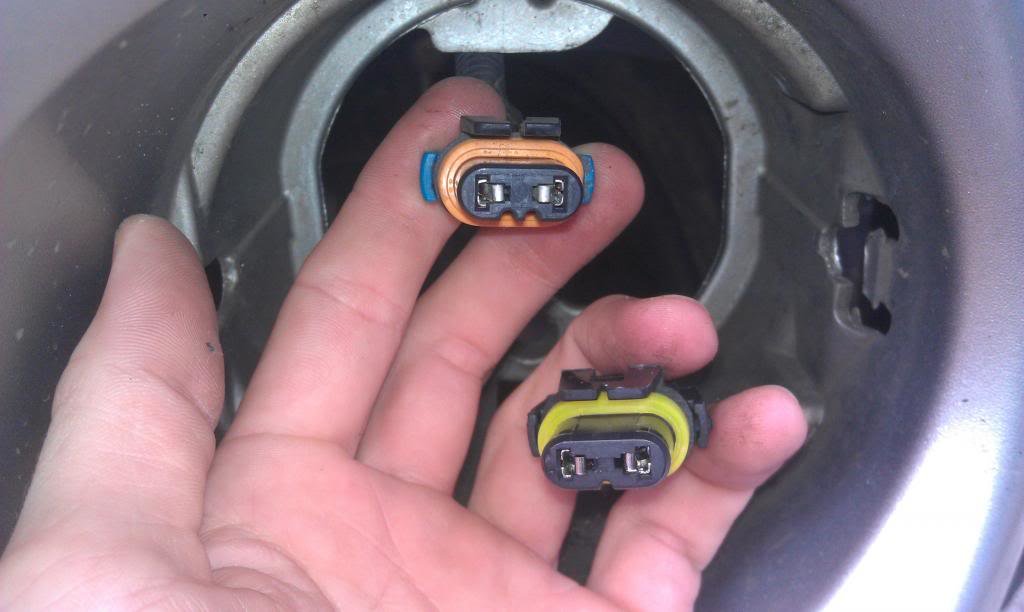

    Factory harness and plug on the top with the orange rubber seal, and the HID kit's "adapter" plug for power on the bottom with the green rubber seal:

    [​IMG]

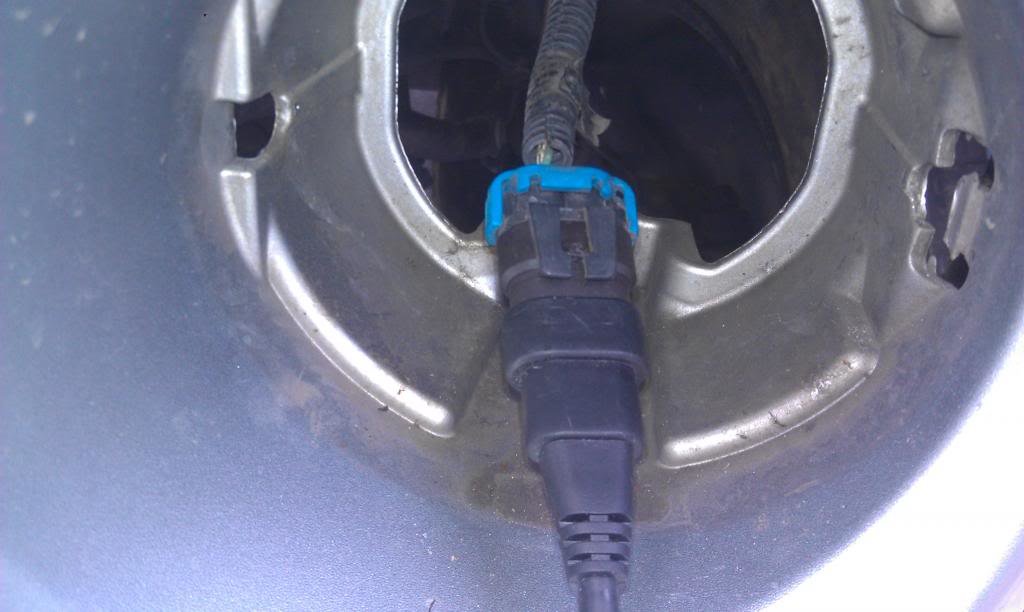

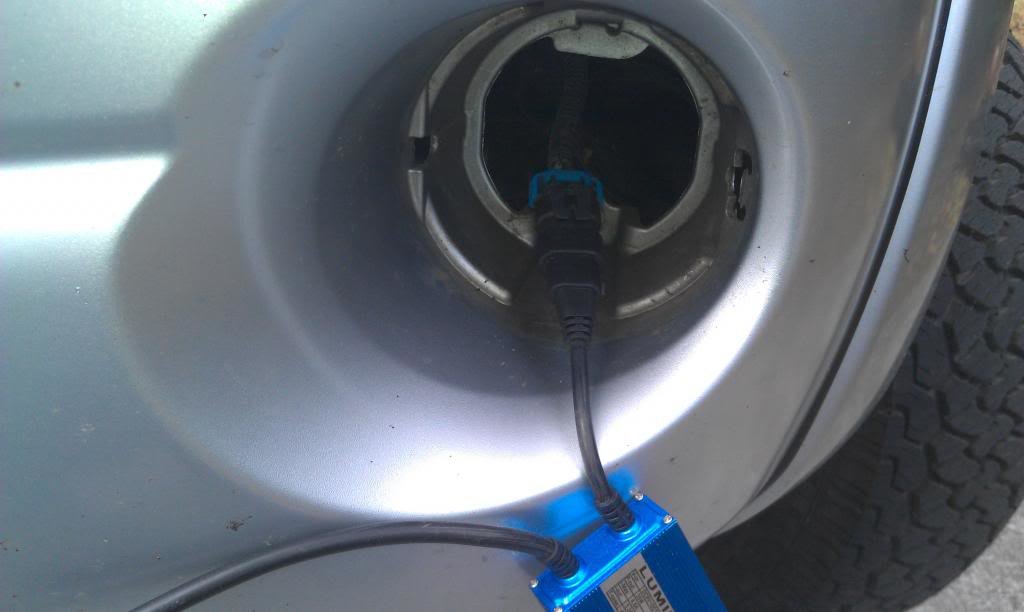

    The ballast will literally plug right into the factory wiring for the H10 bulb. Even better, the polarity is right, so you don't even need to swap and wires over. It's literally a direct plug-and-play on these trucks, and any vehicle that uses H10 bulbs really (and I'm sure there's others)


    [​IMG]

    [​IMG]

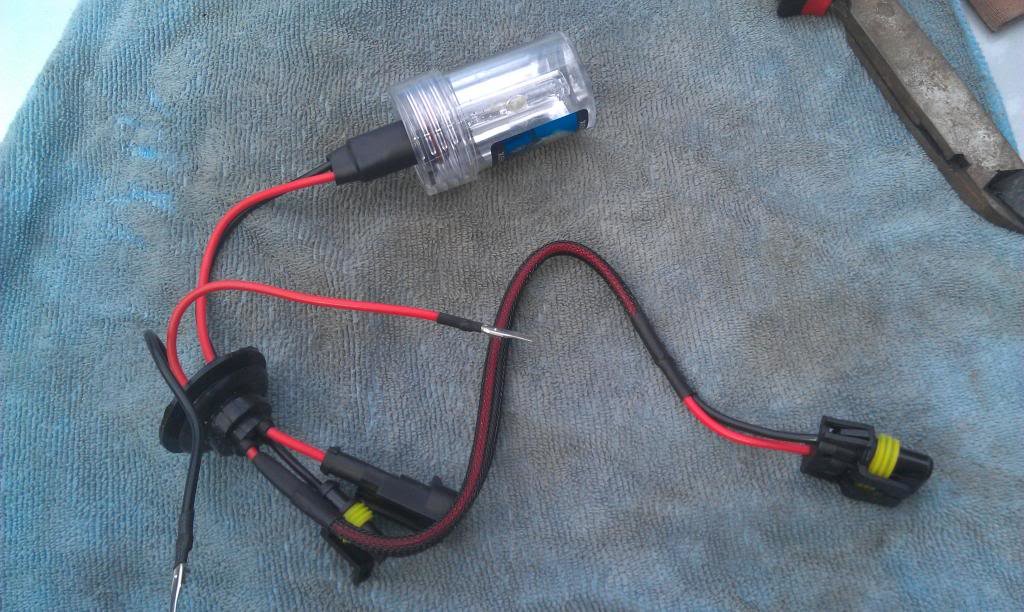

    When you don't have to fool with that silly adapter section of wire that's typically built into the HID H10 bulb, you can just eliminate it completely and clean up a lot of wire clutter.

    [​IMG]

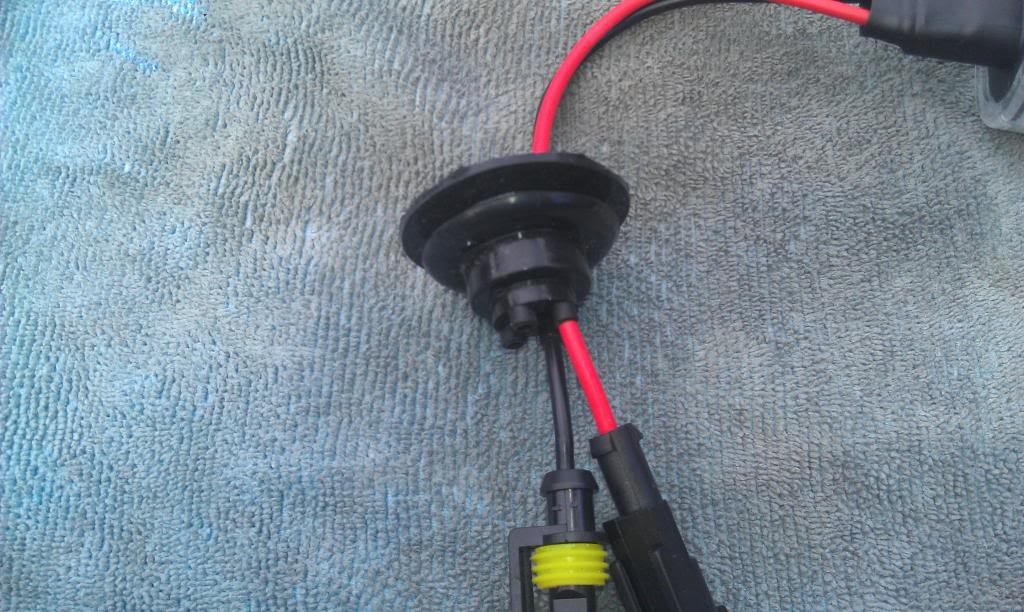

    The power adapter wires can simply pull out of that rubber grommet:

    [​IMG]

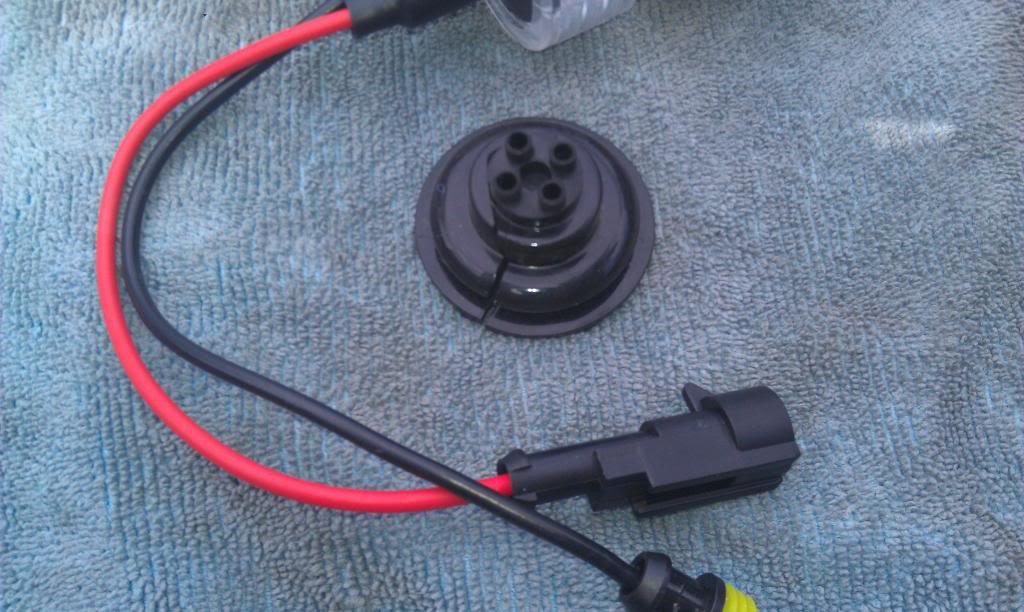

    You're still left with that rubber grommet on the HID's high voltage wires.

    [​IMG]



    But since we're not needing that, just snip it off (being careful not to nick the wires of coarse :rolleyes:)

    [​IMG]

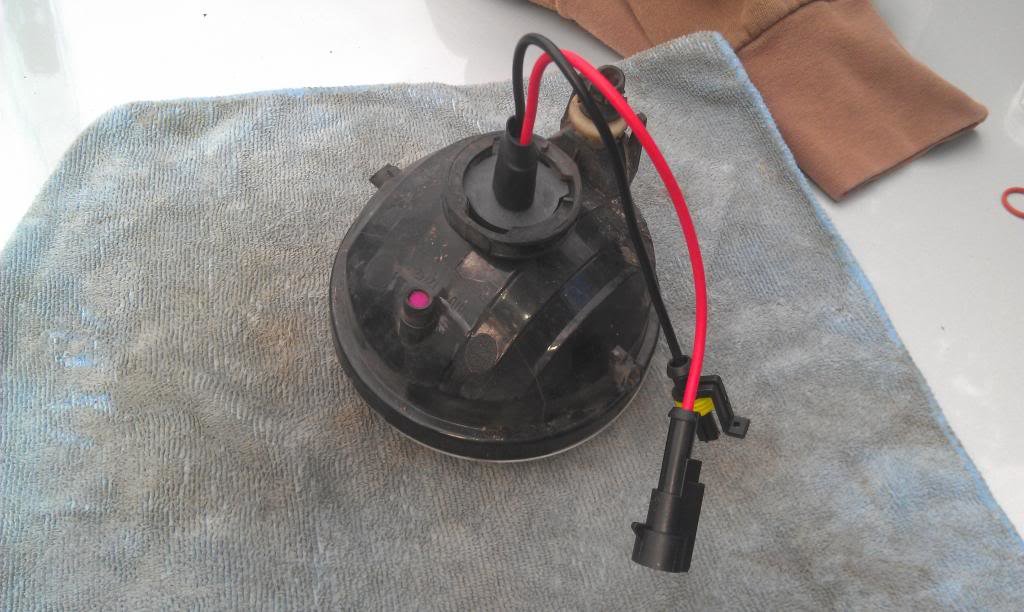

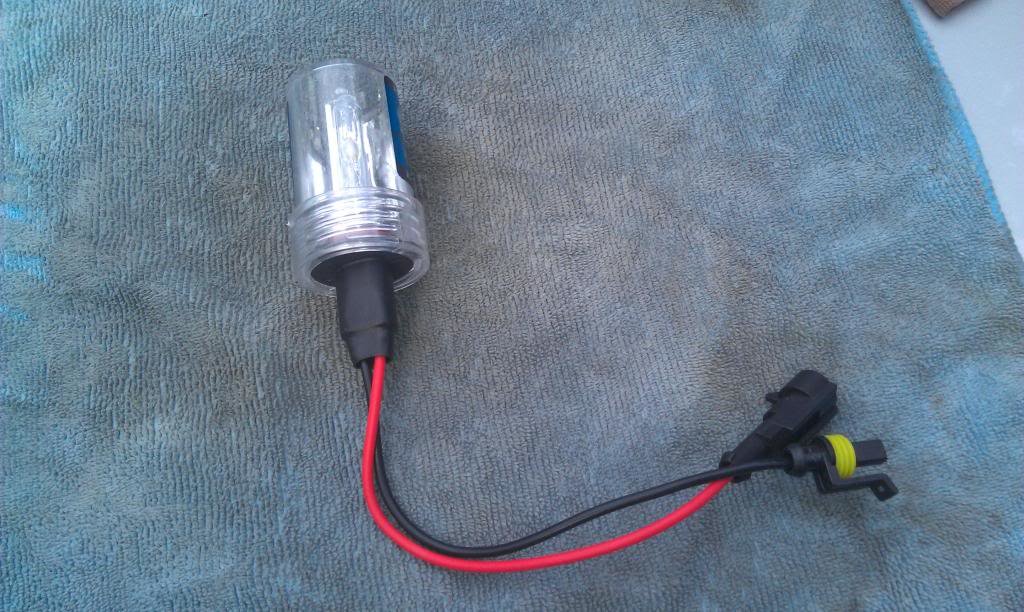

    So now we've reduced that cluttered mess of wires and grommets down to just two wires, and eliminated useless plugs that are just another spot for corrosion and connection issues to take place in.

    [​IMG]




    It also makes things much easier if you remove the fog light housings from the bumper. It's by no means necessary, but for the 15 seconds it takes to just pop them out, it makes things a lot easier, at least in my opinion.

    [​IMG]

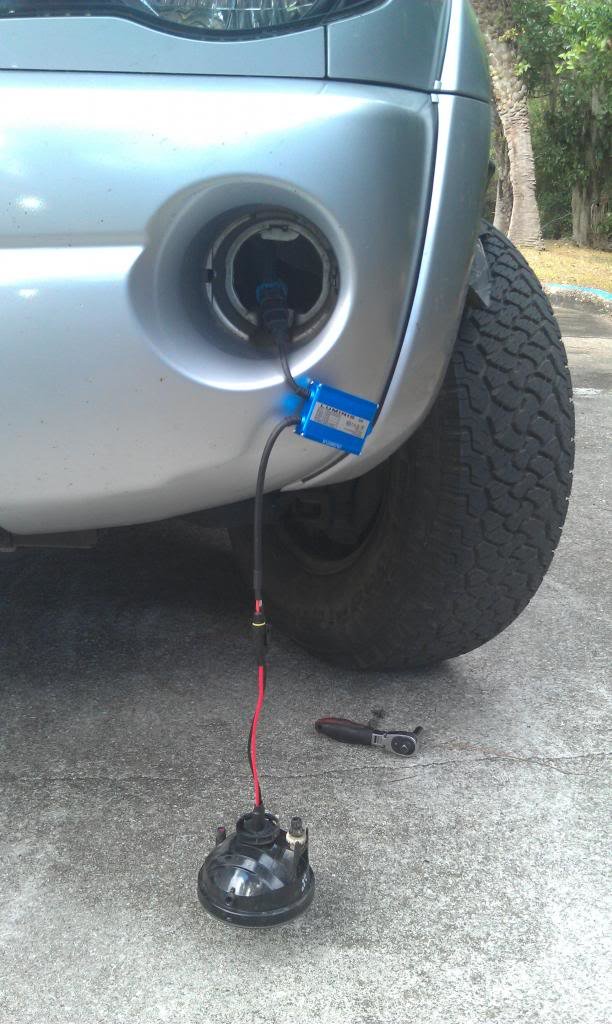

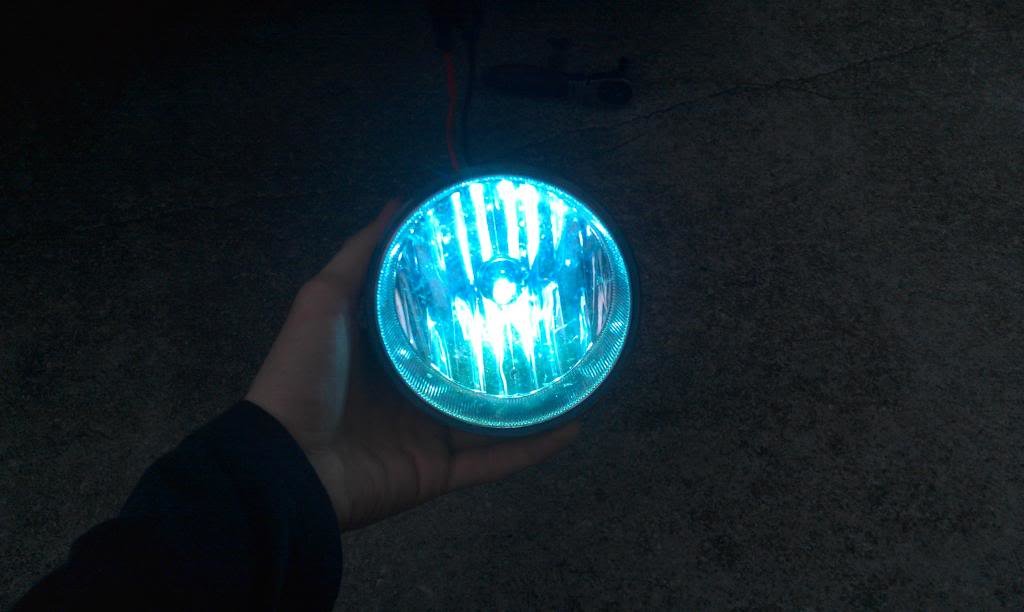

    Before you go popping the fog light back in though, plug everything in and turn on your fog lights just to make sure everything's working.

    [​IMG]



    Bingo, we have light :cool:

    [​IMG]

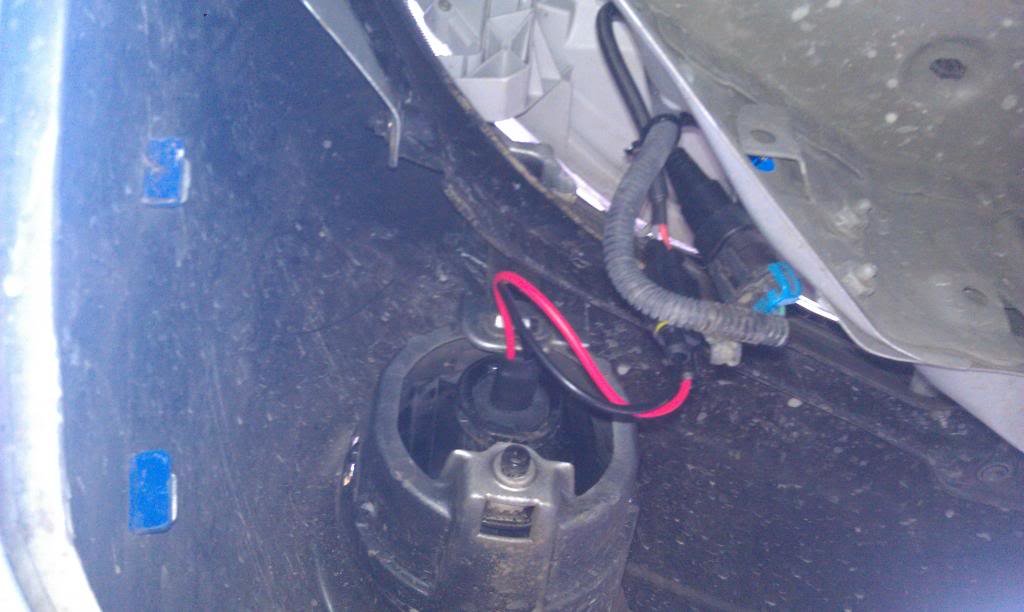

    Then just feed the wires and ballast up through the fog light mounted hole and pop the fog light back in.

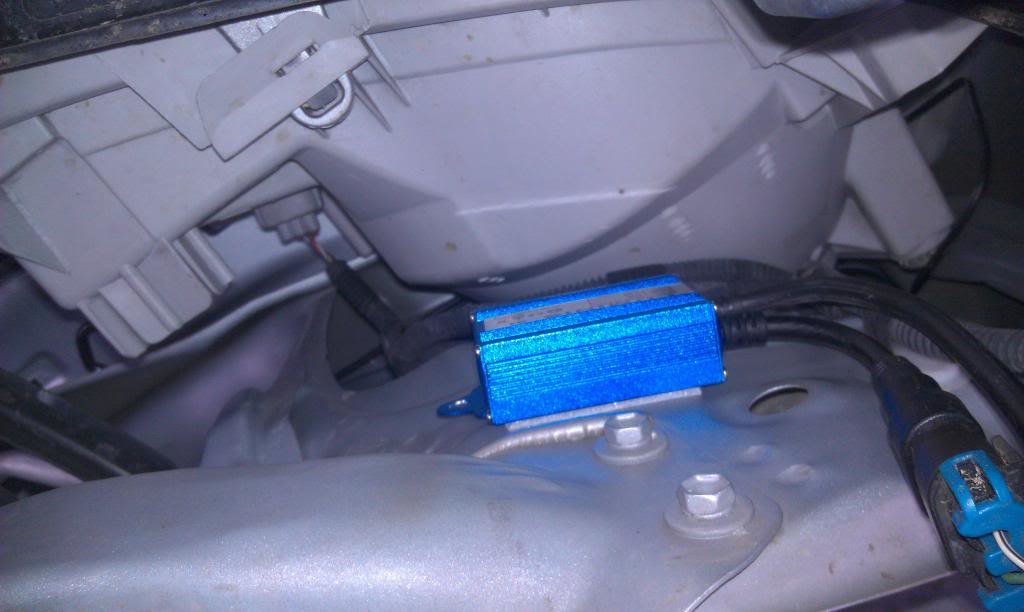

    For mounting the ballast, I used some industrial strength velcro and stuck them just underneath the headlights after cleaning off the spot so there will be no "stickage" issues. That's another great thing about these G4 ballast; there just so tiny you can stick them just about anywhere.

    [​IMG]

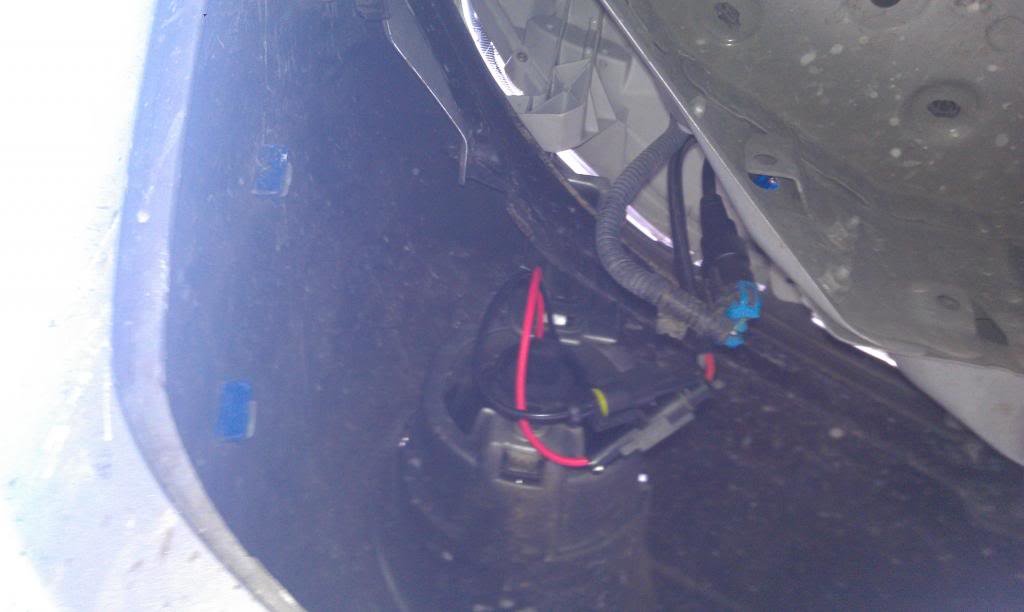

    There's not a huge wire clutter between the ballast and bulb, so you could probably get away without even putting any zip ties on anything.

    [​IMG]



    I did anyway, lol

    [​IMG]

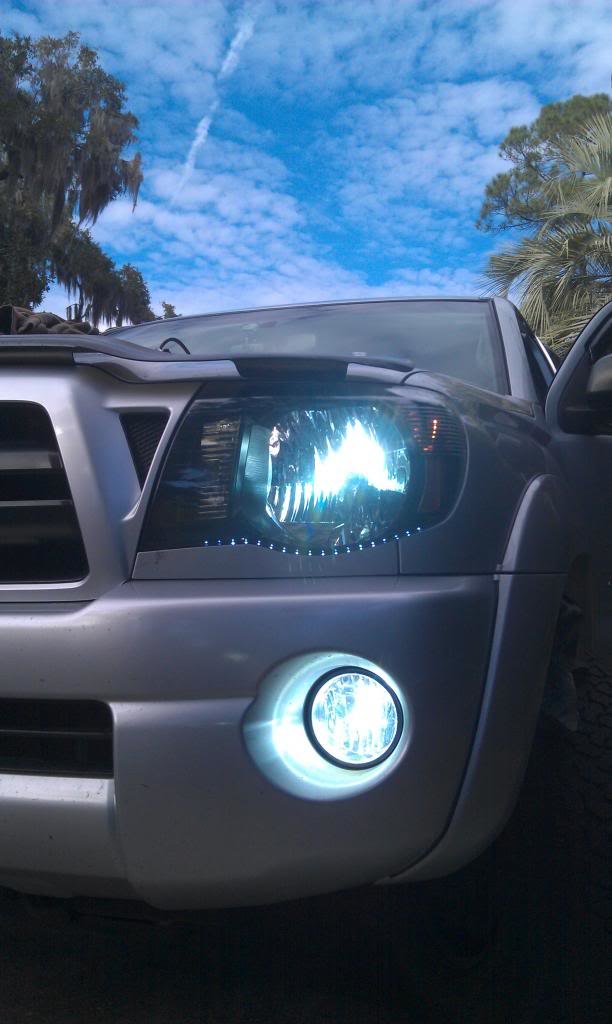

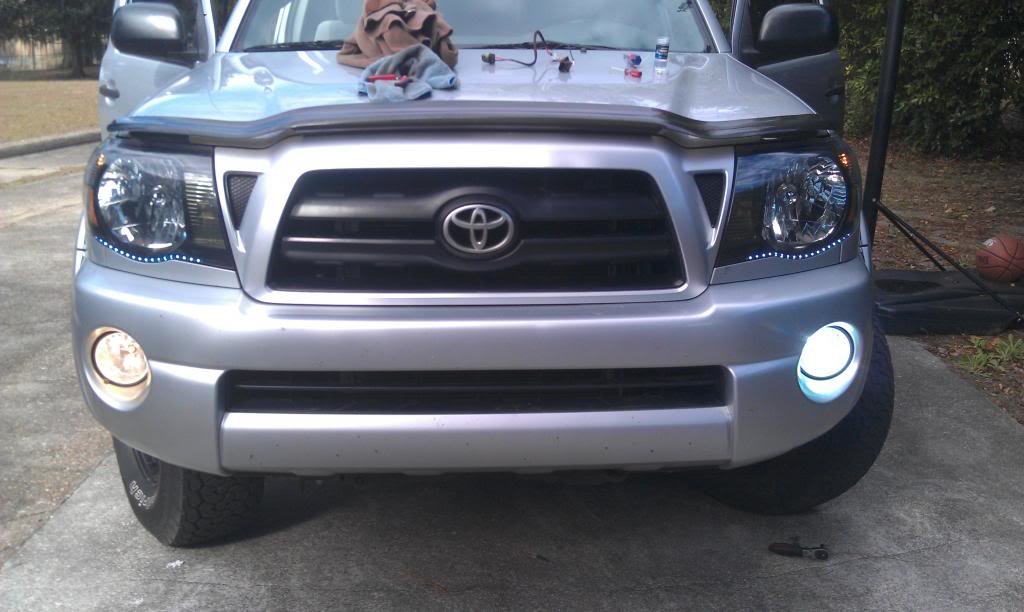

    Power up one more time, just to make sure everything functions. And giggle at how goofy it looks with an HID in one side and a halogen bulb in the other :p

    [​IMG]

    [​IMG]

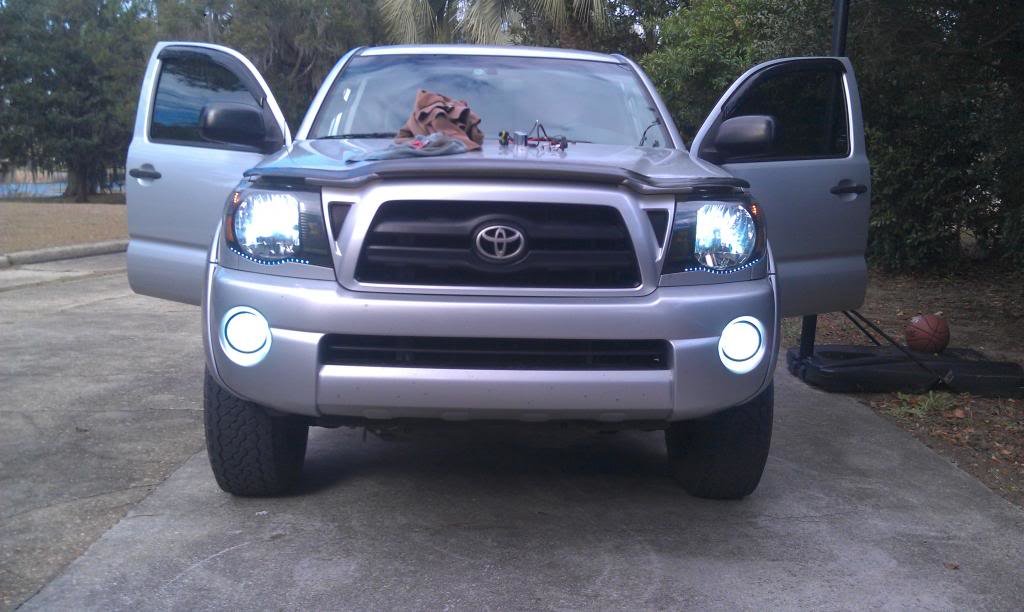

    Then just do the same process on the other side!

    [​IMG]

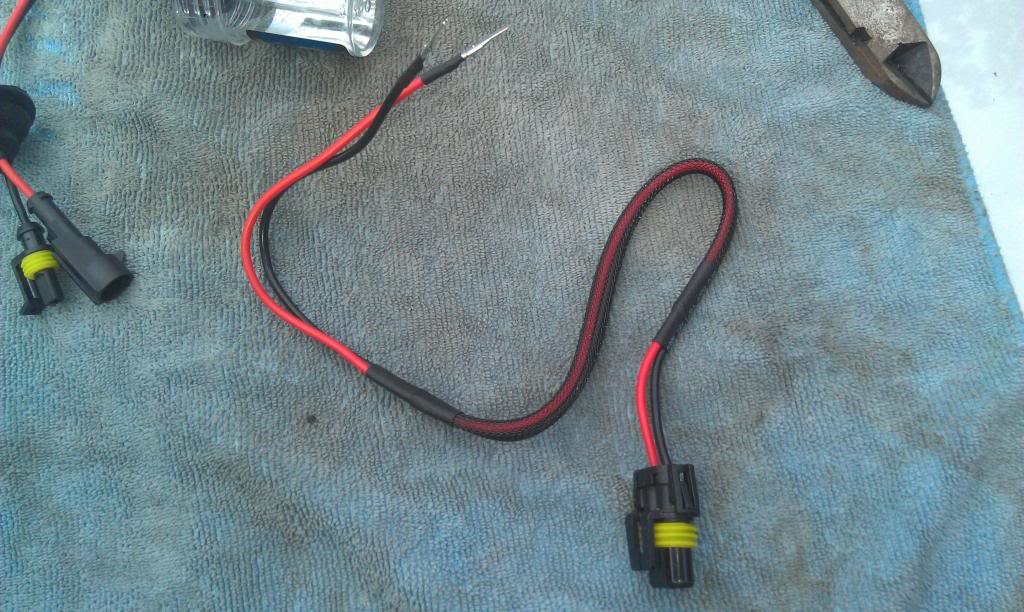

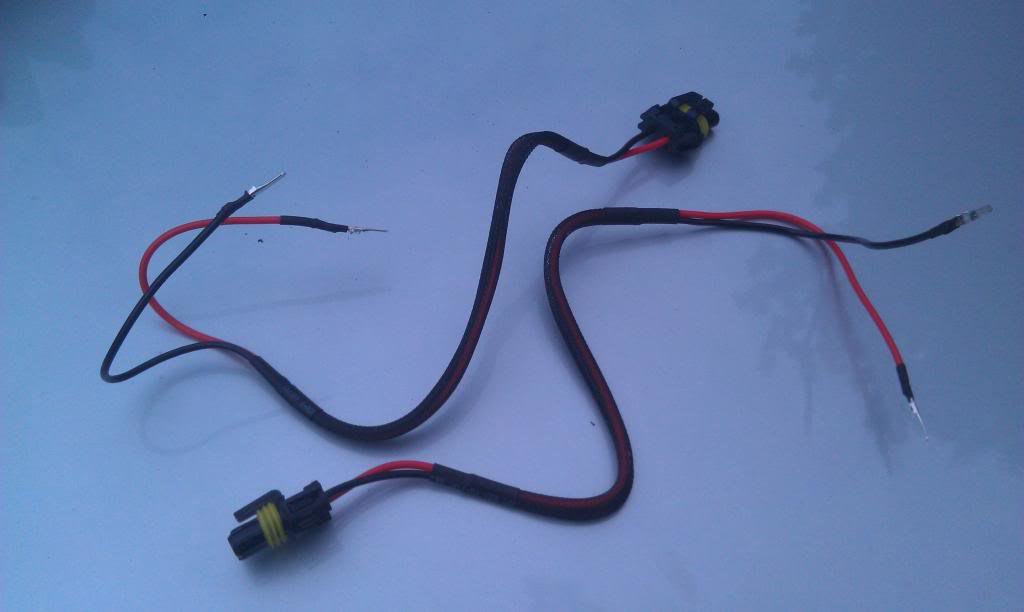

    And end up with these useless things left over... Not sure what I'll ever do with them, but I'm sure I'll find some use for them, lol

    [​IMG]

  2. Jon850FL

    Jon850FL is Lurkin'

    Joined:
    Aug 1, 2011
    Member:
    #60972
    Messages:
    1,980
    Gender:
    Male
    First Name:
    Jon
    DFS, FL
    had pretty much the same kind but yellow, kept blowing fuses. so i took them out.

  3. Justus

    Justus resident Apple Pie Monster

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    6,669
    Gender:
    Male
    First Name:
    Brock
    Paso Robles
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    No need to femove the housing when I tried them (won them free).........absolutely the worst move I've ever made......h10 have no glare shield, and the fogs scattered horribly.

    I used my gf's car as a reference and the glare was insane.....also seen other shielding their eyes.

    Horrible horrible idea, and completely illegal in every single state.

    Use cautiously.......if u can, look into a projector setup for fogs and any other hids.......the halogen designed reflective housing offers no cutoff shield and everyone pays the price....even if u aim them waaaay down, ur killing ur own distance vision because ur pupils are "shielding" ur eyes by constricting.

    Night driving u should avoid most up close lighting when not "crawling".......turn off/way down all in cab lights, etc.

  4. outxider

    outxider Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36858
    Messages:
    211
    Gender:
    Male
    First Name:
    Sang
    Bay Area
    Vehicle:
    06 DC 4x4
    TRS Morimoto D2S Retrofit, 2010 OEM LED Tails, Satoshi Grille, Hella 500s w FJ OEM switch mounted behind grille, OEM roof rack, OEM tailgate handle w aftermarket backup camera, Pioneer Avic Z130BT NAV, Kicker componets/2-ways, custom built box + 10in Kicker CompRT & Kicker 5ch amp. Ventshades, FJ TRD center caps, Illuminated 4x4 switch, K&N air filter, Viper 2way Remote start security system, flyzeye v2 console light, KBvoodoo bed bars.
    Not another plug and play hids into stock reflective housings install! Ill give you A for effort and taking the time to put up the pictures but that setup is way worse than stock.

  5. iamsuperbleeder

    iamsuperbleeder [OP] Licensed Lunatic

    Joined:
    Nov 4, 2012
    Member:
    #90468
    Messages:
    882
    Gender:
    Male
    First Name:
    Travis
    Lake City, Florida
    Vehicle:
    06 DC Prerunner Taco - SOLD -
    TRD E-locker rear axle swap, Cherrybomb Extreme muffler, custom made CAI, 2.5" spacer lift up front and AAL's in the rear, Sport model seat swap, Pioneer X940BT, Kicker shallow 10" and 12" behind the back seat
    appreciate all the positive feed back...

    I decided to make this to maybe help some people out, not to start an argument over HID lights in stock housings

    but whatever...

  6. chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,577
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, lots of buttons, and yellow flashing lights on the dash.
    This ^^^^^

    If you guys cant keep it civil, we may have an issue.

  7. Justus

    Justus resident Apple Pie Monster

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    6,669
    Gender:
    Male
    First Name:
    Brock
    Paso Robles
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    Good point....nice writeup, carry on

  8. Jon850FL

    Jon850FL is Lurkin'

    Joined:
    Aug 1, 2011
    Member:
    #60972
    Messages:
    1,980
    Gender:
    Male
    First Name:
    Jon
    DFS, FL
    i wasnt negative.

  9. iamsuperbleeder

    iamsuperbleeder [OP] Licensed Lunatic

    Joined:
    Nov 4, 2012
    Member:
    #90468
    Messages:
    882
    Gender:
    Male
    First Name:
    Travis
    Lake City, Florida
    Vehicle:
    06 DC Prerunner Taco - SOLD -
    TRD E-locker rear axle swap, Cherrybomb Extreme muffler, custom made CAI, 2.5" spacer lift up front and AAL's in the rear, Sport model seat swap, Pioneer X940BT, Kicker shallow 10" and 12" behind the back seat
    You're right, you were not.

    You mentioned you had pretty much the same kind but kept blowing fuses? Not all HID kits are created equal, especially the ballasts. I selected these specifically because of the good reviews I've read about them. They feel VERY solidly built; I'm extremely impressed considering their cost. Will probably buy two more to use with the headlights instead of the cheaper ones that I currently have on them (got those second hand...)

    Consider the stock H10 bulbs, 42w at 12v, they're pulling 3.5 amps each when on. These ballasts are rated to operate at 3.3 amps, there shouldn't be any issues. The only time they go higher is during the ignition phase which lasts all of about 10 seconds and they pull 4.8 amps. Considering the factory fuse is 15 amps, there shouldn't be any blowing fuse problems, unless one of the ballasts are defective and not working within spec or there's a wiring issue somewhere that was overlooked.

  10. HighTQCummins

    HighTQCummins Instagram: stormtrooptaco

    Joined:
    Feb 12, 2012
    Member:
    #72687
    Messages:
    436
    Gender:
    Male
    First Name:
    Hank
    SE PA
    Vehicle:
    '12 SW DCSB Sport
    5% all around, derp'd wheels, FMS40, 30" E-Series, 55w 6k bi's, 35w 5k fogs
    good write up, fogs are simple to do, but none the less, there are just some times when you need some good pics to reference. good thread, clean pictures too. Wish i'd have known fogs were that easy to get out when i had my 07. struggled with those for a while when i was swappin bulbs

  11. LoadedTaco

    LoadedTaco Kick A$$ Member

    Joined:
    Aug 21, 2012
    Member:
    #85218
    Messages:
    2,760
    Gender:
    Male
    First Name:
    Peter
    Burr Ridge Il
    Vehicle:
    2012 Red Baja
    What headlights do you have?

  12. ornithology

    ornithology Active Member

    Joined:
    Jan 28, 2013
    Member:
    #96377
    Messages:
    34
    Gender:
    Male
    Are those projectors or stock housings? Where on eBay? Considering doing this but with TRS projectors...

  13. sambojee

    sambojee Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53629
    Messages:
    286
    Gender:
    Male
    First Name:
    Sam
    Iowa
    Vehicle:
    06 sr5 4x4 Tacoma
    5100 set at 2.5, AAL 1.5, Mesh grill with 4 lights behind it, black headlights, tinted aftermarket foglights HID, magnet mount 6 foot wire with cb stuff, toolbox, new deck and speakers, big clevis in the back, Moto Metal 951, BFG MT KM2s 265s, LED light bar under tailgate, black badges, blacked out tail lights, ScanGauge, TRD seat covers, black lower valance, K and N air filter.
    Nice man! That looks great! this was exactly what i was lookin for, cant wait to do this when it gets warmer!

  14. David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,794
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Thank you! Do you have better links to buy these parts from?

  15. iamsuperbleeder

    iamsuperbleeder [OP] Licensed Lunatic

    Joined:
    Nov 4, 2012
    Member:
    #90468
    Messages:
    882
    Gender:
    Male
    First Name:
    Travis
    Lake City, Florida
    Vehicle:
    06 DC Prerunner Taco - SOLD -
    TRD E-locker rear axle swap, Cherrybomb Extreme muffler, custom made CAI, 2.5" spacer lift up front and AAL's in the rear, Sport model seat swap, Pioneer X940BT, Kicker shallow 10" and 12" behind the back seat
    they're factory headlights, blacked out bezel, and a 1ft strip of side emitting LED's along the bottom inside the light.


    negative, just stock housing



    just Google or eBay search "Luminis g4 ballast", and the bulbs are just cheapo eBay junk at the moment. About a month ago I started having an issue with the left one not igniting on the first try. happened twice, so I swapped the bulbs, and the problem moved to the right; has done it two more times since. so the cheap bulbs are showing how cheap they really are, lol

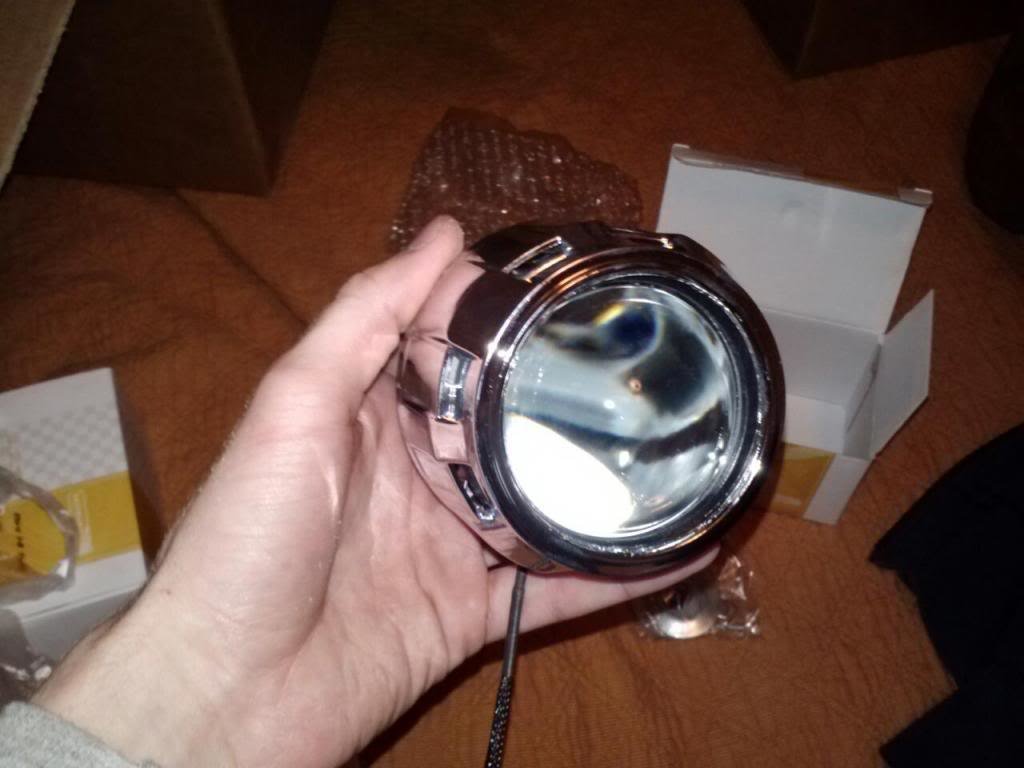

    HOWEVER, these came in for my headlights today:

    [​IMG]

    now that I'm retrofitting the headlights with TRS projectors, it's got me thinking about putting some Matchbox projectors in the fogs :D

    http://www.theretrofitsource.com/product_info.php?products_id=18725
