HID Fuse Over Heating

Discussion in 'Lighting' started by mudthedoor, Oct 12, 2011.

  1. Oct 12, 2011 at 9:11 PM
    #1
    mudthedoor

    mudthedoor [OP] Sconnie

    Joined:
    Feb 4, 2011
    Member:
    #50550
    Messages:
    1,282
    Gender:
    Male
    First Name:
    Alex
    Forestville, WI
    Vehicle:
    00 4Runner
    I converted my six hella 500's this last weekend and i noticed that the inline fuse from the battery now gets so hot i cant touch it. I used 55w hid kit and have all six lights on three different switches. what should i do?

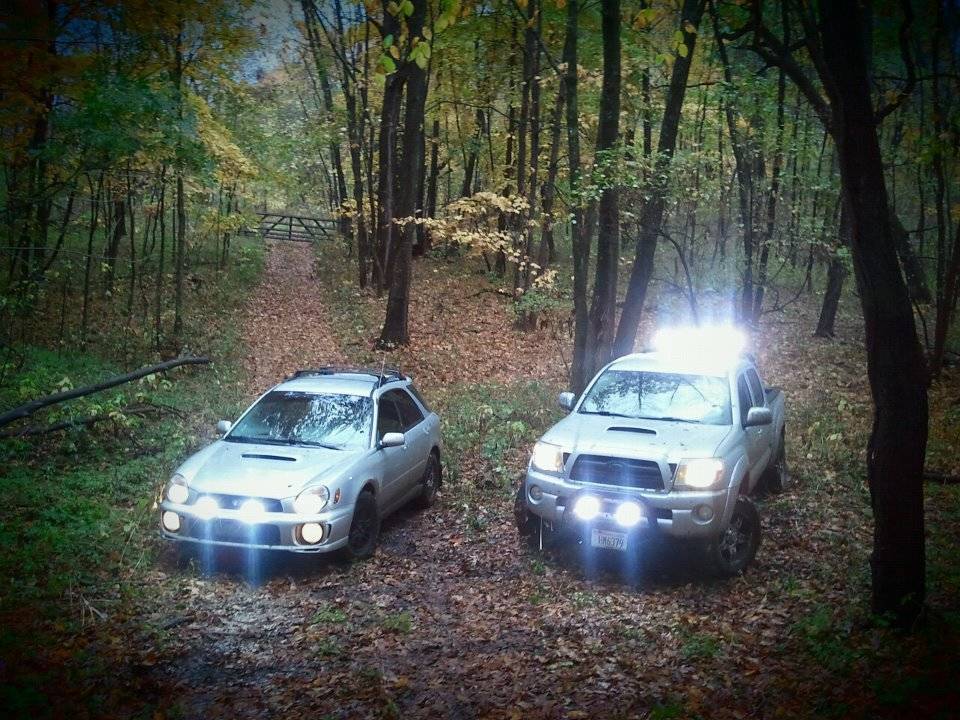

    eye candy:
    [​IMG]

  2. Oct 12, 2011 at 9:16 PM
    #2
    Catcrazed

    Catcrazed Save a horse ride a Railroader

    Joined:
    May 12, 2011
    Member:
    #56529
    Messages:
    568
    Gender:
    Male
    First Name:
    Bryan
    NW Oregon
    Vehicle:
    04 TRD
    Arb bullbar m8000 883 on 5100 5leafs out back, big trucker cb, toolbox, dogbox, loaded with guns and HID's soon.
    Did you wire in relays? check all your wires sounds like you have a short, bad ground, or used to small of wire. Did you run one power wire or 3?

  3. Oct 12, 2011 at 10:05 PM
    #3
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,194
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    What amp fuse did you use? Most fuses will blow before they get that hot.

    What gauge wiring did you use? Each pair of 55W lights will draw 10 amps or more. So each pair of lights should be wired with a minimum of 12 gauge wire.

    If you have all 6 55W lights on 1 wire you are running 330W which is 27 amps! Thats a lot. You will need at least a 10 gauge wire or larger.

    Remember, the longer the wire the larger gauge. For example, if you are running 27 amps for more than 10 feet you need 8 gauge wire.

  4. Oct 12, 2011 at 10:16 PM
    #4
    mudthedoor

    mudthedoor [OP] Sconnie

    Joined:
    Feb 4, 2011
    Member:
    #50550
    Messages:
    1,282
    Gender:
    Male
    First Name:
    Alex
    Forestville, WI
    Vehicle:
    00 4Runner
    wow lol i currently have 18 gauge wire from battery to my relay, with a 15 amp fuse. I bought some heavyduty in line fuses with 15 amp fuses and some new 14 guage wire, to rewire between the relay and the battery. Going to the lights i have 16 guage wire should i re do that too? it doesn't get hot at all just the wire between the batt and relay does...

  5. Oct 12, 2011 at 10:17 PM
    #5
    mudthedoor

    mudthedoor [OP] Sconnie

    Joined:
    Feb 4, 2011
    Member:
    #50550
    Messages:
    1,282
    Gender:
    Male
    First Name:
    Alex
    Forestville, WI
    Vehicle:
    00 4Runner
    I ran 3. one for each pair of lights...

  6. Oct 12, 2011 at 10:29 PM
    #6
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,194
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    So all 6 lights are powered from one 18 gauge wire and 1 15 amp fuse? Thats not good, the wire will melt if the fuse does not blow.

    You should run a separate relay for every 2 55W lights. And use 12 gauge wire and a 15 amp relay for every 2 lights.

    If you want to run 1 wire from the battery to the relays I would use a 8 gauge wire and a 30 amp fuse on that one wire.

  7. Oct 13, 2011 at 9:38 AM
    #7
    Catcrazed

    Catcrazed Save a horse ride a Railroader

    Joined:
    May 12, 2011
    Member:
    #56529
    Messages:
    568
    Gender:
    Male
    First Name:
    Bryan
    NW Oregon
    Vehicle:
    04 TRD
    Arb bullbar m8000 883 on 5100 5leafs out back, big trucker cb, toolbox, dogbox, loaded with guns and HID's soon.
    I cant believe the fuse isnt blowing. But you have 3 relays I would start by running the larger power wire to each relay make sure you fuse holder/wire is larger as well. Going from 12 ga wire to 18 ga fuse holder isnt gunna do you much. So start there and see if that solves your problem but i have a feeling you mite have to run larger wire to the lights as well.

  8. Oct 13, 2011 at 8:58 PM
    #8
    mudthedoor

    mudthedoor [OP] Sconnie

    Joined:
    Feb 4, 2011
    Member:
    #50550
    Messages:
    1,282
    Gender:
    Male
    First Name:
    Alex
    Forestville, WI
    Vehicle:
    00 4Runner
    I bought 12 guage wire and heavyduty fuse holders that have 10 guage wire going to them. im gonna wire them up tomorrow\

  9. Oct 13, 2011 at 9:00 PM
    #9
    mudthedoor

    mudthedoor [OP] Sconnie

    Joined:
    Feb 4, 2011
    Member:
    #50550
    Messages:
    1,282
    Gender:
    Male
    First Name:
    Alex
    Forestville, WI
    Vehicle:
    00 4Runner
    no i have exactly what you described except the wire is 18 gauge now all three pairs of lights have their own wire and fuse...

  10. Oct 15, 2011 at 8:38 PM
    #10
    stunt man hans

    stunt man hans displaced viking living in New Hampshire

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,647
    Gender:
    Male
    First Name:
    hans
    THE LIVE FREE OR DIE STATE
    Vehicle:
    2010 tacoma reg cab 4x4 5spd 4cyl
    undercover se, pop&lock tailgate, rallye 1000 hela black magic lights, black grill craft grill lower. twm m1 abrams shift knob, ap ubolt flip kit & ifs high clearance skid , timbren bumpstops, pro comp 3 inch lift, goodrich ss braklines front and rear, lr uca's, customlightz.com fx-r 55 watt retrofit, ARB deluxe bull bar, vision-x solstice pods, black wet okole seat cover,weather tech digital floor mats window visors toyota hood guard, safari snorkel, full bed rug, full putco led swap hd led flasher cf18-08, pioneer bluetooth ipod navigation double din headunit, flowmaster 40 muffler custom center outlet exhaust, regear and arb lockers, arb rear bumper if they ever fucking release one lol and arb sliders coming soon as well as a new line-xtra paint job!
    get a larger amperage in line fuse this should help with the heat problem i would think btw what amp is the inline fuse your currently using?
