HID Projector Retrofit

Discussion in '2nd Gen. Tacomas' started by chacotaco, Aug 24, 2010.

  1. Aug 24, 2010 at 6:36 PM
    #1
    chacotaco

    chacotaco [OP] Well-Known Member

    Joined:
    Aug 21, 2010
    Member:
    #42043
    Messages:
    160
    Gender:
    Male
    First Name:
    Travis
    Albuquerque & Palo Alto
    Vehicle:
    2011 SSM TRD SPORT DCLB
    Black Snugtop XtraVision Sleep Deck.
    EDIT 1
    Need to roll props Yosh for his thread,
    And then more props to Electron Man. Their threads were gold to me.

    http://www.tacomaworld.com/forum/2nd-gen-tacomas/68126-teaser-hid-retro-part-deux.html
    and
    http://www.tacomaworld.com/forum/2n...non-4300k-bulbs-gatling-shrouds-complete.html

    So this is the cornerstone of a marathon of work and mods I have been doing on my truck. The mod is complete, but I need to get some more photos and finish aiming my lights. So less words, more Taco Pr0n.

    So T/R/S sent me a box, it had some goodies in it.
    [​IMG]


    Ballasts, Gatlin Shrouds, Phillis Bulbs, Morimoto Mini Ballasts
    [​IMG]


    So the best part is that I used the Morimoto D2S Mini. The kit isn't on the sellers web site, however I emailed Matt, and he set me up. So the only thing I had to dremel was my shrouds. !

    Here is the before shot. Really clouded. Low Tech Halogen. Dirty Grill (Jamoshi in the furture!)
    [​IMG]


    So i dropped them in the preheated oven, 250 Deg F, 11 minutes, on a cardboard sheet. Turned the oven off. Getting them apart hurt my fingers. Next time I might do warmer/longer.

    So the first thing I needed to do once they were open was remove the stock halogen shield. Flat head screwdriver to these tabs and some wiggling and they slid right out.
    [​IMG]


    So the cool part about the Mini D2s Kit is that the projectors have this alignment washer and a notch to get the rotational alignment correct. It turned out pretty level for me. In the pic you can see the alignment ring, the place it sits in the back of the headlamp, and the notch on the projector assembly.
    [​IMG]


    In order to get the high beam solenoid through the reflector w/o drilling, I disassembled the electrical connector, and poked it through a little pre-existing hole in the reflector bowl.
    [​IMG]
    and
    [​IMG]

    Modifying the Gatling Shrouds:
    This was the crappy part of my weekend, lots of dust, so I didn't take pics. But I taped off the inner ring, took about 1/6.5 th of an inch off, and a pretty shoddy job of making notches for the projectors to fit. My rationale for modifying them soo much is that I did not want them casting shadows out wide and narrowing my beam pattern. Wither I accomplished this or not, who cares.

    Next I used a Meguiars (Spelling?) kit to restore my lenses. If I were to do this again, I would do it while they are on the truck, and I would use the wet sanding technique. Maybe later.
    Befores
    [​IMG]

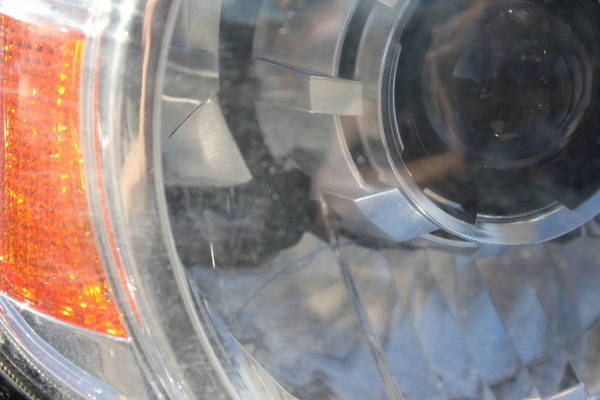

    Above is a comparison, only one is done. I also used clear silicon to affix the shrouds to the projectors, so here they are getting a chance to off-gas under my tonneau in the desert heat (it gets freaking hot under there). (Also Extang Trifecta Tonneau for sale cheap soon in Albuquerque area!)

    [​IMG]
    As you can gander, huge difference in clarity. Meguiars is a simple one step restore. But its not perfect.


    Removed my turn indicator covers. I have a chrome grill, so I did not BHLM , and I did leave the colored corners (legality concerns)
    [​IMG]

    Alright, Update time.

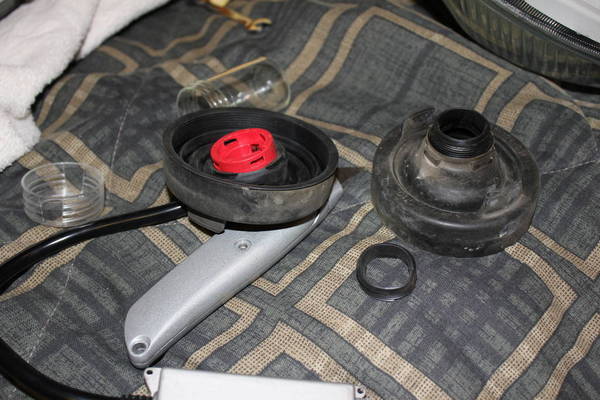

    I had to modify the boots to fit the D2S connector. You can see how much I trimmed there. This way the remaining fit is purity darn tight.
    [​IMG]

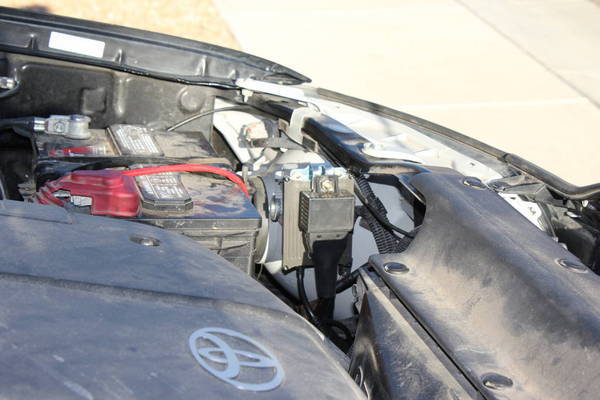

    Below is the left side detail of how I mounted my ballasts. I used Velcro, industrial strength, mainly because I for got to drill mounting holes when the headlights were open. The wiring harness has a relay box that i mounted to the ballast its self using the ballast mounting bracket. I'm not happy about the velcro, but this worked out well for me.
    [​IMG]

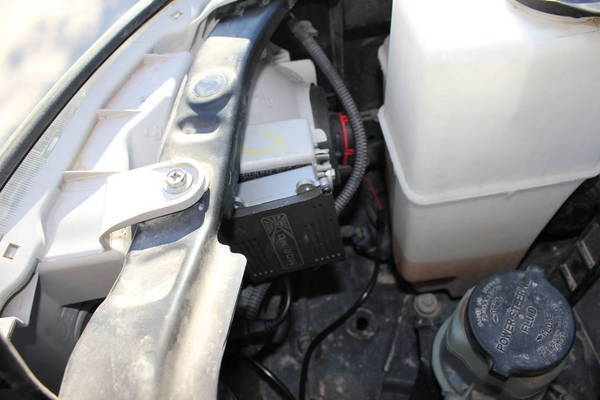

    and the right, I'm low on headlight fluid.
    [​IMG]

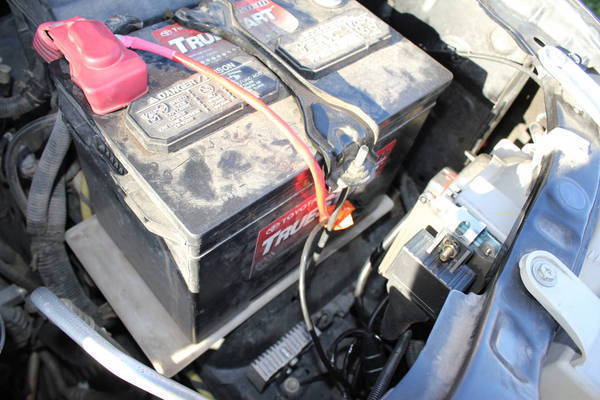

    TRS sends you a wiring harness. the positive battery connector broke off. I put a larger one on and shrink wrapped it. Until I put in an aux fuse box, the headlamp fuse is captured by the battery bar there. Also I added some orange electrical tape (Go Broncos!) to makes sure nothing shorted.
    [​IMG]

    You all asked for detail on my shroud butchering. Here is the best I can do. Just like the guys before me, I had to cut notches in the shrouds to get these to fit tighter. I did a poor job of that!
    [​IMG]
    and
    [​IMG]

    So here is the finished product: Meh, that pic sucked.
    Ill get some night shots when I go to aim and give a finalz update.

    Until then.
    If I had to do it again I would:
    Not break a bulb.
    Use an AUX fuse box.
    Be more careful yanking the headlamps open.
    Not allow dust to settle in the headlamps after the oven closing treatment.
    Wet Sand my lenses or source new headlamp. (Lots of risk in using my only pair)
    Have the balls to do a full FXR Ballast Retro (well, maaayyybbeee).
    Place angel eyes in my shrouds. That would be ill.


    My Headlamps were recently removed from me by forces beyond my control.
    I will be doing this mod again for my next Tacoma
    My apologies for not getting night shots, but HID plant is a great resource ( I used it quite a bit

    Here are some more shots from my build process that I found on my phone
    I will most likely post more pics of the next build too.
    Enjoy!

    My Headlamps were recently removed from me by forces beyond my control.
    I will be doing this mod again for my next Tacoma
    My apologies for not getting night shots, but HID plant is a great resource ( I used it quite a bit

    Here are some more shots from my build process that I found on my phone
    I will most likely post more pics of the next build too.
    Enjoy!

    [FINAL EDIT]

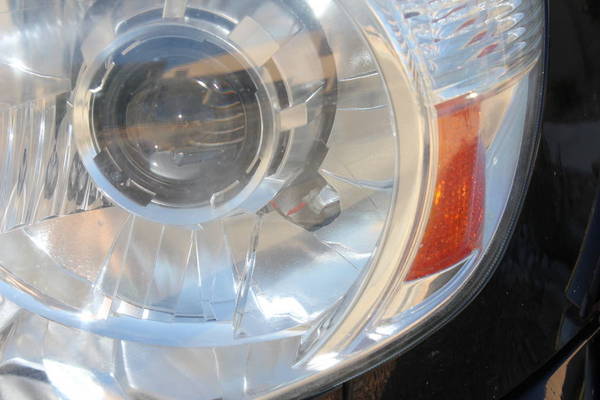

    Finished product
    [​IMG]

    Before I put everything back together
    [​IMG]

    How I taped off and modified for shroud modification
    [​IMG]

    [​IMG]

    Again, I wont be getting night shots. My apologies.
    (I actually went and tried 3 times, but needed a tripod and was being waaaaaay to anal about taking 3 pictures at the exact same exposure/iso/aperture/fstop so that the pictures were DIRECTLY comparable in a place that had showed the headlights well)

    BUT! I will be doing this mod again in the summer with new headlamps, and probably some CCFL "angel eyes" to replace my DTRL's.

    As a wrap, I HIGHLY RECOMMEND THIS TO EVERYONE. I recently drove a new 2011 Tacoma with stock headlamps and I felt blind.
    -Chaco

    PS - More info in Post 18 and some of my replies.
    Those looking to Vacuum form check out this link:
    http://hackaday.com/2010/12/02/vacuum-forming-at-home/

  2. Aug 24, 2010 at 7:19 PM
    #2
    T0LLPHR33

    T0LLPHR33 Well-Known Member

    Joined:
    Sep 26, 2007
    Member:
    #2817
    Messages:
    1,606
    Gender:
    Male
    S1N C1TY...(from Hilo, HI)...
    Vehicle:
    BSP TRD Off-Road
    APR X-1 | TRD CAI w/Clear Cover | TRD Short Shifter w/ TRD "RED" Shift Knob | SGII w/Blendmount| Snugtop SL w/KeyLess Entry | 5% Tint | Pop-n-Lock | Bosch Icon WB | S2K Antenna | HRM | LS 8K Projectors w/BSP HLM & 8K Fogs w/FLM | Debadged |Tinted Tails | Black Weathertechs | MX RGM & RBM | Optima Red Top 35 | Gatorback Belt |
    looking good so far....can't wait to see the finished product...

    I'm about to make me a retro-setup similar to yours...

  3. Aug 24, 2010 at 7:31 PM
    #3
    outxider

    outxider Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36858
    Messages:
    215
    Gender:
    Male
    First Name:
    Sang
    Bay Area
    Vehicle:
    06 DC 4x4
    TRS Morimoto D2S Retrofit, 2010 OEM LED Tails, Satoshi Grille, Hella 500s w FJ OEM switch mounted behind grille, OEM roof rack, OEM tailgate handle w aftermarket backup camera, Pioneer Avic Z130BT NAV, Kicker componets/2-ways, custom built box + 10in Kicker CompRT & Kicker 5ch amp. Ventshades, FJ TRD center caps, Illuminated 4x4 switch, K&N air filter, Viper 2way Remote start security system, flyzeye v2 console light, KBvoodoo bed bars.
    I'm so glad you took the time to take pictures as I will be tackling this project very soon. Great job! Do you have close ups of the trimmed shrouds?

  4. Aug 24, 2010 at 7:33 PM
    #4
    chilidogrc

    chilidogrc Skewpage

    Joined:
    Aug 22, 2009
    Member:
    #21561
    Messages:
    2,545
    Gender:
    Male
    First Name:
    Rodrigo
    San Diego
    Vehicle:
    05 AC Sport 4x4
    King RR Coilovers, FM 40, Allpro rear bumper, OME Dakar leafs, rear 5100's, Snugtop Rebel shell, Treadwright tires, Allpro apex front plate bumper, triple hella 700's, Blacked out headlights, CF hood, weathertech floor mats
    Looks good. How much did all the parts from TRS cost you?

  5. Aug 24, 2010 at 7:41 PM
    #5
    CaptMorgan

    CaptMorgan Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41949
    Messages:
    244
    Gender:
    Male
    Tempe
    Lift, tires, aux-in, LED Taillights, Flowmaster
    nice, appreciate the photos

  6. Aug 24, 2010 at 7:57 PM
    #6
    Viet2100

    Viet2100 Well-Known Member

    Joined:
    Jun 27, 2007
    Member:
    #1930
    Messages:
    2,519
    Gender:
    Male
    First Name:
    Viet
    Delray Beach, FL
    Vehicle:
    2007 Infiniti G35S
    That kit is on the website...

  7. Aug 24, 2010 at 8:13 PM
    #7
    chacotaco

    chacotaco [OP] Well-Known Member

    Joined:
    Aug 21, 2010
    Member:
    #42043
    Messages:
    160
    Gender:
    Male
    First Name:
    Travis
    Albuquerque & Palo Alto
    Vehicle:
    2011 SSM TRD SPORT DCLB
    Black Snugtop XtraVision Sleep Deck.
    Sorry mates, did not take shroud pics. I will get closeups of the shrouds since they are on the truck now. I have also given the TRS some feedback on the kit. The wiring harness is a bit short.

    One note is BE CAREFUL WITH THE BULBS. I broke one, and am buying a new one from TRS. The little posts on the back are fragile. I will snap some more pics in the afternoon tomorrow.

  8. Aug 24, 2010 at 8:41 PM
    #8
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,072
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    Looks great thanks for all the pics and explanation as i will also be doing this soon. Cant wait to see the finished product

  9. Aug 25, 2010 at 6:24 PM
    #9
    chacotaco

    chacotaco [OP] Well-Known Member

    Joined:
    Aug 21, 2010
    Member:
    #42043
    Messages:
    160
    Gender:
    Male
    First Name:
    Travis
    Albuquerque & Palo Alto
    Vehicle:
    2011 SSM TRD SPORT DCLB
    Black Snugtop XtraVision Sleep Deck.
    Update Bump! TTT

    They got the kit on the website, I think 345 w/ the Phillips bulbs.

    BTW TRS is pretty nice to deal with!

  10. Aug 25, 2010 at 6:26 PM
    #10
    CopDoctor

    CopDoctor Well-Known Member

    Joined:
    Feb 1, 2010
    Member:
    #30474
    Messages:
    1,874
    Gender:
    Male
    First Name:
    Matt
    Colorado Springs, CO
    Vehicle:
    08 335i
    BMS Intake, JB4 chip, Plastidip everywhere
    trs is sick, got my retro there as well. i sorta have angel eyes on mine (see below pic) but i have to figure out how to mount them better, wheeling tends to make them fall off

  11. Aug 25, 2010 at 6:46 PM
    #11
    chacotaco

    chacotaco [OP] Well-Known Member

    Joined:
    Aug 21, 2010
    Member:
    #42043
    Messages:
    160
    Gender:
    Male
    First Name:
    Travis
    Albuquerque & Palo Alto
    Vehicle:
    2011 SSM TRD SPORT DCLB
    Black Snugtop XtraVision Sleep Deck.
    I think they would be ill inside the Gatling shrouds, kinda like a slotted ring of light.

  12. Aug 25, 2010 at 8:03 PM
    #12
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,903
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    pick up the 3m headlight restore kit at walmart...like $16. it comes w/ a drill attachment, 3 different grits of sandpaper for the attachment and some polishing compound. i got good sized rock chips out of my fogs w/ that kit, worked excellent!

    now lets see those night shots!!

  13. Sep 8, 2010 at 1:38 PM
    #13
    S!LVERT4COM4

    S!LVERT4COM4 Well-Known Member

    Joined:
    Jan 8, 2009
    Member:
    #12372
    Messages:
    59
    Gender:
    Male
    Raleigh, NC
    Vehicle:
    09 TRD Sport
    black emblems, tinted tails, fog light mod, DTRL, weathertechs, in-dash NAV, center console light, glovebox light, maglite mounts, BHLM, sockmonkey decals and bumper cover, 886 reverse lights, extra beg rings, undercover, TRD exhaust (painted black), TRD skidplate (custom paint)
    First of all, those look great OP! Congratulations.

    I have been researching doing a HID retro while I save up the funds to purchase supplies. I had seen some awesome work on the forum with the FX-R retrofit and had convinced myself I was going to go that route. But now...seeing your awesome results...I might go the Morimoto Mini route. Minimal cutting of the reflector seems ideal and it is very close to a true plug-and-play.

    I am not afraid to do the work required to retrofit the FX-R but I am having a hard time justifying the extra work. Could be because of my ignorance of the differences. So how happy are you with the Mini DS2 retro? Why do you mention using FX-R projector if you had to do it again? Anyone else want to chime in with their experience/expertise? I have emailed Matt at TRS and, like everyone has indicated, he is very nice and informative, but I wanted to get everyone here's insight as well.

    Thanks in advance for any help.

  14. Sep 9, 2010 at 8:13 AM
    #14
    Bama_TACO

    Bama_TACO ROLL TIDE!!!!!!!

    Joined:
    Aug 3, 2010
    Member:
    #41157
    Messages:
    1,020
    Gender:
    Male
    Winfield, AL
    Vehicle:
    2006 PreRunner Double Cab TRD SPORT
    My mini D2S kit arrived at my office yesterday. I will be doing the install this weekend. I went with the Apollo shrouds just to be different. Looks like attaching the shroud to the projector is going to be the most time consuming part.

  15. Sep 10, 2010 at 7:17 PM
    #15
    chacotaco

    chacotaco [OP] Well-Known Member

    Joined:
    Aug 21, 2010
    Member:
    #42043
    Messages:
    160
    Gender:
    Male
    First Name:
    Travis
    Albuquerque & Palo Alto
    Vehicle:
    2011 SSM TRD SPORT DCLB
    Black Snugtop XtraVision Sleep Deck.
    Yeah Getting the shrouds snug is the hardest part. However do be careful yanking the headlamp apart, i broke some things off.

    Also look into taking the reflector and painting it black, kinda like a reverse BHLM. Next time I open up my lights that is what I'm going to do.

    Real life stuff has kept me from taking night shots, but I have been doing lots of night driving as I move from NM to CA for gradschool and decided to make it a week long camping trip. That and I am still tinkering with my aiming of the lights. But the Phillips bulbs kick ass!!

  16. Sep 10, 2010 at 7:24 PM
    #16
    chacotaco

    chacotaco [OP] Well-Known Member

    Joined:
    Aug 21, 2010
    Member:
    #42043
    Messages:
    160
    Gender:
    Male
    First Name:
    Travis
    Albuquerque & Palo Alto
    Vehicle:
    2011 SSM TRD SPORT DCLB
    Black Snugtop XtraVision Sleep Deck.
    Sorry Just saw this.
    The beam pattern from the FX-R's is slightly better. And you have no rotational control of aiming. With a full retro you do, and you can rig it up so you have more aiming controll. I am finding these a bit diffucult to get where I want them, especiall with no flat parking lots near me, and my f***ing weak ass stock 05 rear leafs.

    You see I bought my first Dremel to do this, so the lower cost and shorter less risky path was the only way I would do this. Remember that I did not have an extra pair of headlights to work on. This for me was a one weekend or bust mod.

    I would seriously looking to leveling motors, as that will be my next reason for tearing the lamps out again. I wish I had independently rigged up leveling motors to all 4 adjustments. That way aiming would be stupid easy!!!!

  17. Sep 10, 2010 at 7:26 PM
    #17
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,903
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    WAY overkill w/ 4 motors...all you need is 1...ask me how i know....:D

  18. Sep 27, 2010 at 12:27 PM
    #18
    S!LVERT4COM4

    S!LVERT4COM4 Well-Known Member

    Joined:
    Jan 8, 2009
    Member:
    #12372
    Messages:
    59
    Gender:
    Male
    Raleigh, NC
    Vehicle:
    09 TRD Sport
    black emblems, tinted tails, fog light mod, DTRL, weathertechs, in-dash NAV, center console light, glovebox light, maglite mounts, BHLM, sockmonkey decals and bumper cover, 886 reverse lights, extra beg rings, undercover, TRD exhaust (painted black), TRD skidplate (custom paint)
    Based on his great write up I got these projectors as well. I asked chacotaco some more questions via PM and he was very responsive and helpful. He made the great suggestion that we should get that useful information onto the page so here are some questions followed by his answers:

    - Was it hard to get the first "ring" screwed in enough to get the second ring on when mounting the projector in the reflector? Any suggestions?
    - I don't really know how these shrouds are supposed to fit, but they don't fit very easily. They don't reach the reflector bowl at all...do yours? Are they supposed to? I'd think if I could glue the shroud to the bowl it would add some support, but they sit about 3/4 inch away from the bowl. Any insight there?
    - You mentioned using velcro because you didn't drill mounting holes while the headlights were open. How would you have mounted the ballasts if you had thought of it while they were open?
    Great job chacotaco and thanks a ton.

  19. Sep 29, 2010 at 7:58 PM
    #19
    MC1983

    MC1983 Well-Known Member

    Joined:
    May 3, 2009
    Member:
    #16728
    Messages:
    270
    Gender:
    Male
    First Name:
    Mark
    Indianapolis, IN
    Vehicle:
    2005 DC LB PreRunner Sport
    Looks good man. I am looking into doing this retro as well. Do you have any output pictures from this setup?

  20. Nov 22, 2010 at 8:03 PM
    #20
    stunt man hans

    stunt man hans displaced viking living in New Hampshire

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,648
    Gender:
    Male
    First Name:
    hans
    THE LIVE FREE OR DIE STATE
    Vehicle:
    2010 tacoma reg cab 4x4 5spd 4cyl
    undercover se, pop&lock tailgate, rallye 1000 hela black magic lights, black grill craft grill lower. twm m1 abrams shift knob, ap ubolt flip kit & ifs high clearance skid , timbren bumpstops, pro comp 3 inch lift, goodrich ss braklines front and rear, lr uca's, customlightz.com fx-r 55 watt retrofit, ARB deluxe bull bar, vision-x solstice pods, black wet okole seat cover,weather tech digital floor mats window visors toyota hood guard, safari snorkel, full bed rug, full putco led swap hd led flasher cf18-08, pioneer bluetooth ipod navigation double din headunit, flowmaster 40 muffler custom center outlet exhaust, regear and arb lockers, arb rear bumper if they ever fucking release one lol and arb sliders coming soon as well as a new line-xtra paint job!
    because the shroud is not perfectly sitting on the reflector bowl does light get around there at night when the lights are on? i'm doing my retro right now and i could use some help lol i have no headlights in my truck. also how and where did you bond the shroud and projctor together? thanks for the help.

To Top
