HID Projector wiring help needed bad!

Discussion in 'Lighting' started by alove0750, Sep 4, 2011.

  1. Sep 4, 2011 at 2:54 PM
    #1
    alove0750

    alove0750 [OP] Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty
    I purchased the D2S kit from retrofit source and they came with zero instructions. I was able to get everything wired up and the retros in the lights, but I only have low beams... this is my first time messing with HID's or any kind of wiring for that case. What am I missing?

    I also purchased their plug n' play kit for my fog lights (Hella FF75) I wired them up and got nothing? I have a good connection to the battery and my grounds are solid, but I don't have any juice? Any kind of help or leads in the right direction would be great. Thanks for reading!

  2. Sep 12, 2011 at 8:20 PM
    #2
    alove0750

    alove0750 [OP] Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty

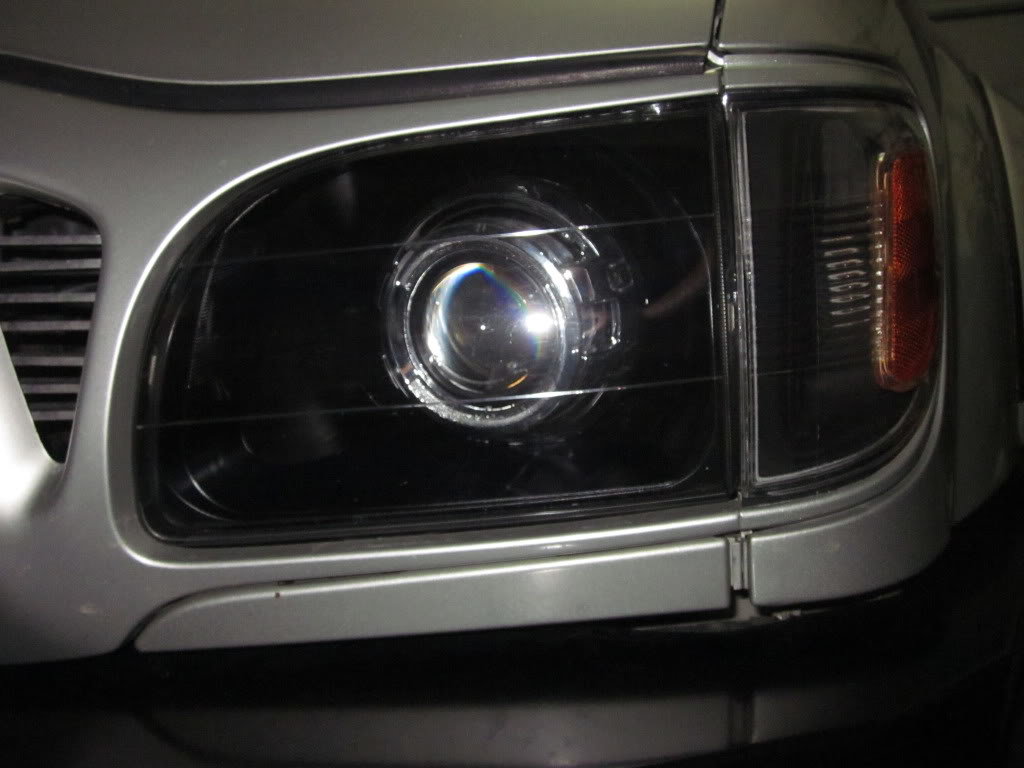

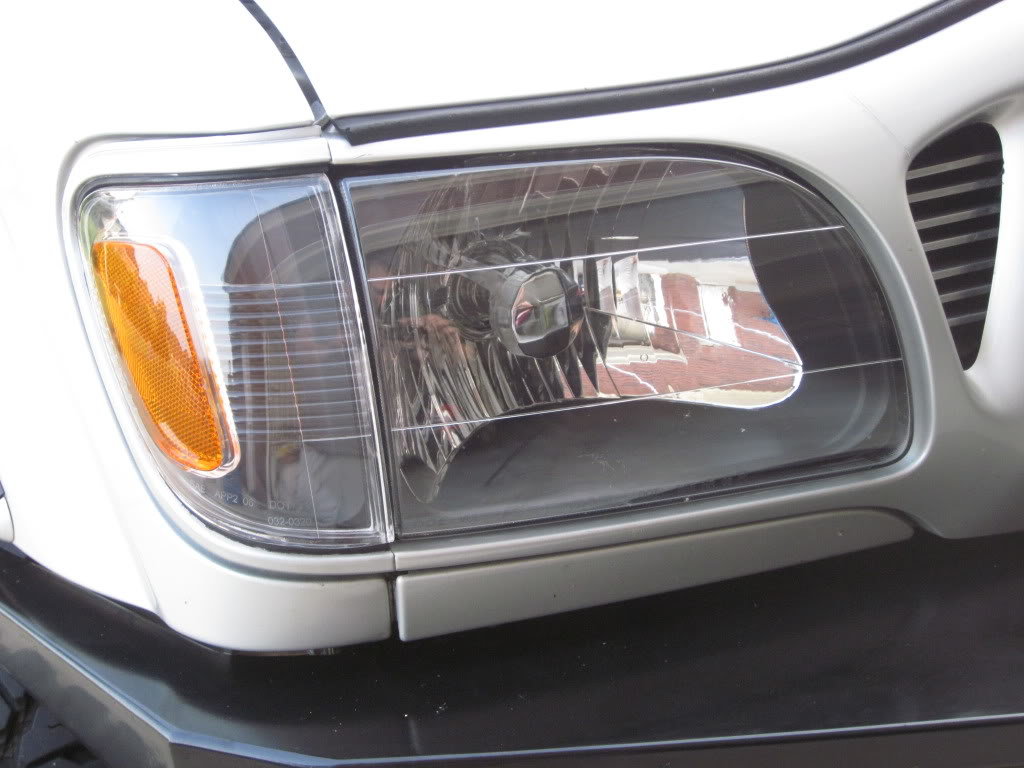

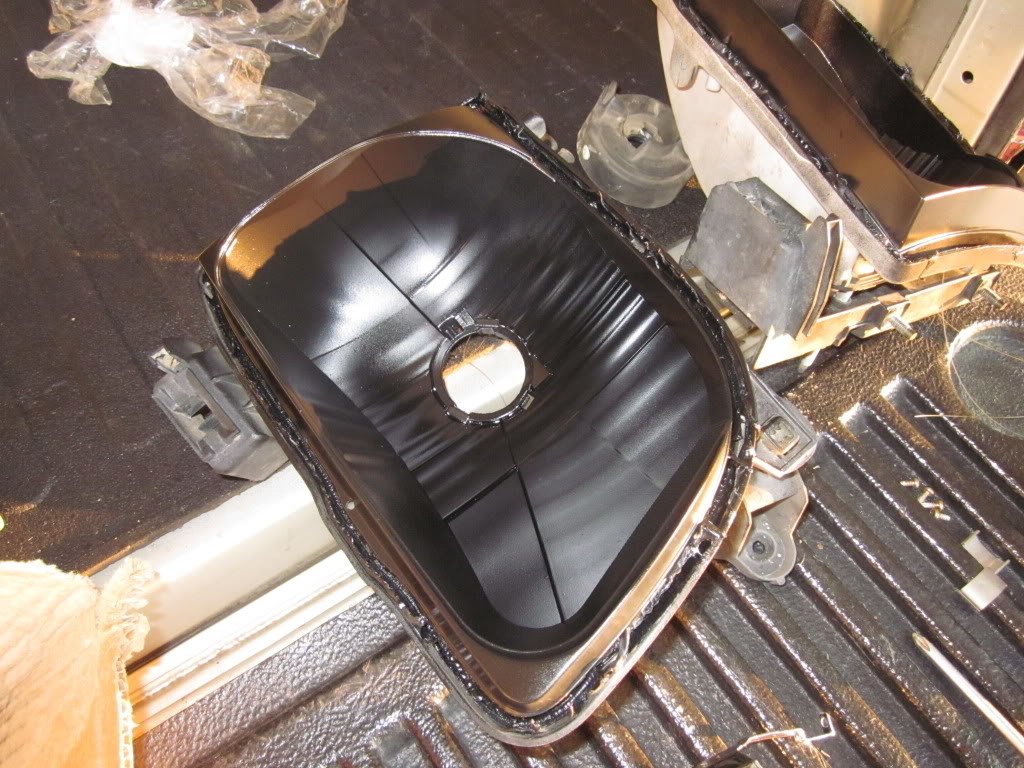

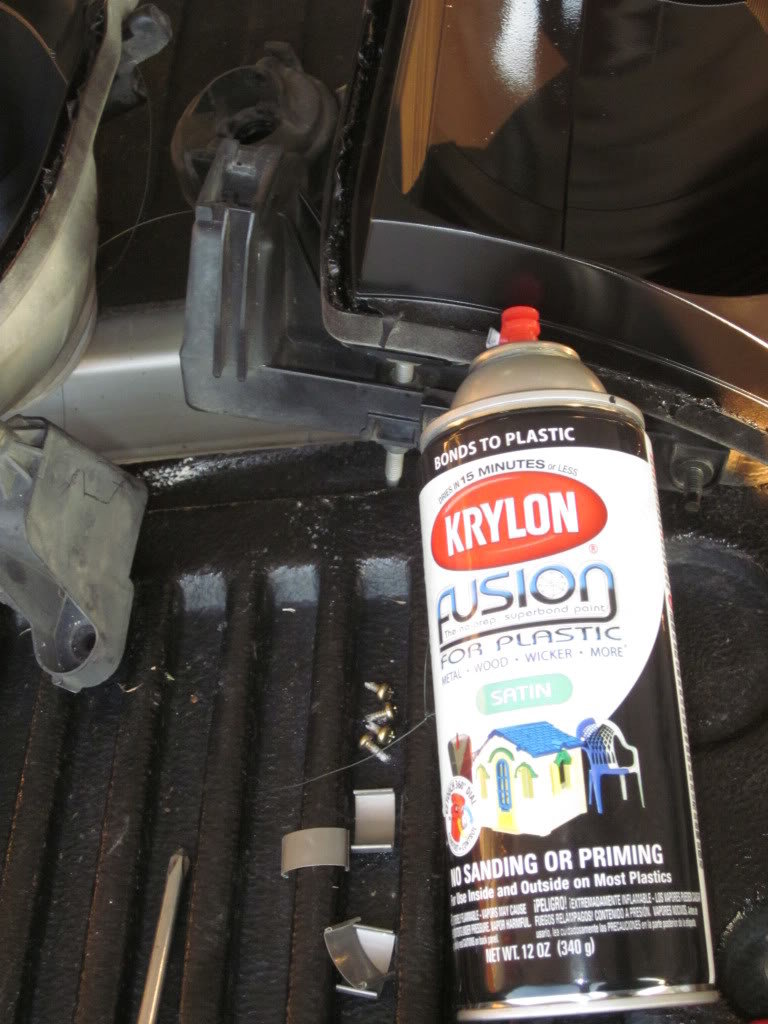

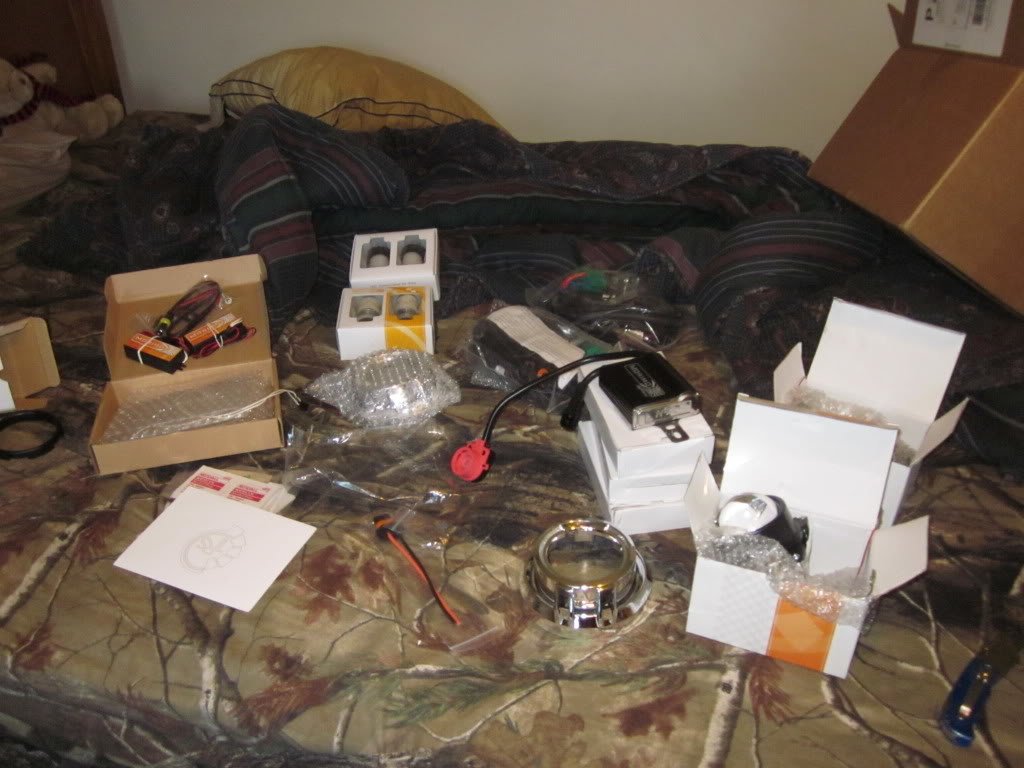

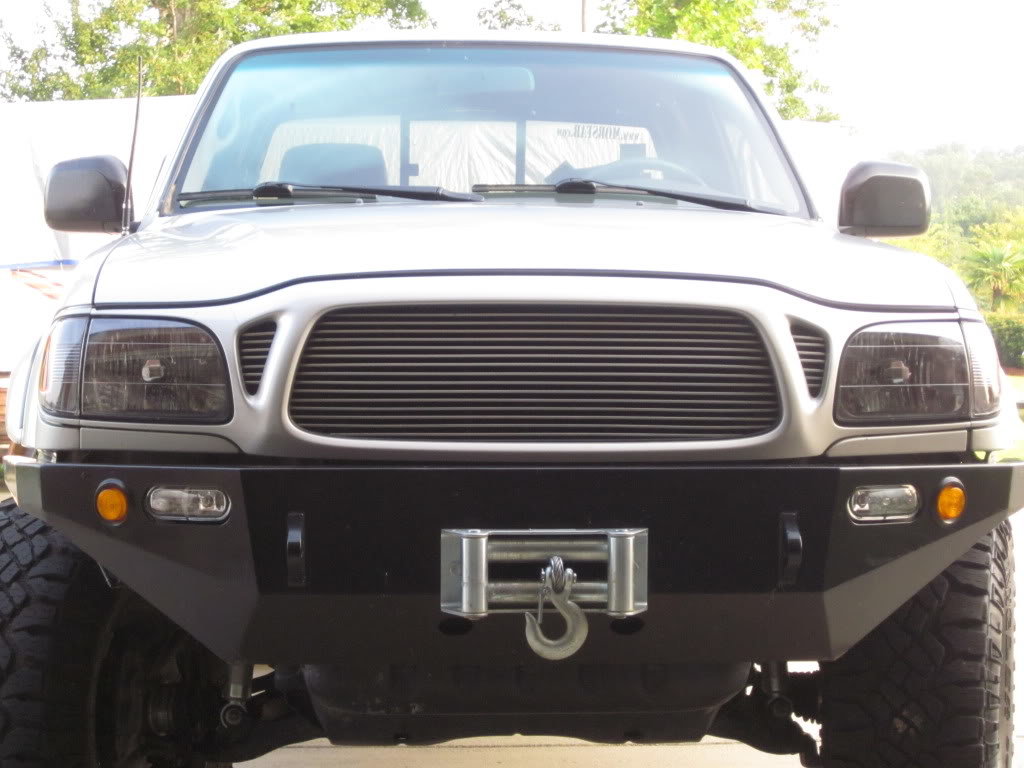

    Just though I would update. I got everything in and the fogs wired up but I still have no high beams. Here are a few pics of before and after

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  3. Sep 13, 2011 at 8:15 AM
    #3
    Yota Toy

    Yota Toy Taco Sauce

    Joined:
    Jul 15, 2011
    Member:
    #59913
    Messages:
    232
    Gender:
    Male
    FX retros, Blazer fog-light retro, JVC KW-NT30HD head unit, Pioneer 6X9's in front doors, Pioneer 6.5's in rear doors, two Pioneer 12" subs in sealed boxes, Sony X-Plod amp, Hidden Hitch trailer hitch, EGR window visors, two PIAA low-tone horns, Westin light bar with two 100-watt KC low profile driving lights.
    If those are bi-xenon projectors they have a solenoid that needs to be connected. One of the solenoid wires goes directly to ground, the other goes to the factory high beam wire (that gets +12V when activated). Polarity doesn't matter as far as the solenoid goes.

  4. Sep 13, 2011 at 8:57 AM
    #4
    saugus

    saugus Well-Known Member

    Joined:
    Sep 3, 2011
    Member:
    #62820
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2006
    How did you fit the projectors? Did you have to cut those holes? How did they hold on to the housing?

  5. Sep 13, 2011 at 12:06 PM
    #5
    alove0750

    alove0750 [OP] Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty
    What do you mean by the solenoid needs to be connected? The wiring harness had a high and low beam plug?


    The projector fits into the factory hole. It's held in by a lock nut. The only cutting I had to do was to the bottom of the shroud. It had a few minor clearance issues.

  6. Sep 13, 2011 at 12:30 PM
    #6
    Yota Toy

    Yota Toy Taco Sauce

    Joined:
    Jul 15, 2011
    Member:
    #59913
    Messages:
    232
    Gender:
    Male
    FX retros, Blazer fog-light retro, JVC KW-NT30HD head unit, Pioneer 6X9's in front doors, Pioneer 6.5's in rear doors, two Pioneer 12" subs in sealed boxes, Sony X-Plod amp, Hidden Hitch trailer hitch, EGR window visors, two PIAA low-tone horns, Westin light bar with two 100-watt KC low profile driving lights.

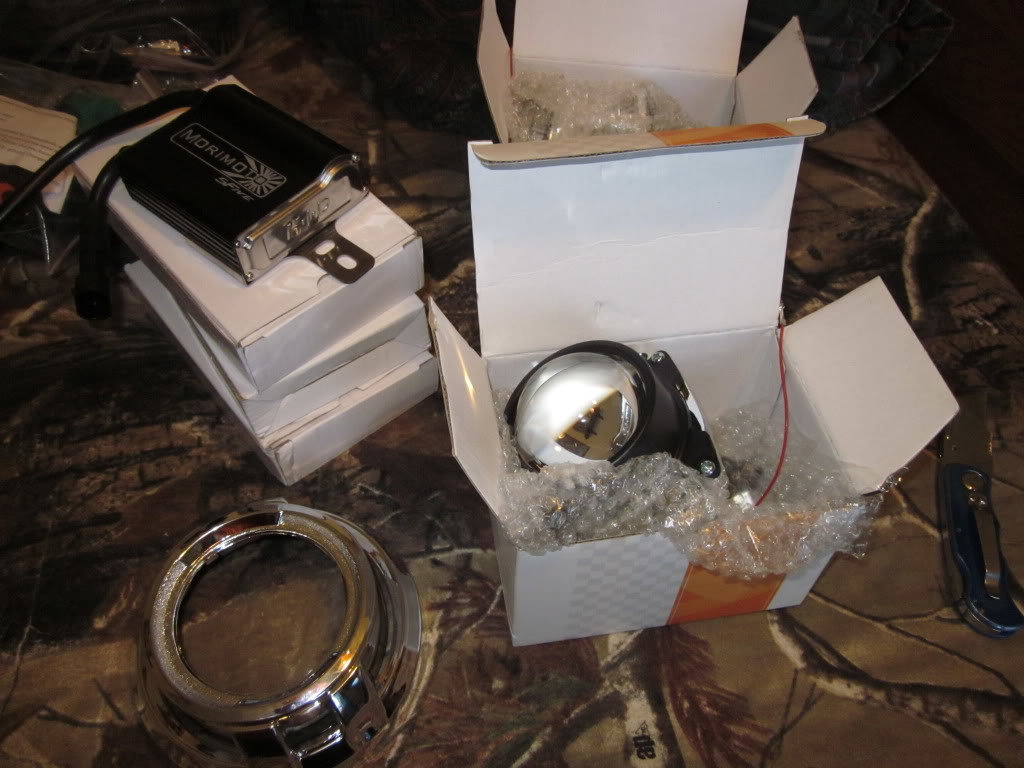

    Are they bi-xenon projectors with a solenoid that moves the shield up and down? It sure looks like I see a solenoid wire in this picture:

    [​IMG]

  7. Sep 13, 2011 at 8:03 PM
    #7
    alove0750

    alove0750 [OP] Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty
    Yeah, they have the solenoid. It had everything already wired up, all I had to do was push the spades into a connector and it plugged into the wiring harness

  8. Sep 13, 2012 at 7:48 AM
    #8
    Rebel Taco Man

    Rebel Taco Man Well-Known Member

    Joined:
    Feb 20, 2012
    Member:
    #73255
    Messages:
    489
    Gender:
    Male
    First Name:
    Tyler
    Kentucky
    Vehicle:
    2002 Manual TRD SR5 4x4
    Bilsteins front and rear, Eibachs up front, 2" Toytec AAL in rear, Diff Drop, Grey Wire Mod, Kobalt tool box, Bulldog Keyless entry, Sportsman max-4 seat covers, modded EL Bazooka basstube, Friends of Coal sticker and license plate, Green Hooks, Green Emblems, Green LED sony radio, Green shiftknob.
    ever get this problem fixed? would love to do projectors, and yours look the best from all ive seen...

  9. Sep 13, 2012 at 8:01 AM
    #9
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,804
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Sounds like you didn't put the spades in the correct side of the connector for the high beams.

  10. Sep 13, 2012 at 8:43 AM
    #10
    ambiguous

    ambiguous Master Retrofitter @RECHELON/AESTHETICS Vendor

    Joined:
    Jul 30, 2012
    Member:
    #83730
    Messages:
    1,155
    Gender:
    Male
    First Name:
    Burt
    Portland, OR to SoCal
    Vehicle:
    2012 DCLB TRD
    Agreed. Also might want to check if you blew any fuses.

  11. Sep 13, 2012 at 9:12 AM
    #11
    alove0750

    alove0750 [OP] Well-Known Member

    Joined:
    Mar 30, 2010
    Member:
    #34294
    Messages:
    1,375
    Gender:
    Male
    First Name:
    Adam
    Concord, nc
    Vehicle:
    01 Tacoma Pre-runner
    Bilstein 5100's and OME 882's in the front AAL and Bilstein 5125's in the rear Converted to 4x4, with 97 front diff with manual hubs 4.56 Yukons front and rear Custom front bumper, sliders and under-belly skid by MOBS Fab in Concord,NC with built in hella's and 8000lb smitty
    You can swap them back and forth, doesn't make a difference.

  12. Sep 13, 2012 at 9:42 AM
    #12
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,804
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Might be how the switch is wired. On my truck the low beams would be on fine. When I turn on my high beams the low beams go out. One set of bulbs is on at a time.

    If this was the case for you the low beams would turn off and the "high beams" would move the actuator in the projector. How did you lights work before the switch(factory setup)? Maybe a dual filament bulb, was there only one filament lit at a time?

    Just a thought
