Hidden Brake Controller Mod

Discussion in '2nd Gen. Tacomas (2005-2015)' started by A_Ninja_Racer, Sep 10, 2011.

  1. Sep 10, 2011 at 2:35 PM
    #1
    A_Ninja_Racer

    A_Ninja_Racer [OP] Well-Known Member

    Joined:
    Oct 7, 2008
    Member:
    #9789
    Messages:
    761
    Tampa, FL
    Vehicle:
    08 PreRunner TRD Debadged
    Hello All,

    I finally decided it was time to start cutting into my truck to start making mine. I Tow a 6'/12' Enclosed Trailer on occasion and have had a few scary moments where I wished I had a Brake controller so I went out and got one a few months ago but never wanted to mount it because I didn't want it out in the open when I wasn't using it and I didn't want holes anywhere in my dash. Finally the other day It dawned on me where I could mount it so that it would be concealed when I wasn't using it. I decided to mount it into the left side Dash pocket to the left of the steering wheel just under the switches. So here wer go with the Pictures:

    [​IMG]

    [​IMG]

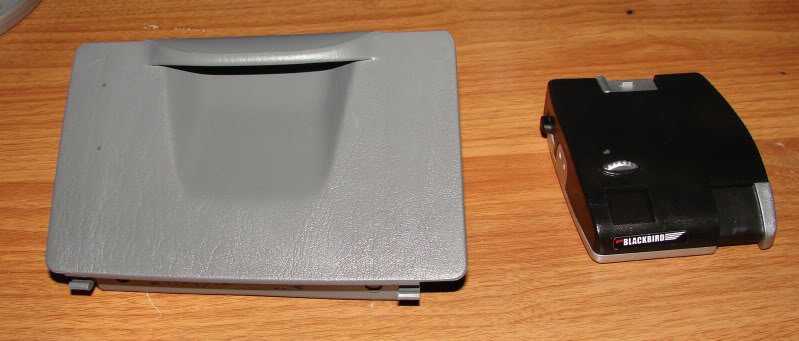

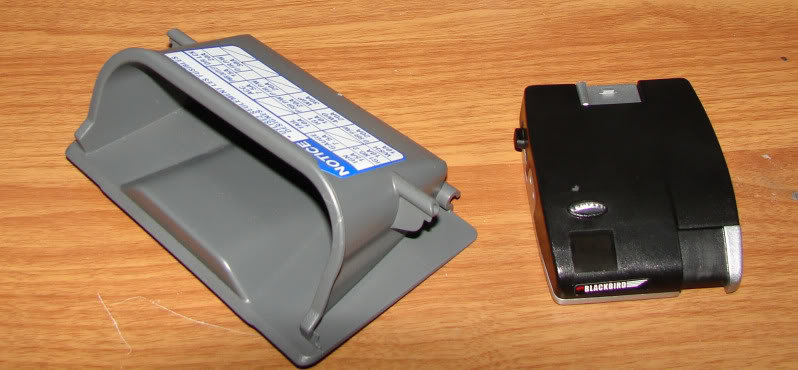

    Before cutting
    [​IMG]

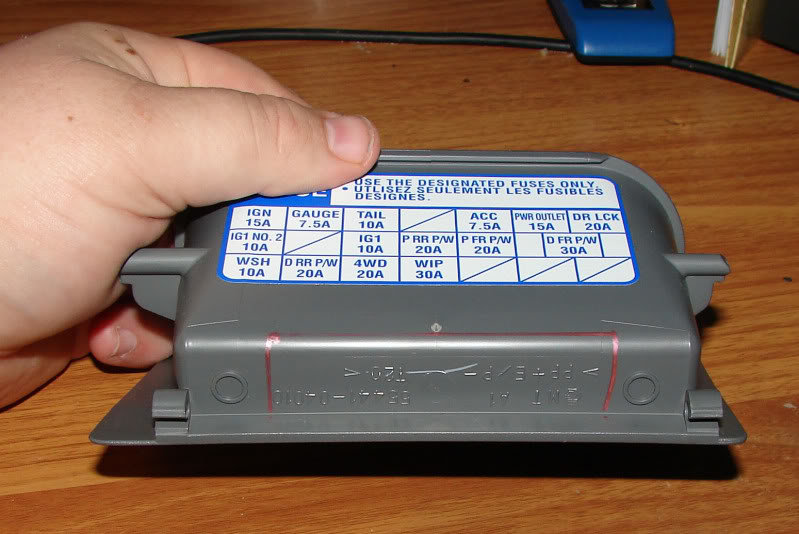

    my planned cutting lines
    [​IMG]

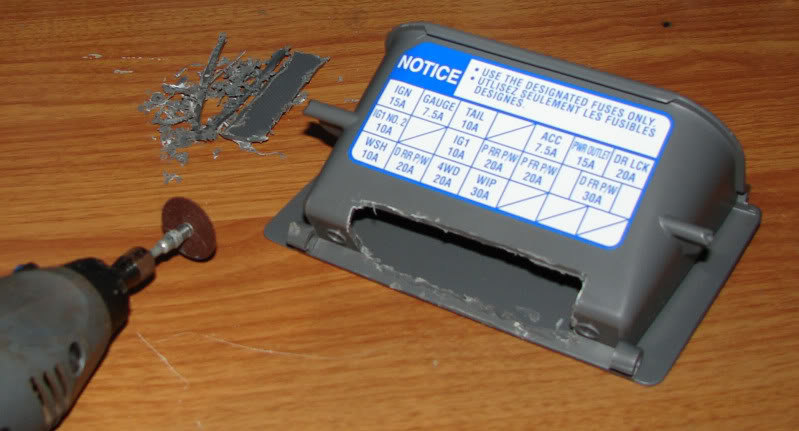

    No going back now
    [​IMG]

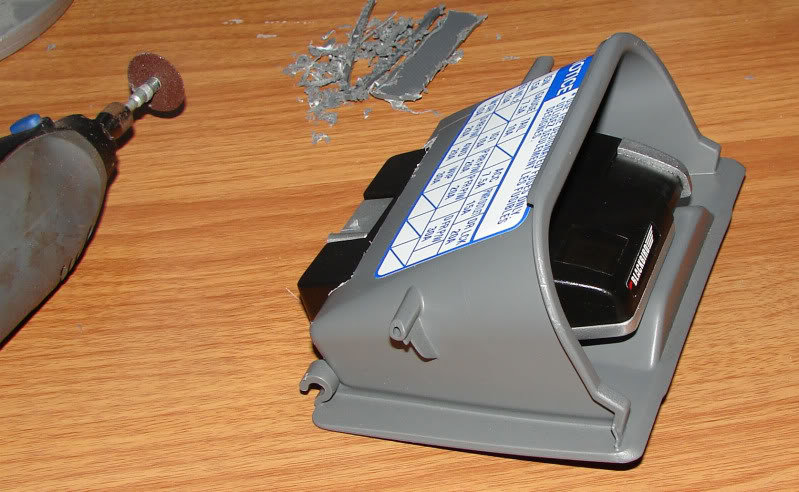

    Some Test fitting
    [​IMG]

    Rear View
    [​IMG]

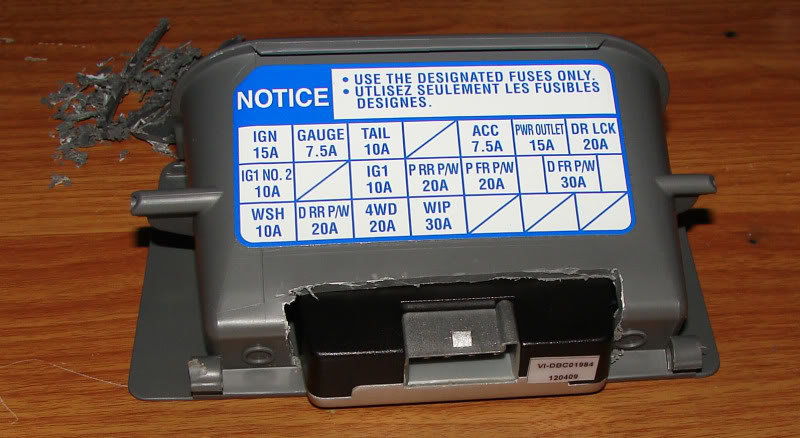

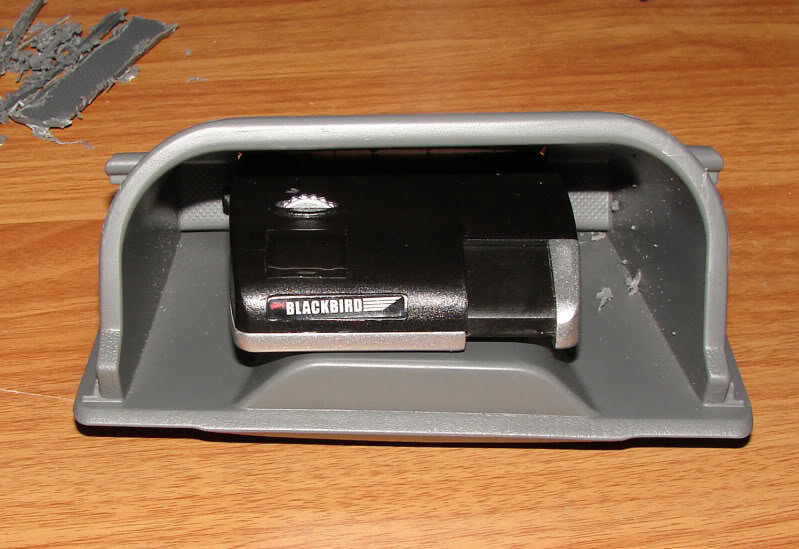

    Front View
    [​IMG]

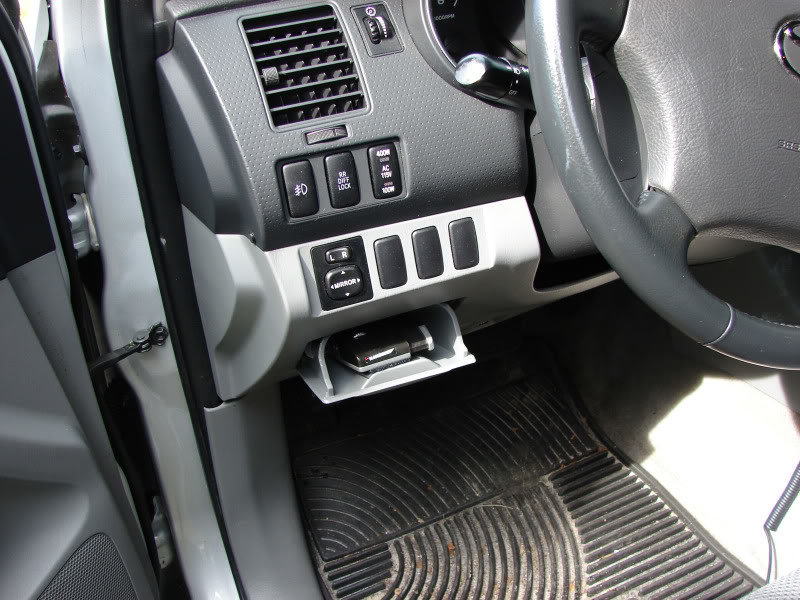

    In the Dash!!
    [​IMG]

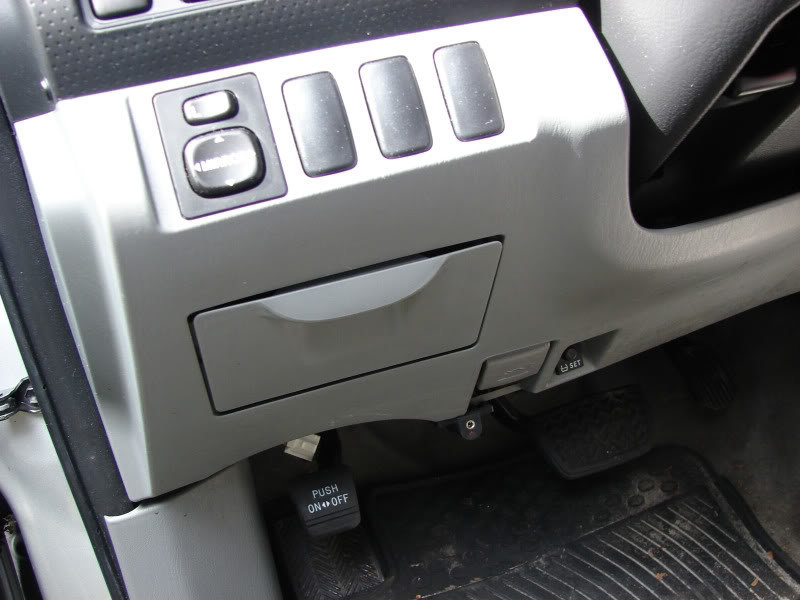

    Hidden in the Dash!!
    [​IMG]

    If you look in the last picture just above the parking brake you will see I haven't plugged the controller in yet because when I originally wired the controller up I extended the wiring Harness like 3 feet so now I have to shorten it up some.

    All and All I'm very please with the outcome!

  2. Sep 10, 2011 at 3:55 PM
    #2
    Tacoma Mike

    Tacoma Mike 42 Year Toyota Master/ASE Master Tech.

    Joined:
    Aug 6, 2011
    Member:
    #61230
    Messages:
    6,139
    Gender:
    Male
    First Name:
    Mike
    Southern Maine
    Vehicle:
    2011 Double Cab V6
    Large Storage Box, 02610 intermittent switch swap, "Hot Wire" Power Outlets, DRL Shut Off, Disable Fob Beep, Disable Seat Belt Buzzers, Parking Light Mod, Battery Tender, 4 Leaf Spring Pack, Rear Headrest Removal, Custom Ultragauge Mount, Factory Tow Package (7 Pin) Rear Diff Mod, Taco Lean Mod
    Very Nice Idea...

  3. Sep 10, 2011 at 5:02 PM
    #3
    Cape Codder

    Cape Codder Native Son

    Joined:
    Feb 20, 2010
    Member:
    #31714
    Messages:
    1,617
    Gender:
    Male
    First Name:
    Jack
    Hangin' Out in the Atlantic
    Vehicle:
    2010 TRD Sport 4x4 Access Cab 4.0L V6 Auto - Silverstreak Mica
    SOS Concepts Sliders waiting for POR-15 Rust Abatement (Spring 2016), OEM Silver Tube Steps 'til then OME 2.5" Suspension w/885 Coils & Dakars / LR UCA's w/SpecRide Bushings / Lifetime Alignment Wheeler's "Super Bump" Bump Stops Front & Rear / OME Carrier Bearing Drop / 2.5° Axle Shims (Eliminated Vibration) Moog Greaseable LCA Cam Bolts / ToyTech Sway Bar Relocate Kit / Stainless Steel Extended Brake Lines (Front & Rear) TIRES - LT275/70R17 (32.2") Firestone Destination A/T's (and Matching Spare) mounted on (5) 17”x8” (4.5” BS) Machined Aluminum Alloy, with Light Gunmetal Accents, Konig SixShooter Wheels with Hofmann Anthracite Adhesive Power Weights / McGard 65002 Chrome SplineDrive Lug Nuts / Cloned Schraeder EZ Sensor 33000 TPMS SNOW TIRES - Bridgestone Blizzak DM-V1 - P255/75-17 (32.1") mounted on Stock TRD Sport Wheels (5.5” BS) w/BORA 1" Wheel Spacers (to = 4.5” BS), Wheels Locks & OEM Lug Nuts Wheel Master 36" Stainless Steel Mesh Spare Tire Inflator/Checker attached to Rear Bumper / Spare Tire Lock TRD Skid Plate / Husky Mud Flaps / Redline Tuning Hood Struts / UltraGauge / Frame Hole Plugs / OEM Chrome Exhaust Tip Salex SLX102 - '05-'13 Tacoma GloveBox & Console Organizers Combo Set / GRID-IT (Console Cover Organizer) Color Matched SATOSHI Grill w/ Individual Letters Toyota Emblem (from ‘86 Toyota Land Cruiser) Hella Fogs on Elusive Elements Light Bar mounted behind Grill / Relocated Horns & Outside Temperature Sensor SilverStar zXe Headlights / SilverStar Fogs / Upper & Lower Color Matched Eyelids / LED's @ Dome, Maps, Lic Plate & 3rd Brake / 866 Foglight Lamps for Back-Up Lights WeatherTech Headlight & Foglight Protection / AutoBahnd RoadBlock (3M) Paint Protection System on Front End & Tailgate Avid Hitch Step Color Match Powdercoated / Avid LightBar Color Match Powdercoated / DIY Front Plate Holder mounted on AVID Light Bar (NO Bumper Holes) Emblems DeBadged / CBoy808's Silver OME EMU, Medium Gray Mall Rated, TRD Skid & Matte Black US Flag Decals SockMonkey Medium Gray Shadow Only Bedside, Door, Hood Scoop & Tailgate Decals DeBadged Leer 100LX Cap w/ Adventure Pkg including Thule 48” & 60” AeroBar Locking Removable Racks, Removable Front Window & Rear Door Remote Lock Charcoal/Blk Wet Okoles (front & rear) w/Front Seat Back Waterproof Zippered Pockets, Front Pistol Pockets & Seat Heaters / Drop Stop Seat Wedge Fillers 6 CD Changer w/SubWoofer (TRD Sport OEM) / BluLogic Hands Free (Blue Tooth) / Lutron Maestro Pico Remote Control for Driveway Floods Pro-Fit & Pro-Clip Device Holders for Cell Phone & GPS / Beltronics RX 65 Blue Detector / Garmin 885T GPS 30% Tint on Driver/Passenger Windows / WeatherTech Dark Front Window Deflectors / AutoMate AM-7 Alarm w/Remote Start WeatherTech FloorLiners (Front & Rear) / WeatherTech All Weather Mats (Over Front Liners) TRD "Offroad" Front Recovery Hook (Color Matched) / 2" x 30' & 3" x 30' Recovery Straps ELITE OffRoad 2" Receiver Hitch Shackle / Daystar Black Shackle Isolator / LifeLong Locks Class 5 Locking Hitch Pin Viair 00088 88P Portable Air Compressor / Rockford 12,000mah, 200/400 Amp, Portable Power Source & Mini Jump Starter Pop&Lock PL5305 Manual Tailgate Lock w/Color Matched Handle / Driver's Door Keytechniques Keyhole Cover OEM Bed Mat / 4 Extra Military Issue Bed "D" Rings Attached with Bed Bolts / 4 Extra Bed Rail Tiedowns & 2 Mini Tiedowns H3R Performance Halguard Halotron® 1 (Clean Agent) - HG250C 2.5lb Chrome Fire Extinguisher and Extreme Duty Quick Release Bracket (Mounted in Bed) H3R Performance Halguard Halotron® 1 (Clean Agent) - HG100C 1.4lb Chrome Fire Extinguisher (In Cab Back Door Pocket) H3R Performance MX500R - 5lb Dry Chemical Fire Extinguisher w/ Vehicle Mount (On Cab Back Floor, Not Yet Mounted in Bed) ResQMe GB0-RQMTWIN-O Orange Keychain Version of the Original LifeHammer (Hanging Within Reach in Cab) FogLight Anytime / Differential Breather / A/C Condensate Drain / Tailgate Hoseclamp Anti-Theft Mods Toyota Extra Care Platinum Vehicle Service Agreement (VSA) – 8 Year / 125,000 Miles TSB's: Transmission TSB / Blower Motor TSB / Steering Intermediate Shaft Bushing TSB 90L Accelerator Pedal D0L Recall / Driver & Passenger Seat Belts Recall / Inspect Wheels & Tires "BOB" Recall The “TW EMPTY UR WALLET MOD” and a Pile of Stuff Waitin' for Install
    Nice Idea, Nice Job........:thumbsup:
    Thanks for the Post (& Pics)


    CC

  4. Sep 10, 2011 at 9:12 PM
    #4
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,384
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Nice use of the coin drawer! Are brake controllers expensive? Is that why you didn't want it visible?

  5. Sep 10, 2011 at 9:16 PM
    #5
    MapleMoose

    MapleMoose Drunk Canadian

    Joined:
    Feb 15, 2011
    Member:
    #51211
    Messages:
    8,589
    Gender:
    Male
    First Name:
    Ian
    West Kootenays
    Vehicle:
    1996 Tacoma SR5
    3" Eibach Coils, 3" AP Springs, AP 6" Shackles Toytec Diff drop, BAMF Sliders, Deck plate mod,Volt meter, Highbeam mod, PIAA fogs, 18" Magnaflow, LED dash swap, Color matched Satoshi Grille, Custom Rear Plate Bumper
    Although this is for a 2nd, this is an awesome idea! Great job.

    They are usually mounted in near your knee, so this is ideal for keeping things neat.
    Break controllers are about $100

  6. Sep 10, 2011 at 9:18 PM
    #6
    A_Ninja_Racer

    A_Ninja_Racer [OP] Well-Known Member

    Joined:
    Oct 7, 2008
    Member:
    #9789
    Messages:
    761
    Tampa, FL
    Vehicle:
    08 PreRunner TRD Debadged
    If I recall I think I paid a little over $70.00 but really good ones can run well over $100.00. I more so wanted it hidden because I like the dash to look clean and not have anything screwed into it.

  7. Sep 10, 2011 at 9:27 PM
    #7
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,384
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Cool. You did a great job. Very functional, and super clean.

  8. Sep 11, 2011 at 7:16 AM
    #8
    charles08tacoma

    charles08tacoma Well-Known Member

    Joined:
    Feb 18, 2011
    Member:
    #51401
    Messages:
    368
    Gender:
    Male
    Santa Cruz, CA
    Vehicle:
    08 Prerunner SR-5 Access Cab
    White Snug Top shell
    Awesome job & great pics!!

  9. Sep 11, 2011 at 11:39 AM
    #9
    A_Ninja_Racer

    A_Ninja_Racer [OP] Well-Known Member

    Joined:
    Oct 7, 2008
    Member:
    #9789
    Messages:
    761
    Tampa, FL
    Vehicle:
    08 PreRunner TRD Debadged
    Thanks. Now I just can't wait till I get the harness shortened and then have a reason to use the trailer.

  10. Aug 13, 2012 at 8:46 AM
    #10
    Got2ryde

    Got2ryde Well-Known Member

    Joined:
    May 1, 2012
    Member:
    #77982
    Messages:
    580
    Gender:
    Male
    First Name:
    Ryder
    Maryland
    Vehicle:
    AC OR 6spd silverstreak
    Off Road tow pac. GTCovers wetskinz seat covers, Direct wired Escort 9500xi, Leer 180 w/ARB awning, bed mat, extra d-rings, rear dif breather relocated, Weathertec mats, Elite front with Warn M8000-s and Rigid D2's, BAMF sliders, ABS killswitch, Kicker Hideaway sub, UltraGauge, ATO rear with flush mount duallys, FJ Trail Team black rims w/Duratracs.
    I was struggling as to where to put my controller until I saw this thread. Great idea. I think I will do as you did but I'm going to buy an extra coin tray($43) and so I will have it mounted up and can just swap trays(simply plug/unplug) when I plan on towing, which isn't very often. I'm not a fan of bulky add ons in my face or to bang my knee on. This is perfect! Kudos!

  11. Dec 26, 2012 at 2:33 PM
    #11
    Farm Taco

    Farm Taco New Member

    Joined:
    Nov 27, 2012
    Member:
    #91978
    Messages:
    1
    Gender:
    Male
    First Name:
    joe
    iowa
    Thanks Ninja - completed this project about an hour ago.

  12. Dec 26, 2012 at 3:45 PM
    #12
    A_Ninja_Racer

    A_Ninja_Racer [OP] Well-Known Member

    Joined:
    Oct 7, 2008
    Member:
    #9789
    Messages:
    761
    Tampa, FL
    Vehicle:
    08 PreRunner TRD Debadged
    I'm glad to see people are liking this mod and starting to do it themselve. I'd like to see pics of your work and to know what controller you are using.

  13. Dec 26, 2012 at 5:08 PM
    #13
    dalesrn

    dalesrn Tacoma TSS

    Joined:
    Dec 10, 2007
    Member:
    #3784
    Messages:
    469
    Gender:
    Male
    First Name:
    Dale
    Southeast Louisiana
    Vehicle:
    2008 Tacoma PreRunner DC with TSS Package
    Borla exhaust system, Sirius Satellite Radio, Chrome package, Trailer Hitch, Clazzio Leather seat covers, TSS badging, Anytime on fog lights mod, Daytime driving lights mod, Dual backseat DVD players w/monitors, 3rd Brake Light "TSS" mod, Bed pocket lights mod, Seat belt chime mod, Bed storage compartment auxillary outlet mod, Shorty antenna, Armor Lid Tonneau Cover, Line of Fire tailgate light
    Great install! What is that other black box below your hood release?

  14. Dec 26, 2012 at 5:21 PM
    #14
    A_Ninja_Racer

    A_Ninja_Racer [OP] Well-Known Member

    Joined:
    Oct 7, 2008
    Member:
    #9789
    Messages:
    761
    Tampa, FL
    Vehicle:
    08 PreRunner TRD Debadged
    That's For My Alarm system. I plug this device into it and pres a button and then remove it and it puts it into Valet mode.
