High beam lighting problem

Discussion in '3rd Gen. Tacomas (2016-2023)' started by dennismussey, Nov 1, 2020.

  1. Nov 1, 2020 at 6:14 AM
    #1
    dennismussey

    #1
    dennismussey [OP] New Member

    Joined:
    Nov 1, 2020
    Member:
    #345484
    Messages:
    4
    Gender:
    Male
    First Name:
    Dennis
    Vehicle:
    2017 tacoma TRD pro
    2” lift
    Hi everyone. Looking for a wiring diagram and schematic for my 2017 tacoma trd pro.
    Right high beam doesn’t work. Fuses good, element good, relay good. No voltage at lamp socket. Other lamps great.
    Thanks

    dennismussey, Nov 1, 2020
    #1
  2. Nov 1, 2020 at 6:23 AM
    #2
    ktbell444

    #2
    ktbell444 One who throws exceptions

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    2,969
    Gender:
    Male
    ᚺᛖᛚᚺᛖᛁᛗ

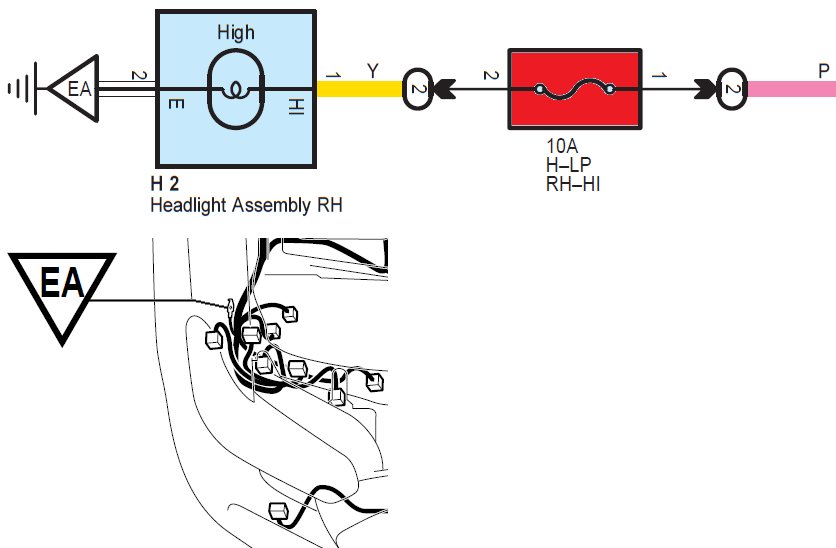

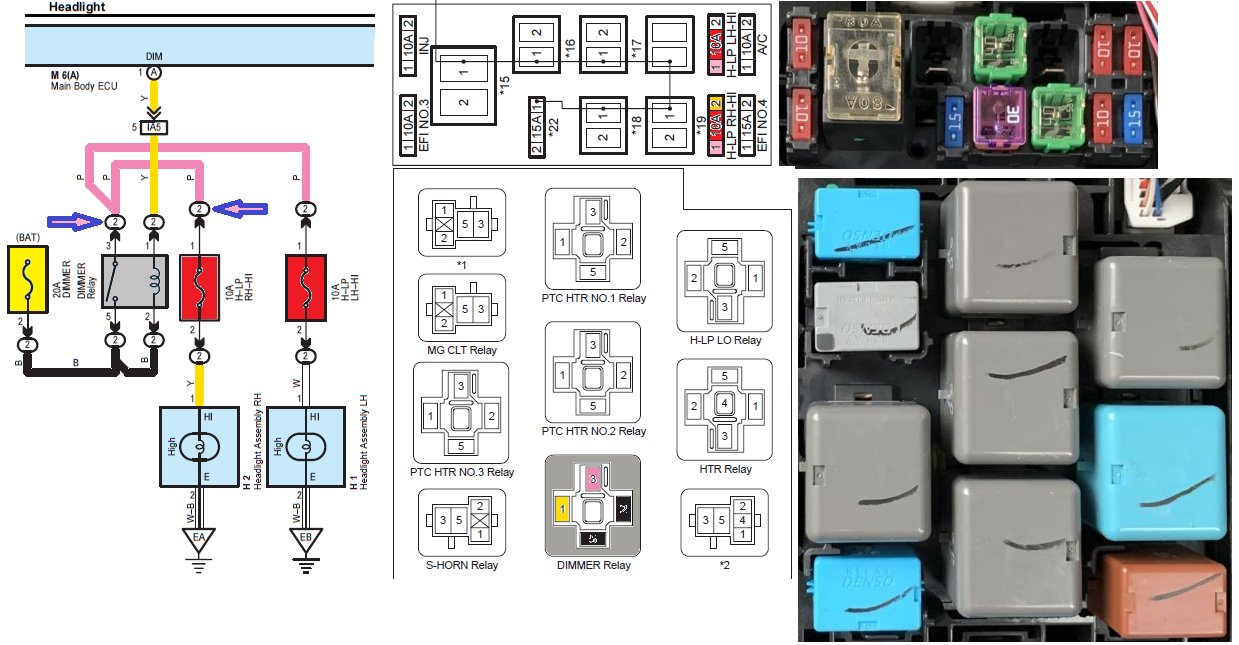

    This otta get you going


    Attached Files:

    ktbell444, Nov 1, 2020
    #2
  3. Nov 1, 2020 at 6:24 AM
    #3
    AthensTac

    #3
    AthensTac Well-Known Member

    Joined:
    May 3, 2018
    Member:
    #252425
    Messages:
    150
    Gender:
    Female
    First Name:
    CB
    Vehicle:
    Quicksand 4-door TRD sport
    We just had to do repairs on the wiring to my daytime running light and low beam on one side due to rodents chewing off the wires at the plug ends of the wiring harness....

    AthensTac, Nov 1, 2020
    #3
  4. Nov 1, 2020 at 6:55 AM
    #4
    Garyji

    #4
    Garyji Well-Known Member

    Joined:
    Oct 31, 2015
    Member:
    #168245
    Messages:
    2,149
    Gender:
    Male
    First Name:
    Gary
    Western North Carolina
    Vehicle:
    2016 BR SR5 DCSB V6 4WD. TRD Pro 17's, BFG KO2's
    Have you screwed with them (electrical system) in ANY way??

    G.

    Garyji, Nov 1, 2020
    #4
    Chew likes this.
  5. Nov 1, 2020 at 7:01 AM
    #5
    JEEPNIK

    #5
    JEEPNIK Well-Known Member

    Joined:
    May 5, 2020
    Member:
    #326895
    Messages:
    1,716
    Gender:
    Male
    Vehicle:
    2020 Voodoo Blue TRD Sport
    Check the ground.

    JEEPNIK, Nov 1, 2020
    #5
  6. Nov 1, 2020 at 7:02 AM
    #6
    caribe makaira

    #6
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Remove Negative Battery Terminal.
    Remove fuse for RH High Beam.
    Remove DIMMER relay.
    Test continuity from relay socket 3 to RH High Beam fuse pin 1.

    caribe makaira, Nov 1, 2020
    #6
    G8R_Taco likes this.
  7. Nov 1, 2020 at 7:09 AM
    #7
    dennismussey

    #7
    dennismussey [OP] New Member

    Joined:
    Nov 1, 2020
    Member:
    #345484
    Messages:
    4
    Gender:
    Male
    First Name:
    Dennis
    Vehicle:
    2017 tacoma TRD pro
    2” lift
    That you, that will get me started. Electrician by trade but auto wiring messes me up

    dennismussey, Nov 1, 2020
    #7
  8. Nov 1, 2020 at 7:14 AM
    #8
    caribe makaira

    #8
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Many other circuits bundle there to chassis ground...

    caribe makaira, Nov 1, 2020
    #8
