High beam / low beam swapped??

Discussion in '1st Gen. Tacomas (1995-2004)' started by AJ1001, Jan 21, 2021.

  1. Jan 21, 2021 at 11:13 AM
    #1
    AJ1001

    AJ1001 [OP] Well-Known Member

    Joined:
    Jan 7, 2021
    Member:
    #352058
    Messages:
    50
    Gender:
    Male
    First Name:
    Joshua
    Texas-Oklahoma
    Vehicle:
    2001 White Tacoma V6 SR5 4WD TRD
    33" tires
    My headlights are weird I was wondering if anyone has had this happen to them or can help me figure out what I should do.

    So when I turn on my headlights the driver's side headlight is the normal brightness and the passenger's side headlight is on high beam. When I turn high beam the driver's side headlight is on high beam and the passenger's side headlight is the normal brightness/low beam.

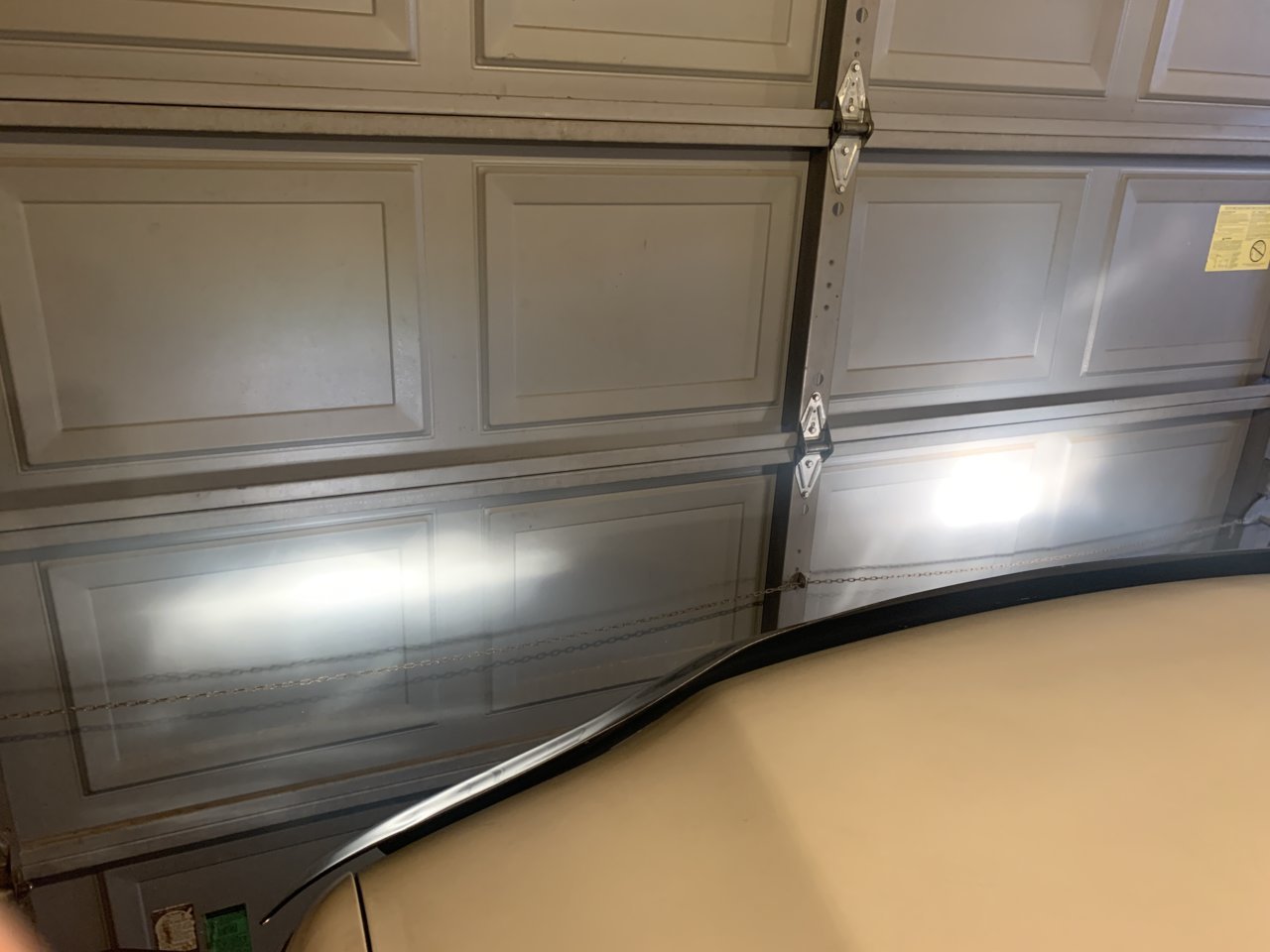

    Low beam
    Low beam.jpg

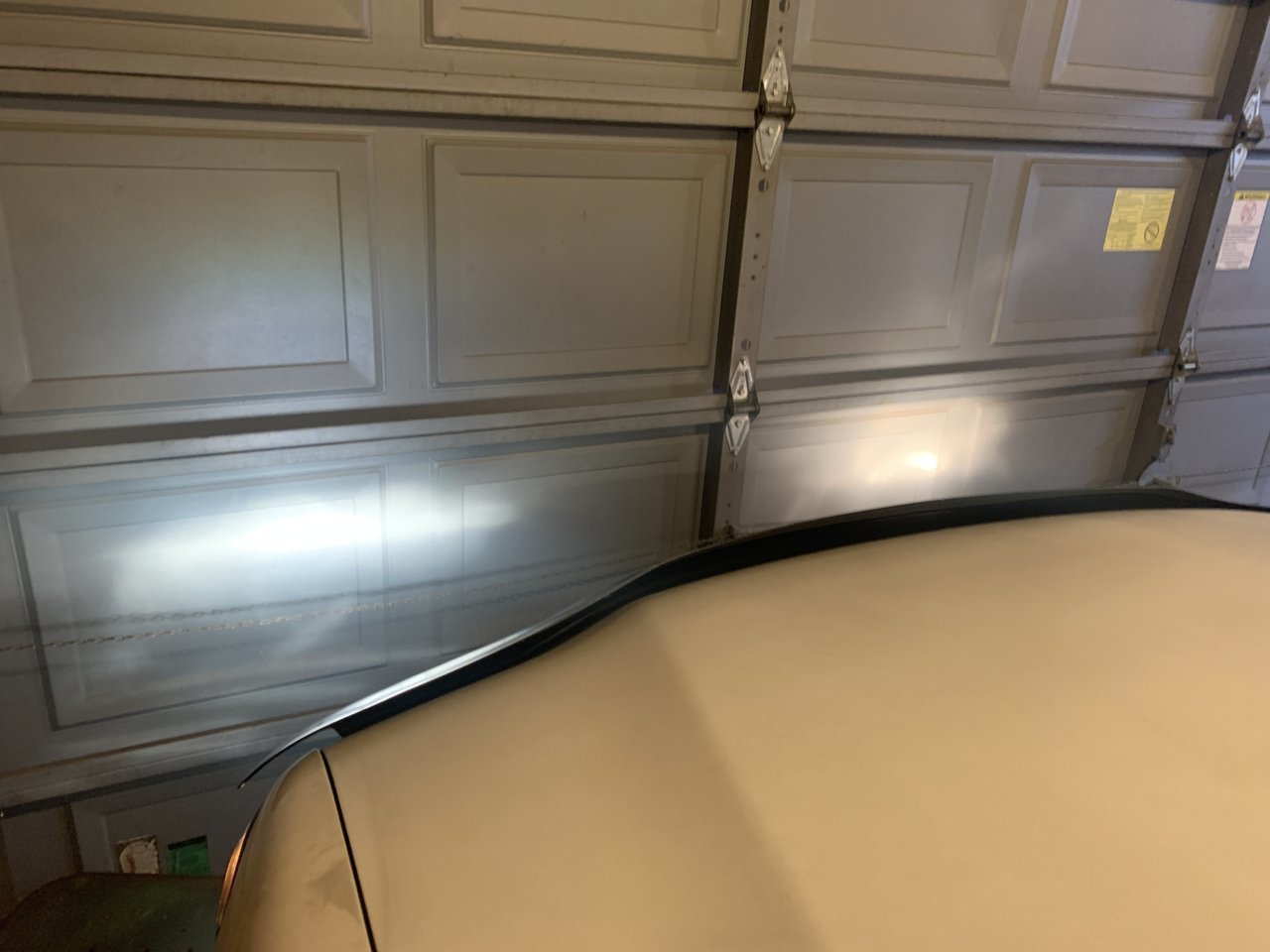

    high beam
    High beam.jpg

    P.S.all attached photos we took before I resurfaced my headlights

  2. Jan 21, 2021 at 11:31 AM
    #2
    slodoug

    slodoug Well-Known Member

    Joined:
    Jul 21, 2020
    Member:
    #335235
    Messages:
    899
    Gender:
    Male
    did you move the bulbs at all? maybe one is upside down.

  3. Jan 21, 2021 at 12:19 PM
    #3
    tacojim02

    tacojim02 Well-Known Member

    Joined:
    Sep 20, 2019
    Member:
    #305825
    Messages:
    183
    Gender:
    Male
    Puxico, Missouri
    Vehicle:
    02 dbl cab trd
    2in suspension lift
    you can do that? when I changed mine it looked the same no matter how you turned it

    AJ1001[OP] likes this.
  4. Jan 21, 2021 at 12:24 PM
    #4
    CraigF

    CraigF Well-Known Member

    Joined:
    Jun 21, 2020
    Member:
    #332105
    Messages:
    1,774
    Gender:
    Male
    First Name:
    Craig
    Oak Grove, OR
    Vehicle:
    06 AC PR OR 4.0L
    none yet
    what electrical work have you done to your truck lately? I'd start there and see if something got swapped
    damage relay would be my second check point

    AJ1001[OP] likes this.
  5. Jan 21, 2021 at 12:48 PM
    #5
    slodoug

    slodoug Well-Known Member

    Joined:
    Jul 21, 2020
    Member:
    #335235
    Messages:
    899
    Gender:
    Male
    should be 3 prongs on the back, recheck those connections and re-seat them. move the wire with your fingers in each mode to see if they revert due to any short.

  6. Jan 21, 2021 at 1:58 PM
    #6
    AJ1001

    AJ1001 [OP] Well-Known Member

    Joined:
    Jan 7, 2021
    Member:
    #352058
    Messages:
    50
    Gender:
    Male
    First Name:
    Joshua
    Texas-Oklahoma
    Vehicle:
    2001 White Tacoma V6 SR5 4WD TRD
    33" tires
    I honestly don't know because I just bought this truck less than a month a ago

  7. Jan 21, 2021 at 1:59 PM
    #7
    AJ1001

    AJ1001 [OP] Well-Known Member

    Joined:
    Jan 7, 2021
    Member:
    #352058
    Messages:
    50
    Gender:
    Male
    First Name:
    Joshua
    Texas-Oklahoma
    Vehicle:
    2001 White Tacoma V6 SR5 4WD TRD
    33" tires
    I have recheck the connections and re-seat the light bulbs and that hasn't helped

  8. Jan 21, 2021 at 2:00 PM
    #8
    AJ1001

    AJ1001 [OP] Well-Known Member

    Joined:
    Jan 7, 2021
    Member:
    #352058
    Messages:
    50
    Gender:
    Male
    First Name:
    Joshua
    Texas-Oklahoma
    Vehicle:
    2001 White Tacoma V6 SR5 4WD TRD
    33" tires
    there is only one way for the bulbs to go in to be seated

  9. Jan 21, 2021 at 2:43 PM
    #9
    02hilux

    02hilux What do you mean there’s no road, I’m here

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    6,127
    Planet: EARTH
    Get rid of them cheap led/hid you got there and buy halogen bulb. That's probably your issue.

  10. Jan 22, 2021 at 8:23 AM
    #10
    AJ1001

    AJ1001 [OP] Well-Known Member

    Joined:
    Jan 7, 2021
    Member:
    #352058
    Messages:
    50
    Gender:
    Male
    First Name:
    Joshua
    Texas-Oklahoma
    Vehicle:
    2001 White Tacoma V6 SR5 4WD TRD
    33" tires
    Do you know of a good place I can find some or what you would recommend?

  11. Jan 22, 2021 at 8:32 AM
    #11
    tacojim02

    tacojim02 Well-Known Member

    Joined:
    Sep 20, 2019
    Member:
    #305825
    Messages:
    183
    Gender:
    Male
    Puxico, Missouri
    Vehicle:
    02 dbl cab trd
    2in suspension lift
    orielly's, napa, auto zone. they all have upgrade original fit bulbs

  12. Jan 22, 2021 at 8:39 AM
    #12
    02hilux

    02hilux What do you mean there’s no road, I’m here

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    6,127
    Planet: EARTH
  13. Jan 22, 2021 at 9:46 AM
    #13
    AJ1001

    AJ1001 [OP] Well-Known Member

    Joined:
    Jan 7, 2021
    Member:
    #352058
    Messages:
    50
    Gender:
    Male
    First Name:
    Joshua
    Texas-Oklahoma
    Vehicle:
    2001 White Tacoma V6 SR5 4WD TRD
    33" tires
  14. Jan 22, 2021 at 9:48 AM
    #14
    AJ1001

    AJ1001 [OP] Well-Known Member

    Joined:
    Jan 7, 2021
    Member:
    #352058
    Messages:
    50
    Gender:
    Male
    First Name:
    Joshua
    Texas-Oklahoma
    Vehicle:
    2001 White Tacoma V6 SR5 4WD TRD
    33" tires
    The bulbs are 2 months old and are fine. I think the wiring is messed up but I don't know how to even test to see if the wiring is a problem. Does any know what each of the 3 wires that connect to the bulb does (which one controls the High beam)?

  15. Jan 22, 2021 at 10:22 AM
    #15
    CraigF

    CraigF Well-Known Member

    Joined:
    Jun 21, 2020
    Member:
    #332105
    Messages:
    1,774
    Gender:
    Male
    First Name:
    Craig
    Oak Grove, OR
    Vehicle:
    06 AC PR OR 4.0L
    none yet
    google is your friend
    best image I could quick find [​IMG]
    you have a 1st Gen so Grd is actual +12V and the low and high are connected to ground through relays (known as Ground Switching)
    If the headlights were working correctly and now are not with no other work beening don then Relays would be my first guess
    If you can not confirm that the headlights were working correctly before the LEDs then I highly suspect that one of the LEDs is built incorrectly (other that the focal point problem they all have)

    AJ1001[OP] likes this.
  16. Jan 22, 2021 at 11:15 AM
    #16
    AJ1001

    AJ1001 [OP] Well-Known Member

    Joined:
    Jan 7, 2021
    Member:
    #352058
    Messages:
    50
    Gender:
    Male
    First Name:
    Joshua
    Texas-Oklahoma
    Vehicle:
    2001 White Tacoma V6 SR5 4WD TRD
    33" tires
    Thank you for that, the image is not loading. Also, I don't have LED. I know very little about wiring.

  17. Jan 22, 2021 at 11:30 AM
    #17
    CraigF

    CraigF Well-Known Member

    Joined:
    Jun 21, 2020
    Member:
    #332105
    Messages:
    1,774
    Gender:
    Male
    First Name:
    Craig
    Oak Grove, OR
    Vehicle:
    06 AC PR OR 4.0L
    none yet
    google H4 connector pinout
    sorry I thought I read that you put LED headlamp bulbs in (so many threads on that topic it blurs together)

    you need a multi-meter with continuity and or resistance mode(s)
    on the bulb the Ground pin to ether Low or High should each have continuity and a resistance value of a few hundred Ohms
    on the harness side when in Low mode there should be continuity but very little resistance (less than 5 Ohms) between the connector contact and the negative terminal on the battery and no continuity from the High contact to the neg terminal
    for high beams the invers would be the proper condition

    AJ1001[OP] likes this.
