hirod build

Discussion in '2nd Gen. Builds (2005-2015)' started by hirod, Aug 8, 2013.

  1. Aug 14, 2013 at 1:15 AM
    #21
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    Stuff on order. Painted grille surround. Xrunner transmission cross member braces. Shaft collars for rear sway bar. Tail lamp wiring harnesses. 700 lumen jumper reverse lights.

    Light racing control arms should arrive this week.

    Planning on trying to use switchback LEDs to compliment my reverse lights. Plan to use a donor brake light bulb holder modified to fit in the rear turn signal position. T-tap off the reverse light. Hopefully four rear facing lights when reversing and still have blinkers.

  2. Aug 14, 2013 at 1:18 AM
    #22
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    [​IMG]

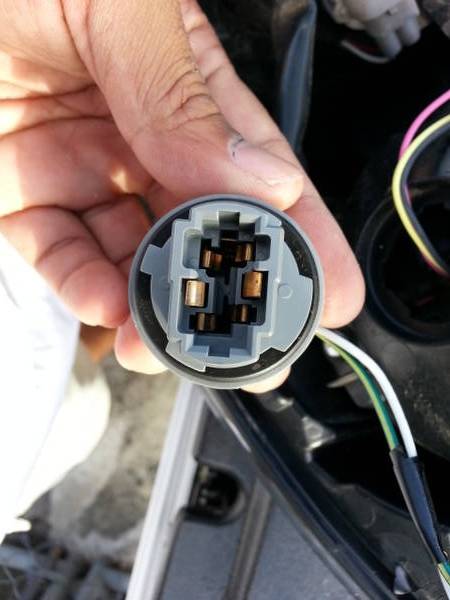

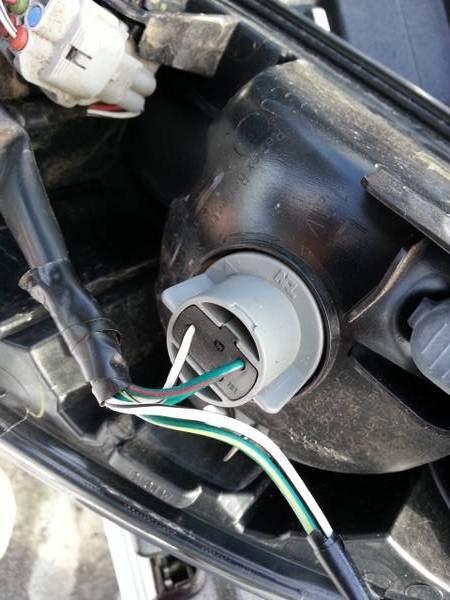

    The brake light bulb holder/connector

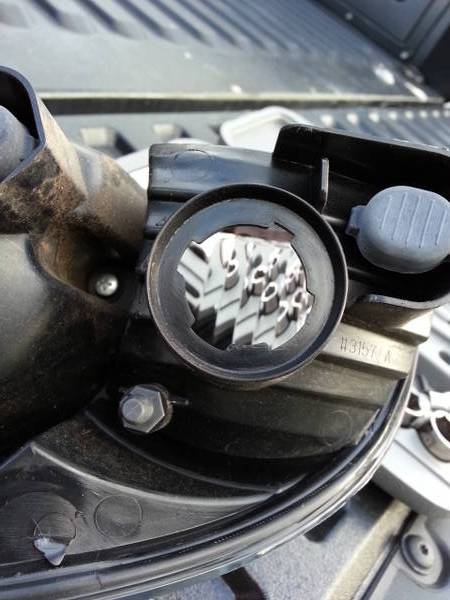

    [​IMG]
    The opening for the turn signal bulb.

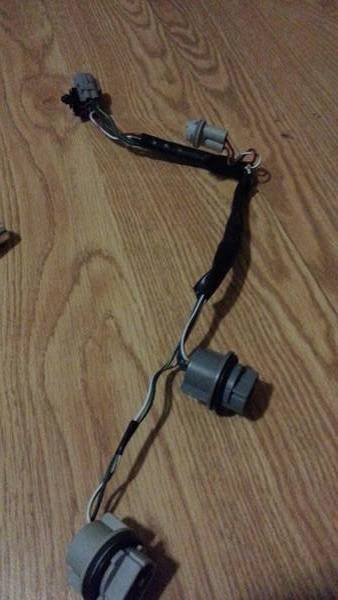

    [​IMG]
    Brake light in the middle with the two wires for the turn signal on the right.

    I failed to remember to take a pic of the reverse light wiring. Sorry. I'll try add a pic later.

  3. Aug 14, 2013 at 1:55 AM
    #23
    jmarquez808

    jmarquez808 Large Member

    Joined:
    May 22, 2012
    Member:
    #79323
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Jess
    Hawaii
    Vehicle:
    07 4x2 reg cab
    **Afe cold air intake w/pro dry filter, Yellow tint fogs, Daytime running lights, led dome light, led license plate lights, Led tail lights, 3 inch carbon antenna, spec d projector headlights, carbon fiber look interior trim pieces, Djm control arms, Djm notch, 4x4 leaf springs, beefed taco 2 inch blocks with offset pin, Rear Qa1 Shocks, Sittin sic stock height coils, x runner bilstein front shocks, weathertech digital fit floor mats, debadged.
    Ahhhhhh I want those x runner crossmember brackets too. Where did you order and what's the part numbers. That's been on my list for a while!!!

  4. Aug 14, 2013 at 9:37 AM
    #24
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    Don't know what the part number is. Just searched for it through the camelback Toyota parts site. Dunno if it'll fit but I hope it does. The threaded holes are there. They should be here by next weekend and I can tell you how it goes.

  5. Aug 14, 2013 at 8:02 PM
    #25
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock

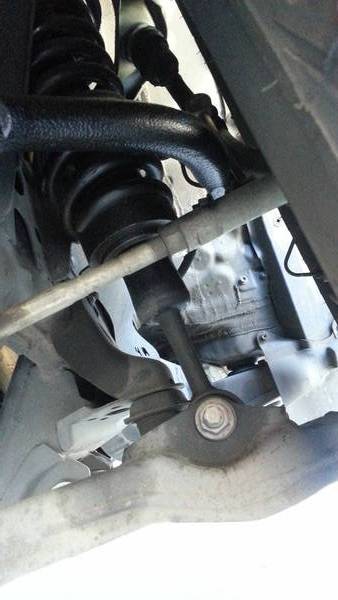

    [​IMG]
    Plenty room with new sway bar.
    [​IMG]
    [​IMG]

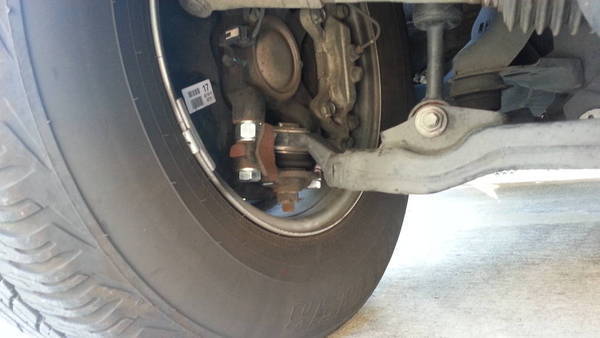

    K. New problem. These steering stops line up anymore. My truck is on the driveway which is sloped and my wheels are turned a little too the passengers side. Seemed to have arisen after the spindle spacer. Would adding another washer to the front bolt help or do something evil since the two would be unequal length? Any thoughts? You 5 lug guys got it easy, just relocate the control arm but can't do it as easily on a prerunner. I believe the manufacturers of light racing control arms says they can't correct the caster for lowered trucks. Hmmm....

  6. Aug 15, 2013 at 4:54 AM
    #26
    07TacoRidah

    07TacoRidah SHHHH, this is interesting

    Joined:
    Dec 3, 2009
    Member:
    #26923
    Messages:
    2,907
    Gender:
    Male
    Pasadena CA
    Vehicle:
    2007 Base Model Access Cab
    Engine bay: aFe Pro Dry filter Secondary air filter deleted Sokie Tech hood damper kit Xscorpion dual 0g wire ring terminal (3) Big 3 upgrade (0g wiring) HID kit (headlights - 3k) Bullz Audio 0g wire Exterior: Blacked out OEM headlight housing Front grille swap (to chrome, dipped red) XR front bumper valance (dipped red) Aftermarket fog light kit w/OEM switch Rear bumper swap (to chrome) 99 Cents Store tailgate lock Suspension: 1" spindle spacer kit (Addional nuts and longer bolts added) 4x4 leaf pack swap (middle leaf removed) 1" Drop Blocks Air Lift rear helper springs Rims: 18x9.5 Asuka ST 15-2 rims et26 all around 5mm billet aluminum wheel spacers 225/40/18 tires all around Neochrome lock nuts Pepboys valve stem caps Interior: Wink Mirror rear view Center console lid fabric Metra Dash kit Pioneer DEH 5000ub Hifonics Zeus ZXi 6410 PB 6 1/2" component speakers up front 10" JBL GTO 1014 (2) 4 ohm svc in dual ported box JDM Fuchsia shift knob (old Dickies pants shift boot)
    damn :( that has yet to happen to me. I think it's due to how your upper arms are. With the 5 lug, although it's on the side of the frame, it's not curved like it is on the 6 lug. The only way I see to correcting something like that (the pull outward) is to adjust the tie-rod. You will need to take that to the alignment spot so that they can get an accurate centering. But that's the same with any dropped vehicle, after any drop it's a MUST to get it to the alignment spot.

  7. Aug 15, 2013 at 5:26 PM
    #27
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    My bad. Wheel is turned a little. The truck has a little toe in action normally. Either way I plan to take the truck in once I swap out my ucas. The light racing ones were the quickest fix I could find. They're supposed to come in today or tomorrow.

  8. Aug 15, 2013 at 11:36 PM
    #28
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    Got bullaculla's old front bump stops. Did some experimenting and think a chopped factory bump stop may do the trick. Chopped both of em and going to try see if I can't install em this weekend. Will be reading up on installing the control arms too.

  9. Aug 16, 2013 at 8:33 AM
    #29
    07TacoRidah

    07TacoRidah SHHHH, this is interesting

    Joined:
    Dec 3, 2009
    Member:
    #26923
    Messages:
    2,907
    Gender:
    Male
    Pasadena CA
    Vehicle:
    2007 Base Model Access Cab
    Engine bay: aFe Pro Dry filter Secondary air filter deleted Sokie Tech hood damper kit Xscorpion dual 0g wire ring terminal (3) Big 3 upgrade (0g wiring) HID kit (headlights - 3k) Bullz Audio 0g wire Exterior: Blacked out OEM headlight housing Front grille swap (to chrome, dipped red) XR front bumper valance (dipped red) Aftermarket fog light kit w/OEM switch Rear bumper swap (to chrome) 99 Cents Store tailgate lock Suspension: 1" spindle spacer kit (Addional nuts and longer bolts added) 4x4 leaf pack swap (middle leaf removed) 1" Drop Blocks Air Lift rear helper springs Rims: 18x9.5 Asuka ST 15-2 rims et26 all around 5mm billet aluminum wheel spacers 225/40/18 tires all around Neochrome lock nuts Pepboys valve stem caps Interior: Wink Mirror rear view Center console lid fabric Metra Dash kit Pioneer DEH 5000ub Hifonics Zeus ZXi 6410 PB 6 1/2" component speakers up front 10" JBL GTO 1014 (2) 4 ohm svc in dual ported box JDM Fuchsia shift knob (old Dickies pants shift boot)
    :p I'm curious about those uca's, post up when they come in. hopefully they can get that tuned and you can have her out int he sun in no time!!!

    ... I'm really just pressing cause I wanna see :(

  10. Aug 16, 2013 at 8:35 AM
    #30
    07TacoRidah

    07TacoRidah SHHHH, this is interesting

    Joined:
    Dec 3, 2009
    Member:
    #26923
    Messages:
    2,907
    Gender:
    Male
    Pasadena CA
    Vehicle:
    2007 Base Model Access Cab
    Engine bay: aFe Pro Dry filter Secondary air filter deleted Sokie Tech hood damper kit Xscorpion dual 0g wire ring terminal (3) Big 3 upgrade (0g wiring) HID kit (headlights - 3k) Bullz Audio 0g wire Exterior: Blacked out OEM headlight housing Front grille swap (to chrome, dipped red) XR front bumper valance (dipped red) Aftermarket fog light kit w/OEM switch Rear bumper swap (to chrome) 99 Cents Store tailgate lock Suspension: 1" spindle spacer kit (Addional nuts and longer bolts added) 4x4 leaf pack swap (middle leaf removed) 1" Drop Blocks Air Lift rear helper springs Rims: 18x9.5 Asuka ST 15-2 rims et26 all around 5mm billet aluminum wheel spacers 225/40/18 tires all around Neochrome lock nuts Pepboys valve stem caps Interior: Wink Mirror rear view Center console lid fabric Metra Dash kit Pioneer DEH 5000ub Hifonics Zeus ZXi 6410 PB 6 1/2" component speakers up front 10" JBL GTO 1014 (2) 4 ohm svc in dual ported box JDM Fuchsia shift knob (old Dickies pants shift boot)
    careful not to cut too much off. half is good, but past that, imo your defeating the purpose of the bump, pretty much giving the axle a thin line of rubber/polyurethane from hitting the frame.

  11. Aug 17, 2013 at 1:42 AM
    #31
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock

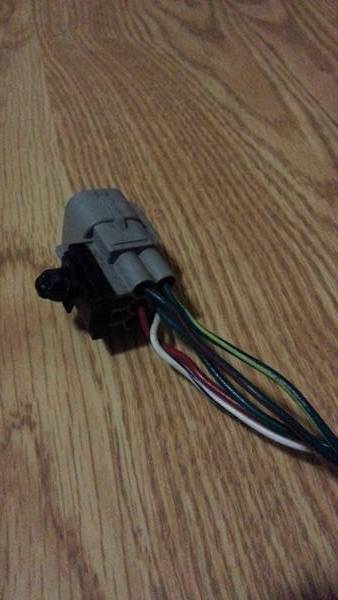

    K. Had a chance to fool around with my rear switchback project. Chopped up a harness and wired it up and it works. The electrical part seems sound so far. Know what to cut and what to join but the fine tuning part as to where to cut so the connections don't prevent me from putting everything back in the recess needs to be worked out.

    [​IMG]

    [​IMG]

    This the guy we working with. Dunno if the colors are different for different years or not. Gonna cut off a donor brake light bulb holder plus wire and cut off a turn signal bulb holder. The donor bulb holder will have 3 wires since its for a dual filament bulb, one white and black, one green and red, and one green wires. One your main harness you'll now have a white and black and a green and yellow wire. Your green and yellow will hook up to you green and red. Your two white and blacks will go together. The remaining green wire will splice into the red wire going to the reverse light.

    On my test harness, with the truck in reverse, the switch back was white. With it in reverse and the blinker on, the turn signal flashed amber and the reverse light remained illuminated.

    With that said, that might've been the easy part. Now, how to get the donor brake light/turn signal bulb holder to fit in the turn signal location. And hopefully the resistor to fix the hyperflash doesn't affect anything. It shouldn't but things never go smoothly.

  12. Aug 18, 2013 at 2:30 AM
    #32
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock

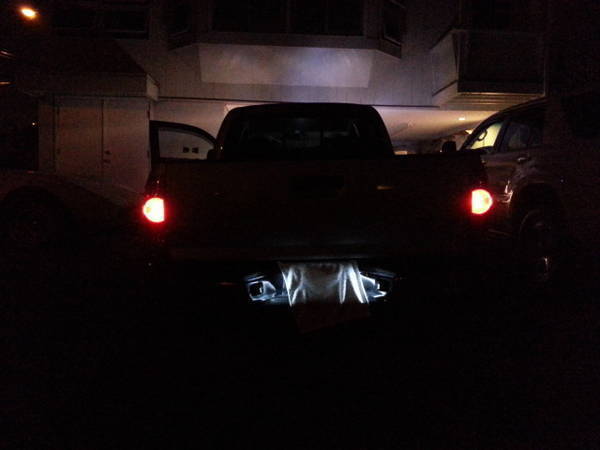

    Took care of couple projects today. First off, finished up the prototype for my rear lights. Btw, thanks mike. Switched to the red lense tails, the old lights off mike's truck. The new harness worked and only required a small amount of trimming on the bulb holder and light housing. One tab and one notch were required to get the dual filament bulb holder to fit in the turn signal position. Using some projector style switchbacks for now. Gotta wait for the cluster ones from jumper to come in. No extra resistors either for now so dealing with hyper flash.

    [​IMG]

    [​IMG]

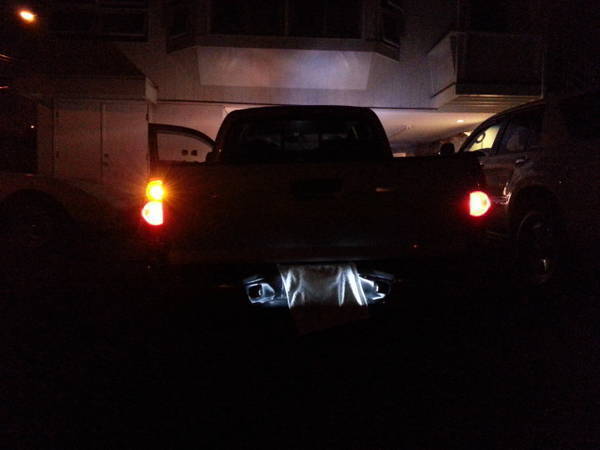

    Turn signals

    [​IMG]

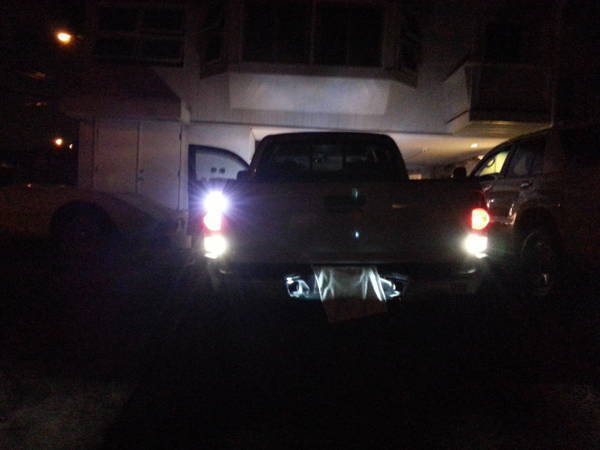

    Reverse.

    Very happy with it. Only had parts for one side so stuck with only one side with the high reverse light. Looks a little funny but can't help. Next rear lighting project may be to swap the red lenses onto the led lamp housings.

  13. Aug 18, 2013 at 2:50 AM
    #33
    jmarquez808

    jmarquez808 Large Member

    Joined:
    May 22, 2012
    Member:
    #79323
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Jess
    Hawaii
    Vehicle:
    07 4x2 reg cab
    **Afe cold air intake w/pro dry filter, Yellow tint fogs, Daytime running lights, led dome light, led license plate lights, Led tail lights, 3 inch carbon antenna, spec d projector headlights, carbon fiber look interior trim pieces, Djm control arms, Djm notch, 4x4 leaf springs, beefed taco 2 inch blocks with offset pin, Rear Qa1 Shocks, Sittin sic stock height coils, x runner bilstein front shocks, weathertech digital fit floor mats, debadged.
    Nice and bright. Mke me one !!lol

  14. Aug 18, 2013 at 2:56 AM
    #34
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock

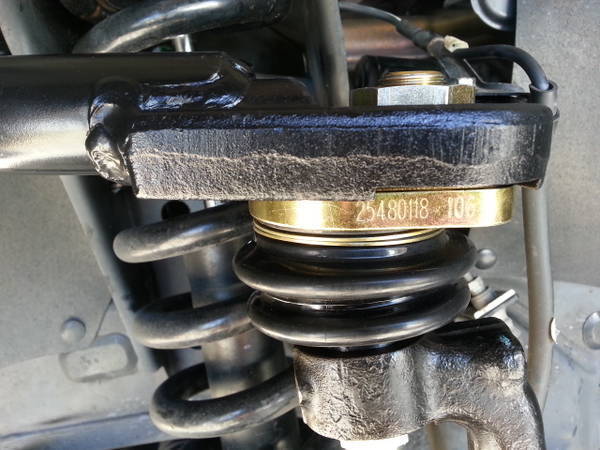

    Second project was mounting the light racing upper control arms. First impressions were the ugly welds. Almost considered grinding it and rewelding it but was in too much of a rush. Was waiting for so long and had high expectations for the control arms solving my camber and caster issues.

    Lots of threads for what works so ill highlight the hiccups I ran into. First one was my attempt to avoid bending up the fender to get the drivers side control arm bolt. I cut off the head of the bolt and tried to slide it out the rear. Bolt hit the bundle of brake lines. Had to go out the forward side anyway. Technique did work for the passenger side though. Passengers side took about a quarter of the time the drivers side.
    Second hiccup was getting the damn ball joint into the spindle. Could not get it seated properly, the castle nut can't thread on enough to get the cotter pin in. Going to email spc and confirm I have the right set. A little spooky without the cotter pins. Will be checking them frequently.
    Third hiccup was encountered doing my test drive. A little too much camber. I overcompensated and ran the ball joint all the way outboard and ended up with squealing tires going down the street. Came back and ran them to the most inboard setting and it looks about even now. Right now seems all right. Real faint pull to the right.

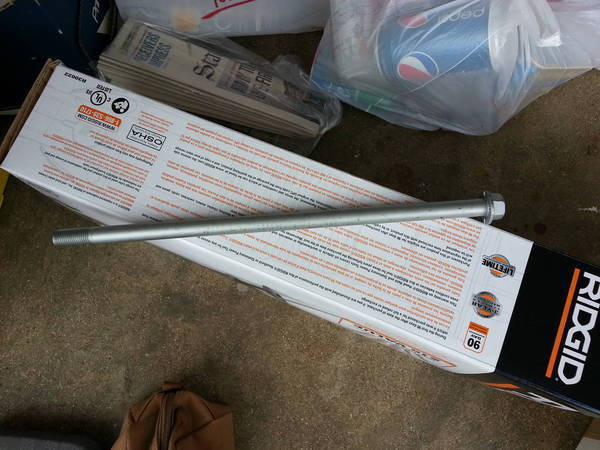

    [​IMG]
    $16 control arm bolt.

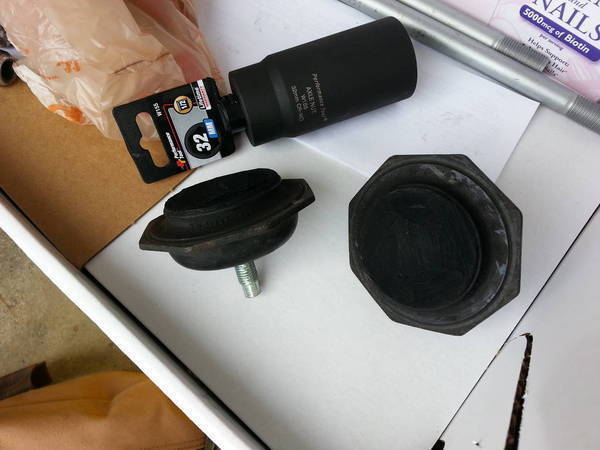

    Project 2-1/2 today was installing the modified bump stops. Cut them just below the raised ridge on the factory stops. These bastards are hard. They bounce like baseballs. Not pretty cuts but with the truck lowered, don't think anyone's gonna be able take a peak between the control arm and bump stop.

    [​IMG]

    Pretty long day considering I didn't get started til 4. Buss ass. If those balljoints had gone in smoothly I'd be in a much better mood. Most of the hard work is done and swapping out those ball joints shouldn't be a save for the weekend job.

  15. Aug 18, 2013 at 3:09 AM
    #35
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    Dunno if you want me to do that. I'm not a measure twice cut once kinda guy. Technically this one took 3 harnesses cause of the proof of theory piece. Its not really complicated but where to cut to minimize soldering is the killer. When I make my next harness for my passenger maybe I can figure out where to take pics and post em up here.

    Did I mention I'm especially pleased with how this turned out? Slick, efficient, and effective. And easy!:D

  16. Aug 18, 2013 at 9:13 AM
    #36
    07TacoRidah

    07TacoRidah SHHHH, this is interesting

    Joined:
    Dec 3, 2009
    Member:
    #26923
    Messages:
    2,907
    Gender:
    Male
    Pasadena CA
    Vehicle:
    2007 Base Model Access Cab
    Engine bay: aFe Pro Dry filter Secondary air filter deleted Sokie Tech hood damper kit Xscorpion dual 0g wire ring terminal (3) Big 3 upgrade (0g wiring) HID kit (headlights - 3k) Bullz Audio 0g wire Exterior: Blacked out OEM headlight housing Front grille swap (to chrome, dipped red) XR front bumper valance (dipped red) Aftermarket fog light kit w/OEM switch Rear bumper swap (to chrome) 99 Cents Store tailgate lock Suspension: 1" spindle spacer kit (Addional nuts and longer bolts added) 4x4 leaf pack swap (middle leaf removed) 1" Drop Blocks Air Lift rear helper springs Rims: 18x9.5 Asuka ST 15-2 rims et26 all around 5mm billet aluminum wheel spacers 225/40/18 tires all around Neochrome lock nuts Pepboys valve stem caps Interior: Wink Mirror rear view Center console lid fabric Metra Dash kit Pioneer DEH 5000ub Hifonics Zeus ZXi 6410 PB 6 1/2" component speakers up front 10" JBL GTO 1014 (2) 4 ohm svc in dual ported box JDM Fuchsia shift knob (old Dickies pants shift boot)
    :eek::eek::eek::eek: I'm VERY happy with results and I don't even have that on my truck!!! :( Never really considered putting switchbacks on the rear either till now ;)

    Pix of the UCA's? I wanna see them !!!! :eek:

  17. Aug 18, 2013 at 4:55 PM
    #37
    mattgecko

    mattgecko The Lighting guy

    Joined:
    Jul 5, 2011
    Member:
    #59337
    Messages:
    2,419
    Gender:
    Male
    First Name:
    Matt
    Nor-Cal (San Jose)
    Vehicle:
    2011 DCSB OR 4wd - Super Charged!
    Your dual reverse lights look good Man.

    Not sure what type of help you were looking for but I could make an LED strip that goes between the tailgate and the bumper that could was wire into the reverse lights.

  18. Aug 18, 2013 at 5:19 PM
    #38
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    I'm not very familiar with electrical stuff so was just wondering if I failed to adress anything like fuses and wire size. I'm a good instruction follower, just don't really know anything about wiring. Thanks.

  19. Aug 18, 2013 at 7:31 PM
    #39
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    K. Figured out why my ball joints won't drop all the way into the spindle. Wrong ball joint. Looked up the part number. Its the correct part number for an Fjcruiser. But I have a Tacoma. Trying to decide whether or not to just buy the correct one from wheelers and overnight it here or wait for spec or fat bobs. Kinda stuck driving with it. Sucks and little scary. Minimizing the driving for now.


    [​IMG]

    Last edited: Aug 19, 2013
  20. Aug 19, 2013 at 11:29 PM
    #40
    hirod

    hirod [OP] Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    291
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock

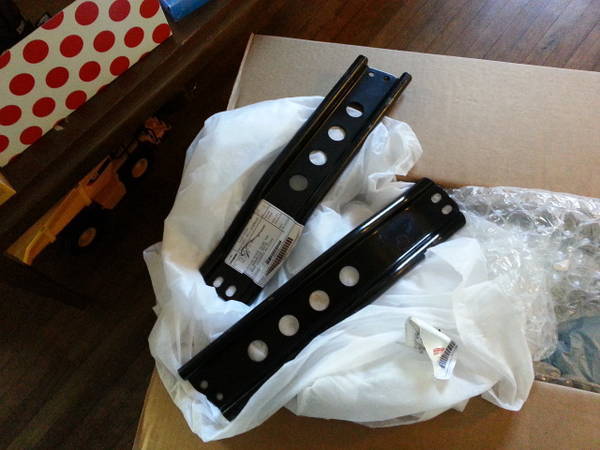

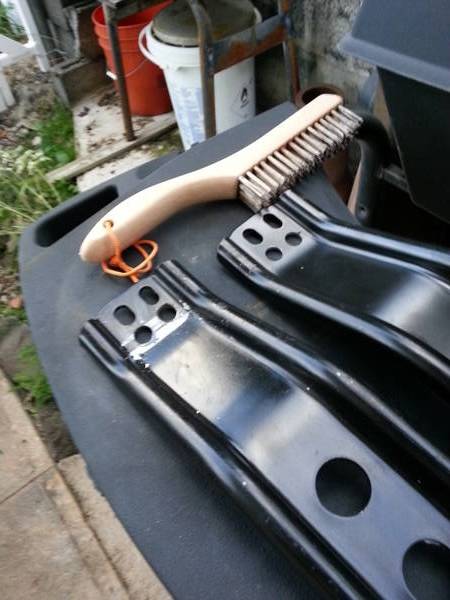

    Mailman came today. One box with my color matched grille surround and cross member braces and the other was some more wiring harnesses to finish my tail light mod.

    The cross member brace. Forgot the part number. I'll edit in later. Of course it didn't fit. Its for an xrunner but it still was hoping. Not too bad though. Just extended the slots. Used a 1/2 drill bit and a dremel cutting wheel. Extended it maybe 1-1/4"? Didn't measure. I'm not good at math and reading rulers so, a slot is pretty convenient for me. Used 8 mm flanged bolts. Forgot the thread. Will edit that in later too. Will it stiffen up the chassis enough for me to notice? I hope so but I doubt it. The fact it was out there made me want it and it wasn't too much extra work to get it in. The way I did it, it should be able to fit everything out there as long as the threaded holes in the frame and cross member are there.

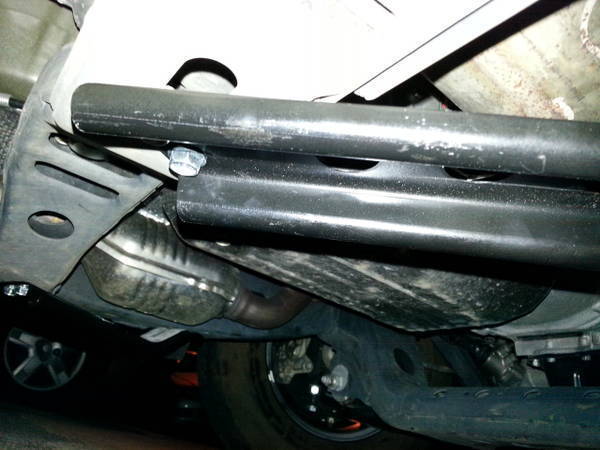

    [​IMG]


    [​IMG]

    Drilled holes before cutting.

    [​IMG]
    Frame side


    [​IMG]
    Trans cross member side. Hard to see the other bolt
