HO alternator/Dual Battery/Battery Separator/"Big 3 Upgrade

Discussion in '1st Gen. Tacomas (1995-2004)' started by chazjb, Mar 3, 2011.

  1. Mar 3, 2011 at 3:53 PM
    #1
    chazjb

    chazjb [OP] Well-Known Member

    Joined:
    Feb 17, 2010
    Member:
    #31600
    Messages:
    189
    Gender:
    Male
    First Name:
    James
    Oregon
    Deck plate mod, Magnaflow exhaust, Toytec 3in lift, Bestop canopy, Spray on bedliner across the bottom foot of the truck and fenders. HID 6000k 85W converted Hella 500's & 4000's, HID headlights 5000k 35W. Custom build roof basket, Pioneer Avic-x920bt deck with rockford amp and kicker sub.
    [FONT=&quot] THE INSTALL!!!!!
    First off let me start off by saying that when you make a write up copy and paste your progress in word or something because if you accidently exit out its gone forever like what just happened to me..... CRAP!!!!

    So here is the write up for a dual battery, sure power battery separator, "Big Three Upgrade", and GM CS-144 alternator in a 1997 3.4L Tacoma.

    Supplies-
    [/FONT]

    1. [FONT=&quot]Two optima batteries. [/FONT]
    2. [FONT=&quot]Sure Power Battery Separator.[/FONT]
    3. [FONT=&quot]GM CS-144 alternator.[/FONT]
    4. [FONT=&quot]GM CS-144 pig tail.[/FONT]
    5. [FONT=&quot]120Amp alternator fuse.[/FONT]
    6. [FONT=&quot]4awg wire and heat shrink. (my wire is green with a yellow stripe)[/FONT]
    7. [FONT=&quot]Pre made 4wg negative wires. x2[/FONT]
    8. [FONT=&quot]1 Boat style battery terminal post style and 1 regular terminal.[/FONT]
    9. [FONT=&quot]Ring terminals.[/FONT]
    10. [FONT=&quot]Electrical tape and wire loom.[/FONT]
    11. [FONT=&quot]Wire strippers and box cutter.[/FONT]
    12. [FONT=&quot]Solder.[/FONT]
    13. [FONT=&quot]Welder and angle iron.[/FONT]
    14. [FONT=&quot]Camping propane tank and torch tip.[/FONT]
    15. [FONT=&quot]Regular hand tools.[/FONT]
    [FONT=&quot]

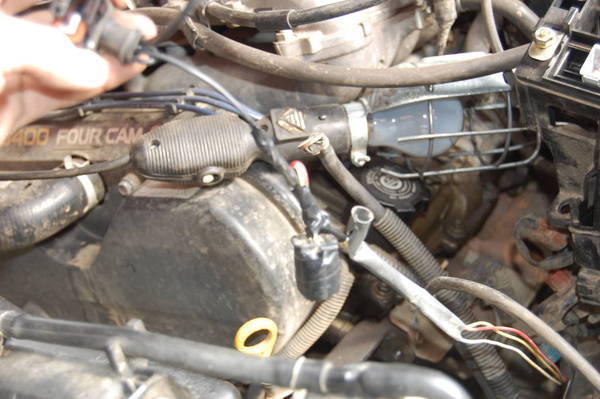

    First off I took out the battery and alternator to see where the wires were that I was going to replace.
    [​IMG]

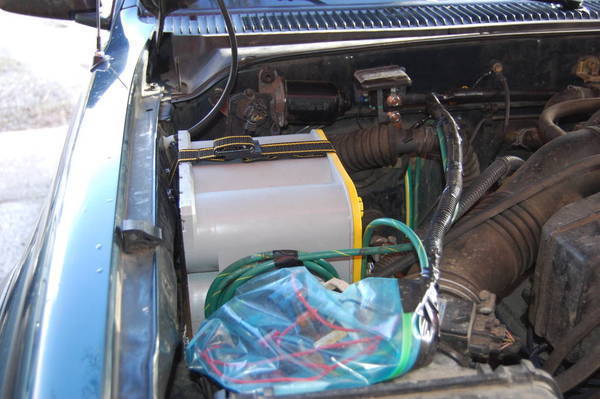

    Then I measured the area where I was going to put the second battery and found out the Cruise Control Module was in the way just a little so I took it out and then placed the battery back up there and it fit great. I ended up making a new bracket for the CCM. Once that was finished I made a bracket for the battery to sit in and used a spare boat battery strap to secure the battery to the bracket. I mounted the battery separator on the firewall away from direct heat and started to run my wires from battery B over to where battery A is going to be. I also took my aftermarket fuse block and wired it up to battery B. (waterproof housing thanks to Zip-lock haha)
    [​IMG]
    [​IMG]
    [​IMG]

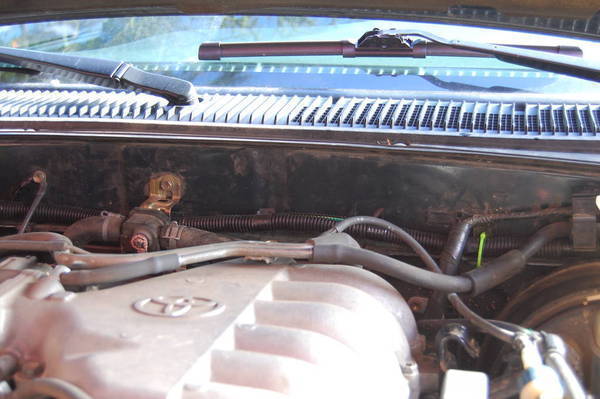

    After that was all done I started to cut out all the electrical tape that was holding the main wire harness together so that I could run my larger wire through the factory wire loom (for the most part... big wire is hard to bend). Once all the orig wire loom was taken of I was able to separate the wires and replace what was needed. This is also the point that I wired up the GM harness to the factory harness. To do this I took the yellow wire from the factory harness and tied it into the furthest over small gauge wire on the GM harness then took the large wire in the GM harness and added a ring terminal and then placed it in the battery post on the alt. I just left the rest of the factory harness connected but taped it back and out of the way JIC I need it later.
    [​IMG]
    [​IMG]
    [​IMG]

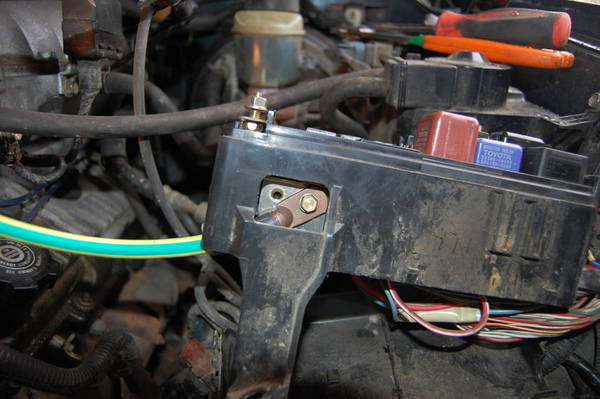

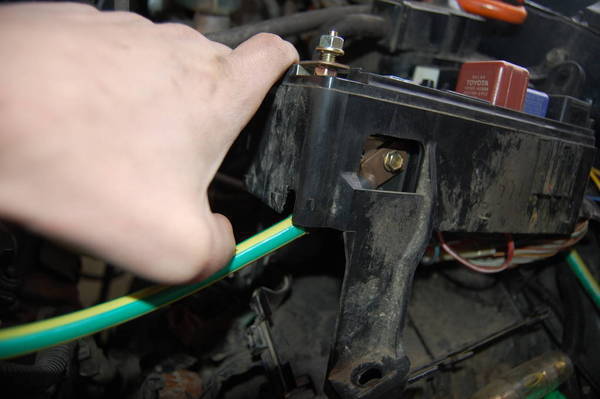

    Now for the tricky part. Since the factory wires go from alt to fuse block then fuse block to battery I had really finagle the larger wire to make it still fit. The wire that comes from the fuse block and goes to the battery came out of a pretty small horseshoe looking hole which I had to cut open a little bigger but I think it all still came out looking pretty clean.
    [​IMG]
    [​IMG]
    [​IMG]

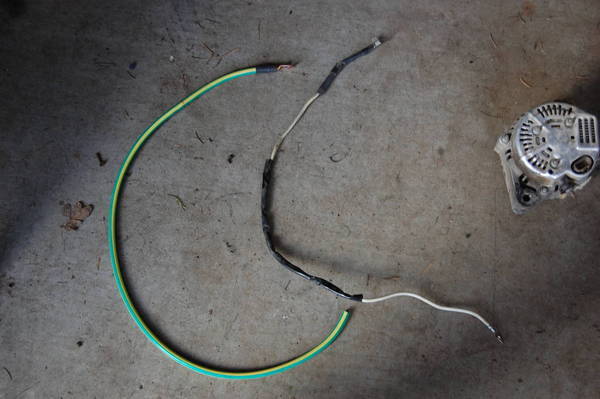

    Quick pic of factory vs. aftermarket wire size. (10gauge to 4 gauge)
    [​IMG]

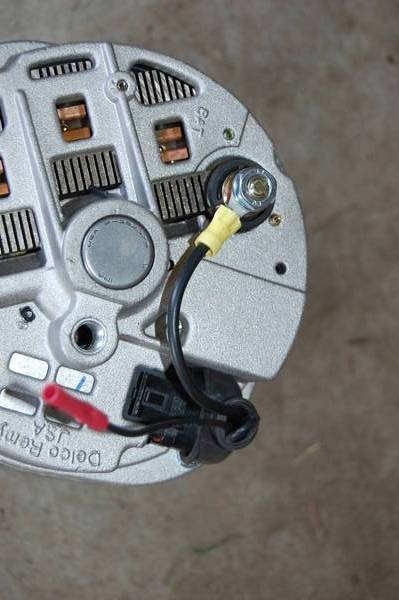

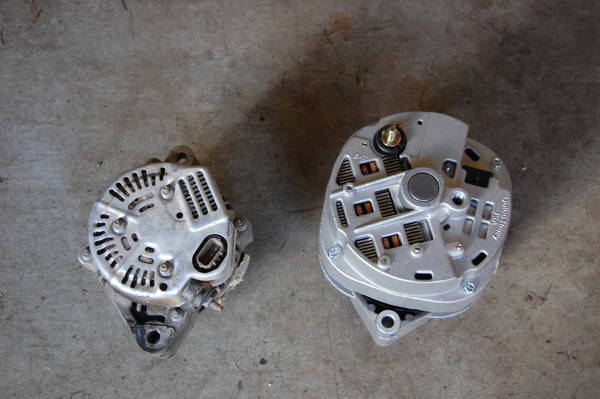

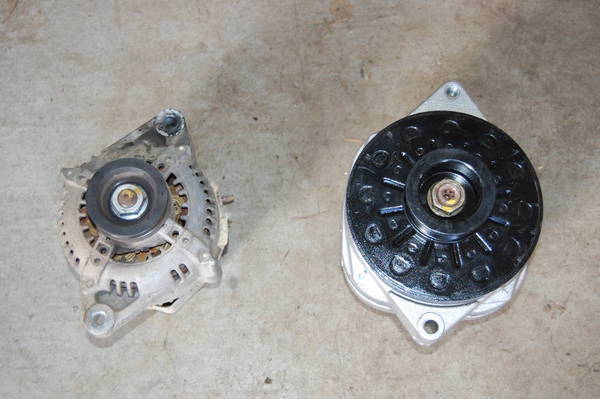

    Once all the wires were in I started working on the alternator install. Now since the GM alt is much bigger than the Toyota alt...
    [​IMG]
    [​IMG]

    I had to loosen the bottom bracket that holds the alt tensioner so that it would fit the GM alt. The Gm top mount is also 1/4" smaller than Toyota so I had to fill the gap with a few washers. Make sure that you put the washers on the backside and not the front other the belt will sit crooked but once it was in I was able to tighten the bottom bracket and then work on wiring it up.
    [​IMG]

    I have since moved the belt in to be on the center of the pulley that way the belt is straight. (Toyota alt has 4 slot pulley and GM has 6)

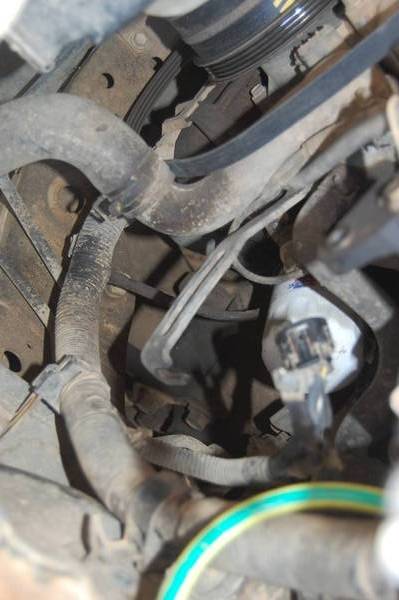

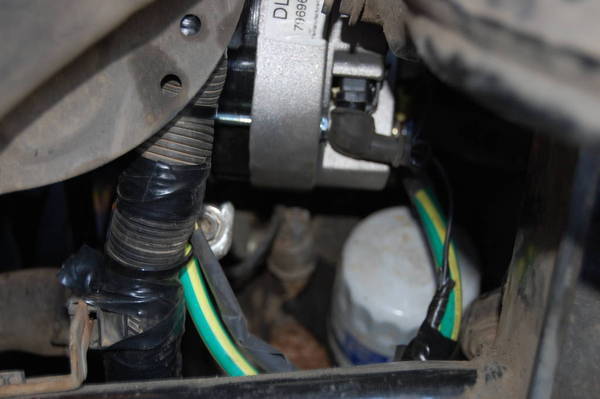

    I also found it easier to take the driver tire off and to the wiring and tensioning through the wheel well since the GM alt is bigger it is hard to do a reach around on the GM alt lol.
    [​IMG]

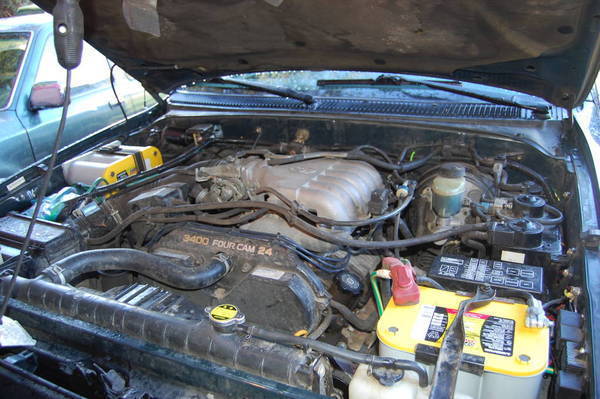

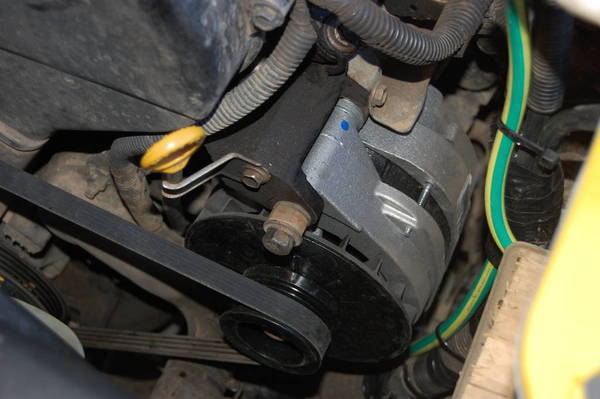

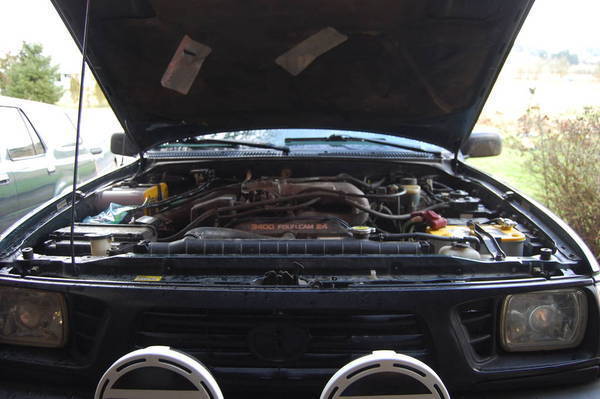

    Here are a few pics of it all put back together...
    [​IMG]
    [​IMG]

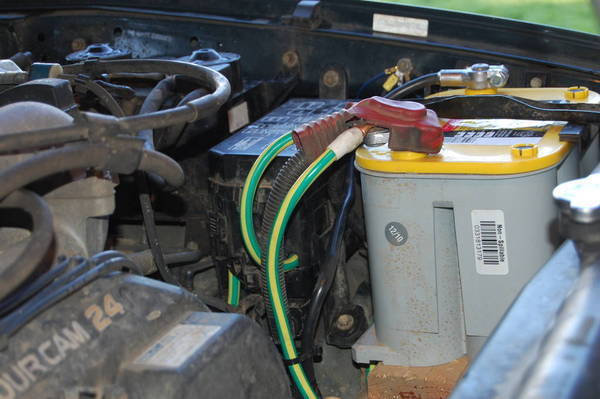

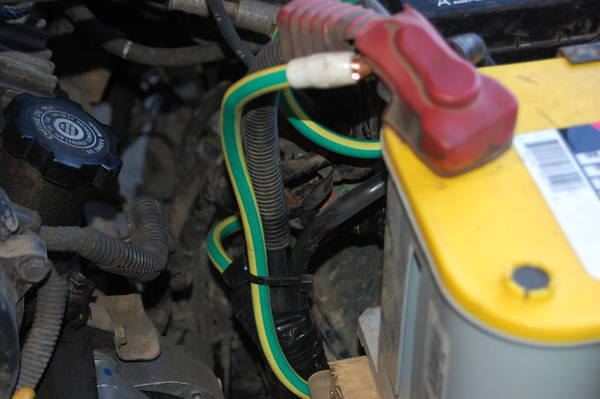

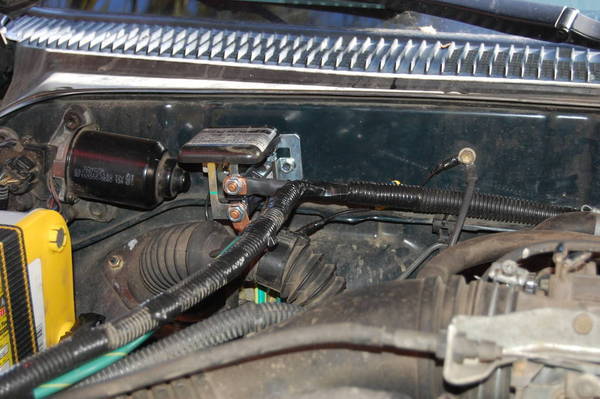

    The center green wire you see in the first pic is going down under the fuse block around all the goodies on the driver side fender and into black wire loom across the firewall to battery B (pic 2)
    [​IMG]
    [​IMG]

    Alright that’s it... I think. If you have any questions feel free to pm me or post em. It was a big project but well worth it. I have not had one "wink" and the other night I left all lights on for a few hours playing some midnight football.[/FONT]



    [FONT=&quot]
    [/FONT]

  2. Mar 3, 2011 at 5:20 PM
    #2
    sachou

    sachou Well-Known Member

    Joined:
    Sep 30, 2009
    Member:
    #23554
    Messages:
    641
    Gender:
    Male
    First Name:
    Sam
    Richland, Washington
    Vehicle:
    2006 TRD Sport Acc Cab 4x4 V6 6spd
    Very nice mod. How did you mount the secondary battery?

    I installed my secondary battery in the same spot, but I had to cut out the wheel well and weld on a custom mount for it, and now that seems a little unnecessary seeing yours...but of course I'm using a standard group 24 lead acid deep cycle battery, and not a fancy mount-sideways gel cell.

  3. Mar 3, 2011 at 7:15 PM
    #3
    wolfgang123

    wolfgang123 Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19369
    Messages:
    1,372
    Gender:
    Male
    First Name:
    Skyler
    Statesboro, GA
    Vehicle:
    1997 TACOMA - 4x4
    damn unless you are preparing for a worst case senerio or have a bitching sound system why do you need 2 batteries? not hating just wondering...

  4. Mar 3, 2011 at 7:25 PM
    #4
    wildjerseyfirefighter

    wildjerseyfirefighter I sell fishing and fishing accessories

    Joined:
    Dec 17, 2008
    Member:
    #11677
    Messages:
    7,966
    Gender:
    Male
    First Name:
    Joe
    NJ
    Vehicle:
    05 Tacoma TRD Sport
    stock, for now

    winches,lights,sound systems...Some people just like to have a spare battery, just in case. If you keep it fully charged, you can jump yourself off your own battery, in theory.

  5. Mar 3, 2011 at 7:59 PM
    #5
    Skillet

    Skillet Well-Known Member

    Joined:
    Jan 18, 2011
    Member:
    #49503
    Messages:
    46
    Gender:
    Male
    First Name:
    Caleb
    Palmdale,Ca
    Vehicle:
    99 tacoma prerunner 3.4 auto trans trd,
    Trd edition,black powdercoated wheels,king Coils front, king double bypass rear, k&n cai, jba headers,borla exhuast,optima batt,xenon hid,crystal headlights,rewired entire car to four guage wiring on big stuff alt starter etc.,alpine screen,focal honeycomb components,JL four channel amp,dynamated entire inside of truck and hoodliner,limo tint all rear windows,LEDs everywhere possible dome light, tails,fronts,04 tailights,
    That's cool you can go to B.F.E. and never worry bout a dead battery again cause it sucks sleeping in you're ride in sub zero temps because of a dead battery. Just make sure you test you're system for Parasitic Draw so you have that extra piece of mind.Good job!

  6. Mar 3, 2011 at 10:06 PM
    #6
    chazjb

    chazjb [OP] Well-Known Member

    Joined:
    Feb 17, 2010
    Member:
    #31600
    Messages:
    189
    Gender:
    Male
    First Name:
    James
    Oregon
    Deck plate mod, Magnaflow exhaust, Toytec 3in lift, Bestop canopy, Spray on bedliner across the bottom foot of the truck and fenders. HID 6000k 85W converted Hella 500's & 4000's, HID headlights 5000k 35W. Custom build roof basket, Pioneer Avic-x920bt deck with rockford amp and kicker sub.
    I built just a square base plate out of ange iron then set it in... once i figured out how it would sit i built legs for each corner and used sheet metal screws to fasten it to the wheel well. But yea I used optimas since they can be mounted sideways and have a semi deep cycle.


    Well i am running a DD DVD nav system with amp and 12" sub. I also have 8 HID lights on my truck. 3 sets of 55w HID converted Hellas and then 35w HID headlights and then 24w of LED rocklights underneath. I have a winch to add but im waiting for my Elite Off Road bumper to be finished. I also plan on adding an inverter to run to the bed.

    Ya im not worried about power anymore now its just runnign out of fuel that is the next challenge to overcome. Im working on having a 25gallon tank built but its not coming along very well.

  7. Mar 7, 2011 at 7:15 PM
    #7
    Babbar Khalsa

    Babbar Khalsa Member

    Joined:
    Mar 7, 2011
    Member:
    #52549
    Messages:
    20
    Gender:
    Male
    First Name:
    Manjot
    Cooper City FL
    Vehicle:
    03 PreRunner SR5 2.7l
    Stock
    Hey bro am planning on doing an alternator upgrade to my tacoma i need some assistance really bad im not well experienced and need some knowledge about this from ppl who r experienced. I dont know anything about alternators and especially there wiring. Ur help is very much appreciated. THANKS BRO!

  8. Mar 8, 2011 at 9:47 AM
    #8
    chazjb

    chazjb [OP] Well-Known Member

    Joined:
    Feb 17, 2010
    Member:
    #31600
    Messages:
    189
    Gender:
    Male
    First Name:
    James
    Oregon
    Deck plate mod, Magnaflow exhaust, Toytec 3in lift, Bestop canopy, Spray on bedliner across the bottom foot of the truck and fenders. HID 6000k 85W converted Hella 500's & 4000's, HID headlights 5000k 35W. Custom build roof basket, Pioneer Avic-x920bt deck with rockford amp and kicker sub.
    Well first thing is you need to figure out what you are wanting to run and figure out what amperage you are going to be drawing so that you can figure out what size amp to install.... The GM CS-144 can be upgraded to atleast 250amp. Personally I am running a crap ton of stuff and am completely fine with my set up (dual battery and 140amp alt) But once this is figured out then we can go from there. I planned for a little more than what i have set up for now because I am always finding new things to do to my truck so I planned for what i have now and then some. It would suck to do an upgrade then later on down the road find out that you need more power. So i guess the question now is.... What do you plan to run?

  9. Mar 9, 2011 at 10:52 AM
    #9
    Babbar Khalsa

    Babbar Khalsa Member

    Joined:
    Mar 7, 2011
    Member:
    #52549
    Messages:
    20
    Gender:
    Male
    First Name:
    Manjot
    Cooper City FL
    Vehicle:
    03 PreRunner SR5 2.7l
    Stock
    Well bro here is my plan. I am planning on putting an 18 inch sub with 7000 watts and 2600 rms. I checked out the amplifiers website and it says i need 380 amp fuse rating to power that amp to the max. My plan is to get a H/O alt that is just 320 amps. I am having difficulty understanding alternators. I need ur help to explain to me what wires are connected to the alternator, What they do, and if the h/o alt will blow anything up with its power and how should i do this install, what wires do i need to upgrade? . And i am duing a dual battery setup. I ahve a 2.7 l tacoma. Thanks alot Bro i really appreciate ur help

  10. Mar 9, 2011 at 11:55 AM
    #10
    jvbutter

    jvbutter Member

    Joined:
    Feb 20, 2011
    Member:
    #51538
    Messages:
    5
    Gender:
    Male
    First Name:
    jim
    Ore-Gon
    Nice write up... is that ziplock facory item??? Got a toyota part number... he he he... really though, nice write up, good pics. Will make it easy for all to follow along

  11. Mar 1, 2012 at 1:48 AM
    #11
    tacopyro

    tacopyro Forever learning...

    Joined:
    Sep 3, 2010
    Member:
    #42664
    Messages:
    60
    Gender:
    Male
    SoCal
    Vehicle:
    01 Taco Pre SR5 V6 - 4WD conversion planning
    Roll n Lock Cover and Stainless Step sides. New Mods. AFE Air Filter, PS Mag-Filter, Bilstein HD rear and 5100s Front. Michelins LTX MS2. Taurus E-Fan with FK50. Tundra Brake Upgrade. External Tranny Cooler. HO-Alt CS144 Mod, OMD Leaf Springs. Bull Bar. Future Mods. 4x4 conversion planning / purchase stages. I Love my Taco!
    Thanks for the pics and the write up! already ordered the stuff and planning to do this soon.

    I also found someone making a ready made "cs144 to toyota oval" wiring adapter here: http://goo.gl/rJ4H7
    making it even easier, more reason to do this...

    also found some info about the alternator itself. some interesting characteristics that one should know before the swap. here: http://goo.gl/UxDkd

    enjoy!
    CK

  12. Mar 1, 2012 at 7:15 AM
    #12
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,483
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,

    good post! Will make this easier for me now as well!

    id also like to post up this bad boy.
    http://www.columbiaoverland.com/product/toyota-tacoma-1st-generation-1995-2004-dual-battery-tray

    its kinda pricey..but i think it would work great too.

  13. Mar 1, 2012 at 11:19 PM
    #13
    TacoDell

    TacoDell Truck ~n~ Tow

    Joined:
    Jun 20, 2008
    Member:
    #7448
    Messages:
    997
    Gender:
    Male
    SoCal
    Vehicle:
    '00 Tacoma SR5 4X
    Donahoe CO's, Deaver leaf paks, Lockright Locker, All Pro body armor ( sliders, front and rear bumpers ), All Pro under belly skids, Warn M8K w/Masterpull synthetic line, Dual Optima battery system, 4 ea LightForce Striker 170 offroad lights, 8 ea wired rock lights, and plenty more I'm sure
    This looks a lot like my own db set up...

    exceptions being...
    the cheesy web strap holding that Aux. battery

    lose the web strap... for something made of steel
    ^ that's just bad news IMO

    It'll either dry rot or become brittle and break
    yer engine bay will look silly when it's charred from the fire

    Where'd you mount the isolator ?
    I didn't see it in the pictures

  14. Apr 9, 2012 at 5:13 AM
    #14
    Shadetree

    Shadetree Well-Known Member

    Joined:
    Dec 22, 2010
    Member:
    #48053
    Messages:
    534
    Gender:
    Male
    First Name:
    BiLL
    Bozeman, Montana
    Vehicle:
    2011 Access Cab 4x2
    Locking Tailgate & Gas Cap and extra bed D-rings
    James, now that your mod is over a year old, what would you have done differently, if anything? Are you having any problems keeping your accessory battery fully charged?

  15. Apr 12, 2015 at 9:17 PM
    #15
    Cruzintaco

    Cruzintaco Well-Known Member

    Joined:
    Apr 10, 2015
    Member:
    #152893
    Messages:
    51
    Gender:
    Male
    Sanjose
    Vehicle:
    2001 PreRunner TRD
    K&N drop in filter EGR Silencer Delete More MODS soon to come!
    Great post dude! Thanks in advance since ill be doing soon hopefully to run a sound system and a few lights
