Holset VGT 5VZ-FE turbo build

Discussion in '1st Gen. Tacomas (1995-2004)' started by anothernord, Dec 2, 2015.

  1. Dec 26, 2015 at 9:30 PM
    #41
    anothernord

    anothernord [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152422
    Messages:
    323
    Gender:
    Male
    Northern Colorado
    Vehicle:
    Various Toyotas
    DCLB Manual
    Welp, now I have 2 heavily modified vehicles. (My other vehicle: twin-charged 97' outback:
    http://sl-i.net/FORUM/showthread.php?18807-Return-of-the-Twin-Charge-6-15-Running!)

    Anyway, I can't go WOT yet without the controller working yet, but:

    Giggity

    (normal acceleration, vanes open, pulling my 2000 lb trailer full of sound equipment)


    And the rest of the updates that it took to get Cordelia running with boost:

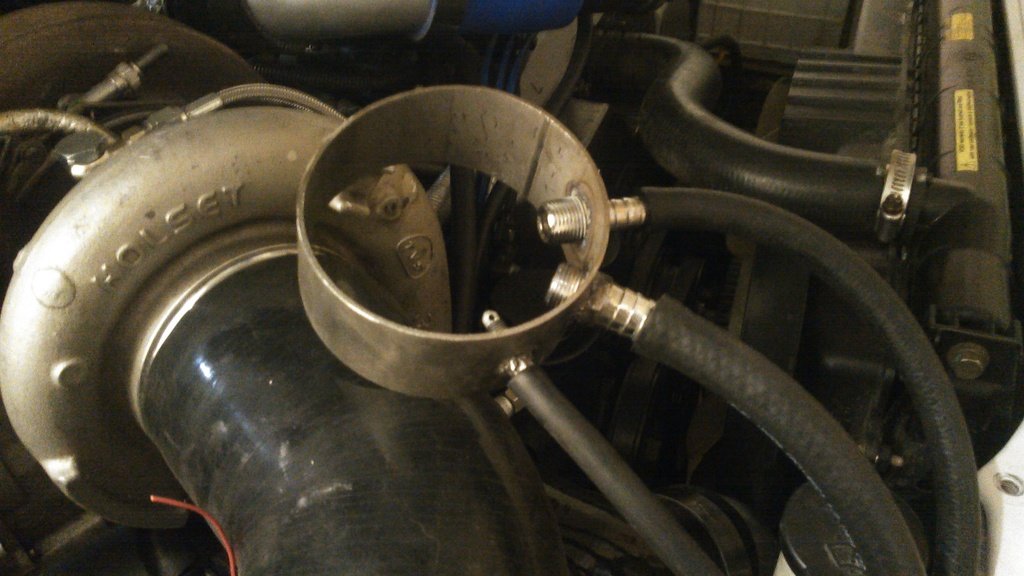

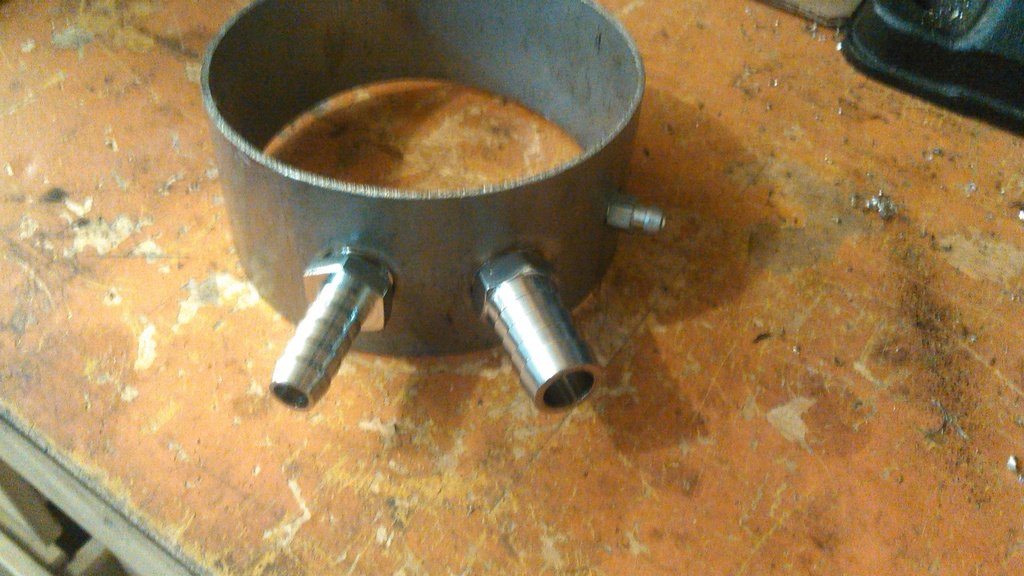

    Intake pipe piece with fittings welded in for (left to right) Evap air hose, valve cover breather, and FPR fresh air hose thing. Technically the valve cover breather hose should be plumbed in post-MAF, but these darn engines have so little blowby that it doesn't affect the fuel trims much to have it draw un-metered air.

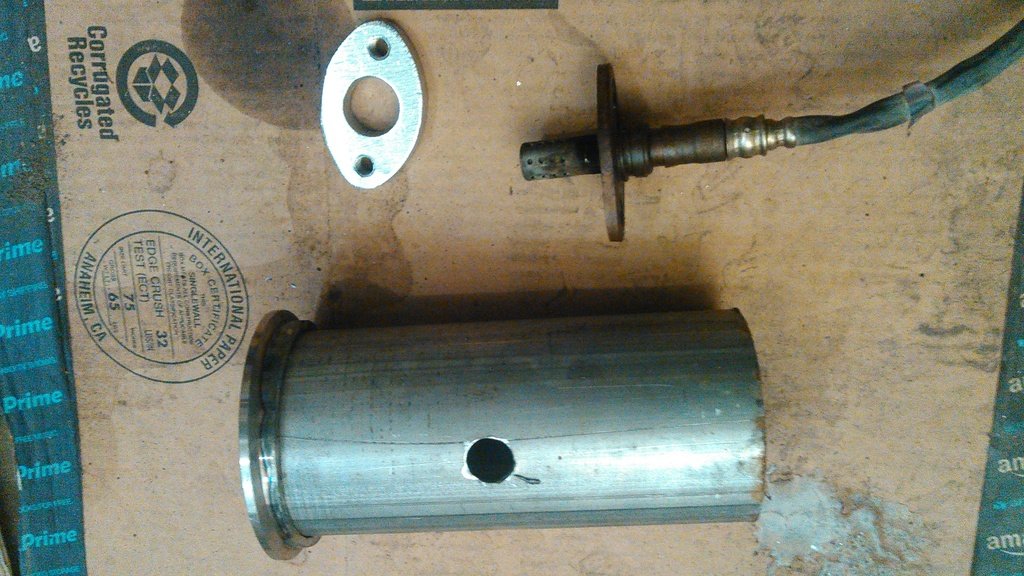

    Rear O2 sensor flange and chunk of pipe for the start of the midpipe

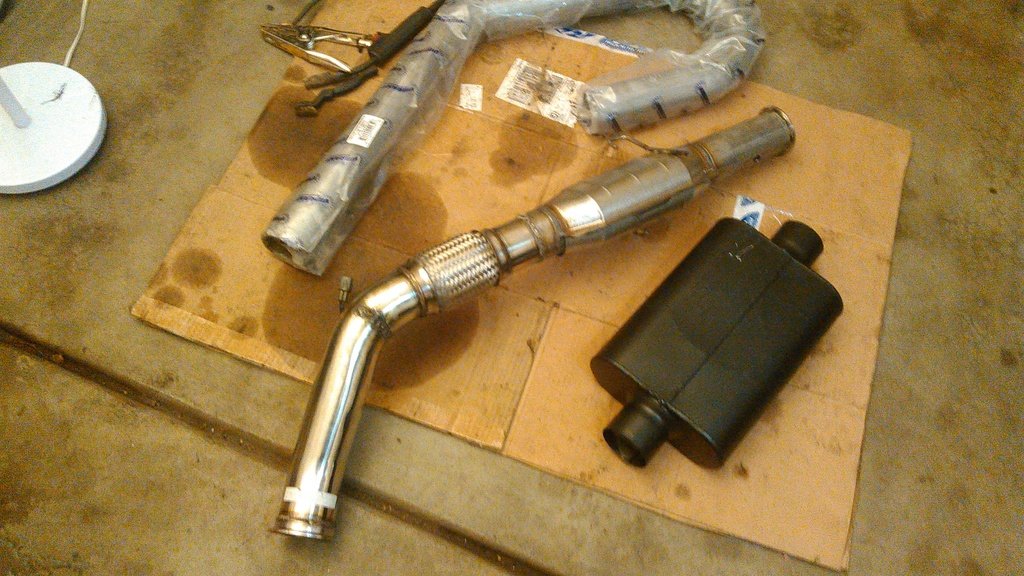

    Flowmaster high-flow catalytic converter welded to the CX downpipe, and the Summit racing dual chamber muffler, which I will probably replace since it's still really loud.

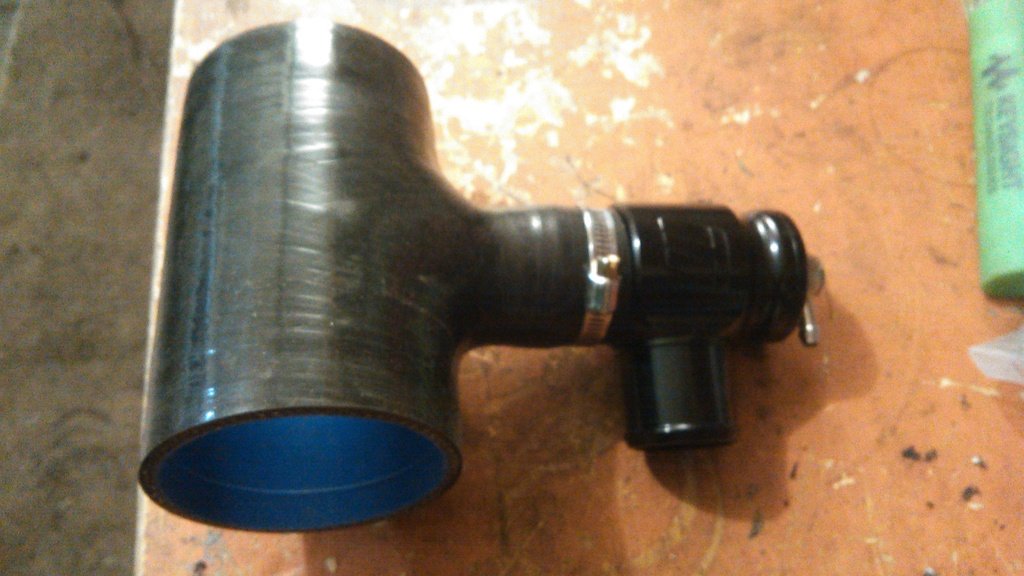

    The 34mm Turbosmart Kompact bypass/blow off valve + ebay china flange thing

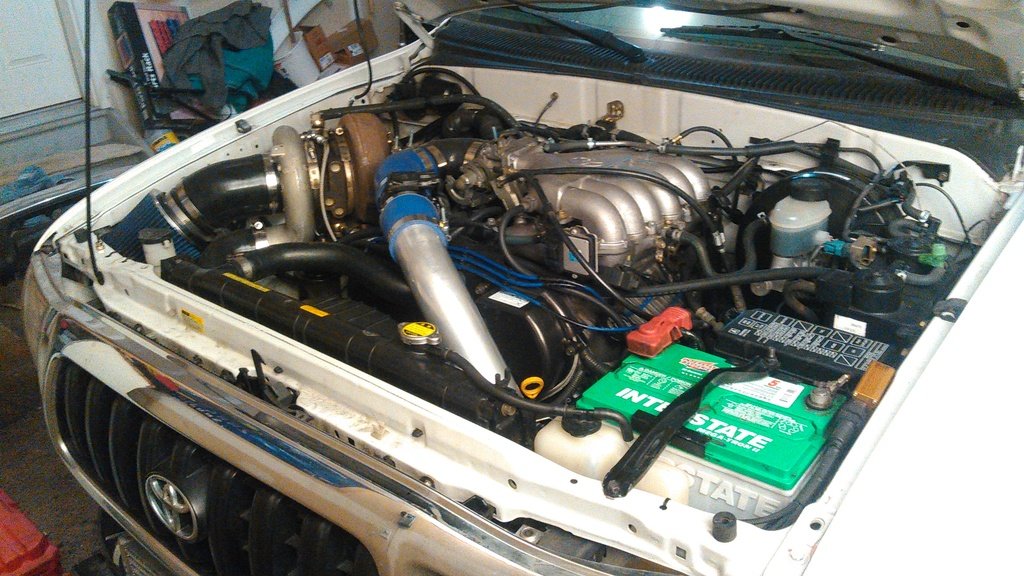

    And the temporary charge pipe on the cold side. I am still waiting for the correct coupler to fit the stock MAF, so I used a 45 reduced I happened to have.

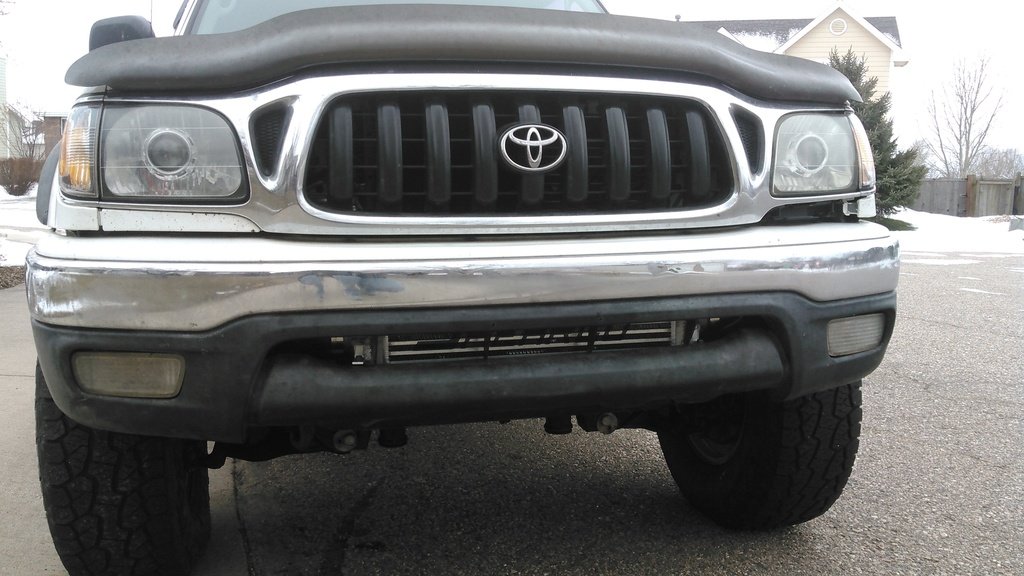

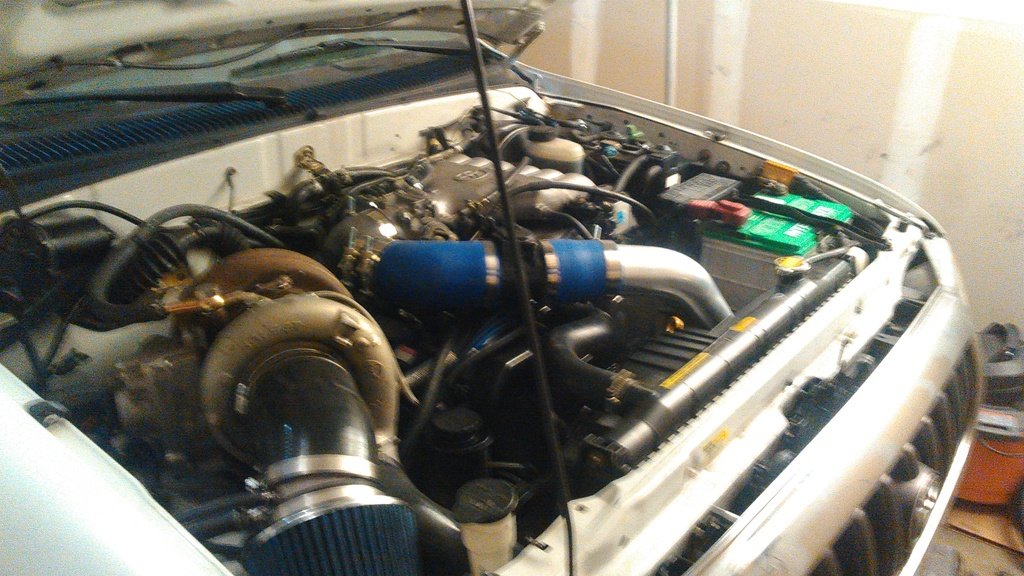

    The intercooler is nice and hidden. Maybe too hidden airflow-wise.

    I also finished the wiring for all the electronics, pictures to come later. I'ma goin' to bed.

    Last edited: Jan 4, 2016
    This site contains affiliate links for which the site may be compensated.
    #41
    devinzz1 likes this.
  2. Dec 27, 2015 at 4:39 PM
    #42
    Nickel

    Nickel Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91659
    Messages:
    1,344
    Gender:
    Male
    First Name:
    Diego
    Rio Rancho New Mexico
    Vehicle:
    2013 T/X TRD
    does turning tires to black wall out count? How bout added snug top rebel.
    Wow! I just read your other build! Holy crap man, I'm super impressed with your problem solving!
    Hope your head is all good!
    Looking forward to seeing the taco all done!

  3. Dec 27, 2015 at 5:01 PM
    #43
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    81,617
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    Jesus. You're not gonna have boost till 4k rpms..what's the point?

  4. Dec 27, 2015 at 5:07 PM
    #44
    Caligula

    Caligula Well-Known Member

    Joined:
    Sep 14, 2010
    Member:
    #43228
    Messages:
    2,108
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    2000 Ext. Cab Prerunner 2.7L
    Sexy as hell! I like how its a sleeper.

    One thing, with even the smallest amount of blowby. You should still plumb the PCV post MAF. Even the smallest amount of oil or whatever will destroy the sensor.

    Were coincidentally discussing all this PCV stuff here. There are plenty of ports on the throttle body and manifold to draw it.

    https://www.tacomaworld.com/threads...ners-and-tranny-flushes-like-bg.406953/page-3

    Last edited: Dec 27, 2015
  5. Dec 27, 2015 at 7:27 PM
    #45
    anothernord

    anothernord [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152422
    Messages:
    323
    Gender:
    Male
    Northern Colorado
    Vehicle:
    Various Toyotas
    DCLB Manual
    Thank you sir. I'm doing much better these days. :)

    :confused: Check the video description. It was acceleration with "normal" throttle inputs (<50%). That means spool looks slower. From some cautious testing, it looks like full boost is around 2600-2800 RPM in first gear, which represents the worst conditions the turbo will ever have to work in due to low-load. As I'm sure you know, the higher the gear, the greater the load is at the same engine speed, which means faster transients at lower engine speeds. And at any speed above 15 MPH or whatever, the auto just downshifts anyway, and compressor speed shoots through the roof instantly. I've blown some charge pipes doing the actually.

    The PCV line is plumbed post-MAF: it's totally stock. The PCV valve is a one-way valve that won't let boost from the intake manifold into the crank-case, but does let it in under vacuum. The line going to the turbo's intake is the valve cover line, which does draw a little bit of air in under vacuum since the combustion chambers pull in a little bit of air from the crank-case, which affects the fuel trims.

    You're still right about the MAF sensor not liking oil. I'll probably put a catch can in there until I go to an exhaust-scavenging/solenoid setup.

  6. Dec 27, 2015 at 7:43 PM
    #46
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    81,617
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    It didn't even sound like if was close to full spool at 3k. :notsure:

    Will be curious to see how it turns out.

  7. Dec 27, 2015 at 7:56 PM
    #47
    04trd

    04trd Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27696
    Messages:
    863
    Gender:
    Male
    First Name:
    Matt
    Cleveland Ohio
    Vehicle:
    2015 f150 lariat
    weather techs, 20precent tint, leveling kit, back flip bed cover, rhino liner
    I wanna see full boost and some nasty burn outs :)

  8. Dec 28, 2015 at 10:46 AM
    #48
    anothernord

    anothernord [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152422
    Messages:
    323
    Gender:
    Male
    Northern Colorado
    Vehicle:
    Various Toyotas
    DCLB Manual
    Here's some of the controller wiring stuff:

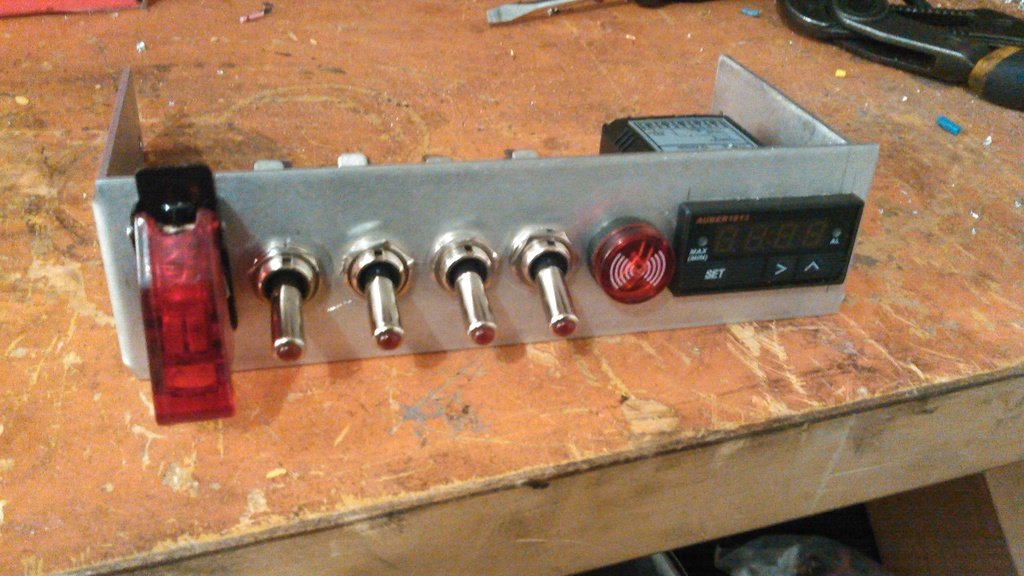

    Switch panel: I got a blank version of the carling panel made by Paranoid Fabs, then cut my own holes for stuff. The Auber gauge on the right is the transmission temp gauge with a warning buzzer to its left.

    The switch on the left is for the relay that powers the controller and the turbo's actuator.

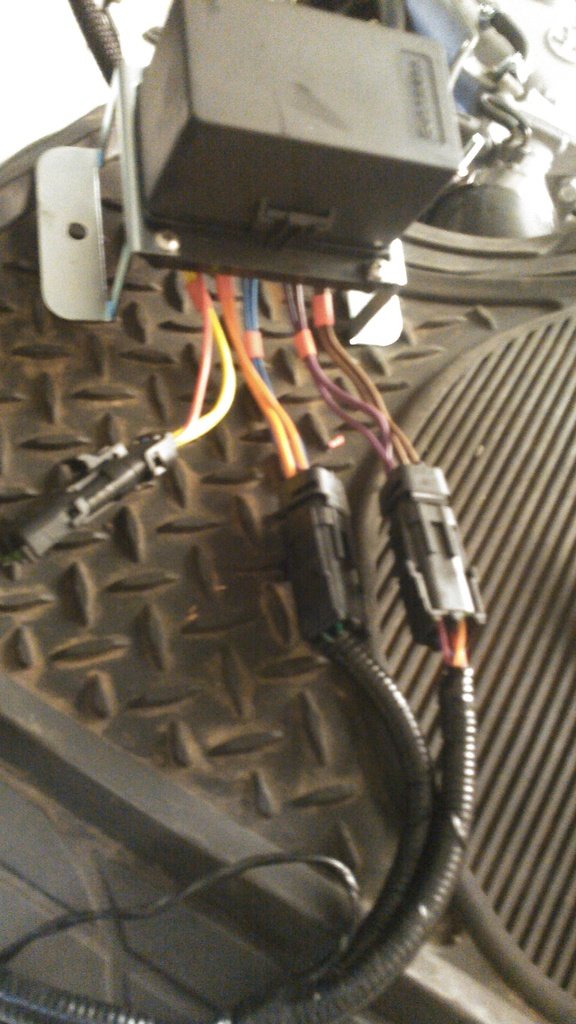

    Weatherpak connectors for the actuator and the speed pickup on the turbo

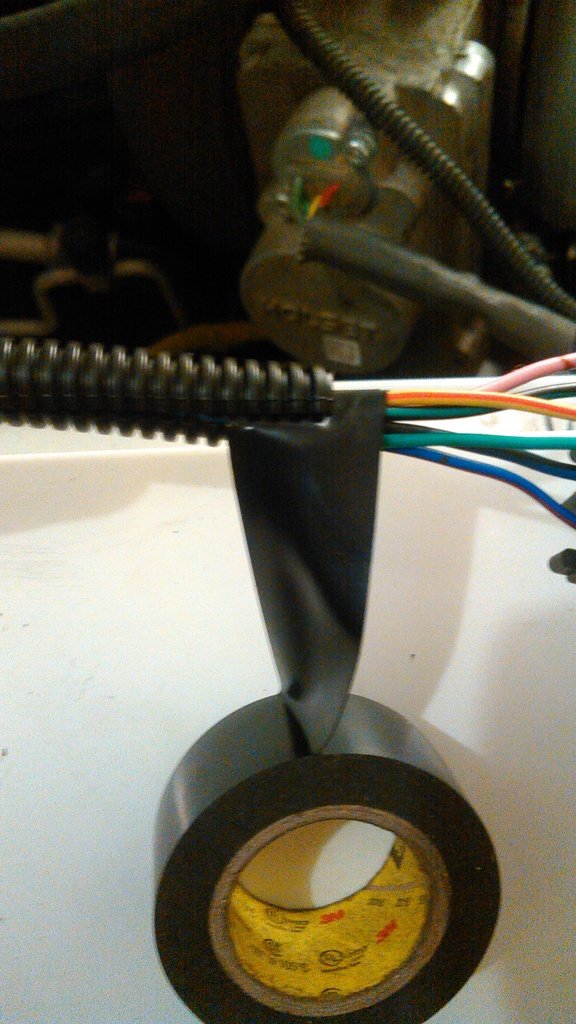

    Pro-tip: When terminating a section of wire loom, wrap the wires inside a couple times with tape, then pass it through the gap before wrapping the end. This is how OEM's do harnesses, and it really helps with strain relief.


    "Wired Wagon" bussman fuse/relay panel getting more weatherpak connectors

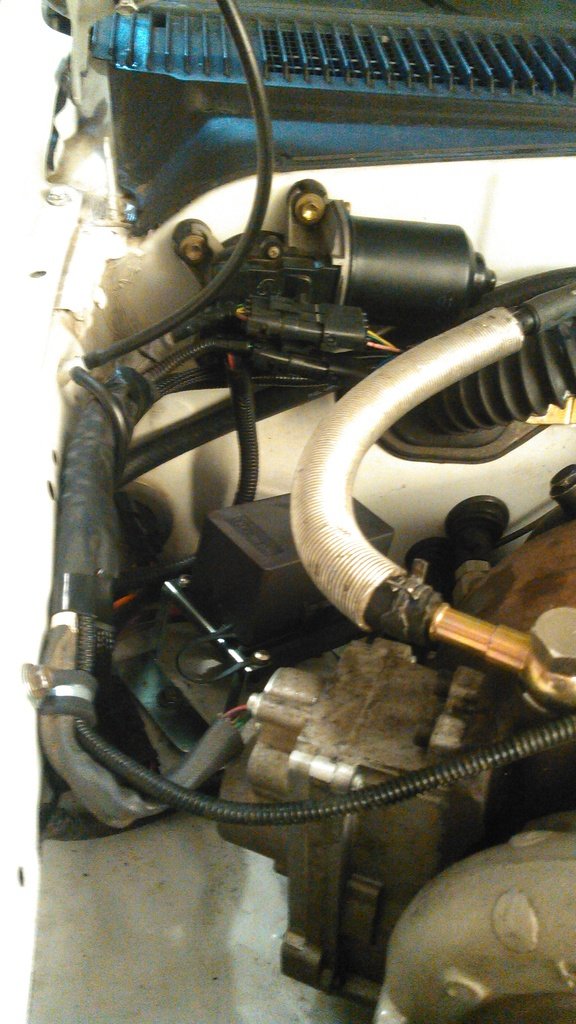

    I ran the turbo's harness through the ECU harness boot and into the radio area.

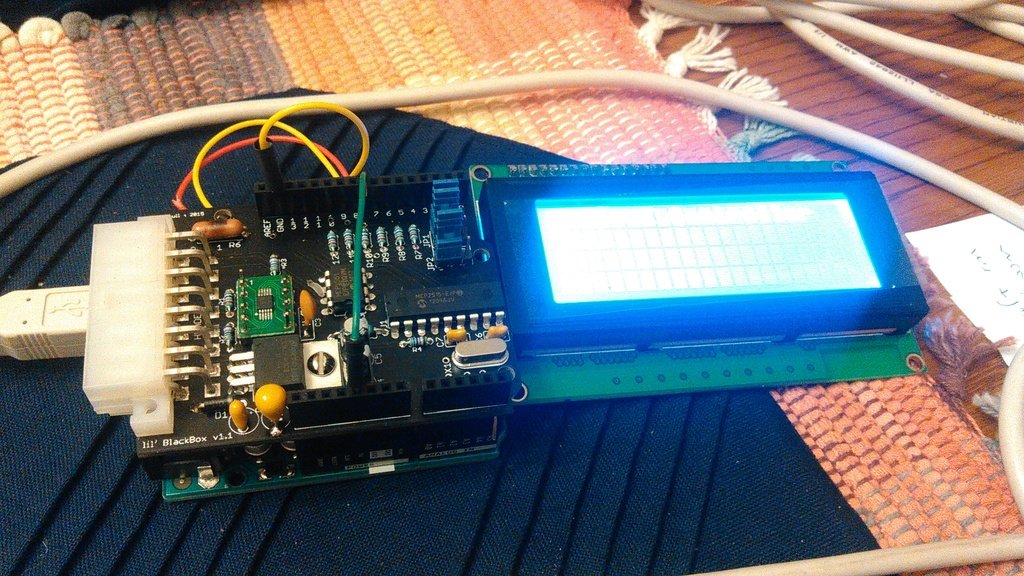

    The "Lil Black Box" controller mounted to a regular Arduino Uno, and a 20x4 LCD display. So far I've got the system to read and display compressor speed. I'll be playing with it more, of course.


  9. Dec 28, 2015 at 11:35 AM
    #49
    Clay_916

    Clay_916 Well-Known Member

    Joined:
    Jul 30, 2015
    Member:
    #160686
    Messages:
    1,501
    Gender:
    Male
    Fort Collins, CO
    Vehicle:
    2000 x-cab 4x4
    5100's, All Pro 3" Standard leafs, 32" KM 2's
    The only thing more amazing that this build is that you have a 2001 with 26k on it! Seriously sick truck man but yeah, we need to see some hardcore drag racing clips.

  10. Dec 28, 2015 at 4:41 PM
    #50
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    81,617
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    So how do you dial in the VTG? I know very little about them. Interesting to me.

  11. Dec 28, 2015 at 4:55 PM
    #51
    anothernord

    anothernord [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152422
    Messages:
    323
    Gender:
    Male
    Northern Colorado
    Vehicle:
    Various Toyotas
    DCLB Manual
    Working on that, need to get the controller functional first.

    The controller is installed but very far from being fully programmed, so I just manually set the vanes to fully-closed. Eventually I'll control the compressor speed according to throttle position and RPM.

  12. Dec 28, 2015 at 5:01 PM
    #52
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    81,617
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    Fully closed so that means it at its fastest spool or slowest? What are you doing for fuel mods?

  13. Dec 29, 2015 at 11:11 AM
    #53
    anothernord

    anothernord [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152422
    Messages:
    323
    Gender:
    Male
    Northern Colorado
    Vehicle:
    Various Toyotas
    DCLB Manual
    Fastest, but I just found last night that I didn't re-assembly the turbo right, so the vanes were actually at about 50% for that video. It should be crazy fast now that the vanes don't get stuck halfway.

    Probably the AEM F/IC, but I don't want to push the 260k motor to very high power levels, so probably not anything larger than stock injectors. Wideband is in the mail.

  14. Dec 29, 2015 at 3:12 PM
    #54
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    81,617
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    Oh nice. Be curious to see spool up time now. Was not I pressive in the last vid. Haha

    Id at least get a bigger fuel pump and maybe supra injectors. Think if this big ass turbo spins up fast enough it'll flow so much air itll Max out the stock ones. Even 318cc would be better.

    How hard with tuning the VTG be?? Does it work like a fuel map?

  15. Dec 30, 2015 at 8:42 AM
    #55
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,894
    Gender:
    Male
    North Carolina
    Vehicle:
    99 DCLB v8
    The Bed is stock...ish
    Maybe I missed it, and don't Reed gud, piktars only. What are you using to control fuel and keep from getting a cel?

    Caligula likes this.
  16. Dec 30, 2015 at 1:30 PM
    #56
    gray223

    gray223 Well-Known Member

    Joined:
    Nov 6, 2013
    Member:
    #116062
    Messages:
    3,439
    Gender:
    Male
    SE Missouri
    Vehicle:
    2014 Tundra Limited
    Aem fic. It has nothing to do with a cel though. Pretty sure you can boost without getting a cel. It's just for fuel tuning purposes.

  17. Jan 4, 2016 at 1:21 PM
    #57
    anothernord

    anothernord [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152422
    Messages:
    323
    Gender:
    Male
    Northern Colorado
    Vehicle:
    Various Toyotas
    DCLB Manual
    Yes, the AEM F/IC is pending purchase and install. Right now I just stay out of the throttle and it runs fine. Once it a while it throws a lean CEL if I build a lot of boost at part throttle.

  18. Jan 6, 2016 at 11:47 AM
    #58
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    26,439
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    I don't remember seeing it, or if I did I have forgotten. How many pounds of boost do you plan on running?

  19. Jan 6, 2016 at 12:03 PM
    #59
    anothernord

    anothernord [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152422
    Messages:
    323
    Gender:
    Male
    Northern Colorado
    Vehicle:
    Various Toyotas
    DCLB Manual

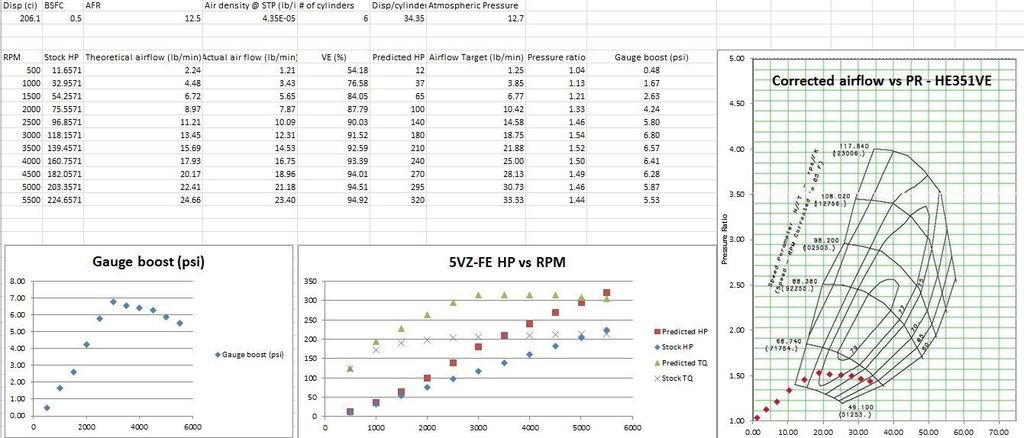

    Here's a screenshot from my excel calculator: (lots of approximations)

    Remember that boost pressure is a relative measure of power. Mass flow is what actually matters: boost pressure is a by-product of flowing lots of mass flow.

    My target of ~ 300 ft-lbs and ~320 peak HP. As you can see, the compressor is pretty under-utilized, but there should be a nice bump in torque from 1500 rpm on up. Butt-dyno seems to agree with the latter statement so far.

    devinzz1 and CanadaToy like this.
  20. Jan 6, 2016 at 7:52 PM
    #60
    StAndrew

    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    8,356
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Intake, exhaust, lift. Typical stuff.
    For those numbers, you'll need new injectors. IIRC, they lean out at about 250 HP for the TRD S/C guys.

    Curious what you did with your trans dip stick; I've yet to come up with a solution for hard mounting that.

    Also, didn't see a catch can. Recommended before you start boosting or you will blow seals (or did you re-rout your PCV to pre turbo?). I removed the fresh air hose that plugs in the back of the block and put a filter on it with a check valve that allows air to flow in but not out (without the check valve you get some nasty fumes venting into the cabin). Ran the PCV to a vented catch can.

    Very nice build :thumbsup:
