Home-Built Sliders and Hidden Winch Mount

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Benson X, Aug 3, 2012.

  1. Aug 3, 2012 at 9:08 PM
    #1
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,735
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    This isn't a "How-To" or "Install Guide", just some pics of the sliders and hidden winch mount we fab'd up for my truck.

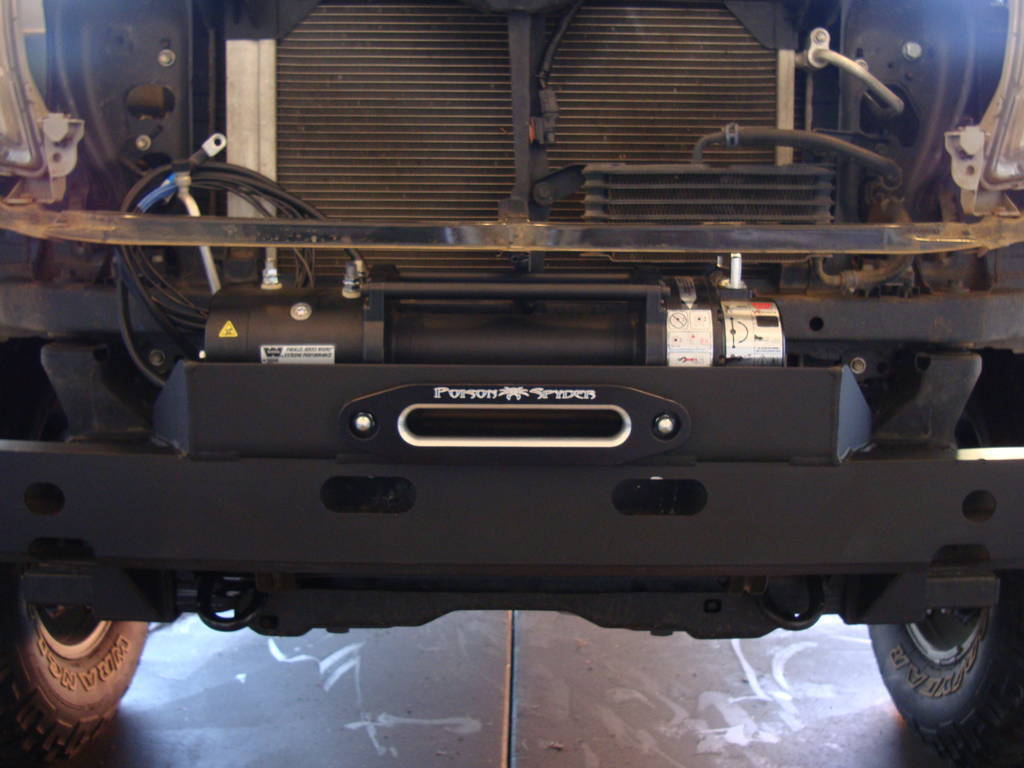

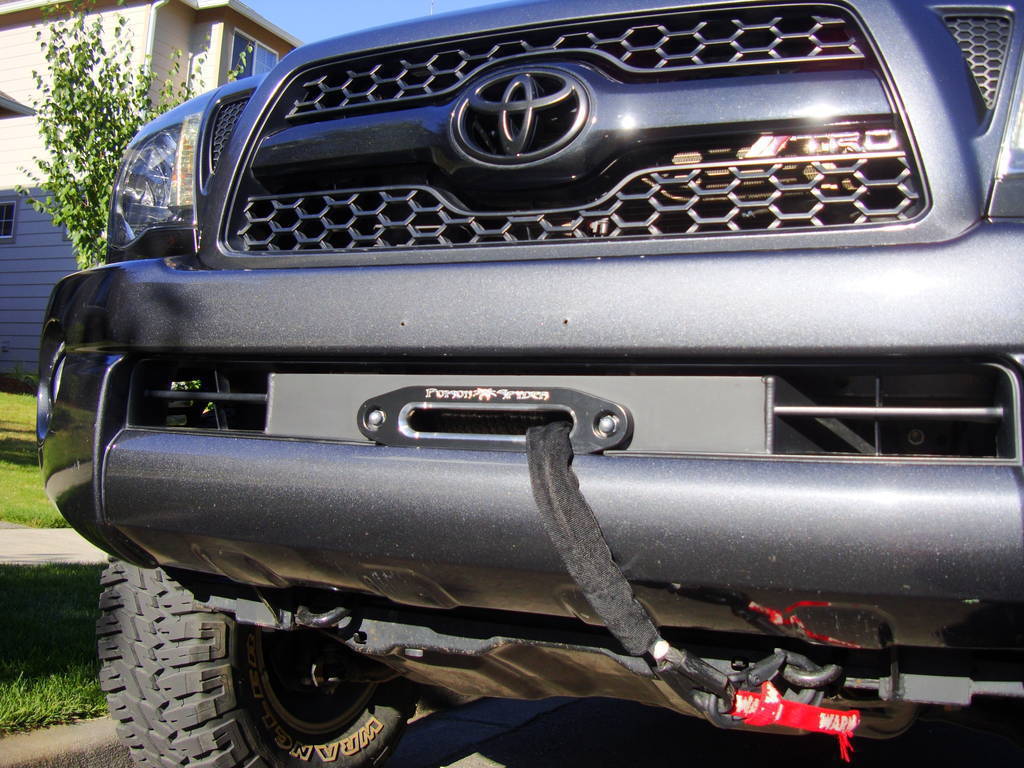

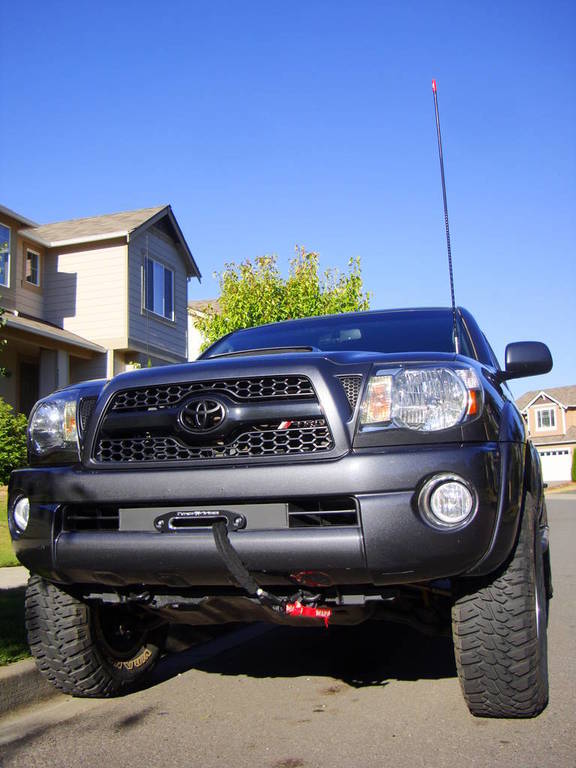

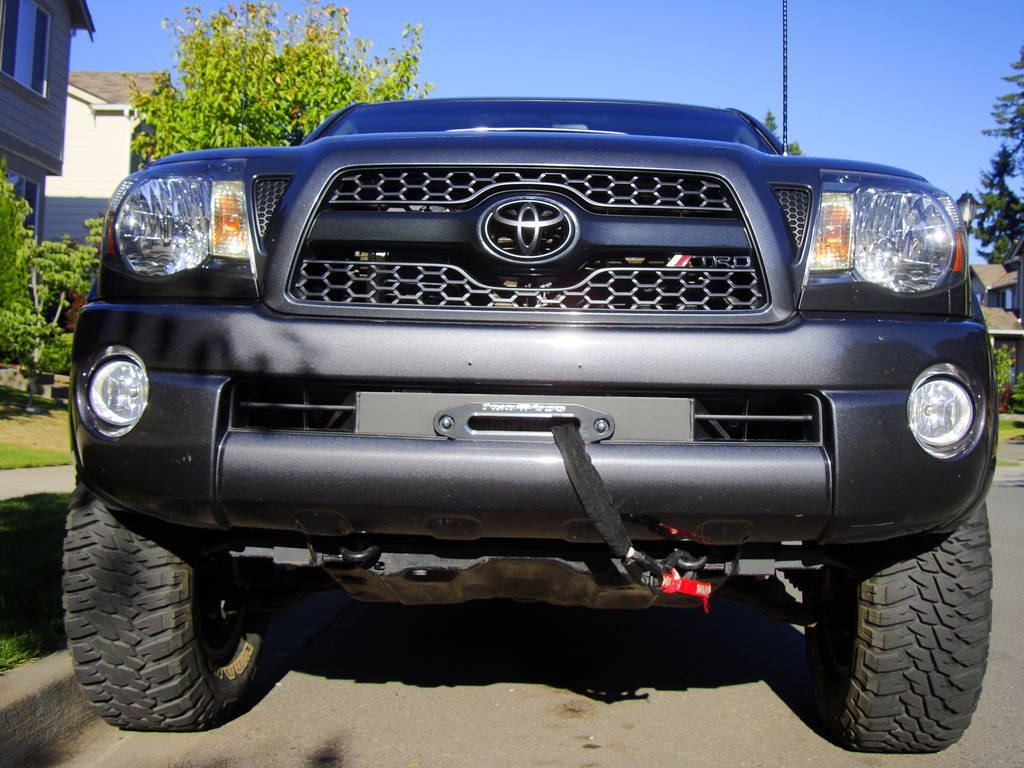

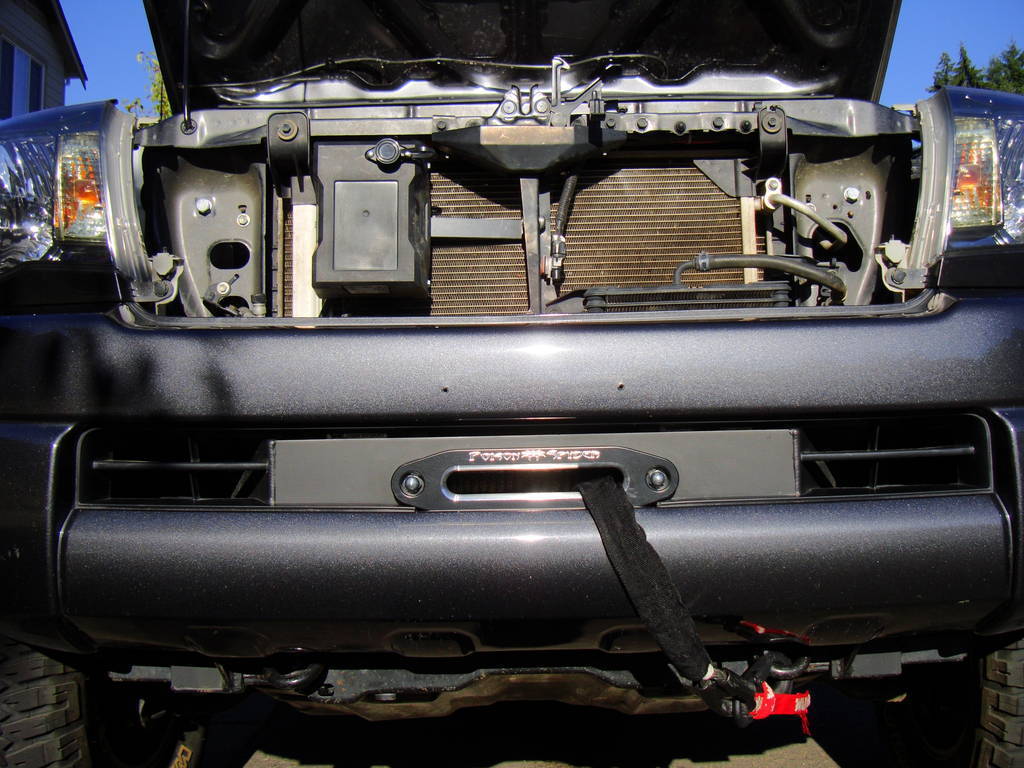

    HIDDEN WINCH MOUNT

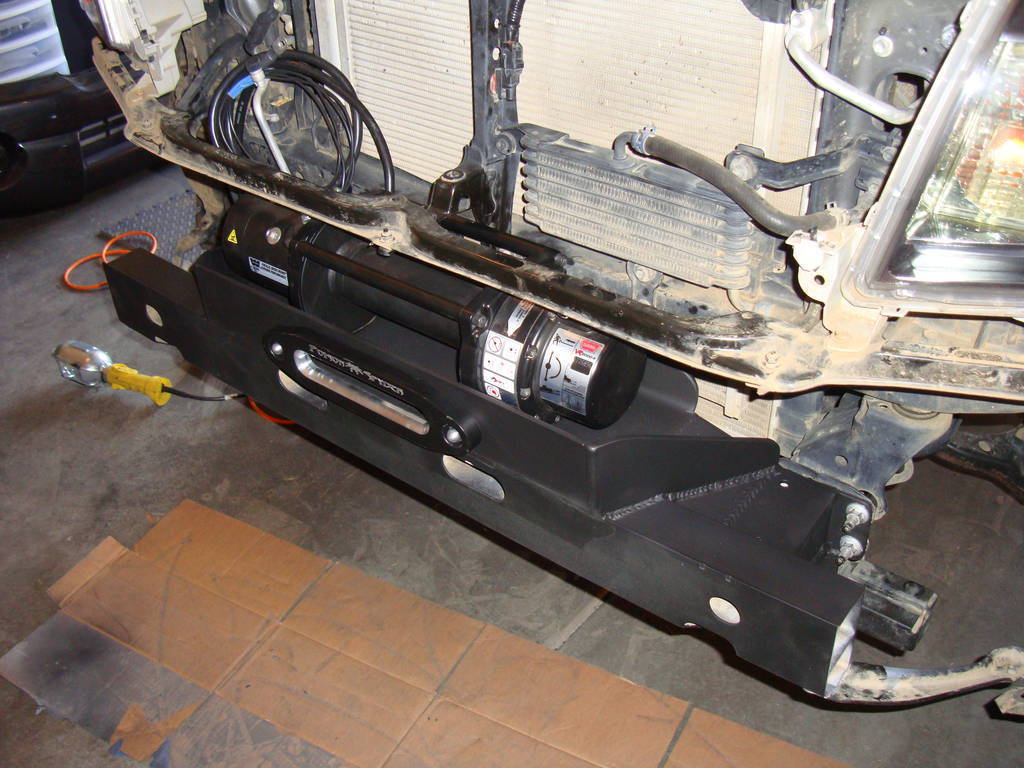

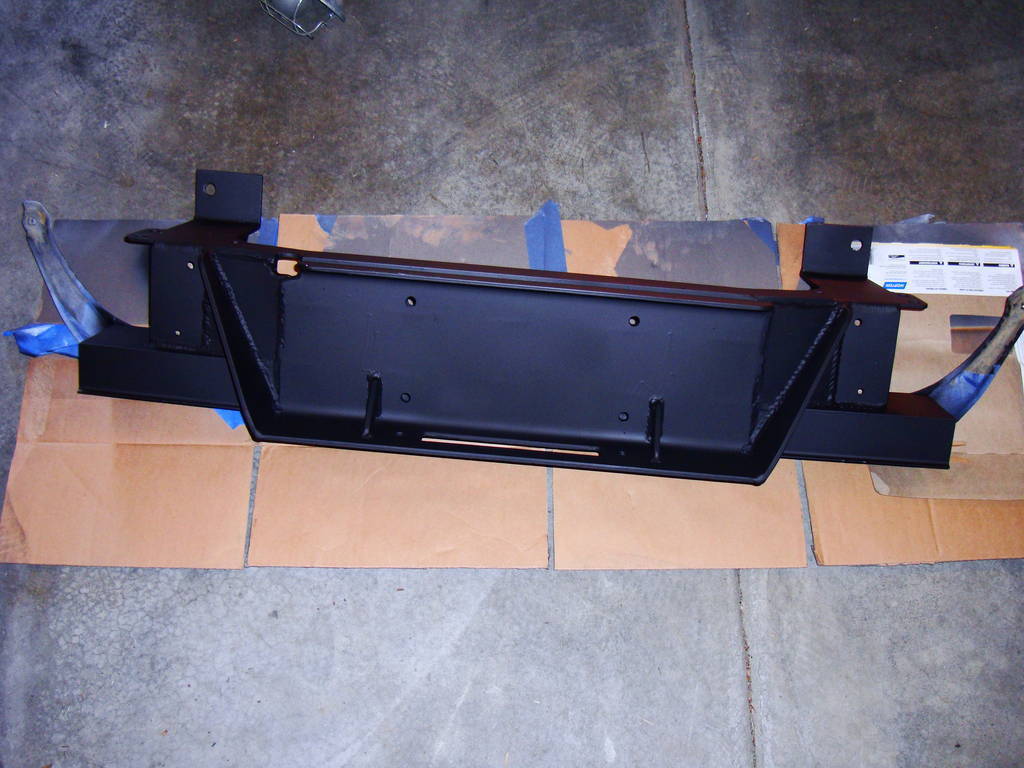

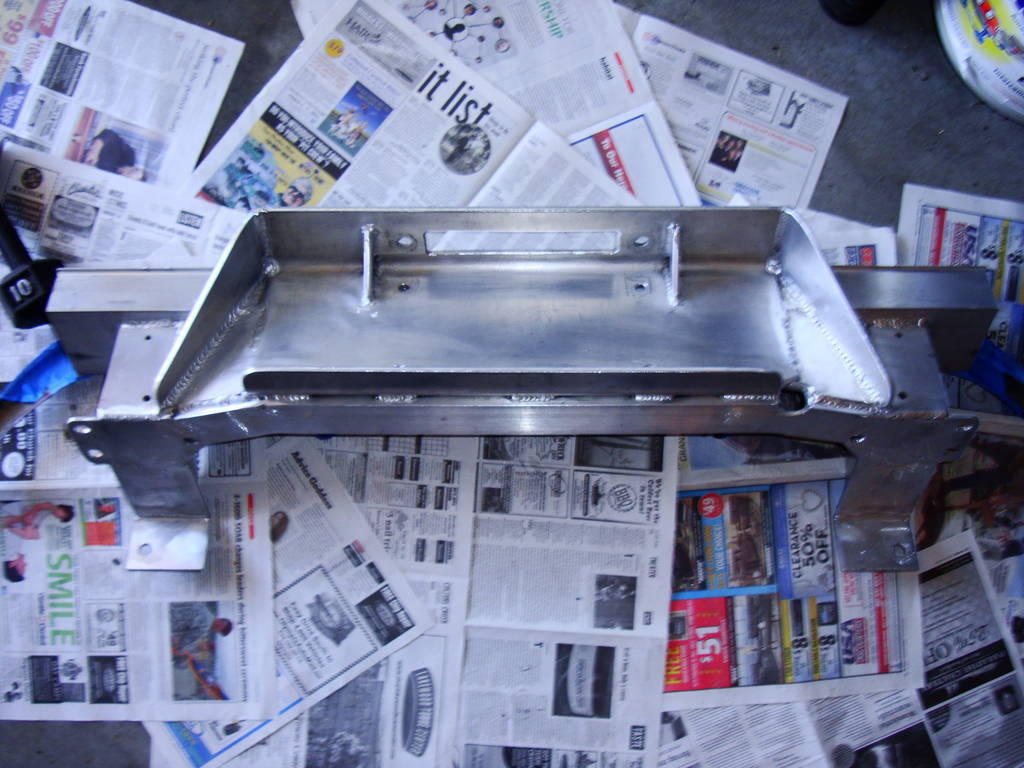

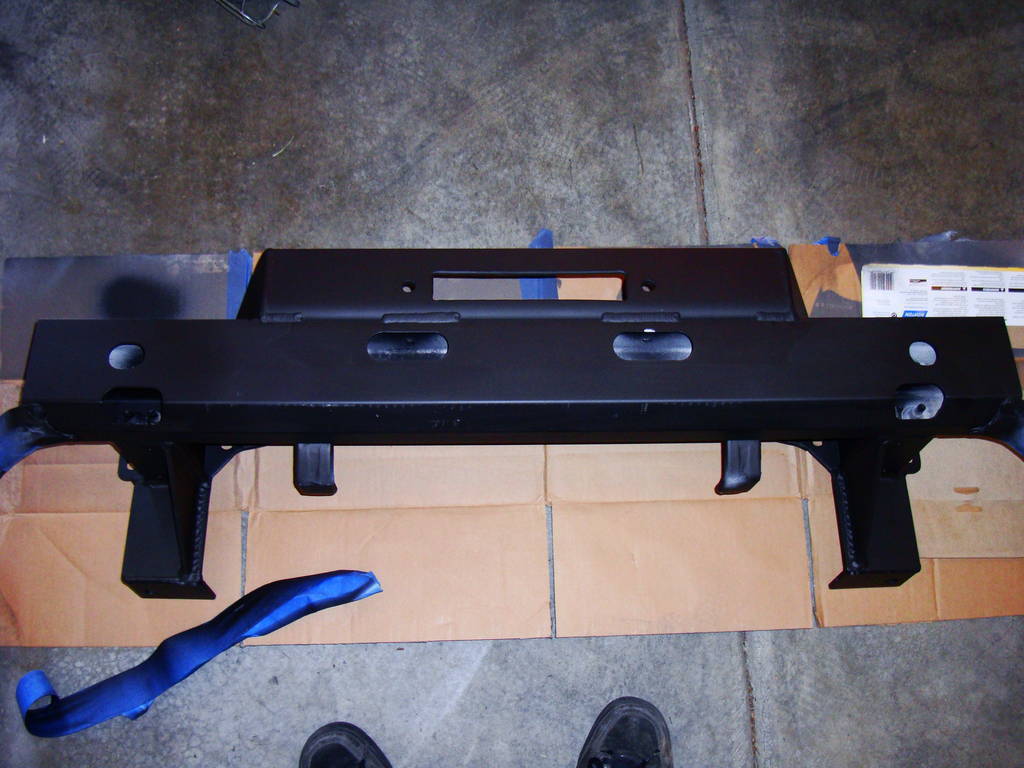

    For the hidden winch mount, we reinforced the stock aluminum bumper with 1/4" 6061 T6 aluminum, fully plated, gusseted, reinforced, and TIG/MIG welded.
    [​IMG]
    [​IMG]
    [​IMG]

    Sanded, primed, and painted it flat-black.
    [​IMG]
    [​IMG]

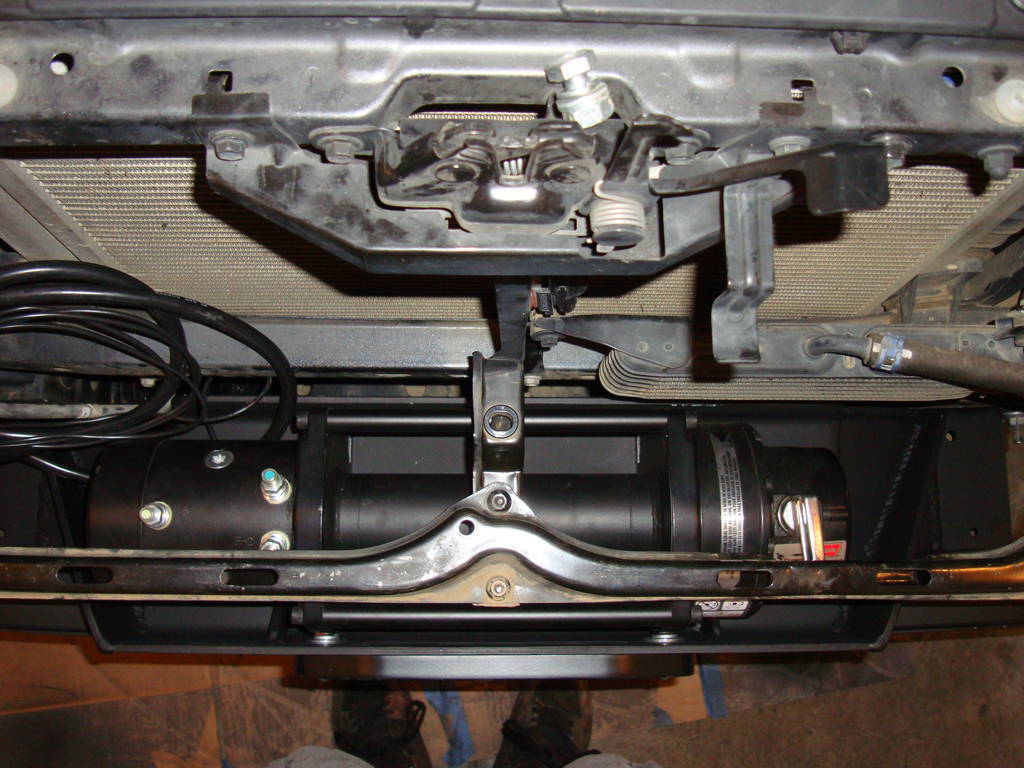

    I was a little apprehensive about using aluminum at first, but it is strong and stout as hell! Plus with the synthetic line, I saved about 60-70lbs. up front. Say what you want, but this mount will hold-up to anything I plan on winching with it.
    [​IMG]
    [​IMG]
    [​IMG]

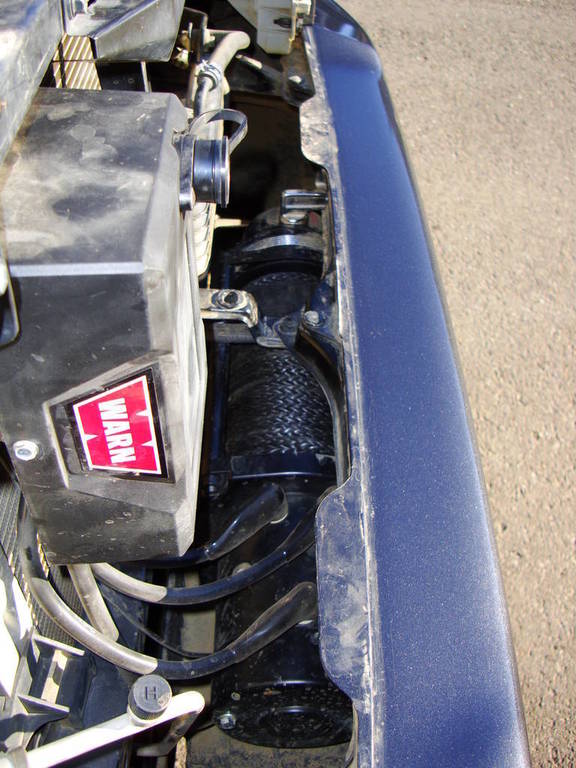

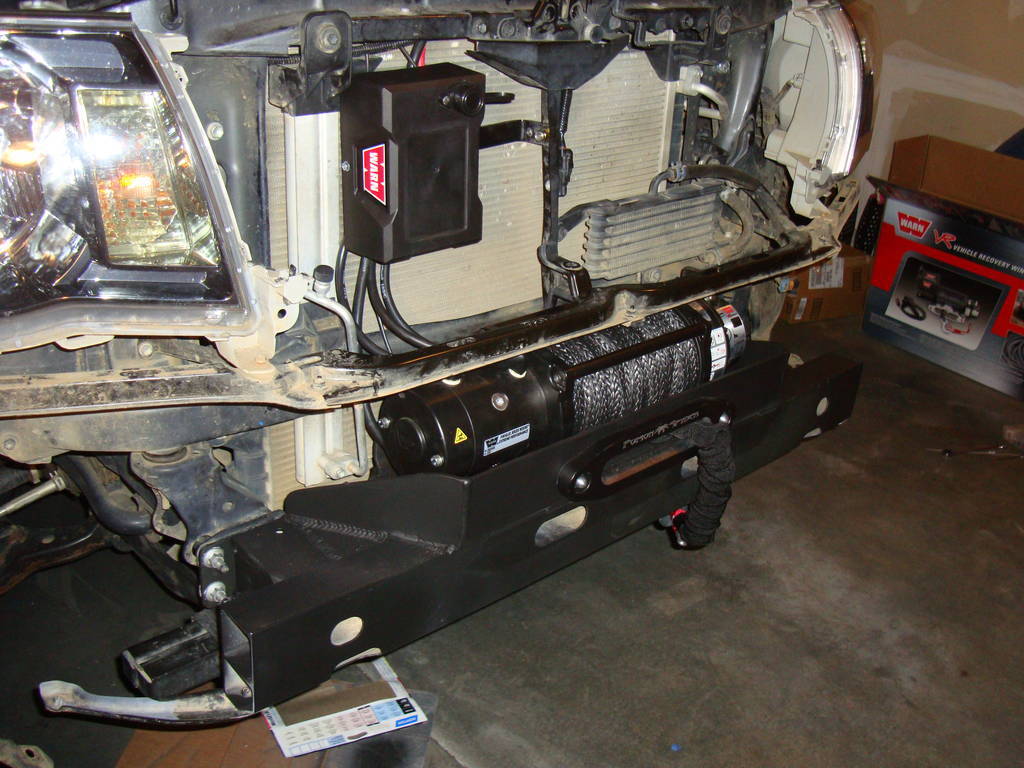

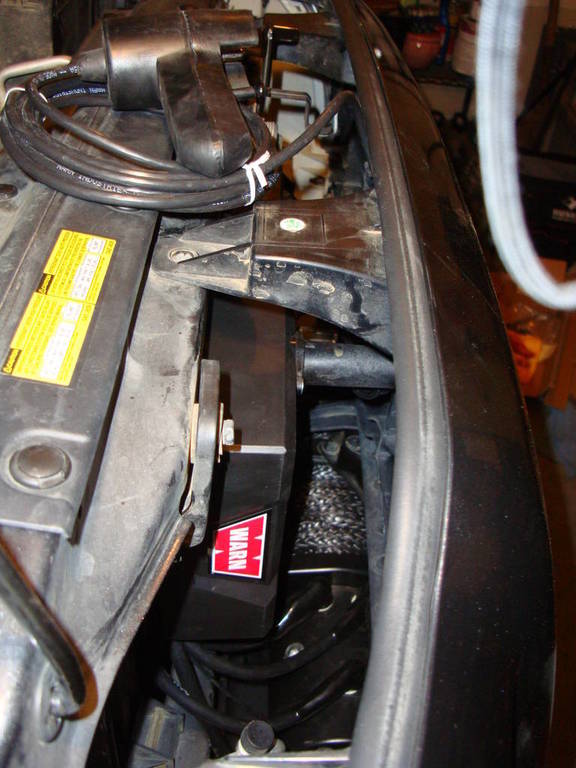

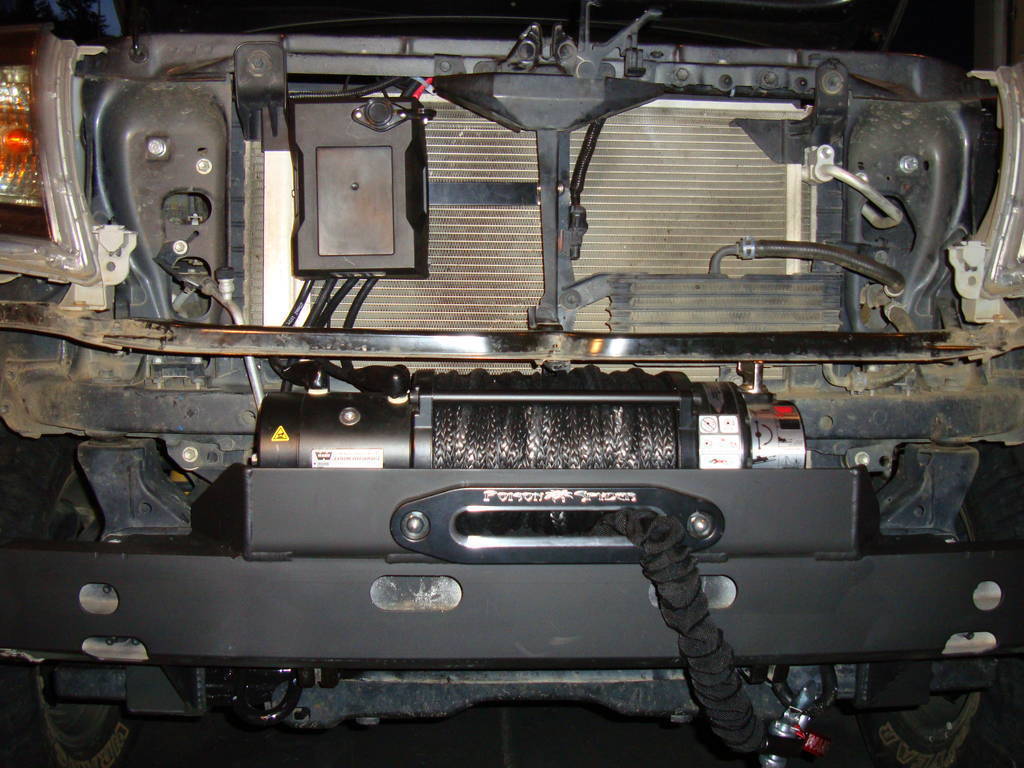

    I wired up the control box in front of the radiator. I had to use a different mounting bracket than what came with the winch, and I had just enough wire to reach the battery. Really clean install, out of the way, clears the radiator, and the control still has room to plug in. The clutch and everything is easily accessible without removing the grille.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    SLIDERS

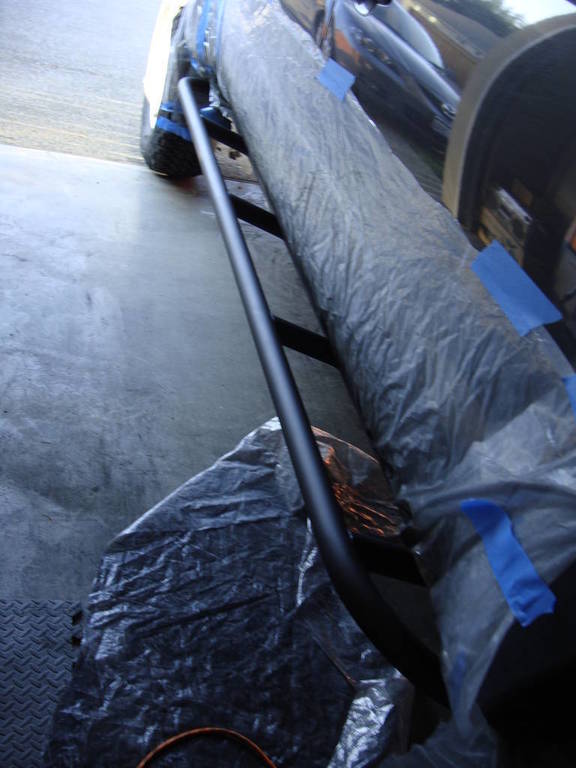

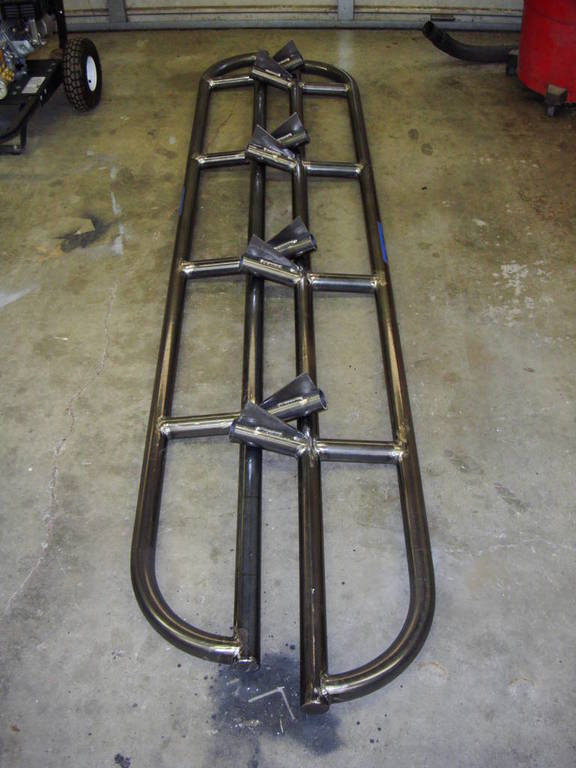

    For the sliders, we did a simple round-tube design using 2"OD x .188"-wall HREW, and beefy L-brackets, fully-gusseted and welded to the frame. It ended up about 3/4" below the pinch-weld, and we turned up the outer-rail to 18.3°

    [​IMG]

    We decided not to do a round/square "Hybrid" since all round tubing would create a larger contact footprint on each joint/weld, and in turn, increase rigidity.

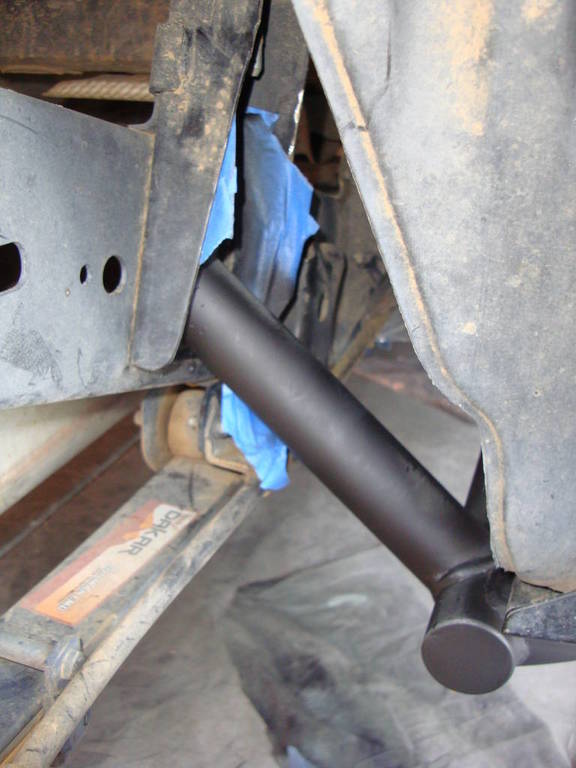

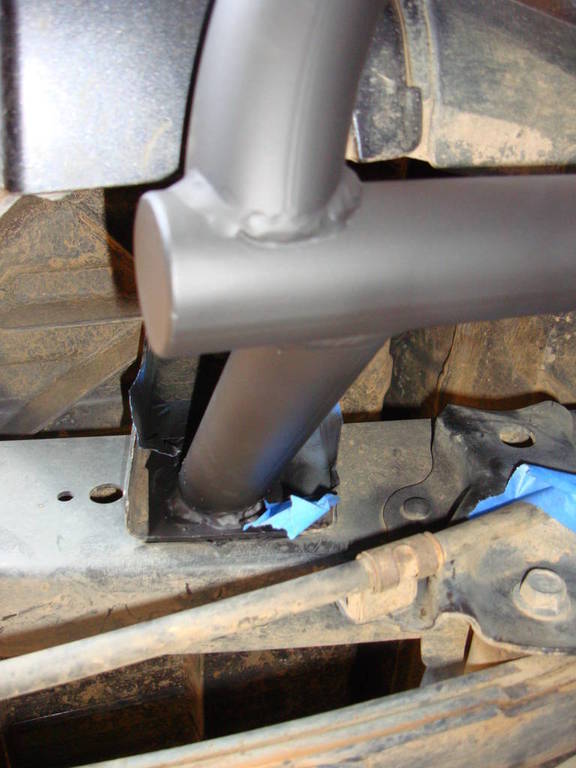

    Another unique twist is the extra support brace we welded in back. Since the DC/LB is so long, there was almost 23" past the straight frame that needed to be reinforced. Many sliders for the DC/LB have little support in the rear, and can flex quite a bit by just stepping on them. This cured that problem.

    [​IMG]
    [​IMG]

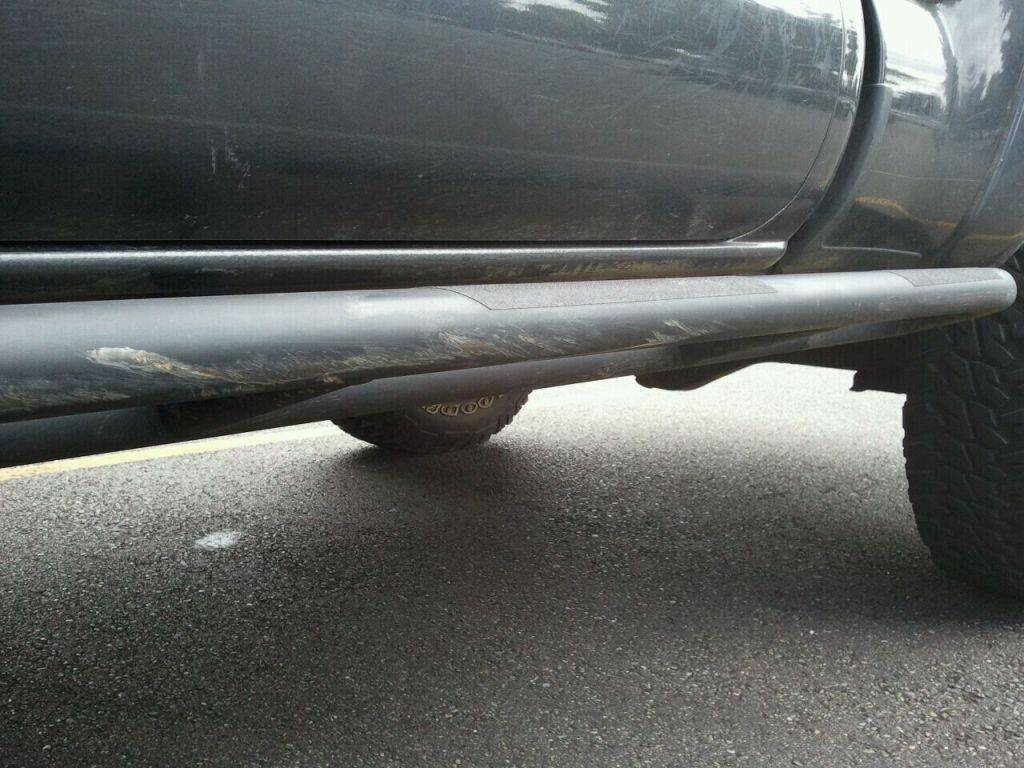

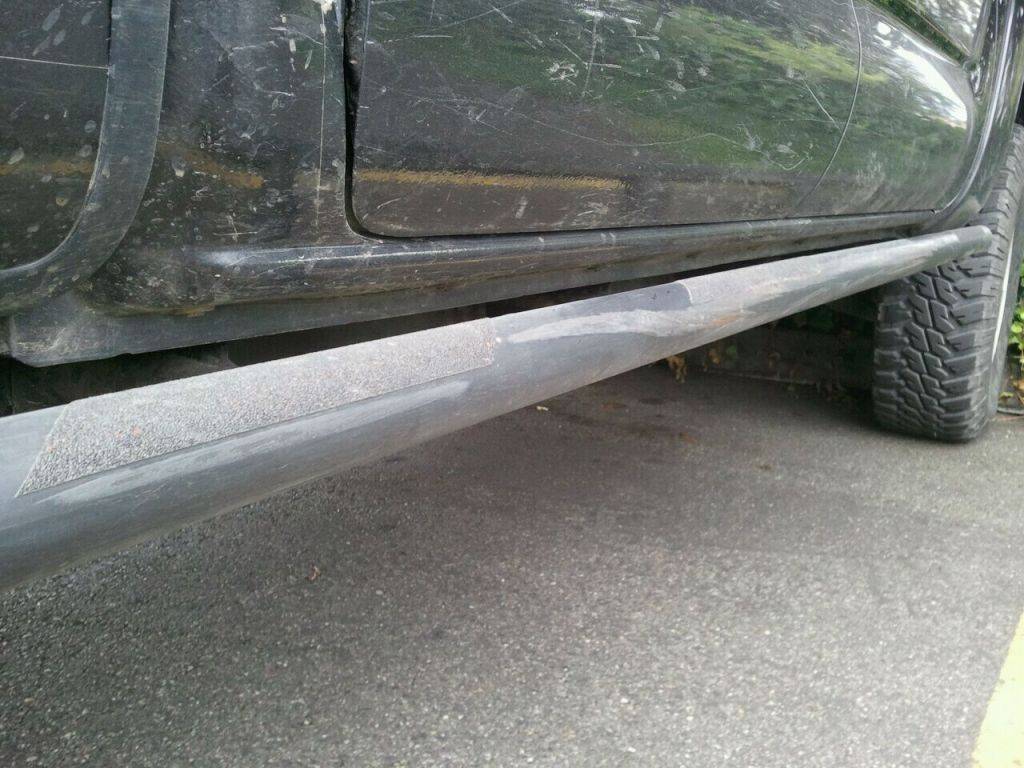

    Sanded, Primed and painted flat-black as well. I also added some 3M Traction Tape to each side.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

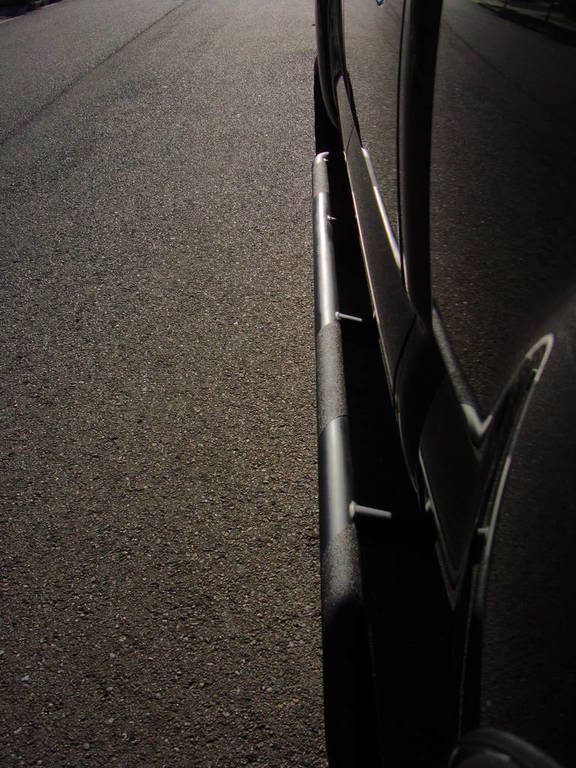

    They have already come in handy on the trails...
    [​IMG]
    [​IMG]
