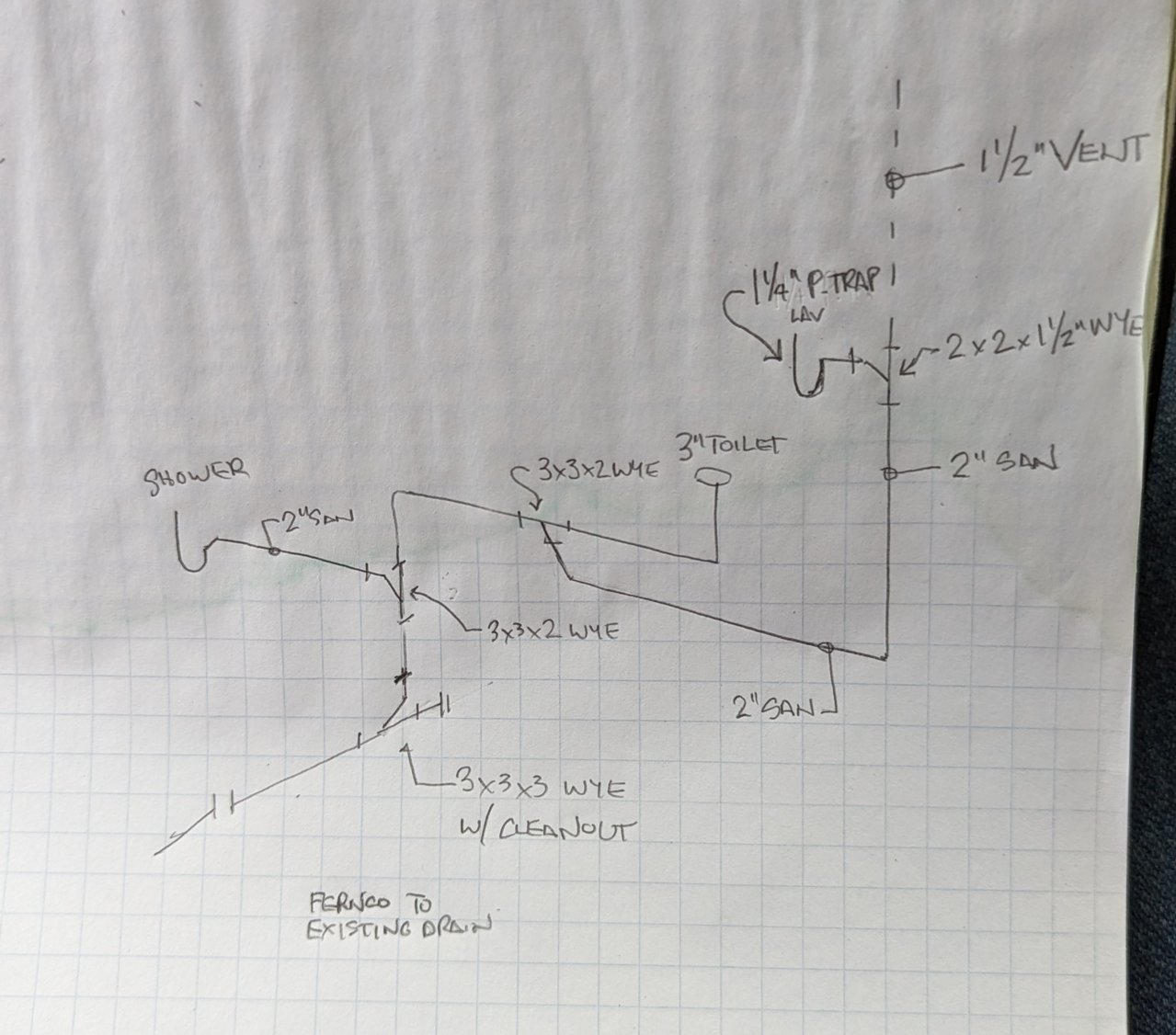

DUDE DUDE DUDE!! I SO APPRECIATE YOUR DRAWING!!!! very nice of you to do. The ONLY thing is I'd like it rendered in color and 3D but oh well...just kidding.

BUt quick question. I use the WYE's in the places you drew not sanitary T's for everything? Again...MUCH appreciated!



shower and toilet should have dedicated vent line(s) that tie into the vent stack above the lav



They don't have to be dedicated. You can wet vent a shower off the toilet.



Yeh that's what they did 80 years ago. Sink, toilet, tub all on one vent. Never had any issues with gurgling or slow draining.



It was legal until sometime in the early 90's. Then UPC made it illegal. Then they wised back up in 2005 and made it legal again. The only way that vent stops working is if there's a blockage in the main line going to the toilet. In that case the shower is the lowest point so it overfills WAY before any other fixture. It's retarded not to have it legal. lol



So I live under a canopy of oak trees, should I put a chimney type cap or screen on the vent top to prevent acorns and leaves from getting in there?



I'd put some kind of screen over it. The only time I ever had a blocked vent it ended up being a squirrel nest about 12" down the pipe from the roof. lol



It's a squirrel paradise here...lol Thanks.



The timbers in that area are over a deck that will have most of the roof area there as glass panels with some soffit as well . The rest of the roofing is standing seam metal and the southern roof exposure will have a 9KW solar pv array



I have a house that has been in the family for 63 years -- only once (around the 50 year mark) a bird built a nest in the un-screened vent line.

Fortunately there is a clean out plug at the master trap in the basement, after quite an ordeal to remove it for the first time in over 1/2 a century I pulled an impressive amount of twigs out and we were good to go.



Haha! Yeah I drew that at the stop lights on the way home from work. Didn't have access to my Crayolas.
Yes WYEs are required for the drain lines, I guess it promotes better turd flow.



Got it. Thanks. Proper turd flow IS essential!! lol



i would break out that first 90 at the top of the tee going through the wall and change to pvc from there.

i'd also re-plumb the shower to not have so many verticals...

you've really got 2 options if you pull apart the 90. either you need to cut the flange off, or you need to re-pack the pvc into the cast iron.

i had to do the second option when i re-did my bathroom, as the cast iron ran straight up for a vent-- which would require major roof work.

when i re-did my bathroom, at the advice of a plumber friend, i used black swan soil-o as a lead substitute to re-pack my new pvc pipe into the existing cast iron. most local plumbing shops stock it.
https://www.blackswanmfg.com/Category-04/Soil-O.HTML

it's held fine for the past 6 years...
