Home made bed rack

Discussion in '2nd Gen. Tacomas (2005-2015)' started by kevine, Feb 2, 2014.

  1. Feb 2, 2014 at 1:39 PM
    #1
    kevine

    kevine [OP] Well-Known Member

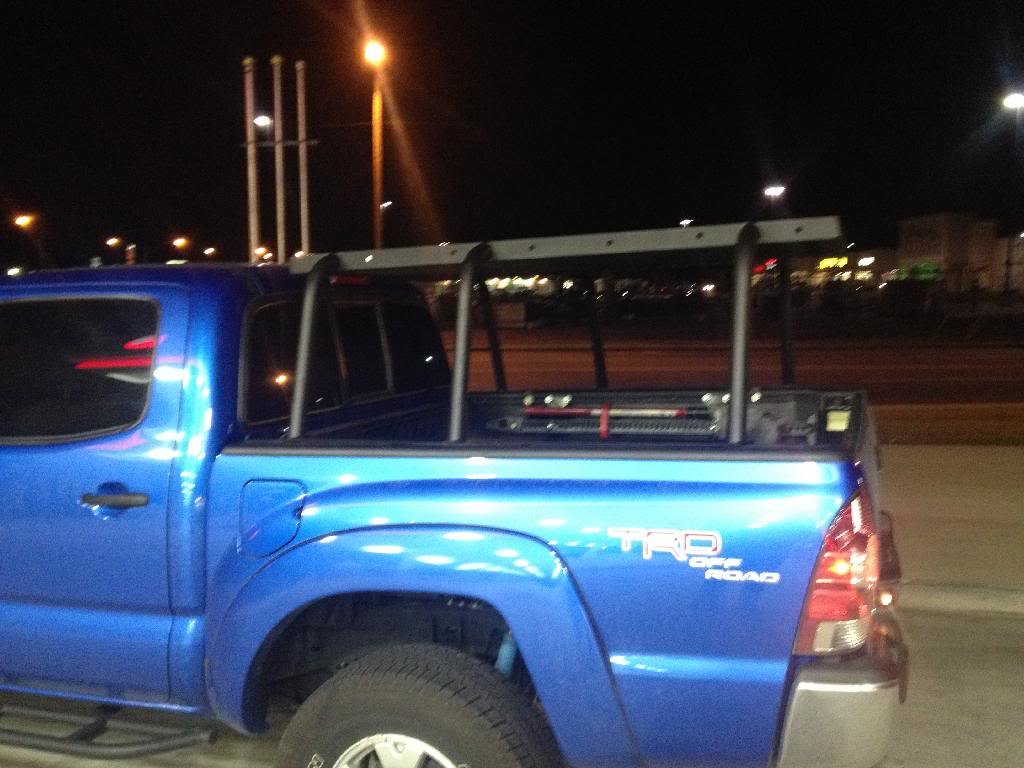

    Joined:
    Feb 1, 2009
    Member:
    #13188
    Messages:
    130
    Gender:
    Male
    Valencia, CA
    Vehicle:
    Tacoma Pre-Runner
    tinted windows

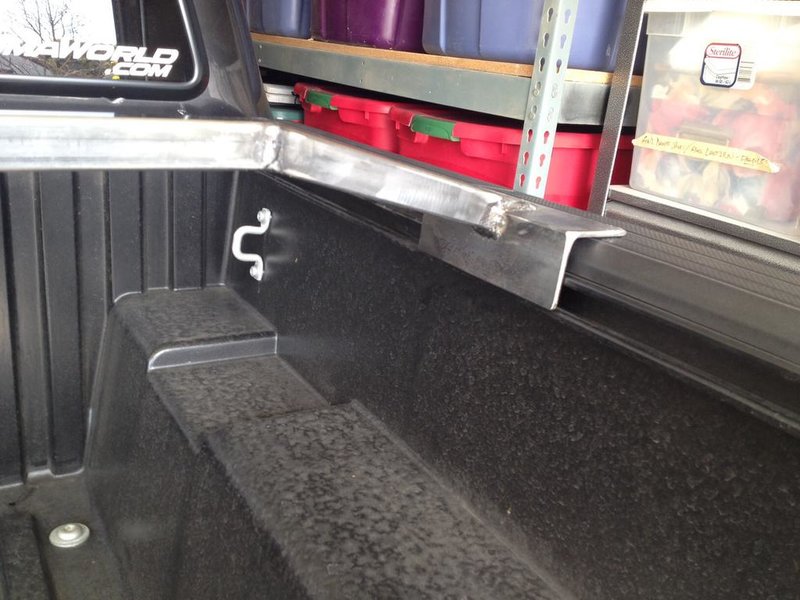

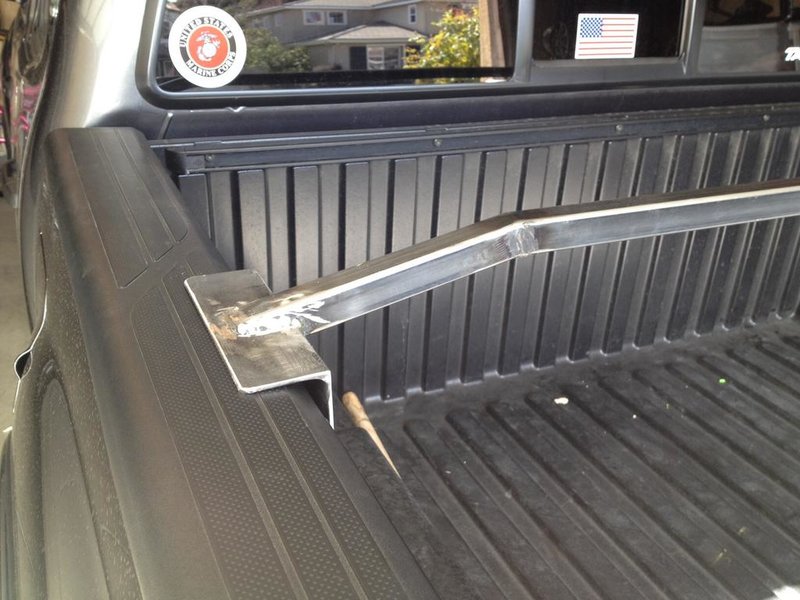

    Okay, I know my welding sucks, but damn I'm loving welding! I had a real nice RTT rack that I bought used, and then sold. With a fraction of the money, I bought some 1" square tubing and some 2" angle iron. I measured the length across the bed, notched each cross bar about 8" from each end, and then bent them so that they were level to the bottom of the rear window. That way, I can haul long pieces of 2x4, more steel, etc., through the window w/o having to rest stuff on the rubber window seal. I then notched the ends, and welded them onto 6" pieces of angle iron. I was in the middle of grinding down the welds when my (Harbor Freight) grinder died. Gotta get a new one to finish, possibly re-weld some spots, and get ready for paint. If I can't make the bed cleats hold them to the rail, I'm going to either order some T-nuts with Allen screws to anchor them, or weld some nuts to some 3/16" thick pieces of steel bar that will slide into the rail.


  2. Feb 2, 2014 at 1:40 PM
    #2
    kevine

    kevine [OP] Well-Known Member

    Joined:
    Feb 1, 2009
    Member:
    #13188
    Messages:
    130
    Gender:
    Male
    Valencia, CA
    Vehicle:
    Tacoma Pre-Runner
    tinted windows
    another pic...ipad won't let me upload more than one pic per post


  3. Feb 2, 2014 at 1:41 PM
    #3
    kevine

    kevine [OP] Well-Known Member

    Joined:
    Feb 1, 2009
    Member:
    #13188
    Messages:
    130
    Gender:
    Male
    Valencia, CA
    Vehicle:
    Tacoma Pre-Runner

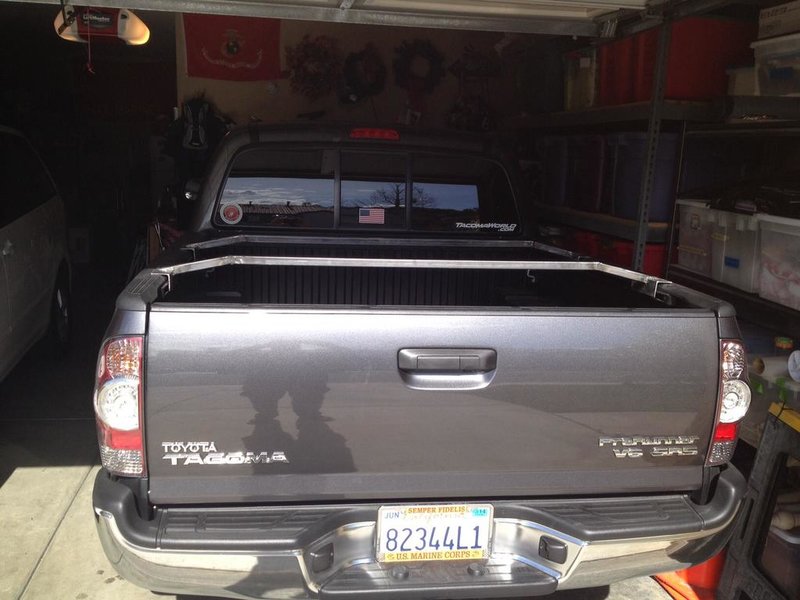

    tinted windows
    3 of 4


  4. Feb 2, 2014 at 1:42 PM
    #4
    kevine

    kevine [OP] Well-Known Member

    Joined:
    Feb 1, 2009
    Member:
    #13188
    Messages:
    130
    Gender:
    Male
    Valencia, CA
    Vehicle:
    Tacoma Pre-Runner
    tinted windows

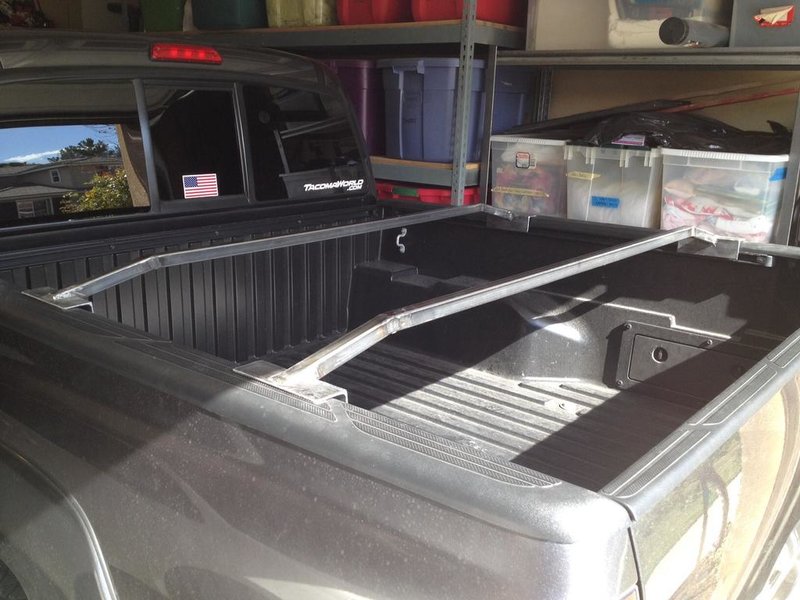

    last one


  5. Feb 2, 2014 at 1:45 PM
    #5
    Delmarva

    Delmarva Mayor of TW

    Joined:
    Oct 22, 2008
    Member:
    #10148
    Messages:
    35,578
    Gender:
    Male
    First Name:
    Mike
    Tucson, AZ
    Vehicle:
    09 TRD OR S/C 4x4
    TRD S/C, Full OME Suspension, LR UCAs, Relentless Front Bumper, Derpwerx Fab HC Rear Bumper, 285/75/16 Revos, XD Hoss Wheels, Safari Snorkel, Infiniti FX-R HID Retrofit, Airbags in rear, Optima Yellow top, Besttop, All-Pro Skid, All-Pro HD Sliders
  6. Feb 2, 2014 at 2:29 PM
    #6
    Nick82

    Nick82 Well-Known Member

    Joined:
    Mar 16, 2012
    Member:
    #75036
    Messages:
    102
    Gender:
    Male
    First Name:
    Nick
    Richmond ky
    Vehicle:
    2012 DCLB MGM 4x4 sport tow nav
    ARB winch bumper
    Looks nice, those are bad welds, once you finish your touch ups with a grinder and add a little paint it will good. What brand welder do you have mig / stick? Gas or gas less if mig. Your welder will also determine how good some if your welds will look. I started on a 10,000 dollar miller and my stuff looked great, them moved to my own 700 dollar Hobert, and initially they looked pretty ruff, but over time I was able to get it fine tuned on heat speed and gas flow and now it runs like a topend machine.

  7. Feb 2, 2014 at 2:30 PM
    #7
    Nick82

    Nick82 Well-Known Member

    Joined:
    Mar 16, 2012
    Member:
    #75036
    Messages:
    102
    Gender:
    Male
    First Name:
    Nick
    Richmond ky
    Vehicle:
    2012 DCLB MGM 4x4 sport tow nav
    ARB winch bumper
    Sorry I need to proof read better before I post. I meant to say those aren't bad welds! It looks good !

  8. Feb 2, 2014 at 2:34 PM
    #8
    woodssyndicate

    woodssyndicate Well-Known Member

    Joined:
    Sep 12, 2013
    Member:
    #112330
    Messages:
    80
    Gender:
    Male
    North Carolina
    Vehicle:
    99 3.4L 4x4 ext cab, 2011 trd sport dclb
    Not bad looking

  9. Feb 2, 2014 at 6:06 PM
    #9
    kevine

    kevine [OP] Well-Known Member

    Joined:
    Feb 1, 2009
    Member:
    #13188
    Messages:
    130
    Gender:
    Male
    Valencia, CA
    Vehicle:
    Tacoma Pre-Runner
    tinted windows
    Thanks but the welds are fugly. Strong but fugly. I'll be grinding and sanding. It's going to be perfect for the cargo basket I made.

  10. Feb 3, 2014 at 4:36 AM
    #10
    woodssyndicate

    woodssyndicate Well-Known Member

    Joined:
    Sep 12, 2013
    Member:
    #112330
    Messages:
    80
    Gender:
    Male
    North Carolina
    Vehicle:
    99 3.4L 4x4 ext cab, 2011 trd sport dclb
    I don't know how to weld so you have me beat either way. Do you have pics of your cargo basket? Definitely show pics when you have the whole thing finished and assembled.

  11. Feb 3, 2014 at 7:29 AM
    #11
    western88

    western88 Chris b.

    Joined:
    Jan 21, 2013
    Member:
    #95696
    Messages:
    424
    Gender:
    Male
    First Name:
    Chris
    ny countryside
    Vehicle:
    2014 SR5 4x4 taco Barclona Red
    beather mod Bugsheild backup light mod egr vent
    weld cutout!.. too many IP ..joking.. I used to work in the pipelines with welders looks good.. always work on straps before hitting on the project.

  12. Feb 3, 2014 at 8:19 AM
    #12
    ShortBedTX

    ShortBedTX Active Member

    Joined:
    Mar 6, 2013
    Member:
    #99165
    Messages:
    37
    Gender:
    Male
    Setx
    Vehicle:
    Bigdaddie 13
    looks good or functional for the most part. im going to make one similar thanks for posting

  13. Feb 3, 2014 at 12:05 PM
    #13
    kevine

    kevine [OP] Well-Known Member

    Joined:
    Feb 1, 2009
    Member:
    #13188
    Messages:
    130
    Gender:
    Male
    Valencia, CA
    Vehicle:
    Tacoma Pre-Runner
    tinted windows
    Thanks for the tips and words of encouragement. I've already tried to beat the welds with a 5 lb sledge, so I know they're strong, especially since it's not for an RTT, just a cargo basket to hold sleeping bags, duffle bags, occasional bundles of firewood, etc. when I go camping. Probably never exceed 150 lbs. Now the question is, do I purchase T-nuts (http://www.use-enco.com/1/1/85445-tapped-black-oxide-carbon-steel-t-slot-nuts.html) or just buy some 1/4" thick steel bar, and weld nuts to it, to be able to anchor it into the bed rail? Any thoughts on this TW?

    I made the basket from left over electrical conduit. I found a video on Youtube of a guy making it with rivets. I went ahead and used screws with lockwashers and nuts, and then, ended up welding it as well. It's also fugly, but strong and will serve the purpose of hauling gear. Best thing is, the conduit was free, so my total investment was about $8 for the screws, nuts and washers! I just finished painting it. Once I paint/coat the bed rack, I'll mount and post some finished pics.

  14. Feb 3, 2014 at 12:17 PM
    #14
    lowinhz

    lowinhz Well-Known Member

    Joined:
    Feb 26, 2011
    Member:
    #51874
    Messages:
    1,444
    Gender:
    Male
    First Name:
    Papa Kurt
    Dandridge Tn
    Vehicle:
    11 DC SB 4x4 v6
    Billies@ 2.5, 2inch blocks, front hitch, xrc 8k winch on portable mount, 10 sub behind seat, Memphis amp, pioneer touch radio, cobra cb, 235/85/r16 duratracs with black rims, high lift jack, tint, remote start alarm, hella 500 lights, car seat
    Looks good I just finished this.
    [​IMG]
    It was a beast. Taylor nuts I found at fastnel for like 12 bucks each. Ouch. Looks good and on the cheap way to go.

  15. Feb 3, 2014 at 12:24 PM
    #15
    kevine

    kevine [OP] Well-Known Member

    Joined:
    Feb 1, 2009
    Member:
    #13188
    Messages:
    130
    Gender:
    Male
    Valencia, CA
    Vehicle:
    Tacoma Pre-Runner
    tinted windows
    That looks sweet!

  16. Feb 5, 2014 at 9:20 PM
    #16
    BeeeCeee

    BeeeCeee Active Member

    Joined:
    Nov 12, 2013
    Member:
    #116405
    Messages:
    30
    Gender:
    Male
    First Name:
    Ben
    Bay Area, CA
    Vehicle:
    '13 Black Taco Dbl Cab TRD Off Road
    Very nice fellas! I wished I knew how to weld. I just purchased some crossbars from Relentless Fab. Still looking around for a basket for every day use and hopefully get a RTT when a group buy happens.

  17. Feb 9, 2014 at 7:47 PM
    #17
    kevine

    kevine [OP] Well-Known Member

    Joined:
    Feb 1, 2009
    Member:
    #13188
    Messages:
    130
    Gender:
    Male
    Valencia, CA
    Vehicle:
    Tacoma Pre-Runner
    tinted windows

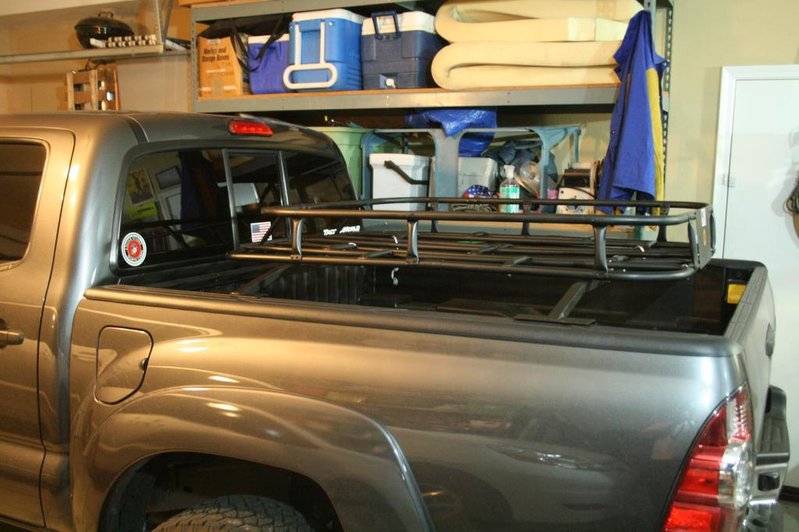

    Okay, I finished the bed rack, and used a material, similar to Line-X (not as strong) that you paint on. The cargo basket was made with EMT tubing that had been left in our garage by the prior owner of the house. It took about 5 pieces. I flattened the ends of the straight pieces, drilled hole and used a screw with lockwasher and nut. After getting it all sanded, etc., I ended up welding all the connections on the basket, primering and painting. Attached it to the bed rack with u-bolts, with lockwashers and nuts.

    The bed rack sits just about the same level as the bottom of the rear sliding window, so if I have to pick up long piping, 2x4's, etc., I can feed them through the window and strap them to the bed rack.


  18. Feb 9, 2014 at 7:59 PM
    #18
    nettto

    nettto Active Member

    Joined:
    Nov 3, 2012
    Member:
    #90423
    Messages:
    37
    Gender:
    Male
    First Name:
    Jason
    San Diego
    Vehicle:
    2013 Tacoma 2.7l
  19. Feb 9, 2014 at 9:51 PM
    #19
    12thmanhawkfan

    12thmanhawkfan Well-Known Member

    Joined:
    Mar 13, 2013
    Member:
    #99628
    Messages:
    310
    Gender:
    Male
    First Name:
    Robby
    Bellingham, WA
    Vehicle:
    Access Cab 6-speed
    5100's all around, Old Man Doug Leafs, 285/75/16 Duratracks,Home made satoshi grill, Hella 700s, dipped badges and wheels, Leer canopy w/ yakima racks, Midland CB, Hold Fast Fab IFS skid, BAMF sliders
    The finished product looks great OP!

  20. Feb 10, 2014 at 3:34 AM
    #20
    woodssyndicate

    woodssyndicate Well-Known Member

    Joined:
    Sep 12, 2013
    Member:
    #112330
    Messages:
    80
    Gender:
    Male
    North Carolina
    Vehicle:
    99 3.4L 4x4 ext cab, 2011 trd sport dclb
    I like it man, looks good
