Home Made Secondary Fuse Block

Discussion in '2nd Gen. Tacomas (2005-2015)' started by MikeyD, Apr 28, 2010.

  1. Apr 28, 2010 at 2:16 PM
    #1
    MikeyD

    MikeyD [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19233
    Messages:
    818
    Gender:
    Male
    First Name:
    Mike
    Sayreville NJ
    Vehicle:
    2007 Toyota tacoma 4x4
    BHLM, HID kit, yellow fogs, Grill craft, Hellas behind grillcraft, LED cup holder mod, after market horn, extra reverse lights, under body glow for off roading at night, pro comp 7089's wrapped in 255/75/17 bfg mud terrains, Toytec coiovers sat at 3.25, 2" add a leaf with 5100's, Satoshi grill mod

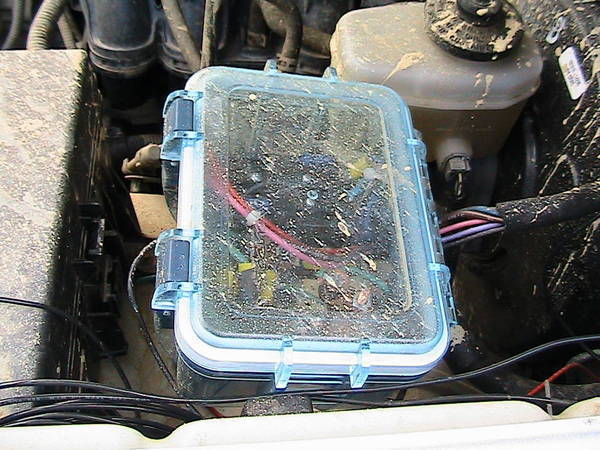

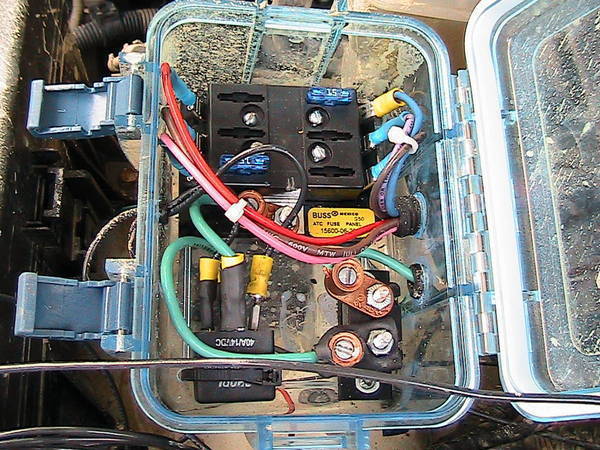

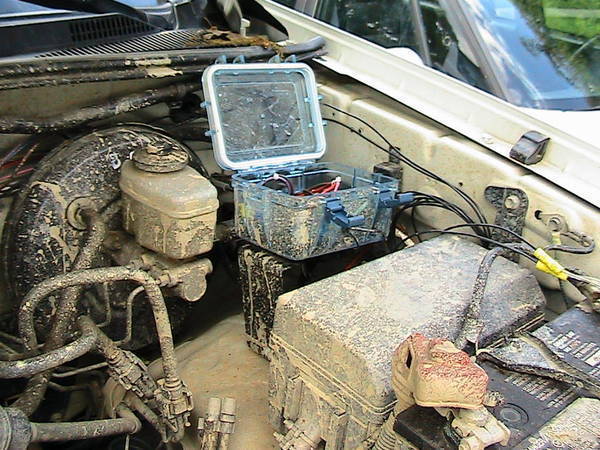

    Just made a secondary fuse block. I bought a waterproof container that i used as the housing. I drilled two holes and inserted rubber grommets in the side so wires can go in and out. I then ran a 10 gauge wire from the positive terminal into the box. That ten gauge wire then went to a 12V 40 amp circuit breaker. Then into a 12V 40 amp relay. The relay is powered by a fuse tap that i ran from the original fuse block. I test the slot where i inserted the fuse tap to make sure it only comes on when the truck is turned on. After the 10 gauge wire came out of the relay it then went to a 6 circuit fuse block that i bought at Autozone for $6. I then ran 6 different color wires out of the fuse block into the cab of my truck. I drilled two new holes and inserted grommets so i can run the wires into my cab. So now i have no more mess of wires. Each add on has its own color wire. The fuse block only turns on when the truck turns on and automatically turns off when the truck is turned off. And its water proof. All for a total cost of $16. How do you guys think i did?

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. Apr 28, 2010 at 2:28 PM
    #2
    afd23a

    afd23a Well-Known Member

    Joined:
    Sep 26, 2008
    Member:
    #9483
    Messages:
    1,838
    Gender:
    Male
    The Dynamo of Dixie
    Vehicle:
    05 Access Cab 5 Lugger
    Factory Fog Lights, Removed Secondary Air Filter, Metra Ipod Adapter, Int Wiper Stalk, Wet Okole's, URD Short Shifter, Scanguage II w/Blendmount, Fat Bob's 2.75" spacer lift, ARE topper, SP Performance Pads & Slotted Rotors, 4.10 gears
    looks pretty good :thumbsup:

  3. Apr 28, 2010 at 2:30 PM
    #3
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    10,564
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, BAMF bed rack, RTT, dual battery, OBA, ARB locker, 4.56 gears
    whoa that's muddy! Good to see none of your wiring got dirty :)

  4. Apr 28, 2010 at 2:32 PM
    #4
    nad

    nad mmmm tacos!

    Joined:
    May 18, 2009
    Member:
    #17388
    Messages:
    3,075
    Gender:
    Male
    First Name:
    Jordan
    Canada
    Vehicle:
    2014 Sierra All Terrain
    nice, but you really need to clean your engine bay thats nasty

  5. Apr 28, 2010 at 3:09 PM
    #5
    MikeyD

    MikeyD [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19233
    Messages:
    818
    Gender:
    Male
    First Name:
    Mike
    Sayreville NJ
    Vehicle:
    2007 Toyota tacoma 4x4
    BHLM, HID kit, yellow fogs, Grill craft, Hellas behind grillcraft, LED cup holder mod, after market horn, extra reverse lights, under body glow for off roading at night, pro comp 7089's wrapped in 255/75/17 bfg mud terrains, Toytec coiovers sat at 3.25, 2" add a leaf with 5100's, Satoshi grill mod
    Thanks, and yes i do need to clean my engine bay. Im just scared to use a hose on it. I think im going to try and do it by hand first and see how it comes.

  6. Apr 28, 2010 at 3:14 PM
    #6
    silver07taco

    silver07taco Well-Known Member

    Joined:
    Apr 27, 2008
    Member:
    #6241
    Messages:
    4,554
    Gender:
    Male
    First Name:
    COIL
    Maryland
    Vehicle:
    13 Tundra RCSB 5.7 4x4,07 Tacoma AC 4.0 4x4
    2013 Tundra RCSB 5.7 4x4, 2007 Tacoma AC 4.0 4x4
    Nice work!, I would have used something bigger then 10 gauge wire for power, But I guess that depends what your running off the fuse block.

  7. Apr 28, 2010 at 3:21 PM
    #7
    Anathollo

    Anathollo www.saveadane.org

    Joined:
    Feb 25, 2009
    Member:
    #14071
    Messages:
    1,295
    Gender:
    Male
    Houston
    Vehicle:
    07 Tacoma TRD Sport
    Icon coilovers, Rear Fox Resi-shocks, 285/70/17 Toyo A/T's, Touchscreen JVC Headunit, Custom Rhino-lined sub box, Rocksford Fosgate components and Dual Rockford Fosgate 10" shallow subs, Pioneer and Rocksford Fosgate amps, 1250 watts total, Autometer Volt and Trans gauges with Lotek A-pillar, K&N Drop-in filter, WO Seat covers, Tint, NST WP pulley, Hi-lift jack, Diff breather mod, horn relocation mod, extra "D" rings, de-pinstriped, carrier bearing drop, Rear backup 886 bulbs, Camburg UCA's, AMW Catch can, BHLM, OME Dakars with AAL, Procomp 7089's, Front single hoop Demello bumper, Superwinch Tiger Shark 9500, Amsteel 3/8th synthetic line
    Nice Job!

    Well on a Cold engine, spray it down with simple green, let it soak in for a bit(I usually clean out my interior, vacuum and armorall everything) and then I spray down the engine with a garden hose. I've been doing it for years with no problem. :thumbsup:

  8. Apr 28, 2010 at 3:24 PM
    #8
    maconhurler

    maconhurler Well-Known Member

    Joined:
    Oct 23, 2009
    Member:
    #24793
    Messages:
    108
    Gender:
    Male
    Harrisonburg, VA
    Vehicle:
    04 4wd v6 sr5
    Deckplate Mod, Catz Fog lights, Roll Top Tonneau Cover, Pioneer Premier 800prs HU, 10" Kicker L7, Kicker 5 1/4 components, Polk dB 5x7s, Oznium superflux puddle lights and bed lights
    I agree with the Simple Green. I worked in a wash bay at a dealership years ago and thats what we used to clean everything except the windows. Spray it, let it sit, spray it off, repeat if needed....beautiful.

  9. Apr 28, 2010 at 3:31 PM
    #9
    Sphinxii

    Sphinxii New Member

    Joined:
    May 3, 2009
    Member:
    #16720
    Messages:
    2
    Gender:
    Male
    Everett WA
    Vehicle:
    07 Tacoma
    I installed this aux fuse box a few years ago, it's holding up nicely so far.

    [​IMG]

  10. Apr 28, 2010 at 3:51 PM
    #10
    SManZ

    SManZ el tráfico más lento se queda derecha

    Joined:
    Sep 15, 2009
    Member:
    #22817
    Messages:
    1,347
    Gender:
    Male
    Centreville, VA
    Vehicle:
    '10 Supercharged 4x4 Sport 6-spd
    TRD Supercharger, King 2.5" extended travel remote-resi coilovers, OME Dakar leaf packs, King 2.5" extended travel rear shocks, Total Chaos UCAs, MBRP turndown exhaust, TRD intake, TRD Quickshifter, Goodridge SS brake lines, EBC Sport Rotors, Hawk HPS pads, TRD FJ Cruiser Special Edition 16" Anthracite Rims, Spidertrax wheel spacers, 265/75R16 A/T, Autometer oil pressure, oil temp gauges, TRD boost gauge, PLX DM-100 OBD II scanner, flexpod mounts, A-pillar gauge pods
    Nice Job Mikey!

    I've been thinking about something similar, just haven't found the right parts yet. The relay add-in is very cool!

  11. Apr 28, 2010 at 4:05 PM
    #11
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,330
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Very good and inexpensive!

    I have a question. Your 40A relay in the waterproof box...It has a wire that runs to the factory fuse box... What is being used to sense the "ON" condition?

    Thanks.

  12. Apr 28, 2010 at 4:16 PM
    #12
    MikeyD

    MikeyD [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19233
    Messages:
    818
    Gender:
    Male
    First Name:
    Mike
    Sayreville NJ
    Vehicle:
    2007 Toyota tacoma 4x4
    BHLM, HID kit, yellow fogs, Grill craft, Hellas behind grillcraft, LED cup holder mod, after market horn, extra reverse lights, under body glow for off roading at night, pro comp 7089's wrapped in 255/75/17 bfg mud terrains, Toytec coiovers sat at 3.25, 2" add a leaf with 5100's, Satoshi grill mod
    The empty fuse slot that i inserted a fuse tap from is only powered when the vehicle turns on. I used a voltage tester to test what one comes on as the truck turns on. After testing a few that were on all the time i found one that only was powered when the vehicle was on. I inserted the fuse tap into that slot ran it to the relay and then the wire that comes out of the relay grounded. Now the relay turns on when the truck turns on. Only giving power to the secondary fuse block when the truck is on. Does that explain it?

  13. Apr 28, 2010 at 5:03 PM
    #13
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,330
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    MikeyD, I was unaware of any switched power inside the fuseblock area. I'm going to PM you so you can possibly clarify for me. This would come in very handy for a lot of other mods.

  14. Apr 28, 2010 at 6:37 PM
    #14
    MikeyD

    MikeyD [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19233
    Messages:
    818
    Gender:
    Male
    First Name:
    Mike
    Sayreville NJ
    Vehicle:
    2007 Toyota tacoma 4x4
    BHLM, HID kit, yellow fogs, Grill craft, Hellas behind grillcraft, LED cup holder mod, after market horn, extra reverse lights, under body glow for off roading at night, pro comp 7089's wrapped in 255/75/17 bfg mud terrains, Toytec coiovers sat at 3.25, 2" add a leaf with 5100's, Satoshi grill mod
    Hope the PM i sent you helped

  15. Apr 28, 2010 at 7:00 PM
    #15
    MikeyD

    MikeyD [OP] Well-Known Member

    Joined:
    Jul 3, 2009
    Member:
    #19233
    Messages:
    818
    Gender:
    Male
    First Name:
    Mike
    Sayreville NJ
    Vehicle:
    2007 Toyota tacoma 4x4
    BHLM, HID kit, yellow fogs, Grill craft, Hellas behind grillcraft, LED cup holder mod, after market horn, extra reverse lights, under body glow for off roading at night, pro comp 7089's wrapped in 255/75/17 bfg mud terrains, Toytec coiovers sat at 3.25, 2" add a leaf with 5100's, Satoshi grill mod
    Thanks im going to have to try this soon. My engine bay is in need of a washing badly.
