Homelink Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by toglide, Jul 10, 2011.

  1. Jul 10, 2011 at 4:22 PM
    #1
    toglide

    toglide [OP] Member

    Joined:
    Mar 16, 2010
    Member:
    #33392
    Messages:
    12
    Gender:
    Male
    First Name:
    Ron
    Orange County, California
    Vehicle:
    09 long bed double cab 4x4
    homelink, USB ports

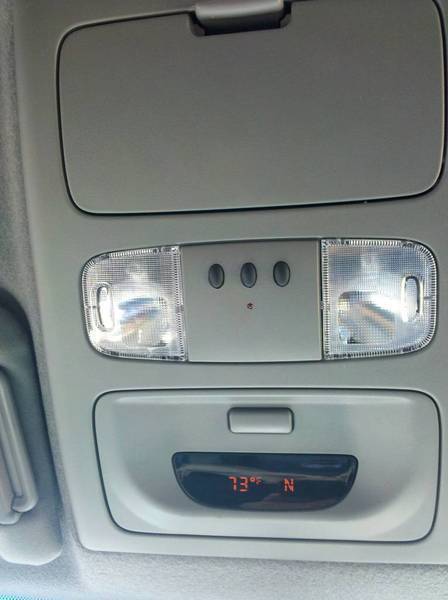

    Well it took me a little time but I finally installed the Homelink remote I got off Ebay.

    [​IMG]

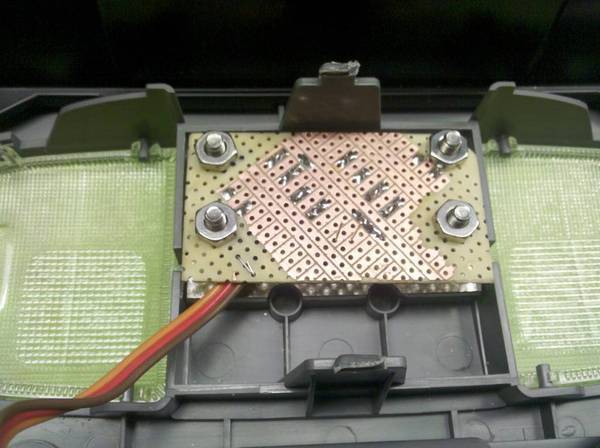

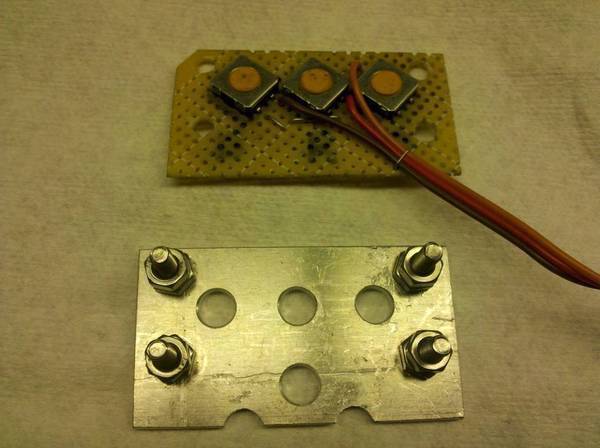

    Mounting plate for the PC board and switches. This was just glued in place with epoxy.

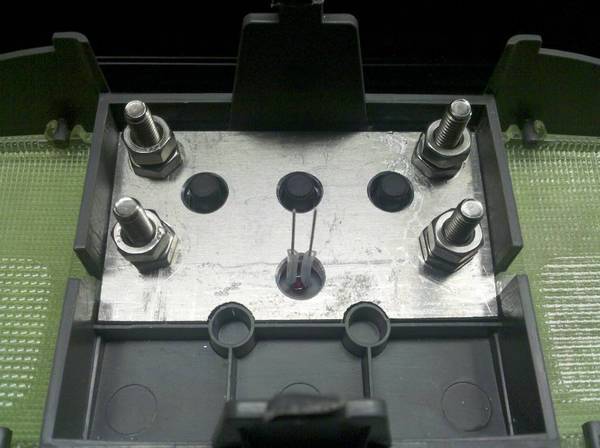

    [​IMG]

    Here is the part # for the switches is used

    Mouser # 653-B3W-4005

    [​IMG]







    [​IMG]

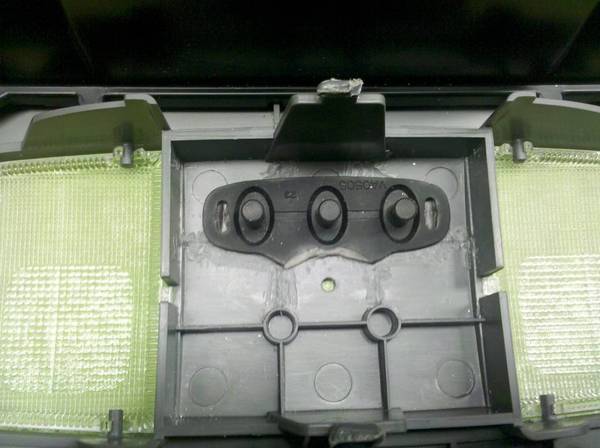

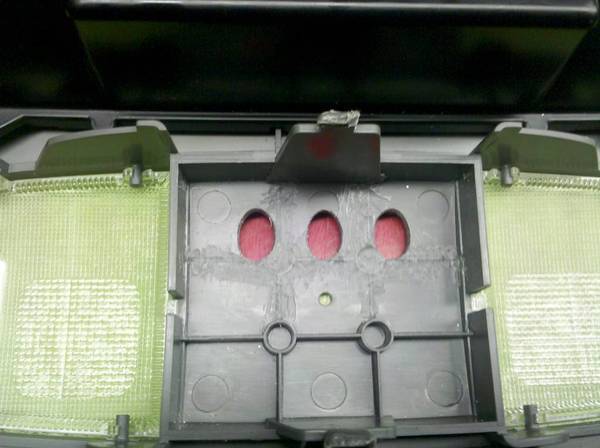

    I reused the nice rubber buttons that came with the homelink unit and carefully cut the holes. This was the hardest part. I just took my time and did it right the first time.

    [​IMG]

    [​IMG]

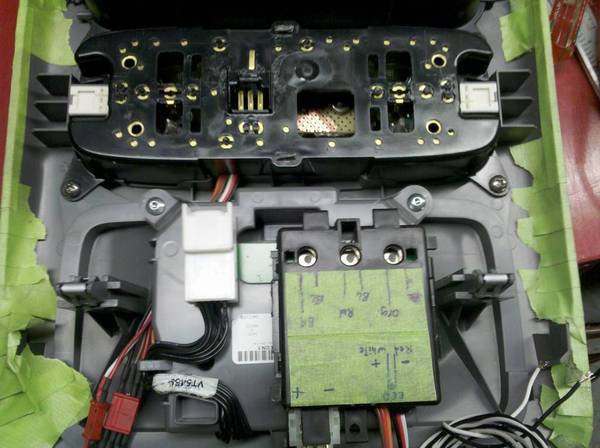

    I used this link for wiring the new switches and just tapped into the map light wires for power.

    http://www.lieblweb.com/homelink.html

    [​IMG]

    Dj Suisav likes this.
  2. Jul 10, 2011 at 5:51 PM
    #2
    wing103

    wing103 Well-Known Member

    Joined:
    Jul 8, 2008
    Member:
    #7807
    Messages:
    1,130
    Gender:
    Male
    Boston
    Vehicle:
    Tacoma TRD Sport / Dark Gray
    Grill Craft upper & Lower Grill WetOK Seat Cover, Devil Horn, Bug, Windows Deflector, Side step Bar, HID 55W 8000K Headlight, HID 35W 4000K Foglight, Fog Light Mod, Interior LED Map Light Mod, Electric Tail Gate Lock, Leer Cab, Key ring light, Bed LED lights Mod, Kenwood DNX5120, Signal Mirror with Heat
    Great Job!!!!!!!

    Can you post a link here for the homelink that you purchasing on ebay?

  3. Jul 10, 2011 at 7:44 PM
    #3
    Mitch

    Mitch Somebody call for a Wambulance?

    Joined:
    Jun 27, 2011
    Member:
    #58964
    Messages:
    5,594
    Gender:
    Male
    First Name:
    Mitch
    Tigard, OR
    Vehicle:
    2007 Access Cab SR5 4x4
    Lights, Siren, Drugs, Needles, Electricity
    Thats really clean. I don't see why Toyota doesn't put this in stock

  4. Jul 10, 2011 at 8:19 PM
    #4
    myname150

    myname150 Well-Known Member

    Joined:
    Jul 5, 2010
    Member:
    #39827
    Messages:
    1,351
    Gender:
    Male
    I don't know about 09 and after...

    but in my 08, there's a compartment where the compass and temp would be and you could velcro in a garage opener there and push the button from outside the compartment.

  5. Jul 10, 2011 at 9:38 PM
    #5
    prae

    prae Well-Known Member

    Joined:
    May 14, 2009
    Member:
    #17222
    Messages:
    154
    Gender:
    Male
    Calgary, AB
    Vehicle:
    06 4x4 SR5 BSP DCLB
    Bilstein 5100s, eibach springs, AAL, TRD anthracite FJC rims, PIAA Fogs, Pace-Edwards hard rolling tonneau
    wow! cleanest install i've seen to date. very nicely done.

  6. Jul 11, 2011 at 1:40 PM
    #6
    toglide

    toglide [OP] Member

    Joined:
    Mar 16, 2010
    Member:
    #33392
    Messages:
    12
    Gender:
    Male
    First Name:
    Ron
    Orange County, California
    Vehicle:
    09 long bed double cab 4x4
    homelink, USB ports
    Here is a picture of the homelink transmitter I got from EBay. There is two types rolling code and Non rolling code. The rolling code transmitter will do both so that's what I got. Just two wires. Positive and a negative.
    Also I put a few more pictures in my members gallery if your interested.


    [​IMG]

  7. Jul 11, 2011 at 3:52 PM
    #7
    prae

    prae Well-Known Member

    Joined:
    May 14, 2009
    Member:
    #17222
    Messages:
    154
    Gender:
    Male
    Calgary, AB
    Vehicle:
    06 4x4 SR5 BSP DCLB
    Bilstein 5100s, eibach springs, AAL, TRD anthracite FJC rims, PIAA Fogs, Pace-Edwards hard rolling tonneau
    does the seller offer these still? I'd be somewhat interested.

  8. Jul 11, 2011 at 4:47 PM
    #8
    Eurosport

    Eurosport Well-Known Member

    Joined:
    Sep 5, 2010
    Member:
    #42772
    Messages:
    438
    Gender:
    Male
    how much do you want to do mine for? :D i can mail in my piece

  9. Jul 11, 2011 at 6:10 PM
    #9
    toglide

    toglide [OP] Member

    Joined:
    Mar 16, 2010
    Member:
    #33392
    Messages:
    12
    Gender:
    Male
    First Name:
    Ron
    Orange County, California
    Vehicle:
    09 long bed double cab 4x4
    homelink, USB ports
    There is a few people that sell them on eBay. I just was looking for the best price.
    You could just go to the wrecking yard and pull one your self but I could tell you what car it was pulled from.

  10. Jul 11, 2011 at 6:20 PM
    #10
    toglide

    toglide [OP] Member

    Joined:
    Mar 16, 2010
    Member:
    #33392
    Messages:
    12
    Gender:
    Male
    First Name:
    Ron
    Orange County, California
    Vehicle:
    09 long bed double cab 4x4
    homelink, USB ports
    Just posted this so you guys could see how to do it yourself. But if you have any questions
    I'll be happy to help where I can.

  11. Jul 11, 2011 at 9:38 PM
    #11
    magmd

    magmd Active Member

    Joined:
    Jun 27, 2011
    Member:
    #58966
    Messages:
    30
    Gender:
    Male
    Wow...that is nice and clean. Thanks for posting. Definitely will go on my to do list!!

  12. Jul 19, 2011 at 12:17 AM
    #12
    Mitch

    Mitch Somebody call for a Wambulance?

    Joined:
    Jun 27, 2011
    Member:
    #58964
    Messages:
    5,594
    Gender:
    Male
    First Name:
    Mitch
    Tigard, OR
    Vehicle:
    2007 Access Cab SR5 4x4
    Lights, Siren, Drugs, Needles, Electricity

    My 07 has that compartment also, but the homelink allows multiple doors

  13. Sep 14, 2011 at 8:12 PM
    #13
    kngpyn

    kngpyn New Member

    Joined:
    Sep 8, 2011
    Member:
    #63125
    Messages:
    2
    Gender:
    Male
    First Name:
    Dean
    McKinleyville
    Greetings! I am new and this is my first post. I got my 11 Tacoma about 6 weeks ago and this is my first project. With the exception of replacing a taillight that somebody busted out and left for me to find on my own. Anyway, I digress. This is very cool and I am working on mine tonight. Console is out and on the workbench, board is cut and wires are ready to go, figured I should call it a night before I made I mistake cause I was tired. Thanks for the post, this is the best I have seen.

  14. Sep 15, 2011 at 9:42 AM
    #14
    toglide

    toglide [OP] Member

    Joined:
    Mar 16, 2010
    Member:
    #33392
    Messages:
    12
    Gender:
    Male
    First Name:
    Ron
    Orange County, California
    Vehicle:
    09 long bed double cab 4x4
    homelink, USB ports
    Glad you like it. I think if I was to do it again I would have put two remotes in and six buttons.

  15. Sep 15, 2011 at 3:10 PM
    #15
    kngpyn

    kngpyn New Member

    Joined:
    Sep 8, 2011
    Member:
    #63125
    Messages:
    2
    Gender:
    Male
    First Name:
    Dean
    McKinleyville
    I got a small red LED @ 3.5 volts and larger one @ 12 volts. I want to use the smaller one, what was the voltage rating on the one you used? I cant imagine it is putting 12 volts to that LED, but I could be wrong.

  16. Sep 16, 2011 at 6:32 AM
    #16
    toglide

    toglide [OP] Member

    Joined:
    Mar 16, 2010
    Member:
    #33392
    Messages:
    12
    Gender:
    Male
    First Name:
    Ron
    Orange County, California
    Vehicle:
    09 long bed double cab 4x4
    homelink, USB ports
    What I did was measure the voltage coming off of the original led and from what I remember it was about 3 volts.

  17. Sep 17, 2011 at 12:42 AM
    #17
    biborado

    biborado Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27707
    Messages:
    96
    Gender:
    Male
    First Name:
    Stephen
    San Diego, CA
    Vehicle:
    2010 TRD Off-Road 4x4
    I'm looking to do the same thing except using the homelink out of a 4runner. It looks like with a little modification, it would be a remove and replace deal...even down to using the existing plug. Anyone brave enough to try it out?

    Where I got the idea from: http://www.toyota-4runner.org/sale-t4r-items/94231-f-s-4th-gen-homelink-sunroof-console.html

    Disregard the sunroof switch, you can get the console without a sunroof switch unless you wanted to use it for something else (winch?)
    http://www.toyota-4runner.org/sale-t4r-items/94231-f-s-4th-gen-homelink-sunroof-console.html

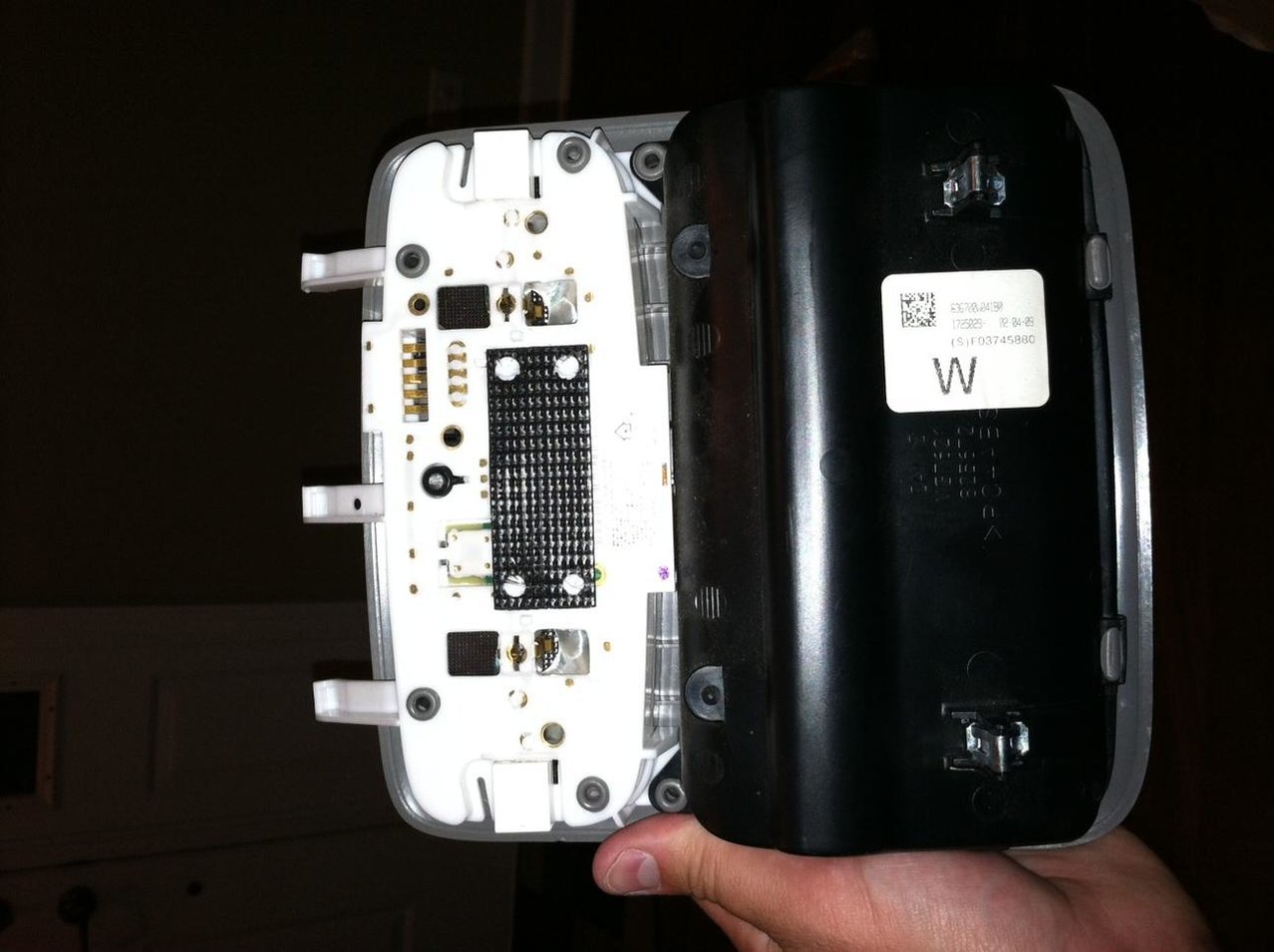

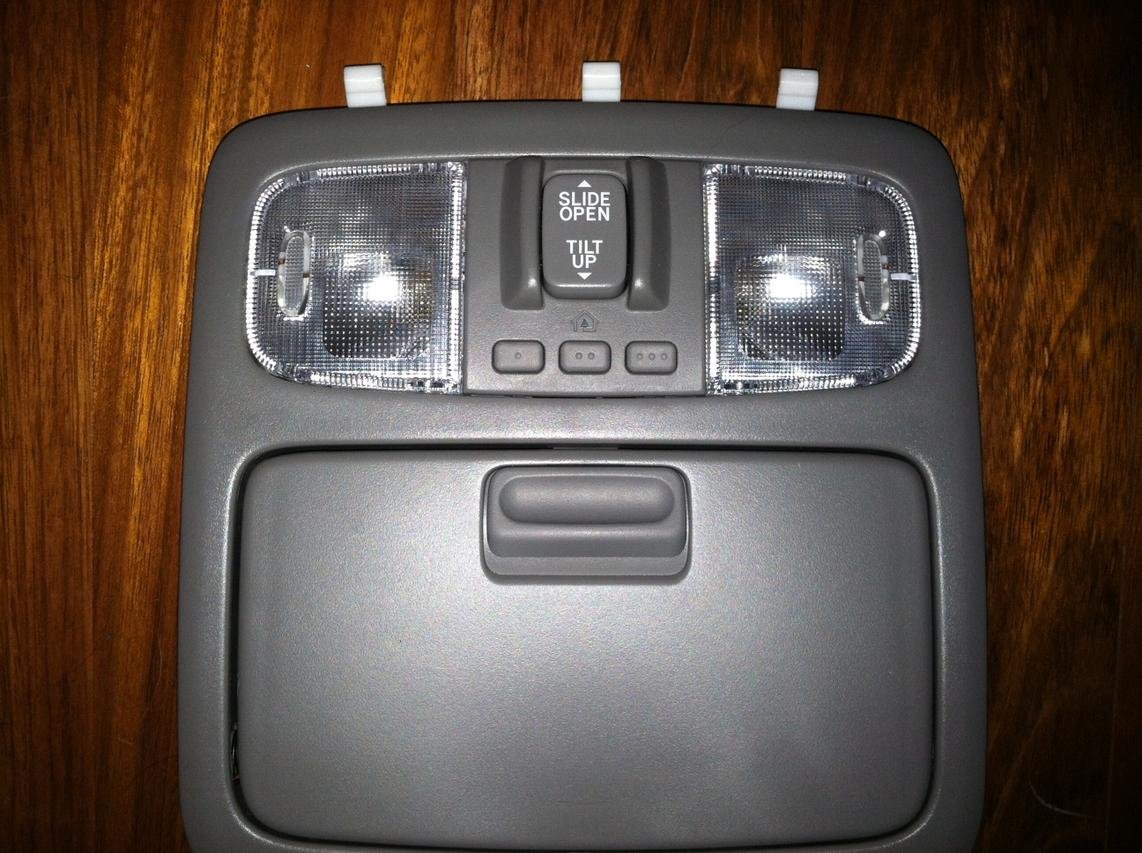

    [​IMG]
    [​IMG]
    [​IMG]

  18. Oct 24, 2012 at 8:48 PM
    #18
    rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,554
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    Good to know that Toyota is paying attention to what the Toyota owners are wanting.

  19. Jan 27, 2014 at 7:11 AM
    #19
    Taco John

    Taco John Well-Known Member

    Joined:
    May 17, 2009
    Member:
    #17305
    Messages:
    174
    Gender:
    Male
    Illinois
    Vehicle:
    4X4
    How did you cut the holes?

  20. Jan 27, 2014 at 7:34 AM
    #20
    toglide

    toglide [OP] Member

    Joined:
    Mar 16, 2010
    Member:
    #33392
    Messages:
    12
    Gender:
    Male
    First Name:
    Ron
    Orange County, California
    Vehicle:
    09 long bed double cab 4x4
    homelink, USB ports
    I used the home link remote holes as a template. Sand the back side of the home link remote cover flat. This makes a perfect template. Then tape it into place, mark holes with a scribe. Then carefully with a dremel tool cut the new holes in the toyota part. I would say this is the hardest part because this is the part that everyone is going to see and you only really get one shot at it. There is more pictures of the process in my profile.

    By the way my home link install is still working great!

    Last edited: Jan 27, 2014
