Homelink Mirror help needed please...

Discussion in 'Technical Chat' started by AlexForbesR6, Mar 3, 2010.

  1. Mar 3, 2010 at 7:04 PM
    #1
    AlexForbesR6

    AlexForbesR6 [OP] My R6 Eats Me

    Joined:
    Aug 20, 2009
    Member:
    #21488
    Messages:
    612
    Gender:
    Male
    First Name:
    Alex
    Houston, TX
    Vehicle:
    07 4x4 6-Spd
    So i might be trading rear view mirrors with a friend who has a 2006(i think) Hyundai Santa Fe because he has a Homelink Auto Dimming Mirror. Now i just need to know 2 things.

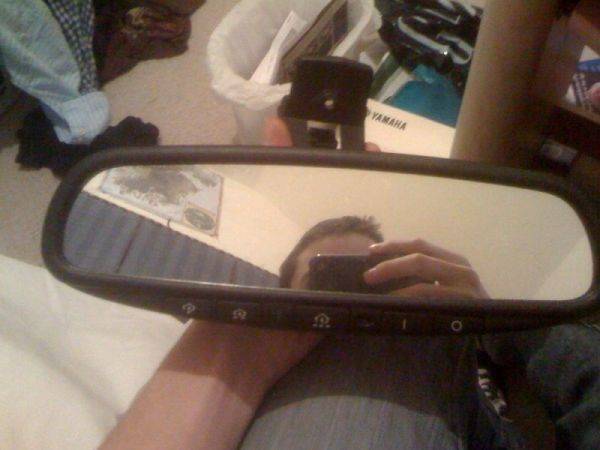

    1) Is there a module somewhere in his car or is it built into the mirror. Here is a pic of the mirror:
    [​IMG]
    If there is then i guess it would be at the end of the wire going in his headliner which go all the way across the car.

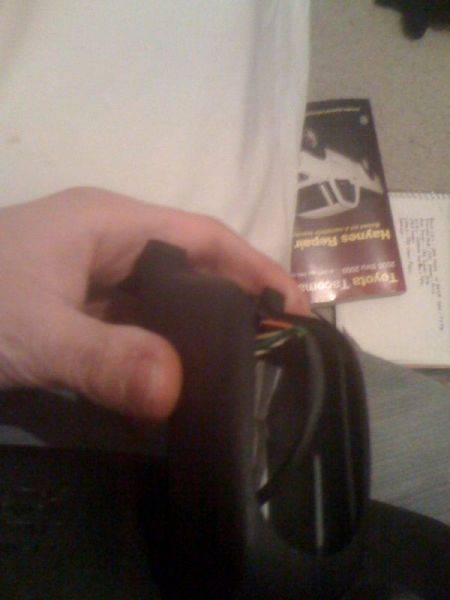

    2) There are 4 wire coming from the mirror which plug up to said ^^wires and there are 4 wires coming out from that plug and they go all the way to god knows where... but my question i guess would be what are these 4 wires for? The colours are white w/ black stripe, green, yellow, and orange. Here is a pic:
    [​IMG]

    I guess if there is a second module then i will have to scrap this whole thing because i am going to have to make up a 2 custom brackets for both mirrors to fit each others cars and i was just going to cut the plug with about 4 inches of wire from his car if they are just powers and ground but hopefully there isn't which is why i am asking you guys!!

    Thanks!!

  2. Mar 3, 2010 at 7:17 PM
    #2
    AlexForbesR6

    AlexForbesR6 [OP] My R6 Eats Me

    Joined:
    Aug 20, 2009
    Member:
    #21488
    Messages:
    612
    Gender:
    Male
    First Name:
    Alex
    Houston, TX
    Vehicle:
    07 4x4 6-Spd
    anyone have any input or ideas? i dont wanna start making brackets if its not gonna work...

  3. Mar 3, 2010 at 7:24 PM
    #3
    AlexForbesR6

    AlexForbesR6 [OP] My R6 Eats Me

    Joined:
    Aug 20, 2009
    Member:
    #21488
    Messages:
    612
    Gender:
    Male
    First Name:
    Alex
    Houston, TX
    Vehicle:
    07 4x4 6-Spd
    Ok...nevermind...after trolling through some blogs and forums i found it out on some guys Car Domain for a 96 talon...haha, and whats funnier is some other guy had posted in the comment thanks for listing what wires do what, this is the only place i have found them haha(it is a gentex 346 i found out on the back)

    i will let you guys know how the install goes

  4. Mar 3, 2010 at 7:24 PM
    #4
    AlexForbesR6

    AlexForbesR6 [OP] My R6 Eats Me

    Joined:
    Aug 20, 2009
    Member:
    #21488
    Messages:
    612
    Gender:
    Male
    First Name:
    Alex
    Houston, TX
    Vehicle:
    07 4x4 6-Spd
    so i dont have to bookmark that stupid car domain...
    Yellow - Ground
    Black/white - Car On
    Orange - Power Constant
    Green - Reverse light, When you reverse it will turn off the mirror so you can see while backing up.

  5. Mar 3, 2010 at 8:30 PM
    #5
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,281
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    ill check mine out tomorrow. my truck has that exact mirror in it. Ill let you know exactly where its hooked up.
