Homemade Back Rack (Lots of Pictures)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Finksies, Jun 24, 2010.

  1. Jun 24, 2010 at 4:29 PM
    #1
    Finksies

    Finksies [OP] Active Member

    Joined:
    May 26, 2009
    Member:
    #17639
    Messages:
    38
    Gender:
    Male
    NH
    Vehicle:
    09 4x4 4cyl SR5

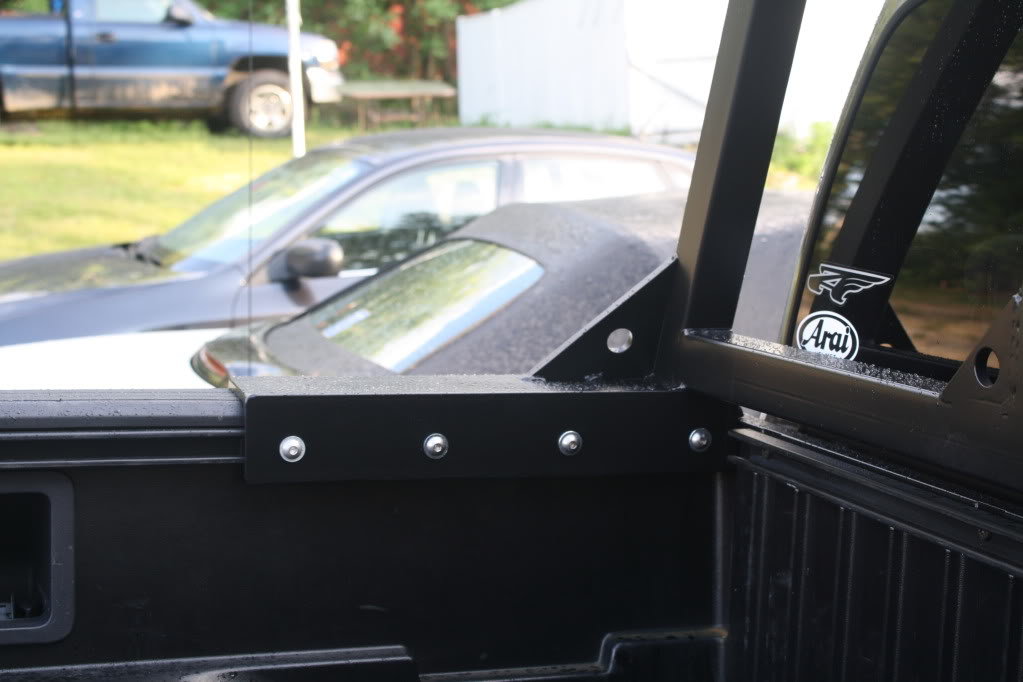

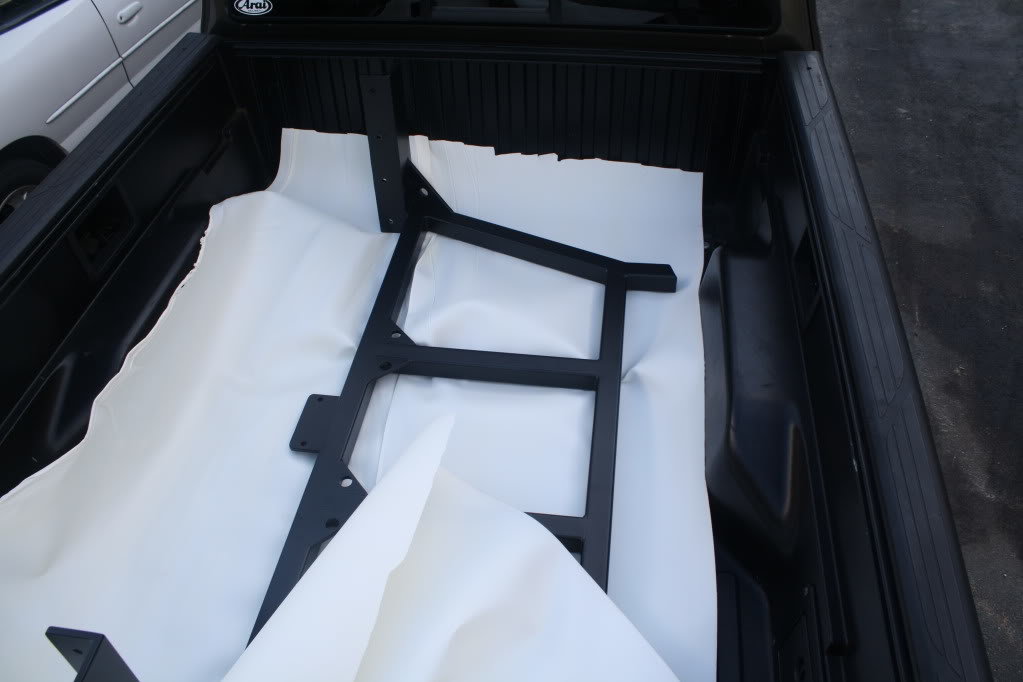

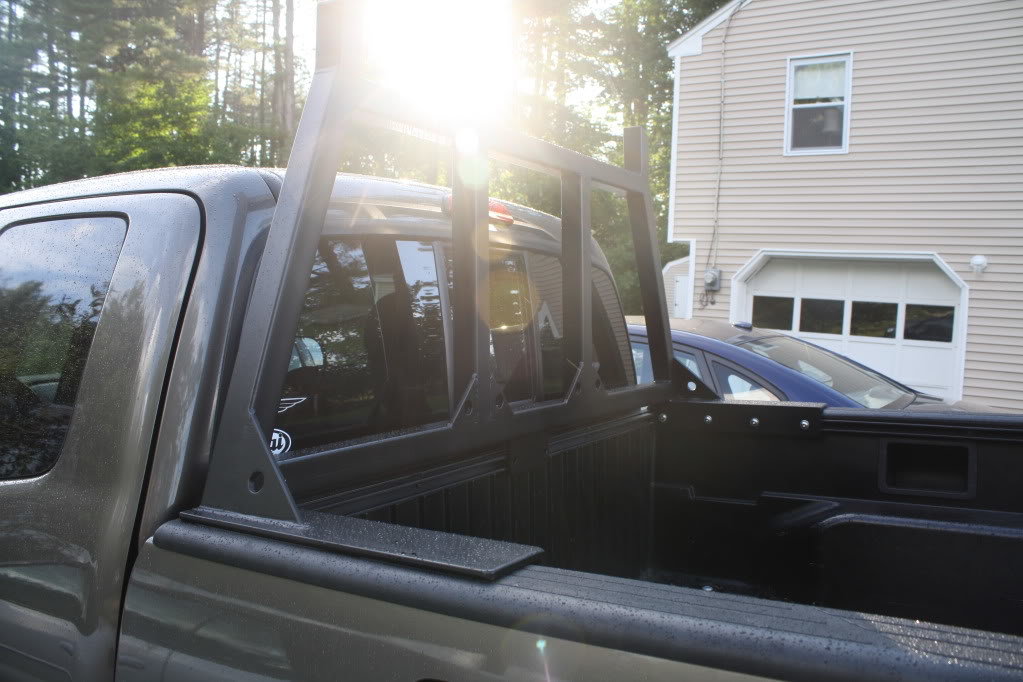

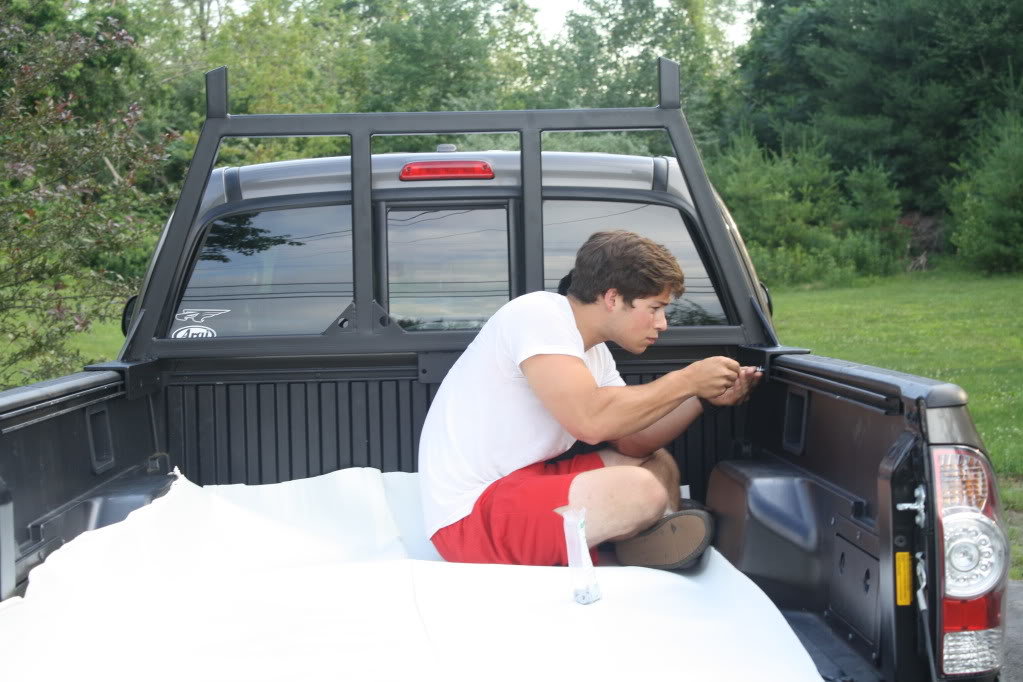

    Well, Ive been thinking about how I wanted to build my Back rack for quite some time. I constantly have stuff in the back and wanted to make somthing to protect it. Hauling Dirtbike sucked because there was nothing solid to attached to besides by bed rings. I now have 6 anchor points that are solid as a rock.

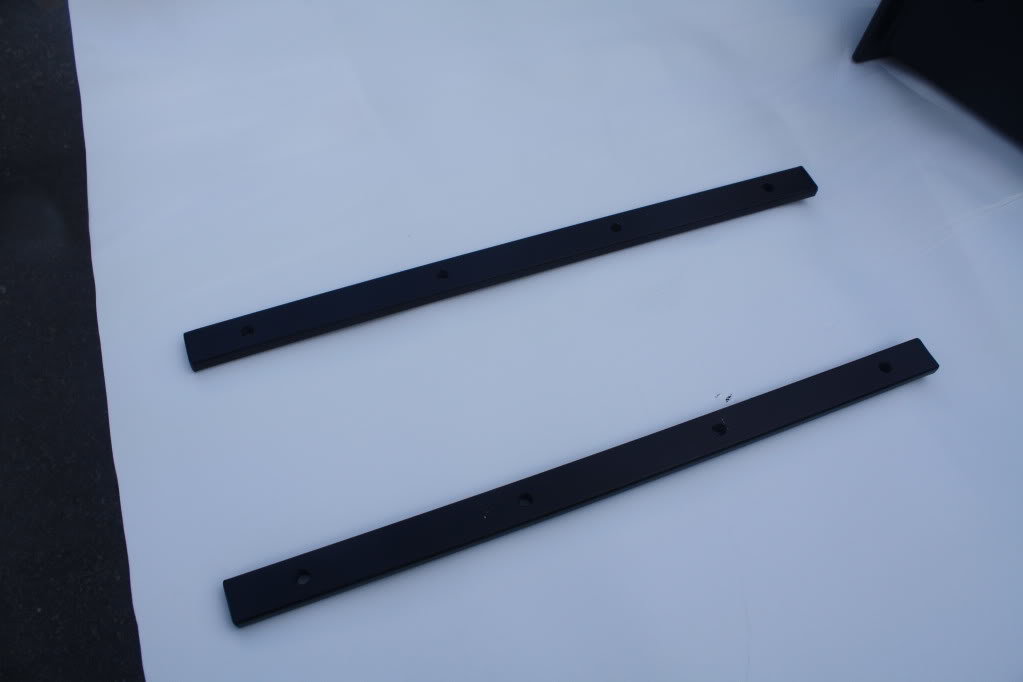

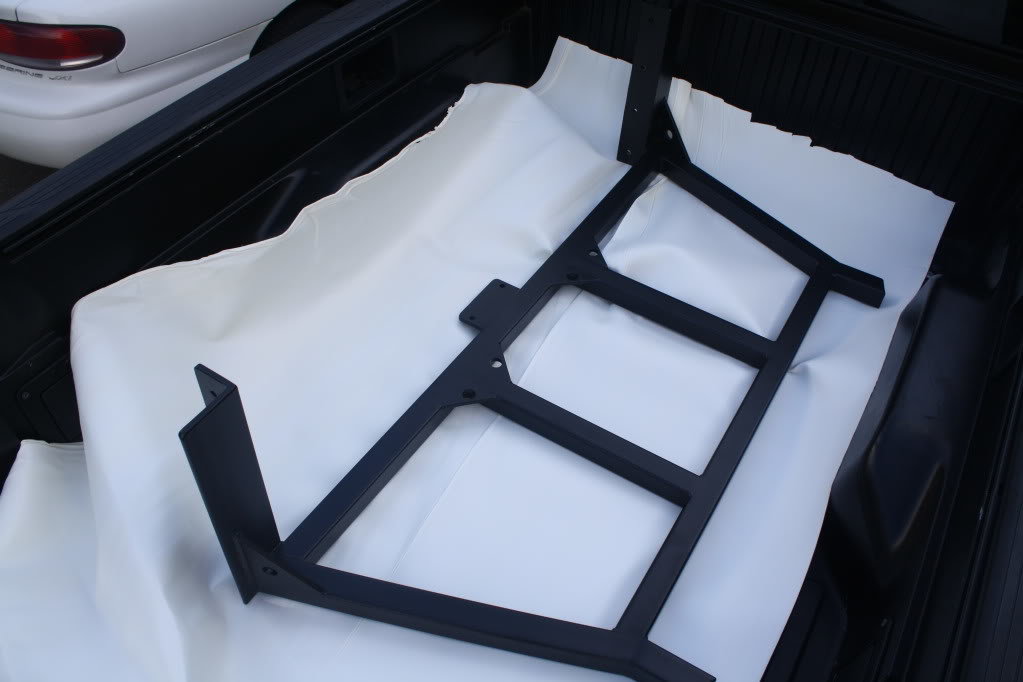

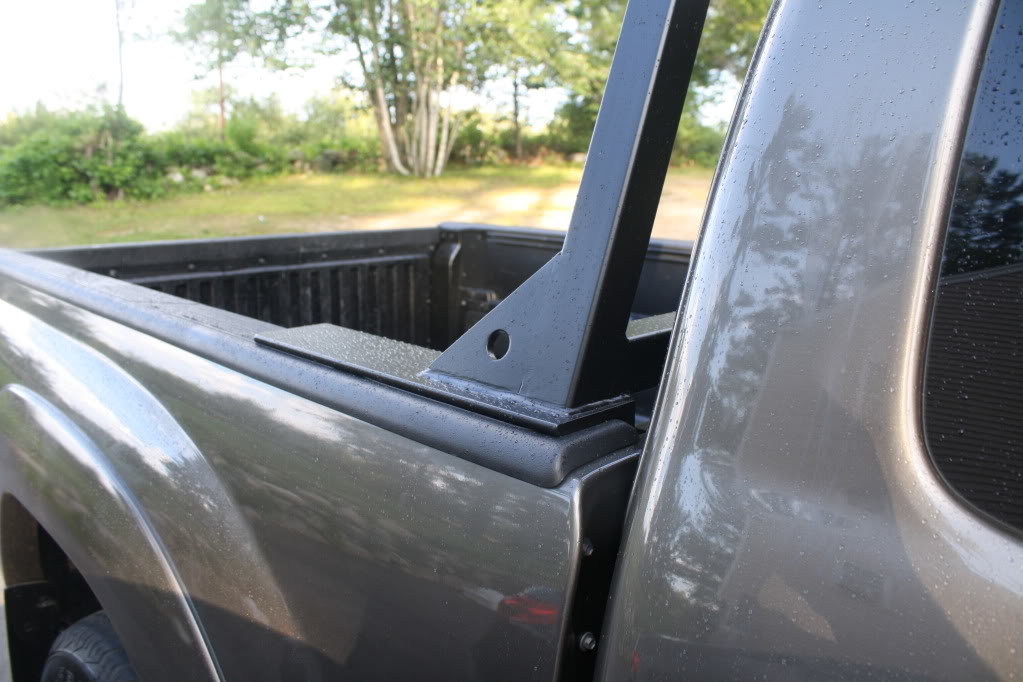

    Specs. All the Tube is 2x2x1/8". The angles are 4"x3"x3/8" stock. All the gussets were made out of 3/8" plate. The back rods are 1"x3/8" flat bar. I drill & tapped for 3/8" bolts. Bolts are 3/8"x 1 1/4" long S.S. I just got it back from the powdercoater (150$). I got the stock from work, so for under 200 bucks I think I have a pretty sweet little rack. Makes my 4 cylinder look tuff!

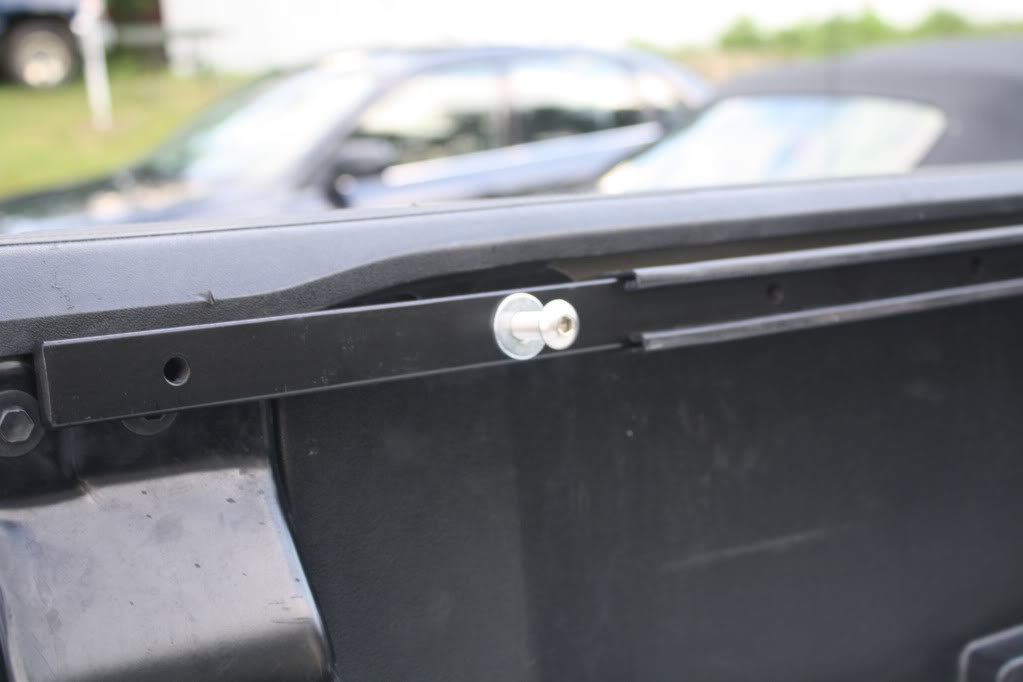

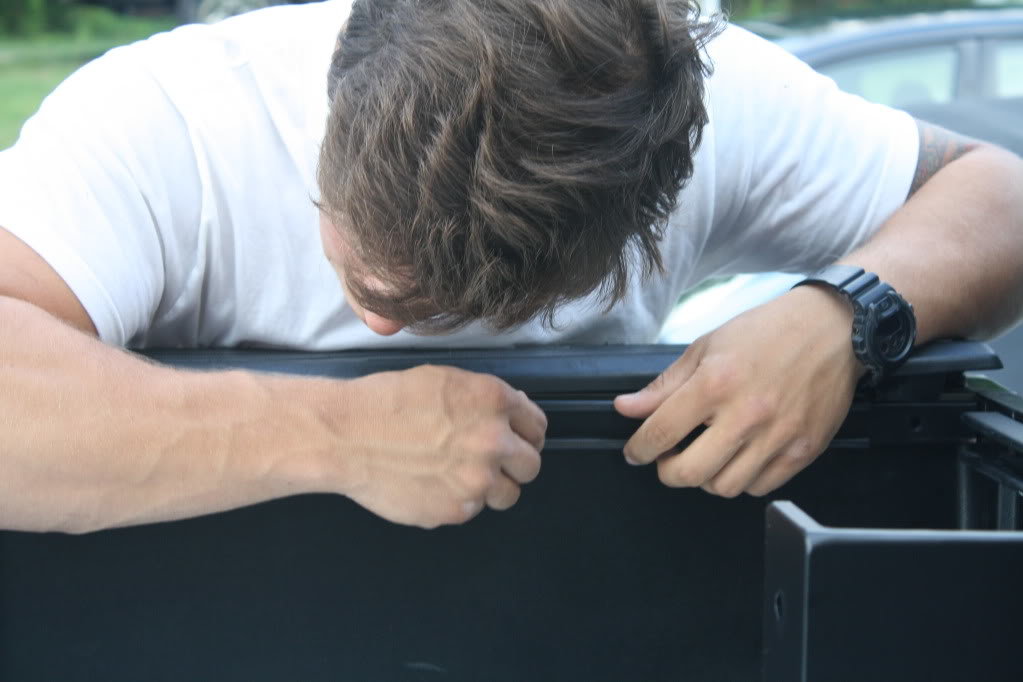

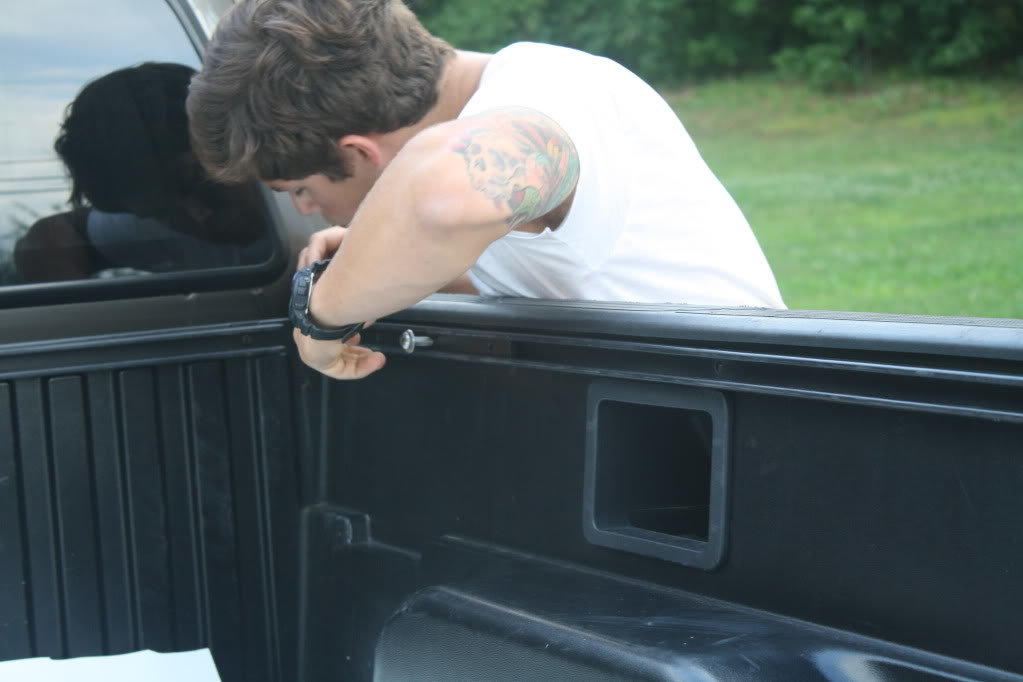

    Had to take out some of the screws on the bed rail to get the flat bar in place.

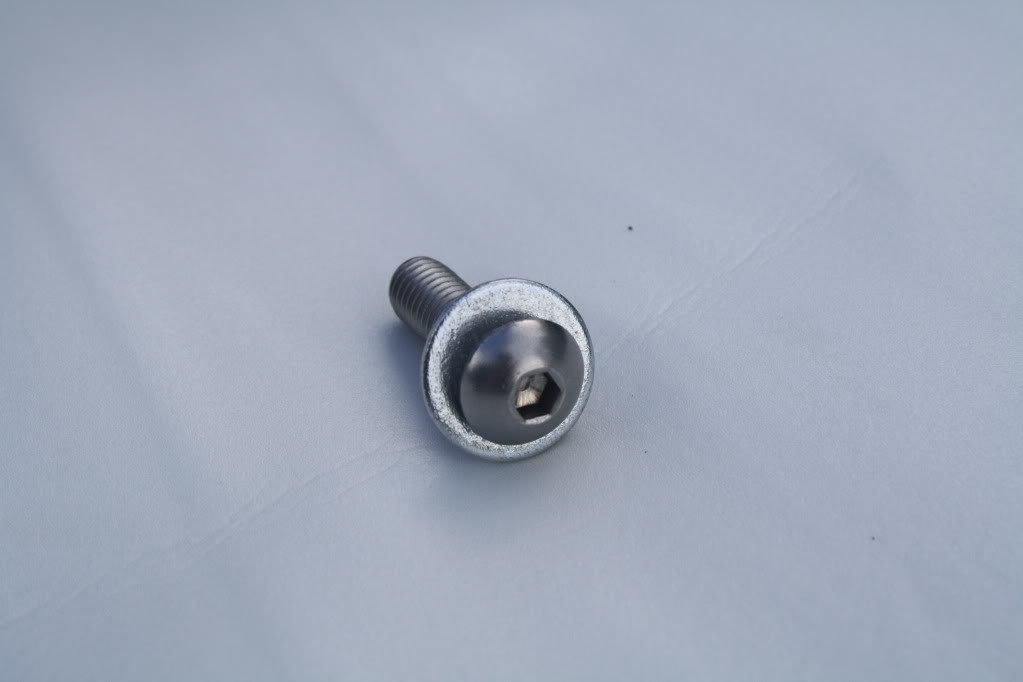

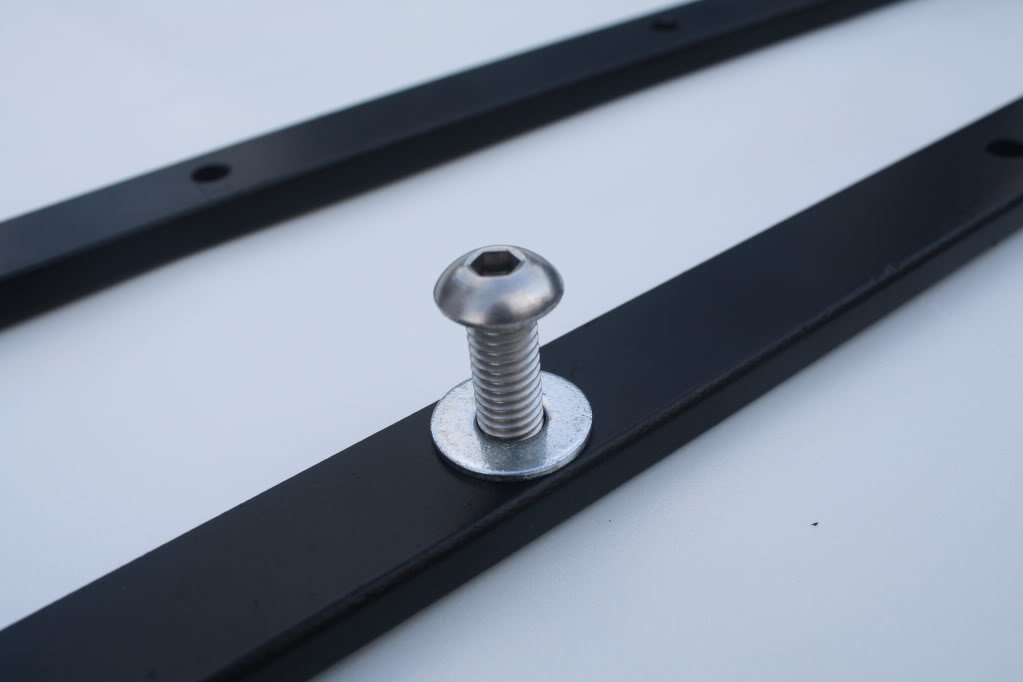

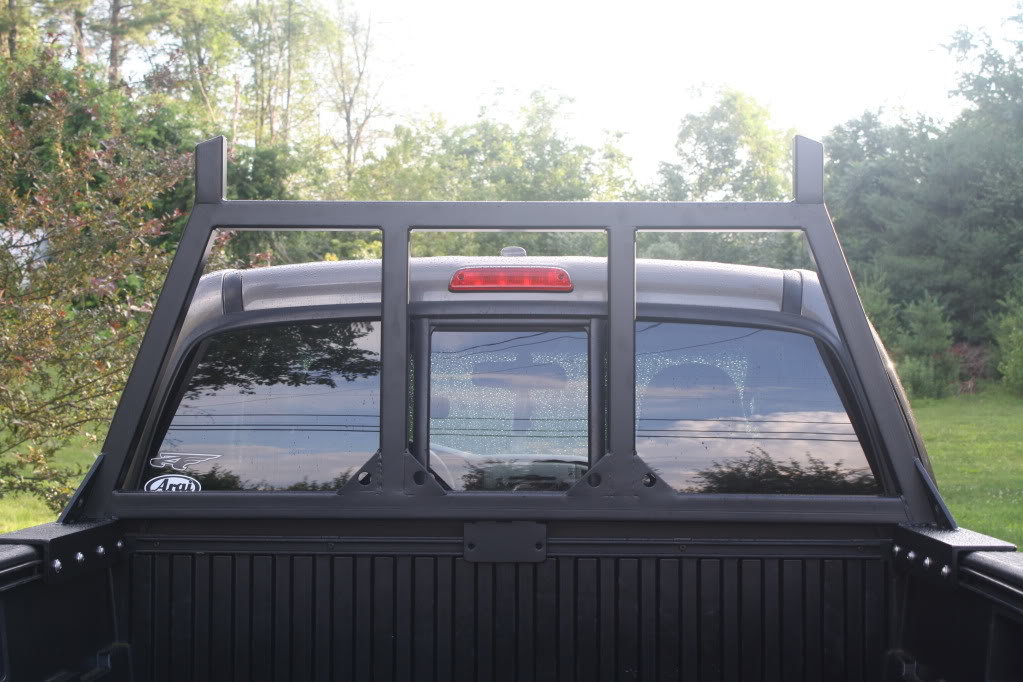

    3/8" S.S. Allen Head Anchors. I think they look pretty good.
