Homemade dual battery tray & Aux fuseblock

Discussion in '2nd Gen. Tacomas (2005-2015)' started by tweeek, Mar 30, 2014.

  1. Mar 30, 2014 at 4:17 PM
    #1
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    185
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR

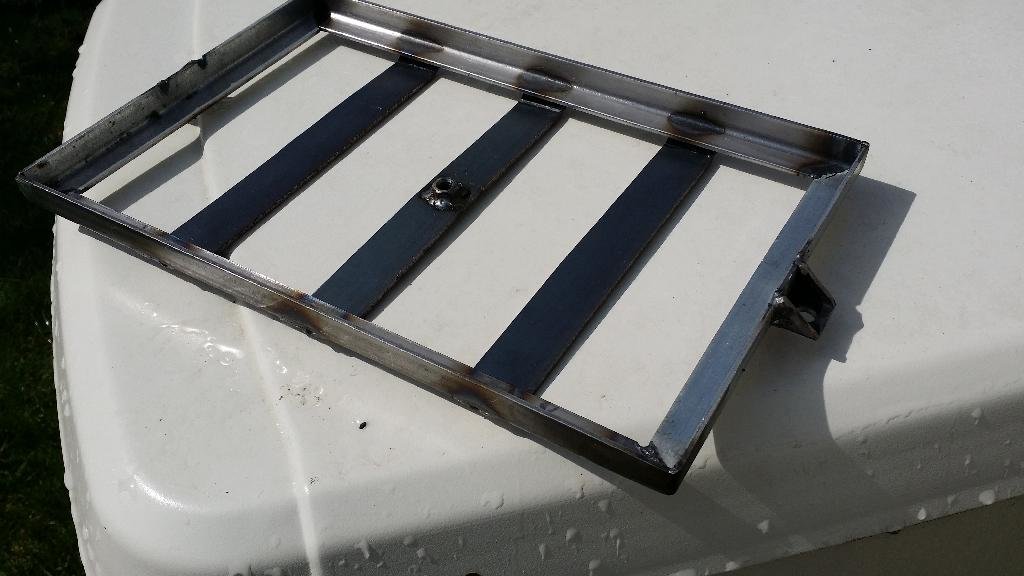

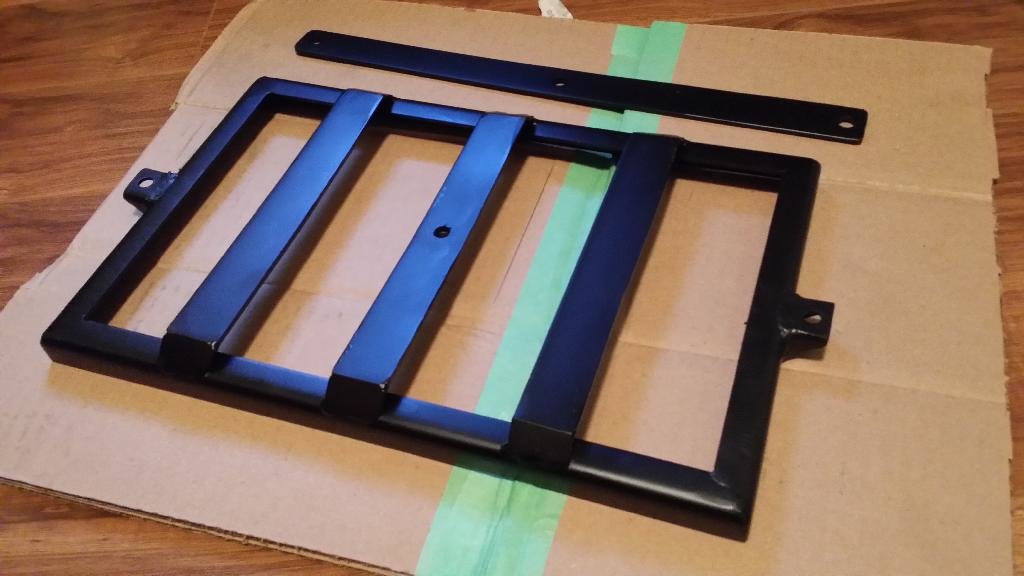

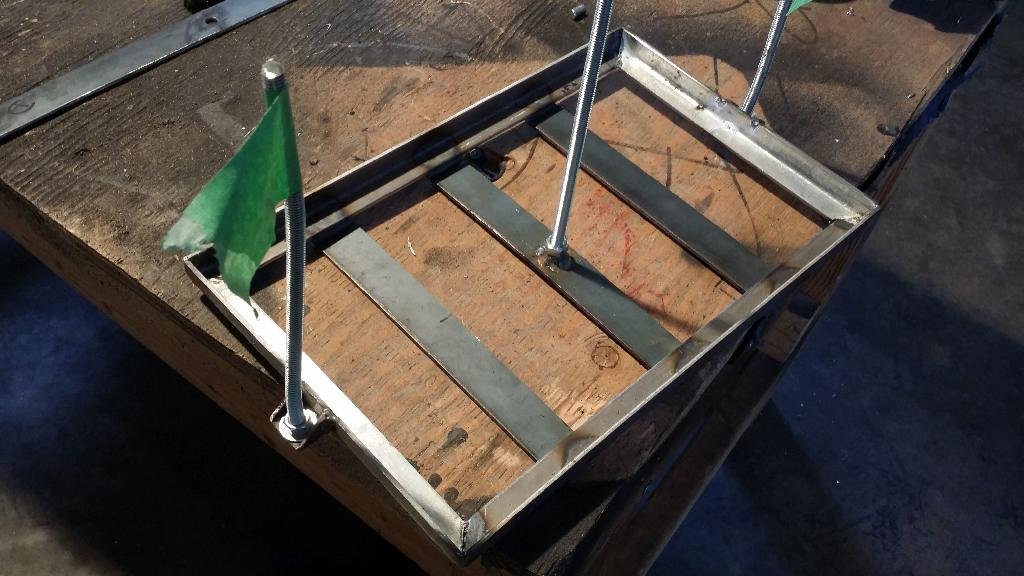

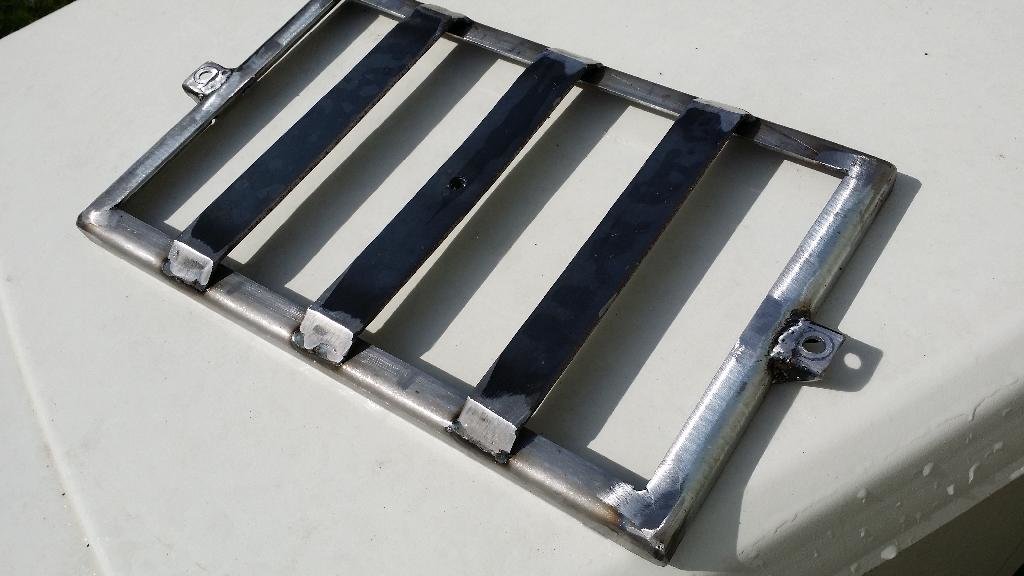

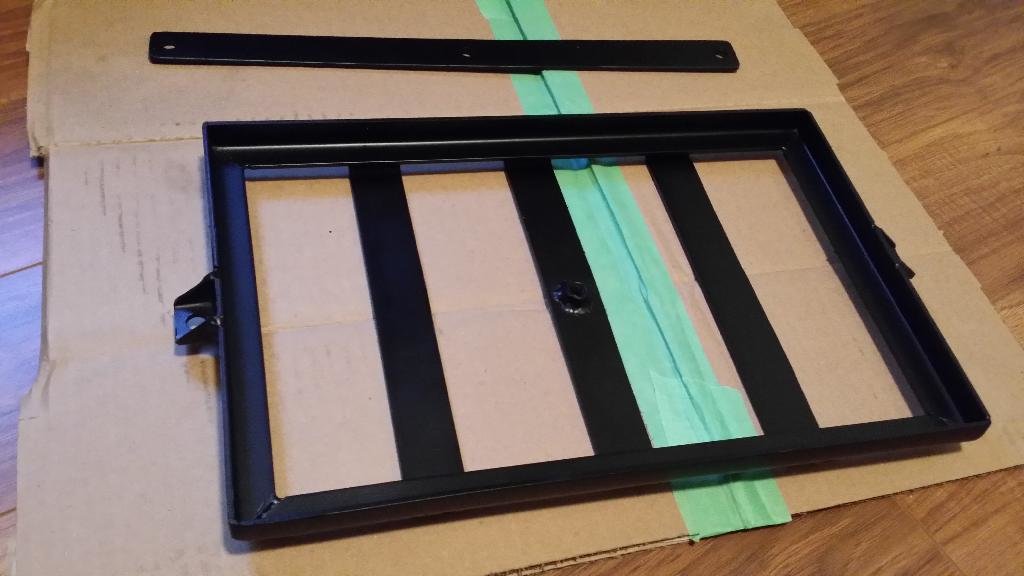

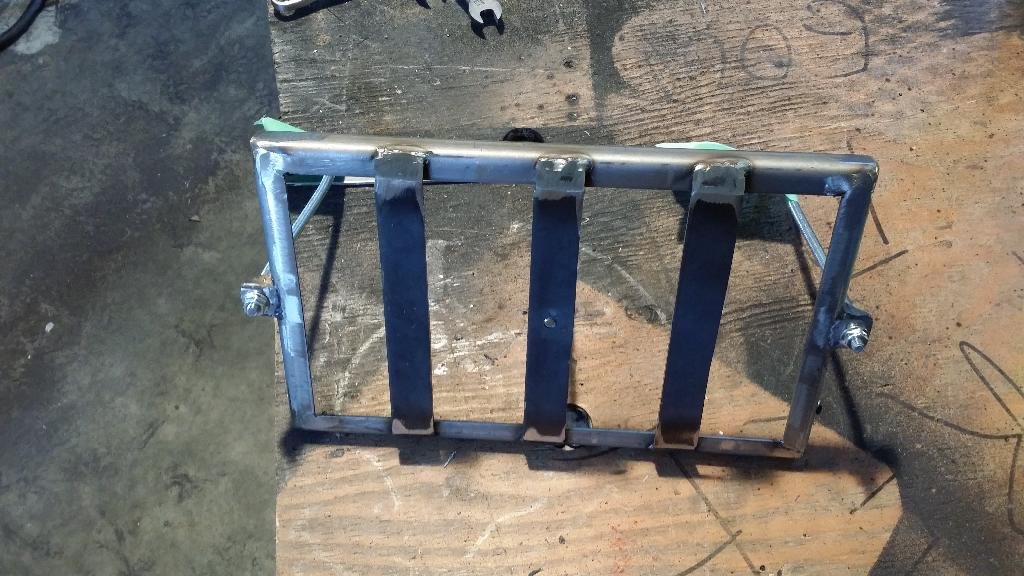

    I bought an ARB 50qt fridge/freezer and a pair of Odyssey batteries. the two options I found for dual battery trays were very pricey, so I put this together this morning. I have the aux fuse block cutout rough, but will update with some progress soon.








    Paint is dying now. More to come on the aux block.

  2. Mar 30, 2014 at 4:20 PM
    #2
    slodc4

    slodc4 Conceal Carry

    Joined:
    Mar 18, 2011
    Member:
    #53256
    Messages:
    1,056
    Gender:
    Male
    First Name:
    Steven
    Winterville, NC
    Vehicle:
    Locked 17 trd sport
    Sweet!!!

    What are you using the 2 batteries for?

    I thought about doing something similar for a winch setup

  3. Mar 30, 2014 at 4:23 PM
    #3
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    185
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
    One is for regular starting duties, the other will run my fridge and any other accessories. I have aBluesea 7622 to isolate the two, and of course, can combine for winching duty.

    I have an 80 watt solar panel for keeping the house battery topped off while camping in the desert too. More on that to come.

    Manfred likes this.
  4. Mar 30, 2014 at 4:25 PM
    #4
    slodc4

    slodc4 Conceal Carry

    Joined:
    Mar 18, 2011
    Member:
    #53256
    Messages:
    1,056
    Gender:
    Male
    First Name:
    Steven
    Winterville, NC
    Vehicle:
    Locked 17 trd sport
    Oh I get you, I seen where you put you got an arb fridge but I didn't realize you were using it on the truck

    do you have them both hooked to the factory alternator?

  5. Mar 30, 2014 at 8:09 PM
    #5
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    185
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
  6. Apr 12, 2014 at 5:49 PM
    #6
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    185
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR

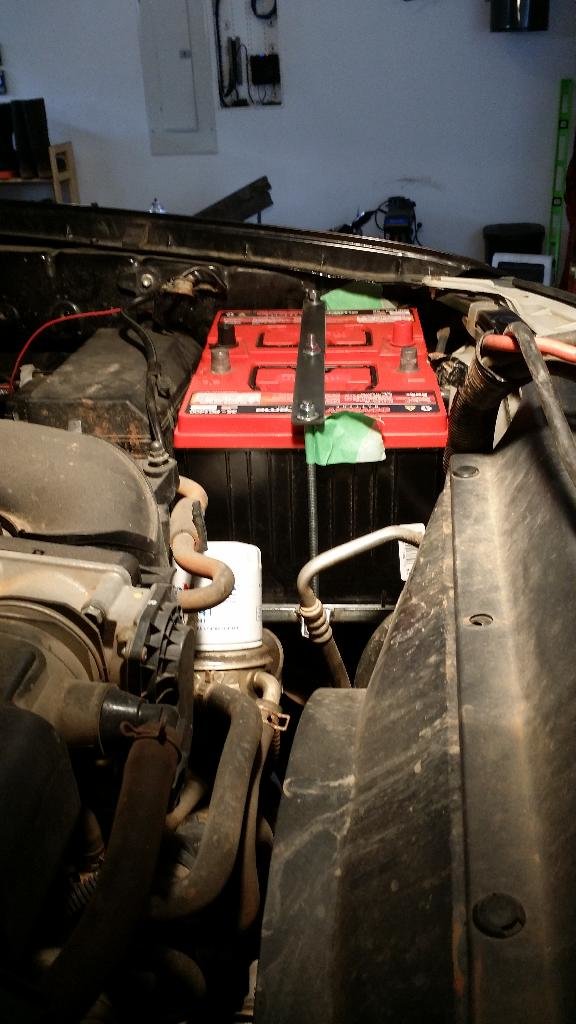

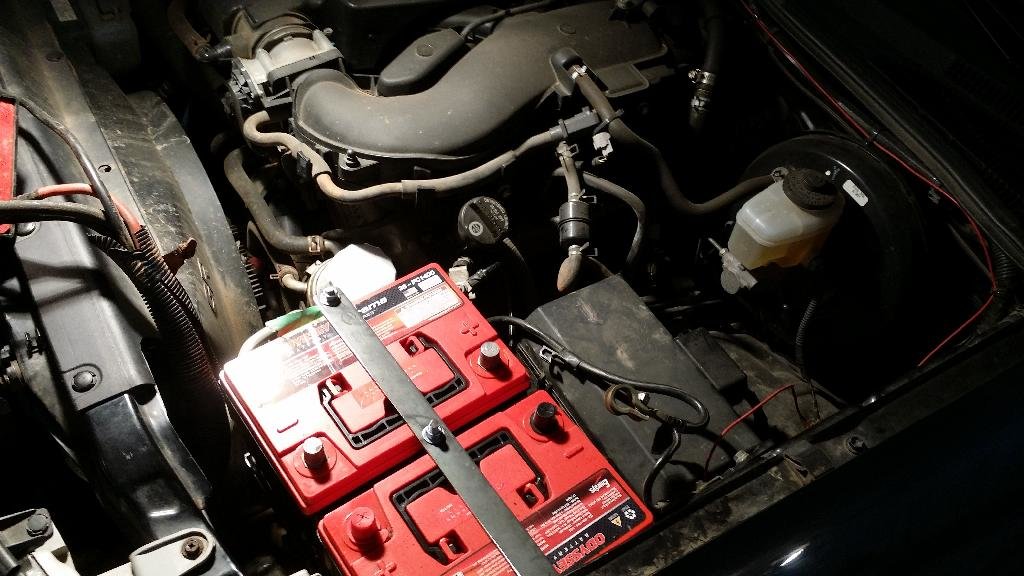

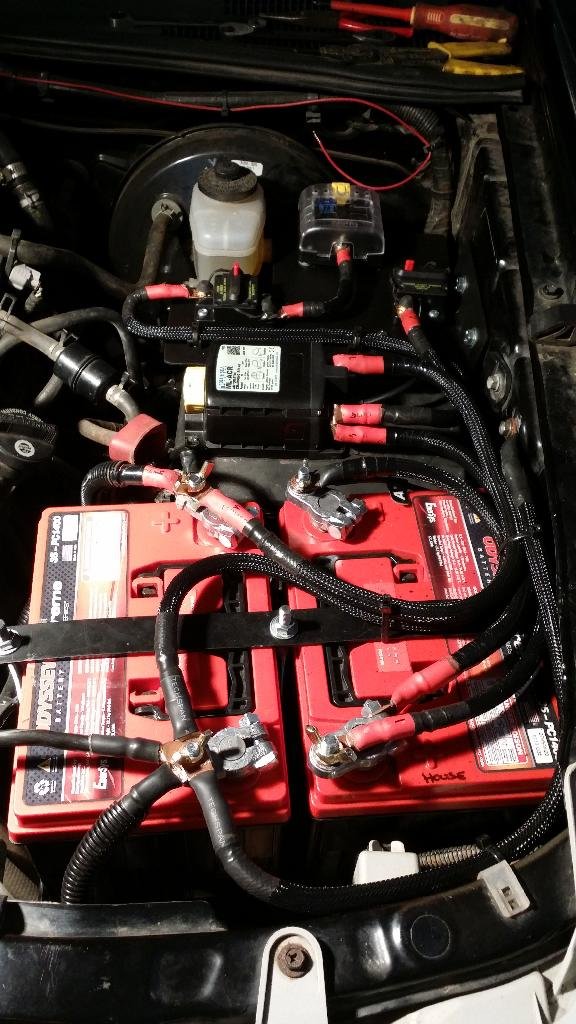

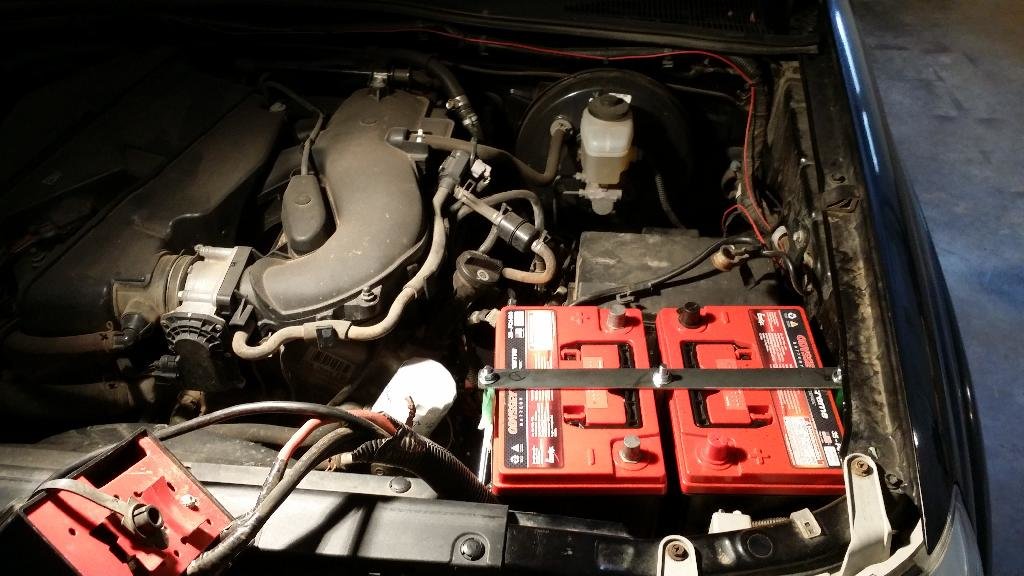

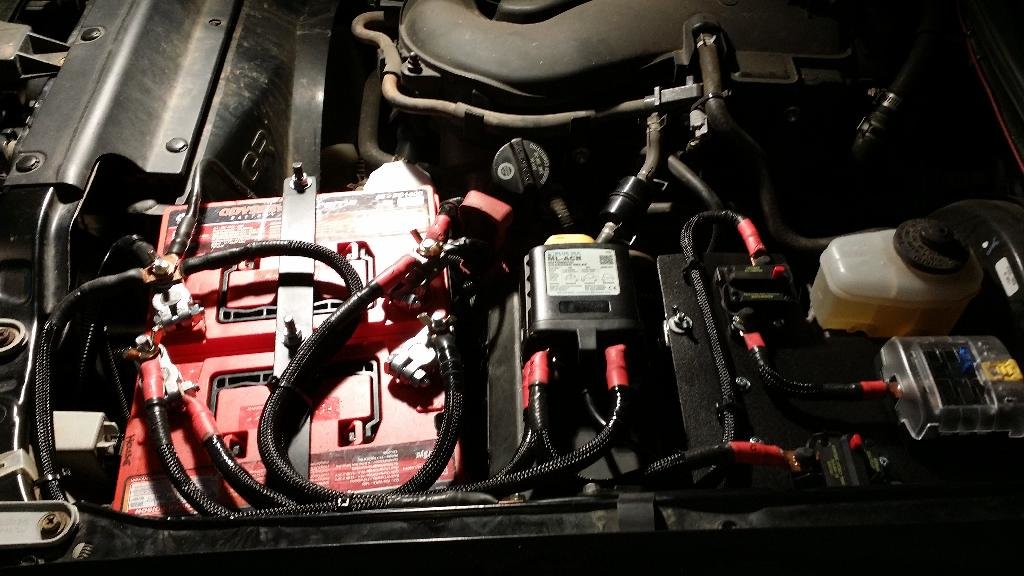

    Dual batteries / isolator / aux block installed.

    Have a second circuit breaker for my wire run to the bed of the truck. Ill have a second fuse block back there. I am running 2 awg to the bed incase I decide to add a battery there in the future and use one large one up front.


    Still have to wire in the in cab control, along with in cab winch control and a few other things.

    I have a large order of switches coming from otrattw, and a couple flush mount volt meters to monitor both batteries state.

  7. Apr 12, 2014 at 8:19 PM
    #7
    boomer6

    boomer6 Well-Known Member

    Joined:
    Apr 22, 2011
    Member:
    #55337
    Messages:
    508
    Gender:
    Male
    First Name:
    John
    TN
    Vehicle:
    Tacoma TRD Offroad
    disabled DRLs disabled seat belt chime disabled the key in the ignition with door open buzzer Installed Illuminated 4wd switch circuit board Marker lights Flashing with turn signals Toggle switch ABS Disable Fog Lights on AnyTime Mod Changed to Yellow bulbs in the Fog Lights Converted interior lights to leds Installed oem roof rack Installed Firestone Ride Rite Air Bags and Daystar Cradles for the air bags Added oil catch can Relentless Tailgate Protector installed
    Looks Good ! Great write up and Pics.

  8. Apr 18, 2014 at 8:14 AM
    #8
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    54,616
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    Very nice setup. I just bought a dual battery kit. I have stock battery and Die hard Platinum 31m. I plan on Having the second battery in a battery box mount to the bed. I plan on putting a solor panel attached to the second battery to charge it whenever i can.

  9. May 4, 2014 at 5:47 PM
    #9
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    185
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR

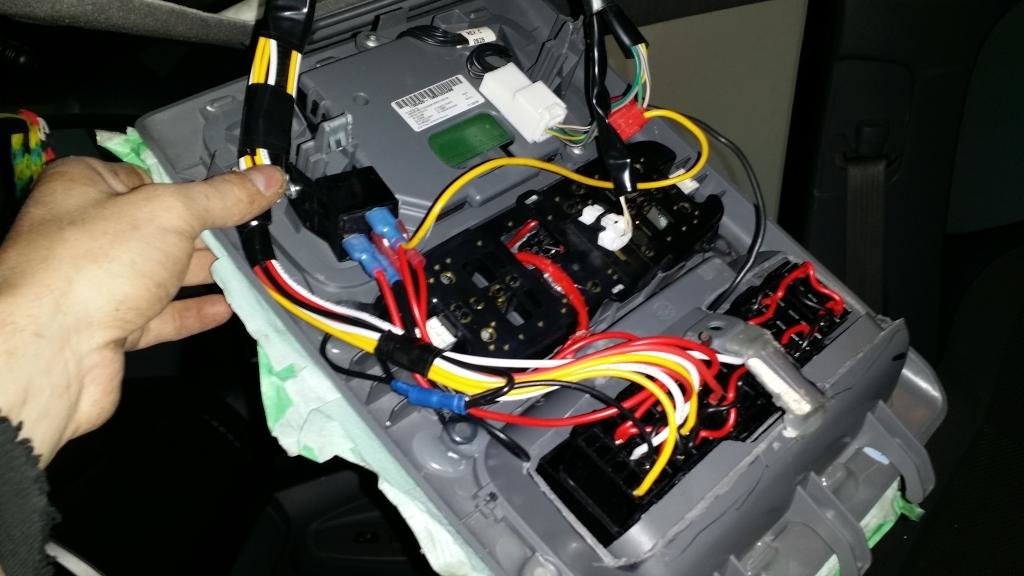

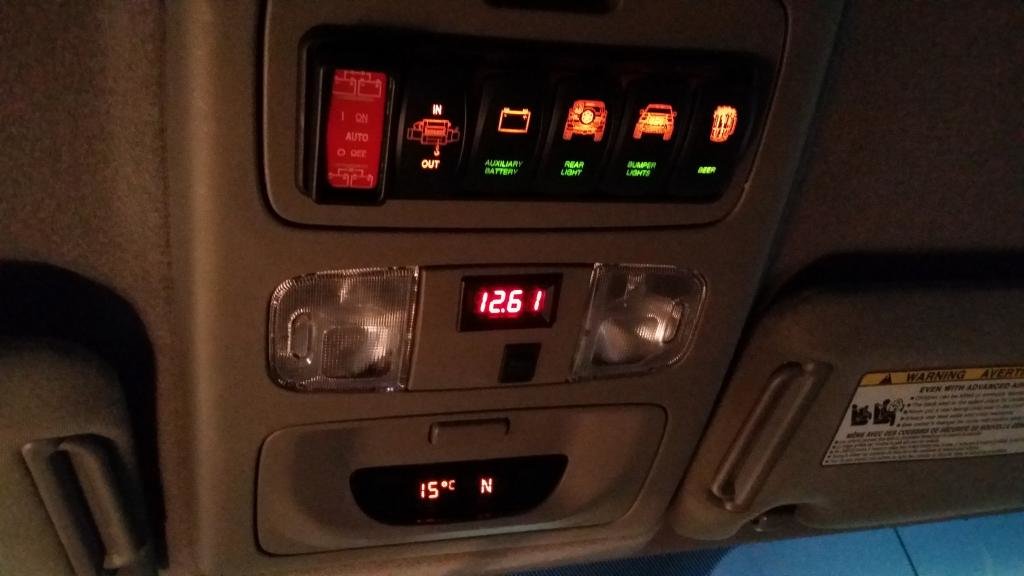

    Finished wiring in cab controls. Put a switch panel in the sunglasses holder. I know this has been done before, but I added a twist. In between the map lights is a small voltage monitor to check current status of either battery.

    Volt meter comes on automatically when engine running, but can also be checked by the momentary switch below it if trick is off. The aux battery rocker selects which battery to monitor.




    Last edited: May 4, 2014
    shinymachine, Ngneer, airrage and 2 others like this.
  10. May 5, 2014 at 11:56 AM
    #10
    nadera17

    nadera17 Well-Known Member

    Joined:
    May 15, 2010
    Member:
    #37219
    Messages:
    79
    Gender:
    Male
    First Name:
    Nader
    Virginia Beach
    Vehicle:
    I4 SR5
    http://www.tacomaworld.com/forum/audio-video/101933-my-audio-deadening-project.html, Drone Mobile alarm by Compustar, ARE camper shell for the dogs
    I just bought this solar panel and I can't decide if I want to run a second deep cycle battery, replace my current battery with a deep cycle, or just hook it to my current battery.

    I carry dogs in the bed of my truck and I run fans with the engine off and I need a way that it won't drain my battery. I also have a sound system in the truck, so I was thinking the more electronics, the more sense a deep cycle made?

    Any thoughts?

  11. May 5, 2014 at 12:03 PM
    #11
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    185
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
    If you are just running fans that solar panel is probably way overkill. Unless you are running a fridge/freezer, I would just get a large dual purpose starting/deep cycle like the odyssey or sears die hard platinum. A group 31 agm would run a12v fan on its own for many many hours and still start the truck. Figure out the amp draw of the fans and you can figure out how long to expect from the battery.

    I wouldn't bother with a second battery for this scenario.

  12. May 5, 2014 at 12:22 PM
    #12
    MikeyLikesIt

    MikeyLikesIt Supercharged Mileage Master

    Joined:
    Jul 17, 2011
    Member:
    #60053
    Messages:
    342
    Gender:
    Male
    Nice setup, I like it. What it that unit between the reading lights that says 12.61?

  13. May 5, 2014 at 12:31 PM
    #13
    RevAdam

    RevAdam Impressive Member

    Joined:
    Aug 17, 2011
    Member:
    #61854
    Messages:
    1,272
    Gender:
    Male
    First Name:
    Adam
    Upstate SC
    Vehicle:
    11 TRD OR 4x4
    Icom 5100 radio, Baja Rack, Kenwood 6980, ARB Bull Bar, Lightforce HID lights, Warn winch, LED lights, 5100s, Switchbacks, Redarc TowPro
    Do you have the dimensions on the battery tray?

  14. May 5, 2014 at 1:18 PM
    #14
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    12,404
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 LT 4x4 DCSB 6spd Vagabond
    Drifter wedge camper, Dual battery, OBA, ARB locker, 4.56 gears
    looks good! good work

  15. May 6, 2014 at 7:35 AM
    #15
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    185
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
    Voltage meter to show charging state of aux or starting battery

  16. May 6, 2014 at 7:37 AM
    #16
    tweeek

    tweeek [OP] Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    185
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
    Sorry no, just take the dimensions of the battery x2 though. No magic here, I just sat the batteries down on the table and marked the angle sitting beside them.

  17. May 6, 2014 at 7:40 AM
    #17
    12thmanhawkfan

    12thmanhawkfan Well-Known Member

    Joined:
    Mar 13, 2013
    Member:
    #99628
    Messages:
    1,138
    Gender:
    Male
    First Name:
    Robby
    Bellingham, WA
    Vehicle:
    Access Cab 6-speed
    It's got some Mods
    Nice work OP! That's a clean looking install

  18. May 6, 2014 at 7:47 AM
    #18
    Haws

    Haws Well-Known Member

    Joined:
    Apr 5, 2010
    Member:
    #34667
    Messages:
    582
    Gender:
    Male
    First Name:
    Shawn
    Washington
    Vehicle:
    TRD Off Road
    Lot's of stuff (-;
    I like it! Been thinking of doing the same

  19. Nov 10, 2015 at 10:59 AM
    #19
    kbraunphoto

    kbraunphoto mountain bike haulin' & off camping

    Joined:
    Oct 23, 2011
    Member:
    #65729
    Messages:
    610
    Gender:
    Male
    First Name:
    Kevin
    Atlanta, GA
    Vehicle:
    '15 Inferno Orange TRD Pro
    Just a few expensive & DIY things...
    thread revival, and sub.

    Well done, any updates to this since your initial build?

  20. Sep 9, 2017 at 2:52 PM
    #20
    Manfred

    Manfred Well-Known Member

    Joined:
    Jun 25, 2014
    Member:
    #132699
    Messages:
    2,245
    Gender:
    Male
    First Name:
    Manfred
    Great White North
    Vehicle:
    2010 DCLB
    All of them
    This is the exact setup I hope to do in the future. How much did this whole setup run you
