How do I read a relay diagram?

Discussion in 'General Automotive' started by soggyBottom, Aug 31, 2023.

  1. Aug 31, 2023 at 4:48 PM
    #1
    soggyBottom

    #1
    soggyBottom [OP] Well-Known Member

    Joined:
    Sep 19, 2018
    Member:
    #266818
    Messages:
    1,951

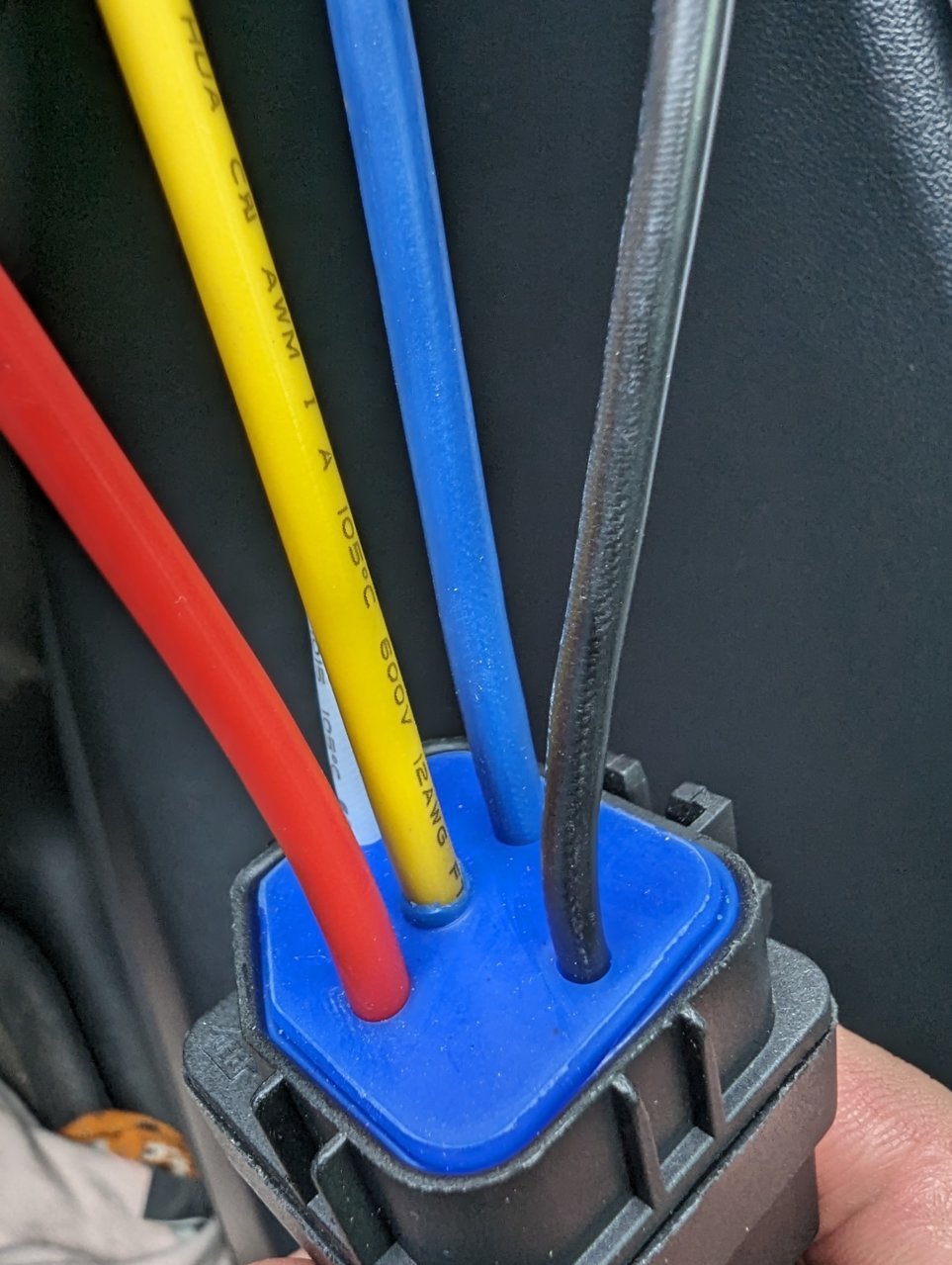

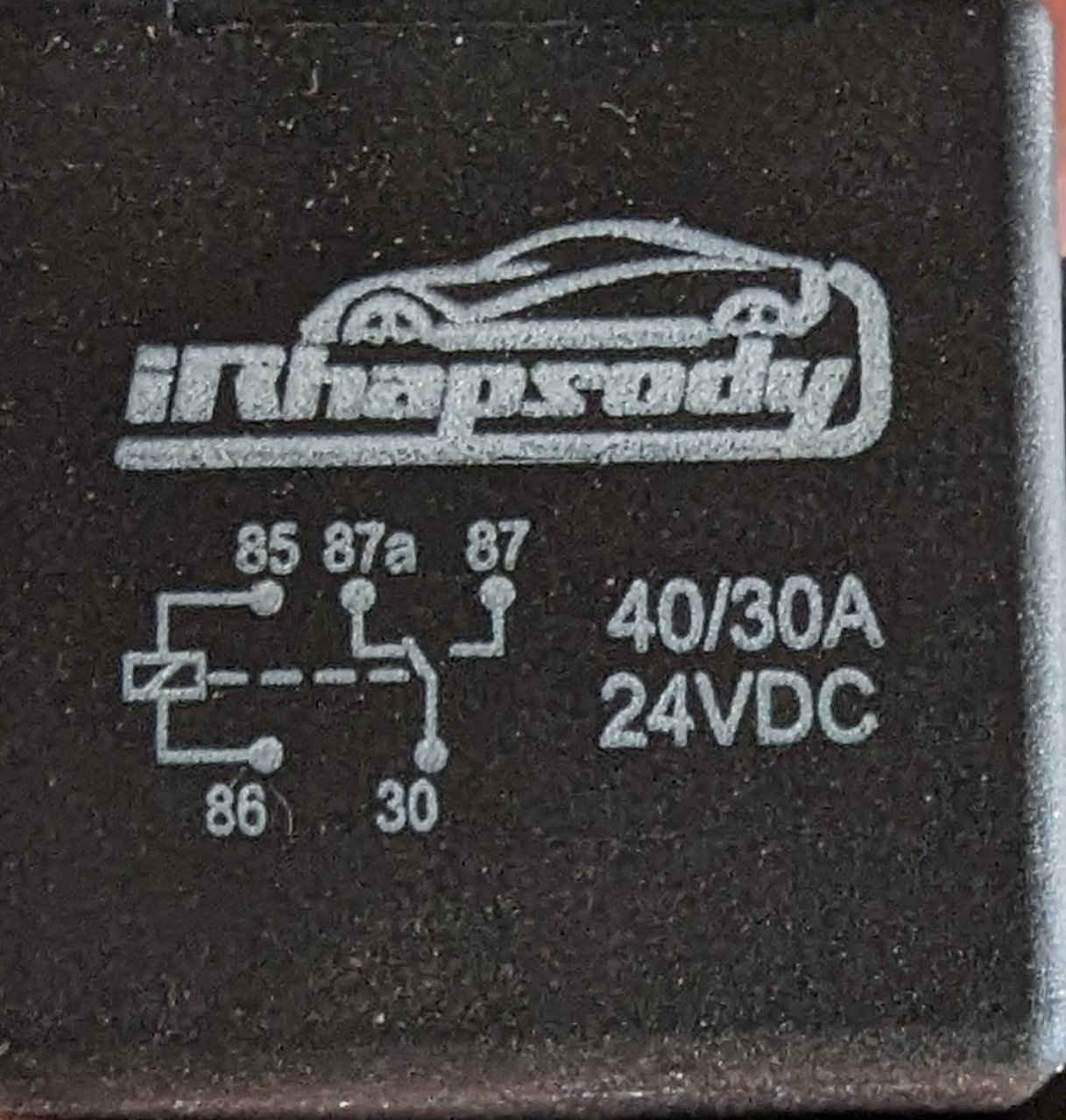

    I have a 24v relay and I have no idea which wire is which. The layout on the diagram doesn't match the layout of the wires.


    soggyBottom, Aug 31, 2023
    #1
  2. Aug 31, 2023 at 4:53 PM
    #2
    reallifedog

    #2
    reallifedog wat.

    Joined:
    Dec 11, 2014
    Member:
    #144054
    Messages:
    533
    Gender:
    Male
    First Name:
    Jordan
    Denver
    Vehicle:
    08 Tacoma TRD OR
    If you pull the connector off, your terminals should have really tiny numbers indicating pins.

    reallifedog, Aug 31, 2023
    #2
  3. Aug 31, 2023 at 4:55 PM
    #3
    cmbondo

    #3
    cmbondo Well-Known Member

    Joined:
    Feb 2, 2014
    Member:
    #122060
    Messages:
    564
    Gender:
    Male
    San Diego CA
    Vehicle:
    2021 Cement DCSB TRD Offroad
    FOX 2.5 DSC and some other stuff too.
    Silly question but why are you using a 24 VDC relay on a 12V truck?

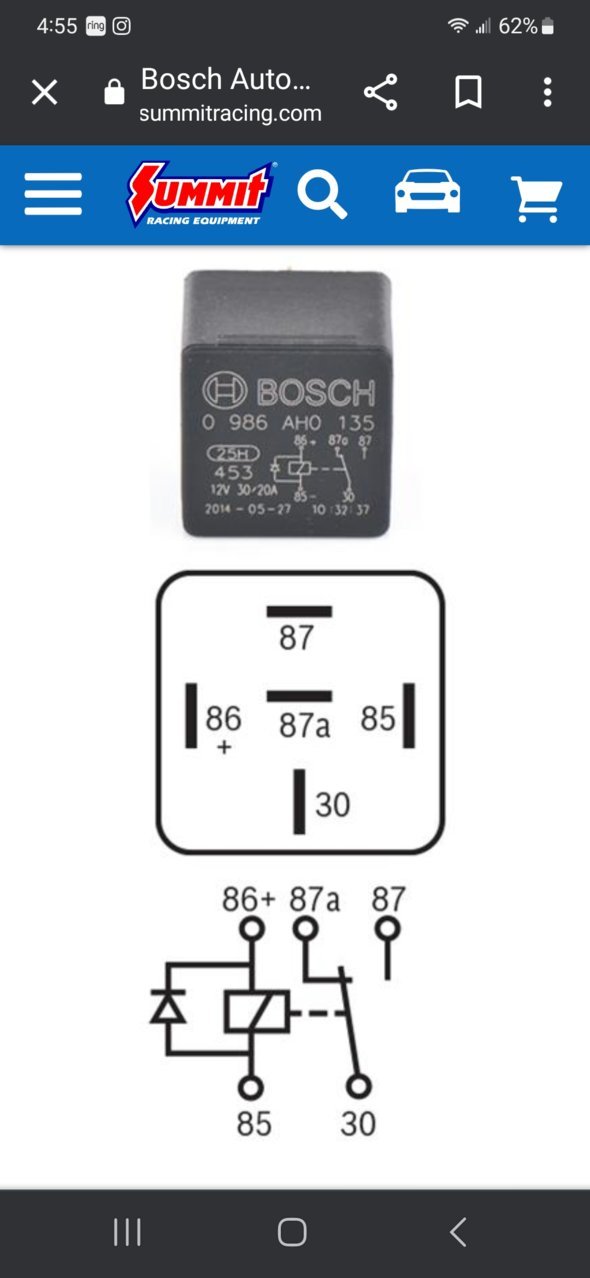

    Pull the connector off (with the wires in it) and it should show you the pin numbers. This is a standard layout.Screenshot_20230831_165507_Chrome.jpg

    cmbondo, Aug 31, 2023
    #3
  4. Aug 31, 2023 at 5:12 PM
    #4
    soggyBottom

    #4
    soggyBottom [OP] Well-Known Member

    Joined:
    Sep 19, 2018
    Member:
    #266818
    Messages:
    1,951
    There they are!!!! Thank you. I'm using this for power wheels. Ditching the 12v lead acid battery and using DeWalt 20v, variable gas peddle and brake pedal.

    soggyBottom, Aug 31, 2023
