How do you wire in an AliExpress "Steering Wheel Control"

Discussion in '2nd Gen. Tacomas (2005-2015)' started by explorer200, Jul 22, 2021.

  1. Jul 22, 2021 at 3:37 PM
    #1
    explorer200

    explorer200 [OP] Active Member

    Joined:
    Jul 30, 2020
    Member:
    #336109
    Messages:
    27
    Gender:
    Male
    I can't for the life of me figure out how to wire in the Ali express three wire controller (red, white, black wires)

    https://www.aliexpress.com/item/4001270454264.html?spm=a2g0s.9042311.0.0.45224c4dqY8mGc

    I'm trying to get it working with a Joying head unit on a 2008 Taco

    The "steering wheel control" says:
    RED - ACC
    WHITE - KEY
    BLACK - GROUND

    The Joying Headunit says:
    RED - ACC
    BLACK - GROUND
    BROWN - KEY

    I'm terrible with electrical stuff, but I've tried splicing them all together like this with no luck

    RED > RED
    WHITE > BROWN
    BLACK > BLACK


    Last edited: Jul 22, 2021
  2. Jul 22, 2021 at 8:32 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,364
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    I see 2 Key wires on that headunit?
    Key1 and Key2.

    Other than that, I got nothing:confused:

    BTW, how did you wire the headunit to the OEM harness?

  3. Jul 22, 2021 at 8:38 PM
    #3
    davidstacoma

    davidstacoma Friendly Curmudgeon

    Joined:
    Nov 2, 2019
    Member:
    #309695
    Messages:
    4,656
    Gender:
    Male
    First Name:
    David
    NC
    Vehicle:
    2019 Tacoma SR Access cab - Utility
    *OEM Mods: Intermittent wipers, Fogs, Keyless Entry, Lomax

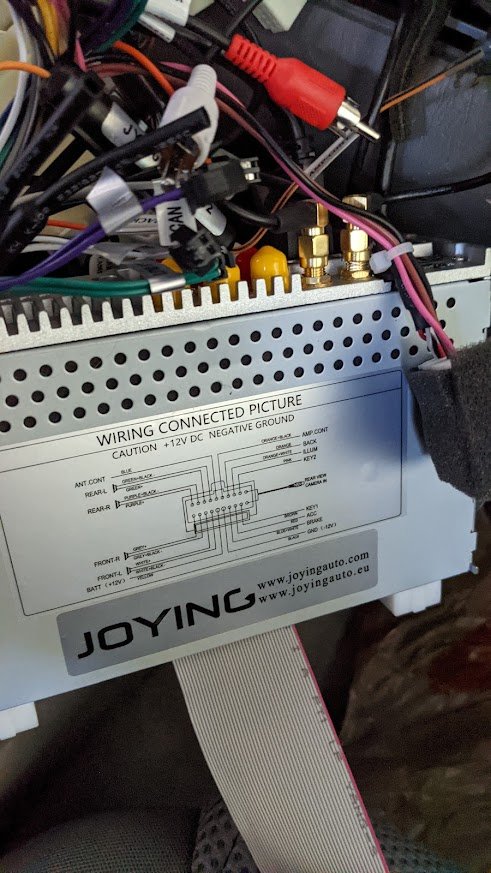

    I don’t know anything about those two units, but I do know what Ground is. Did you take those two Ground wires to chassis ground? A screw on the metal of the body? That’s ground. i can’t read that label clearly though is that saying +12V ground? that’s not clear to me at all.

  4. Jul 22, 2021 at 10:39 PM
    #4
    explorer200

    explorer200 [OP] Active Member

    Joined:
    Jul 30, 2020
    Member:
    #336109
    Messages:
    27
    Gender:
    Male

    Plugs right in. I don't have steering wheel controls though and figured this would be a cheap solution.
