[HOW-TO] - 1st Gen Tacoma Rear Shock Relocate

Discussion in 'Suspension' started by Speedytech7, Mar 23, 2018.

?

Was this writeup useful to you in any way? Trying to gauge whether I should keep making them

  1. Hell Yeah!

    75 vote(s)
    94.9%
  2. Yeah

    2 vote(s)
    2.5%
  3. Nah

    0 vote(s)
    0.0%
  4. Hell Nah!

    2 vote(s)
    2.5%
  1. Jun 5, 2019 at 2:54 PM
    #61
    Speedytech7

    Speedytech7 [OP] Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    53,614
    Gender:
    Male
    First Name:
    ゼイン
    5520 E Sprague Ave, Spokane Valley, WA 99212
    Vehicle:
    93 80 Series LC & 96 Turbo V6 Taco 4WD
    I've done a mod or two
    Me or @charliegt35r ?

  2. Jun 5, 2019 at 2:55 PM
    #62
    riven29

    riven29 Well-Known Member

    Joined:
    Feb 10, 2019
    Member:
    #282591
    Messages:
    121
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    1995 Maroon Tacoma
    speedytech7

  3. Jun 5, 2019 at 8:41 PM
    #63
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,273
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnuson MP62 Supercharger w/URD 2.2" Pulley Haltech Elite 2000 Standalone ECU Denso 650cc Fuel Injectors Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit Doug Thorley Headers 2.5" Magnaflow Hi-Flow CAT Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers Braided Steel Brake Lines ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    If you put a "@" in front of a user name, TW will send that user a notification that you tagged them.

    @Speedytech7

    Speedytech7[OP] likes this.
  4. Jun 19, 2019 at 12:00 AM
    #64
    riven29

    riven29 Well-Known Member

    Joined:
    Feb 10, 2019
    Member:
    #282591
    Messages:
    121
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    1995 Maroon Tacoma

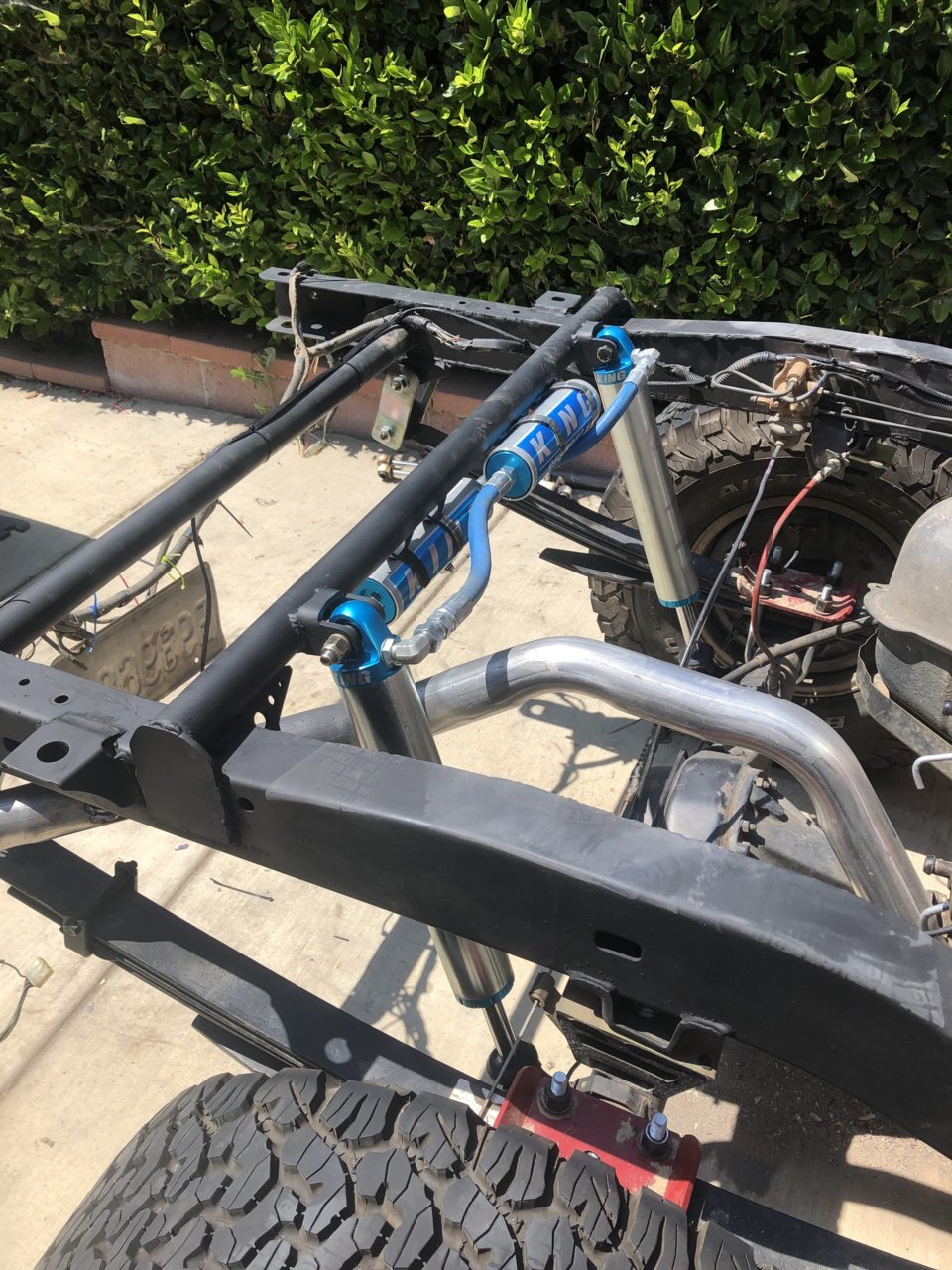

    IMG_2017.jpg Just finished getting all the install done! I still need to adjust my bump stops, looks like they need to be a little longer so I don't bottom out the shock on compression. Just curious what length of the shaft is showing at "rest" on your setup @Speedytech7 Thanks for the write up btw it was super helpful!

  5. Apr 28, 2020 at 10:40 PM
    #65
    Tour991

    Tour991 Supplier of used parts

    Joined:
    Nov 24, 2011
    Member:
    #67616
    Messages:
    9,462
    Gender:
    Male
    First Name:
    James
    Zephyr Cove NV Lake Tahoe
    Vehicle:
    97 2/4wd, 2014 DCLB 4x4, 99 T4R Limited
    Subed for next months install.

  6. May 4, 2020 at 1:49 PM
    #66
    Tour991

    Tour991 Supplier of used parts

    Joined:
    Nov 24, 2011
    Member:
    #67616
    Messages:
    9,462
    Gender:
    Male
    First Name:
    James
    Zephyr Cove NV Lake Tahoe
    Vehicle:
    97 2/4wd, 2014 DCLB 4x4, 99 T4R Limited

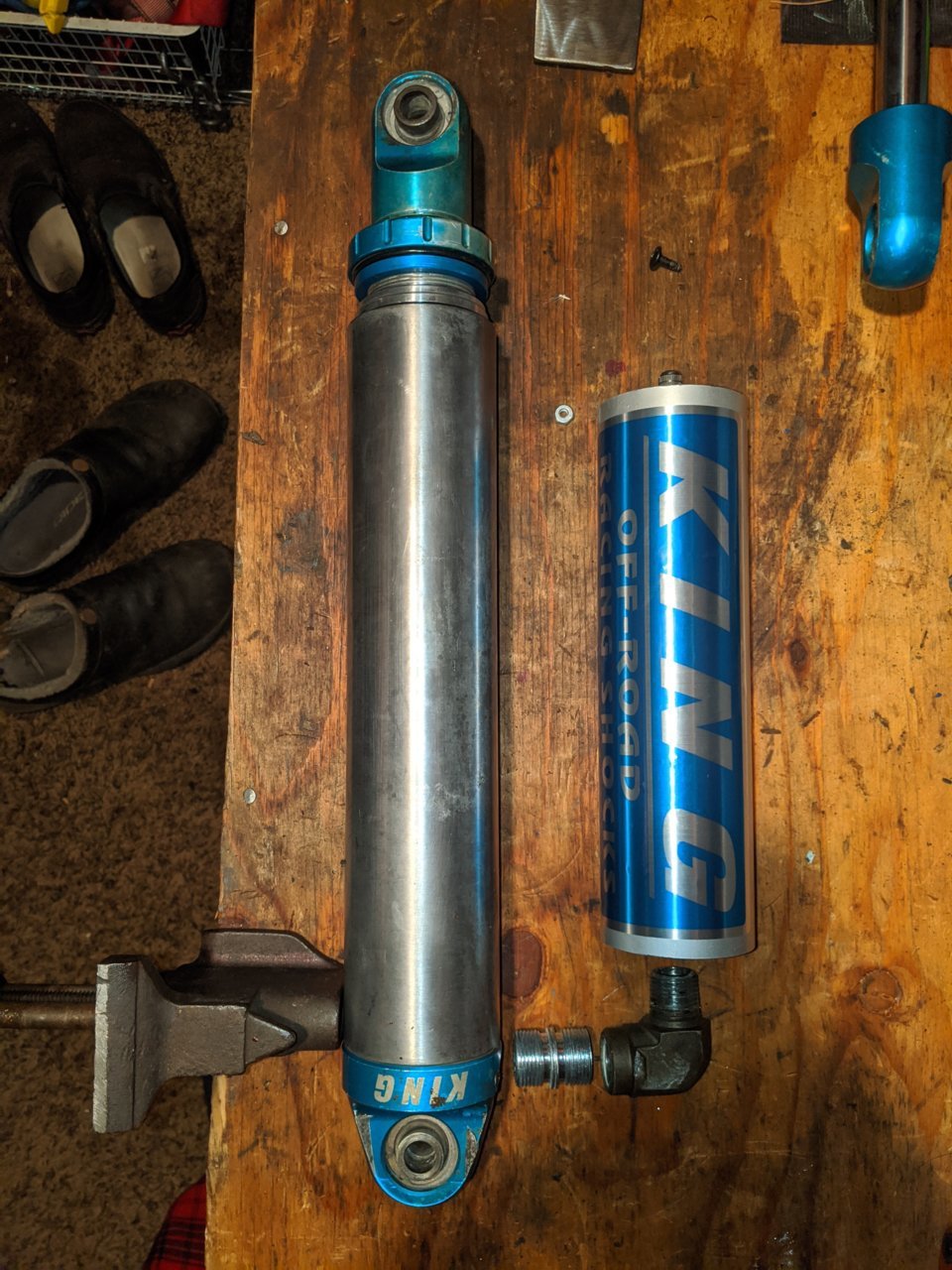

    Really appreciate this rite up you did. Its giving me a lot of ideas. I am in the process of rebuilding my rears and had the idea to piggie back them. Looking at your pictures it looks like there is room ( no clearance issues) but did you come across any reason this would not work?

  7. May 4, 2020 at 2:07 PM
    #67
    Speedytech7

    Speedytech7 [OP] Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    53,614
    Gender:
    Male
    First Name:
    ゼイン
    5520 E Sprague Ave, Spokane Valley, WA 99212
    Vehicle:
    93 80 Series LC & 96 Turbo V6 Taco 4WD
    I've done a mod or two
    A piggyback shock will work, not sure I'd do it like that specifically because that's bigger and heavier than a piggyback and has way less support being it's just aluminum pipe threads

  8. May 4, 2020 at 2:16 PM
    #68
    Tour991

    Tour991 Supplier of used parts

    Joined:
    Nov 24, 2011
    Member:
    #67616
    Messages:
    9,462
    Gender:
    Male
    First Name:
    James
    Zephyr Cove NV Lake Tahoe
    Vehicle:
    97 2/4wd, 2014 DCLB 4x4, 99 T4R Limited

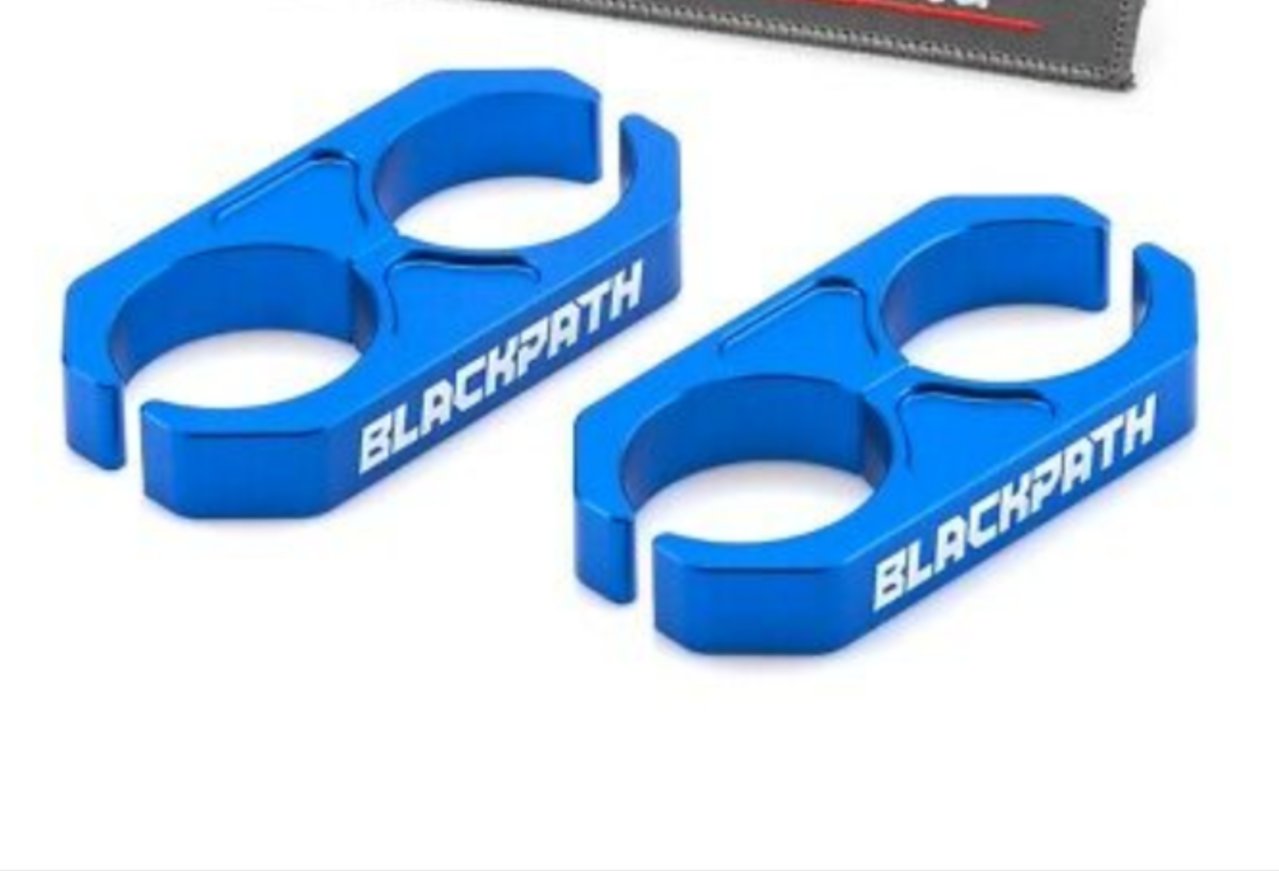

    So I thought about that also, was thinking of something like this to support the weight.

  9. May 4, 2020 at 2:31 PM
    #69
    Speedytech7

    Speedytech7 [OP] Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    53,614
    Gender:
    Male
    First Name:
    ゼイン
    5520 E Sprague Ave, Spokane Valley, WA 99212
    Vehicle:
    93 80 Series LC & 96 Turbo V6 Taco 4WD
    I've done a mod or two
    I think that would make it fine, just gotta measure out so you aren't pinching the connection site

    Tour991[QUOTED] likes this.
  10. May 4, 2020 at 3:09 PM
    #70
    Tour991

    Tour991 Supplier of used parts

    Joined:
    Nov 24, 2011
    Member:
    #67616
    Messages:
    9,462
    Gender:
    Male
    First Name:
    James
    Zephyr Cove NV Lake Tahoe
    Vehicle:
    97 2/4wd, 2014 DCLB 4x4, 99 T4R Limited
    Yeah I'll measure it out 1st. Or I may just go with the hose.

  11. May 4, 2020 at 4:59 PM
    #71
    Tour991

    Tour991 Supplier of used parts

    Joined:
    Nov 24, 2011
    Member:
    #67616
    Messages:
    9,462
    Gender:
    Male
    First Name:
    James
    Zephyr Cove NV Lake Tahoe
    Vehicle:
    97 2/4wd, 2014 DCLB 4x4, 99 T4R Limited
    Yeah going to take a lot of measurements. Or I may just do hoses. Thanks for the tips and info.

  12. Jun 6, 2020 at 7:28 PM
    #72
    Pj40

    Pj40 Well-Known Member

    Joined:
    Jan 17, 2020
    Member:
    #316424
    Messages:
    108
    Gender:
    Male
    Washington
    Yeah I'm curious upon how much of the shaft is showing when sitting as well. I have dome the shock relocation and I have exactly 4 inches of shaft showing.
    My mounts when everything is sitting are 20 inches apart
    At full drop I'm at 26 inches
    The collapsed shock is 16 so technically the math works out perfect but 4 inches of up travel seems like nothing?

  13. Jun 6, 2020 at 7:54 PM
    #73
    Tour991

    Tour991 Supplier of used parts

    Joined:
    Nov 24, 2011
    Member:
    #67616
    Messages:
    9,462
    Gender:
    Male
    First Name:
    James
    Zephyr Cove NV Lake Tahoe
    Vehicle:
    97 2/4wd, 2014 DCLB 4x4, 99 T4R Limited
    I'm at the same 4 inches showing. My understanding is the angle that you mount your shocks at will also increase your travel but change your dampening.

  14. Jun 6, 2020 at 8:42 PM
    #74
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,273
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnuson MP62 Supercharger w/URD 2.2" Pulley Haltech Elite 2000 Standalone ECU Denso 650cc Fuel Injectors Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit Doug Thorley Headers 2.5" Magnaflow Hi-Flow CAT Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers Braided Steel Brake Lines ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop

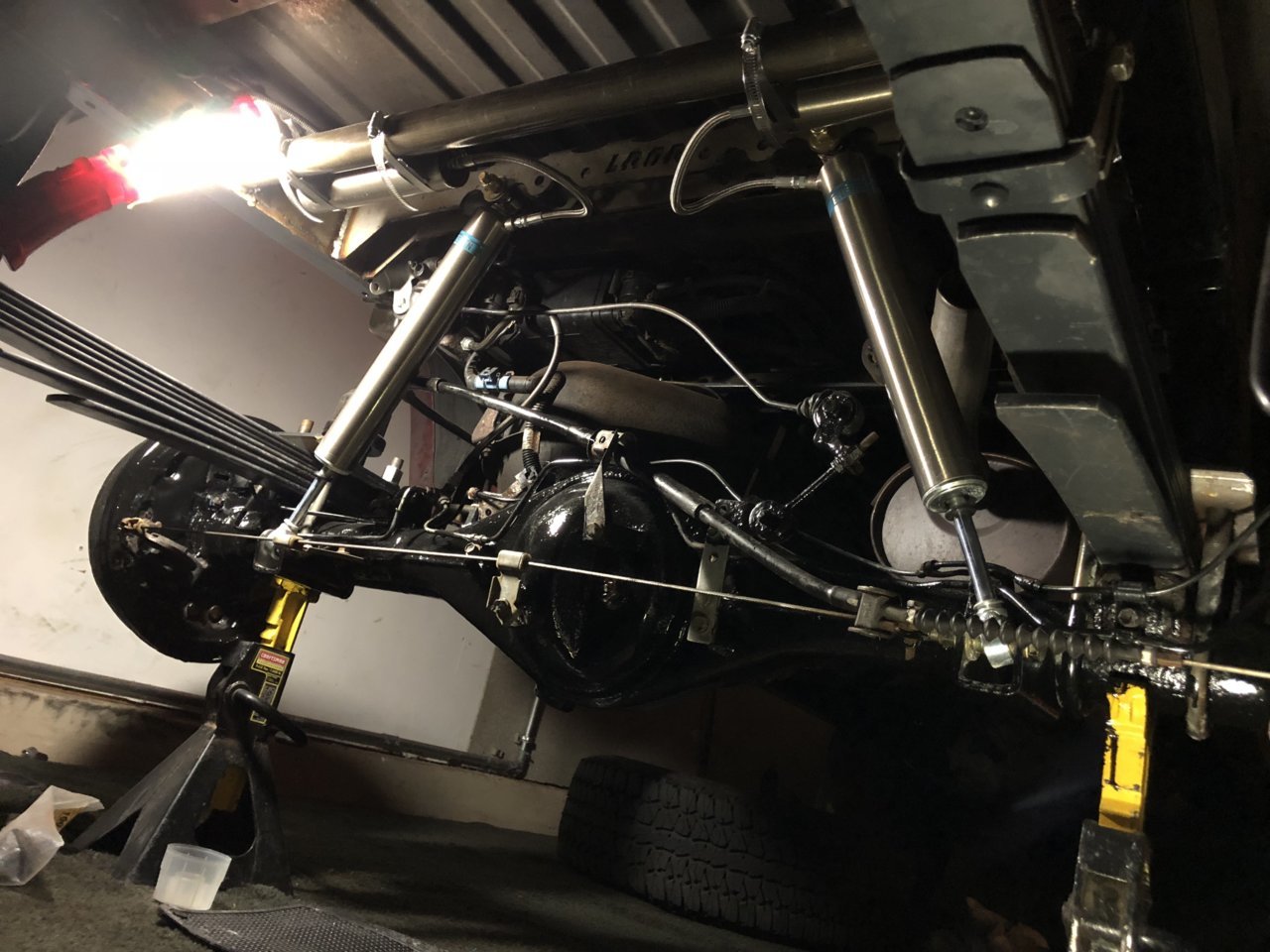

    These ADS shocks are 25.125" extended and 15.125" compressed. This pic is from the day we finished the relocate and setup. The new springs have settled a bit since then.


    At ride height, I currently have 5.25" of shaft showing on the driver side and 5.5" on the passenger side. I fully expect the springs to continue to settle. We will see where it all ends up.

  15. Jun 6, 2020 at 9:26 PM
    #75
    riven29

    riven29 Well-Known Member

    Joined:
    Feb 10, 2019
    Member:
    #282591
    Messages:
    121
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    1995 Maroon Tacoma
    What leaf pack do you have?

  16. Jun 6, 2020 at 10:20 PM
    #76
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,273
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnuson MP62 Supercharger w/URD 2.2" Pulley Haltech Elite 2000 Standalone ECU Denso 650cc Fuel Injectors Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit Doug Thorley Headers 2.5" Magnaflow Hi-Flow CAT Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers Braided Steel Brake Lines ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    It is a custom Alcan leaf pack, spec'd for +3" of lift

    Yetimetchkangmi likes this.
  17. Aug 15, 2020 at 11:02 PM
    #77
    tacofor4

    tacofor4 Active Member

    Joined:
    Jan 22, 2019
    Member:
    #280261
    Messages:
    36
    Gender:
    Male
    First Name:
    Rob
    Vehicle:
    2004 TRD 4x4 Tacoma Crew Cab
    Stock - for now
    Figured I'd add to this thread since it inspired my rear shock relocation...

    Frame plates, shock relocation brackets, Bilstein 12" shortbodies, Dakar leaf pack, trailgear shackles


  18. Nov 22, 2020 at 8:28 PM
    #78
    TacoJohn4x4

    TacoJohn4x4 Captain Save-A-Ho

    Joined:
    Jul 10, 2018
    Member:
    #258956
    Messages:
    1,028
    Gender:
    Male
    Central Valley
    Vehicle:
    2002 Tacoma DC 4x4
    I'm in the process of updating my suspension and after reading some of the threads on here I'm going to go with a shock relocation in the rear. I'll being running King ext 650# in the front. My rear estimated constant weight is about 450-500# so I went with the Allpro expo leaf pack. I'll be doing the Wheelers flipkit w/Superbumps.

    I've seen @turbodb with ADS 15-25, @Uphillshunter with Fox 16-26, and now @Speedytech7 with King 17-27. For my setup with the Allpro expo would the 1-2" of travel make that much of a difference? I guess what I'm trying to go for is to best match the Allpro expo with a rear shock. I don't want to over do the rear shock if my leaf pack would be the limiting factor and vice versa. Pricing is not a huge factor but it is still there considering ADS is the most expensive, then King, and Fox being the least. I'm sure they're built and perform close to one another.

    Any feedback would be apricated
    Thanks!

  19. Nov 23, 2020 at 9:25 AM
    #79
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    23,273
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 SCv6 AutoTrans With Lots of Mods ADS COs w/Compression Adjusters Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Kartek 7" Limit Straps Plastics Guy Front Bumpstops Custom Alcan Springs +800 lbs +3" ADS 10" Stroke Triple Bypass w/Resi Rear Shocks Custom Rear Shock Relocate All-Pro U-bolt Flip w/Timbren Bumpstops 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Black 17x8 Konig Countersteer Type X 285/70r17 Falken A/T3w Gunmetal 16x8 SCS Ray10s 255/85r16 Maxxis Bighorns Limited Edition (Relentless) Elite Front Bumper Smittybilt X2O 10K Winch Diode Dynamics SS3 Sport Selective Yellow Fog Lights in the Bumper Diode Dynamics SS3 Pro 4,000 Kelvin SAE Driving Lights with Clear Lenses on the Bumper Morimoto D2S Projectors XB35 Ballasts + 4300K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Dometic CFX 55im Fridge/Freezer Alpha II Hardshell RTT Badland Custom Bed Rack Denso 210-0461 105 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnuson MP62 Supercharger w/URD 2.2" Pulley Haltech Elite 2000 Standalone ECU Denso 650cc Fuel Injectors Aeromotive Stealth 340 Fuel Pump TransGo A340F Reprogramming Shift Kit Doug Thorley Headers 2.5" Magnaflow Hi-Flow CAT Magnaflow 18" Muffler w/Vibrant Resonator 13WL Brake Calipers Braided Steel Brake Lines ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    To get the most out of any shock, you must first know what axle travel that your spring will allow. And when I say know, I really mean measured travel. Guessing or hearsay evidence can get you into a situation where the compressed length is too long or the extended length is too short.

    IMO, you really need to install the expos, then measure the travel, then purchase the correct shock based on the results.

    Speedytech7[OP] likes this.
  20. Nov 23, 2020 at 9:35 AM
    #80
    Speedytech7

    Speedytech7 [OP] Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    53,614
    Gender:
    Male
    First Name:
    ゼイン
    5520 E Sprague Ave, Spokane Valley, WA 99212
    Vehicle:
    93 80 Series LC & 96 Turbo V6 Taco 4WD
    I've done a mod or two
    My vote for the most ease of adjustment and fitment is gonna be the ADS if you are able to get a solid measurement that says you'll cycle 10" out of your leafs.
