HOW TO: 400W Anytime Mod 3rd Gen

Discussion in '3rd Gen. Tacomas (2016+)' started by kashtyaatsi, Jun 13, 2016.

  1. Jun 13, 2016 at 8:55 PM
    #1
    kashtyaatsi

    kashtyaatsi [OP] Most Normal 3rd Gen Owner

    Joined:
    Sep 20, 2015
    Member:
    #164774
    Messages:
    4,137
    First Name:
    Asher
    Colorado
    Vehicle:
    LPC's
    Broken
    I've been dying to do this mod, but after ripping out my center console and looking at the 2nd gen how to I realized they're different. So I spent all weekend cutting through a bunch of different wires before getting a wiring diagram from a friend at toyota (even then it was still a pain to figure out)

    Disclosure: I am by no means an electrician or a mechanic. This was all figured out by two days worth of trial and error. I don't know if this is the exact method that SHOULD be done, all I know is that it works.

    Manual Transmission write up at the bottom.


    I am gonna make this as easy as possible. I didn't get the best pictures because I wasn't planning on making a thread on this, but I'll try to explain the best I can.

    First remove your shift knob and trim in FRONT of the center console, no need to remove the center console to get to the inverter. You will be working with these wires.


    Now cut the purple (speed sensor) one right in half and tape both ends.



    Now cut the pink (park/neutral something) and tape the side closest to the black tubing (drivers side) and ground the opposite side.

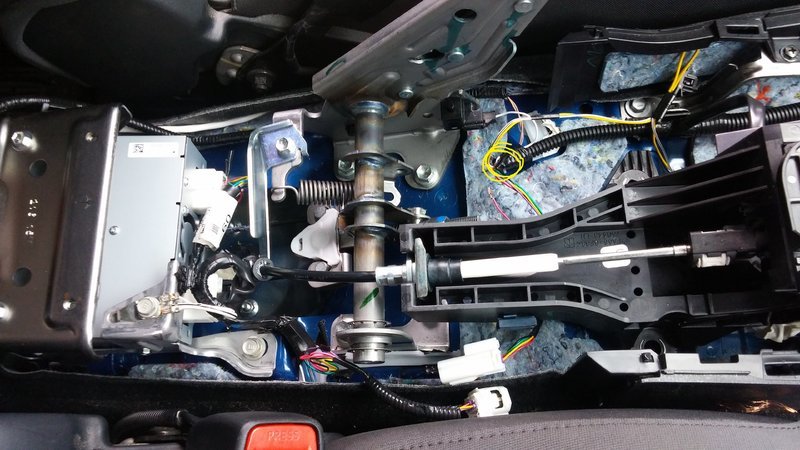

    (TAPE THIS SIDE)

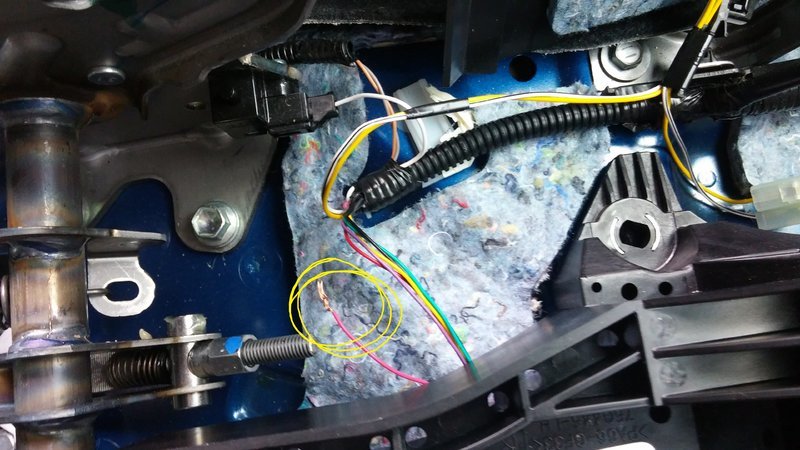

    (GROUND THIS SIDE)

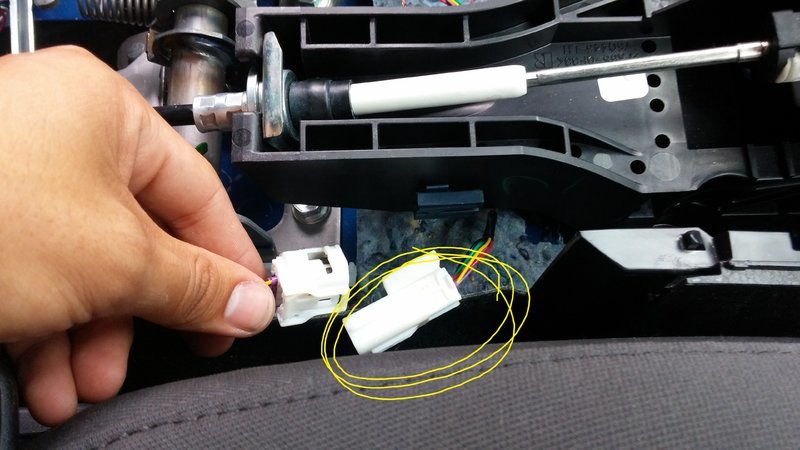

    (The wire you ground is coming from this)

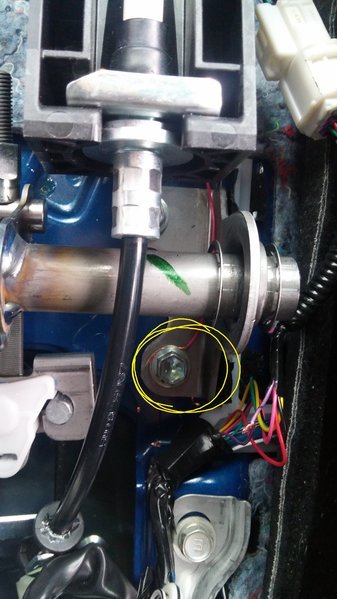

    (Awful picture of where I grounded it)












    AND....

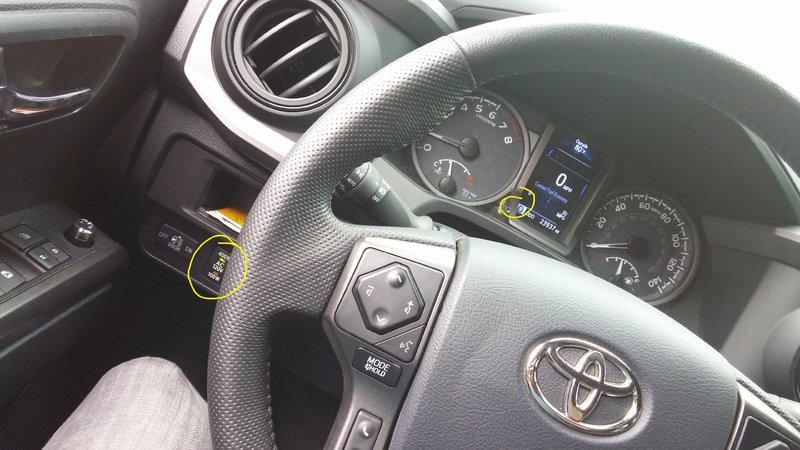

    VIOLA!:amen:









    Manual Transmission:


    Credit to @DrVonEvilSatan


    Alright so I figured out the manuals.

    1) Locate your trucks center console.

    http://imgur.com/Zcx5hLW

    2) Twist the chrome collar below the shift knob and separate then unscrew the shift knob.

    http://imgur.com/wVNDFwa
    http://imgur.com/Qce5RxG

    3) Locate the upper part of the console, then pull gently up to unsnap it from the base clearing the emergency brake and shift boots in the process.

    http://imgur.com/yafeOIt

    4) Somewhere after the white connector, cut the purple wire and insulate both ends. This is the speed sensor. I used heat shrink tubing

    http://imgur.com/q41i3vG
    http://imgur.com/FB3aeat

    5) Cut the blue wire close-ish to the connector. This is the clutch sensor. It has a constant feed of 12v and cuts to 0v when the clutch is depressed. Insulate the part close to the connector.

    http://imgur.com/rpHOgIm
    http://imgur.com/N2aeBpT

    6) Feed the rest of the blue wire through the tape so it's separated.

    http://imgur.com/JqLpjBj

    7) Locate the 12v accessory port to the rear, unsnap the wire mount from the console and undo the electrical tape. Cut and strip the ends.

    http://imgur.com/8PuQrlc

    8) Using a connector like me or simply twist the ends back together and connect it to the other end of the blue wire. This will mimic the constant 12v signal tricking the inverter to believing the clutch is always in the upright position.

    http://imgur.com/fkQ0DOA

    9) Retie and dress the assembly and snap the console cover back

    http://imgur.com/m7IlxVB






    I did not have the time or patience to try and figure out which wires to tap into in order to add a 120V in the cab. If you would like a copy of the wiring diagram to try and figure it out PM me and I'll give it to you.

    If you have any more info or suggestions to improve the OP please let me know.


    Attached Files:

    Last edited: Jul 19, 2016
    Bullnettles, JTM1, vinkon235 and 4 others like this.
  2. Jun 13, 2016 at 9:04 PM
    #2
    bulldog

    bulldog Well-Known Member

    Joined:
    Nov 8, 2015
    Member:
    #169066
    Messages:
    924
    Gender:
    Male
    SW MO
    Vehicle:
    2016 DCSB OR
    MobTown Sliders Line-Xed RCI Aluminum Skid Clazzio Dark Gray Seat Covers 35% Tint Vinyl Tailgate Letters Undercover Elite Tonneau Apex Stealth Cali LED 31.5" w/upgrade OPT 7 harness and MicTuning Switch Homelink Autodim Compass RV Mirror 265/70 16 Falken Wildpeak AT3 W Tires 17' Pro Rigid Fog Lights 17' Pro Tail Lights OEM Roof Rack OEM Rubber Mats
    Nice write up!

  3. Jun 13, 2016 at 9:08 PM
    #3
    kashtyaatsi

    kashtyaatsi [OP] Most Normal 3rd Gen Owner

    Joined:
    Sep 20, 2015
    Member:
    #164774
    Messages:
    4,137
    First Name:
    Asher
    Colorado
    Vehicle:
    LPC's
    Broken
    All I know is they've been doing it on the 2nd gens for years and they've been okay.

    ebbs15 likes this.
  4. Jun 13, 2016 at 9:27 PM
    #4
    DrVonEvilSatan

    DrVonEvilSatan Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176713
    Messages:
    450
    Vehicle:
    16 TRD-OR DCSB 6MT SSM.
    I'll dig into it tomorrow to find if there's a difference on the manual trucks like the 2nd's

    kashtyaatsi [OP] likes this.
  5. Jun 13, 2016 at 9:42 PM
    #5
    DrVonEvilSatan

    DrVonEvilSatan Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176713
    Messages:
    450
    Vehicle:
    16 TRD-OR DCSB 6MT SSM.
    Think about it this way, if you're tailgating or camping the truck is sitting there idling, headlights off, stereo off. Only thing the alternator runs is the engine and inverter. Remember the alternator amp output and any accessories you may have running in the background. 400w is the equivalent of roughly double your high and low beam lighting system. Your truck can run it, but keep in mind what else you have being powered.

    vinkon235 likes this.
  6. Jun 14, 2016 at 1:45 AM
    #6
    JasonT87

    JasonT87 Well-Known Member

    Joined:
    Feb 6, 2016
    Member:
    #177280
    Messages:
    608
    Gender:
    Male
    First Name:
    Jason
    Southern California
    Vehicle:
    '16 TRD Sport DCSB
    Any tips on how to open up the center console/remove it? Planning to apply sound deadener and possibly mount my component crossovers under the center console if there's room.

  7. Jun 14, 2016 at 4:45 AM
    #7
    kashtyaatsi

    kashtyaatsi [OP] Most Normal 3rd Gen Owner

    Joined:
    Sep 20, 2015
    Member:
    #164774
    Messages:
    4,137
    First Name:
    Asher
    Colorado
    Vehicle:
    LPC's
    Broken

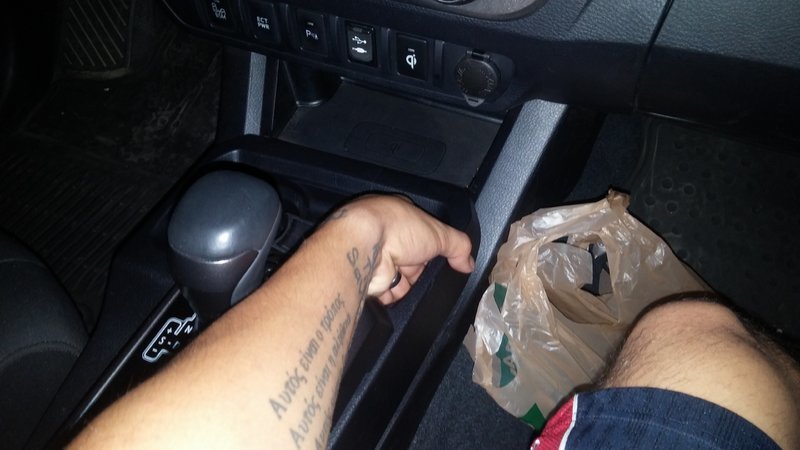

    You just start pulling from the very front cup holders. You might have to pull with a little force at first. Don't forget to remove the shift knob too. There is also one set of wires that needs disconnected. After that first piece is off then you can remove the center console. It's just (2) 10mm bolts in the bottom of the console and it pulls right out.

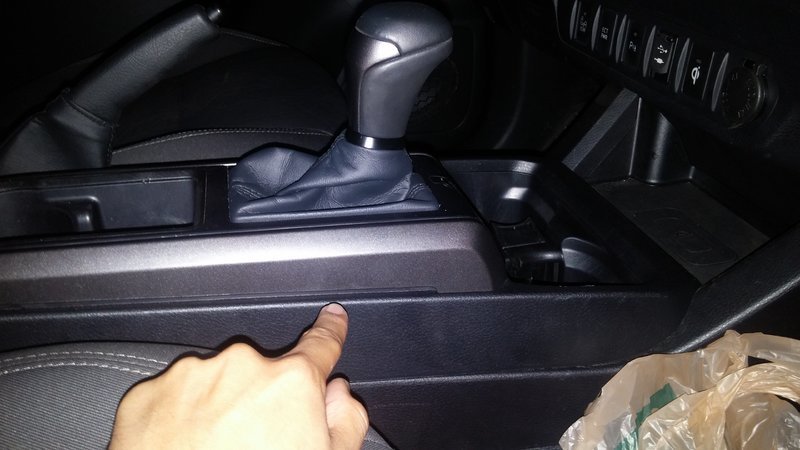

    Just start pulling here.




    Once you start getting it up there will be wires to disconnect right about here.

    ExtraExtra likes this.
  8. Jun 14, 2016 at 5:31 AM
    #8
    daddy_o

    daddy_o Well-Known Member

    Joined:
    Nov 1, 2015
    Member:
    #168380
    Messages:
    1,895
    I thought of this when I saw what the OP did.
    https://www.tacomaworld.com/threads/brand-new-tacoma-on-fire.436699/

  9. Jun 14, 2016 at 6:29 AM
    #9
    kashtyaatsi

    kashtyaatsi [OP] Most Normal 3rd Gen Owner

    Joined:
    Sep 20, 2015
    Member:
    #164774
    Messages:
    4,137
    First Name:
    Asher
    Colorado
    Vehicle:
    LPC's
    Broken
    andyr562 likes this.
  10. Jun 14, 2016 at 6:36 AM
    #10
    VangaSTL

    VangaSTL Well-Known Member

    Joined:
    Oct 27, 2015
    Member:
    #167889
    Messages:
    2,211
    Gender:
    Male
    First Name:
    Garrick
    St. Louis, MO
    Vehicle:
    2016 TRD Sport 4x4
    verynearlypure likes this.
  11. Jun 14, 2016 at 6:46 AM
    #11
    kashtyaatsi

    kashtyaatsi [OP] Most Normal 3rd Gen Owner

    Joined:
    Sep 20, 2015
    Member:
    #164774
    Messages:
    4,137
    First Name:
    Asher
    Colorado
    Vehicle:
    LPC's
    Broken
    andyr562 likes this.
  12. Jun 14, 2016 at 6:49 AM
    #12
    kashtyaatsi

    kashtyaatsi [OP] Most Normal 3rd Gen Owner

    Joined:
    Sep 20, 2015
    Member:
    #164774
    Messages:
    4,137
    First Name:
    Asher
    Colorado
    Vehicle:
    LPC's
    Broken
  13. Jun 14, 2016 at 11:41 AM
    #13
    Danielnc06

    Danielnc06 Well-Known Member

    Joined:
    Feb 11, 2016
    Member:
    #177882
    Messages:
    235
    Gender:
    Male
    NC
    Vehicle:
    2016 TRD DCLB
    The speed sensor wire hasnt affected the radio motion disabling has it by any chance?

  14. Jun 14, 2016 at 11:54 AM
    #14
    kashtyaatsi

    kashtyaatsi [OP] Most Normal 3rd Gen Owner

    Joined:
    Sep 20, 2015
    Member:
    #164774
    Messages:
    4,137
    First Name:
    Asher
    Colorado
    Vehicle:
    LPC's
    Broken
    No. I pulled that out and was trying to figure how to let if type while moving if there's a passenger or something. No such luck.

    Mazzmania likes this.
  15. Jun 14, 2016 at 11:57 AM
    #15
    Danielnc06

    Danielnc06 Well-Known Member

    Joined:
    Feb 11, 2016
    Member:
    #177882
    Messages:
    235
    Gender:
    Male
    NC
    Vehicle:
    2016 TRD DCLB
    Yeah i dont believe its analogue any more. More than likely digital coming in on a databus signal.. Same as my wrx.

    Worth a shot..

  16. Jun 15, 2016 at 9:00 AM
    #16
    kashtyaatsi

    kashtyaatsi [OP] Most Normal 3rd Gen Owner

    Joined:
    Sep 20, 2015
    Member:
    #164774
    Messages:
    4,137
    First Name:
    Asher
    Colorado
    Vehicle:
    LPC's
    Broken
    I know on some of the older models they sell stuff to disable it. Nothing I've seen for the 16's yet though. I couldn't even find a simple work around on the 2nd gen so we might be sol.

  17. Jun 15, 2016 at 1:13 PM
    #17
    DrVonEvilSatan

    DrVonEvilSatan Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176713
    Messages:
    450
    Vehicle:
    16 TRD-OR DCSB 6MT SSM.
    No success yet, anyone have a manual wiring diagram available?

  18. Jun 15, 2016 at 2:25 PM
    #18
    DrVonEvilSatan

    DrVonEvilSatan Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176713
    Messages:
    450
    Vehicle:
    16 TRD-OR DCSB 6MT SSM.
    Alright so I figured out the manuals.

    1) Locate your trucks center console.

    http://imgur.com/Zcx5hLW

    2) Twist the chrome collar below the shift knob and separate then unscrew the shift knob.

    http://imgur.com/wVNDFwa
    http://imgur.com/Qce5RxG

    3) Locate the upper part of the console, then pull gently up to unsnap it from the base clearing the emergency brake and shift boots in the process.

    http://imgur.com/yafeOIt

    4) Somewhere after the white connector, cut the purple wire and insulate both ends. This is the speed sensor. I used heat shrink tubing

    http://imgur.com/q41i3vG
    http://imgur.com/FB3aeat

    5) Cut the blue wire close-ish to the connector. This is the clutch sensor. It has a constant feed of 12v and cuts to 0v when the clutch is depressed. Insulate the part close to the connector.

    http://imgur.com/rpHOgIm
    http://imgur.com/N2aeBpT

    6) Feed the rest of the blue wire through the tape so it's separated.

    http://imgur.com/JqLpjBj

    7) Locate the 12v accessory port to the rear, unsnap the wire mount from the console and undo the electrical tape. Cut and strip the ends.

    http://imgur.com/8PuQrlc

    8) Using a connector like me or simply twist the ends back together and connect it to the other end of the blue wire. This will mimic the constant 12v signal tricking the inverter to believing the clutch is always in the upright position.

    http://imgur.com/fkQ0DOA

    9) Retie and dress the assembly and snap the console cover back

    http://imgur.com/m7IlxVB

  19. Jun 15, 2016 at 4:02 PM
    #19
    kashtyaatsi

    kashtyaatsi [OP] Most Normal 3rd Gen Owner

    Joined:
    Sep 20, 2015
    Member:
    #164774
    Messages:
    4,137
    First Name:
    Asher
    Colorado
    Vehicle:
    LPC's
    Broken

    Right on man! Nice job. I'll add this to the OP tonight.

    DrVonEvilSatan likes this.
  20. Jun 15, 2016 at 4:33 PM
    #20
    DrVonEvilSatan

    DrVonEvilSatan Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176713
    Messages:
    450
    Vehicle:
    16 TRD-OR DCSB 6MT SSM.
    I only popped one fuse in the process. :thumbsup:.
