How to adjust Morimoto headlights?

Discussion in 'Lighting' started by Bcjammerx, Nov 8, 2020.

  1. Nov 8, 2020 at 7:47 AM
    #1
    Bcjammerx

    Bcjammerx [OP] I'm not ALWAYS an a-hole, I swear

    Joined:
    Jun 22, 2009
    Member:
    #18747
    Messages:
    452
    Gender:
    Male
    North East Texas
    Vehicle:
    ‘17 TRD Off-road 4X4
    installed my morimoto led headlights and they are super low. parked beside a car with stock hids and my beams were like 3 feet lower than there’s at 6 feet from the wall. very noticeable while driving

    I can’t find adjustment instructions on their site but I found two 10mm bolts on the back of the housing and I assumed these were the adjustment screws but they didn’t move...stock ones were good height before I removed them

    any advice?

  2. Nov 8, 2020 at 7:55 AM
    #2
    GrundleJuice

    GrundleJuice Well-Known Member

    Joined:
    Mar 15, 2015
    Member:
    #150931
    Messages:
    2,343
    Gender:
    Male
    Michigan
    Vehicle:
    2016 TRD Bro
    [S]Un-Molested[/S] Lightly Molested

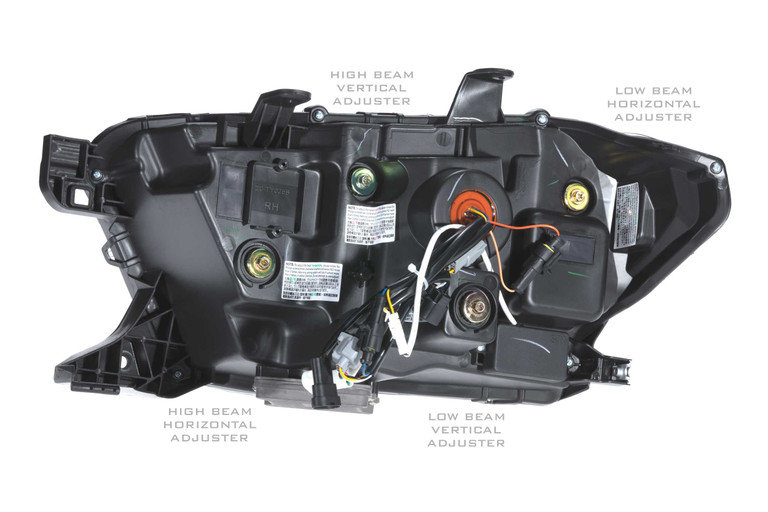

    right on their site, last picture of the uninstalled assembly.

  3. Nov 8, 2020 at 6:20 PM
    #3
    Bcjammerx

    Bcjammerx [OP] I'm not ALWAYS an a-hole, I swear

    Joined:
    Jun 22, 2009
    Member:
    #18747
    Messages:
    452
    Gender:
    Male
    North East Texas
    Vehicle:
    ‘17 TRD Off-road 4X4
    so it is! I was looking for it in the install manual

    I’ll give ‘em some more turns I guess


  4. Jun 25, 2021 at 2:36 PM
    #4
    tclavell

    tclavell Assistant to the Assistant Manager

    Joined:
    Aug 7, 2020
    Member:
    #336897
    Messages:
    10,943
    Gender:
    Male
    First Name:
    Troy
    Phoenix, AZ
    Vehicle:
    2022 JL
    bumping an old thread! Super helpful! My lights were a mess

    Bcjammerx[OP] and FishnTx like this.
  5. Oct 11, 2021 at 3:51 PM
    #5
    calicoaran

    calicoaran Well-Known Member

    Joined:
    May 26, 2015
    Member:
    #156043
    Messages:
    85
    Gender:
    Male
    First Name:
    Daniel
    Albuquerque, NM
    Vehicle:
    2019 Voodoo Blue 6MT
    How did the adjusting go? I'm in the same boat, were you able to do it without pulling stuff apart?

  6. Oct 11, 2021 at 4:03 PM
    #6
    Bcjammerx

    Bcjammerx [OP] I'm not ALWAYS an a-hole, I swear

    Joined:
    Jun 22, 2009
    Member:
    #18747
    Messages:
    452
    Gender:
    Male
    North East Texas
    Vehicle:
    ‘17 TRD Off-road 4X4
    It was super easy once I found the screws, the pics really help.

    up, down, out, and in. Need to adjust my brights again actually, didn't get them quit right.

    I didn't have to remove the battery or anything, I don't think I removed the washer fluid container...don't recall honestly.

    Just don't adjust them too high...one super dangerous for others and won't actually help you...but also I almost couldn't get them to come back down 0_o I always have weird problems...so you don't have to |-)

  7. Oct 11, 2021 at 8:17 PM
    #7
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    14,542
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Read the warnings, likely hard to do once installed. Turning the adjuster more than 3x will break the adjuster. So count your rotations.

  8. Oct 13, 2021 at 5:04 AM
    #8
    calicoaran

    calicoaran Well-Known Member

    Joined:
    May 26, 2015
    Member:
    #156043
    Messages:
    85
    Gender:
    Male
    First Name:
    Daniel
    Albuquerque, NM
    Vehicle:
    2019 Voodoo Blue 6MT
    You're right, it was pretty simple. I removed the bolts from the washer fluid reservoir to give myself a little more room, but I don't think I needed. Warnings on the back of the headlight stated "no more than 3 full rotations." I just kept rotating until they were where they should be (measured at 25ft, 2in below headlight centerpoint). They were wayyyy out of whack. Both beams were around a foot too low. Work great now though. I may go up another inch.

  9. Dec 19, 2021 at 3:16 PM
    #9
    MinesBroken

    MinesBroken Well-Known Member

    Joined:
    Dec 7, 2019
    Member:
    #312755
    Messages:
    98
    Gender:
    Male
    Vehicle:
    2016 BBP Tacoma Limited DCSB

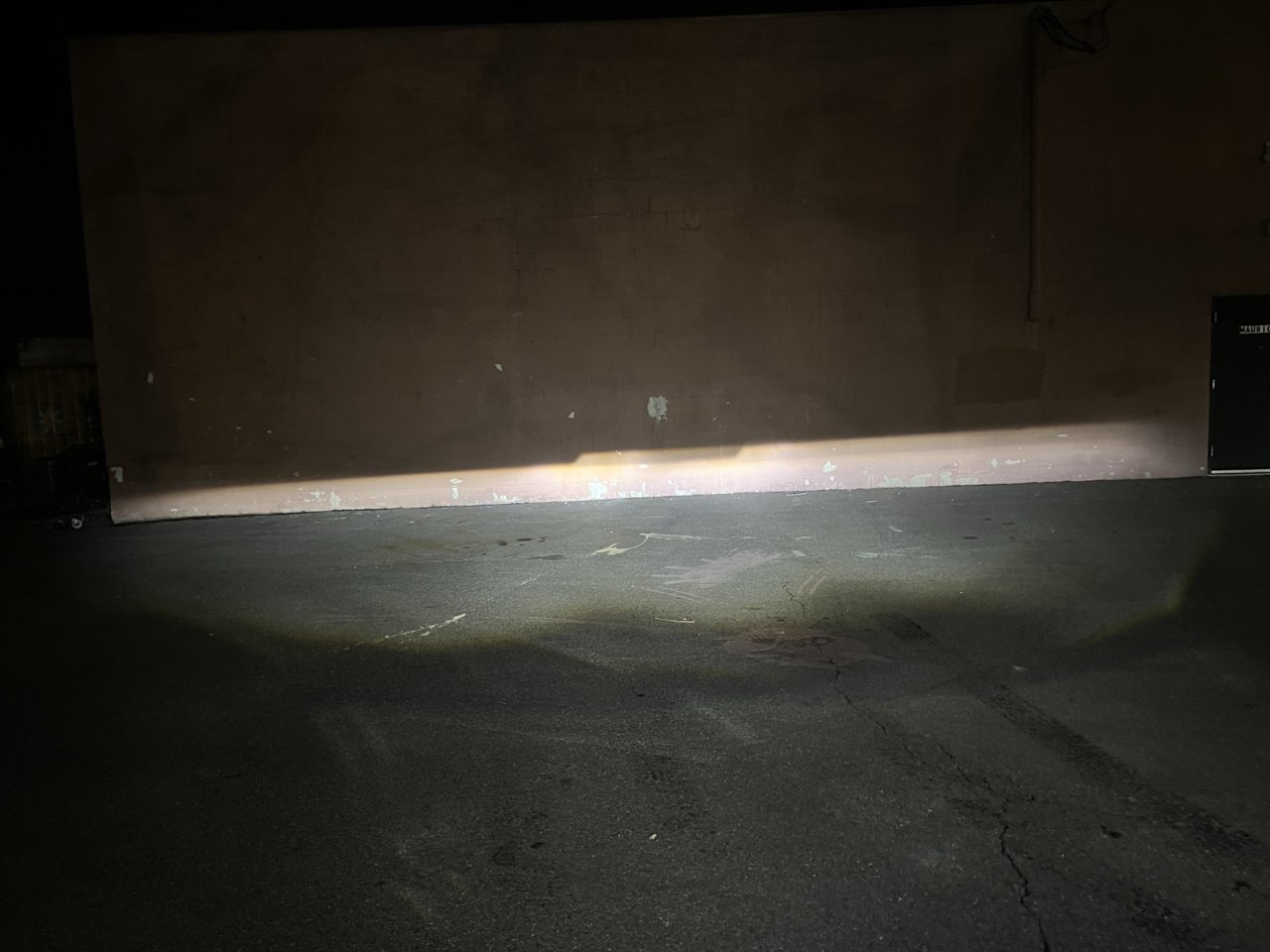

    Thanks for this info been trying to figure out how to adjust them and never noticed the photo on the website. Figured it would have been in the installation manual, but it's not. Had a Question. I have my low beams verticaly level with each other now, but I am not sure about horizontally. High Beams are perfect as installed. My lows get this kind of pattern from 25+ feet away. The parking lot is not level thus the reason lows are unlevel on the wall. Middle of pattern looks odd to me - is my horizontal wacked out? Something else?


    Last edited: Dec 19, 2021
  10. Nov 25, 2023 at 5:17 PM
    #10
    Cornrower

    Cornrower Member

    Joined:
    Aug 20, 2023
    Member:
    #431713
    Messages:
    15
    Gender:
    Male

    Mine only have 2 adjustment screws...?


  11. Nov 25, 2023 at 5:38 PM
    #11
    Toy_Runner

    Toy_Runner Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311172
    Messages:
    755
    Gender:
    Male
    Vehicle:
    99 4Runner SR5
    3" OME lift, heavy coils f/r 3/16" steel skids Modified Coastal Offroad diy bumper 5spd swap ('98 donor)
    Headlamps are not supposed to have horizontal beam adjustment, so morimoto is likely covering that foe the US market leaving the vertical adjustments for the low and high beams accessible.

    Cornrower likes this.
  12. Nov 25, 2023 at 5:46 PM
    #12
    Cornrower

    Cornrower Member

    Joined:
    Aug 20, 2023
    Member:
    #431713
    Messages:
    15
    Gender:
    Male

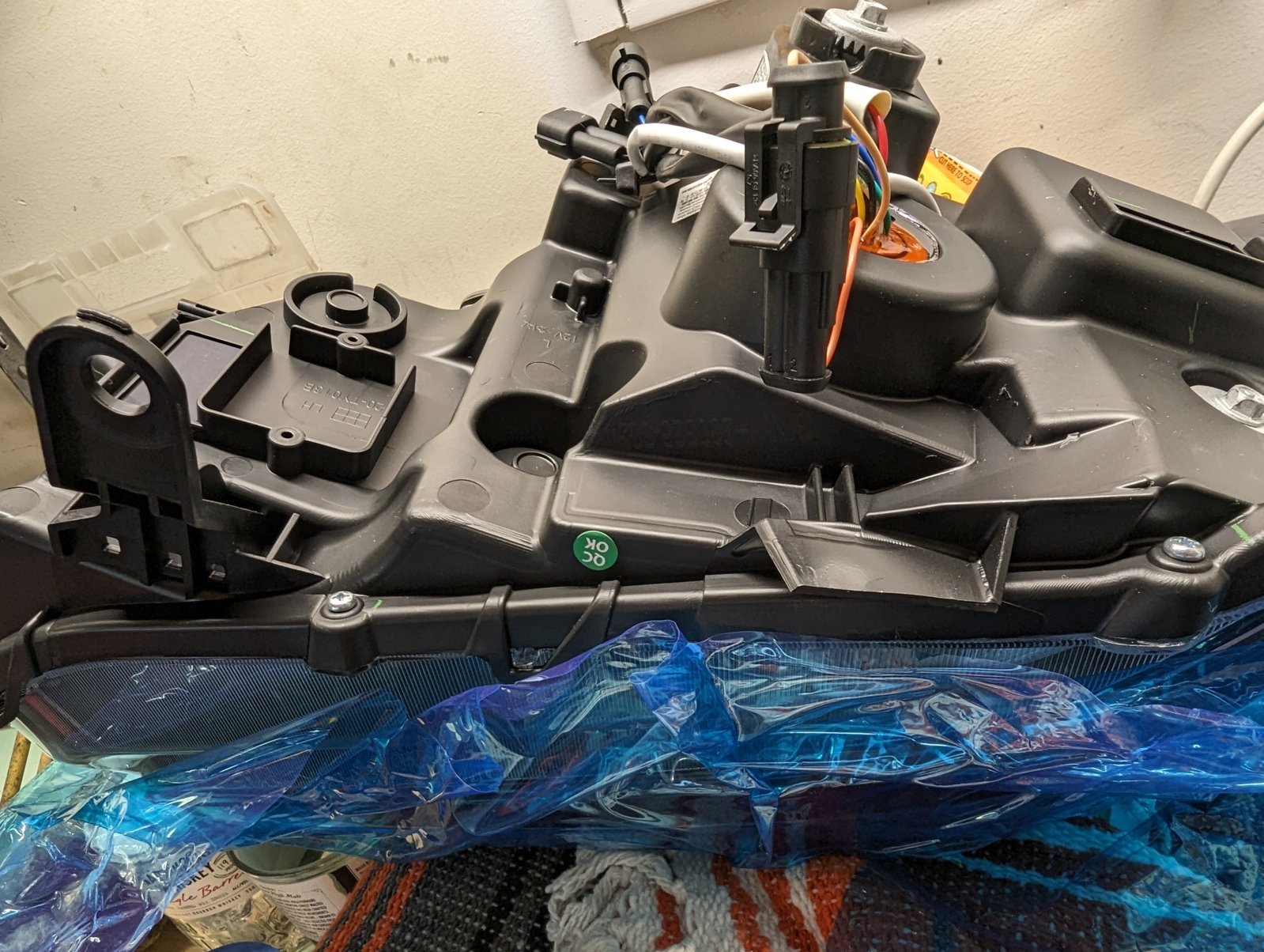

    That makes sense, thanks. I was worried I was sent the wrong headlights on top of having been sent a light with a broken tab. I was able to plastic weld it. I emailed the company but they will probably say I did it, even though the tab was found in the box and I hadn't even began the instal. It's working just fine but kind of annoying.
