HOW TO: Change LEDs in the stock radio.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by F75gunslinger, May 17, 2012.

  1. May 17, 2012 at 10:25 PM
    #1
    F75gunslinger

    F75gunslinger [OP] Ka like a wheel

    Joined:
    Mar 27, 2012
    Member:
    #75759
    Messages:
    907
    Gender:
    Male
    First Name:
    Christian
    Rochester,NY
    Vehicle:
    SWB '10 Doublecab TRD Sport 4x4
    Cluster and Radio LED swap,Westin bull bar,2nd set of bed tie downs,URD SS,K&N filter,weathertechs
    I did this project the other day,and since I wanted to go back in and fix something I decided to take some pics and build a how-to thread.So here goes..

    What you'll need:

    1 small flat-head screwdriver
    1 small philips-head screwdriver
    1 torx driver or bit,size T-10
    1 medium philips-head screwdriver
    1 exacto knife
    1 10mm socket( any size drive ) with a 6 inch extension and a ratchet
    1 soldering iron with a fine tip (the tip I have is actually pointed,not the regular flat blade type ) and extra solder
    1 pair needle nosed pliers
    1 pair small tweezers for placing the LEDs( I used an exacto knife more than the tweezers )
    1 small round file to open up the hole for the 4-way switch LED

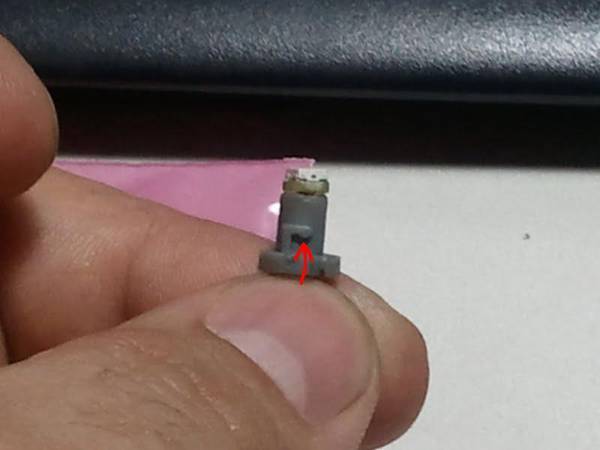

    I got the LED for the 4-way switch here- http://www.superbrightleds.com/cgi-bin/store/index.cgi?action=DispPage&Page2Disp=/instrument.html Select the NEO wedge series by clicking the "See prices and buy" link in the top listing. The LED I used is the Neox-xhp and the size you want is the 3MM ( T-1 ) in red.The hole in the circuit board will need some slight enlarging with a round needle file and the little locking tabs( the bump the red arrow is pointing to ) will need to be removed with an exacto knife.

    [​IMG]

    I bought the LEDs for the radio circuit board here- http://www.oznium.com/1206-smd-led
    The entire face is clear,so any color you like will work.You'll need 30 for the buttons,8 for the knob surround color,and 2 for the CD slot.BUY EXTRAS FOR EACH COLOR YOU USE !!!! They're cheap and since they're so small they're easy to accidentally burn.

    The LEDs to change the clock color can be bought here- http://www.oznium.com/plcc-2
    These are the same LEDs used to change the gauge cluster color as well as the steering wheel controls.You'll need 3,again,buy a couple extra.

    On to the fun part !

    Take out the HVAC controls by applying some upward pressure and sliding a small screwdriver into the gap and prying gently outward. Once the bottom comes out pull on the outer knobs and the whole panel will pop out.Then unplug the 2 plugs.

    [​IMG]

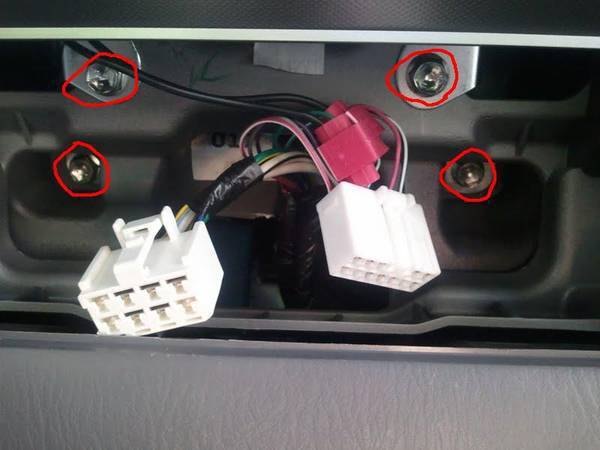

    Next remove the 4 bolts that hold the radio in place.

    [​IMG]

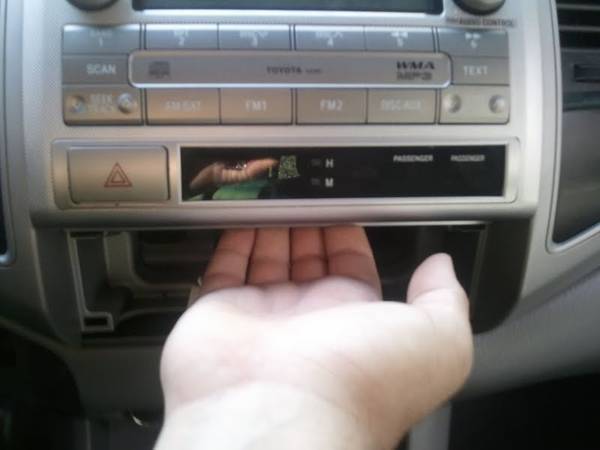

    Then pull outward and upward on the bottom edge of the radio.After it releases there are 5 plugs on the back of the radio plus the plug at the back of the clock.

    [​IMG]

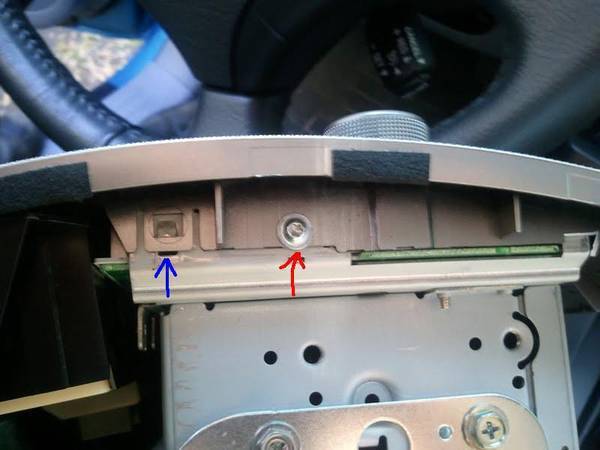

    After the radio is out,pull the knobs off the front ( they'll just pop off )then look at the side.You'll find one Torx screw ( red arrow,size T10 ) on each side just under the front panel and a few plastic tabs( blue arrow,they go all the way around the radio ). These are what hold the face on.

    [​IMG]

    Once you get the face separated from the radio the back will look like this.Remove the 3 screws circled in red first,then set the black plastic piece they hold aside ( Don't forget to put it back on later like I did !! ).Then remove the screws circled in blue.The circuit board will now come off the faceplate. No need to keep the screws straight,they're all the same size.

    [​IMG]

  2. May 17, 2012 at 10:59 PM
    #2
    F75gunslinger

    F75gunslinger [OP] Ka like a wheel

    Joined:
    Mar 27, 2012
    Member:
    #75759
    Messages:
    907
    Gender:
    Male
    First Name:
    Christian
    Rochester,NY
    Vehicle:
    SWB '10 Doublecab TRD Sport 4x4
    Cluster and Radio LED swap,Westin bull bar,2nd set of bed tie downs,URD SS,K&N filter,weathertechs

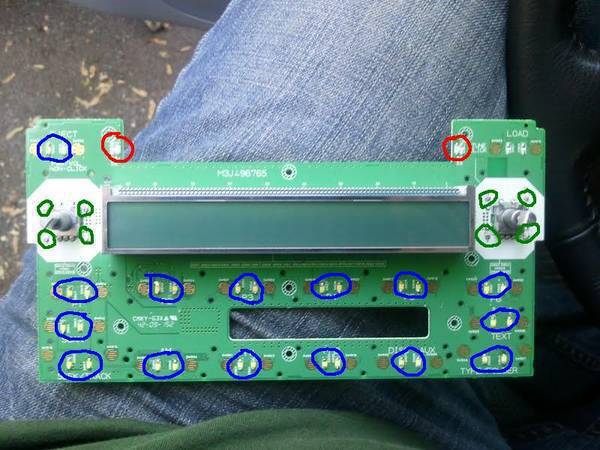

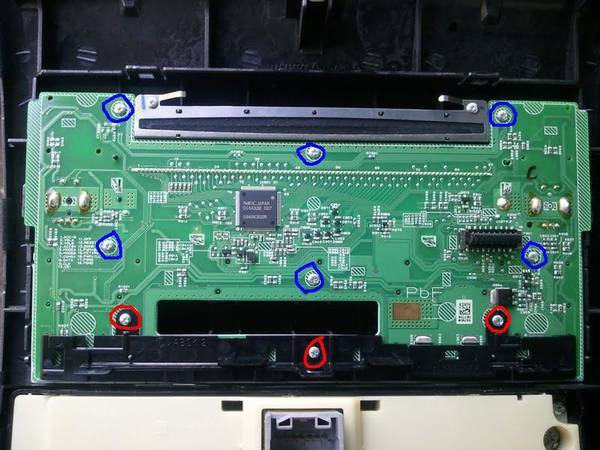

    The circuit board will look like this from the front.The LEDs circled in green are for the knob surround color.The LEDs circled in blue are for the button color.The LEDs circled in red are the small locator lights on the sides of the CD slot.The best way I found to remove these was to put the soldering iron on one end and GENTLY twist the LED with a pair of needle nosed pliers.The other side will generally separate. DO NOT FORCE IT IF IT DOESN'T WANT TO COME OFF.Just work at it a bit applying heat to both ends if it's stubborn.

    [​IMG]

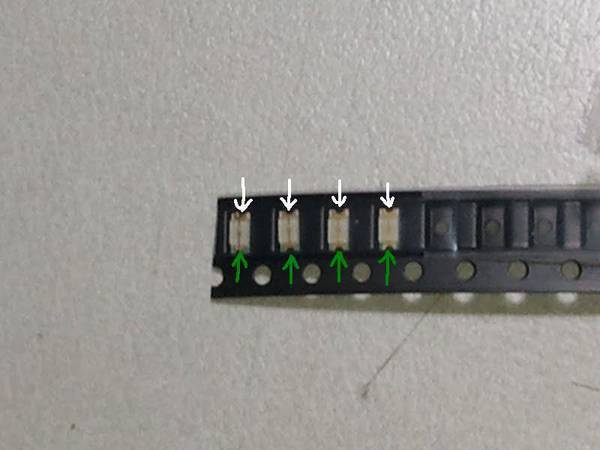

    Go slowly and remove one LED at a time . On the ends of the LEDs you'll notice that one side shows white at the ends,the other side shows green. THIS IS EXTREMELY IMPORTANT !! LEDs are polarized,that means that they only work when electricity flows through them the right way.I'll add a pic here to illustrate the difference. These LEDs are VERY SMALL and you may need a magnifying glass to check this.Green arrow=green end,white arrow=white end. As I went along doing the LEDs I would occasionally take the board and walk back downstairs and test the new LEDs to make sure I did them right. You can plug the Radio in and more or less set it in place and just set the circuit board into place to test them.The back of the board plugs into the front of the radio body.

    [​IMG]

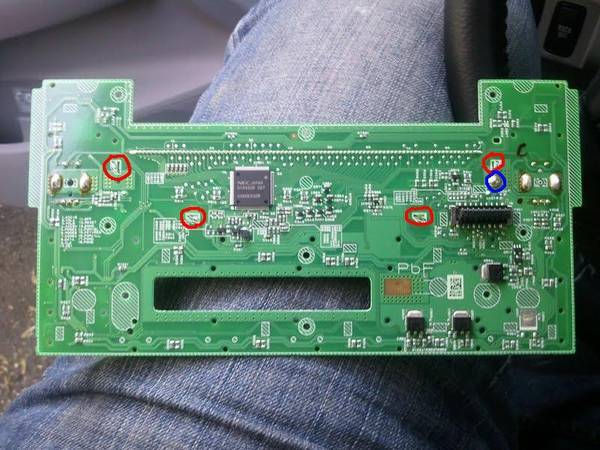

    I didn't change the color of the LCD screens on my clock,gauges or the radio.I'll post up how in case you'd like to though.On the back of the radio circuit board there are small metal tabs that twist to hold the screen in place. These are circled in red. There is also one tab that is soldered through the board. This is circled in blue. Straighten the tabs so they'll slide though the holes in the board. Un-solder the tab circled in blue. I THINK at this point that you will be able to work those tabs through the board and bend the LCD screen up out of the way( maybe Jerez can chime in here to make sure I'm right ?If not,then you may have to remove the entire LCD assembly from the board ). There are more LEDs under the screen that need to be changed to change the display color.

    [​IMG]

    On to the clock and nearby lighting.

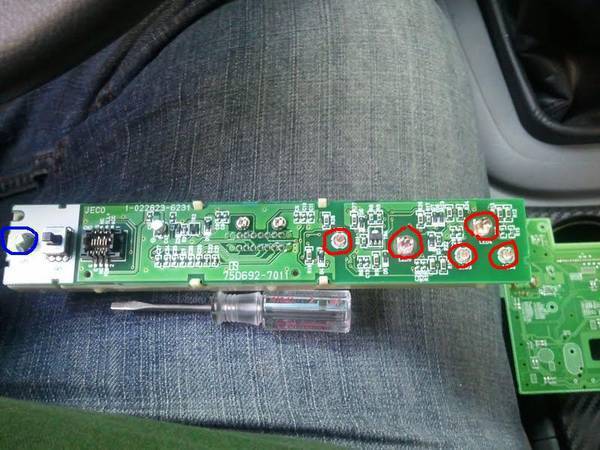

    Below the circuit board lies the clock and the lighting for the 4-way switch,the transponder key light( security light )and the passenger side airbag lights. To remove these start with the screw circled in red. Then slowly pry the tabs around the cream colored panel and pull. The 4 way switch kind of " snaps" into place,so this is a little tough to get apart.

    [​IMG]

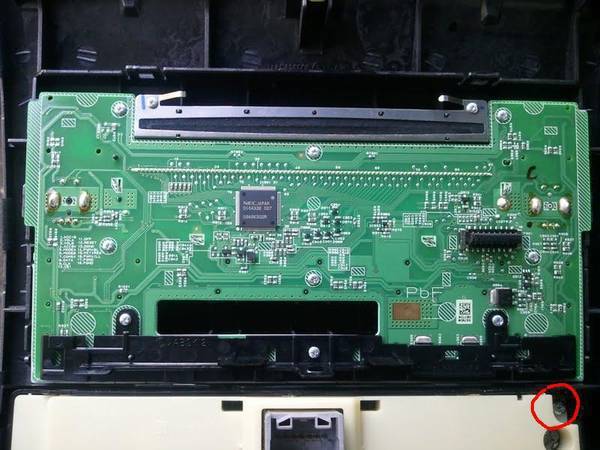

    Once it comes apart the rear circuit board will separate from the front one ( don't worry,they just connect with a small plug).When you get that apart the face of the board will look like this. The LEDs circled in red are the lights for the passenger airbag and security light. The one circled in blue is for the 4-way switch .I bought a 3mm twist in LED from the link above for this. I used red so it would show through strongly.

    [​IMG]

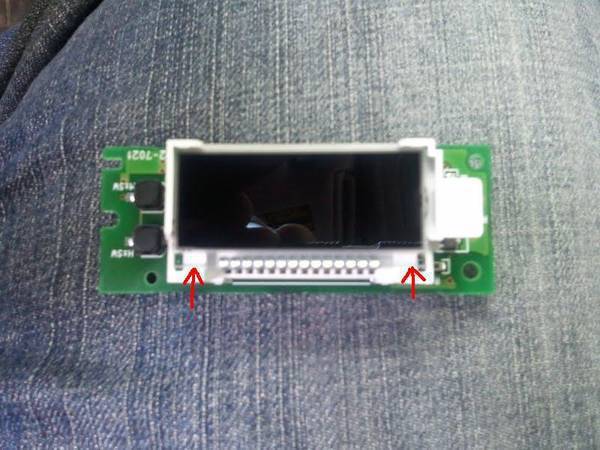

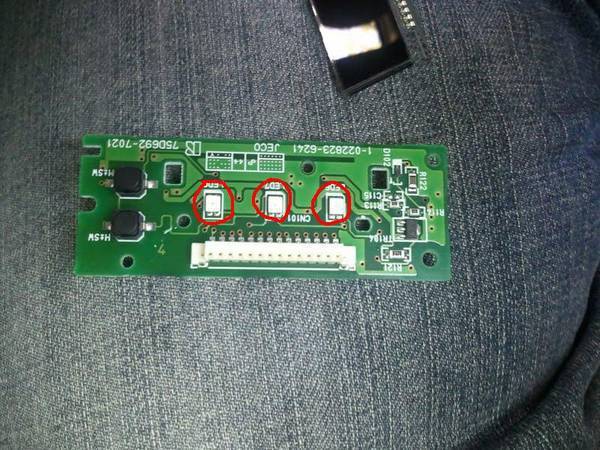

    Now for the actual clock LCD lighting.There will be one small circuit board left in the faceplate for the radio. It's the clock board and the LEDs for that will be on it. It's held in by 2 screws ( one on either end ).Once they're out the board will just fall out of the faceplate. The next step is to GENTLY pry up the LCD screen to remove it from the board. Use a small screwdriver ( again,GENTLY) and pry where the arrows are trying not to go past the clear part of the screen with the screwdriver.

    [​IMG]

    After you get that out there is one small screw and a couple of obvious plastic clips that hold the plastic support for the LCD screen.Pull that off and you'll have access to the LEDs for the clock ( circled here in red ).These LEDs are a bit different from the radio LEDs as they don't use colored ends to show which way to install them. One corner has a little notch ( circled in red in the 2nd pic ) taken out of it.MAKE SURE THE NOTCH IS IN THE SAME POSITION AS THE STOCK LED YOU REMOVE.

    [​IMG]

    Clock LED
    [​IMG]


    Once you get these done reverse the steps to re-assemble and enjoy your new color !

    I'm going to add a link to a How-to on the Gauge cluster as well as it helped me to do mine.

    http://www.xr-underground.com/forum/showthread.php?t=941&highlight=LED+cluster

  3. May 18, 2012 at 12:09 AM
    #3
    F75gunslinger

    F75gunslinger [OP] Ka like a wheel

    Joined:
    Mar 27, 2012
    Member:
    #75759
    Messages:
    907
    Gender:
    Male
    First Name:
    Christian
    Rochester,NY
    Vehicle:
    SWB '10 Doublecab TRD Sport 4x4
    Cluster and Radio LED swap,Westin bull bar,2nd set of bed tie downs,URD SS,K&N filter,weathertechs

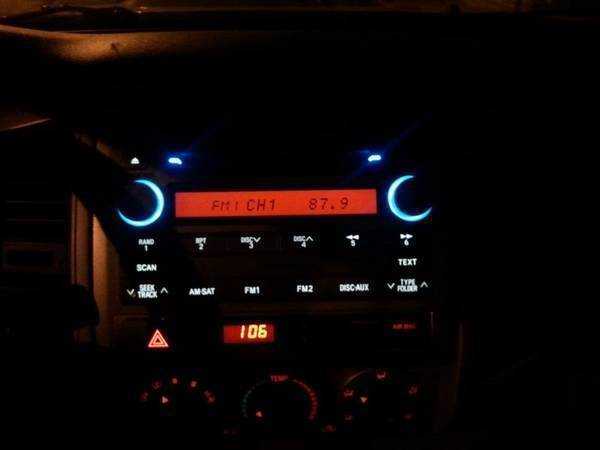

    The finished product looks like this.I hope this will give some of you the info you need to do a great looking and satisfying mod !

    [​IMG]

    AntonioAbad likes this.
  4. May 18, 2012 at 12:12 AM
    #4
    BrokenTusk

    BrokenTusk I support a velociraptor free workplace.

    Joined:
    May 5, 2010
    Member:
    #36607
    Messages:
    31,936
    Gender:
    Male
    First Name:
    Marcelasaurus
    AB, Canada
    Vehicle:
    The Scarlett Whore
    Check Build Thread!!
  5. May 18, 2012 at 12:13 AM
    #5
    Taqoma

    Taqoma Well-Known Member

    Joined:
    Jan 9, 2012
    Member:
    #70332
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Brennan
    Los Angeles
    Vehicle:
    2011 TRD Off-Road
    TRD Supercharger, TRD CAI, Camburg LT, Fox 2.5x8 coilovers, Fox 2.0 bumps, Deaver e30 leafs, Fox 3.0x18 triples, Avid sliders, Yaesu 2900R, Pro Comp 7089 16x8, DDM 55w HID Hella 500FF, DDM 35w HID headlights, Magnaflow 11255 muffler, PLX DM-100 OBDII, Autometer Ultra-Lite II Boost gauge, Flex Pod gauge mount, LSK tube bumper, McNeil fenders, Fiberwerx bedsides, 285/75/16 Toyo MT's
    nice write up :thumbsup:

  6. May 18, 2012 at 12:33 AM
    #6
    Bengland25

    Bengland25 Never Forget! 343

    Joined:
    Nov 17, 2011
    Member:
    #67192
    Messages:
    1,953
    Gender:
    Male
    First Name:
    Bradley
    Southern California
    Vehicle:
    09 Tacoma TRD
    MB Chaos 6 17" wheels, BF Goodrich All-Terrain TA/KO LT265-70R17, Anytime Fog Lights, Anytime Backup Camera, Bed Lights, Tailgate Lock, Light bar with 3 Hella 700FF's, Realtree Camo arm-rests, Anytime DTRL (With Switch), Blue Seas Fuse Block and Circuit Breaker, Custom Bed Light-Bar, Cobra 29 LTD Chrome, 4' Firestik, Masterlock Hitch Key Safe, Bed Storage Compartment Locks, Custom Shovel Bracket Mount, Flag Pole Mount (RED SOLO CUP FLAG!), DIY Washable Cabin Filter, URD MAF Cal., Homelink Garage Door Opener, Volant CAI w/ Ram Scoop, AeroTurbine 3030XL, URD Short Throw Shifter, Custom Satoshi, Blitzpro 21S, 2 Blitzpro 6LZ's, Blitzpro 6D, BAMF Sliders
    Subbed, good work man!

  7. May 18, 2012 at 1:21 AM
    #7
    MADtaco09

    MADtaco09 Hawaii, Fuck Yeah!

    Joined:
    Oct 22, 2011
    Member:
    #65643
    Messages:
    271
    Gender:
    Male
    First Name:
    Chris
    Pahoa, Big Island.
    Vehicle:
    Barcelona Red TRD Sports
    6" Basic Fabtech Lift Kit. 2012 Off Road Tacoma Struts (Less than 100 miles). Cab Mount Chop. K&N CAI. Borla Exhaust. BHLM w/Custom Yellow Blinker Lens & Yellow Reflector. Black LED Altezza Tail lights. Black LED Bermuda 3rd Brake Light. Yellow Tinted Fogs w/ HID 35w 3000K. Nokya Hyper Yellow DTRL Bulb. Anytime Running Fog Light Mod. DTRL Switch Mod (Stealth Mode). Hyper White LED Dome & MAP Lights. Nokya Hyper Yellow Parking Lights. 20% Tinted Windows. Viper Alarm with Remote start. Blacked Out Valance. Blacked Out Badges. Blacked Out Radiator. Relocated Horns. OEM Roof Racks. Wet Okole Seat covers. SATOSHI Grille w/ FJ 60 TOYOTA Emblem Color Matched. TRD License Plate Frame. Sleepy Eyelids Color Matched. 13" EuroStyle Antenna. Bi-xenon Morimoto Mini Stage III Kit (D2S) Retrofit w/ Morimoto 3Five 5000K Bulbs. SS Extended Brake Lines. Seat Belt Chime OFF. Wish List: N-Fab Steps. DTLT Headers. 4.88 Gears. Alcan Leaf Springs. One Piece Drive Shaft.
    Nice write up!
    I'll be doing this also when i do the cluster!

  8. May 18, 2012 at 8:15 AM
    #8
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
    Looks good...ya in order to get to the screen, you need to unsolder those small points, remove the metal frame and white plastic backing then bend the screen back carefully enough to get the iron in there :thumbsup:

    I'll be making a cluster swap thread soon...a bit more detailed than the one that's already out

  9. May 18, 2012 at 12:09 PM
    #9
    F75gunslinger

    F75gunslinger [OP] Ka like a wheel

    Joined:
    Mar 27, 2012
    Member:
    #75759
    Messages:
    907
    Gender:
    Male
    First Name:
    Christian
    Rochester,NY
    Vehicle:
    SWB '10 Doublecab TRD Sport 4x4
    Cluster and Radio LED swap,Westin bull bar,2nd set of bed tie downs,URD SS,K&N filter,weathertechs
    Sweet ! Thanks for the input ! I figured that would do it but I wanted to make sure !

  10. May 20, 2012 at 10:47 AM
    #10
    knine00

    knine00 Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    Any of you guys know how to change the lights is the extra switches. Ie. fog light Or rear diff.?

  11. May 20, 2012 at 11:03 AM
    #11
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
  12. May 20, 2012 at 11:10 AM
    #12
    knine00

    knine00 Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    Is it easy? Like the radio?

  13. May 20, 2012 at 12:31 PM
    #13
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
    Nope, youre pretty much Retrofiting a small led with resisting in there :anonymous:

  14. May 20, 2012 at 1:14 PM
    #14
    F75gunslinger

    F75gunslinger [OP] Ka like a wheel

    Joined:
    Mar 27, 2012
    Member:
    #75759
    Messages:
    907
    Gender:
    Male
    First Name:
    Christian
    Rochester,NY
    Vehicle:
    SWB '10 Doublecab TRD Sport 4x4
    Cluster and Radio LED swap,Westin bull bar,2nd set of bed tie downs,URD SS,K&N filter,weathertechs
    Those lights will be more work like Jerez said. It's an LED and a resistor that needs to be used,and they're not going to be as simple.

  15. May 20, 2012 at 1:19 PM
    #15
    knine00

    knine00 Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    Damn that sucks! O well

  16. May 20, 2012 at 1:36 PM
    #16
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
    Well if you can solder (I'm sure F75gunslinger can :p) it's not so hard, just on the newer trucks that come with vsc and those extra buttons some polarities differ from switch to switch.

    I think they sell replacement bulbs like the stock ones for the button but they're way too dim

    The 2012s have green buttons now correct?

  17. May 20, 2012 at 1:46 PM
    #17
    knine00

    knine00 Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    I am good at soLdering.....do at bit at my job. I wouldn't know where to start on the switch. Yes they are ugly green!

  18. May 20, 2012 at 1:54 PM
    #18
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
    I'm waiting on a cluster right now (should be here next week) I'll try to get a how to thread up for some stuff

  19. May 20, 2012 at 1:55 PM
    #19
    knine00

    knine00 Well-Known Member

    Joined:
    Oct 31, 2011
    Member:
    #66179
    Messages:
    1,327
    Gender:
    Male
    Pikeville, NC
    Vehicle:
    12 PreRunner DC TRD Sport
    Stock for now
    Sweet thanks I will keep my eyes out for it. Gonna start my cluster and radio soon!

  20. May 20, 2012 at 1:57 PM
    #20
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
    2012 radios are completely different from previous radios...

    I advise not to touch it!!! The LEDs are half the size from b4 and the old radios where somewhat of a pain
