How to convert Backup Camera to 4 pin?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Meatstreak, Apr 30, 2017.

  1. Apr 30, 2017 at 10:27 AM
    #1
    Meatstreak

    Meatstreak [OP] New Member

    Joined:
    Apr 30, 2017
    Member:
    #217729
    Messages:
    2
    Gender:
    Male
    I have a 2013 prerunner that is prewired for a backup camera. I bought this backup camera:
    http://a.co/iGa2lAb

    But I didn't realize my tailgate handle was aftermarket (by previous owner) until after I opened her up and doesn't fit. I can't return the camera at this point. It has the single wire coming from the camera and the truck as the 4 pin black connector. Is there any way to strip the wire from the camera or cut off the 4 pin to make this work?

    I did a search on the forums but I didn't see anything specifically for this. Sorry if I missed something. I'm not super savvy with wiring.

  2. Apr 30, 2017 at 10:57 AM
    #2
    justdoit

    justdoit Well-Known Member

    Joined:
    Nov 28, 2015
    Member:
    #170886
    Messages:
    687
    Gender:
    Male
    Colorado Springs
    Vehicle:
    22' 4x4 AC TRD Off-Road
    You just need +,- and video. Not sure what a 4th would be for.

  3. May 6, 2017 at 2:04 PM
    #3
    Meatstreak

    Meatstreak [OP] New Member

    Joined:
    Apr 30, 2017
    Member:
    #217729
    Messages:
    2
    Gender:
    Male

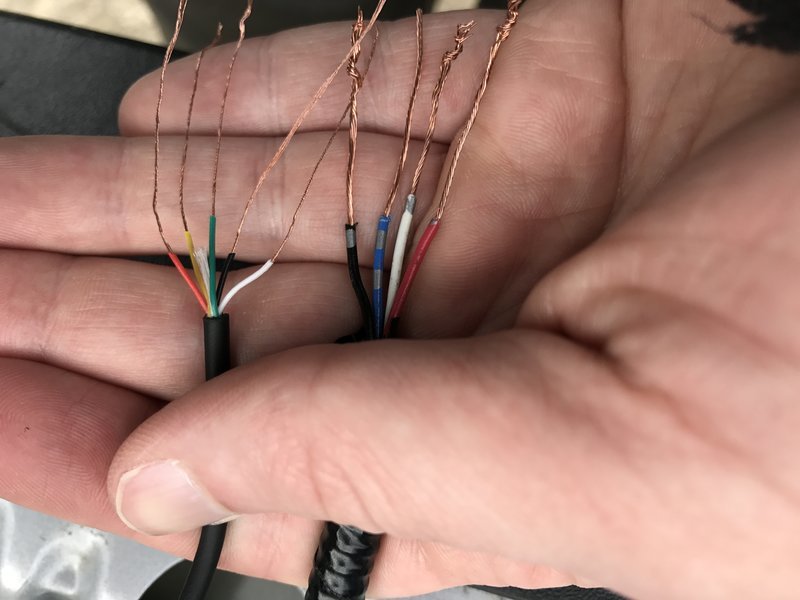

    So there are 5 wires from the camera.
    White
    Red
    Black
    Yellow
    Green

    And 4 from the truck.
    White
    Red
    Black
    Blue

    I tried wiring R - R, W - W, Bk - Bk but wasn't sure what to do about the Blue. I tired both the Yellow and Green to the Blue and neither work. I read that the Toyota colors are not the normal red/black is power... so I don't know what to do.

    Does anyone know which colors go to what?


  4. Mar 6, 2024 at 10:14 AM
    #4
    steaks38

    steaks38 New Member

    Joined:
    Mar 6, 2024
    Member:
    #445343
    Messages:
    1
    Came across your post from almost 7 years ago. I am trying to do the same thing you wanted with 5 wires to 4 wires. Did you get it to work? If so, how did you do it? Thanks.

  5. Mar 6, 2024 at 10:57 AM
    #5
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,203
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

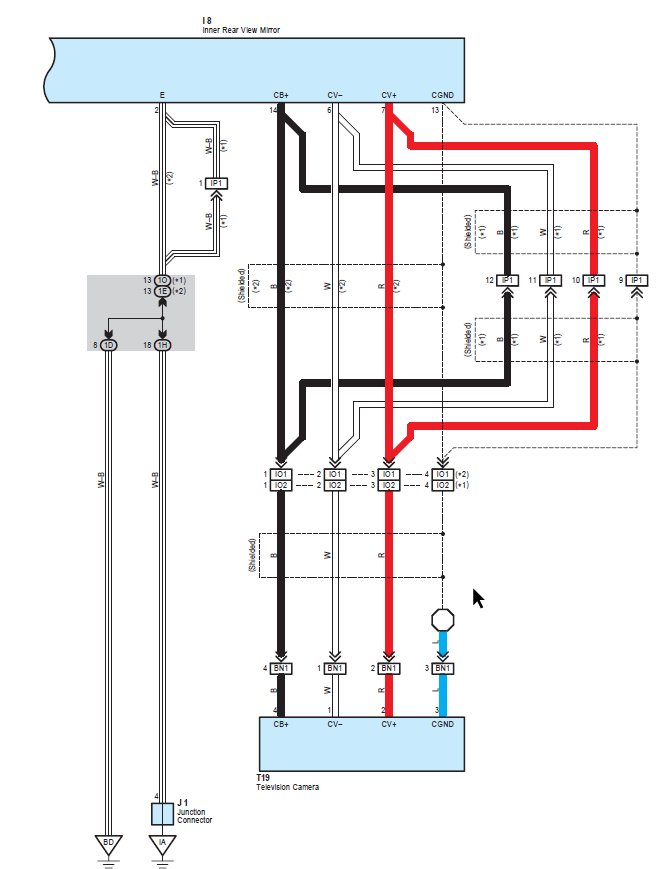

    This is the print from a 2012 Tacoma with the image in the rear view mirror:
