How to: Dis-assembling your mirrors for painting

Discussion in '2nd Gen. Tacomas (2005-2015)' started by macgyver, Sep 19, 2010.

  1. Sep 19, 2010 at 8:20 AM
    #1
    macgyver

    macgyver [OP] Well-Known Member

    Joined:
    Aug 14, 2009
    Member:
    #21173
    Messages:
    3,590
    Gender:
    Male
    First Name:
    Brad
    Canton, GA
    Vehicle:
    '13 Tundra double cab SR5 4x4
    So yesterday I finally got around to painting my mirrors and door handles. I have seen threads on removing the door handles so I won't post that part but here is a How-to on dis-assembling your side mirrors so make painting easier. Yes, I could have just masked stuff but it wouldn't have come out as well and you would be able to tell they didn't come from the factory that way.

    Here we go
    Step 1
    Remove door panel (I won't cover this since there are already how-to's on this)
    Step 2

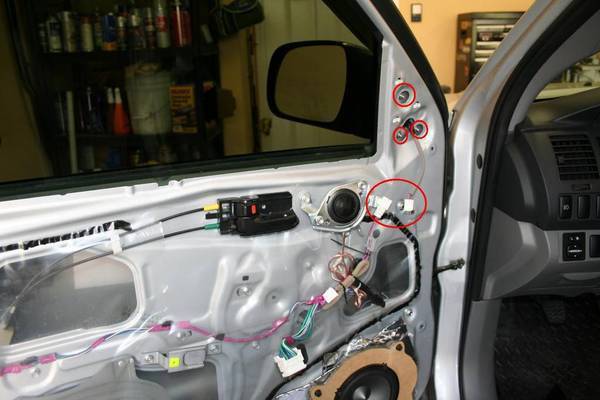

    Disconnect the mirror plug and remove the 3 10mm nuts circled
    [​IMG]
    Step 3
    Remove mirror and place it on a work surface
    Step 4

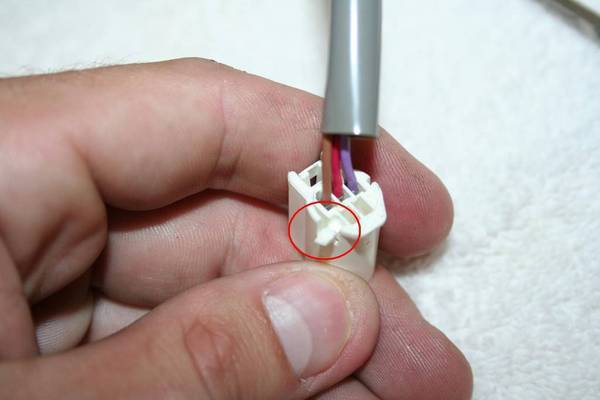

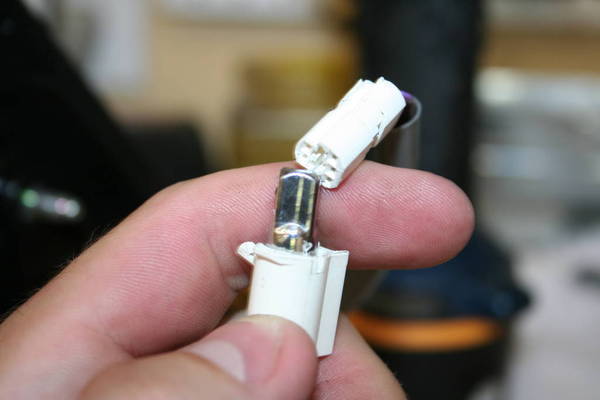

    involved remove the outer shell from the plug (the plug won't fit through the holes in the pieces if you don't do this)
    You have to fold back a little tab on the back of the plug then push it through as pictured. It may take a little prying with a tiny flathead screwdriver.
    [​IMG]
    [​IMG]
    Step 5

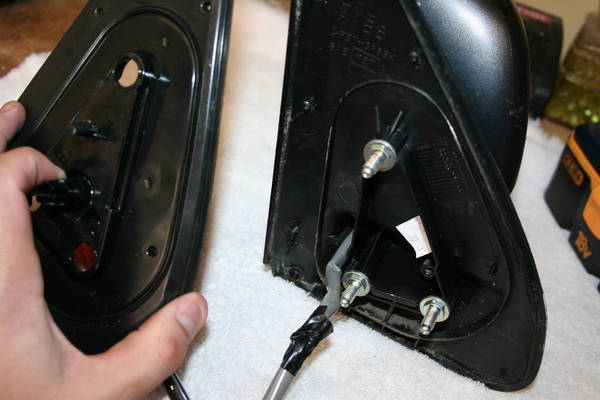

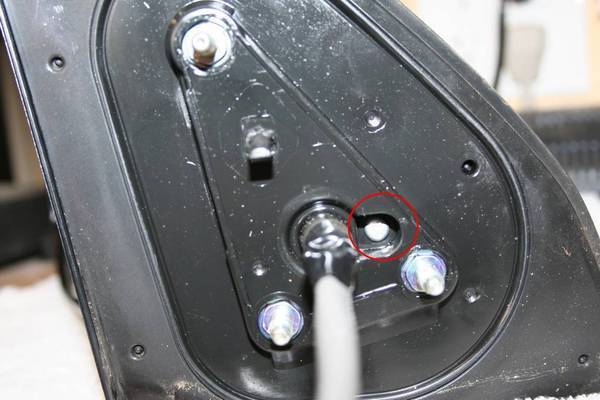

    Remove the plastic "gasket" type piece that goes between the body and the mirror. You have to remove one small phillips screw circled in red
    [​IMG]
    [​IMG]
    Step 6

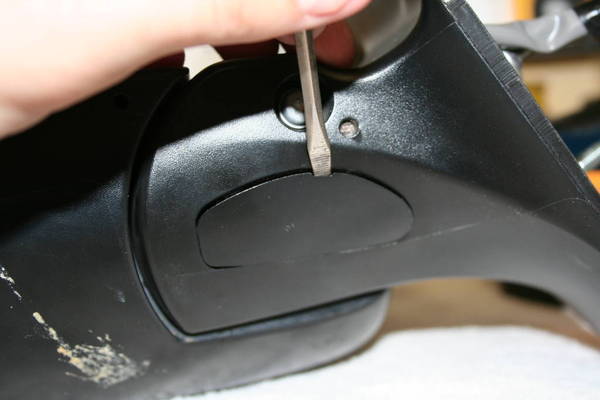

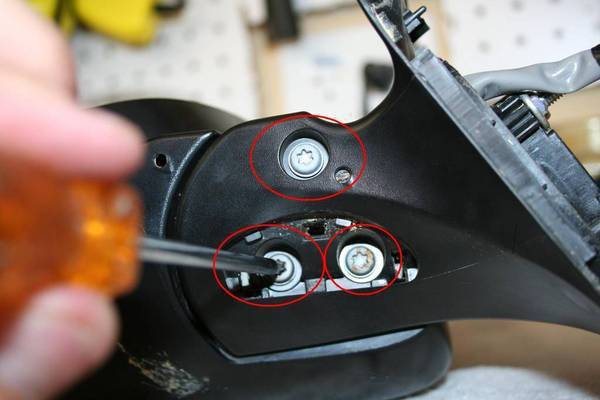

    Remove the cover plate on the bottom of the mirror and remove the 3 T-25 Torx screws you see
    [​IMG]
    [​IMG]
    Step 7

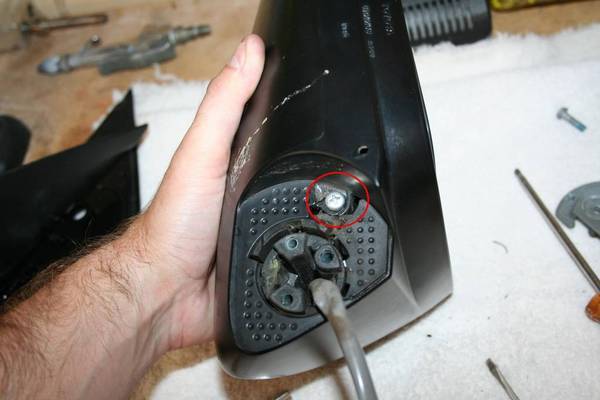

    Remove the bracket/hinge thing from the mirror and you will see one more T-25 Torx screw you need to remove
    [​IMG]
    Step 7
    Remove that metal bracket and you will see a phillips screw under that you need to remove
    [​IMG]
    Step 8

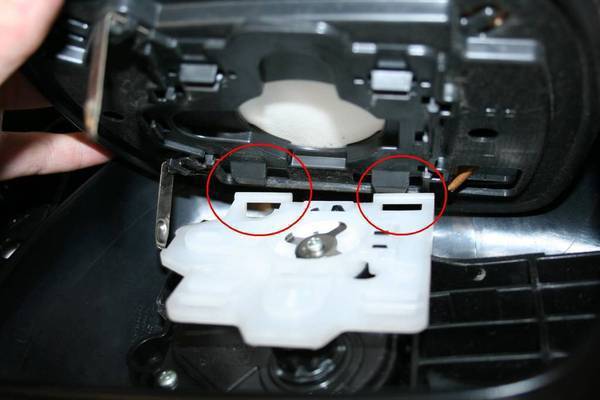

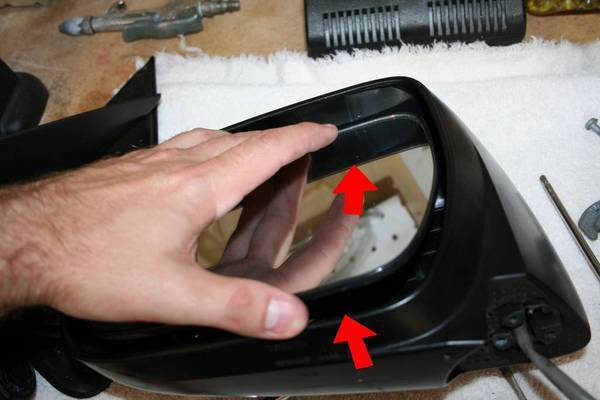

    Now to removing the actual mirror from the motor and housing. Push the top in, then pull from the bottom towards you, it will unclip then you need to pull it backwards towards you. In the second pic you can see how it hooks on the top and it clips at the bottom
    [​IMG]
    [​IMG]
    Step 9

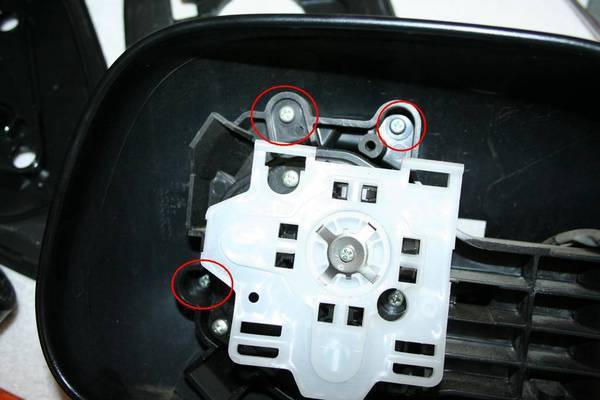

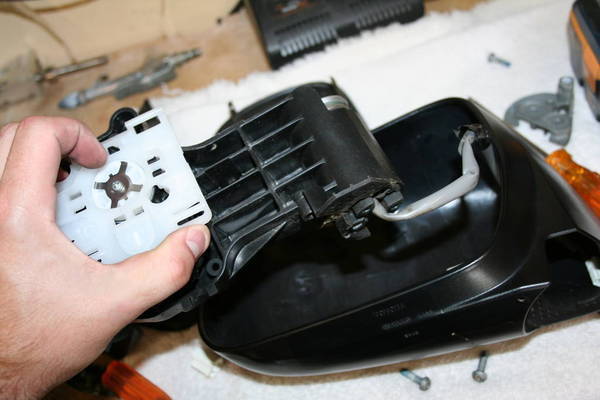

    Remove the 3 phillips screws that attach the motor from the housing. Once you have removed these slide the motor unit out of the housing.
    [​IMG]
    [​IMG]
    Step 10

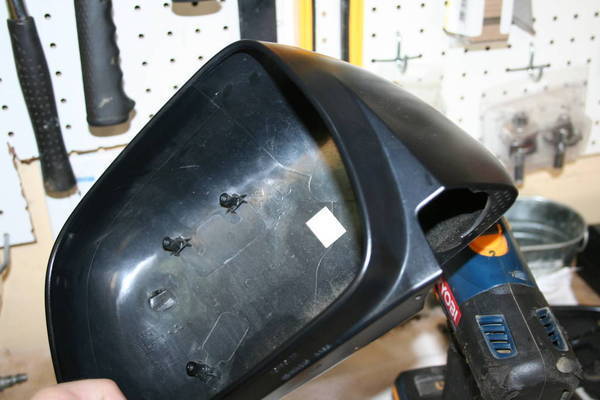

    You are now left with just the housing. I wet-sanded it with 600 grit sandpaper. I used a dawn dish-soap and water mixture to wet-sand since this will clean a lot of the oils off of them. Let them dry
    [​IMG]
    Step 11
    wipe it down with some isopropyl alcohol to clean any remaining residues off.
    Step 12
    Spray them with an adhesion promoter (Bulldog and duplicolor both make this product, I have used both brands with good luck in the past)
    Step 13
    Spray with a primer. 2 coats allowing proper flash time as labeled) Technically you don't have to do this since the adhesion promoter is a primer. I did this because it for some reason a rock were to hit the mirror and chip the paint, It would show the gray primer instead of the black plastic underneath.

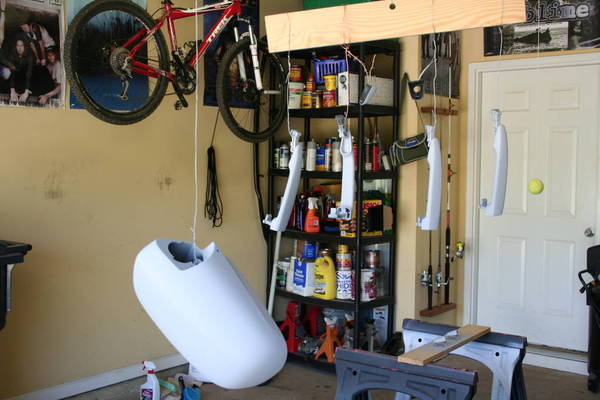

    [​IMG]
    Step 14
    Spray basecoat (color coat) and allow proper flash time as labeled. I used duplicolor perfect match silver streak mica in a spray can
    Step 15
    Spray clear coat. I sprayed a urethane clear that I mixed and sprayed with my HVLP spray gun. You can use a spray can of clear however I have always had better results spraying clear with my gun. It seems to lay flatter and more evenly.
    Step 16
    Let them dry for about 3 hours then re-install them.

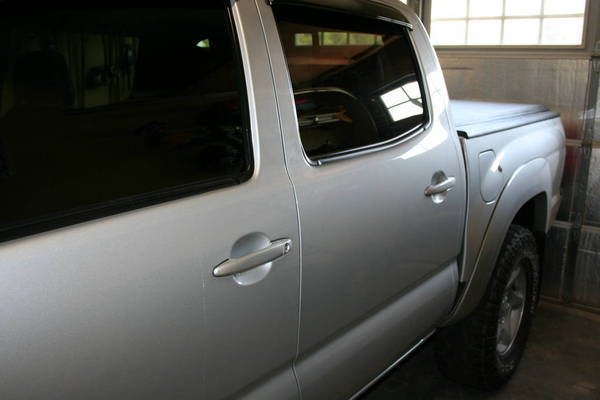

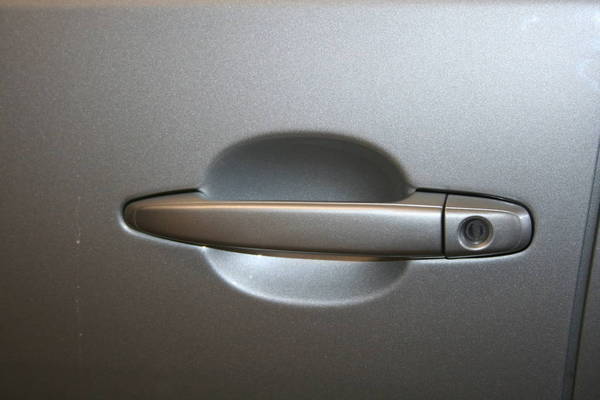

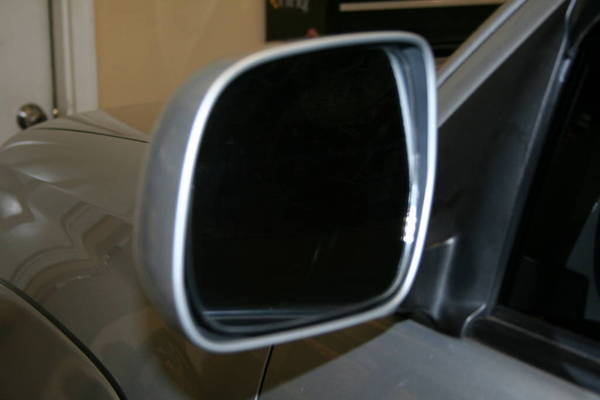

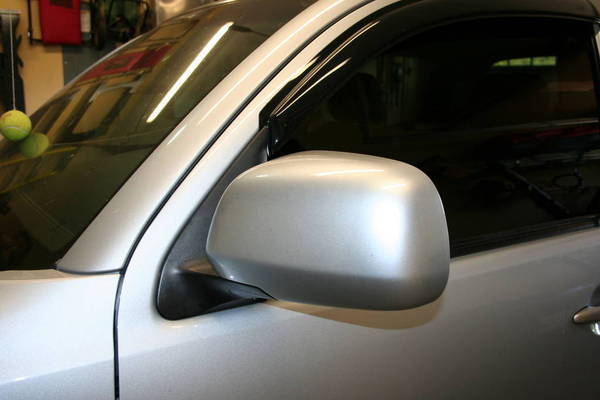

    Here is the finished product, both mirrors and door handles

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. Sep 19, 2010 at 8:22 AM
    #2
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,038
    Gender:
    Male
    F.U> GUYZ
    broken mods
    great write up
    thank you

  3. Sep 19, 2010 at 8:25 AM
    #3
    Jason'sLawnCare

    Jason'sLawnCare Prepared for Bambi

    Joined:
    Apr 12, 2009
    Member:
    #15878
    Messages:
    12,365
    Gender:
    Male
    First Name:
    Jason
    Jacksonville Florida
    Vehicle:
    08 4x4 Double Cab TRD Rugged Trail
    CBI Moab 2.0, CBI Trail Rider 2.0, CBI sliders w/kickout, Superwinch EPi9.0S, OME sport shocks w/886 coils, OME n182, 1.5" aal, JasonBuilt 3/16th full belly skid, BuiltRight uca, Body Mount Chop, 285/75/16 km2's, Rear cat delete, exhaust crossover rerouted, Fog light anytime, Locker mod, Rear leaf tsb, Debadged, Uws Tool Box, Electric Exhaust Cutout, AFE Pro Dry S, Kiwi Wifi, Diff Breather Relocated, Grom Ipod Adapter, Dual Diehard platinum batteries isolated by BlueSea marine switch
    subbed. I may have to do this some day because my mirrors are scratched like crazy.

  4. Sep 19, 2010 at 8:33 AM
    #4
    2chains

    2chains Well-Known Member

    Joined:
    May 15, 2010
    Member:
    #37210
    Messages:
    370
    Gender:
    Female
    Calgary, Alberta
    Vehicle:
    2010 Tacoma DC LB 3" Revtek lift
    3" Revtek lift, k&n 63-9025 intake, tailgate debadge, OEM Bed mat, decals gone. helo black max 6 bs 4.5 os-12,duratrac 285 70 17,smittybilt light bar, kc slimlites, pioneer pb3300 bt, window tint, weathertech digfits, raider lorider elite tonneau, at2525xl,
    this will come in handy! thanks for posting

  5. Sep 19, 2010 at 11:09 AM
    #5
    clintonjeffries

    clintonjeffries Well-Known Member

    Joined:
    Jul 6, 2010
    Member:
    #39849
    Messages:
    237
    Gender:
    Male
    First Name:
    Clinton
    Wenatchee, WA
    Vehicle:
    07 4x4 SR5 super white
    6" stage 1 Procomp lift, 18" matte black XD Monsters, 33" Nitto Trail Grapplers, AMP Research Electric Steps, Grillcraft upper and lower grill, Paint matched tailgate handle, Black headlights w/ black corners & reflectors, 6k HID in heads and fogs, tint, RED badges, red brake calipers, black brake drums, flowmaster exhaust, black shorty antenna, remote start, iPod interface, Weathertech floormats front and rear

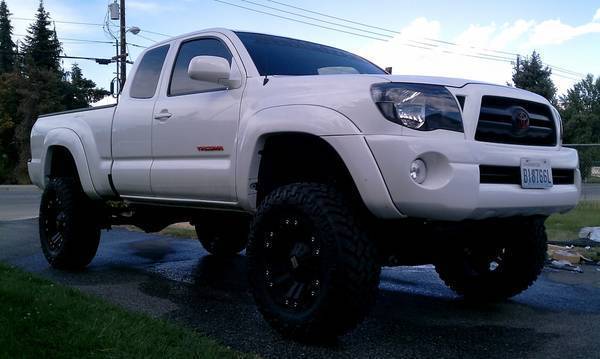

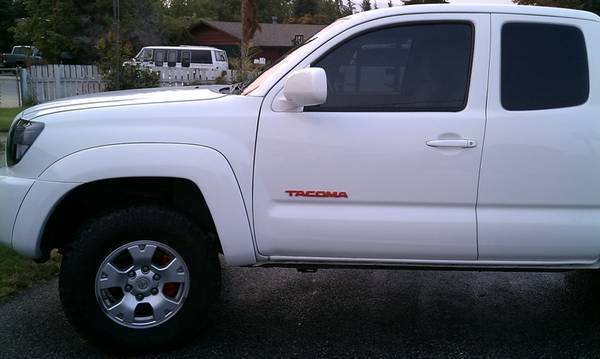

    Looks great man! Why didn't you paint the mirror brackets as well???
    [​IMG]
    [​IMG]

  6. Sep 19, 2010 at 11:21 AM
    #6
    BakoTruck

    BakoTruck Well-Known Member

    Joined:
    May 1, 2009
    Member:
    #16674
    Messages:
    2,823
    Gender:
    Male
    First Name:
    Herbie Hancock
    Bakersfield, CA
    Vehicle:
    05 PreRunner TRD
    Mostly stock for now, I have added a cb radio, various cheap mods and I plan on adding aftermarket wheels and other items in the future.
    Cool write up!

  7. Sep 19, 2010 at 11:30 AM
    #7
    macgyver

    macgyver [OP] Well-Known Member

    Joined:
    Aug 14, 2009
    Member:
    #21173
    Messages:
    3,590
    Gender:
    Male
    First Name:
    Brad
    Canton, GA
    Vehicle:
    '13 Tundra double cab SR5 4x4
    The brackets on the sport model aren't painted. I wanted it to look stock.

  8. Sep 19, 2010 at 6:45 PM
    #8
    skistoy

    skistoy Make mine a Double!

    Joined:
    Jul 6, 2009
    Member:
    #19356
    Messages:
    2,006
    Gender:
    Male
    First Name:
    Mike
    Western New York
    Vehicle:
    09 4X4 SR5 BSP Double Taco
    Rear Spring TSB,Billy 5100@.85,Bull bar,Nerfbar,Painted Grill,Painted Rims,Bed D-rings,Compustar Starter,Goodyear Duratrac's,Transmission TSB,Brake Overide
    Very informative, great write up!

  9. Sep 19, 2010 at 6:50 PM
    #9
    HondaGM

    HondaGM Roll Tide

    Joined:
    Oct 28, 2009
    Member:
    #25056
    Messages:
    5,769
    Gender:
    Male
    First Name:
    James
    South-Pole
    Vehicle:
    09 DC 4x4 Blown Honda VTEC V8
    trd exhaust,step bars,vent visors,bed lights,tailgate mod
    great write up dude,nice work

  10. Sep 19, 2010 at 9:19 PM
    #10
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    2,784
    Gender:
    Male
    what about manual mirror??? anything different or to watch out for???

  11. Sep 19, 2010 at 10:34 PM
    #11
    Eurosport

    Eurosport Well-Known Member

    Joined:
    Sep 5, 2010
    Member:
    #42772
    Messages:
    438
    Gender:
    Male
    i thought you don't have to remove the door panel to remove the mirrors, must have misread another thread?

  12. Sep 20, 2010 at 1:59 AM
    #12
    floridaoccifer

    floridaoccifer Civil Servant

    Joined:
    Jan 14, 2009
    Member:
    #12582
    Messages:
    778
    W-O-W... Great Write Up!!!

  13. Sep 20, 2010 at 7:00 AM
    #13
    macgyver

    macgyver [OP] Well-Known Member

    Joined:
    Aug 14, 2009
    Member:
    #21173
    Messages:
    3,590
    Gender:
    Male
    First Name:
    Brad
    Canton, GA
    Vehicle:
    '13 Tundra double cab SR5 4x4
    You won't be able to reach the bottom two 10mm nuts or unplug the harness...unless you have really tiny hands.
