    Well, I'm really nerdy and thought el wire would be cool to have around the bottom of the dash to light up the foot wells and other things around the dash. well here's the right up.

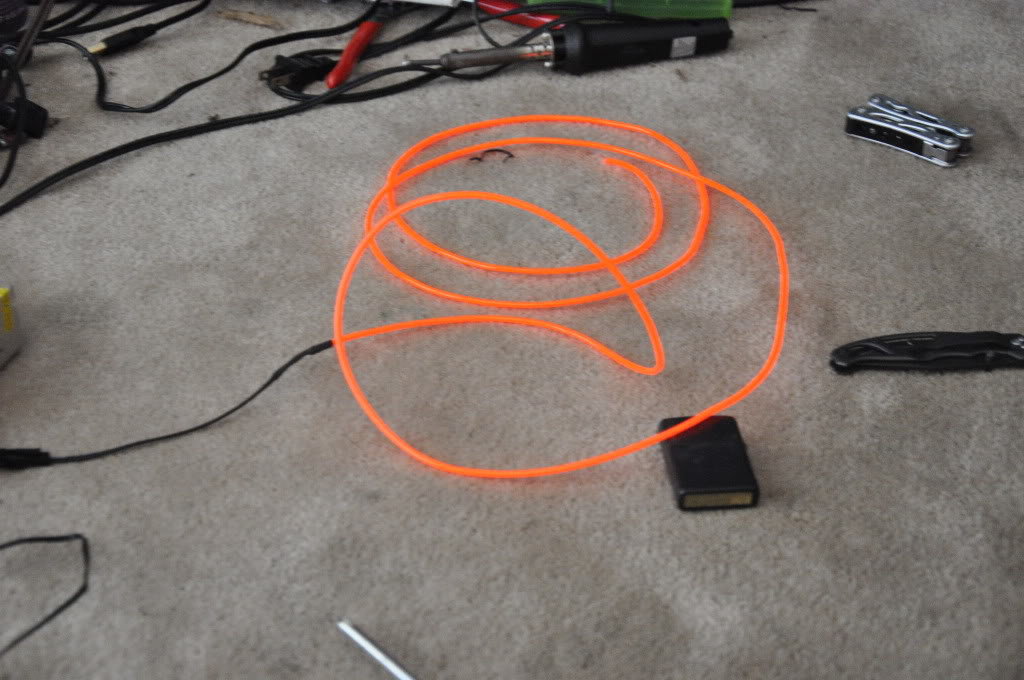

    first find a 12V source to test and make sure it works. I used the power supply from my rc car charger which put out a steady 12V supply.

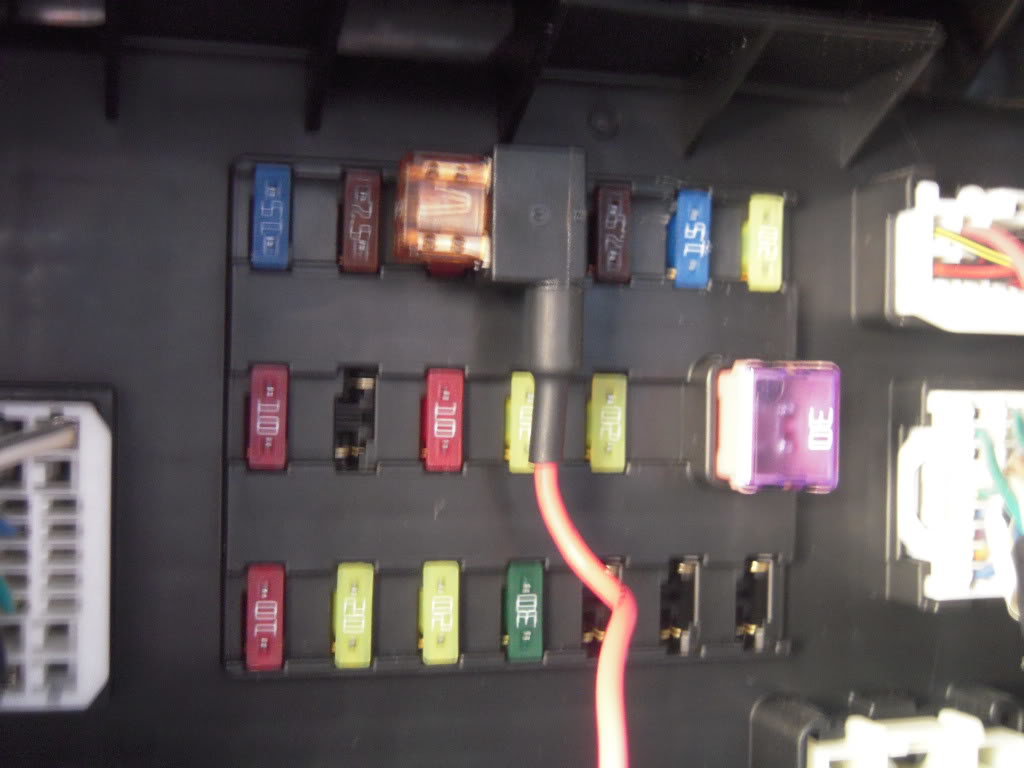

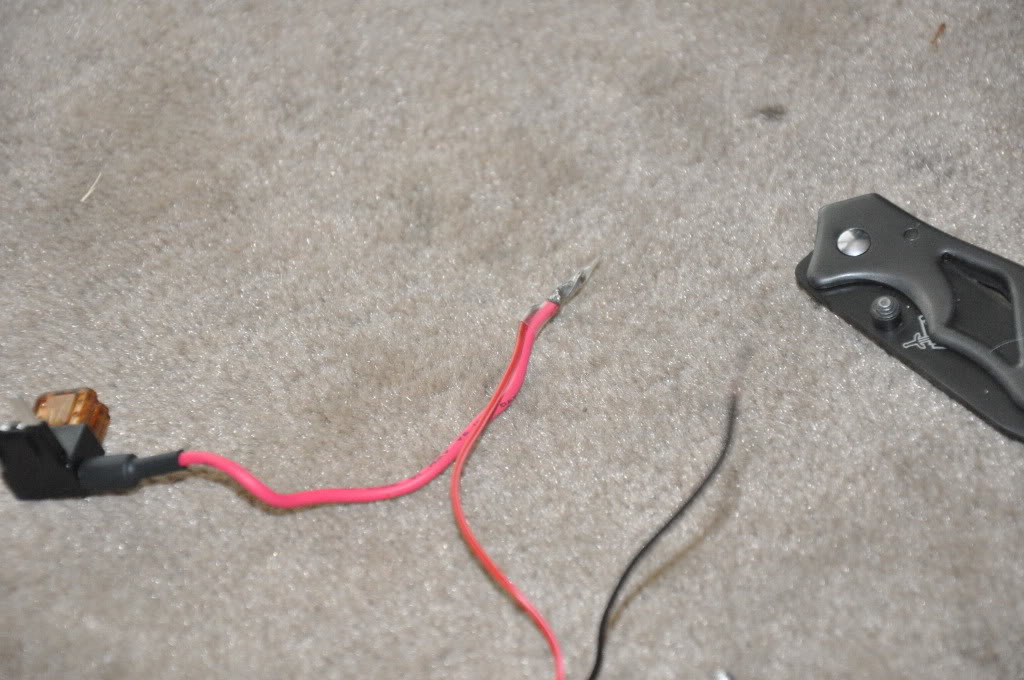

    to a fix it to the add - a - circuit, i had to solder it to the wire because was to small and wouldn't stick in there.

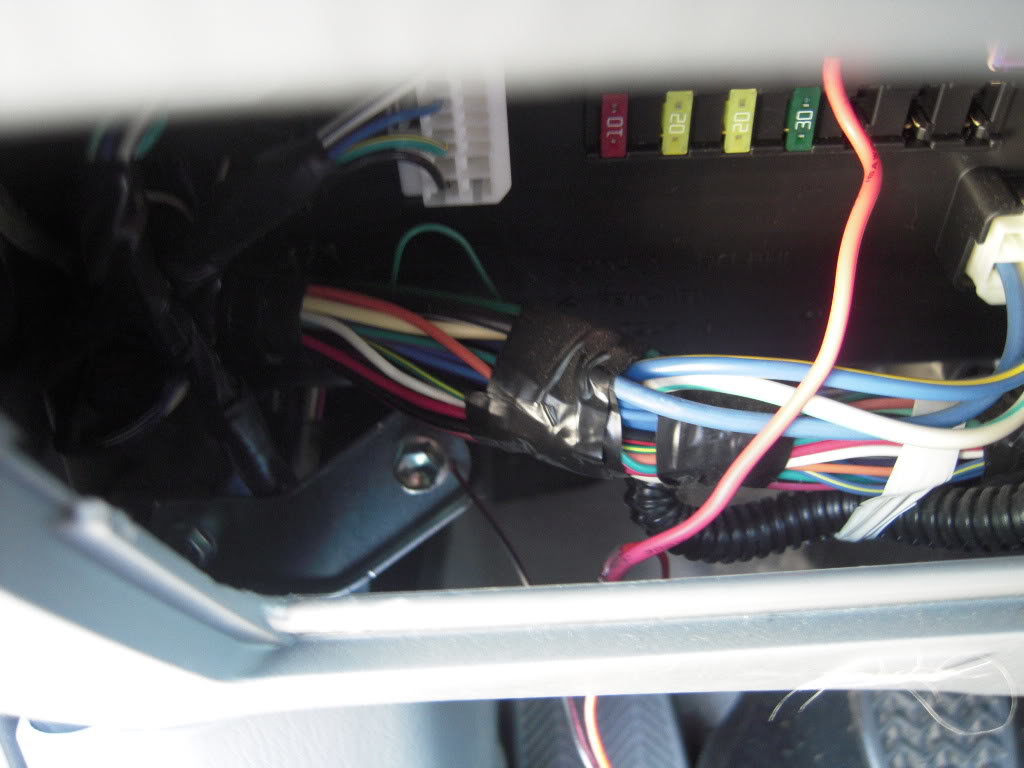

    i decided to tap into the open circuit that runs parallel with the rear tail lights so it would light up when the lights were turned on


    as a ground i used the mount next to the fuse box. a 10mm socket holds it on. i just pulled it off a little and wrapped the negative wire around it


    to hold it on for now it on for now, i used packing tape but will use little stick on hooks but didn't have them on hand.




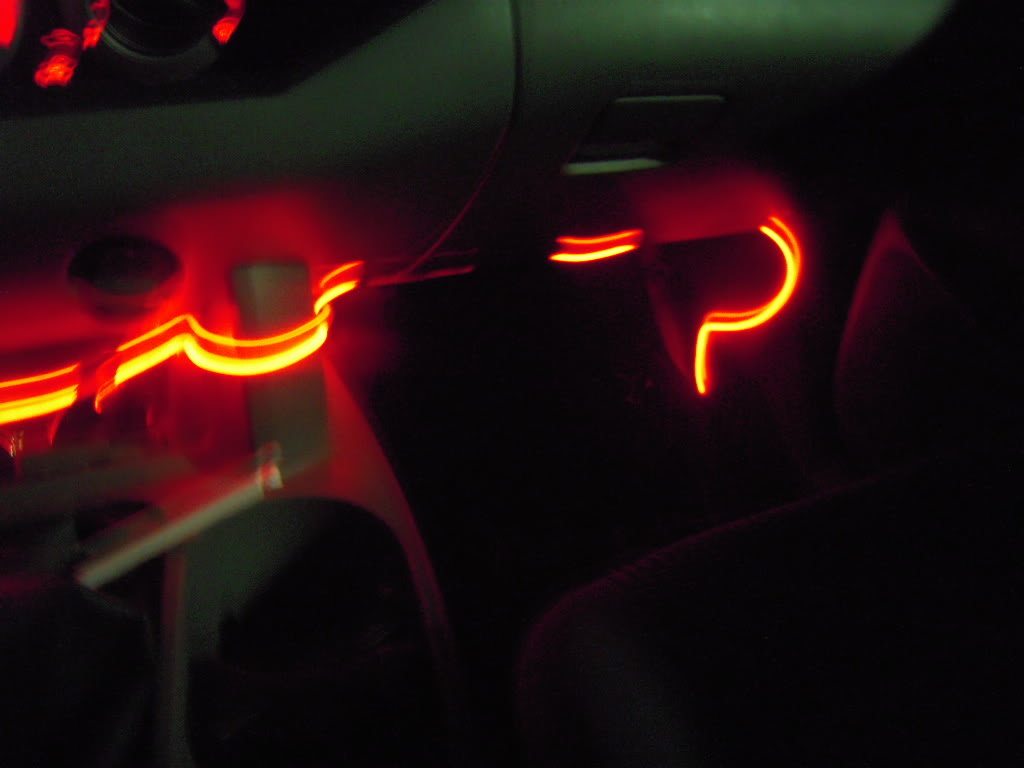

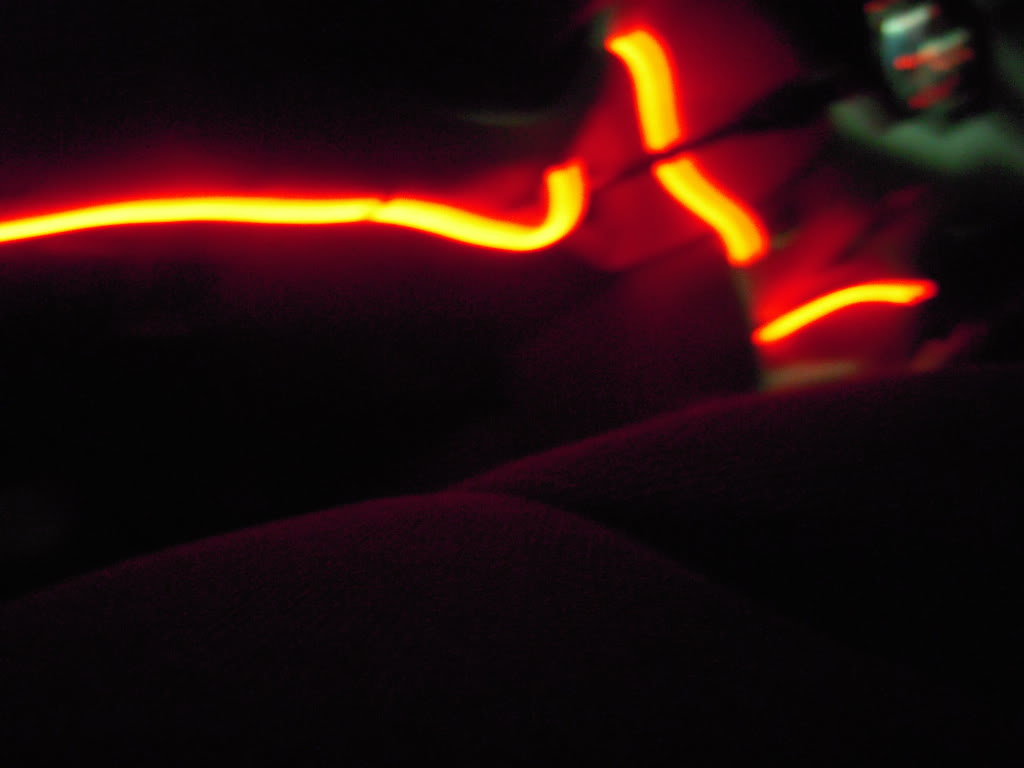

    heres it lite up
