How to: Extra lights on with brights (2G)

Discussion in 'Lighting' started by Chepo, Dec 14, 2012.

  1. Dec 14, 2012 at 4:39 PM
    #1
    Chepo

    Chepo [OP] Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    613
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
    Hey guys!

    I started this thread because I searched a lot and I couldn't find any info.

    What you do with this mod is simply to turn on extra lights when you hit the brights. It is very helpful when you are on a lonely road and you need the max light output, but at the same time if there is someone coming to you, you can lower all that light output...

    I hope this helps some of you...

    Everything was done on a 2011 TRD Sport... (sorry for not having all the pictures, but I did the installation a long time ago!)

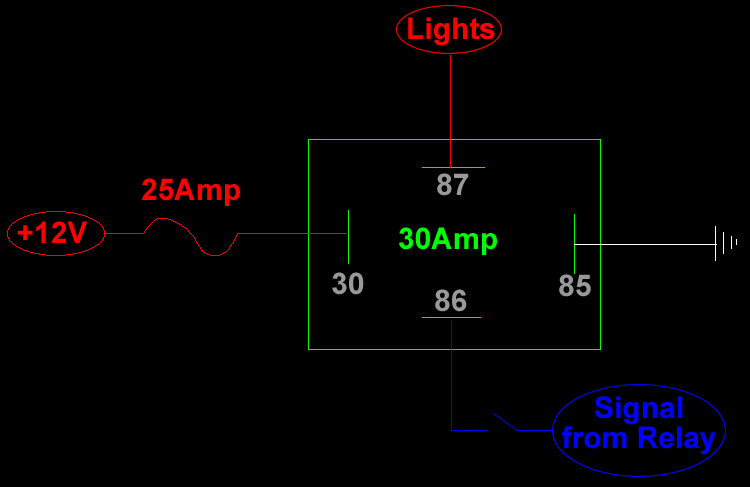

    First of all, the wiring diagram for our relay. The colors I use are the same colors of my installation: Red (+), White (-), Blue (+ switched or signal)

    [​IMG]

    I think that all the numbers are the same for all the relays...

    It is VERY IMPORTANT that you fuse your circuit!!! I used a 25amp fuse for 2x55W lights.

    Now, the important thing to make it work... Where the hell do we take te signal!!!

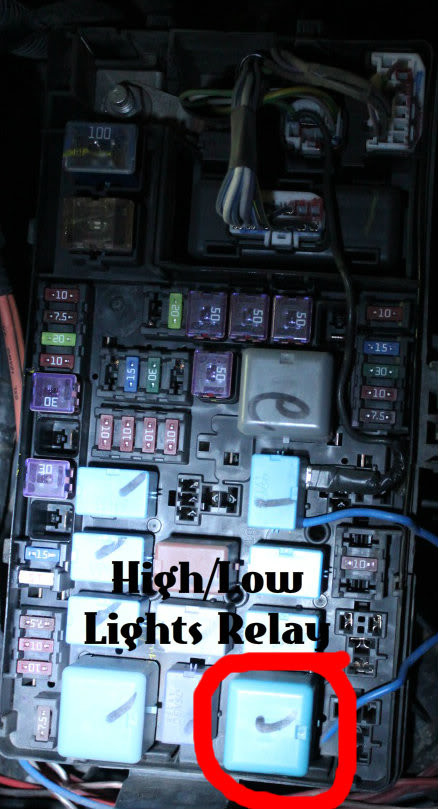

    Don't worry, it's pretty simple, what you need to do is to open the fuse box next to the battery and locate this relay:

    [​IMG]

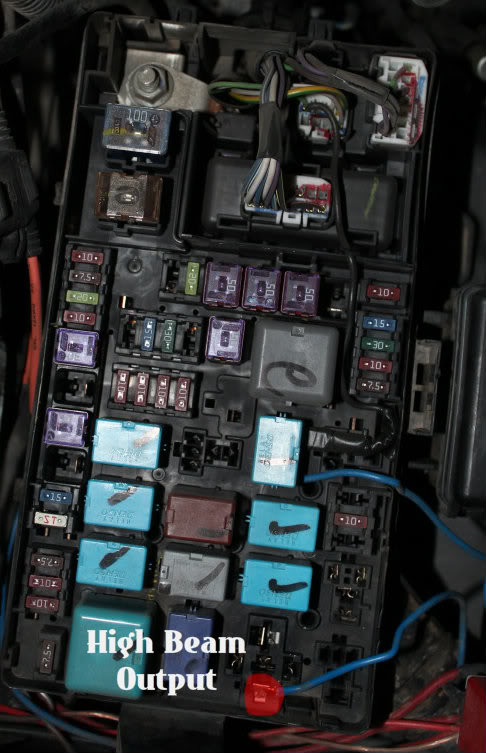

    Then, you take it out and plug in the "Signal cable" here:

    [​IMG]

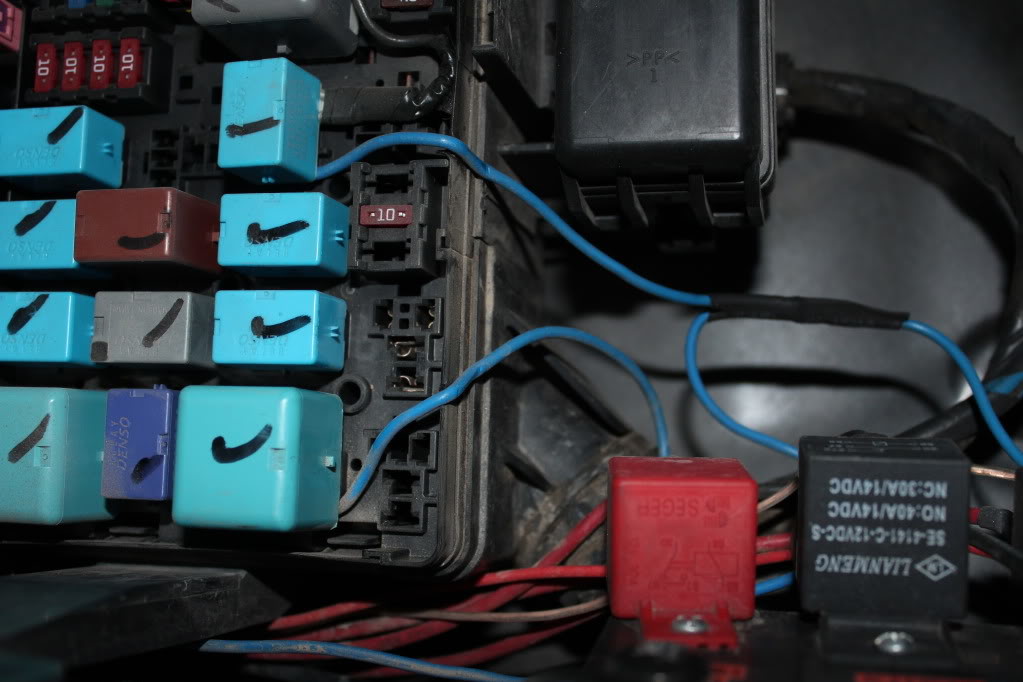

    Afterwards you put back your factory relay, now we have the signal from the brights!

    [​IMG]

    Now, if you want an extra switch I recommend to you to put it on the "signal cable", if not, you just wire the signal cable as the initial diagram...

    What you need to do next is to wire your lights as you would do normally... and VOILÁ!

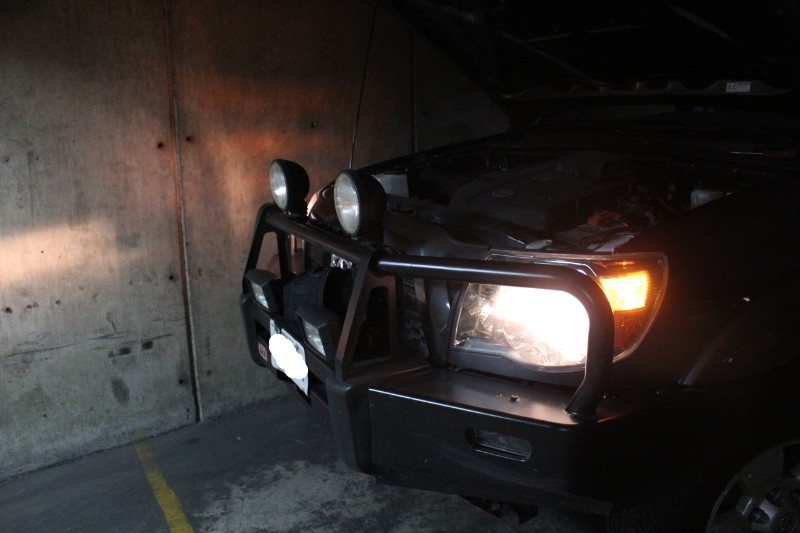

    Low beam:

    [​IMG]

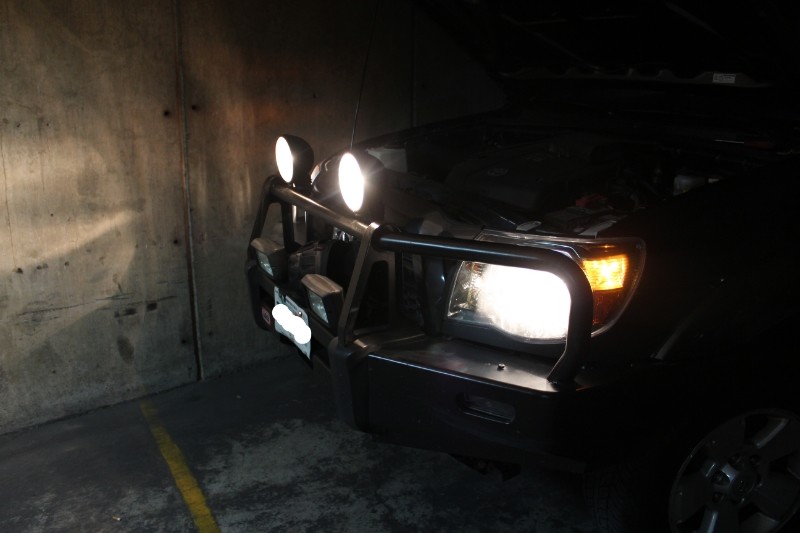

    HIGH BEAM:

    [​IMG]

    Hope it works for you!



    NOTE: It is your responsibility to do any modification to your truck...

  2. Dec 18, 2012 at 7:51 PM
    #2
    AllanJackson

    AllanJackson Member

    Joined:
    Dec 12, 2012
    Member:
    #92927
    Messages:
    20
    Gender:
    Male
    First Name:
    Allan
    Greenville, SC
    Vehicle:
    06 Tacoma X-Runner
    Bull Bar, KC off road lights
    Ok so I did what caribe wanted me to do by buying a add-a-line cirucit and all it did was keep my lights on regardless if my lights are on or not so I took chepo's approach and it did the same thing.. It acts the same as if I touched it to the + battery. I touched it to the head relay and noticed it only came on with low and high beams.. So i tried to mess with that and now neither high or low beams will come on.. i didnt see any blown fuses and the high beams will come on with flash. so do i need a new head relay?

    Every where else I put the switch wire it'll either never come on or always be on. I'm not trying to be difficult and I'm not an idiot.. It's just not working!! Any thoughts on this?

  3. Dec 18, 2012 at 9:40 PM
    #3
    Chepo

    Chepo [OP] Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    613
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
