How to go about replacing transfer case motor?

Discussion in '1st Gen. Tacomas (1995-2004)' started by My4wdisbroken, Dec 5, 2023.

  1. Dec 5, 2023 at 9:09 PM
    #1
    My4wdisbroken

    My4wdisbroken [OP] New Member

    Joined:
    Dec 5, 2023
    Member:
    #438966
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2002 tacoma extra-cab TRD 3.4 5speed manual

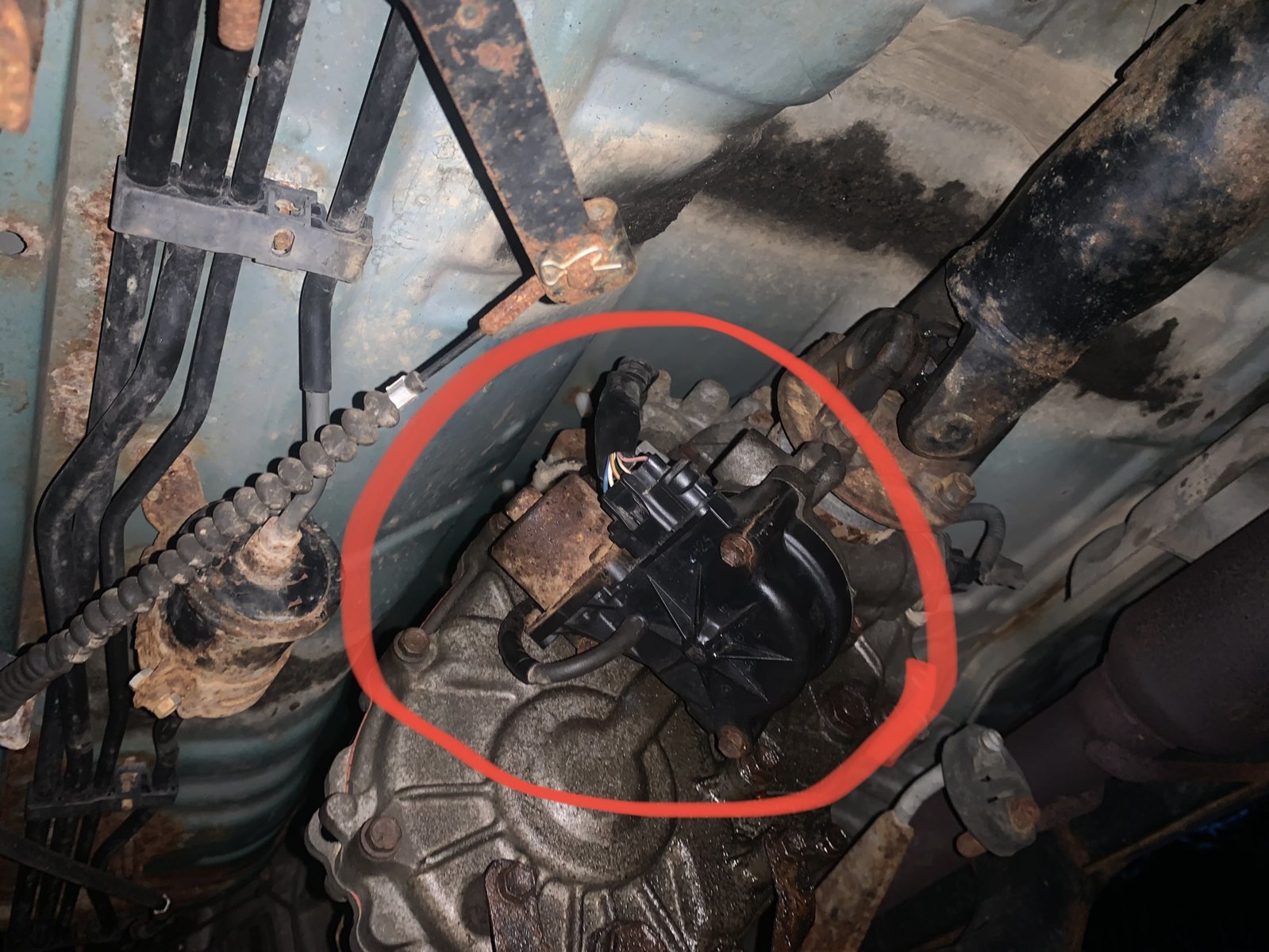

    2002 3.4 manual TRD got stuck in 4wd last winter, I took it to a shop. They got it back in 2wd and claimed I need a new transfer case shift motor to (over 1k from toyota & no aftermarket part that they could find). They also were kind enough to crack the part by over torquing the bolts, the inside is now corroded beyond repair. I decided to just drive in 2wd last year, now I want to fix it with winter coming.

    I’m wondering if anyone has dealt with this repair before, I’ve heard it can be difficult and might involve messing around with the transfer case.

    Also if anyone knows of any aftermarket part that would work instead of the expensive oem part. I’ve found a few online that claim they fit the 2002 but i’m not totally convinced it’ll fit because the models that are said to fit seem like an odd assortment of years that the aftermarket parts that seem like they might work?


    Not the most concise explanation/question by me… thanks to anyone with advice!

    Aftermarket part in question #1 https://www.partsgeek.com/bxmbhzc-t...ZkRjpbk16PTtSh8MagD4f6xcMJKjunLAaAnLsEALw_wcB


    Aftermarket part in question #2
    https://a-premium.com/product/Trans...eN9sdGcpOkTTqlyqvbCpRwviF2ghB4ohoCaXAQAvD_BwE


  2. Dec 5, 2023 at 10:04 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,368
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    This site contains affiliate links for which the site may be compensated.
    #2
  3. Dec 5, 2023 at 10:12 PM
    #3
    02hilux

    02hilux Paved roads not required

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    5,268
    Planet: EARTH
    #1 - 1st gen and 2nd gen tcase actuator are different. You reference a second gen.

    Why not buy a functioning, used case? Heck, where I'm, they go for like 100 buck.

    If you're just replacing the actuator, you'll have to tear the case apart.

    TACOTU3 likes this.
  4. Dec 6, 2023 at 9:59 AM
    #4
    Glamisman

    Glamisman Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200436
    Messages:
    4,214
    Gender:
    Male
    I havnt tinkered on a 1st gen transfer case motor in maybe 15 years… but the 2017 TRD I just did I was able to swap out the bad plastic spur gear that actually moves the shaft. The spur gear is a joke of a design, thanks Toyota. There are a few videos out there that show the job… kind of scary when you start but if you go slow and use grease to hold the bits that want to fall out it will save you from dropping the Tcase and splitting it just to slide the shaft over the drive.

    If I remember correctly I even think I found a guy who made a electric to manual conversion kit.

    Somewhere along the line men started to whine like little girls and didnt want to get out and lock hubs and pull a lever so Toyota accommodated them.

    This is for a later tacoma but you get the idea. The red spur gear ~ 4 minutes in is what lets go. I am curious if the early TC motors are the same.

    https://www.youtube.com/watch?v=GCY2BCdlU4I

    The way I figure it is you can take it apart if it is truly junk put her in 2WD and still drive the truck while you form a repair plan.

    Last edited: Dec 7, 2023
  5. Dec 6, 2023 at 5:58 PM
    #5
    tacoman2001$

    tacoman2001$ Well-Known Member

    Joined:
    Sep 23, 2022
    Member:
    #406478
    Messages:
    598
    Gender:
    Male
    Replacing that actuator means splitting the transfer case open. Not hard just intimidating. If you go through all that work I'd just buy an OEM one. Hate to have it break in 6 months and have to replace it again.

  6. Dec 7, 2023 at 3:02 PM
    #6
    thezentree

    thezentree Active Member

    Joined:
    Apr 24, 2018
    Member:
    #251542
    Messages:
    27
    KY
    Vehicle:
    00 Tacoma / 01 4Runner
    I did it on my 01 4Runner using a 5th gen 4Runner actuator motor: I bought a 5th gen actuator 36410-34015 and stole the motor and gear cover off it.

    It's worked flawlessly for a year and a half since I did all this.

  7. Dec 9, 2023 at 9:05 AM
    #7
    Nano909

    Nano909 Stirrer Of Pots

    Joined:
    May 8, 2020
    Member:
    #327296
    Messages:
    1,106
    Gender:
    Male
    Vehicle:
    Xcab 3.4 4wd 5MT
    Yeah they've been whining for years, which is why Toyota stopped putting a front straight axle.

  8. Dec 11, 2023 at 6:24 AM
    #8
    local523

    local523 Well-Known Member

    Joined:
    Dec 1, 2013
    Member:
    #117654
    Messages:
    93
    Gender:
    Male
    First Name:
    Jeff
    Pisgah Forest, NC
    Vehicle:
    04 Crew Cab 4X4 TRD
    King coilovers on Camburg UCAs and Icon rear res shocks. Icon AAL with extended shackles. Icon Alpha 17" rims, BPV, Extended rear brake line. Front diff drop. Pioneer 2440 NEX head unit, Jenson amp, Gorilla sub amp, Polk component speakers, sub box, RAAMmat, Ensolite all around, ARB front bumper, Relentless Fabrications rear bumper, Icon Snugtop shell, pinch weld mod, deckplate mod, AFE air fliter, 1.5" wheel spacers, ditch lights, rear bumper lights, Tundra brake upgrade, homemade sliding anti-sway bar disconnects
    I'm in the exact same predicament with my 04' Doublecab 4X4 with auto transmission. I did a complete body off frame restoration and when it was all put back together, I got the blinking green 4X4 annunciator. I took the plastic cover off the TC motor and removed the motor from the assembly so I could manually move the transfer case shift rod in hopes of getting the 4WD ECU to recognize all components in the correct position. The challenge was re-clocking the motor in the housing and with all my installation attempts, my plastic cover cracked like yours.

    I bought one of the cheap TC motors suggested above. The flange with rubber o-ring on the 2005+ is slightly taller, so the unit didn't seat correctly in the 1st Gen transfer case. This was disappointing because the 2005+ has a removable plate that allows the user to remove the little plastic gear, remove the shift rod from the replacement motor, and slide the motor over the existing rod in the transfer case. The website that I bought the motor from indicated that it was applicable for 2002, and 2005+. It was a longshot and the results were as expected.

    I ended up buy a new motor for $1k but haven't installed it yet. Now I'm stuck trying to decide between 2 options:

    1. remove the plastic cover from the new motor, remove the motor, remove the new shift rod, slide new motor assembly on the existing TC shift rod then hope I re-clock the motor correctly upon installation, or
    2. take the transfer case apart to install the new motor and shift rod.

  9. Dec 11, 2023 at 6:54 AM
    #9
    02hilux

    02hilux Paved roads not required

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    5,268
    Planet: EARTH
    And eventually there will be no more manual transmission tacomas. Automatics for the future.

    No longer be "real man use 3 pedals" it'll be "man use 2 pedals"

    :rofl:

  10. Dec 11, 2023 at 3:44 PM
    #10
    thezentree

    thezentree Active Member

    Joined:
    Apr 24, 2018
    Member:
    #251542
    Messages:
    27
    KY
    Vehicle:
    00 Tacoma / 01 4Runner
    Did you take everything off the shift rod and try to replace the whole actuator housing and the metal actuator body doesn’t seat in the tcase, or are you saying the black plastic cover for the big spur gear with the worm gear motor doesn’t fit? Did you order 36410-34015 or a different part? I’m not saying you’re wrong, just trying to figure out why it worked for me but not for you.

  11. Dec 11, 2023 at 5:26 PM
    #11
    local523

    local523 Well-Known Member

    Joined:
    Dec 1, 2013
    Member:
    #117654
    Messages:
    93
    Gender:
    Male
    First Name:
    Jeff
    Pisgah Forest, NC
    Vehicle:
    04 Crew Cab 4X4 TRD
    King coilovers on Camburg UCAs and Icon rear res shocks. Icon AAL with extended shackles. Icon Alpha 17" rims, BPV, Extended rear brake line. Front diff drop. Pioneer 2440 NEX head unit, Jenson amp, Gorilla sub amp, Polk component speakers, sub box, RAAMmat, Ensolite all around, ARB front bumper, Relentless Fabrications rear bumper, Icon Snugtop shell, pinch weld mod, deckplate mod, AFE air fliter, 1.5" wheel spacers, ditch lights, rear bumper lights, Tundra brake upgrade, homemade sliding anti-sway bar disconnects
    I ordered 36410-35081 from OEMPARTSTOYOU.com. It was advertised at 2002-2015, but in reality it applied to 2005-2015. The metal actuator housing would not seat in the transfer case properly - the flange with o-ring was too tall. In hindsight, I could have just used the black plastic housing off the motor as I think that was the same as the 96-04.

  12. Dec 11, 2023 at 6:27 PM
    #12
    thezentree

    thezentree Active Member

    Joined:
    Apr 24, 2018
    Member:
    #251542
    Messages:
    27
    KY
    Vehicle:
    00 Tacoma / 01 4Runner
    Ah I’m tracking now. Yeah I just used the black plastic housing, but it’s good to know the metal housings are not interchangeable.
