How To Install A Pioneer X5500 in 2nd Gen Tacoma with ASWC1 Module and Parking Bypass

Discussion in 'Audio & Video' started by NorCalTRD, Oct 4, 2013.

  1. Dec 23, 2013 at 5:55 PM
    #21
    Bsheriff11

    Bsheriff11 Remember Your ABC's. Always. Be. Cool.

    Joined:
    Apr 6, 2013
    Member:
    #101499
    Messages:
    2,458
    Gender:
    Male
    First Name:
    Brandon
    Virginia livin', South Carolina raised
    Vehicle:
    '12 TRD Sport DCSB 4X4
    Click My Sig Homie
    Installing the 5500 tomorrow! Thanks!

  2. Jan 23, 2014 at 11:25 PM
    #22
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    385
    Gender:
    Male
    norcal
    hid head lights, hid fog lights, always on fog lights, bed lights
    does this instruction apply to (2010) tacoma with jbl audio system?
    with your instructions, I don't need to get the adapters crutchfield sells (AX-ADBOX1 and AX-ADTY01) right? You are basically tapping the wires coming from the pioneer radio to the oem radio wiring using the clips right?

    do all buttons on the steering wheel work with the aswc1? that includes the on hook, off hook and speak buttons for hands free phone control on the right side of the steering wheel.

    thanks.

  3. Jan 24, 2014 at 11:47 AM
    #23
    2013TacoLTD

    2013TacoLTD Well-Known Member

    Joined:
    Nov 14, 2013
    Member:
    #116560
    Messages:
    237
    Gender:
    Male
    First Name:
    Dennis
    Mckinney, TX
    Vehicle:
    13 Tacoma Limited V6 4X2
    Radio On Mod, Complete new stereo with 10" subs, Truxedo bed cover, GT-MAT through doors and rear cab.
    I have the 8500bhs with this SW controls and the phone controls no longer operate the phone. The phone "answer" and "hang up" buttons are used for:
    1. On SiriusXM it changes you to your next preset stations (the up/down buttons below volume move one station at a time - which I hate.)
    2. On USB stick is changes folders (assuming you have your music in folders like "albums" or by music styles)

    Sadly, they will do nothing to answer or hang up a phone - which I dislike, especially because I do not want to take my eyes off the road to hit the answer button on the radio screen.

  4. Feb 14, 2014 at 2:40 PM
    #24
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    385
    Gender:
    Male
    norcal
    hid head lights, hid fog lights, always on fog lights, bed lights

    I just installed an AVH-X5600bhs (2014 model) and the ASWC-1 steering wheel control. I am able to get the Bluetooth buttons to work. The on hook/ off hook buttons only works for picking up and hanging up incoming calls though. The push to talk works by activating the "Siri Eyes Free" mode. I did have to program/remap the keys though.

    The default that ASWC will do is simply assign the button functions in the order of the 18 buttons listed in the manual. For the (2010) tacoma case, since there are 8 buttons on the steering wheel, it assigns the first 8 button functions respectively. And yes, the default is up/down becomes seek up/seek down and onhook/offhook becomes next and previous function and push to talk becomes mute by default. I just remap the 8 buttons to the proper functions.

    I got the avh-x5600 radio, aswc-1, pac tato, 70-8114, scosche dash kit, iphone 4 cable and parking brake bypass all for around $500 on ebay. The install was pretty straight forward and only required 5 wire connections. 4 connections described as "harness 1" in post #1 of this thread, then connection #5 is the green parking brake wire to the green parking brake bypass. This is for jbl connection, so no speaker wiring connections are needed.

    Last edited: Feb 14, 2014
  5. Feb 16, 2014 at 11:27 PM
    #25
    AZM9

    AZM9 Well-Known Member

    Joined:
    Mar 26, 2009
    Member:
    #15195
    Messages:
    270
    Gender:
    Male
    First Name:
    Jay
    Chandler, AZ
    Vehicle:
    2009 Prerunner TRD Sport
    ARE tonneau cover, Redline hood struts, Leaf TSB, and Trans TSB, Satoshi grille.
    Just have Best Buy do it for $200.00 like I did. I did the same exact radio and they did the bypass for me really easy they said.

  6. Feb 22, 2014 at 6:38 PM
    #26
    nbrooks

    nbrooks Member

    Joined:
    Feb 21, 2010
    Member:
    #31808
    Messages:
    8
    Gender:
    Male
    Vehicle:
    Prerunner
    Just finished installing the Pioneer AVHX5600BHS in 2010 Tacoma. Rather than use the instructions in post 1, I opted to pay a little extra and use the harness sold by Metra.

    1. Pioneer AVHX5600BHS
    2. Metra 70-1761 wiring harness aftermarket Pioneer AVH5600BHS
    3. Scoche Dash kit for 2005 and up Tacoma
    4. Axxess Metra ASWC-1 Universal Steering Wheel Control Interface with Micro B Connector
    5. Metra 70-8114 Steering wheel control harness for ASWC-1

    6. SiriusXM V200 module
    7. SharkFin adapter SFA-12M (to allow use of oem satellite antenna)
    8. Microbypass parking brake switch to allow use of DVD when vehicle in motion.
    9. RCA plug video cable to interface with Pioneer AVHX5600BHS and rear camera (see http://www.tacomaworld.com/forum/audio-video/30889-oem-camera-connection-below-dash.html - Post number 1 and post number 98 for correct connections)

    Everything was very easy with instructions contained in the harnesses and also the Pioneer manual - you basically match color for color on the Pioneer harness, and the harness for the Steering Wheel control module allows you to install it with just two connections (there is a youtube video from the manufacturer of the module) The module is self programming.

    Total cost was about $550 for everything through Amazon.

    I figure I saved about $350 because that's what CarToys quoted me for the install.

  7. Feb 23, 2014 at 1:16 PM
    #27
    gbreezer80

    gbreezer80 Well-Known Member

    Joined:
    Jan 7, 2014
    Member:
    #120131
    Messages:
    50
    Gender:
    Male
    First Name:
    Scott
    Dallas, TX
    Vehicle:
    07 Prerunner SR5
    Volant CAI w/Scoop, Borla Catback Exhaust, URD MAF Sensor Calibrator, Dual 10" LED Lights, Kickass Audio System
    nbrooks...awesome. Do you have any pics? I have the same headunit (5600) and will be installing next weekend. I spent this weekend deadening the doors, installing new speaker/power wiring and Hybrid Audio Technologies Clarus (fronts) and Imagine (rears) speakers. I purchased the speaker baffles from Mr Marv (guess his name is 'marvelous' for short as he is an amazingly nice person) and waiting on a custom amp rack/sub enclosure made by Marv. Cannot wait to get it all completed.

  8. Feb 23, 2014 at 5:57 PM
    #28
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    385
    Gender:
    Male
    norcal
    hid head lights, hid fog lights, always on fog lights, bed lights

    I am interested in this. Are you saying you have the backup camera that displays on the rear view mirror, and now it also displays on the pioneer head unit?

    I did the same install, except I have the JBL, and I did not do XM since the whole point for me changing the head unit is to get rid of XM subscription.

  9. Feb 23, 2014 at 11:01 PM
    #29
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    385
    Gender:
    Male
    norcal
    hid head lights, hid fog lights, always on fog lights, bed lights
    ok, I just read the linked thread. I'll do this as well so I can view the backup camera video on the head unit. Thanks for the post.

  10. Feb 24, 2014 at 8:18 AM
    #30
    nbrooks

    nbrooks Member

    Joined:
    Feb 21, 2010
    Member:
    #31808
    Messages:
    8
    Gender:
    Male
    Vehicle:
    Prerunner

    [​IMG]

  11. Feb 24, 2014 at 11:47 AM
    #31
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    385
    Gender:
    Male
    norcal
    hid head lights, hid fog lights, always on fog lights, bed lights
    nice. I see the scratches below the AC control knobs. I think I read in one of the posts (or maybe a youtube video, I can't remember) those can be smoothed out by heating with a hair dryer.

    I also see you have the aux port next to the lighter. You connected the metra 70-8114 rca to the head unit aux rca right?

    did you install the iphone cables? where did you put the handsfree microphone?

    I use iphone4 and got the cables cheap. I think iphone 5 cable still costs an arm and a leg.

  12. Feb 24, 2014 at 5:02 PM
    #32
    nbrooks

    nbrooks Member

    Joined:
    Feb 21, 2010
    Member:
    #31808
    Messages:
    8
    Gender:
    Male
    Vehicle:
    Prerunner

    Thanks for the tip on the hair dryer, I'll try it out.
    (edit)...... Using a hairdryer actually works to remove scratches from the vinyl - high heat about 8 inches from the scratch, use a smooth implement such as the handle of a screwdriver to "massage" the scratch area.

    The metra-8114 ius connected the head unit's wired remote - although I haven't actually tested the aux to see if it works.

    No IPhone I'm all android - trying to figure out if this will run my android maps. Keep getting an error code of 02-DO when I connect the HTCOne-S with the USB

    Hands free mike is installed in the overhead by attaching to the garage door opener compartment.

    Last edited: Feb 25, 2014
  13. Feb 24, 2014 at 7:48 PM
    #33
    gbreezer80

    gbreezer80 Well-Known Member

    Joined:
    Jan 7, 2014
    Member:
    #120131
    Messages:
    50
    Gender:
    Male
    First Name:
    Scott
    Dallas, TX
    Vehicle:
    07 Prerunner SR5
    Volant CAI w/Scoop, Borla Catback Exhaust, URD MAF Sensor Calibrator, Dual 10" LED Lights, Kickass Audio System
    Looks great!

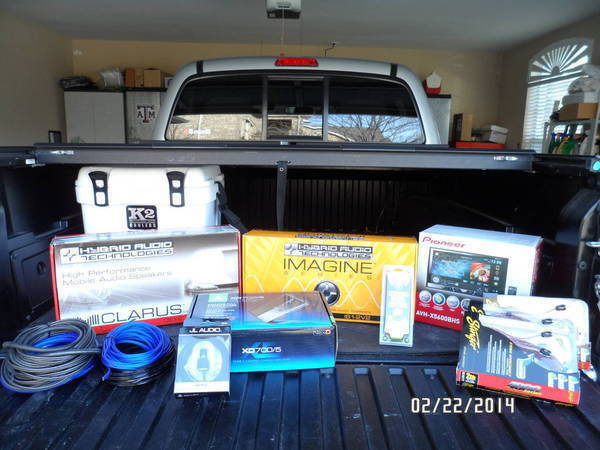

    [​IMG]

  14. Feb 25, 2014 at 8:39 AM
    #34
    Zenquest

    Zenquest Member

    Joined:
    Feb 11, 2014
    Member:
    #122884
    Messages:
    10
    Gender:
    Male
    San Ramon
    Vehicle:
    07 Prerunner TRD
    Looks awesome nbrooks

  15. Feb 25, 2014 at 9:49 AM
    #35
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    385
    Gender:
    Male
    norcal
    hid head lights, hid fog lights, always on fog lights, bed lights
    The 70-8114 3.5mm jack connects to head unit wired remote, then it also has a red and white rca jack that connects to the head unit aux (red and white) rca jack. This will enable the aux port (I see you have the aux port 3.5mm jack at the very bottom of your picture, to the left of the 12v outlet).

    as for android, are you using the mirrorlink app? how is it working? all you need is just a usb connection?

    my 2010 has the compass/temp overhead. I did not know other models come with a garage door opener. do you have both the garage door opener and the compass/temp display overhead?

  16. Feb 25, 2014 at 2:20 PM
    #36
    nbrooks

    nbrooks Member

    Joined:
    Feb 21, 2010
    Member:
    #31808
    Messages:
    8
    Gender:
    Male
    Vehicle:
    Prerunner
    I guess that I mispoke about the garage door opener, there is a small compartment in the overhead below the sunglasses compartment. You can put a garage door opener in it.

    Right now the USB connection does not recognize my android phone - I presume that because Pioneer sells a gps unit for about $300 to go with this X5600, they would not be inclined to make it easy to use a mirrored phone nav.

    Last edited: Feb 25, 2014
  17. Mar 1, 2014 at 12:47 PM
    #37
    trktwo

    trktwo tagging shit all over the net since 2001

    Joined:
    Feb 21, 2012
    Member:
    #73282
    Messages:
    100
    Gender:
    Male
    First Name:
    tommy
    biloxi
    Vehicle:
    '12 Prerunner TSS stock
    Aero Turbine at2525xl, curt hitch and trailer wiring kit, weathertech vent visors, leer topper 5100s@1.75, 2" AAL, 265/70 r17 michelin at2, bbs 17x8 rd wheel (fj)/ jl stealthbox, 700/5 amp, jl 6.5s x4
    subscribed

  18. Mar 2, 2014 at 2:58 PM
    #38
    trktwo

    trktwo tagging shit all over the net since 2001

    Joined:
    Feb 21, 2012
    Member:
    #73282
    Messages:
    100
    Gender:
    Male
    First Name:
    tommy
    biloxi
    Vehicle:
    '12 Prerunner TSS stock
    Aero Turbine at2525xl, curt hitch and trailer wiring kit, weathertech vent visors, leer topper 5100s@1.75, 2" AAL, 265/70 r17 michelin at2, bbs 17x8 rd wheel (fj)/ jl stealthbox, 700/5 amp, jl 6.5s x4
    For all other radios
    , plug in the male 3.5mm connector of the ASWC-1 into the back
    of the aftermarket radio, designated for an external SWC control interfac
    e. Please refer to
    the aftermarket radios manual if you are in doubt where the 3.5mm connector of the
    ASWC-1 goes.

    so, on the pioneer install, do you use the 3.5mm plug on the aswc-1 harness? if so, which plug does it hook into? (avh-x4500bt)

  19. Mar 2, 2014 at 5:52 PM
    #39
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    385
    Gender:
    Male
    norcal
    hid head lights, hid fog lights, always on fog lights, bed lights
    There should be a 3.5mm jack on the pioneer labeled wired remote input

  20. Mar 2, 2014 at 10:22 PM
    #40
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    385
    Gender:
    Male
    norcal
    hid head lights, hid fog lights, always on fog lights, bed lights
    I successfully connected the reverse camera video to the head unit. works nicely. I can now really say I am happy with this head unit. I almost bought the lower model at crutchfield, till I saw on ebay the 2014 model was going for less than the price for the lower models. $340 for the avh-x5600, which I think is the right price, considering it is essentially just the older 5500 model with an updated firmware, that they market as a new model so it can sell for $500.
