How to install the halo led projector headlight

Discussion in 'Lighting' started by usmctaco, Jan 23, 2009.

  1. usmctaco

    usmctaco [OP] Member

    Joined:
    Jan 23, 2009
    Member:
    #12874
    Messages:
    12
    Gender:
    Male
    Central Florida
    Vehicle:
    07 TRD offroad
    3" ready sst lift, Billet grille, Halo projector headlights, Stubbie antenna, Chrome exhaust tip, Trd fllor mats, Door sill protectors, Trd chrome side steps, Debaged tailgate with new TRD emblem, Blue led guage mod
    Hey everyone I purchased the dual halo led projector headlights for my 07 tacoma and have a problem. There are a couple of wires that need connecting for the leds and I'm not exactly an electrician. Can anyone help me and advise which wires connect together and where to splice into the oem lights? See below for picture.

    [​IMG]

    I was told to connect the black line to the negative of the park/signal/side marker lamp. There are three different led areas where there are black and white wires.

  2. dually

    dually Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,134
    Gender:
    Male
    Interstate underpass
    Vehicle:
    05 Indigo 4wd Longbed
    Not as many as the 98..
    Pics would help. A lot

  3. usmctaco

    usmctaco [OP] Member

    Joined:
    Jan 23, 2009
    Member:
    #12874
    Messages:
    12
    Gender:
    Male
    Central Florida
    Vehicle:
    07 TRD offroad
    3" ready sst lift, Billet grille, Halo projector headlights, Stubbie antenna, Chrome exhaust tip, Trd fllor mats, Door sill protectors, Trd chrome side steps, Debaged tailgate with new TRD emblem, Blue led guage mod

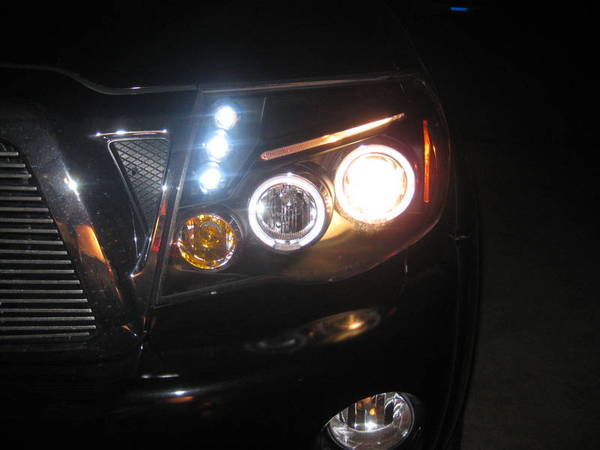

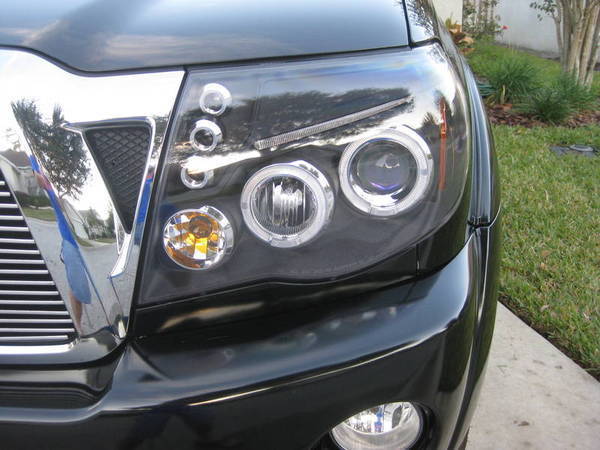

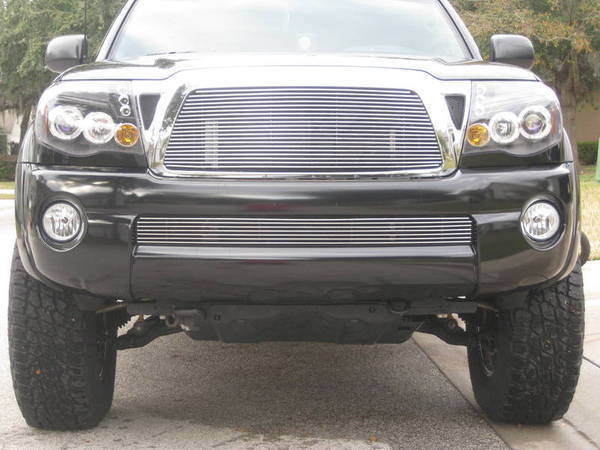

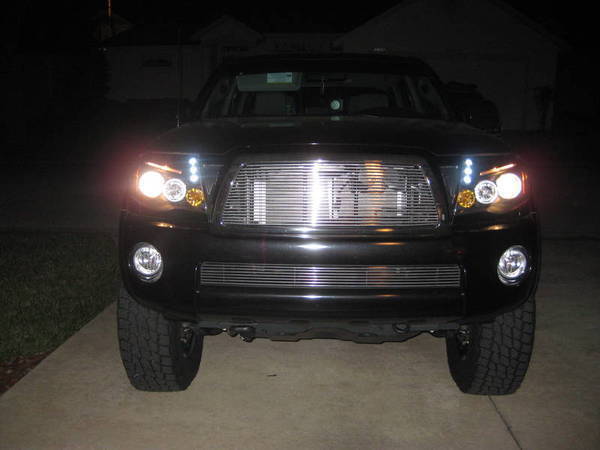

    I FINALLY FIGURED OUT HOW TO WIRE UP THE LEDS INTO THE PARKING LAMPS. THEY LOOK AWESOME! HERE ARE A FEW PICS OF THE FINAL INSTALL.



    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  4. apkarian100

    apkarian100 Well-Known Member

    Joined:
    May 26, 2008
    Member:
    #6886
    Messages:
    172
    Gender:
    Male
    Alton Bay, NH
    Vehicle:
    LED 04 3RZ
    Injen PowerFlow Intake NGK Iridium Spark Plugs Synthetic Oil IPCW Taillights Clear Corner Lights Blue LED Interior Lights Custom LED Map Lights
    Not my taste, but I am happy you figured out how to wire everything. Looks good as far as function.

  5. nickbroaddus

    nickbroaddus Active Member

    Joined:
    Feb 21, 2009
    Member:
    #13888
    Messages:
    34
    Gender:
    Male
    Boston
    Vehicle:
    06 trd sport acc cab prerunner
    new headlights, 3" lift, K&N CAI, URD shortshifter, 2 10"mtx subs,
    please share how you fixed it!!! im having the same problem

  6. usmctaco

    usmctaco [OP] Member

    Joined:
    Jan 23, 2009
    Member:
    #12874
    Messages:
    12
    Gender:
    Male
    Central Florida
    Vehicle:
    07 TRD offroad
    3" ready sst lift, Billet grille, Halo projector headlights, Stubbie antenna, Chrome exhaust tip, Trd fllor mats, Door sill protectors, Trd chrome side steps, Debaged tailgate with new TRD emblem, Blue led guage mod
    On each headlight there are three white and three black wires.

    - wire all white wires together
    - wire all black wires together
    - using the same guage of wire cut two pieces and connect one to the white wires and one to the black wires.

    - locate the parking lamps and its two wires
    - shave enough plastic away from each wire to expose the wire
    - attach each wire to one of the parking lamps wires
    - make sure they work before wiring them together

  7. gtz85350

    gtz85350 Well-Known Member

    Joined:
    Oct 17, 2008
    Member:
    #10026
    Messages:
    127
