HOW TO: Mesh Grill - DNG's version

Discussion in '1st Gen. Tacomas (1995-2004)' started by DNG, Dec 12, 2011.

  1. Dec 12, 2011 at 8:46 PM
    #1
    DNG

    DNG [OP] Well-Known Member

    Joined:
    Aug 31, 2011
    Member:
    #62654
    Messages:
    194
    Gender:
    Male
    Orange County, CA
    Vehicle:
    White 01 DC PreRunner
    I've gotten a couple requests to write a "How To" for my version of a mesh grill, so here it goes.

    EDIT: If there are enough people who want these, I can make a couple for some price I haven't decided yet. PM me if interested.

    Materials:
    • Screen door mesh from Home Depot
    • Foam posterboard
    • Rustoleum High Heat spray paint
    • Cutting tool for grill assembly (dremel, hand saw, etc.)
    • Cutting tool for mesh (some kind of heavy duty scissors)
    • Rivet tool + rivets
    • Drill

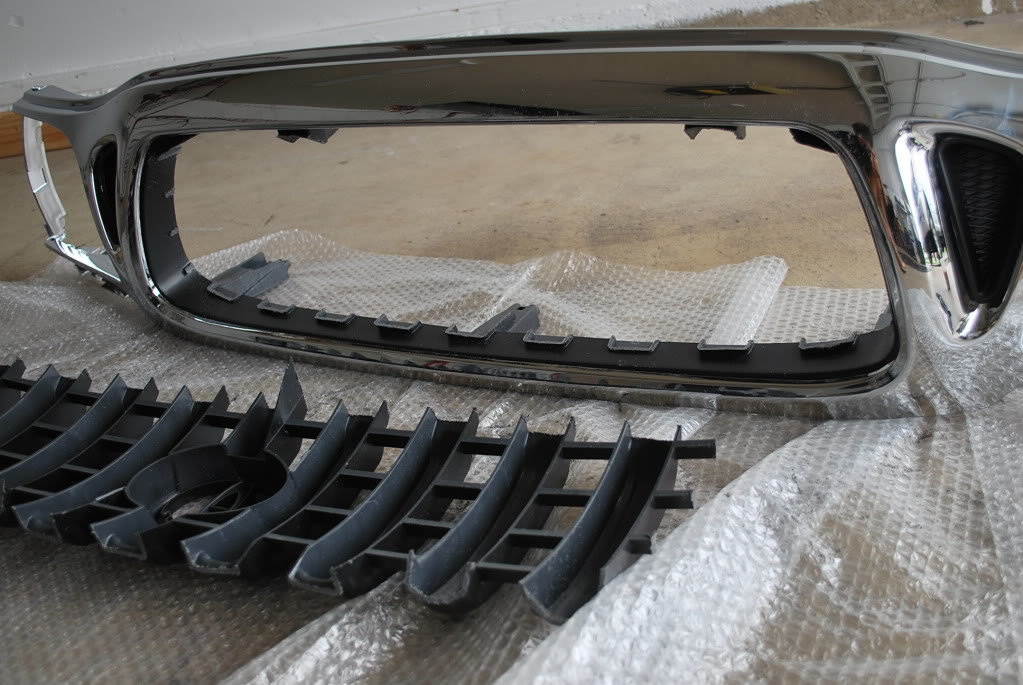

    1. Cut out insides of grill assembly and file down until relatively flush
    [​IMG]

    [​IMG]

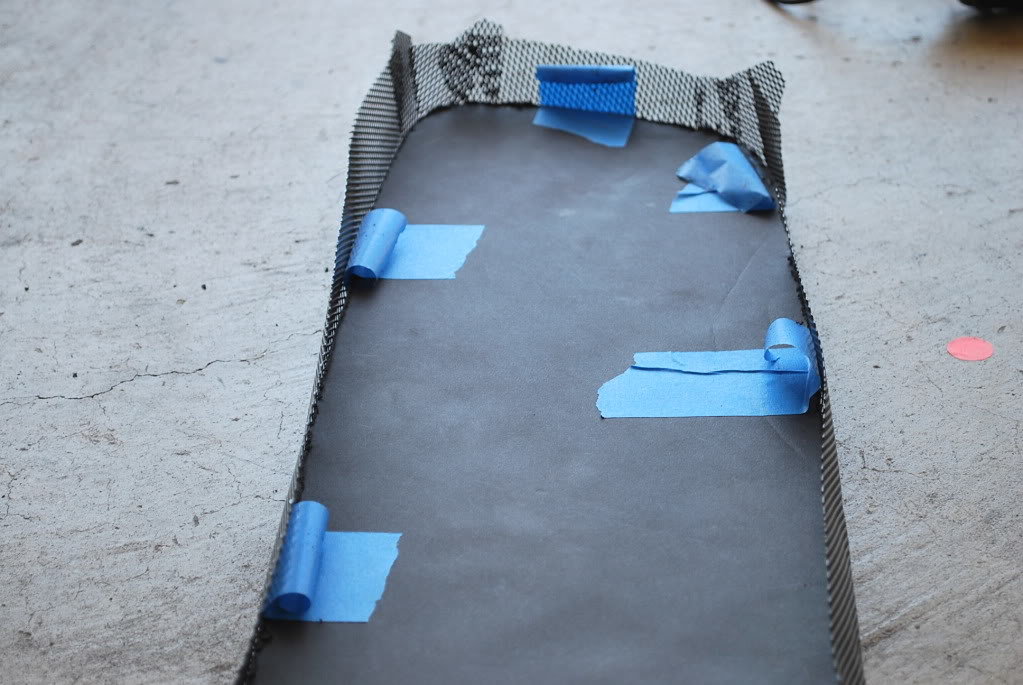

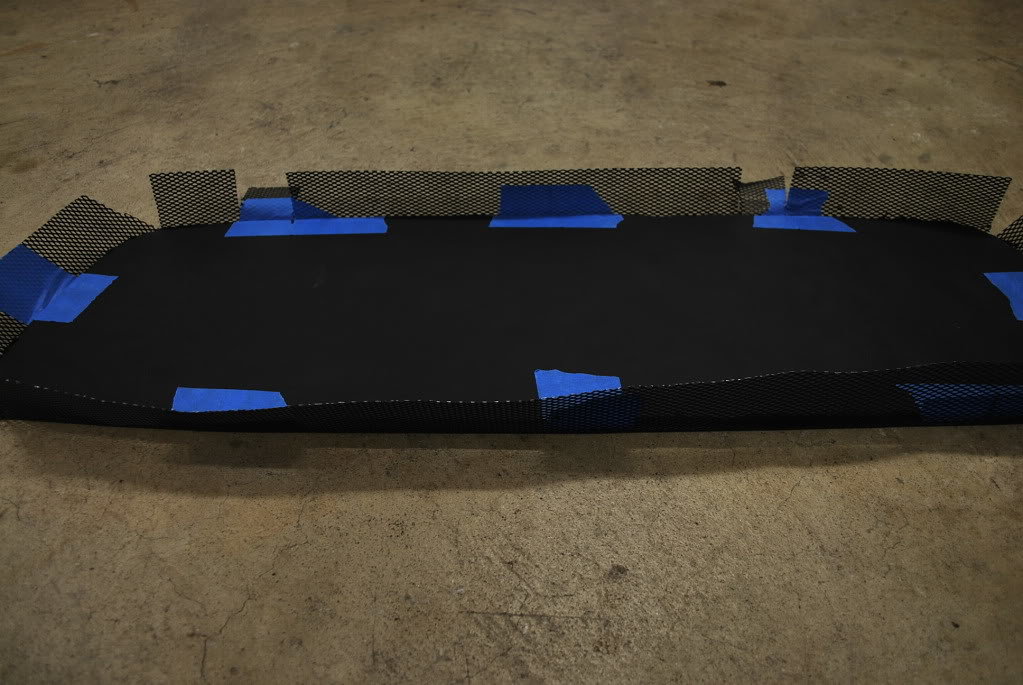

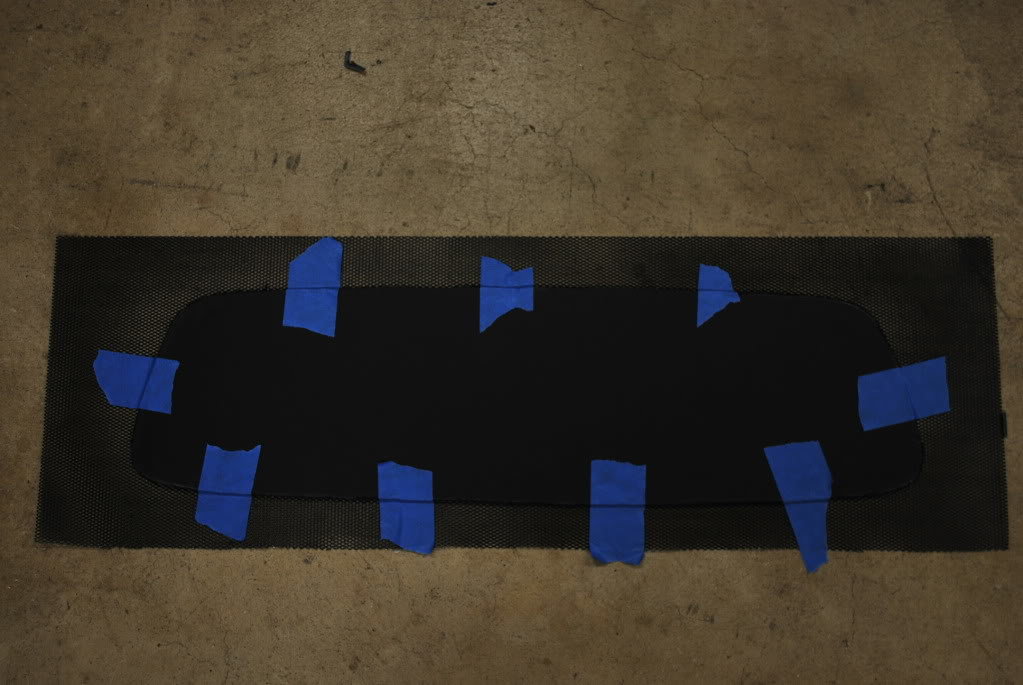

    2. Make a template out of foam posterboard to mold the mesh around. When making the foam template, I recommend making it a couple millimeters smaller, leaving a bit of tolerance between the foam template and grill assembly to allow for the mesh bends to fit inside. Foam posterboard seems to be the ideal material to use, as it is easy to file down to make precise adjustments
    [​IMG]

    [​IMG]

    I also recommend making as many cuts as you can around the corners to make them as round as possible (make adjustments as necessary)
    [​IMG]

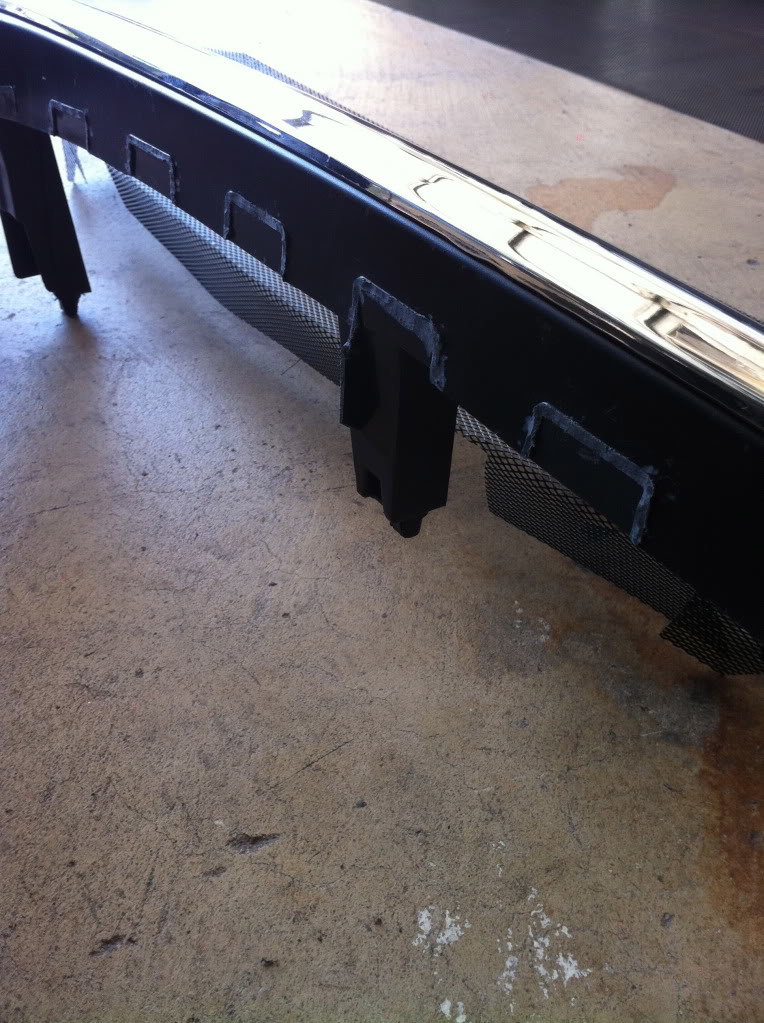

    3. Insert molded mesh into grill assembly, drill holes, and install rivets. I recommend drilling for one rivet at a time, to allow for minor adjustments. No pictures, sorry.

    4. Spray paint radiator with Rustoleum High Heat spray paint.

    5. Enjoy :D

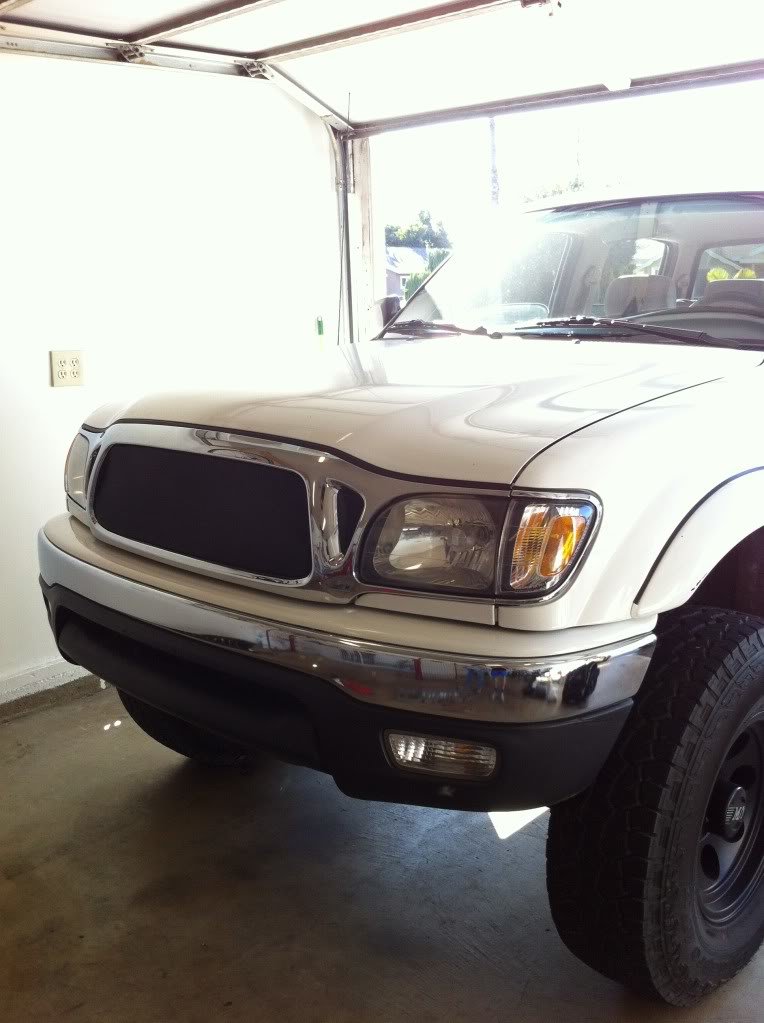

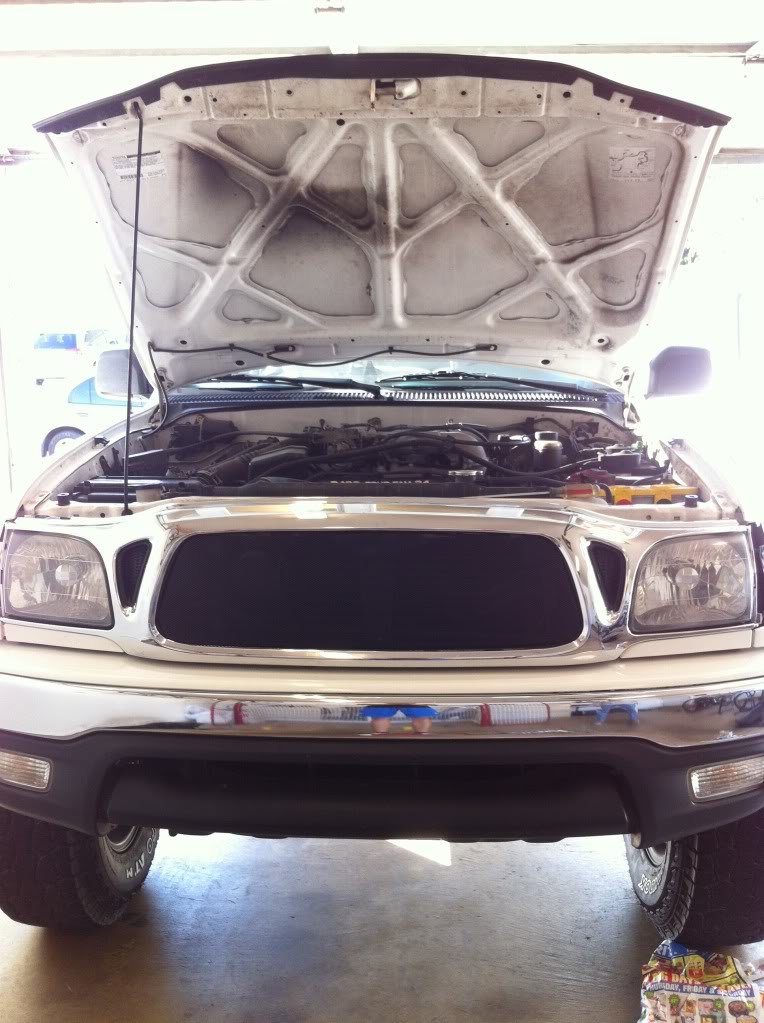

    [​IMG]

    [​IMG]
