How to: Paint HVAC controls

Discussion in '2nd Gen. Tacomas (2005-2015)' started by spithead051, Mar 3, 2012.

  1. Mar 3, 2012 at 7:54 PM
    #1
    spithead051

    spithead051 [OP] Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58359
    Messages:
    1,029
    Gender:
    Male
    First Name:
    Patrick
    Fairfax, VA
    Vehicle:
    09 AC 4x4 OR S/C'ed!
    Supercharger, ICON 2.5VS w/ CDC, TRD T/X Pro Wheels, 255/85/R16 BFG MT KM2's, APEX three hoop bumper, Smittybilt X20 Comp Gen 2, Allpro IFS skid, All-Pro Sliders, Dynomax exhaust, aFe Stage 2 si, URD 2.85 stealth pulley, Oil pressure, oil temperature, boost, A/F ratio gauges, Devil horns, WO seat covers
    So this idea came into my head after seeing the interior of some 2012 Tacomas and after Razorecko showed off his painted center console http://www.tacomaworld.com/forum/2nd-gen-tacomas/199234-re-did-my-shifter-console.html.

    After seeing (and performing) his mod I decided to work my way up the radio/HVAC stack and paint the rest of them black to match and figured I could make a small contribution to this great community.

    Here's what you'll need:
    - One or two small flat-head screwdrivers
    - One Phillips head screwdriver
    - A can of spray paint in the color you want. I used VHT Wrinkle Black

    1. The first thing you need to do is remove the HVAC control unit from the center console. I didn't take a picture of this but you will need one or two small screwdrivers to pry at the top and bottom to carefully work the module out. It can be tricky so be careful not to damage your dash!
    [​IMG]

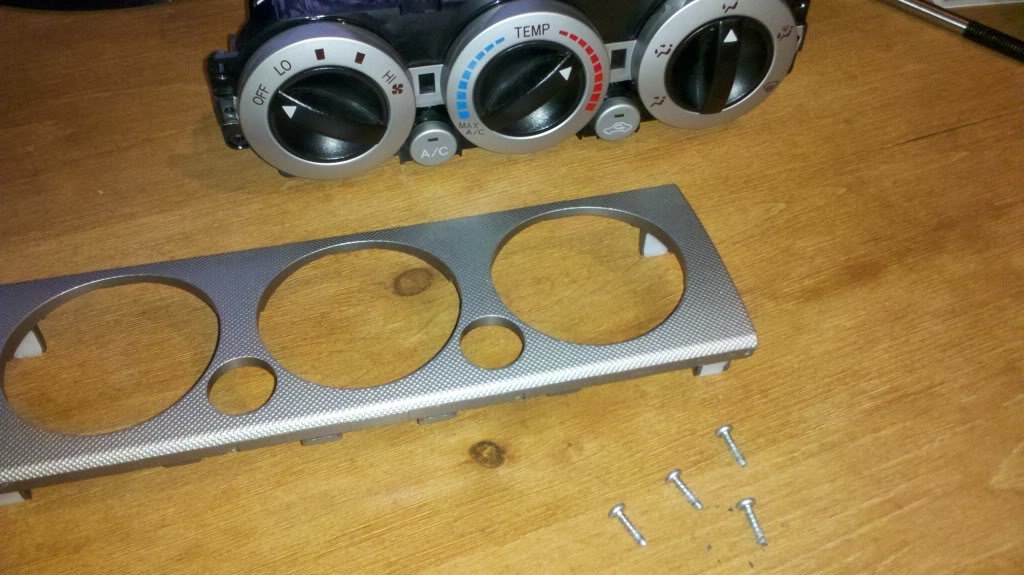

    2. Now that you have the module out you will need to separate knobs from the actual faceplate. There are four Philips screws that need to be removed and six tabs that will need to be undone with a small screwdriver. Here are two pictures of the screws and tabs:

    From the side with a view of the top:
    [​IMG]

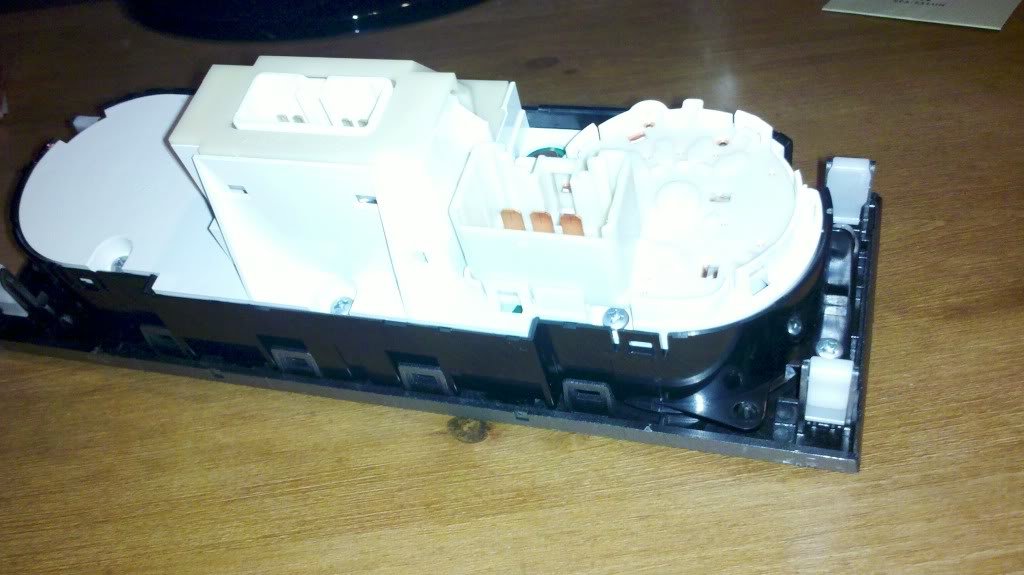

    From the back of the panel with a view of the bottom four tabs:

    [​IMG]

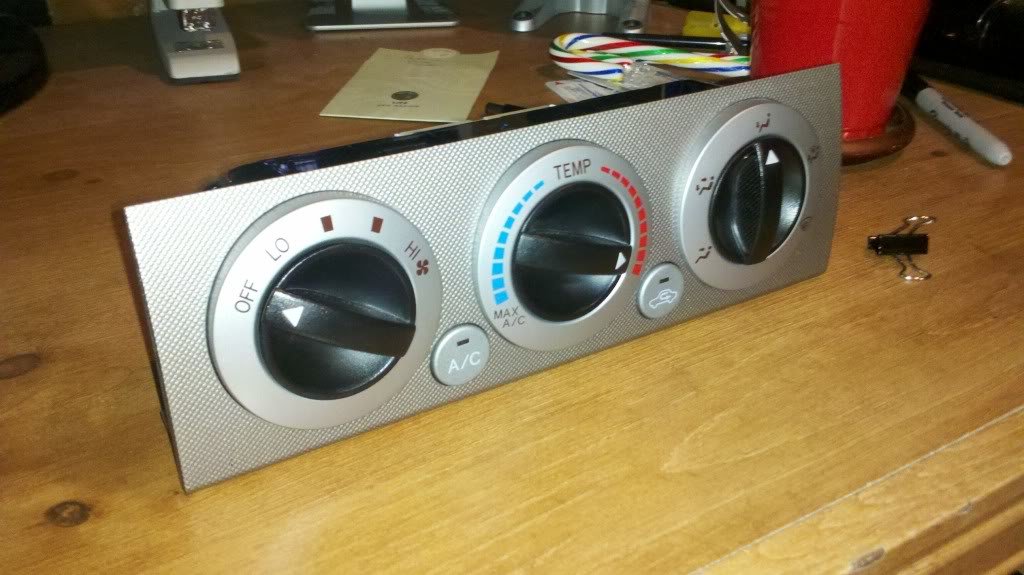

    And here are the two parts separated:

    [​IMG]

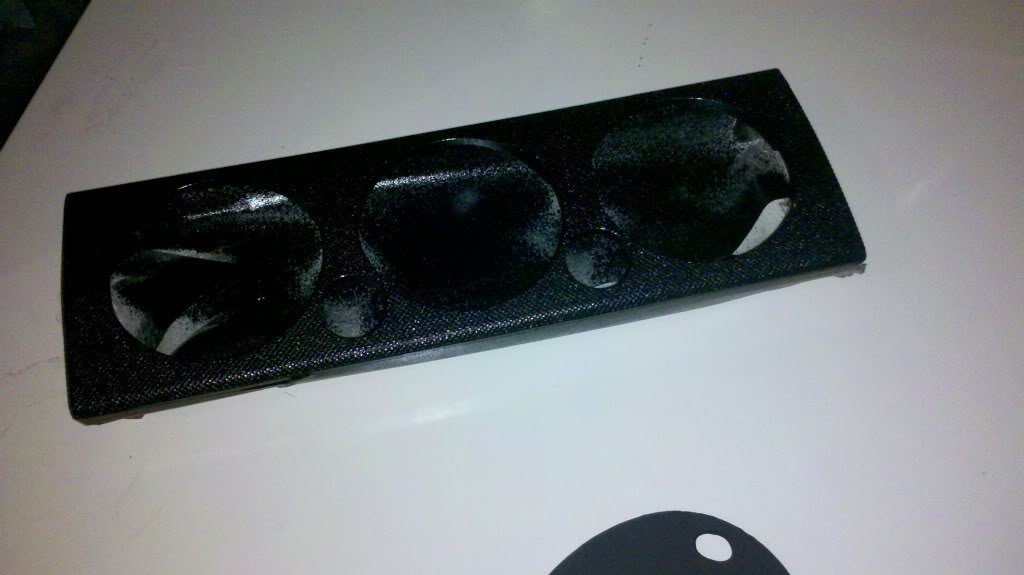

    3. Now you just need to mask off the sides and bottom to make sure you don't get paint on the backside (or not if you don't care, I'm a bit OCD) and paint the faceplate. Here's mine while it is waiting to dry overnight:

    [​IMG]

    After that, just wait for the paint to dry, re-attach the faceplate to the knobs and install in the truck.

    Here are the pictures of the finished product:

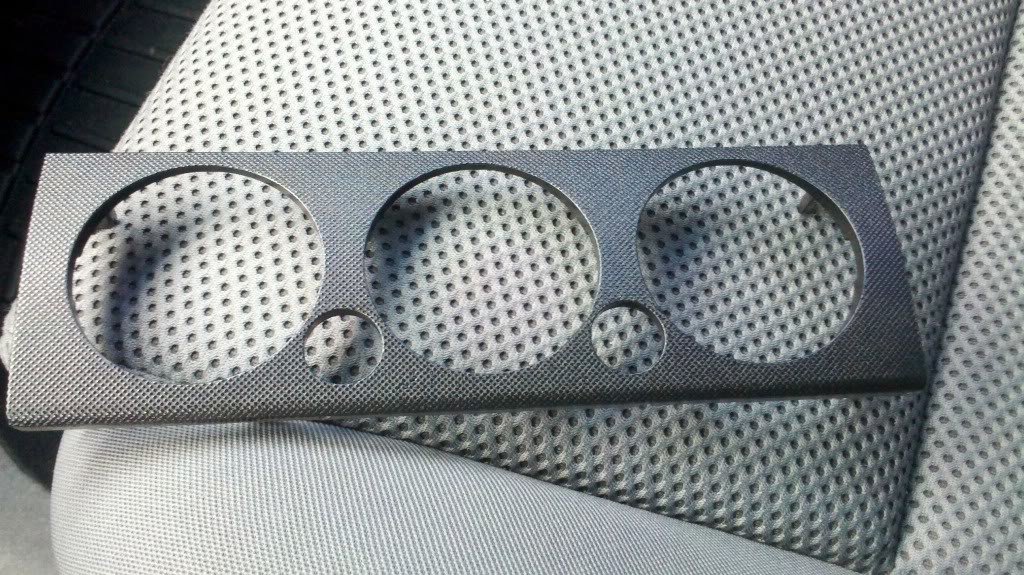

    Faceplate before it is installed, the light makes it look silver
    [​IMG]

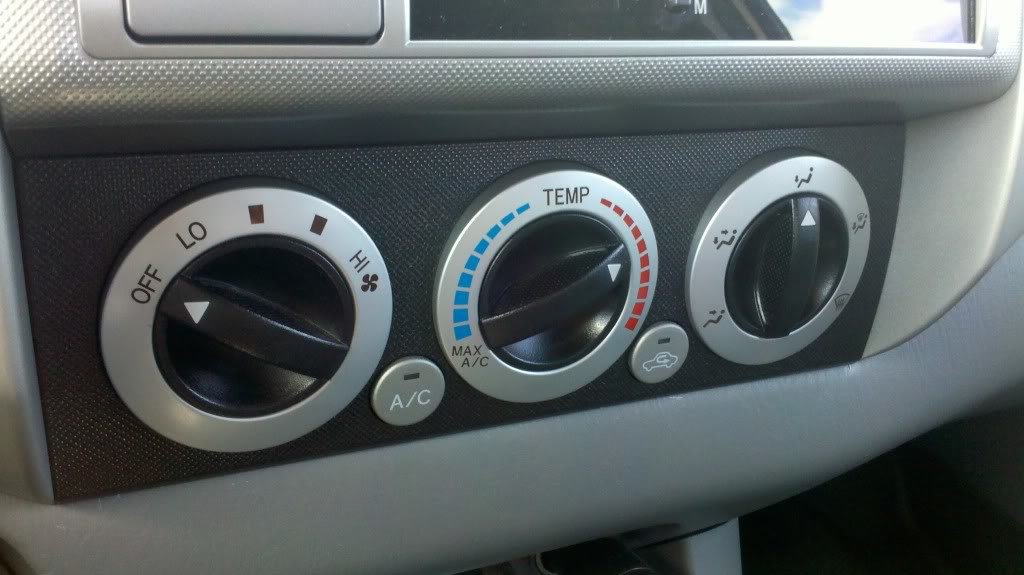

    Re-installed and back in place:
    [​IMG]

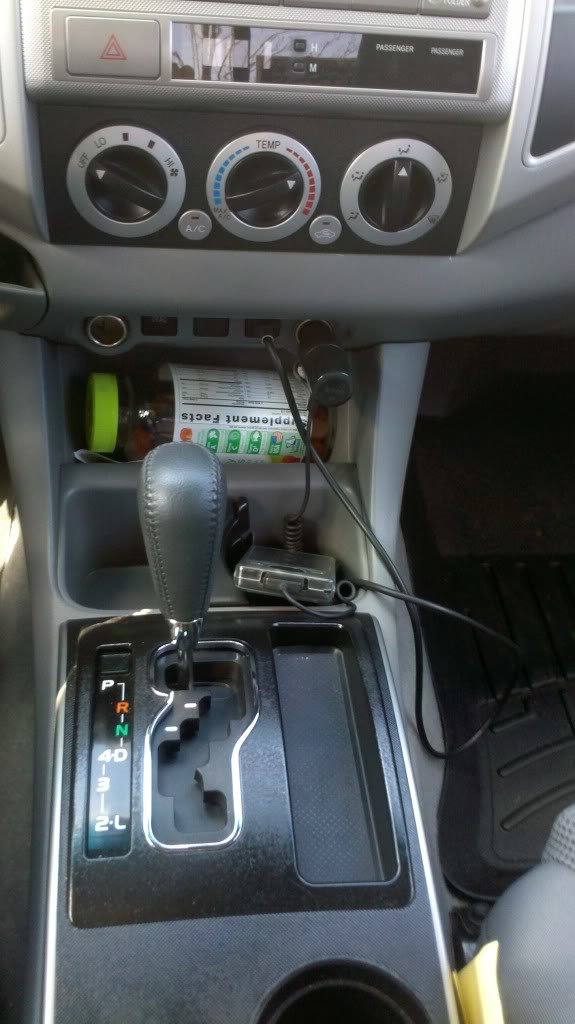

    Here is a picture of the console now, I am not painting the factory radio because I am getting an aftermarket one soon, I'll just paint the new kit:
    [​IMG]
