How To: Remove and disassemble side view mirrors

Discussion in 'Detailing' started by InTheRough, Mar 15, 2013.

  1. Mar 15, 2013 at 12:33 PM
    #1
    InTheRough

    InTheRough [OP] Well-Known Member

    Joined:
    Jan 29, 2013
    Member:
    #96438
    Messages:
    2,917
    Gender:
    Male
    First Name:
    Kolt
    Gig Harbor, WA
    Vehicle:
    08 BCSB TRD OR (it's gettin' there)
    Icon 2.5 Front/Rear, TC UCAs, Heated Leather Interior, LED tails, Doug Thorley LT headers, Borla Exhaust, Paintmatch (satoshi and engine cover), 2013 Touch Screen, SnugTop XTR w/ custom rotopax mount, ARB front bumper, HFF CMC and Sliders, Viair Dual compressors.
    I know not everyone likes the look of painted side mirrors but for those of you that do here is a good step-by-step for how to do just that. It took me about 10 to take this apart and put back together. Good luck.

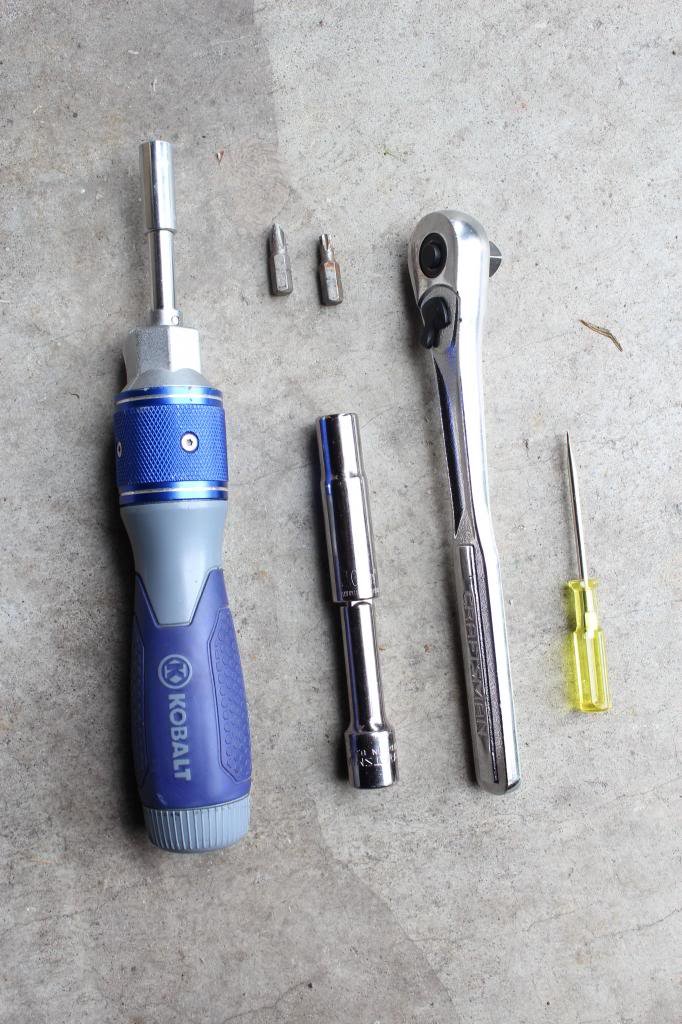

    Tools needed:
    10mm extended socket or short with an extension
    Small flat head screw driver
    Ratchet
    T-25 bit
    PH3 bit
    Driver

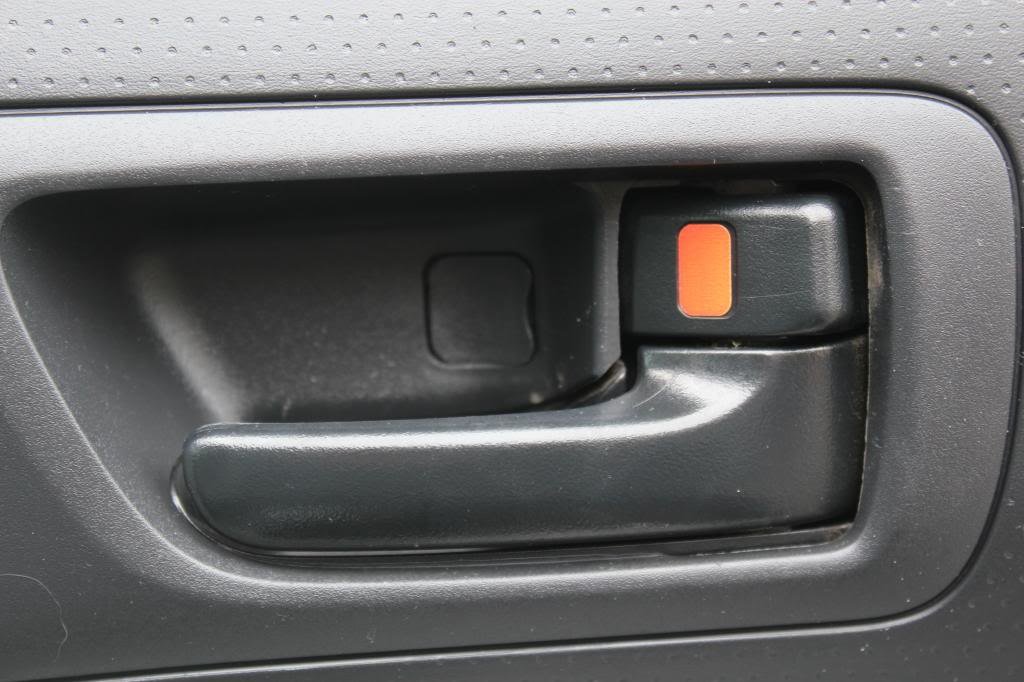

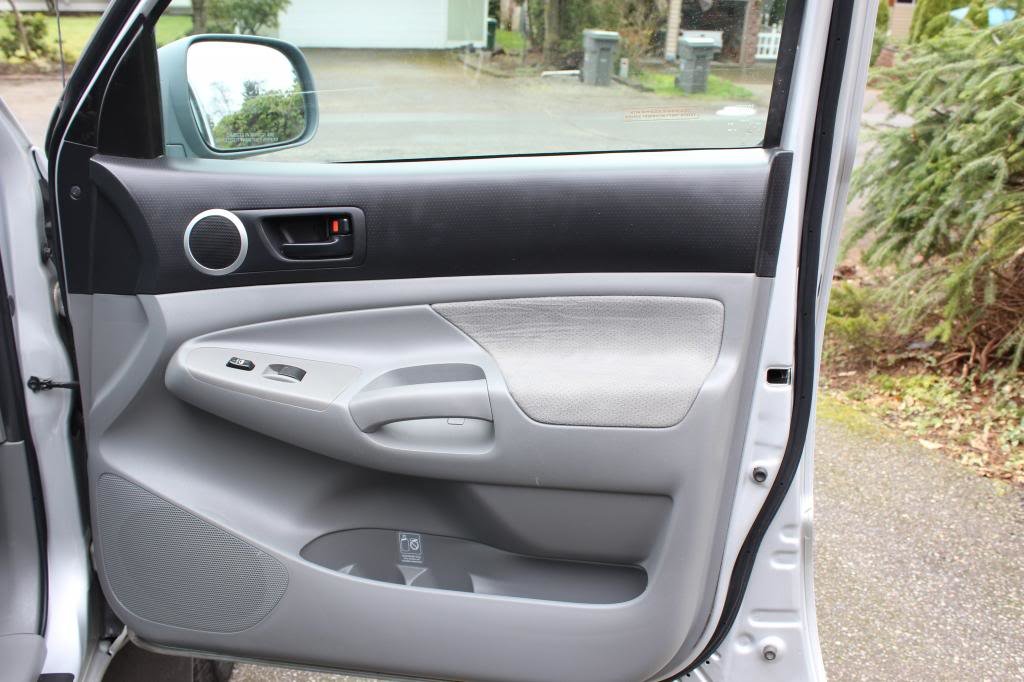

    Remove interior side view mirror cover by pulling away from the door:

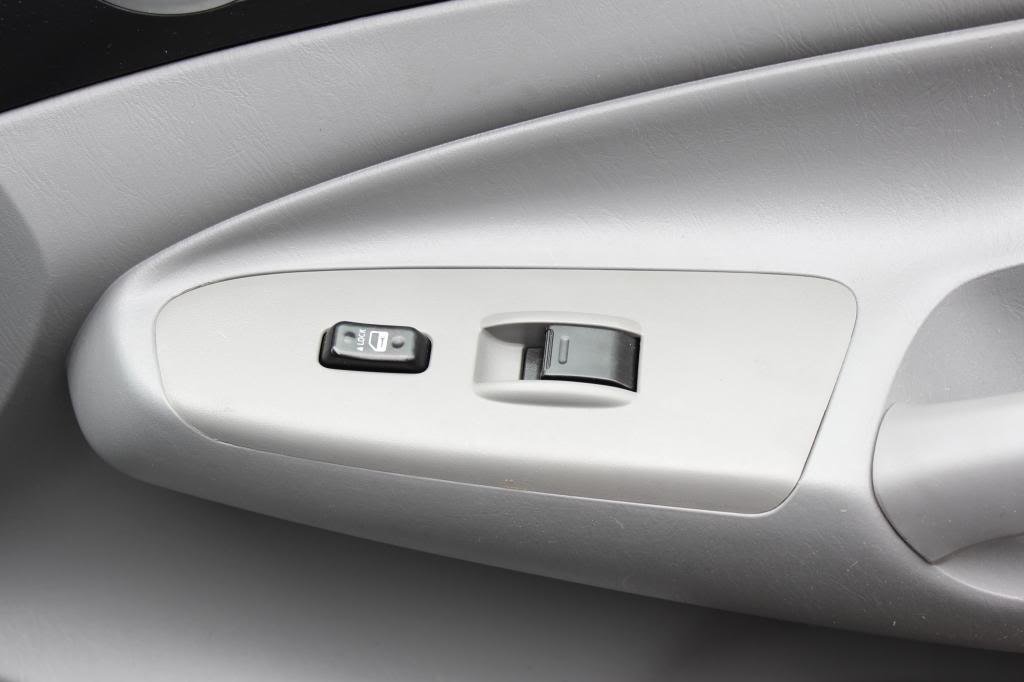

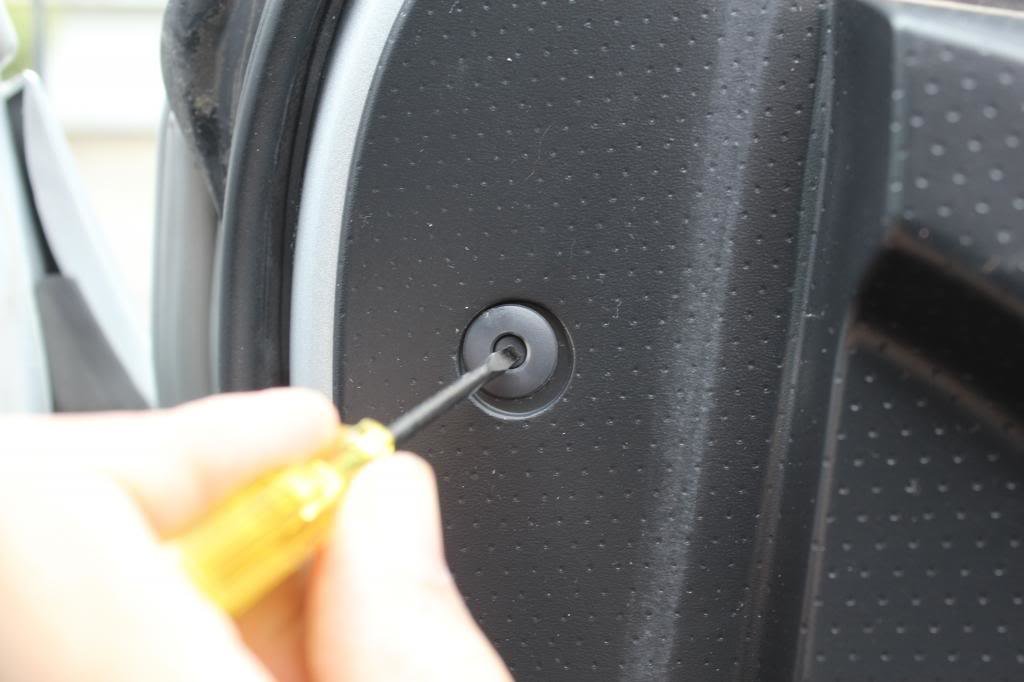

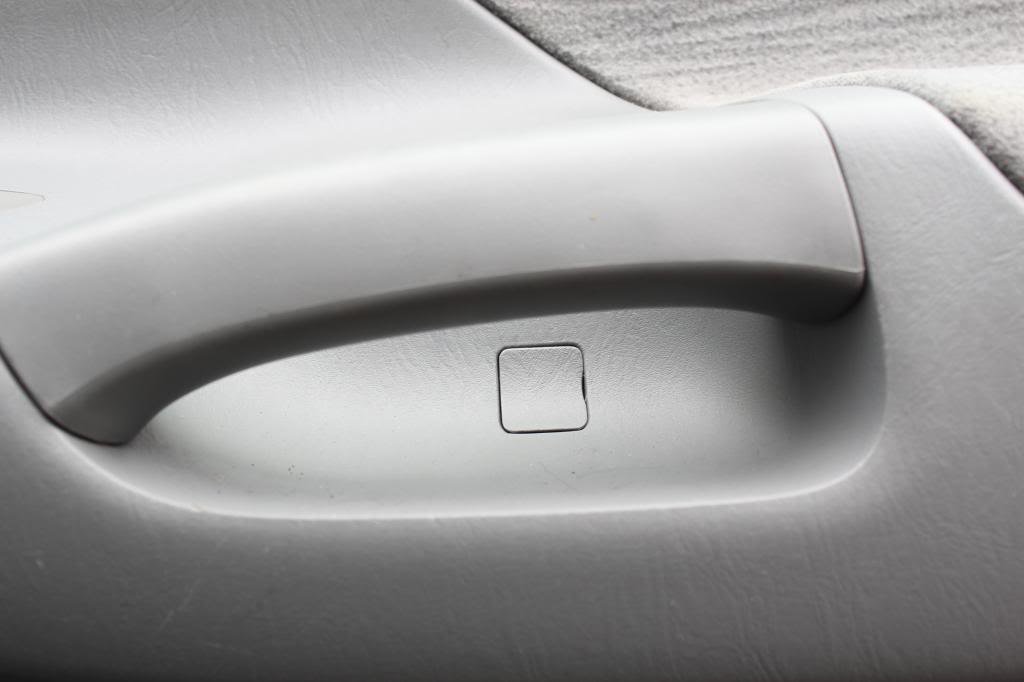

    Use flat head to reveal two Philips head screws in the door panel:

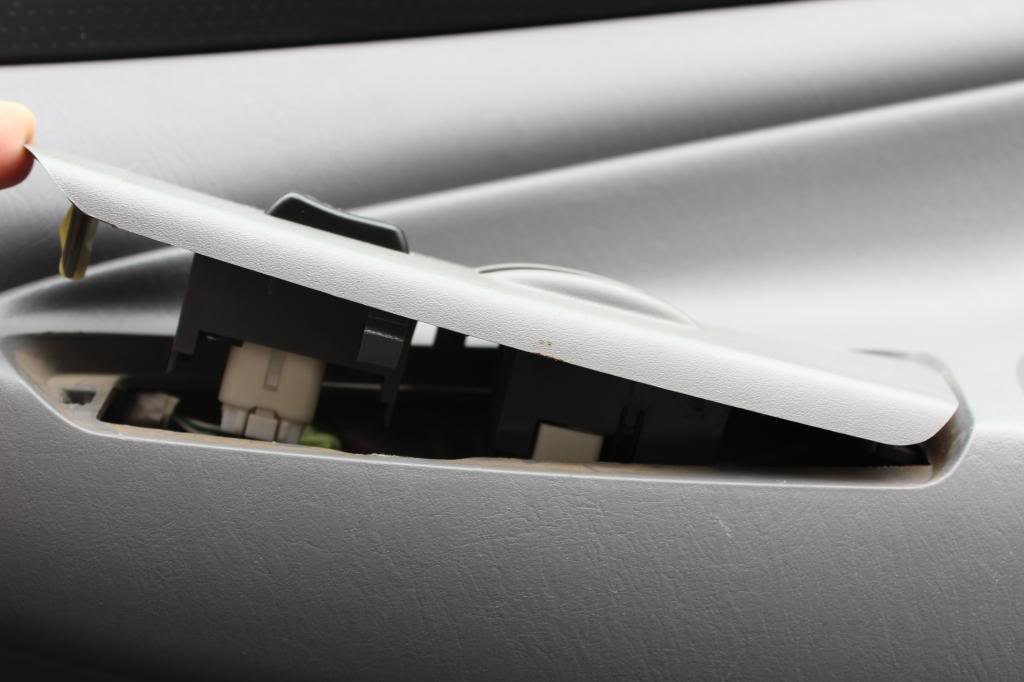

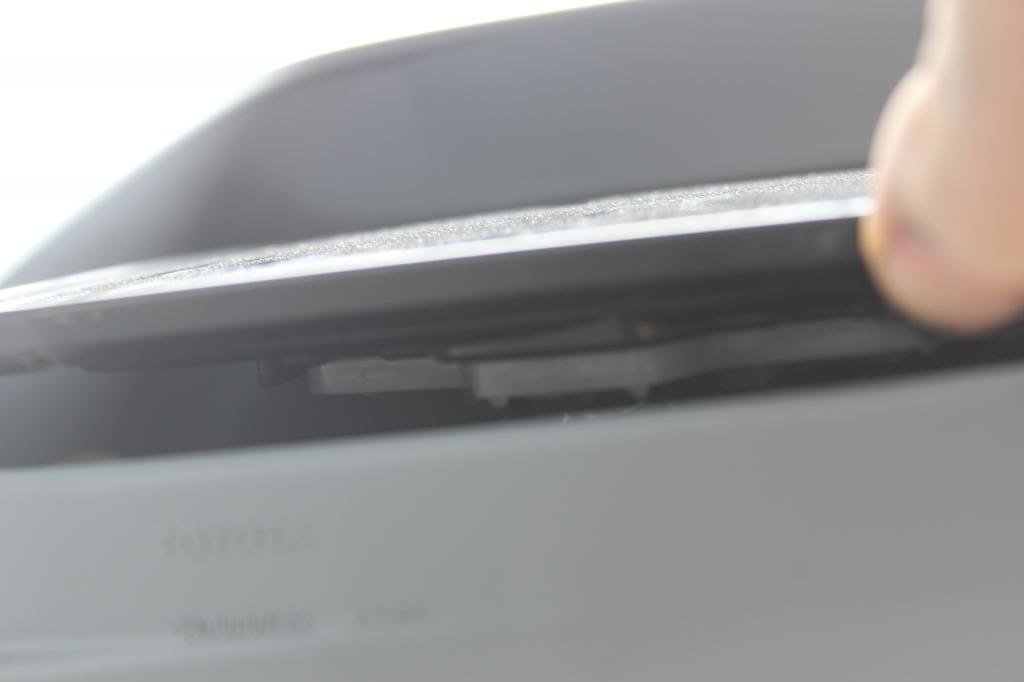

    Remove electronic panel by pulling up on the front then forward and up:


    Remove plastic clip by pushing in on the center then pulling it out:

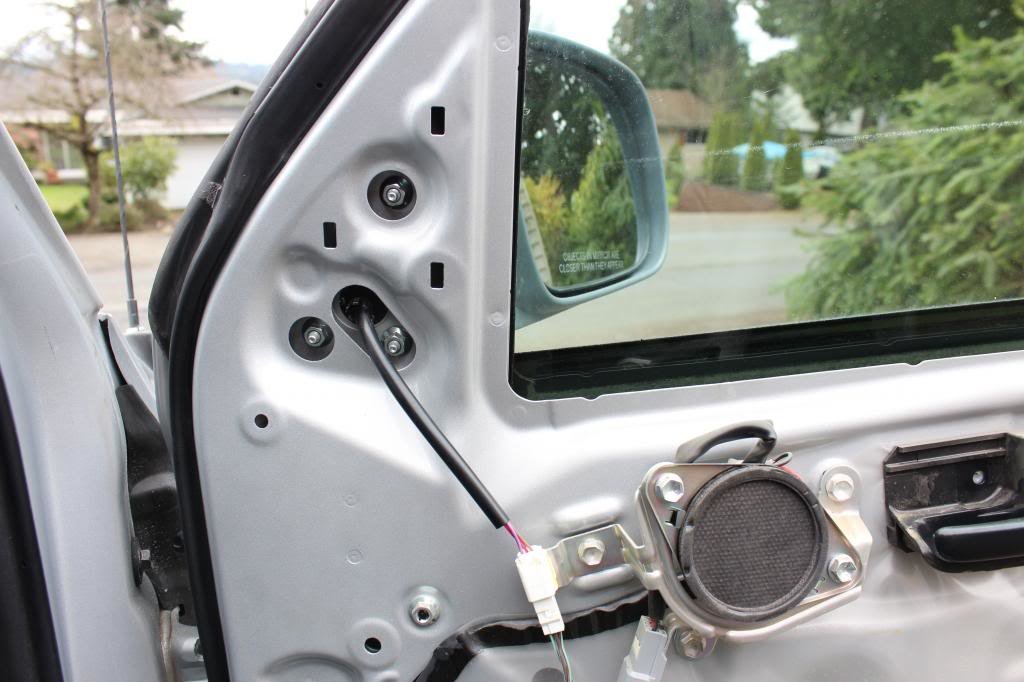

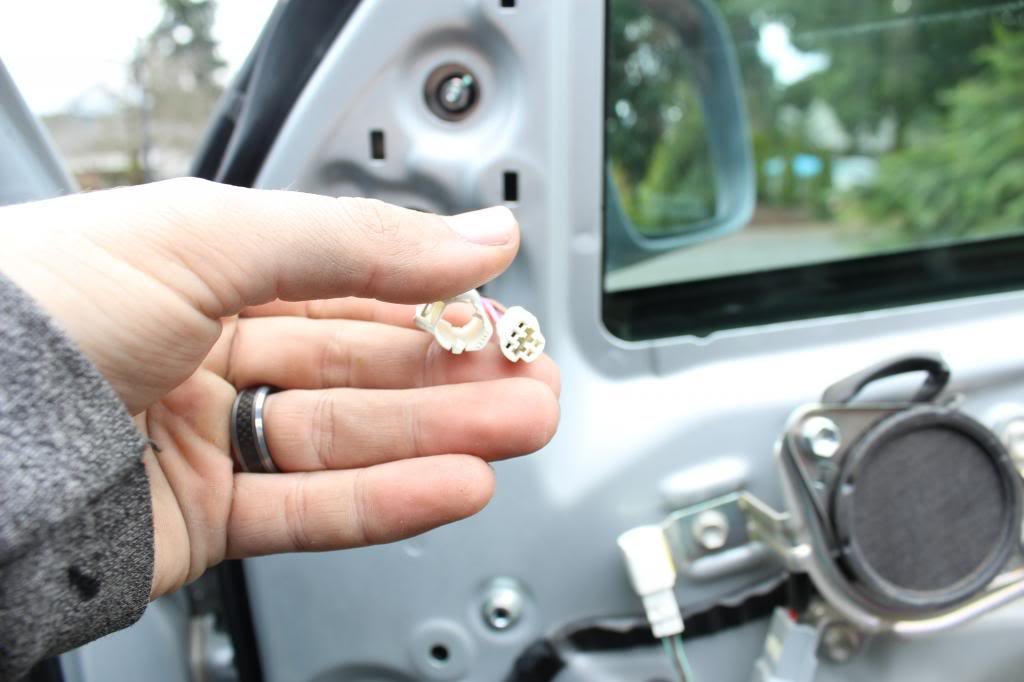

    Unplug wiring harness and adapter from side view mirror:


    Use flat head at the bottom of the mirror class to release two clips then pull mirror down and out:


    Use 10mm socket and rachet to remove the 3 bolts holding mirror to the door:

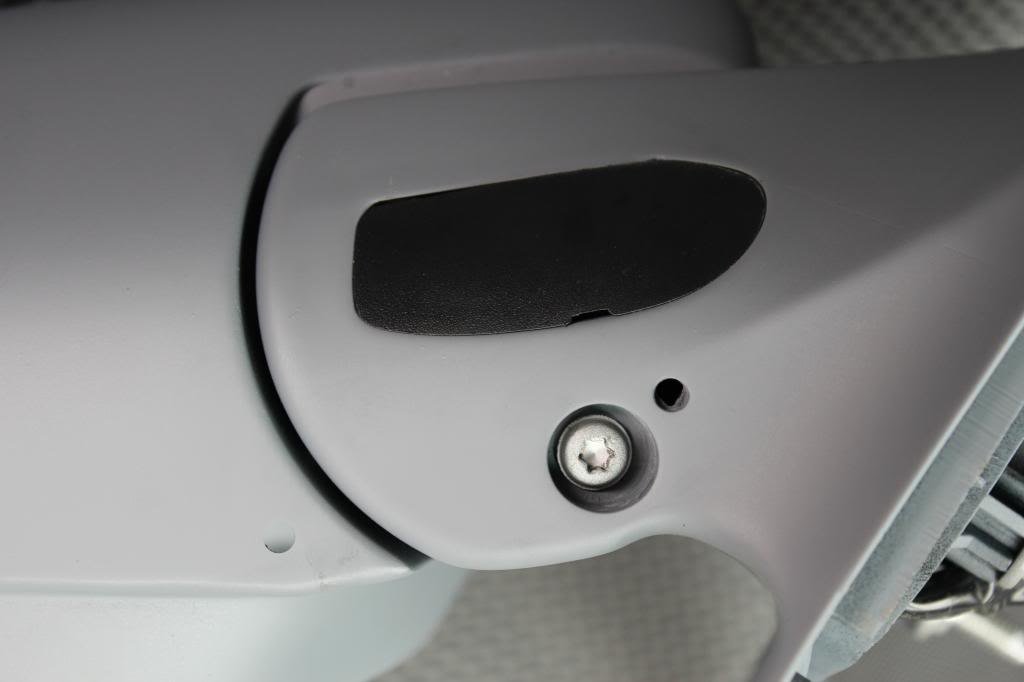

    Use Philips head to remove one screw holding plastic protector in place:

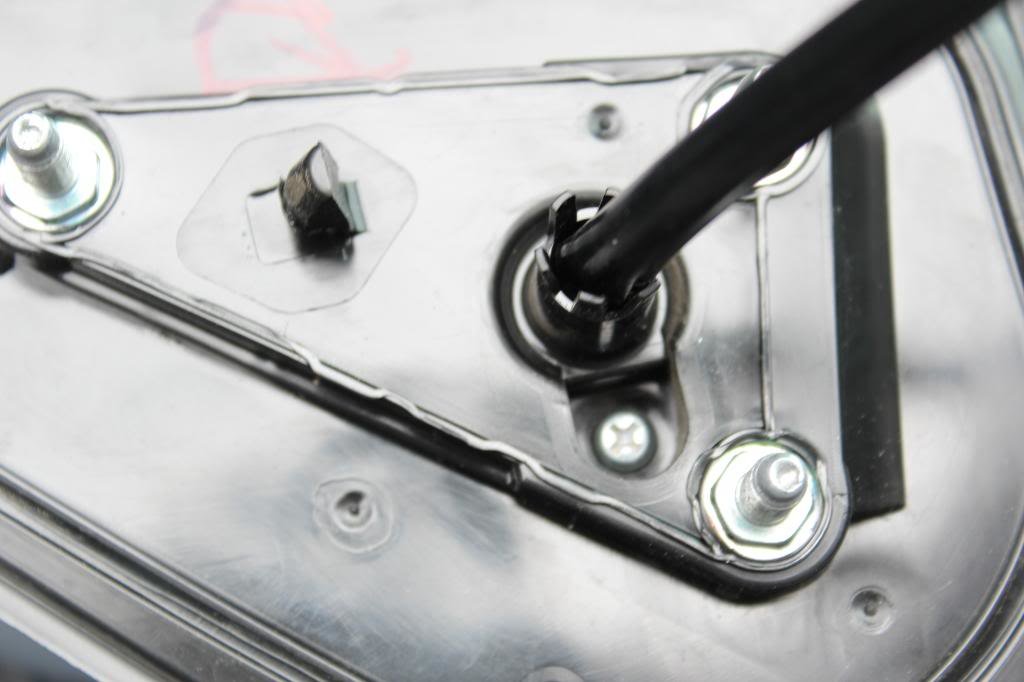

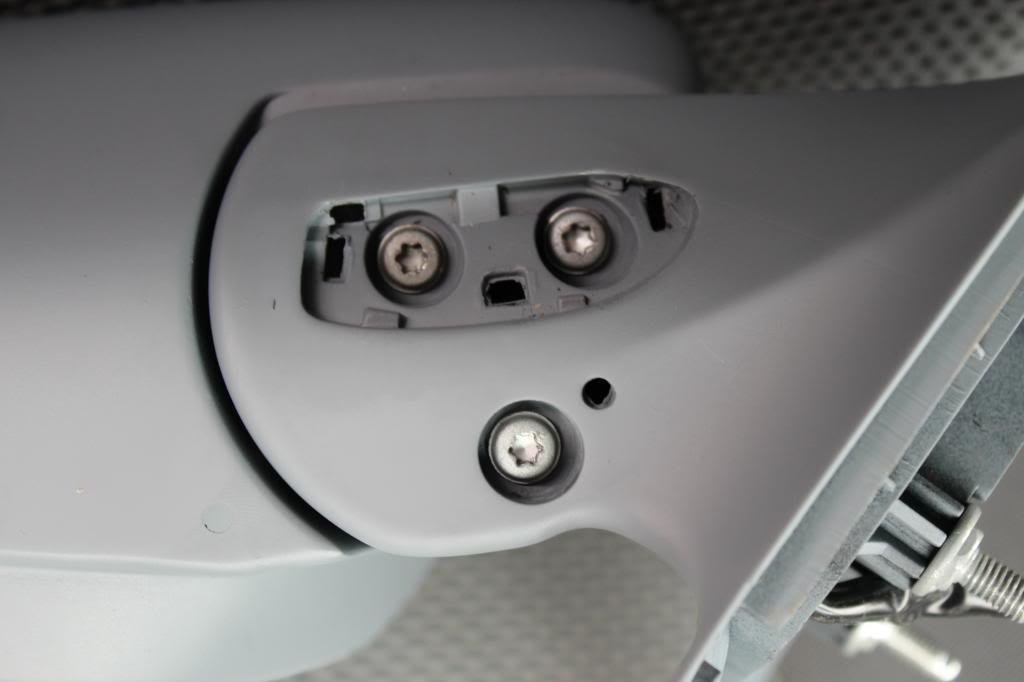

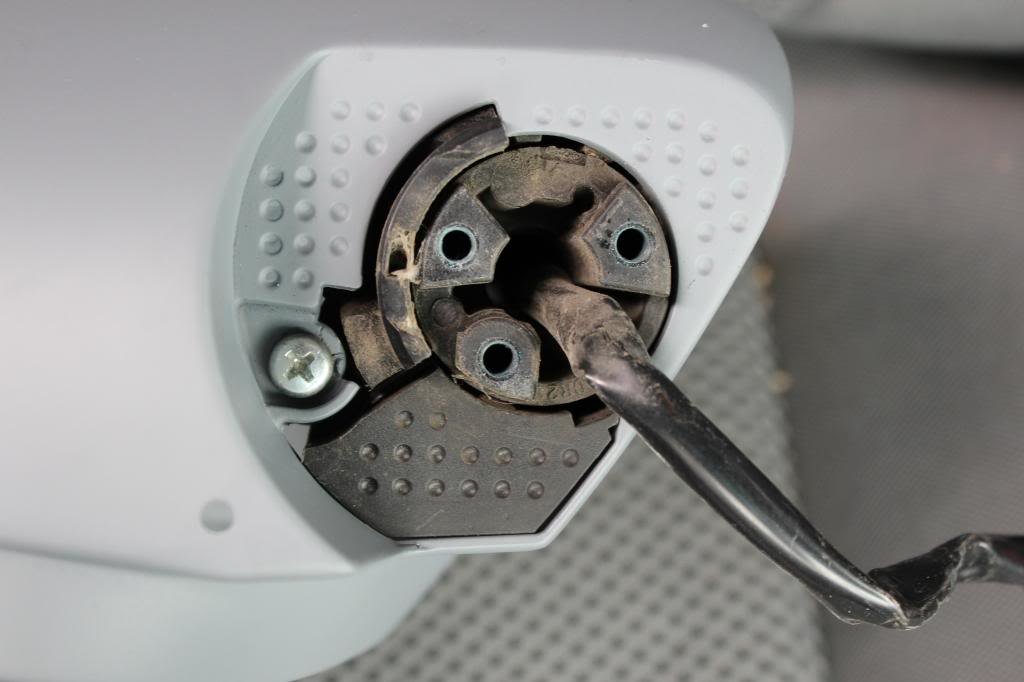

    Use flat head to remove plastic cover at the bottom of the mirror then remove 3 T-25 bolts:

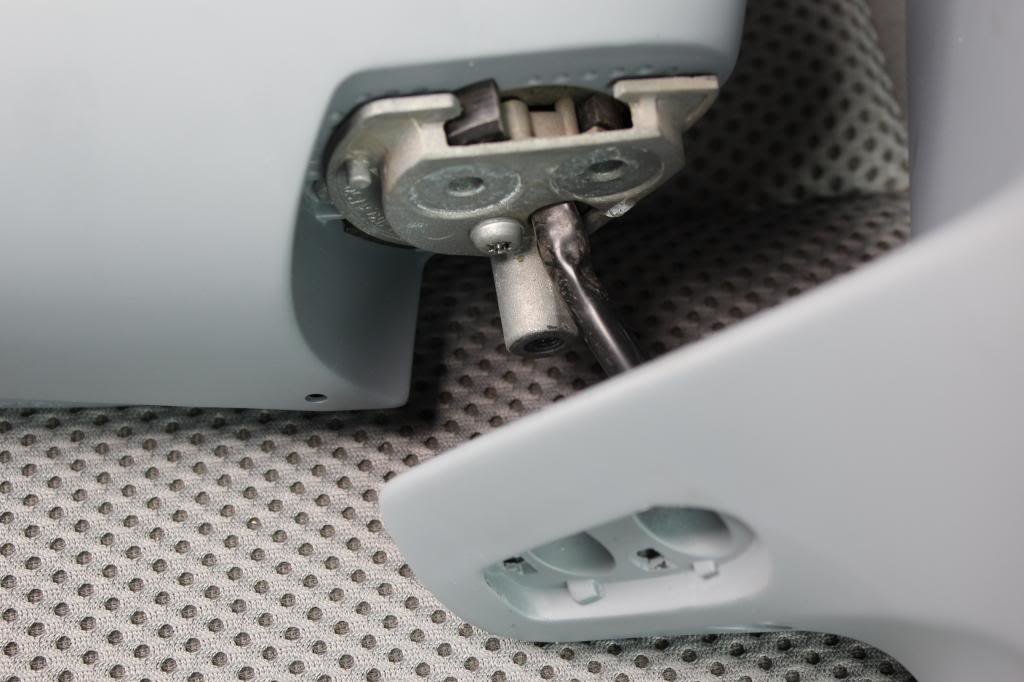

    Separate base from cover carefully and remove one T-25 bolt holding the metal piece in place:


    Use Philips head to remove 1 screw at the bottom of the cover:

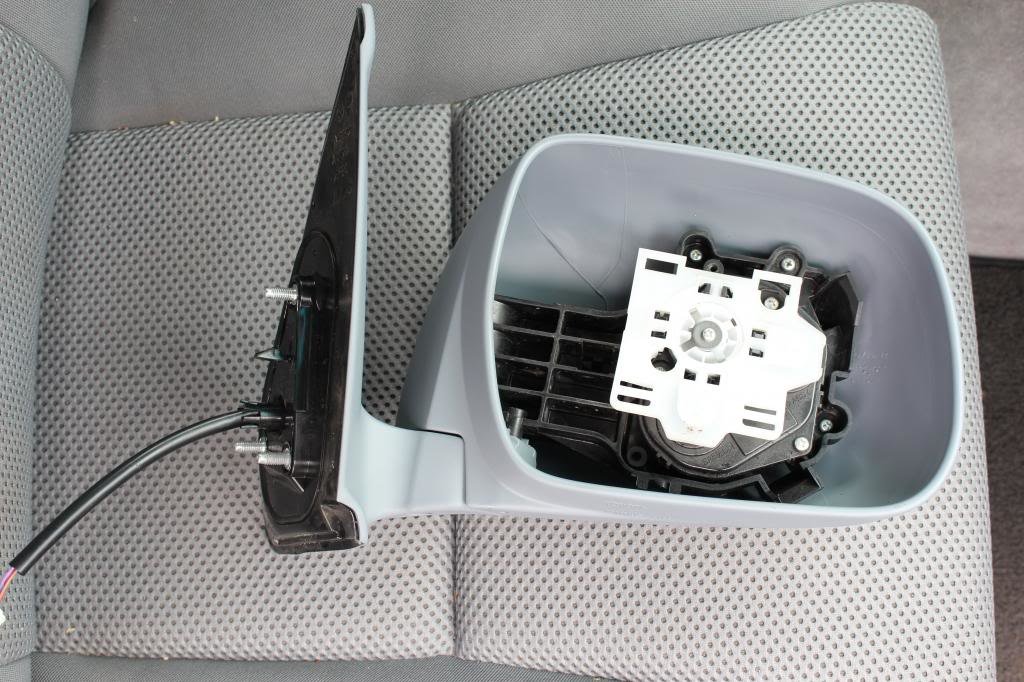

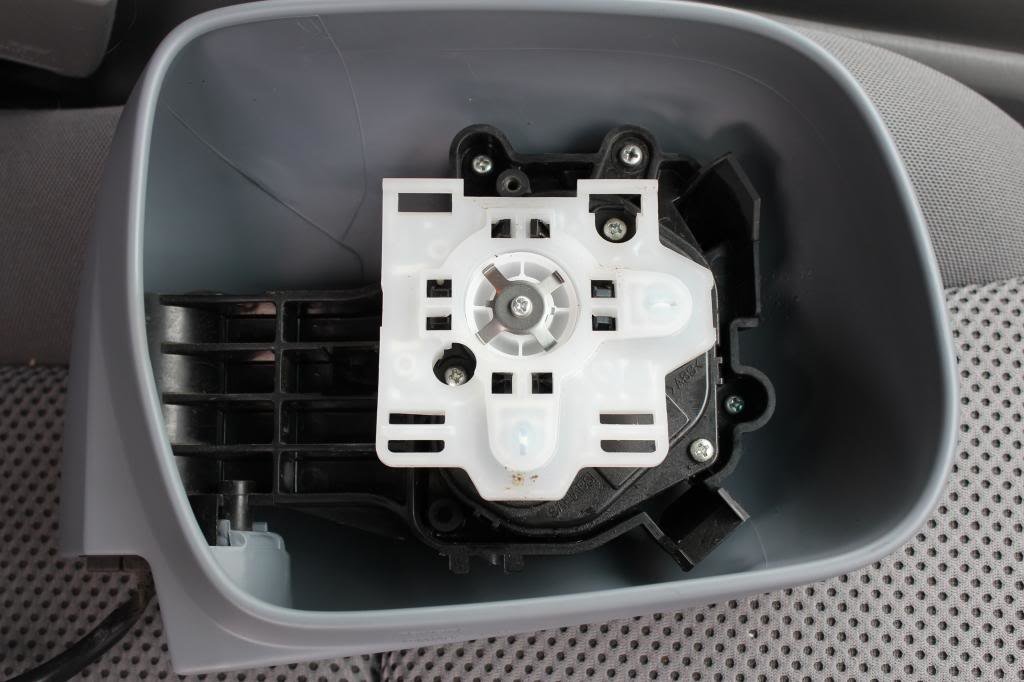

    Use Philips head to remove 3 screws inside the cover and remove mechanism:

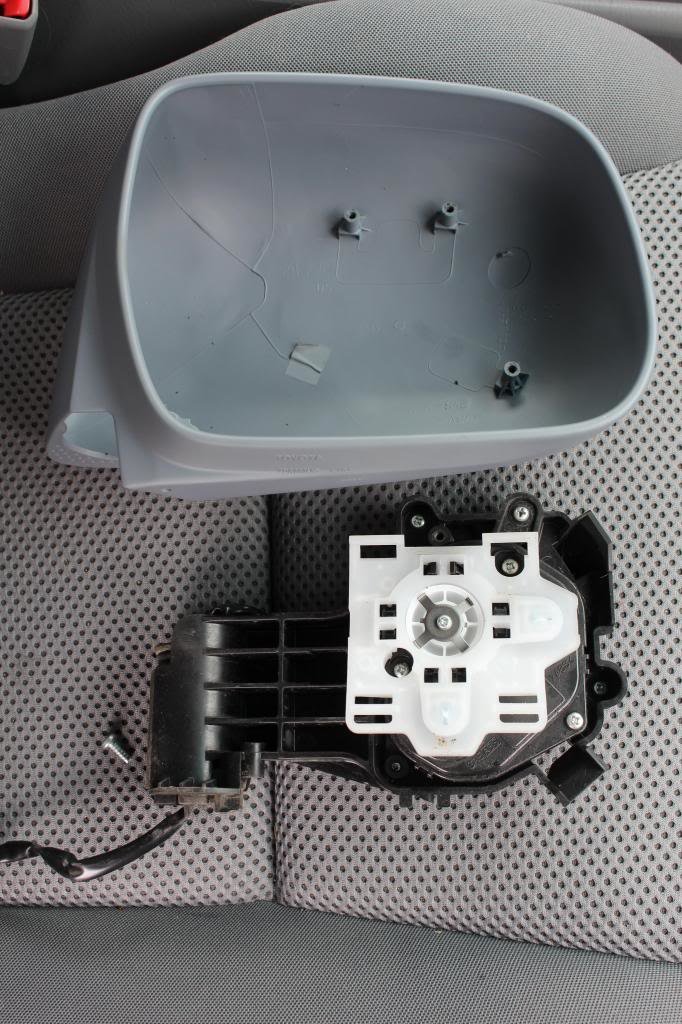

    DONE!
    Repeat steps on driver side for the same results.
    Follow steps in reverse to assemble everything.
