How to remove O2 sensor connector

Discussion in '1st Gen. Tacomas (1995-2004)' started by 95TacomaNewb, Aug 14, 2025 at 4:29 PM.

  1. Aug 14, 2025 at 4:29 PM
    #1
    95TacomaNewb

    #1
    95TacomaNewb [OP] Well-Known Member

    Joined:
    Dec 26, 2023
    Member:
    #440288
    Messages:
    65
    Vehicle:
    1995 Taco, V6 Supercharged, 4x4 Manual
    1995 Tacoma V6

    I'm getting code P0136 and want to test the downstream O2 sensor but having trouble removing it and don't want to break 30 year old plastic. It looks like there is a tab I need to press with a screwdriver on the right side of this photo - is that correct? And if so do I push the tab in towards the middle of the connector, or towards the outside?


    95TacomaNewb, Aug 14, 2025 at 4:29 PM
    #1
  2. Aug 14, 2025 at 4:31 PM
    #2
    02hilux

    #2
    02hilux What do you mean there’s no road, I’m here

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    6,354
    Planet: EARTH
    02hilux, Aug 14, 2025 at 4:31 PM
    #2
  3. Aug 14, 2025 at 4:39 PM
    #3
    02hilux

    #3
    02hilux What do you mean there’s no road, I’m here

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    6,354
    Planet: EARTH
    But yes, the clip is what holds the pigtail together

    02hilux, Aug 14, 2025 at 4:39 PM
    #3
  4. Aug 14, 2025 at 4:41 PM
    #4
    95TacomaNewb

    #4
    95TacomaNewb [OP] Well-Known Member

    Joined:
    Dec 26, 2023
    Member:
    #440288
    Messages:
    65
    Vehicle:
    1995 Taco, V6 Supercharged, 4x4 Manual
    Thanks, do I press the clip towards the outside of the connector? I can't tell if the clip is on the O2 sensor side of the connector.

    95TacomaNewb, Aug 14, 2025 at 4:41 PM
    #4
  5. Aug 14, 2025 at 4:45 PM
    #5
    02hilux

    #5
    02hilux What do you mean there’s no road, I’m here

    Joined:
    Sep 14, 2016
    Member:
    #197244
    Messages:
    6,354
    Planet: EARTH
    IIRC, the push tab/clip is on the body harness side. You pressed it in to lift the tab up from the latch. The latch is on the sensor pigtail side. A little elbow grease (wiggle) while holding both connector should do it.

    02hilux, Aug 14, 2025 at 4:45 PM
    #5
  6. Aug 14, 2025 at 4:47 PM
    #6
    TnShooter

    #6
    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,363
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK

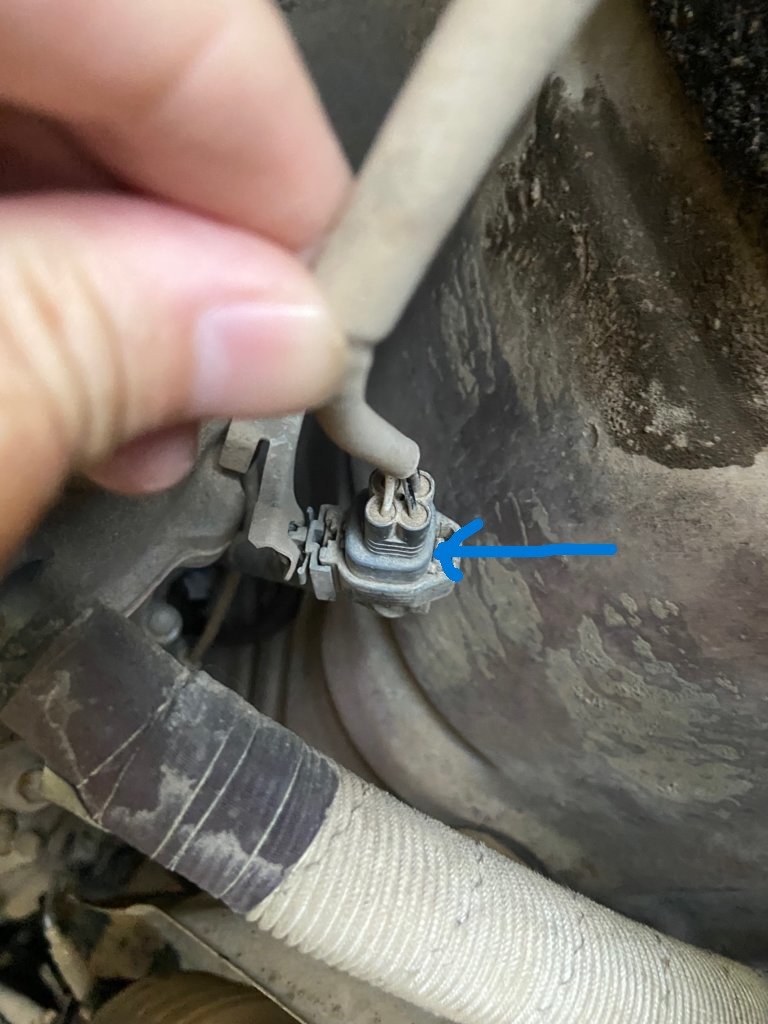

    CAREFULLY slide a THIN small flat blade screw driver between the connector at the arrow in the picture below.
    Then pull out on the connector.

    There is actually a button you press on the back of the connector that "pivots" and releases the clip.
    But once they get old, they get hard and don't pivot too good.


    TnShooter, Aug 14, 2025 at 4:47 PM
    #6
    ControlCar likes this.
  7. Aug 14, 2025 at 4:54 PM
    #7
    95TacomaNewb

    #7
    95TacomaNewb [OP] Well-Known Member

    Joined:
    Dec 26, 2023
    Member:
    #440288
    Messages:
    65
    Vehicle:
    1995 Taco, V6 Supercharged, 4x4 Manual
    Success! Thank you both

    95TacomaNewb, Aug 14, 2025 at 4:54 PM
    #7
    ControlCar likes this.
